Its that time of year again so I'd thought I'd start a progress thread to help keep me motivated. I bought this car last summer as a nicer project car for me to work on and eventually be able to drive. My goal for this summer is to repair all the rust on the car and to get it running. I'll end up painting it down the road either the original Marathon Blue Metallic or Ravenna Green. I've been collecting parts all winter so hopefully I should be good to go. I've done a little work on it already but I'll bring everyone up to date. Feel free to comment, ask questions, make suggestions, tell me what I'm doing wrong or anything else for that matter. Enjoy!

Here is the car when I first picked it up. The car came fully optioned and even came with SS heat exchangers and a running two liter engine. The car was wrecked at some point and had a crappy repair done to it but I am still trying to figure out what happened. Both the driver's front corner and the driver's rear corner had damage but the door and rear quarter seem fine. I will find out more once I start stripping some paint and bondo. (IMG:style_emoticons/default/dry.gif)


Attached Image

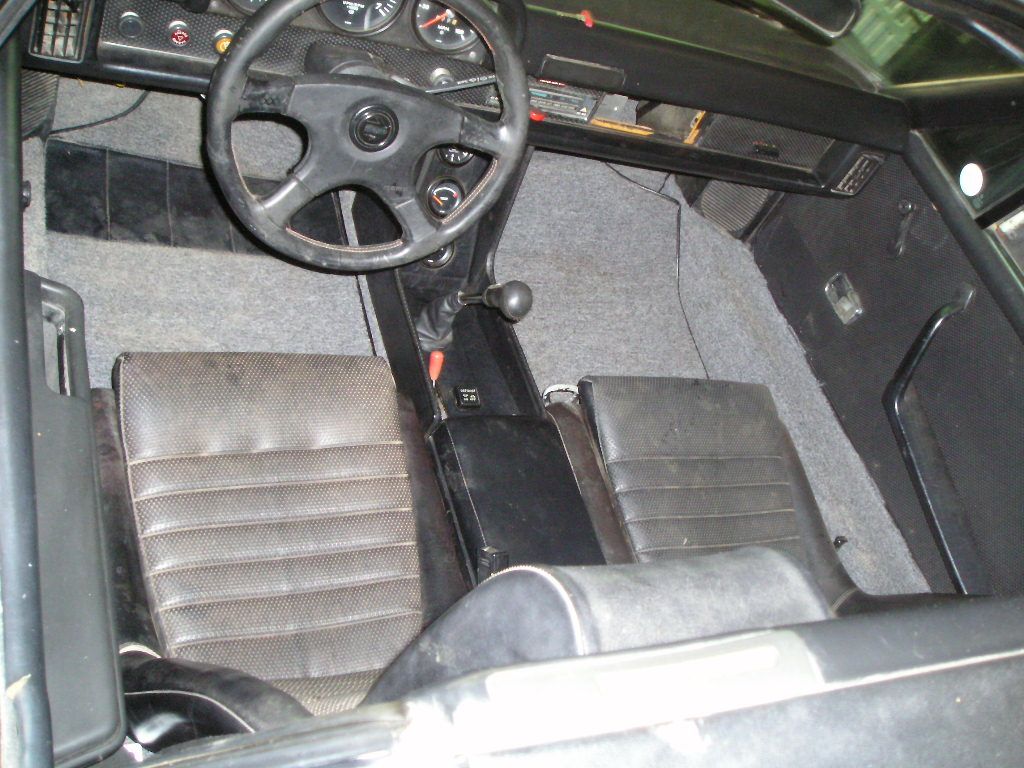

The interior was about a 4 on a 10 scale however the dash is crack free! (IMG:style_emoticons/default/piratenanner.gif)
Attached Image

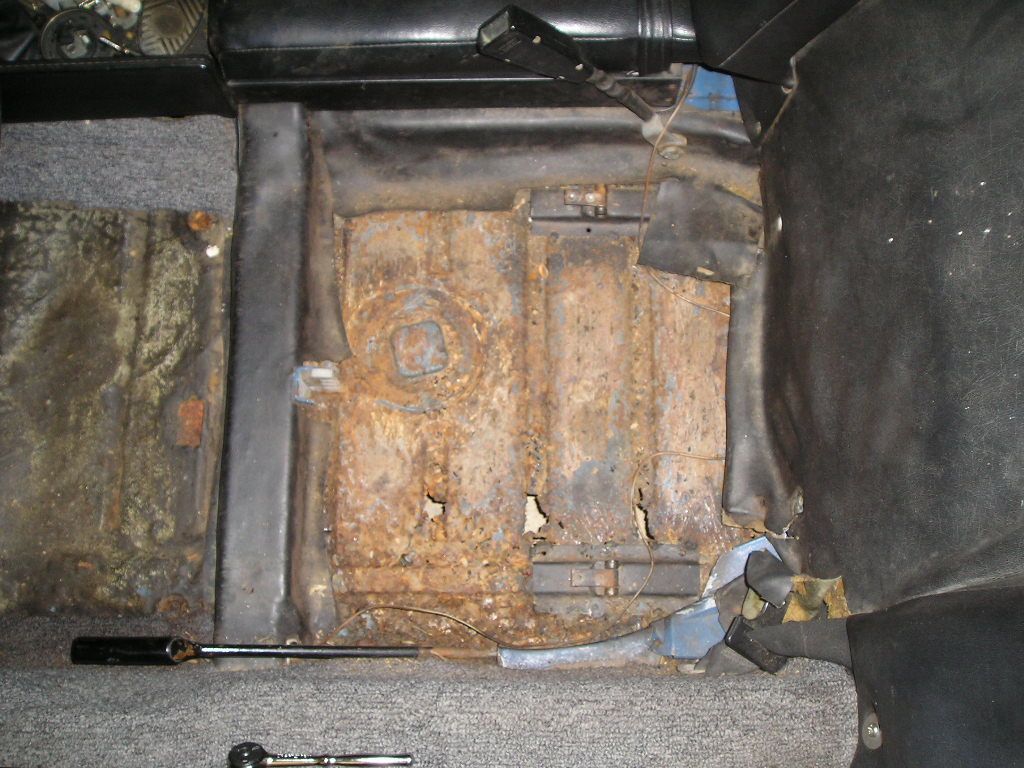

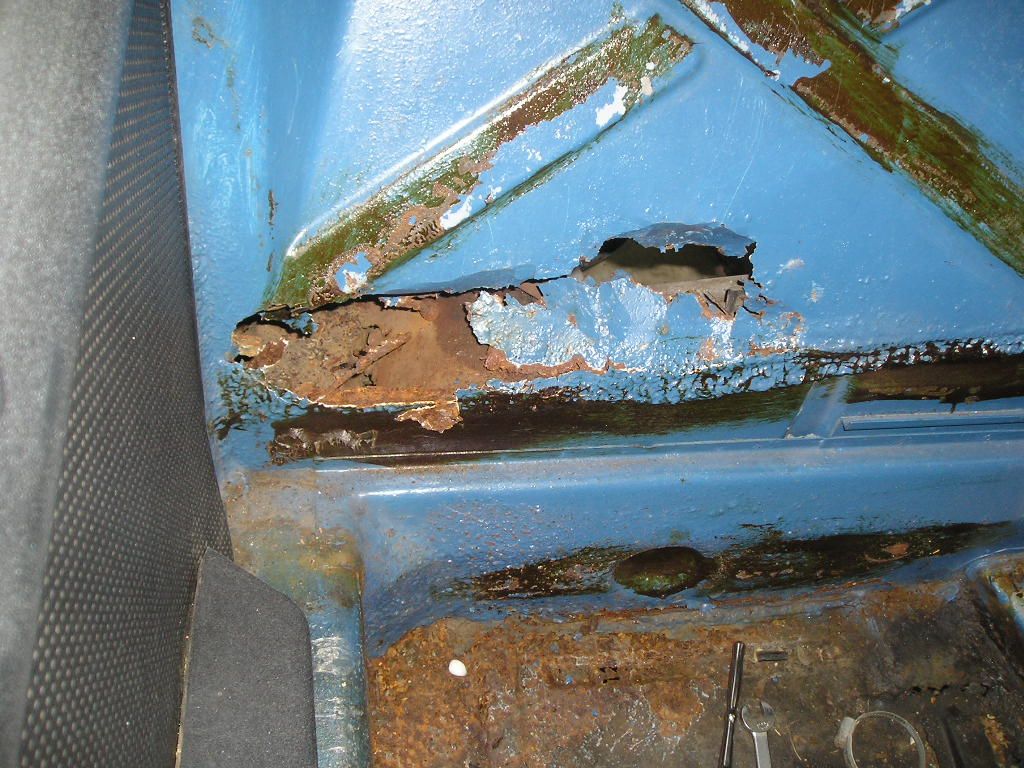

The rear floor pan is shot and I knew that before I bought the car. The previous owner patched the floor at some point and installed three new seat brackets over the bad metal. (IMG:style_emoticons/default/dry.gif) I ordered a new floor pan and a fourth seat bracket from AA today.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Apr 30 2009, 05:57 PM
Post #2


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



I couldn't help myself but see what it would look like with a nicer interior (IMG:style_emoticons/default/biggrin.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Apr 30 2009, 06:08 PM
Post #3


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

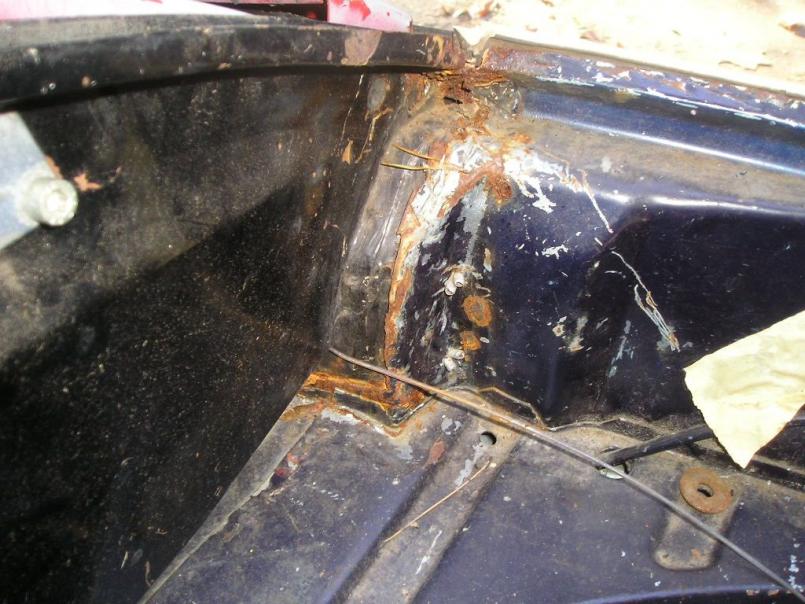

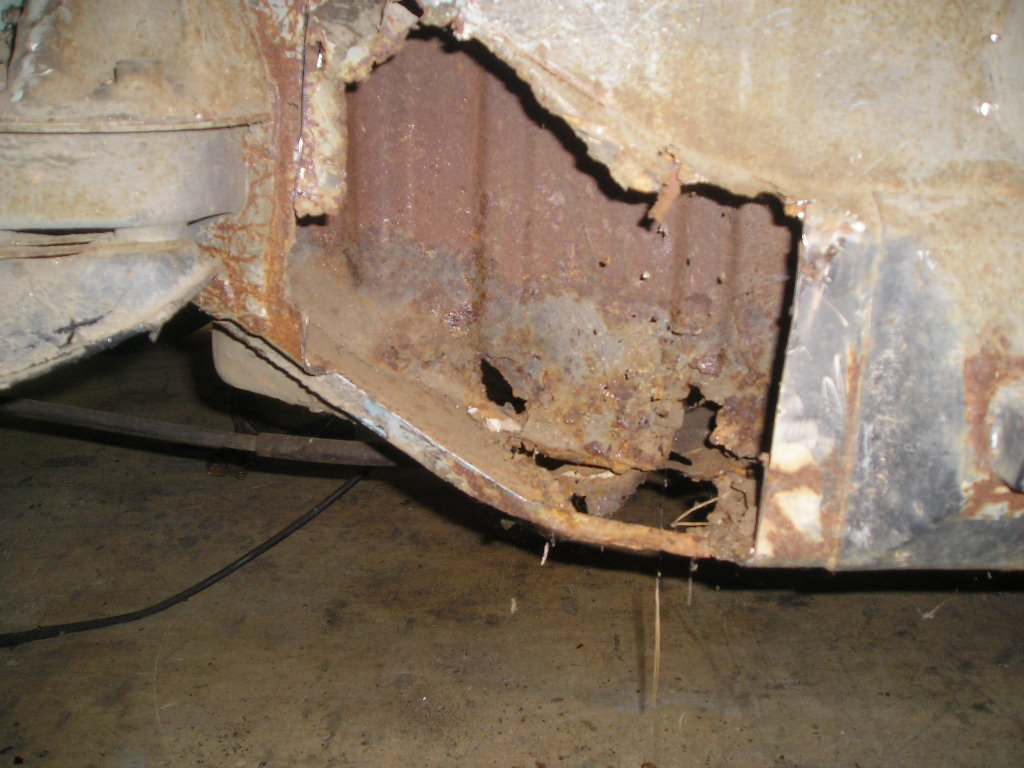

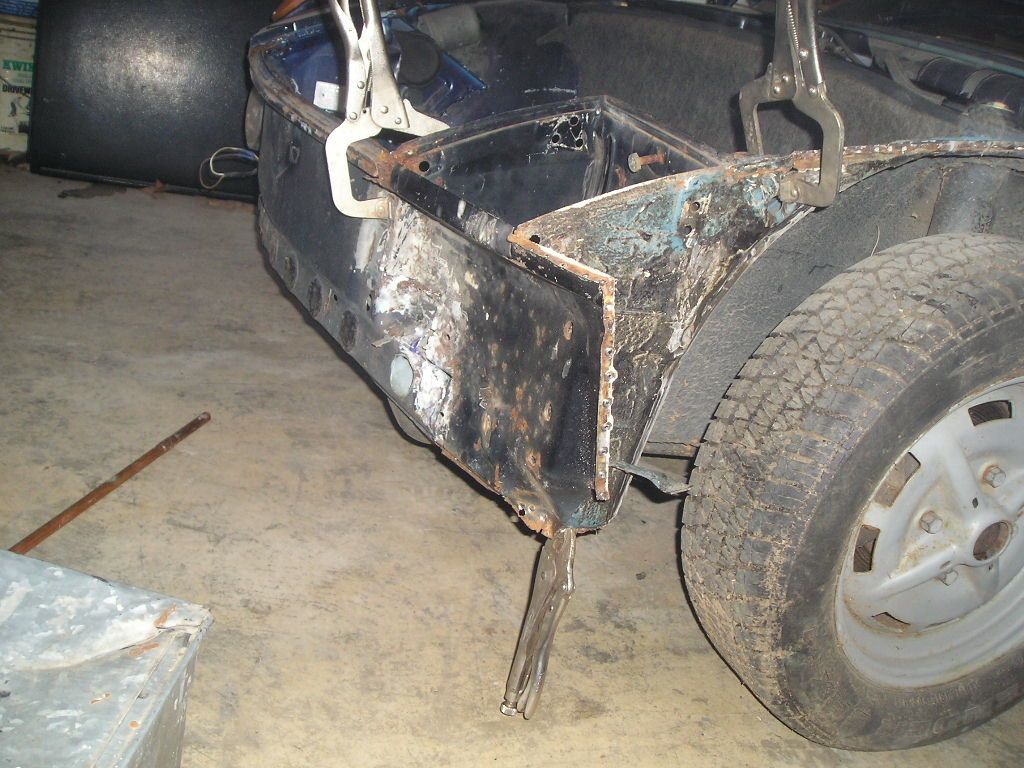

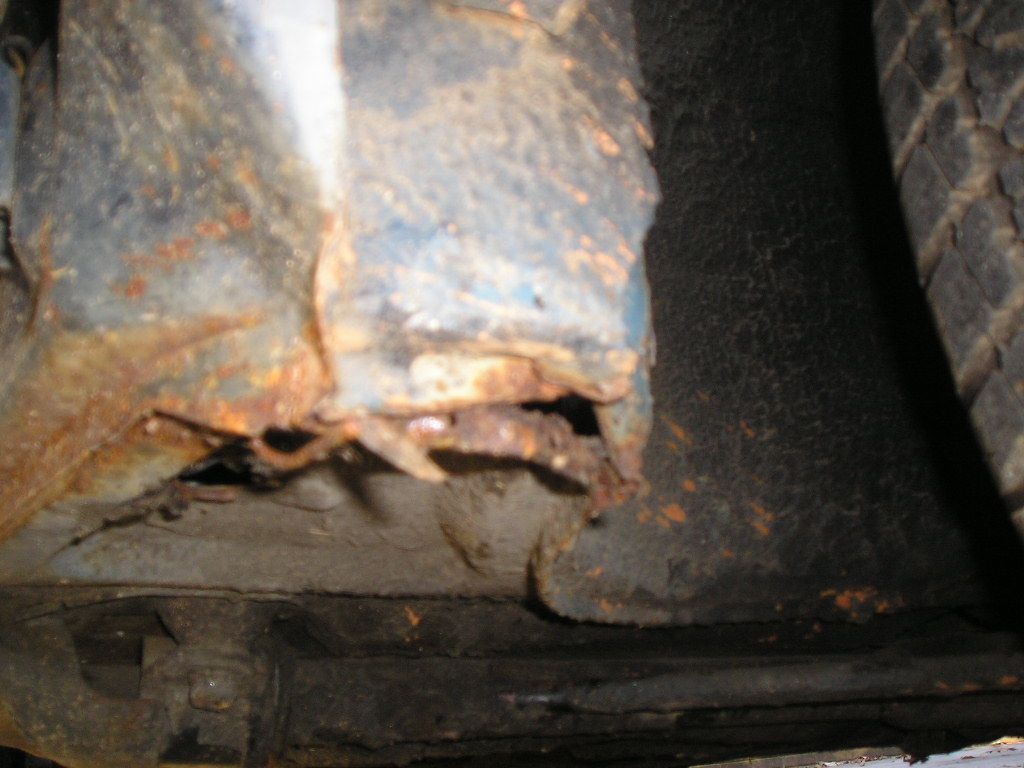

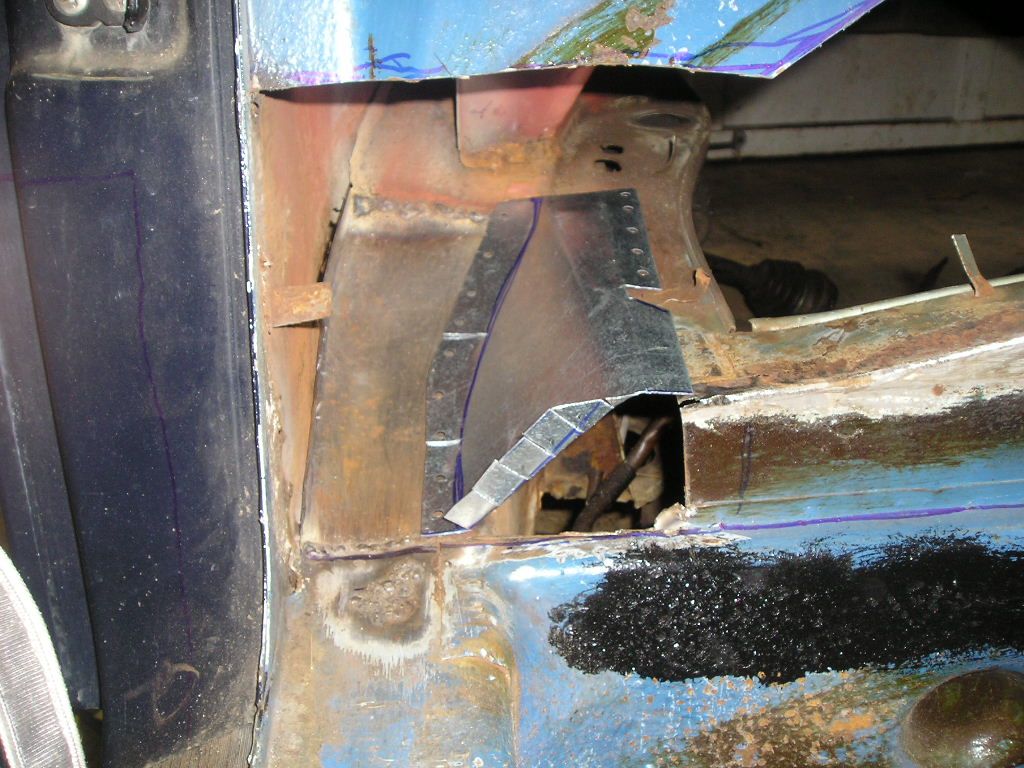

The first thing I started working on was the horrible repair on the driver's front corner. As you can see in the pictures, the corner was merely held on by a few pop rivets and a small bead of weld in the front. It took all off 10 minutes to remove. (IMG:style_emoticons/default/dry.gif)

Here is one of the nice joints
Attached Image

This is the inner fender-well where the replacement panel overlaps
Attached Image

And the water-tight seal at the bottom
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Apr 30 2009, 06:16 PM
Post #4


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

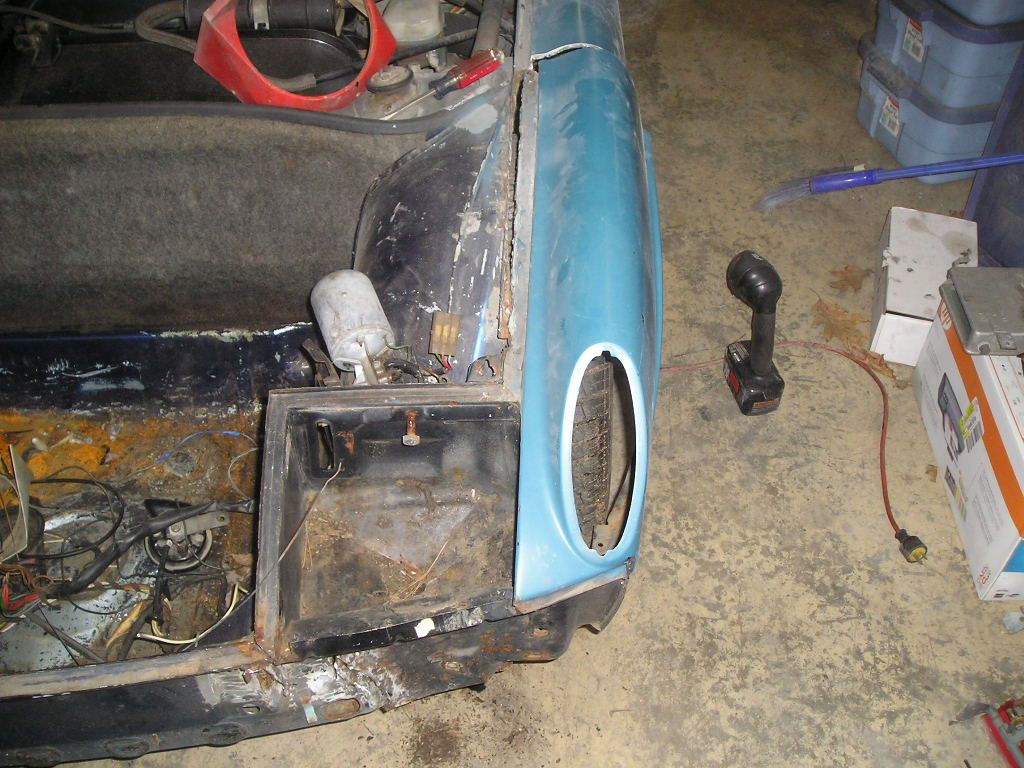

Here is a picture from the front
Attached Image

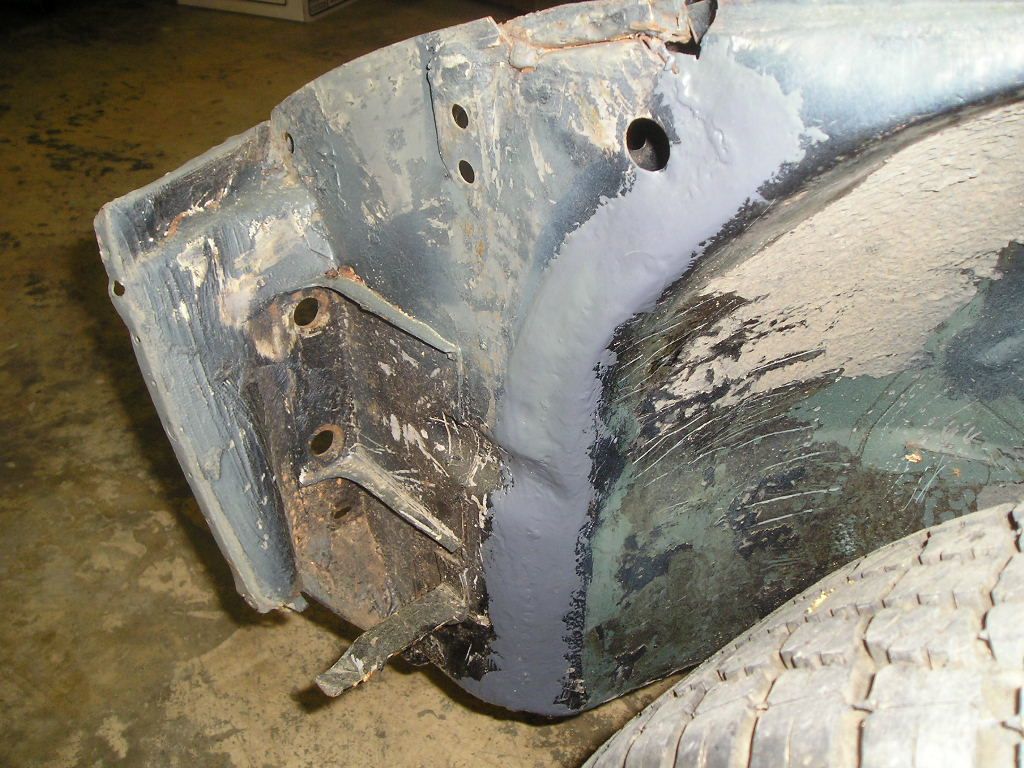

A little bit of this and a little bit of that and it was out
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Apr 30 2009, 06:25 PM
Post #5


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

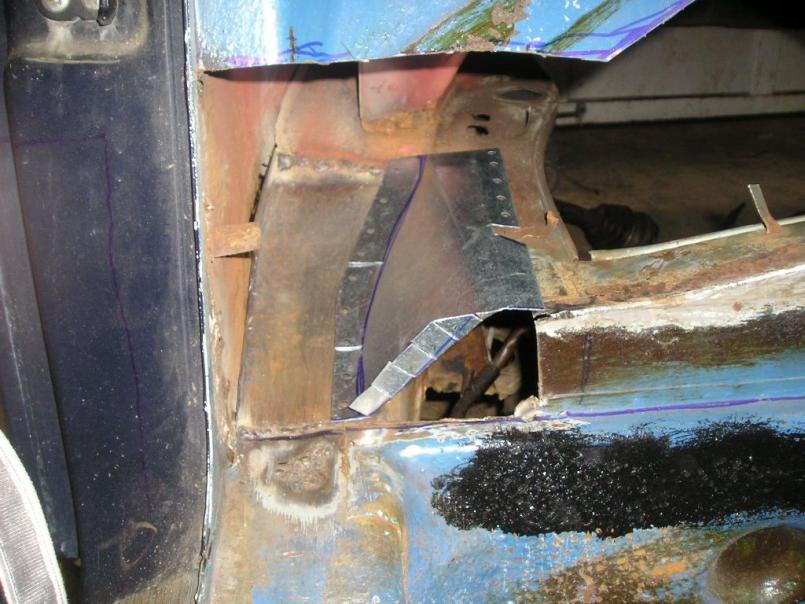

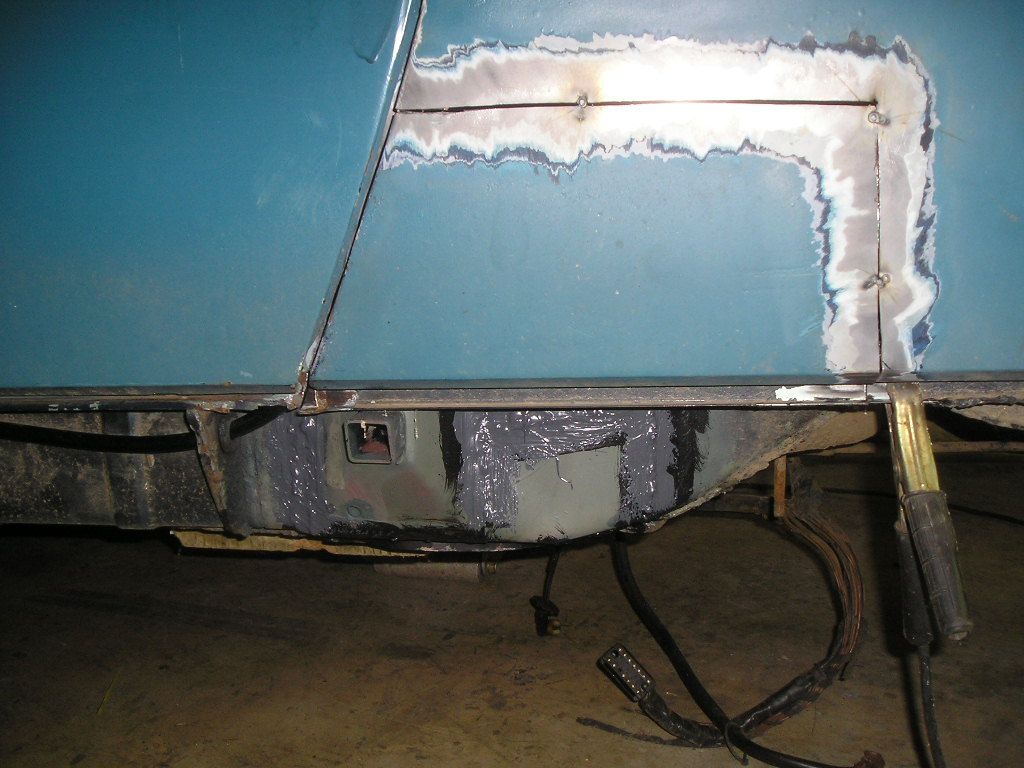

I did some trimming and here is the replacement piece in mock-up
Attached Image

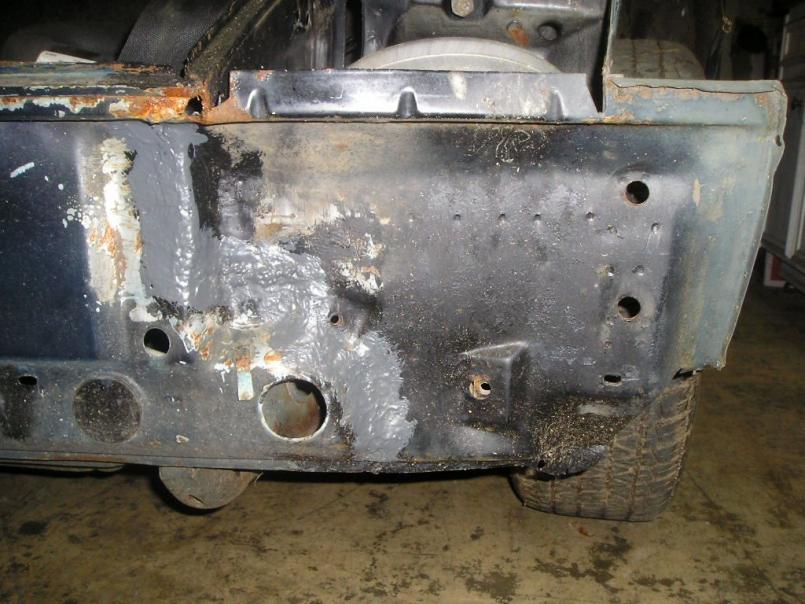

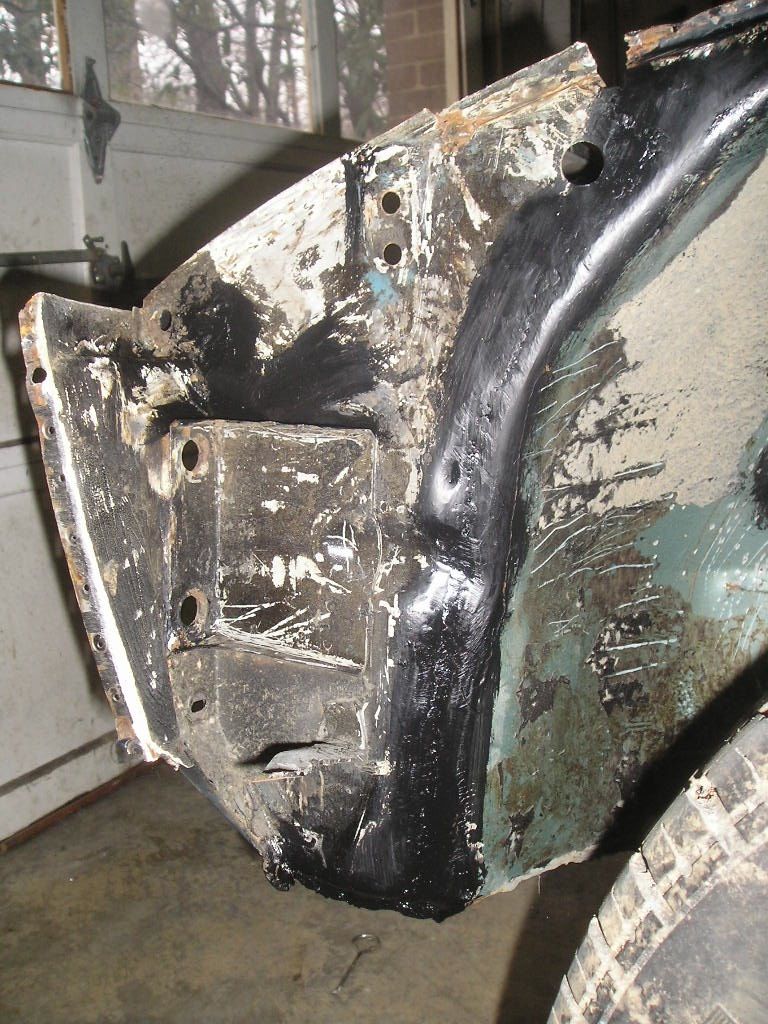

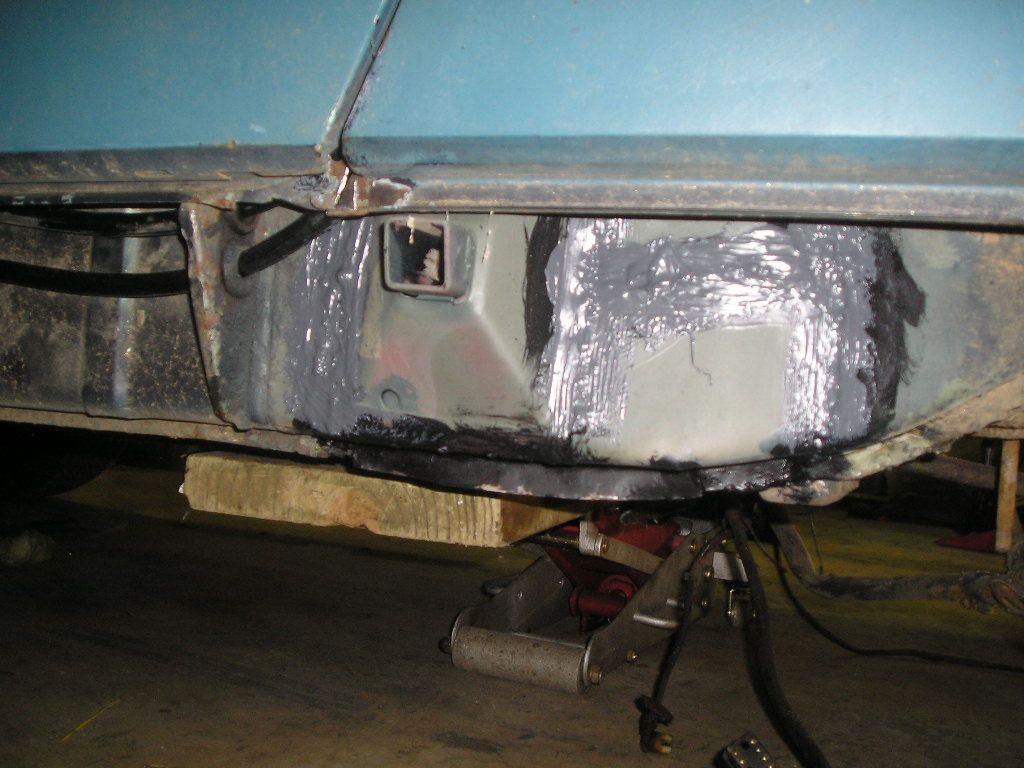

I then welded up all the seams and covered it with rust encapsulator and then some seam sealer.
Attached Image
Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Apr 30 2009, 06:35 PM
Post #6


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



Attached Image
Attached Image


Now I just need to get a replacement fender from someone who is cutting up a car and that repair can be checked off the list! (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Apr 30 2009, 07:04 PM
Post #7


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

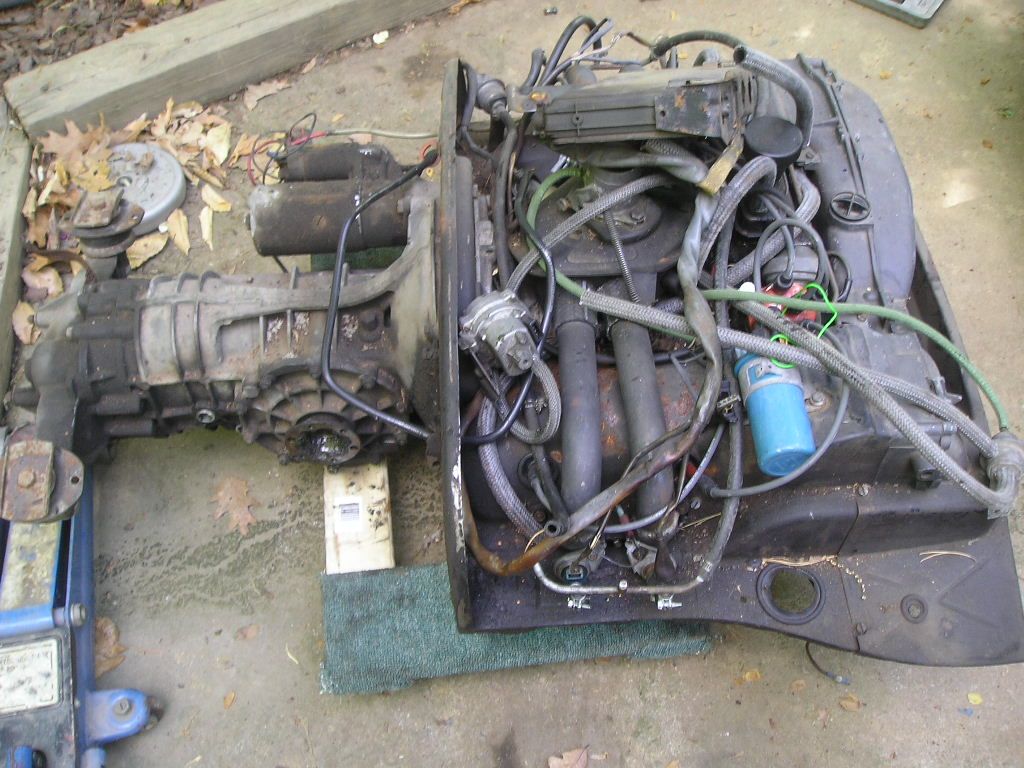

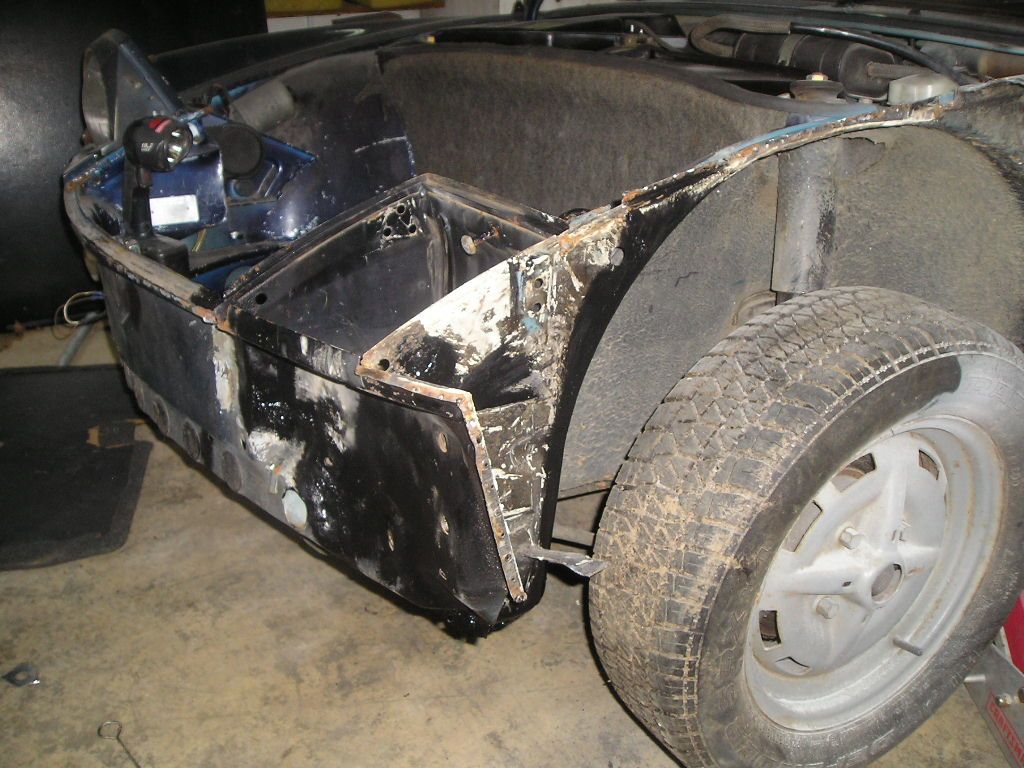

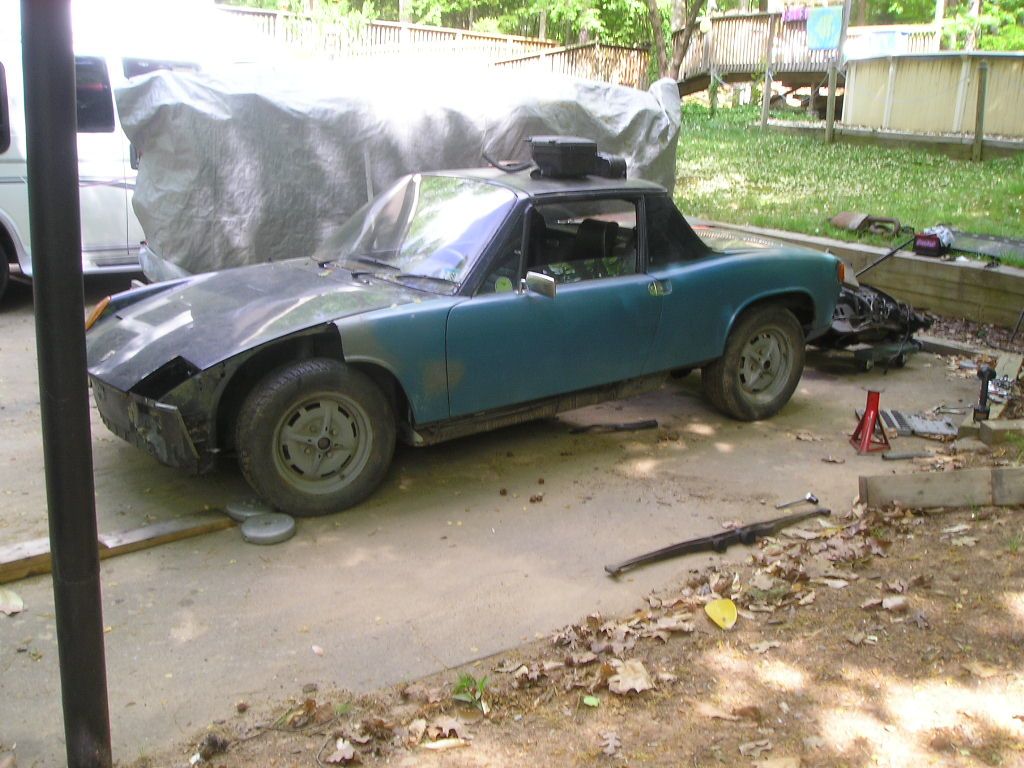

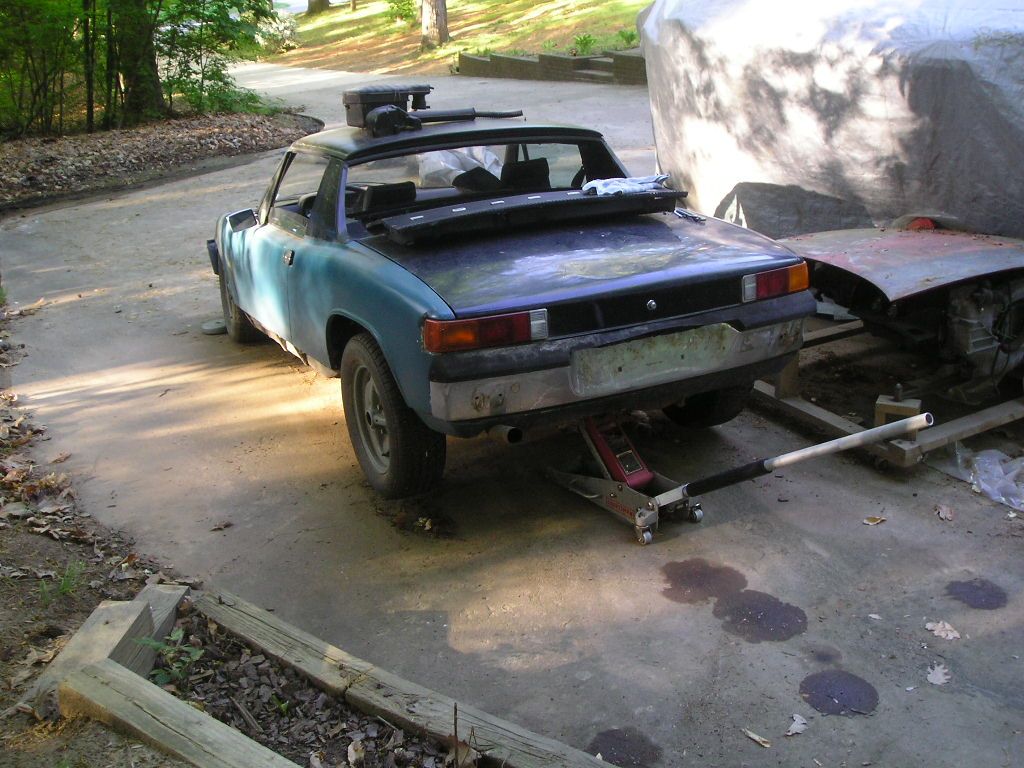

So on Monday I drove back from college in Michigan and early Tuesday morning I was taking the engine out. (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/smash.gif)

Attached Image

There is another 914 on a rotisserie hiding under the gray tarp
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Apr 30 2009, 07:13 PM
Post #8


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

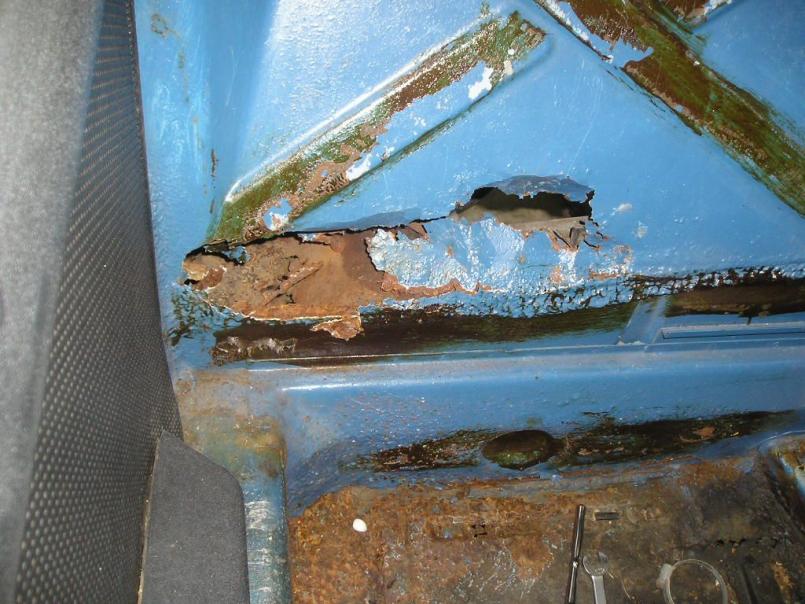

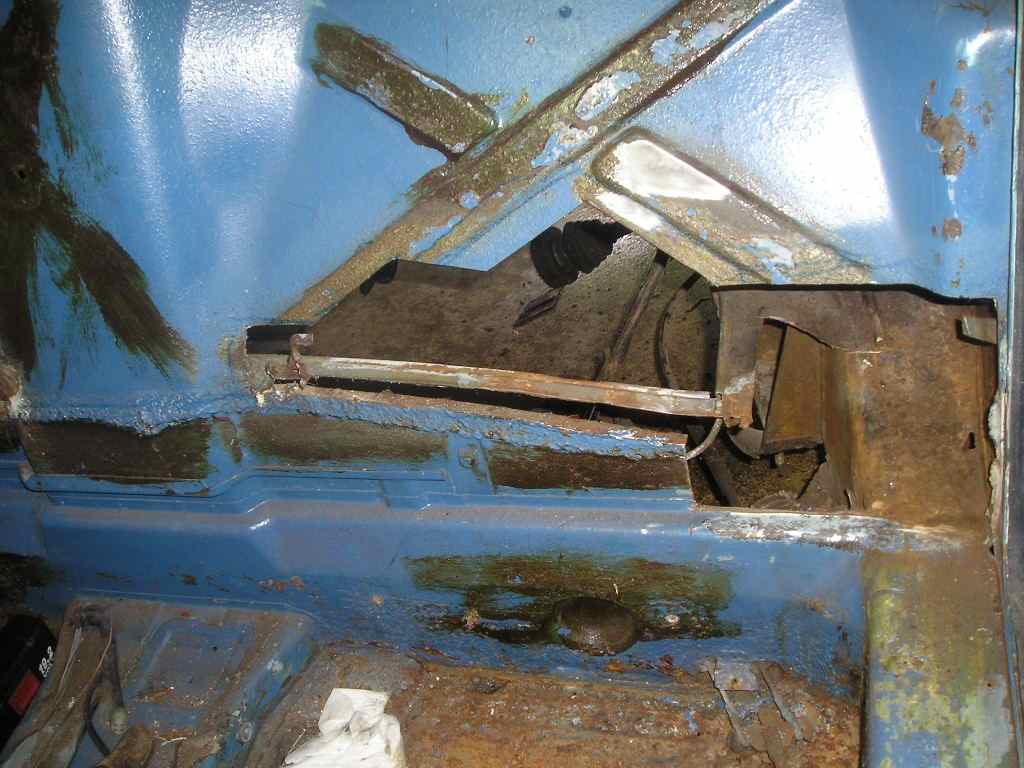

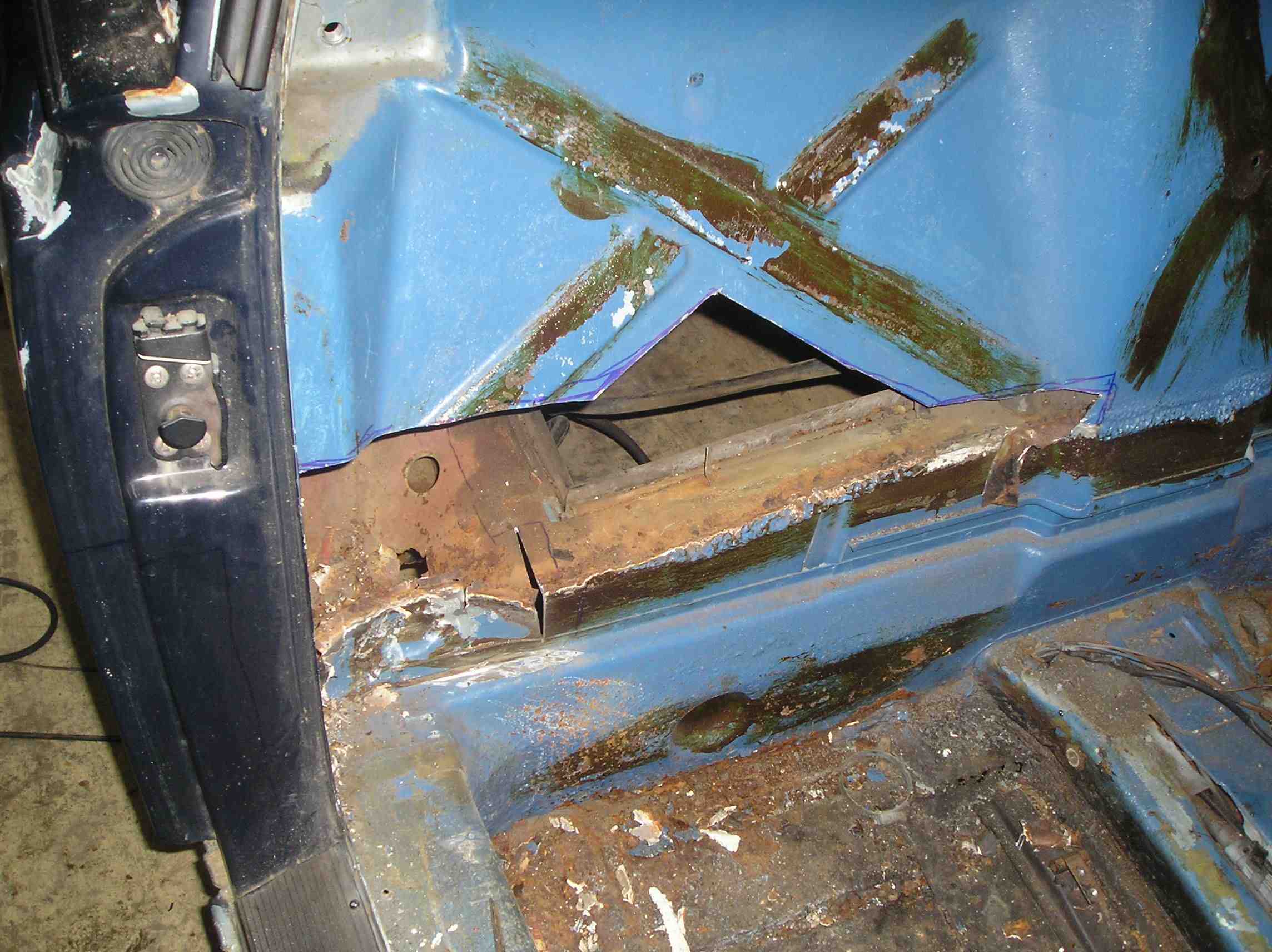

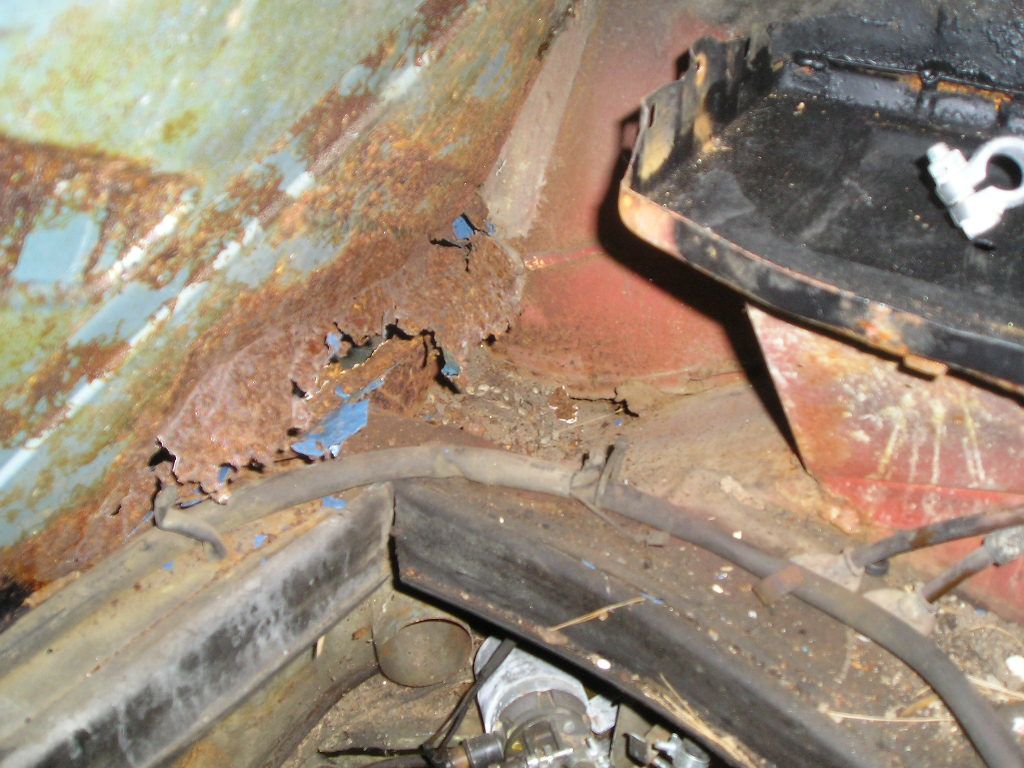

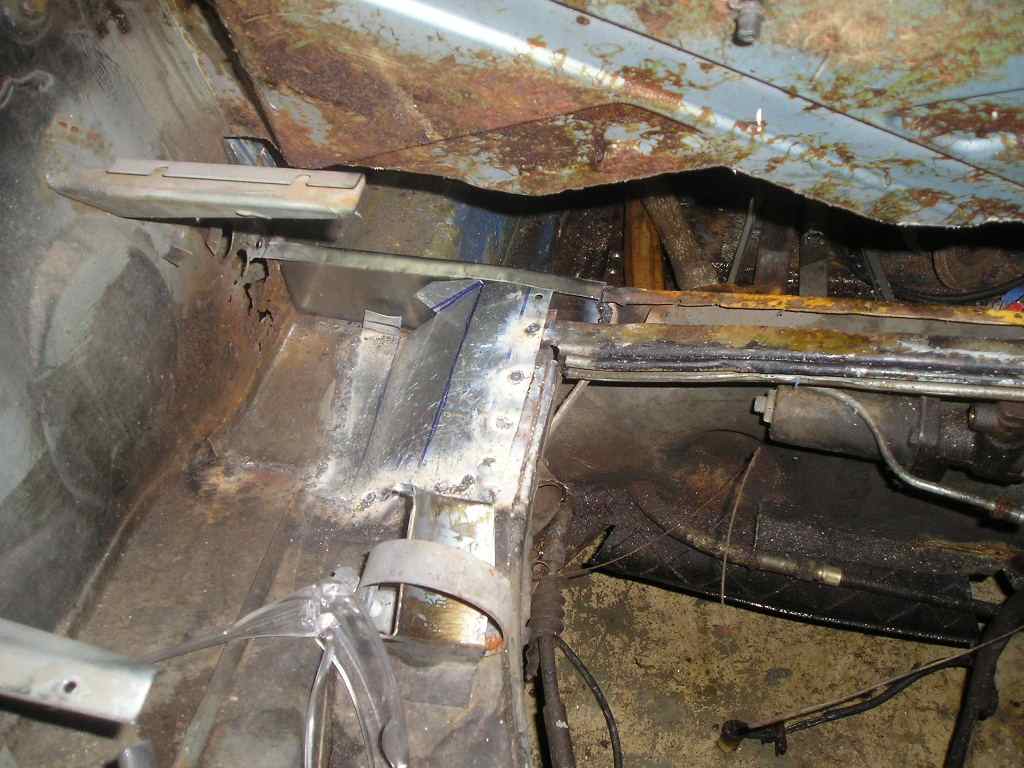

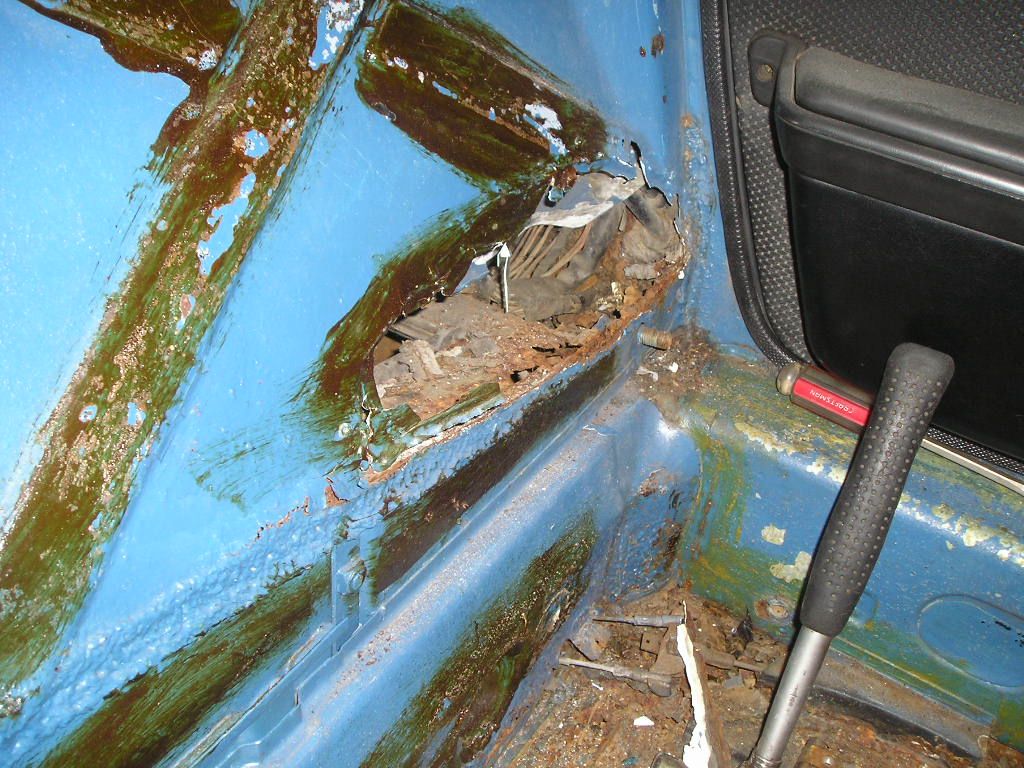

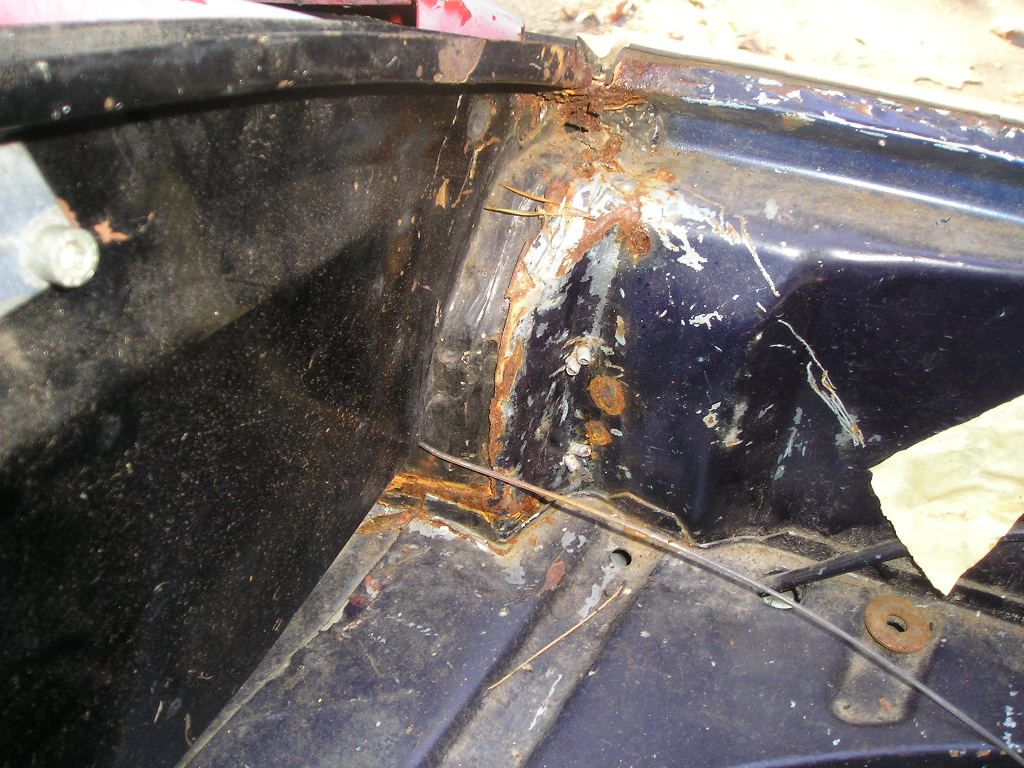

My next step was to strip the interior and work on rust in the firewall. I went ahead and punched out all the paper thin metal. It left me with some pretty big holes but nothing a metalworking cant fix. (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/welder.gif)
Attached Image
Attached Image
Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Apr 30 2009, 07:21 PM
Post #9


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

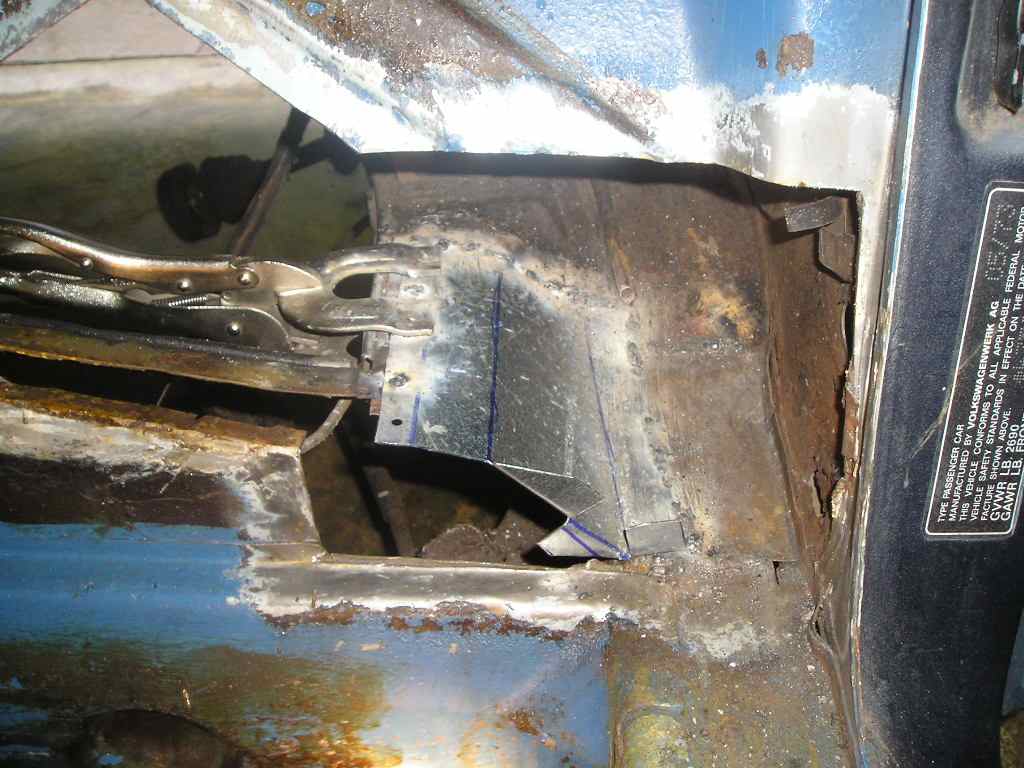

Tonight I went ahead and started trimming some before making a panel to replace it.

Attached Image

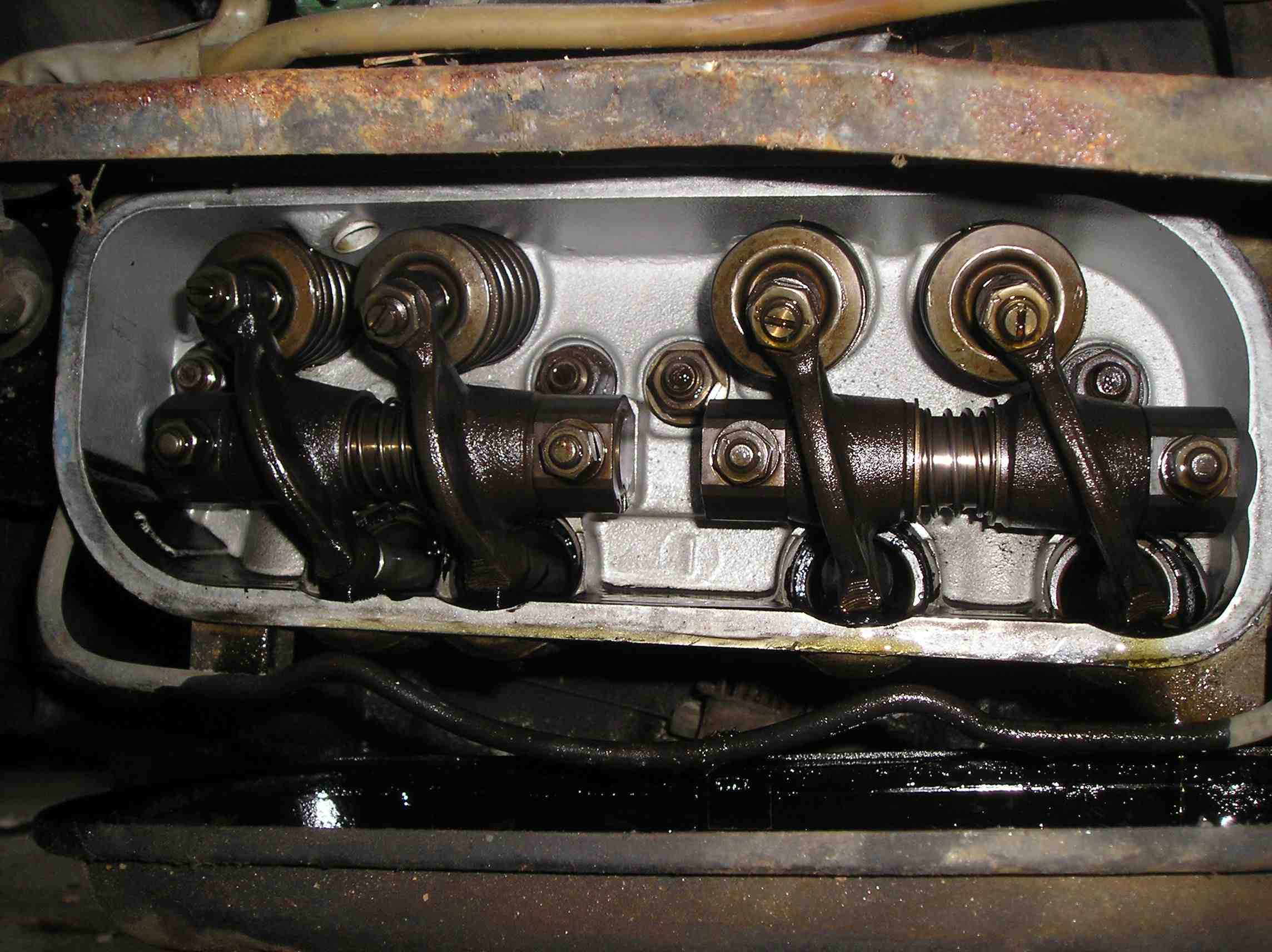

I also took the valve covers off the engine to find a really clean head (IMG:style_emoticons/default/unsure.gif) . I'm kind of anxious to see what the insides of the motor look like.

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Apr 30 2009, 07:25 PM
Post #10


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

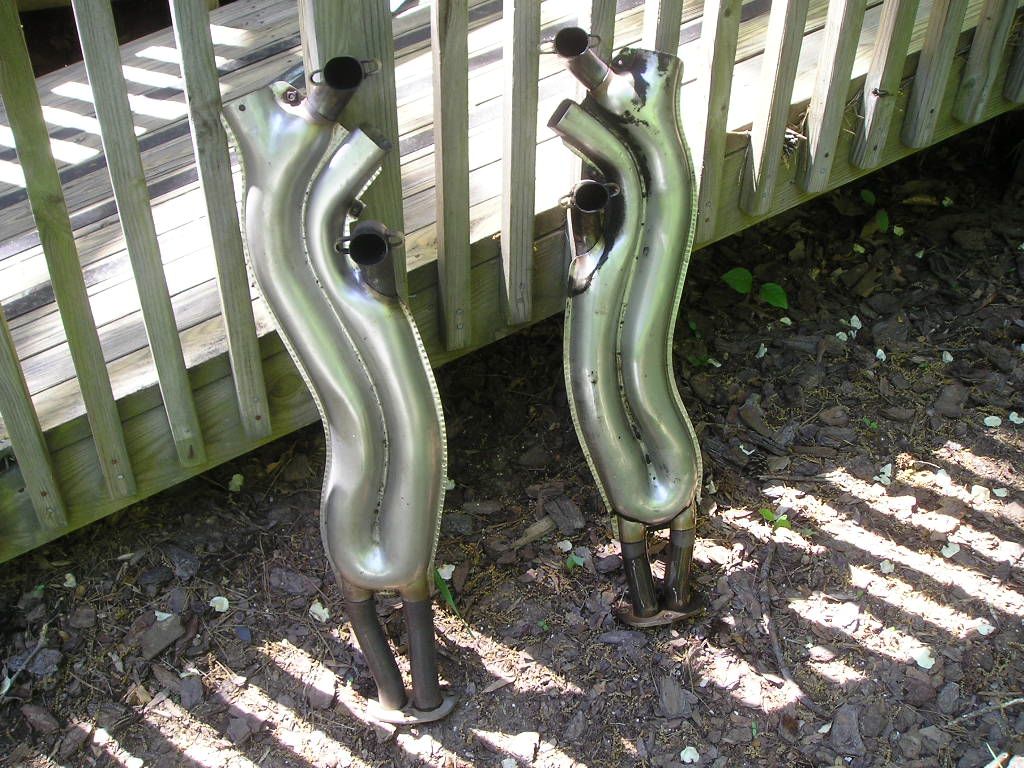

And the last one for the night. I took the heat exchangers off the motor before dropping it and it turns out they there isn't even so much a scratch on them and are practically brand new. (IMG:style_emoticons/default/w00t.gif) There is still a little bit of dirt/greese caked on them in the picture. More progress to come tomorrow!
Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
my928s4
post Apr 30 2009, 08:14 PM
Post #11


Member
**

Group: Members
Posts: 349
Joined: 18-August 07
From: Spokane, WA
Member No.: 8,018
Region Association: Pacific Northwest



You got your work cut out there! Looking good though, keep up the good work !
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post May 12 2009, 09:58 PM
Post #12


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



I was able to get some more work done. This last week has been extremely busy so I have just been trying to work on it when I can.

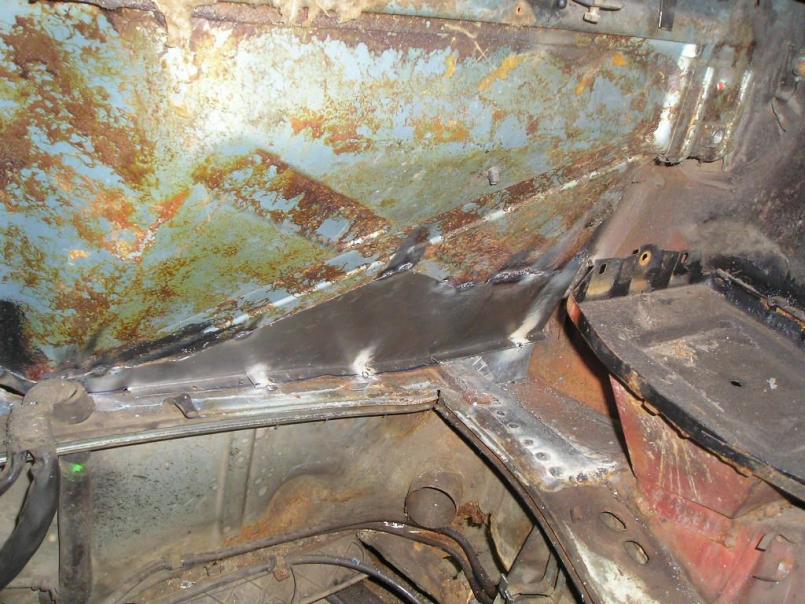

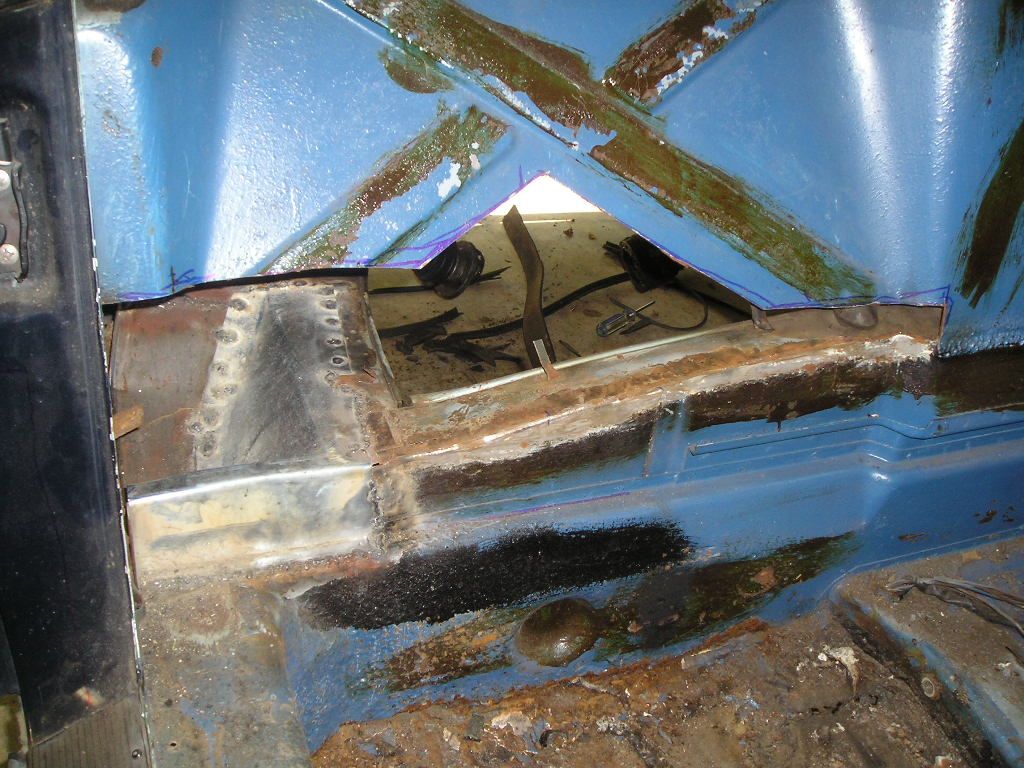

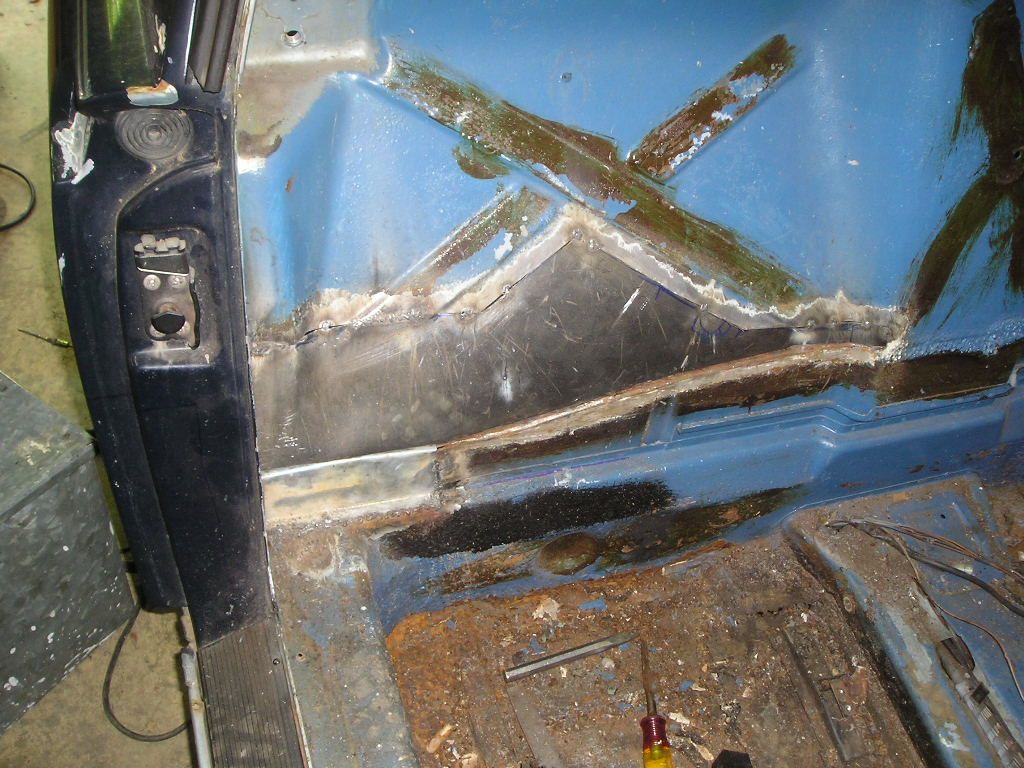

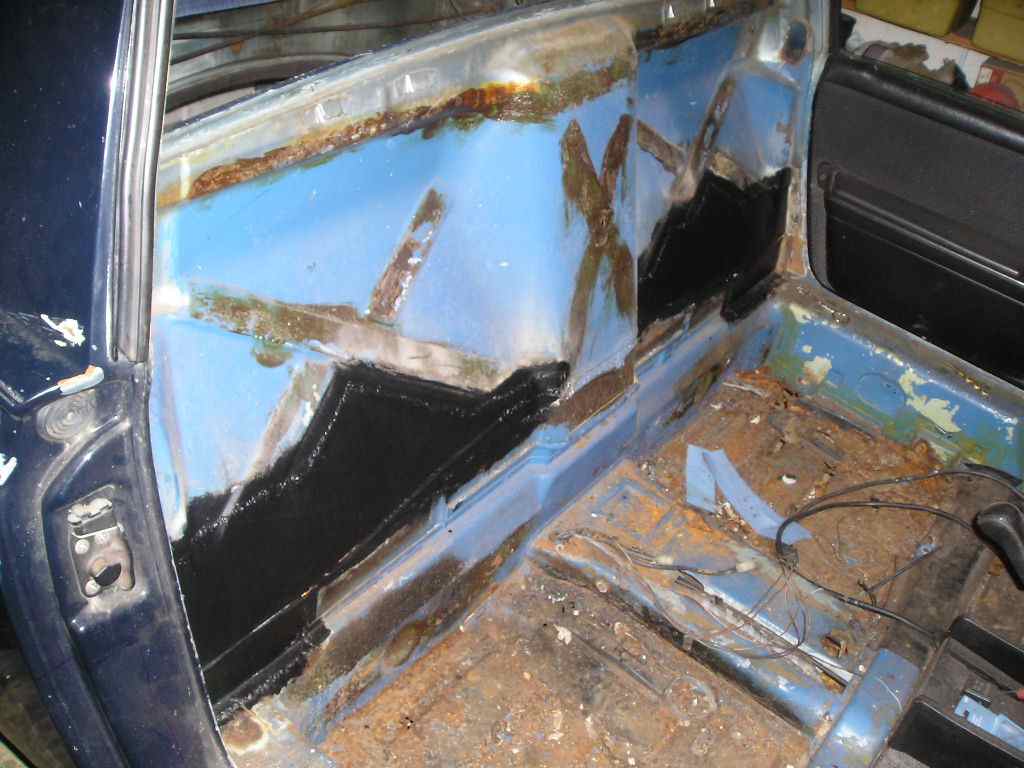

I cut out all the bad stuff and then I welded in the first piece.
Attached Image

Here is the piece I made to cover up the engine shelf. It came out better than expected.
Attached Image

And the third piece went in
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post May 12 2009, 10:06 PM
Post #13


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



And finally the big piece was tacked in today. It took quite a bit more time making this piece but I think it came out fairly nice.
Attached Image

Back side...
Attached Image

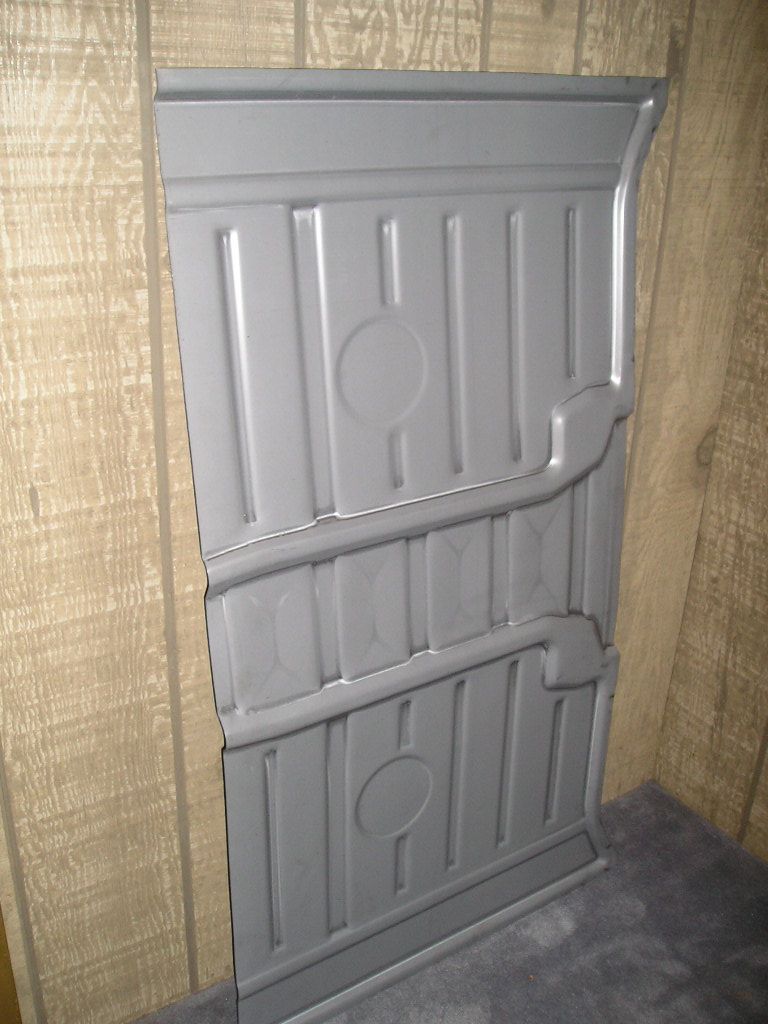

Oh and I also received my replacement floorpan and seat mount from AA last week so I can't wait for that to go in. (IMG:style_emoticons/default/piratenanner.gif) I also bought a driver's side fender which should be coming in the mail within the next week. Once I receive that, I will put it on the car.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post May 12 2009, 10:13 PM
Post #14


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



Oh and I also worked on our 62 Bug. I had to replace a broken exhaust stud. Talk about a pain. I finished putting her back together this morning and now she runs like a top.
Attached Image


That's all the 914 progress for now. I'll be traveling the next week so hopefully after that I will have plenty of time to work on the car again. (IMG:style_emoticons/default/smash.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcambo7
post May 13 2009, 10:39 AM
Post #15


Senior Member
***

Group: Members
Posts: 1,691
Joined: 24-December 08
From: Graham, WA
Member No.: 9,867
Region Association: Pacific Northwest



Looking great... (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post May 27 2009, 04:27 PM
Post #16


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



I got some more work done this past week. I am done with traveling for a while so I will have more time to work on the car. (IMG:style_emoticons/default/smash.gif) I started repairing the driver's side fire wall. It pretty much had the same rust as on the passenger side so the repair was the same.

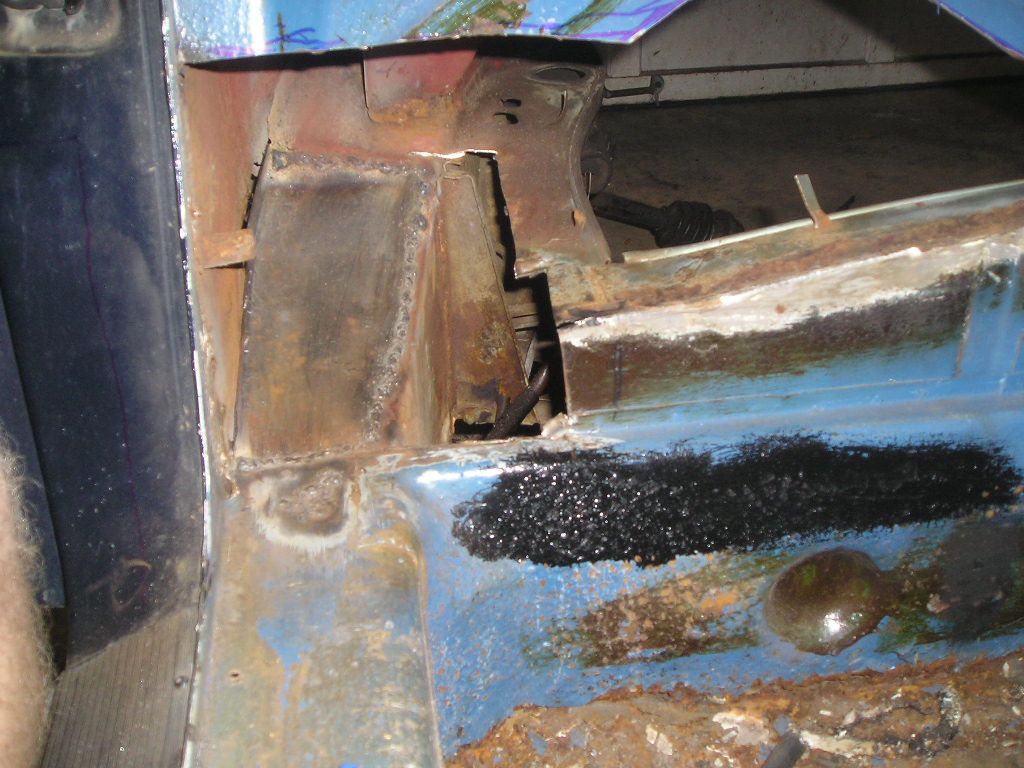

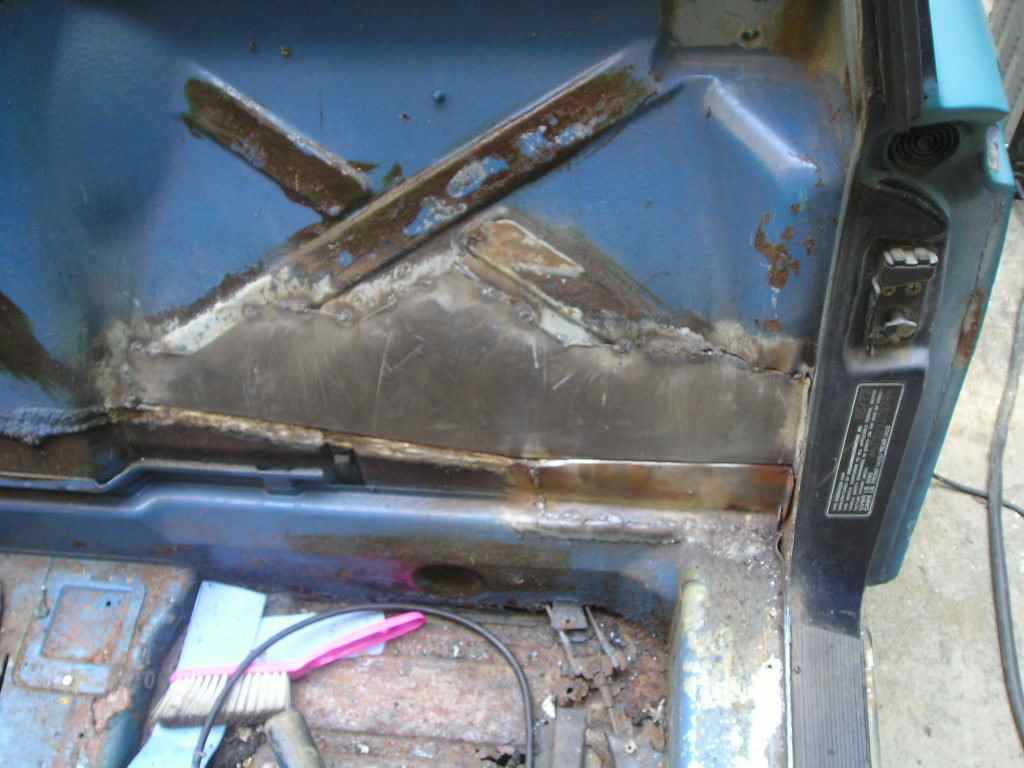

This is what I had to work with after all the bad stuff was cut out.
Attached Image

Here are the first two pieces welded in
Attached Image

and the third piece
Attached Image

Shot from the back
Attached Image


Hopefully I will get the big piece in tomorrow. In the last picture you can see some rust in the side wall and I will take care of that when I cut off a portion of the rear fender. I need to do this anyway to access some rust in the long.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post May 27 2009, 04:36 PM
Post #17


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

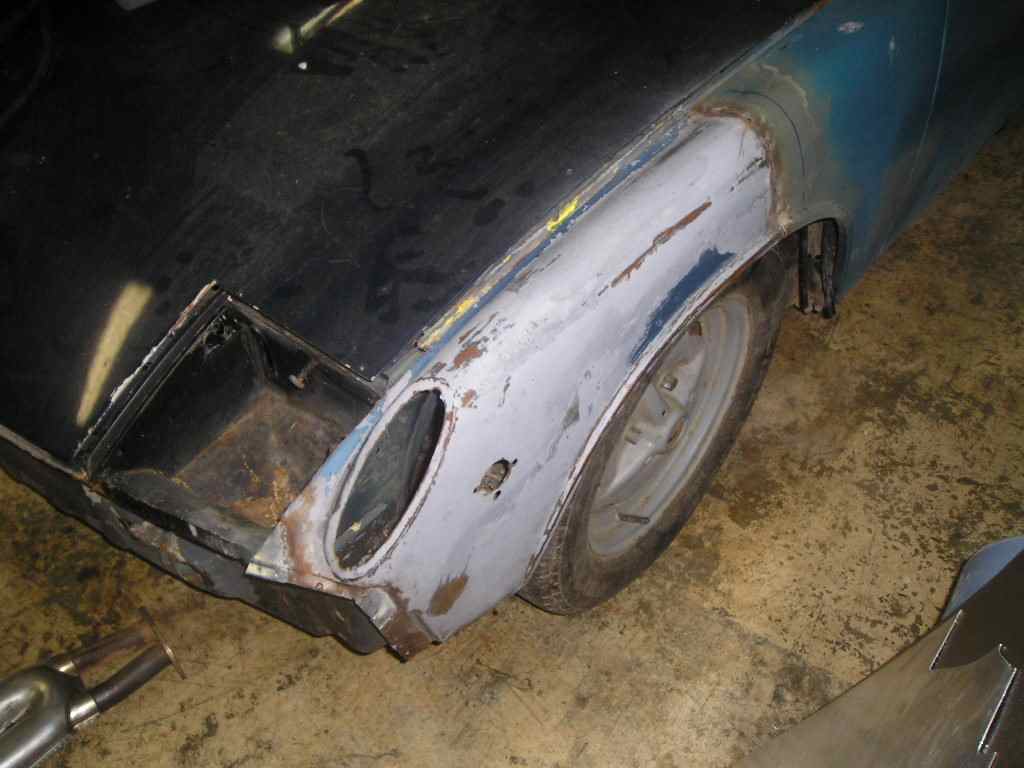

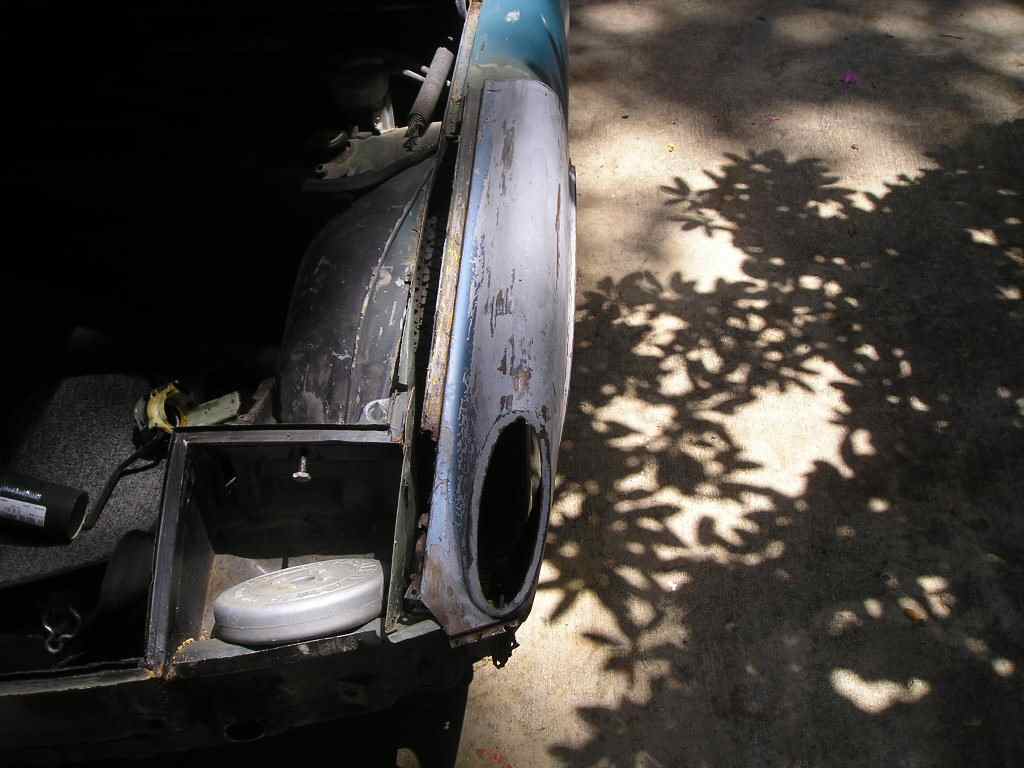

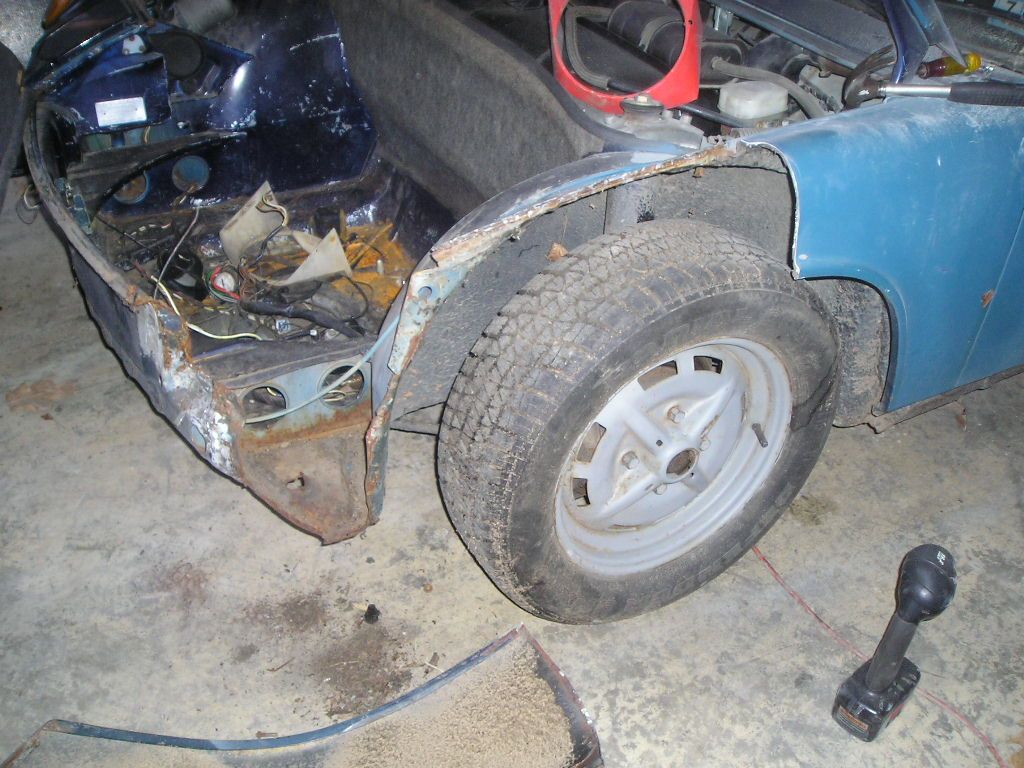

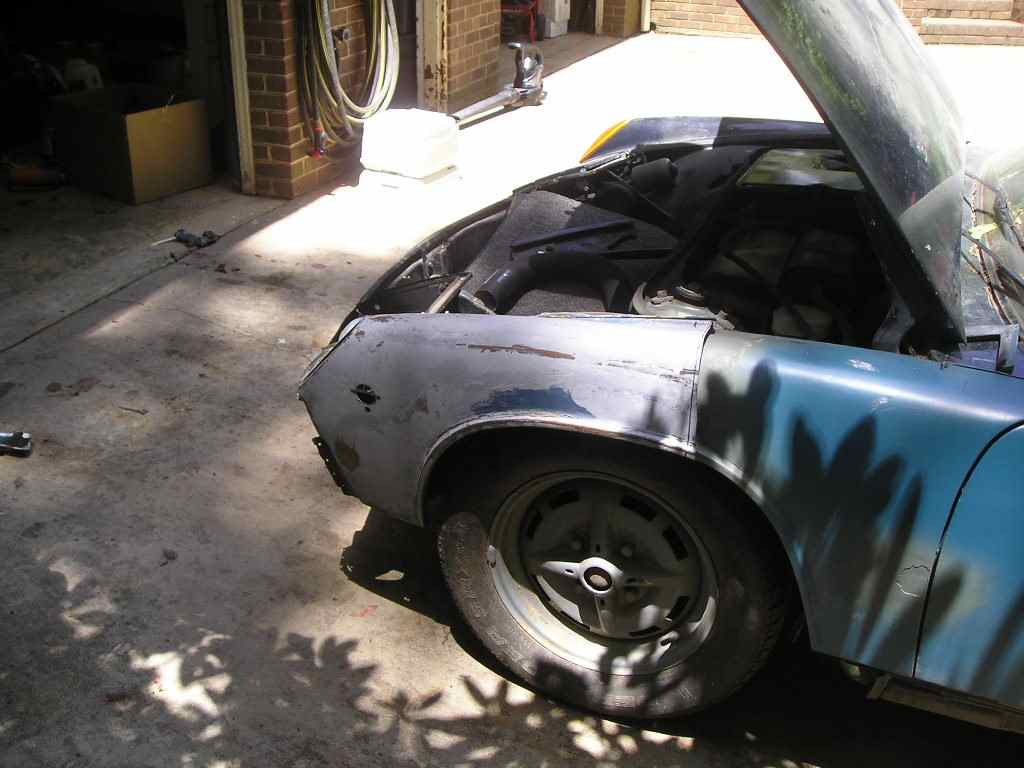

I also bought a portion of the front fender from a member on here and so I tacked it on.

Before trimming
Attached Image
Attached Image

After trimming and tacked on
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Jun 1 2009, 08:36 PM
Post #18


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

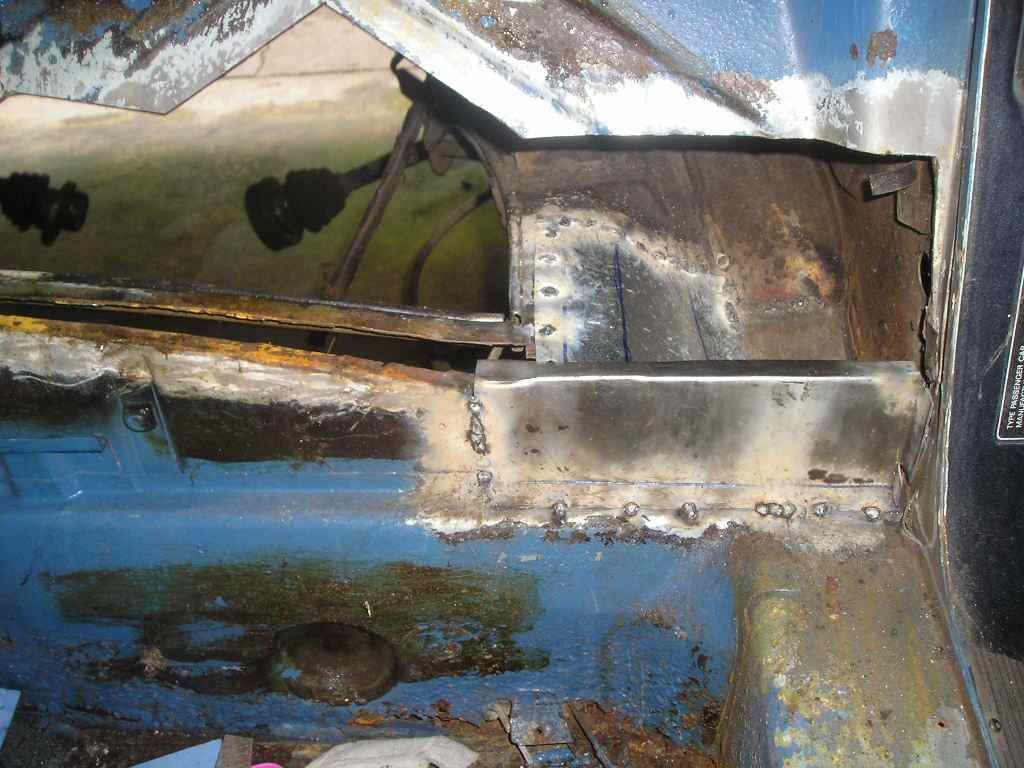

Well I got a lot done today. I had a friend come over and help me so we did a lot. I got the driver's side repair piece in and I finished up welding in both sides. I started to tear into the driver's side long and jackpoint. I also started to tear down the engine and clean it.


Here is the piece after a first few welds
Attached Image

After I finished up both sides and coated them
Attached Image

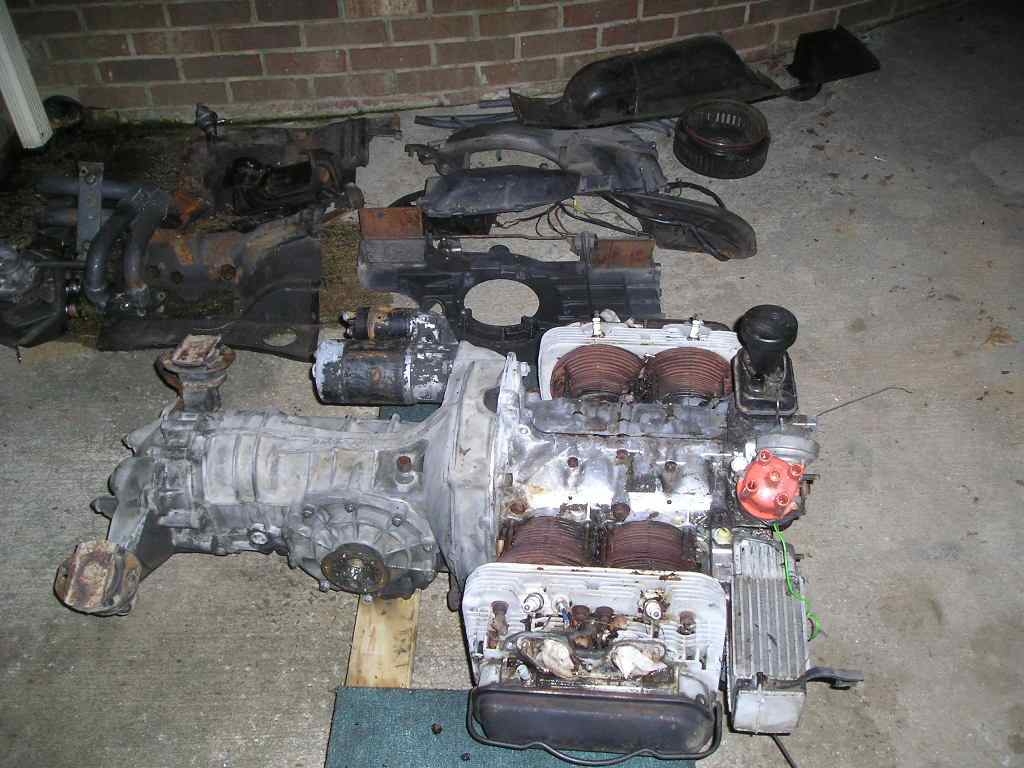

The engine in pieces
Attached Image

More fun
Attached Image





User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Jun 8 2009, 11:01 AM
Post #19


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

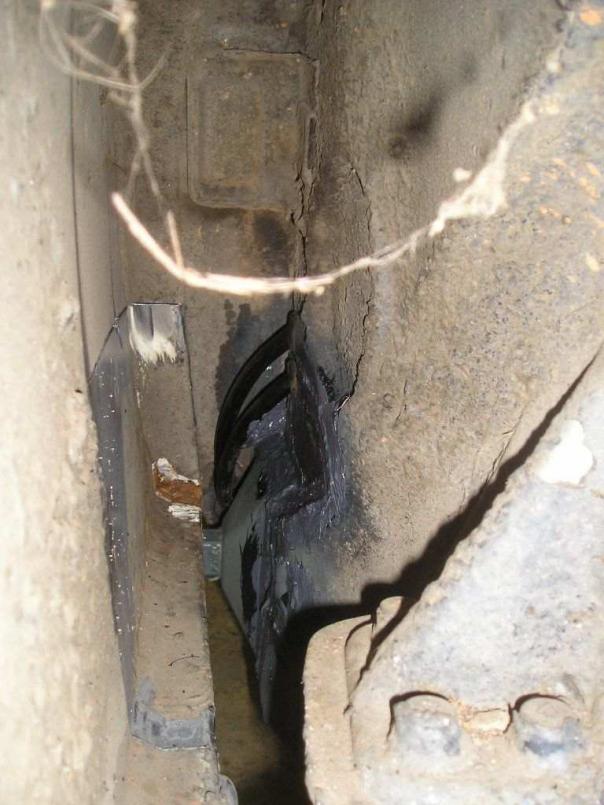

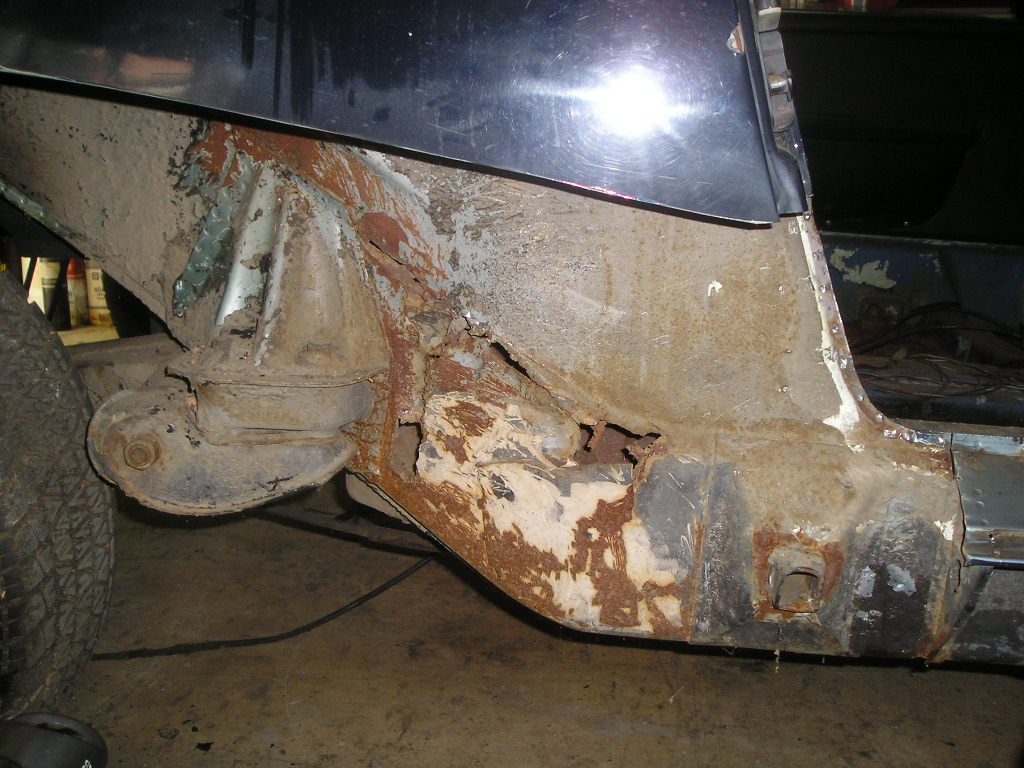

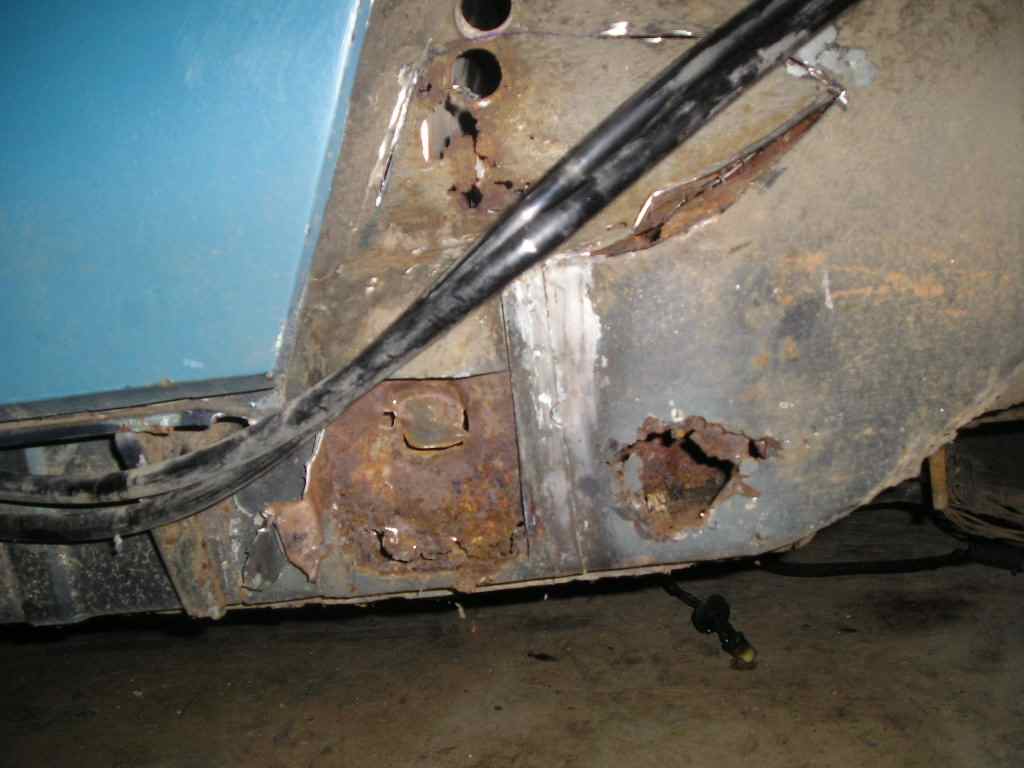

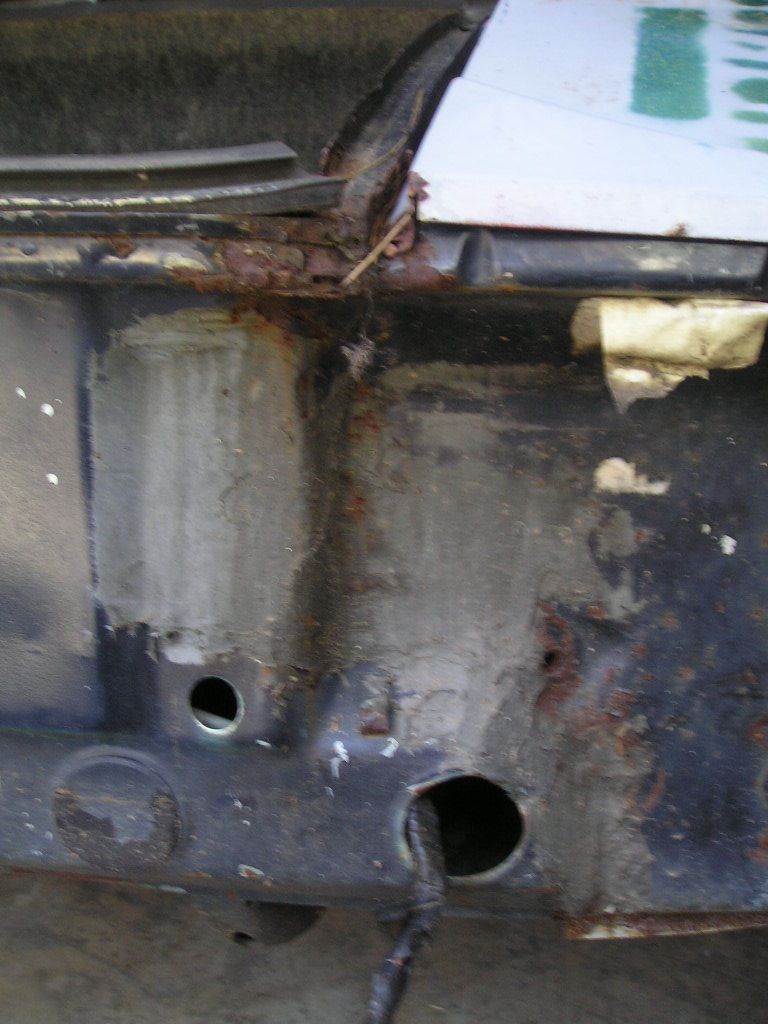

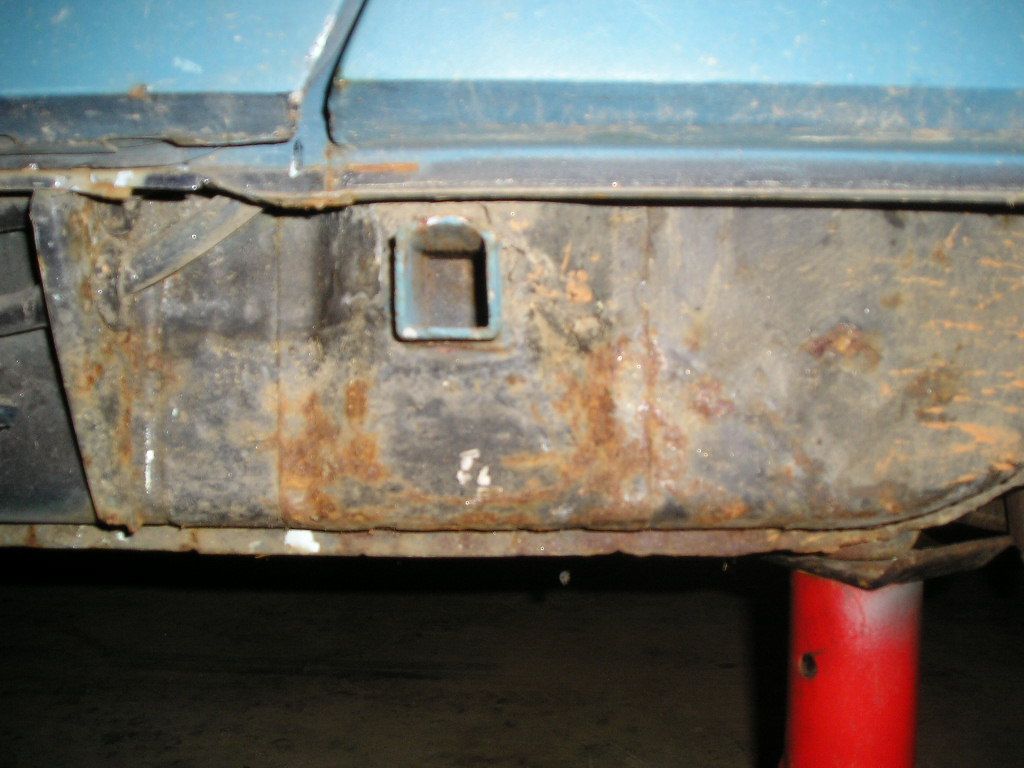

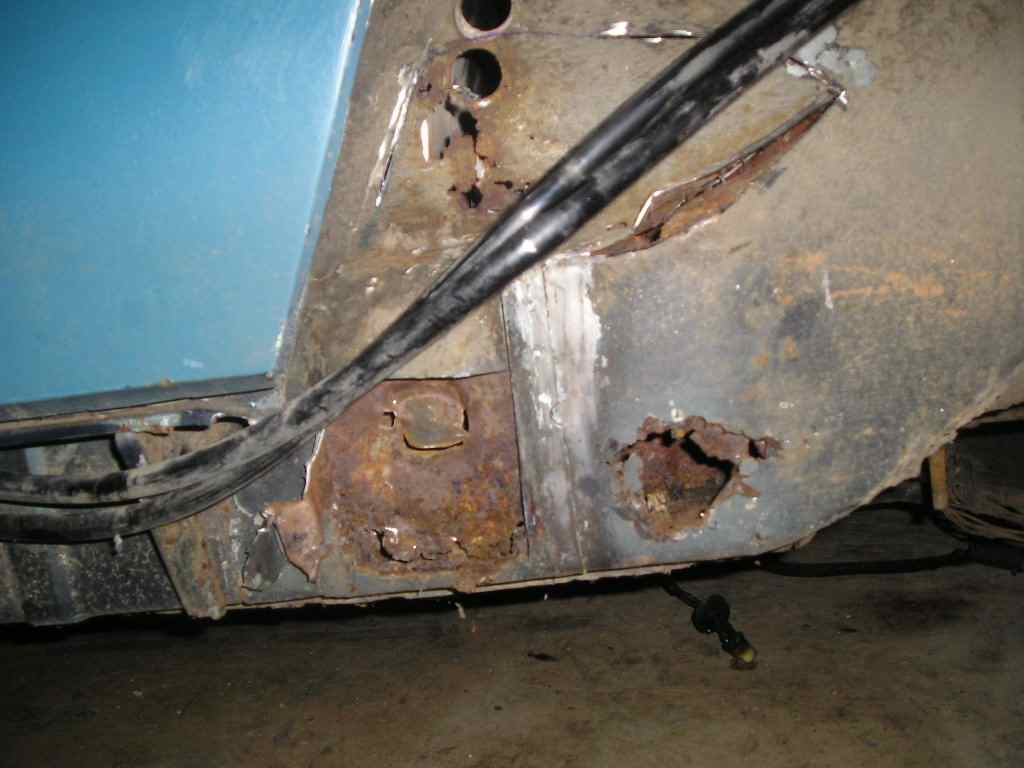

So here is what the driver's side jackpoint looked like before. Doesn't seem that bad right?
Attached Image

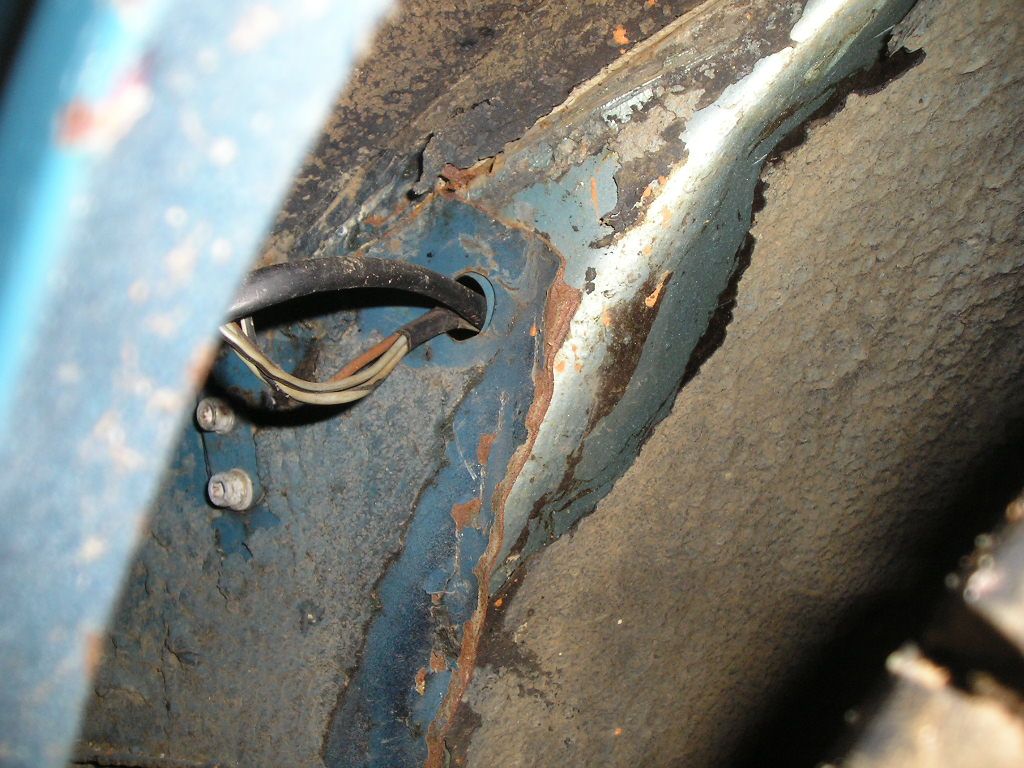

Here is all the rust exposed
Attached Image

And then after a little handy work
Attached Image

And finally with the fender tacked in place.
Attached Image


And one more for the road
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Jun 8 2009, 11:18 PM
Post #20


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

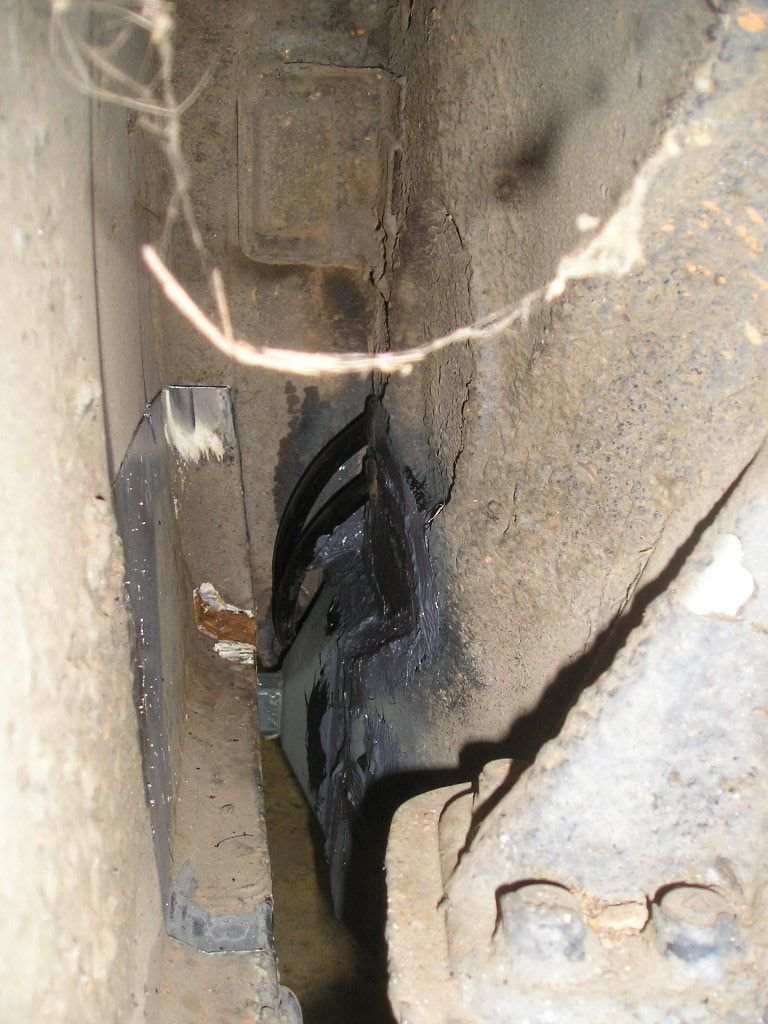

And now on to the other side. I bought a lower wheelhouse replacement piece that will go in. I will end up having to remove the outer suspension mount which shouldn't be a problem. It will just mean more work to do. (IMG:style_emoticons/default/smash.gif) Here is what I have to work with. At some point, one of the previous owners tacked a patch panel over the area and then covered it in bondo. So much good that did.
Attached Image


Attached Image

User is offlineProfile CardPM
