Full Version: Wiring for wiper motors

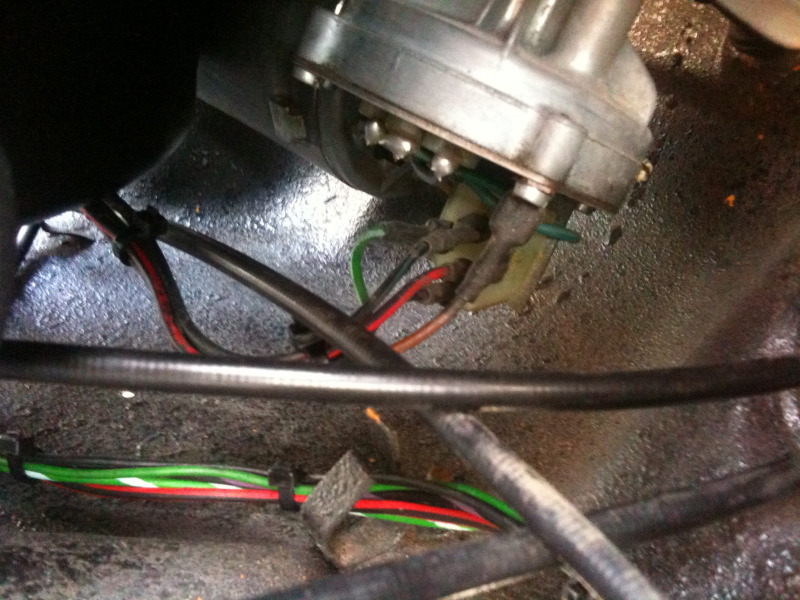

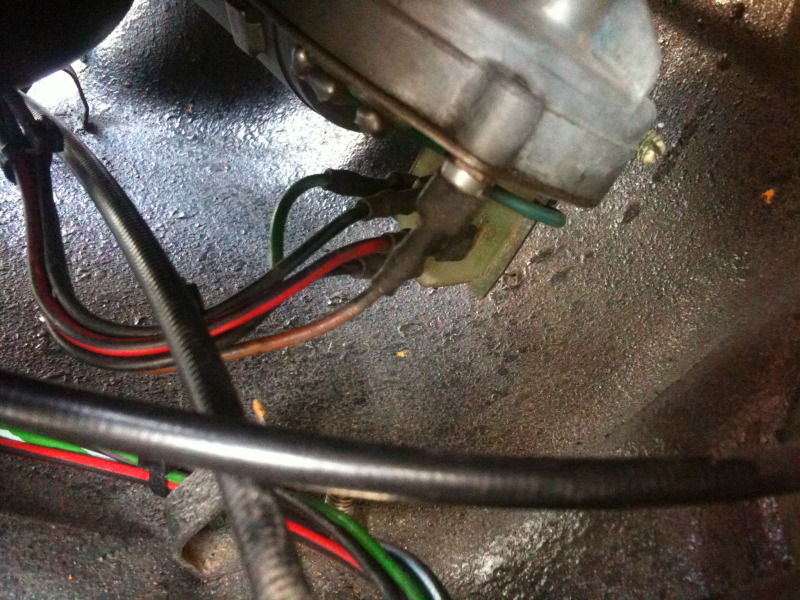

Help were putting the creamsickle togeather. What wire goes where
53 black/green stripe
53a Red and red/blk
53b blk/purple
31b gr/wh

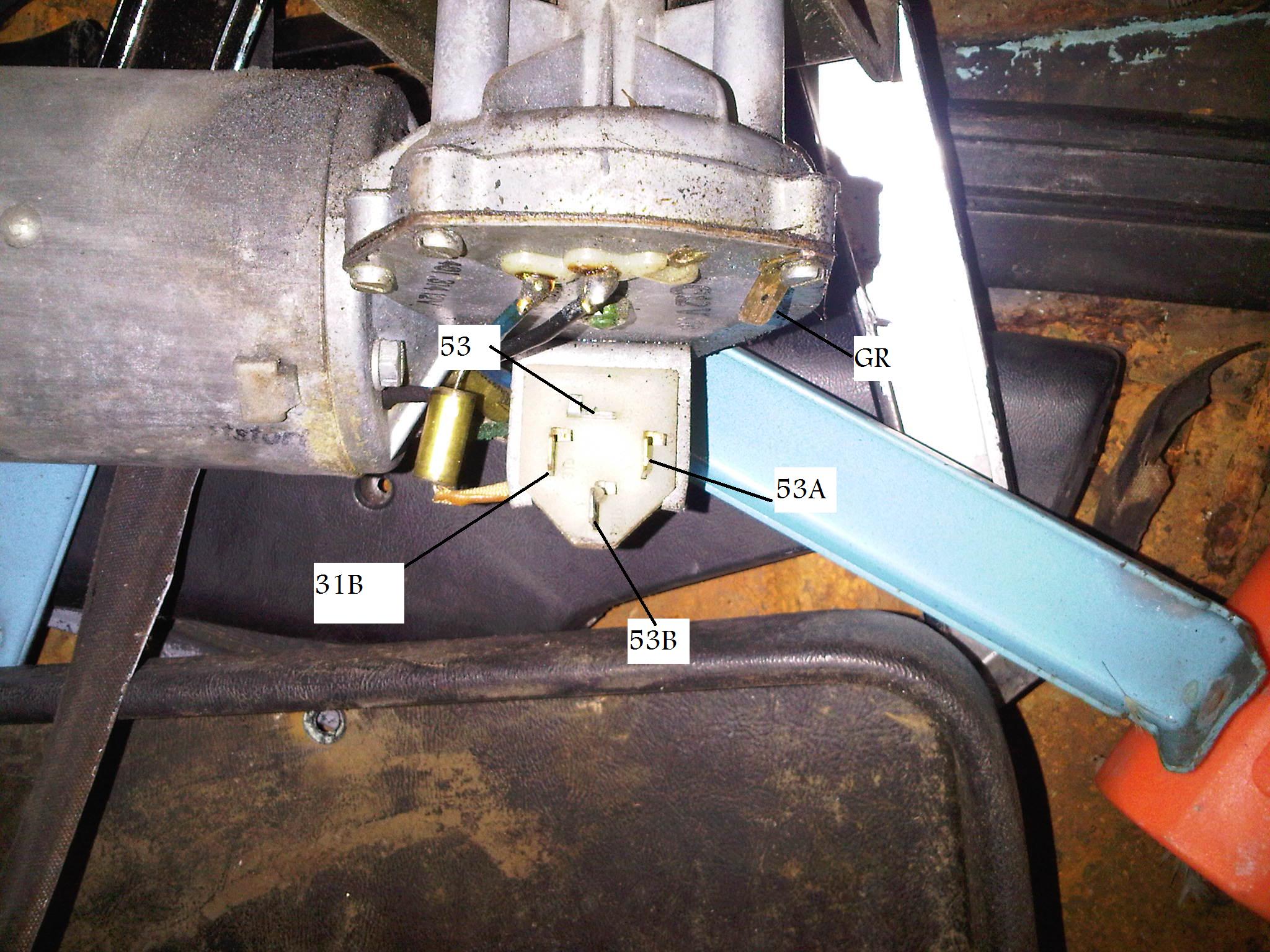

according to my 73
Click to view attachment
53a Red and red/blk
53b blk/purple
31b gr/wh

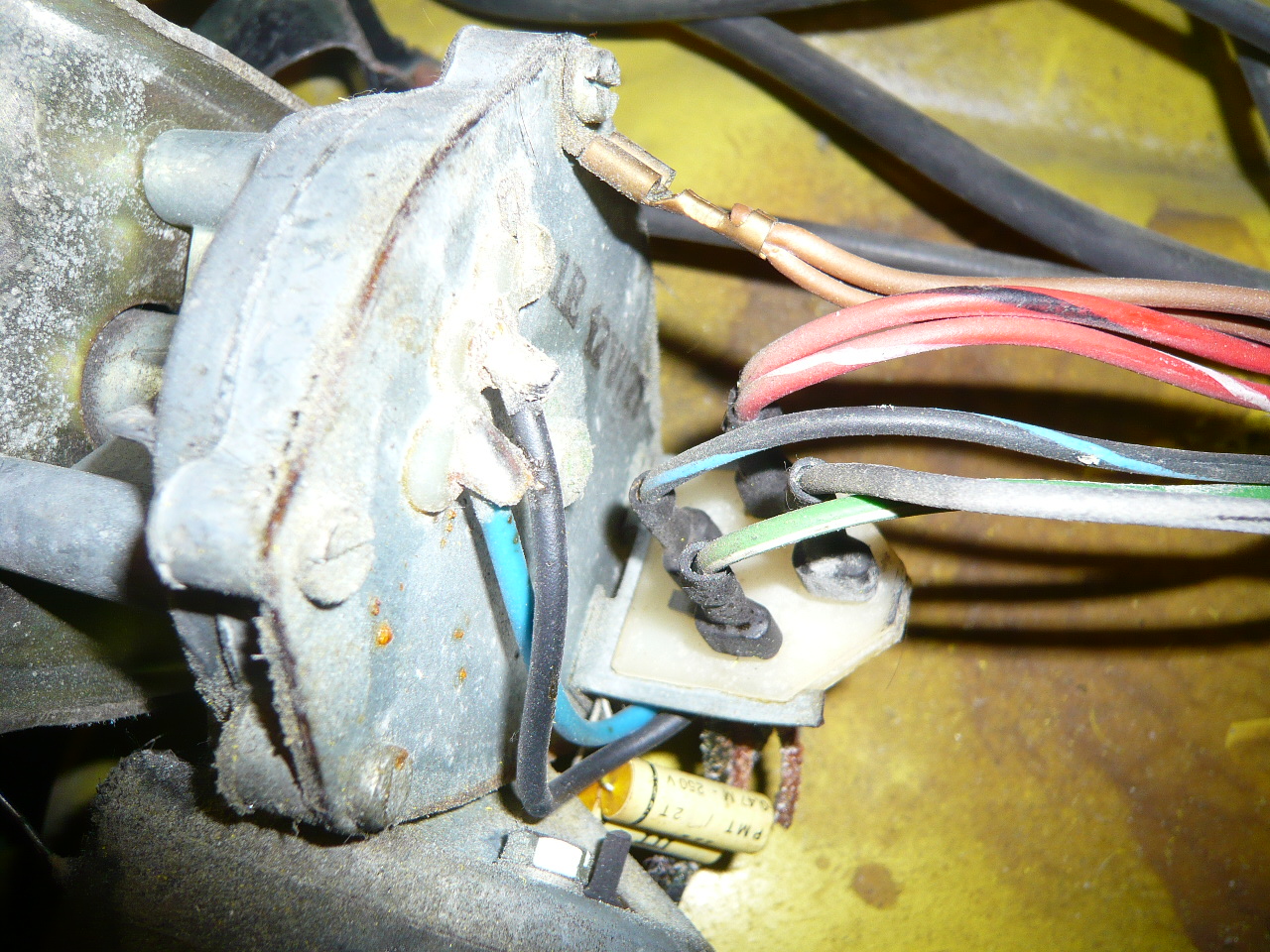

according to my 73
Click to view attachment
check that
53 is blk / blue not green
53 is blk / blue not green
Bam!
btdt
Whew... thank GOD you were able to copyright that Tony!
Thanks Eric, The resizing program I used at the time stuck it there and now i am stuck with it. Thanks though.
(twas a joke)
I knew that, Nobody better steal my copyrighted diagram of awesome.
