I was installing new lettering on Calypso today and made this diagram to help me do it. I counted the number of "diamonds" in the grill for the placement on both of my stock 73 grilles and they matched perfectly. I feel like it is more fool proof than trying to measure as long as you don't mis-count.

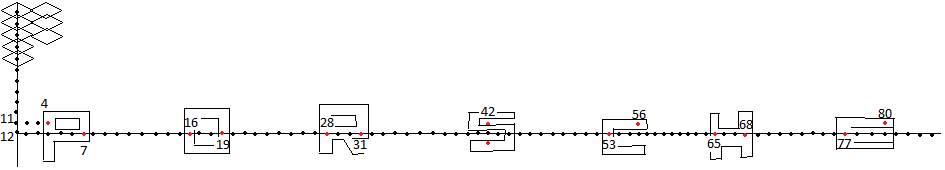

The Diagram:
Click to view attachment
The finished Product:
Click to view attachment
Full Version: Engine Grille Lettering Placement Diagram
Nice !
This was posted several years ago, looks pretty much the same.
This was posted several years ago, looks pretty much the same.
QUOTE(jim_hoyland @ Sep 2 2012, 07:02 PM)
Nice !
This was posted several years ago, looks pretty much the same.Yeah, I looked over that one on bowlesby's site, but it seemed easier to me to count than to measure.
