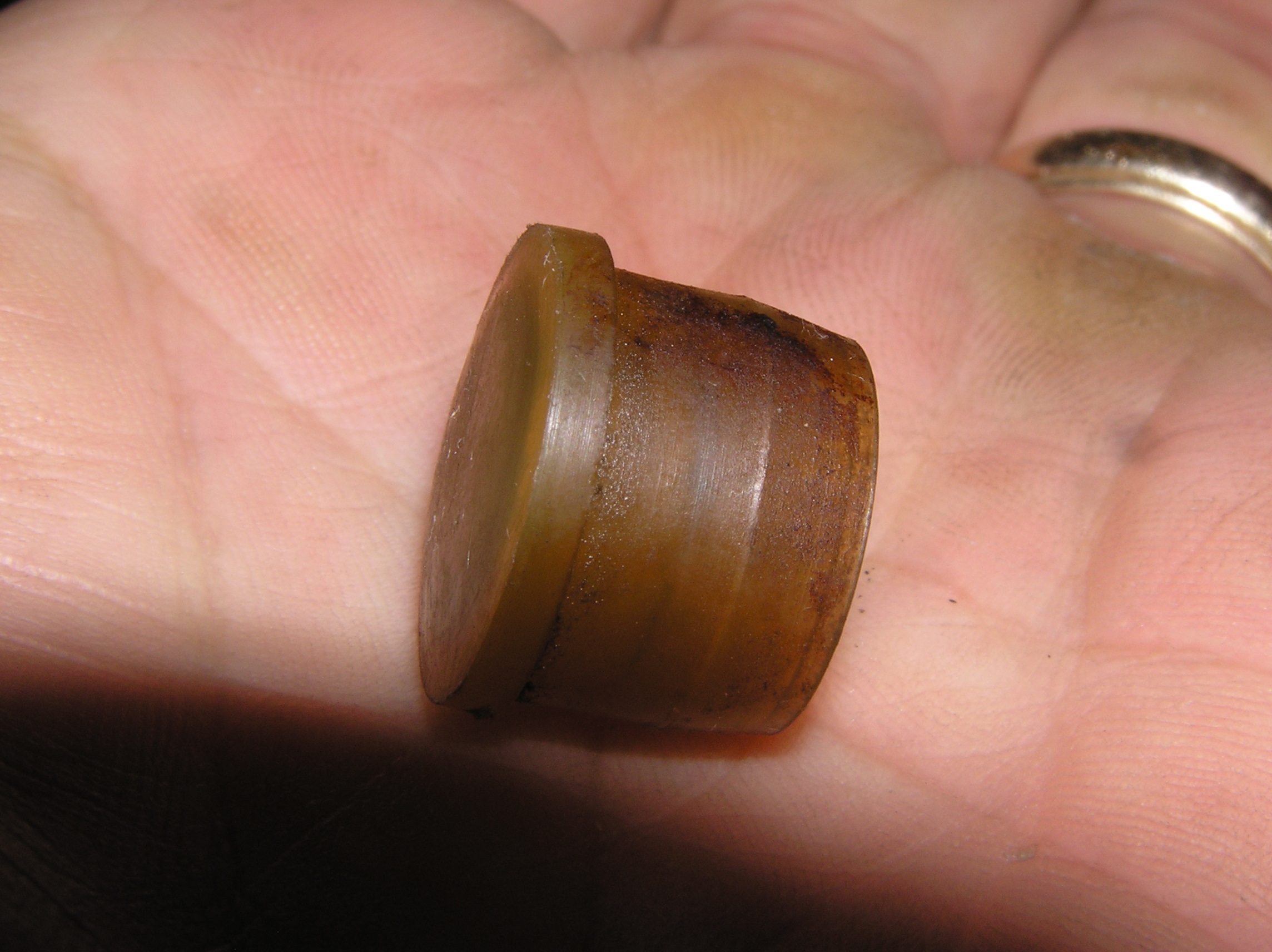

Found this plug in a parts bag with gas tank screws, etc.
Anyone know where this goes?
Bragging rights attached!
Click to view attachment
Full Version: Who knows where this plug goes? Bragging Rights!
WAG, bushing for clutch fork
Top of the rear suspension console.
OK -- I understand rear suspension but console?
yes... console.
Somebody's bung..
QUOTE(Eric_Shea @ Sep 26 2012, 08:40 PM)
Top of the rear suspension console.
This looks like the plastic plug that goes on top of the threaded holes for the three suspension bolts to keep the water out ...
I think this is a metal cup that goes somewhere by the front suspension in the area where the bolt is, to adjust the height. I am not sure exactly where but it is in that area.
I'm wit Erc.
Shower curtain rod
QUOTE(Eric_Shea @ Sep 26 2012, 10:40 PM)
Top of the rear suspension console.

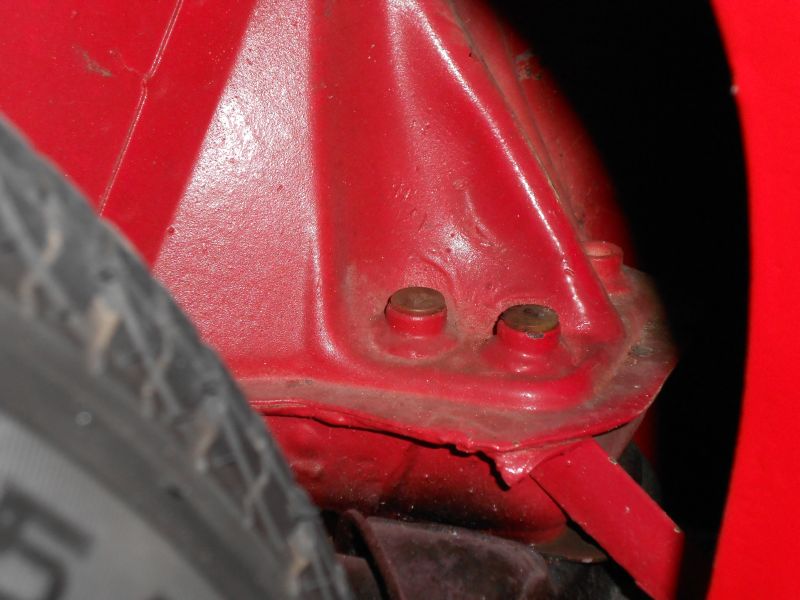

Rear suspension console with plugs:
Click to view attachment
--- Rob
QUOTE(SirAndy @ Sep 26 2012, 11:46 PM)
QUOTE(Eric_Shea @ Sep 26 2012, 08:40 PM)
Top of the rear suspension console.
This looks like the plastic plug that goes on top of the threaded holes for the three suspension bolts to keep the water out ...
My vote as well.
It goes in the hole. Duh
!
!
