Ok...so ready to dip in and re-hab the rear suspension. Part collection is almost complete except new shocks. So a couple of question for the group since I have never taken the CV's apart.

I have read all the other posts and watched the CV You Tube rebuild, and a couple of questions came up in my mind.

1. As of right now there is no "clunking" so I assume that they are not overly worn since they are NLA. Should I just "flip" them when I am done upon reassembly?

2. Do I just flip them end over on the same side of the car? The video didn't explain it very well. So I would assume just reassemble them as they are now and them flip them right?

3. If I see bad pitting or fracturing....should I just look for a used one now and hang on to it?

I have read about all the replacement options, must of them require some machining. I don't want to do this one again very soon so I want to make sure I do it right since the rest of the rear suspension will be getting re-habed.

Thanks all in Advance:

Rob
ThePaintedMan
I just disassembled them, cleaned all the old grease out, installed NEW boots and repacked with quality grease. If you want to flip them (I did as well), all you need to do is mark which end is the inner/outer on each side of the car. Rebuild each side of each half and install them with the old outer side as the new inner. That way they will rotate in the opposite direction.
6freak
QUOTE(ThePaintedMan @ Jun 21 2013, 08:11 PM) *

I just disassembled them, cleaned all the old grease out, installed NEW boots and repacked with quality grease. If you want to flip them (I did as well), all you need to do is mark which end is the inner/outer on each side of the car. Rebuild each side of each half and install them with the old outer side as the new inner. That way they will rotate in the opposite direction.


Not saying you can`t but IMO they rotate on the same surface area just a different direction,,,anywho if you see pitting and fretting there done for and need replace,like you said do it right the first time,spend the money and buy new used is just that ..JMO good luck and use Molylub
914_teener
QUOTE(6freak @ Jun 21 2013, 08:51 PM) *

QUOTE(ThePaintedMan @ Jun 21 2013, 08:11 PM) *

I just disassembled them, cleaned all the old grease out, installed NEW boots and repacked with quality grease. If you want to flip them (I did as well), all you need to do is mark which end is the inner/outer on each side of the car. Rebuild each side of each half and install them with the old outer side as the new inner. That way they will rotate in the opposite direction.


Not saying you can`t but IMO they rotate on the same surface area just a different direction,,,anywho if you see pitting and fretting there done for and need replace,like you said do it right the first time,spend the money and buy new used is just that ..JMO good luck and use Molylub



Thanks guys......

Oh though.....using Swepco for the grease.


Thanks for the help. Hopefully everything goes back together well.
rjames
You'll probably see pitting. If you do, replace them. There are a couple of vendors that sell modified type I replacements.
914_teener
Okay....update.

Yes for all that have not done these.....they are not only a pain to find, but a nasty dirty job.

I ended up going with the type I replacements as I could not locate any good used ones. Mine were so scored and pitted I didn't want to do them again anytime soon.

Couple of additional questions for the World though some may have run into.

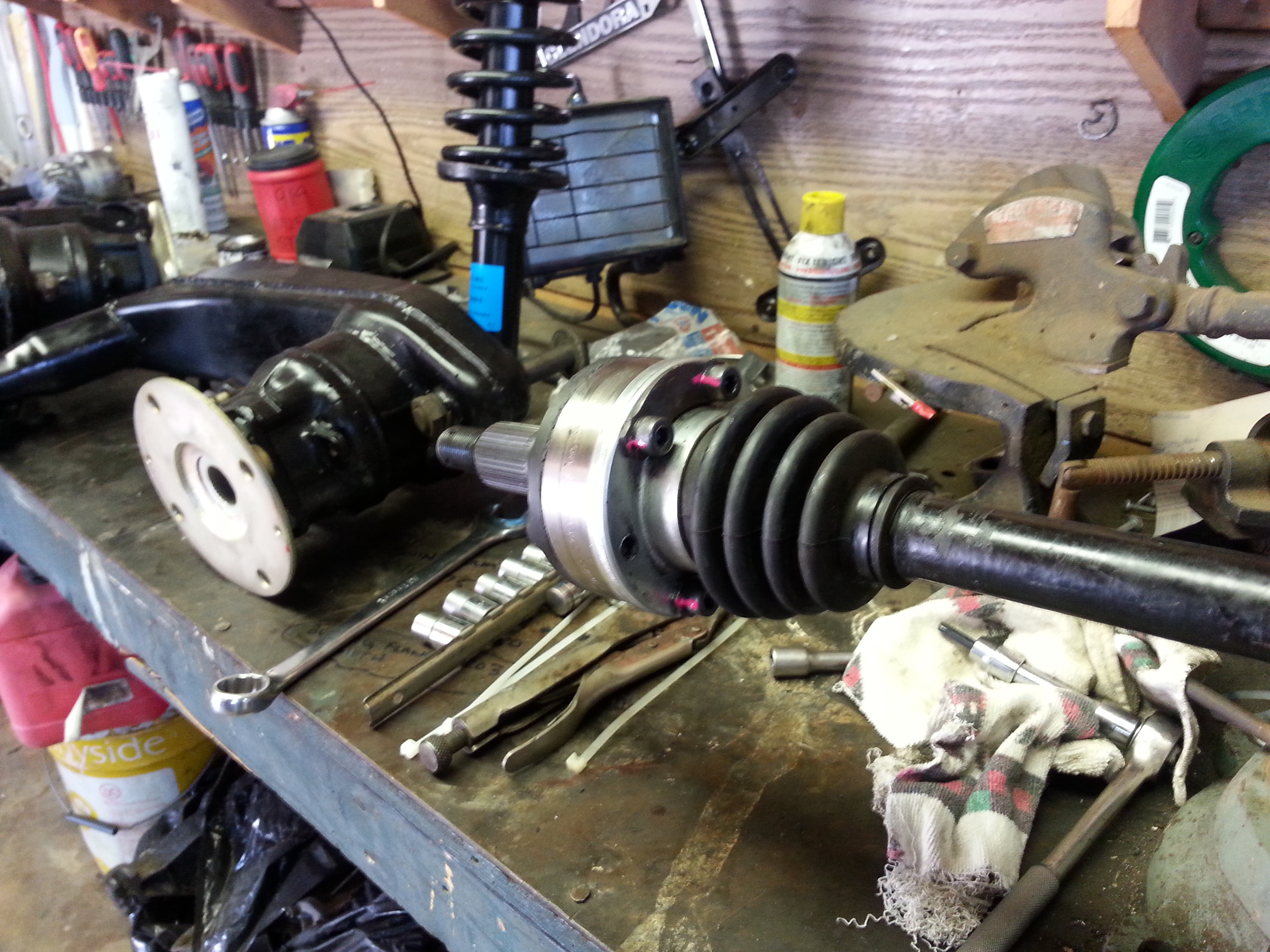

1. The Type I's have a recess here shown where the boot mates up against the CV.
The fit up isn't great. Should I RTV this side so the boot won't possibly sling grease?

2. Going without the paper gaskets as I have heard stories from others that they will
loosen the bolts over time. Any suggestions on the RTV to use? I was thinking the
most grease resistant and temperature resistant possible.

Thanks all in advance.

Click to view attachment
76-914
Rob, they never slung any grease out of that side when I ran them. And I will guarantee you that they come loose if you use a gasket.
Chris H.
QUOTE(914_teener @ Aug 14 2013, 12:08 AM) *


Yes for all that have not done these.....they are not only a pain to find, but a nasty dirty job.



You got that right! Just did mine as well. Messiest thing I ever did on the car. Because of the massive 72hp power plant there was no pitting, scoring, damage, etc. Looked like new except for a slight shine shine in certain areas. They will probably shatter when I use them with the Subie.
914_teener
QUOTE(Chris H. @ Aug 14 2013, 07:44 AM) *

QUOTE(914_teener @ Aug 14 2013, 12:08 AM) *


Yes for all that have not done these.....they are not only a pain to find, but a nasty dirty job.



You got that right! Just did mine as well. Messiest thing I ever did on the car. Because of the massive 72hp power plant there was no pitting, scoring, damage, etc. Looked like new except for a slight shine shine in certain areas. They will probably shatter when I use them with the Subie.


Mine were shot....They were definitely the originals. I don't plan on putting any more than 120 horsepower through these.

Thanks.....yes.... Kent.... understand the tension should keep all in place.....
Thanks for the parts.

All is key in keeping the parts in tension....my quess is that is why the engineers used the thicker backing plates to better distribute the tension from the screws.

Any suggestions on the RTV on the other side......your right...I am not going to use the gaskets....hence the question.

Thanks in Advance.
76-914
Rob, I was trying to say they won't or didn't leak on that side so I'd say no to RTV on that side. Also, it might be a Royal FPITA to split that cup side apart after siliconing w/o doing some damage to the cover (thinner) side.
914_teener
Ok.

Decided to use 500 degree and most grease resistant Permatex RTV...it is black.

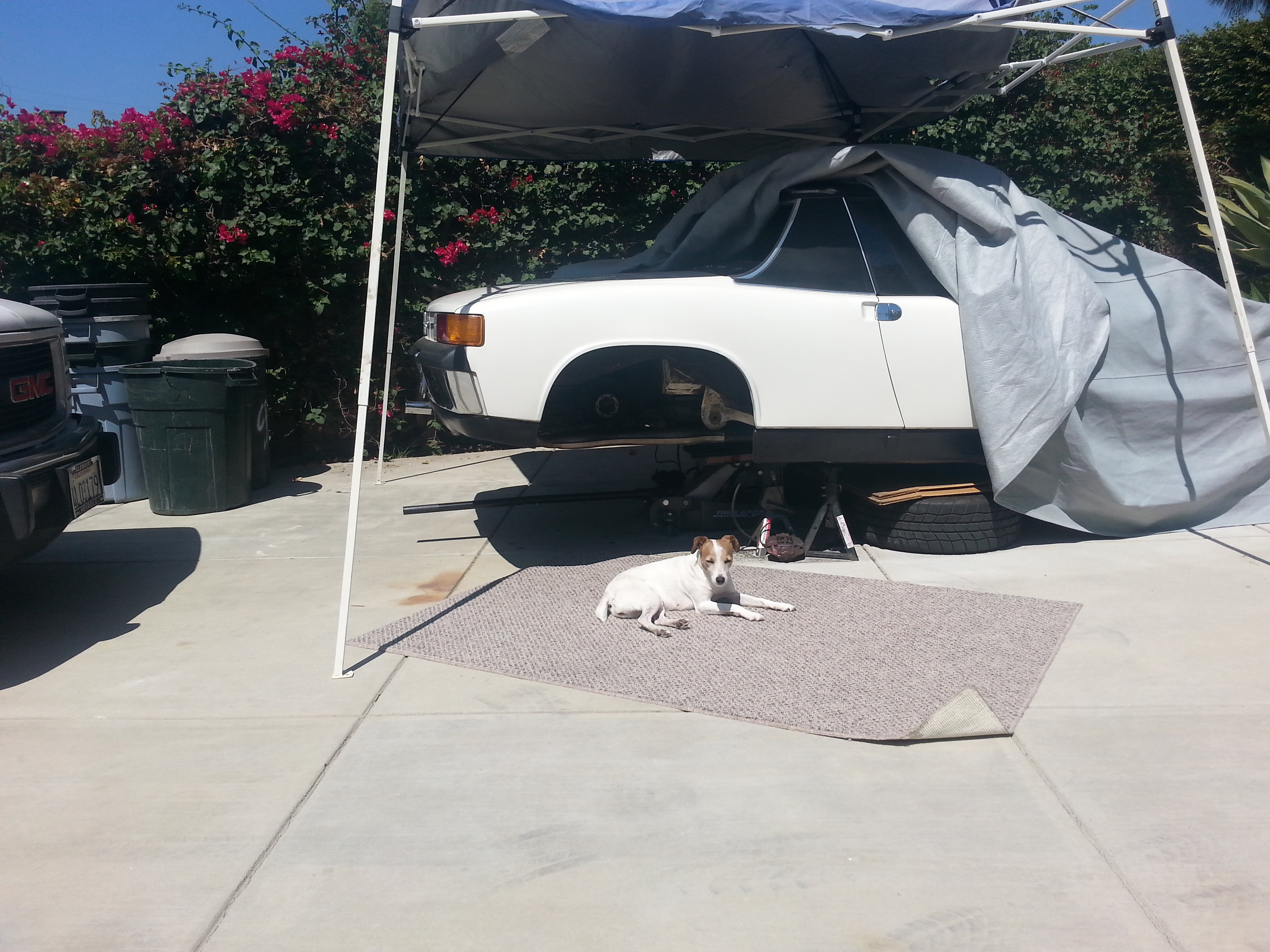

Goal is to have the car on the ground....with wheels and suspension in. Gonna replace the trans mounts "while I'm there".

HOT today...shiza..it was cool.

At least I have a helper!

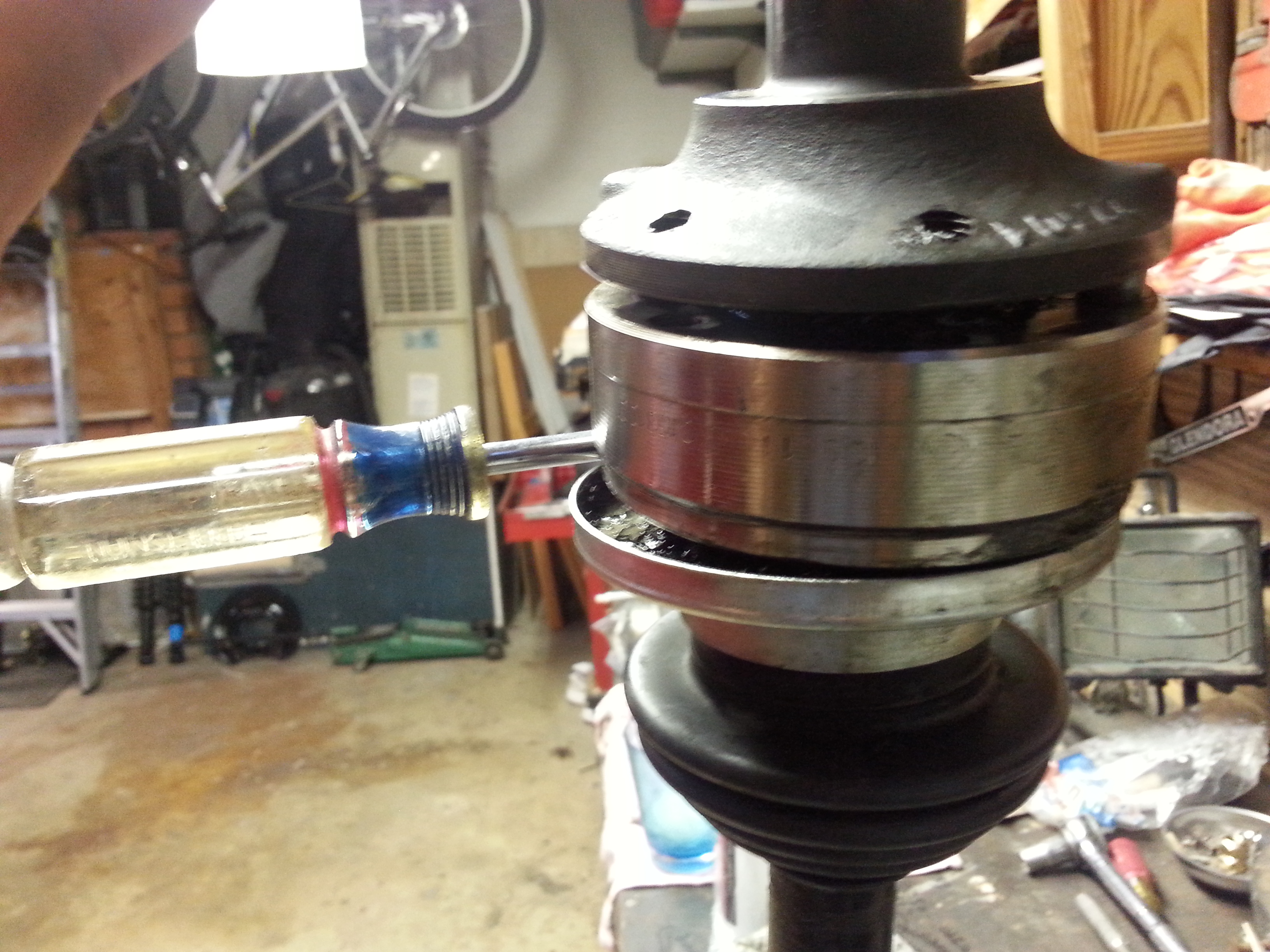

Click to view attachment
76-914
Rob, after you do this once you can be a professional like the rest of us. prop.gif
cwpeden
QUOTE(76-914 @ Aug 14 2013, 07:10 AM) *

Rob, they never slung any grease out of that side when I ran them. And I will guarantee you that they come loose if you use a gasket.


Guarantee? So you will come and fix mine when they come loose? (which has never happened in my 20+ years, 15 as a daily driver 365 days a year.) poke.gif
More important would item would be to replace the schnorr washer. http://www.schnorr.com/docs/Safety%20Washer.pdf
76-914
You did see where these are modified type 1's?? And they do come loose if you use a gasket. Guarantee it!!! It happened to me,
914_teener
QUOTE(76-914 @ Aug 16 2013, 12:53 PM) *

Rob, after you do this once you can be a professional like the rest of us. prop.gif




Hah....no thanks I'll keep my day job Kent.

Everything fit up well. New bolts, schoor washers and shocks from PMB. New control arms all purty from Bruce Stone and bushings with zerks....gonna bolt everything in tomorrow.

Only thing I screwed up was the perches on the shocks. The hole is supposed to go towards the trans. This brought up a question:

When you re-install the spring, the Hayes manual doesn't say to or how much your should 'pre-load" the spring. It shows a spring compressor taking the spring off but doesn't mention putting it back on...what's the deal there?

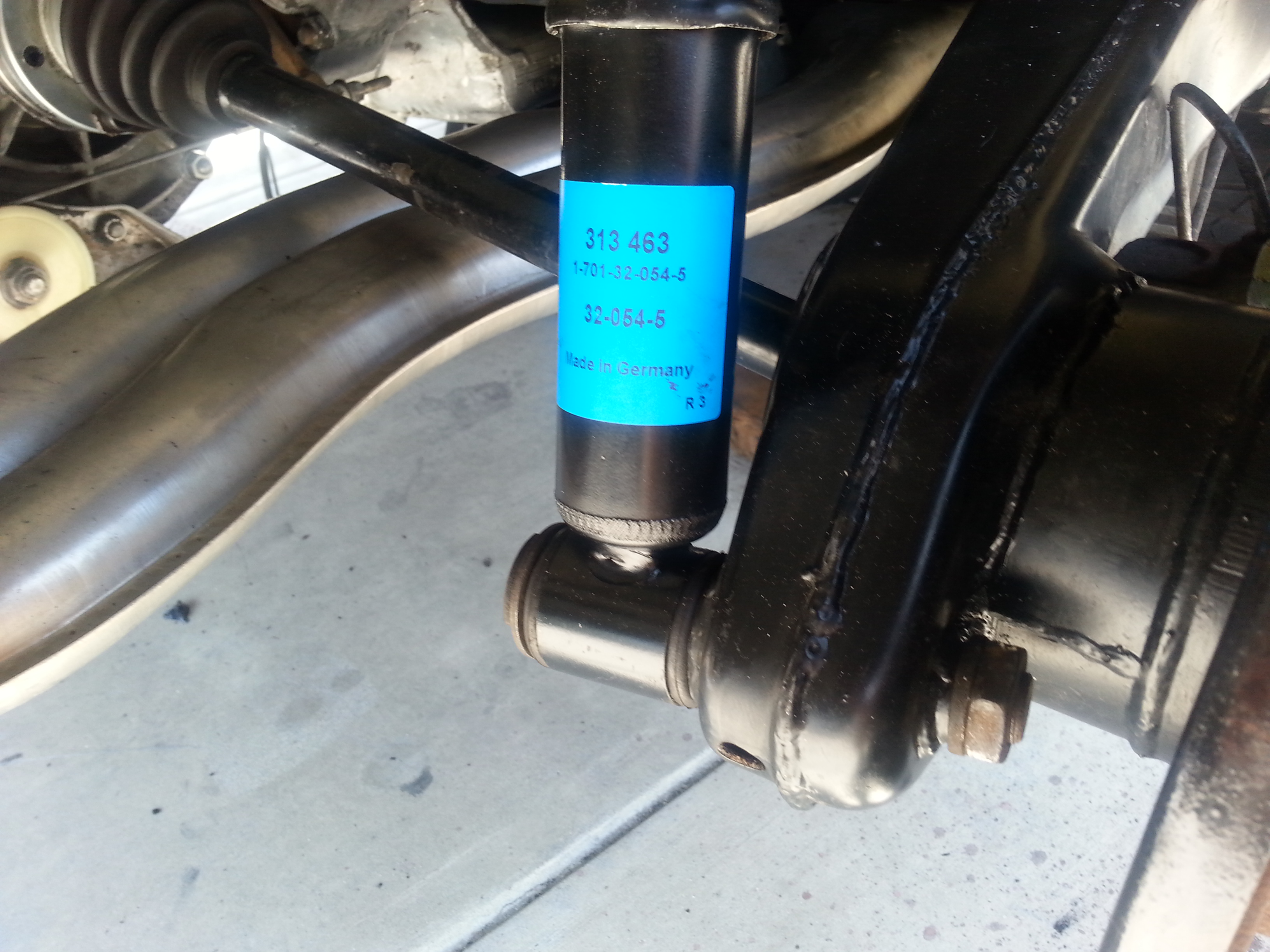

Picture.....and yes...that is my daughters fingernail polish on the CV screws as tattletale marks.....just in case... laugh.gif

Click to view attachment
cwpeden
QUOTE(76-914 @ Aug 16 2013, 06:06 PM) *

You did see where these are modified type 1's?? And they do come loose if you use a gasket. Guarantee it!!! It happened to me,



Ok, I see. Its the modified Type 1 thats the issue?
Learn something new today. beerchug.gif
914_teener
QUOTE(cwpeden @ Aug 25 2013, 10:38 AM) *

QUOTE(76-914 @ Aug 16 2013, 06:06 PM) *

You did see where these are modified type 1's?? And they do come loose if you use a gasket. Guarantee it!!! It happened to me,



Ok, I see. Its the modified Type 1 thats the issue?
Learn something new today. beerchug.gif




Yep.....torquing them down as we speak....another freakin hot day......

almost done. No problems except I forgot if the brake backing plate goes on the inside of the control arm and the caliper sandwiches against it?

76-914
Yes and Erc along with others warned me. Being old school I installed with gaskets, torqued, new washers and 22 hr's later they were finger loose or tight, depending on how you view it. That being said, the halves were still firmly together and reguired the usual force to separate them. WTF.gif Same gasket as the T4 but they will compress on these CV's and as I have learned, loose bolts.
914_teener
ok.

CV's are in. NO gaskets but black hi torque RTV.

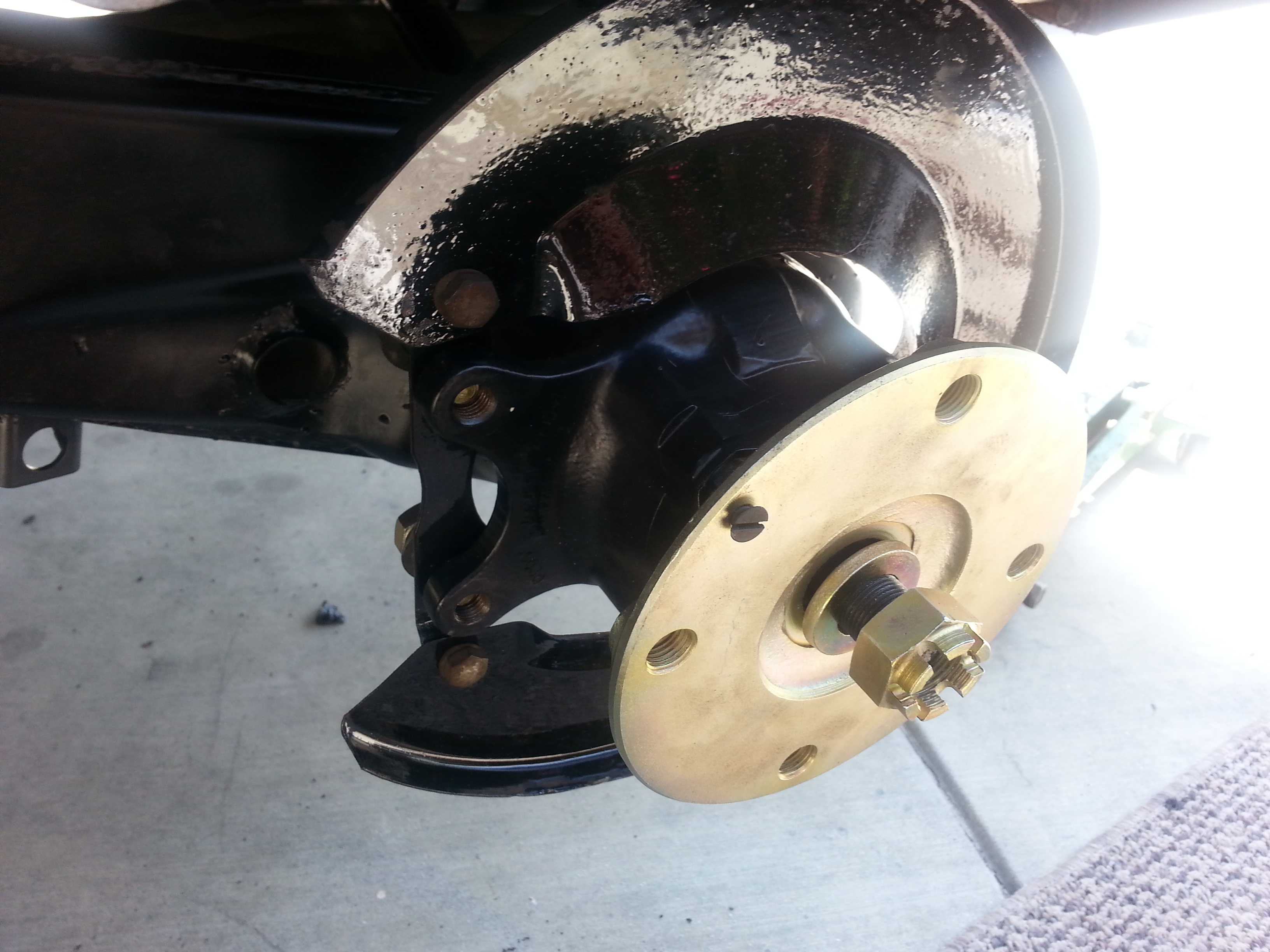

Are these brake rotor gravel shields in right?

This seems the only way they can bolt in and my Hayes manual is too faded to tell.

I like the new shocks....they replaced the Kill Ya Backs's. We see what the difference is.

The passenger side caliper is alot tighter and really dragging on the rotor. The vent clearances were fine when I took them off. How could anything have changed?

Thanks for everyone's help.

Click to view attachment

Click to view attachment
914_teener
Whew....finally done after about two months up on the jack stands in the driveway.

Ended up doing the entire rear suspension.

New shocks
Control arm bushings....complete powder coating and all the replated bling.
Rear bearings and plated hubs
New CV's cause they were shot.
New trans and motor mounts.

For whatever reason, the passenger side rear caliper got hung up. I think when I power washed the underside and cleaned everything water may have hung a piston up.
It seems to be free now but I think all the calipers may need a rebuild. Maybe late this Winter.

For now I wanna drive the sucker a little bit.

Thanks for all that had the parts and knowledge.

On the ground.

Click to view attachment
wndsnd
Looks really good.

One of the last jobs I need to do.

Thank you for the thread.

John
ChrisFoley
QUOTE(914_teener @ Aug 14 2013, 12:08 AM) *

1. The Type I's have a recess here shown where the boot mates up against the CV.
The fit up isn't great. Should I RTV this side so the boot won't possibly sling grease?

2. Going without the paper gaskets as I have heard stories from others that they will
loosen the bolts over time. Any suggestions on the RTV to use?


1) Our modified Type 1 CVs include an o-ring seal for that location.
2) Our modified Type 1 CVs have the exact same step cut as the oem CVs and we include new paper gaskets.They will not loosen up if installed and torqued correctly.
No need for RTV if done the way we recommend.
r_towle
QUOTE(Racer Chris @ Aug 28 2013, 08:28 AM) *

QUOTE(914_teener @ Aug 14 2013, 12:08 AM) *

1. The Type I's have a recess here shown where the boot mates up against the CV.
The fit up isn't great. Should I RTV this side so the boot won't possibly sling grease?

2. Going without the paper gaskets as I have heard stories from others that they will
loosen the bolts over time. Any suggestions on the RTV to use?


1) Our modified Type 1 CVs include an o-ring seal for that location.
2) Our modified Type 1 CVs have the exact same step cut as the oem CVs and we include new paper gaskets.They will not loosen up if installed and torqued correctly.
No need for RTV if done the way we recommend.


Put it back on jack stands...you can't take them off jack stands too fast, its bad for the car.

rich
914_teener

Got it....might relapse!

Had I known Dr. Foley had the magic pills instead of the 2 month program.....I would have gone that way.

Now I know. Looks like you almost have to go with the type I's now.
