Tom
After reading many accounts of how this circuit works, I felt compelled to investigate further as I did not understand how two positives would cause a light to operate. They won't. One must be somewhat negative to complete the circuit. Internet searches turned up the same basic explanation, still was not buying it. I think it was being oversimplified.
This is how I think the alt light works:
When the key is on and engine not running, there is 12 volts + at the alt light power side coming from the fused side of fuse #9. The other side goes to a junction on the relay board with D+. With the key to off and a meter connected between D+ and ground at the relay board, the reading is 12 ohms. As soon as the key is turned to on, the reading jumps to 12.5 meg ohms and the light comes on. If the wire for D+ to the alt is removed, the reading stays the same and the light stays on. Removing the VR caused the reading to jump to infinity and the light goes out.
For the light to work, there has to be power to one side of the light and some resistance reading to ground for the other. Looking at the wiring diagram, one can follow the blue wire to the junction at the relay board at D+, then up thru the VR to a set of relay contacts, then down thru a ( resistor ?, not sure) and then down to the DF connection and on to the rotor where the current will produce a magnetic field. After the rotor, it goes to ground. When the alt spins enough RPM's, a voltage is produced and fed back to the VR, causing the relay to open and removes the ground path for the alt light.
I could be entirely wrong here, but this is what I see and my readings more or less confirm it. If you see an error in my thinking, please post and let me know.
Thanks,
Tom
bulitt
I recall you need a light or resistor to "excite" the alternator into producing power particularly at low engine speeds. As you stated, once the power is flowing the light drops out???
toolguy
Light comes on when the alternator out voltage on the red lead is lower than the battery voltage. . reverse polarity flow. . .

Red white is switched battery 12.5 or so. . that is what lights the bulb at idle. . the bulb is connected to potential lower than 12 .5 volts thru the diodes in the alternator. . with the alternator turning, the voltage out of the alternator on the Blue wire to the regulator reaches the same voltage as the red [B+] out to the battery so there is no differentiation in voltage so no flow anymore thru the light and the light dims. both side now being equal voltage. .
.
and yes, the alternator needs voltage to excite the fields to begin the charging cycle.
spinning an alternator without hooking up a batter will not produce voltage. . generators did it by
having magnets in the outside fields. .

Really simplified version. .left out the technical stuff. It's only confusing
Spoke
QUOTE(Tom @ May 3 2014, 03:30 PM) *

I could be entirely wrong here, but this is what I see and my readings more or less confirm it. If you see an error in my thinking, please post and let me know.
Thanks,
Tom


Your findings are correct.

The GEN light has 2 functions:

1) Indicate when the main charging path is not functioning correctly. There are 2 charging paths (see diagram). The one on the left powers the voltage regulator. The path on the right is the main path and powers the vehicle's electrical circuits and charges the battery. The GEN light is connected between these 2 paths. If the main path isn't providing enough voltage, there will be a difference of voltage across the GEN light and it will light up.

2) Provide the minute current necessary (when the engine is first started) to energize the magnet in the armature (the part of the alternator that turns). This is called bootstrapping since the alternator pulls its voltage up by its own generated voltage.

#2 above is why if the GEN light is burned out or missing the alternator may fail to start up. It is possible for the alternator to start up since the armature magnet may have some residual magnetism when the engine is off.
Dave_Darling
A couple of minor misconceptions in the OP:

The light does not need voltage on one side and ground on the other to light. It needs more voltage on one side than on the other--and it doesn't really care which side is higher and which is lower.

The thing at the alternator is not a resistor, it is a diode. It keeps the current from flowing "backwards" through it except under some specific circumstances.

Toolguy and Spoke both have the functions correct. When you turn the key on with the engine not running, the red/white wire gets +12V. Since the alternator isn't spinning, the wire coming from it has about 0V. Current flows from +12V to 0V through the bulb, and the bulb lights up.

When the engine is running, the alternator produces voltage. So the blue wire from the alt will be at about +12V, as will the red/white wire. No current will flow, so no light. Note that you can get resistance on some connections that drops some of the voltage on one side or the other of those, which will make the light glow faintly; and there are other failure modes that will make the light shine in different ways.

And yes, the light provides resistance to help "bootstrap" the alternator so that it starts charging.

--DD
76-914
wacko.gif Wow! I'm still a little dazed but that was some "on point" info. I'm glad you guys filtered "toolguy's" simplified version. lol-2.gif Thanks a million. pray.gif
worn
QUOTE(Tom @ May 3 2014, 11:30 AM) *

After reading many accounts of how this circuit works, I felt compelled to investigate further as I did not understand how two positives would cause a light to operate. They won't. One must be somewhat negative to complete the circuit. Internet searches turned up the same basic explanation, still was not buying it. I think it was being oversimplified.
This is how I think the alt light works:
When the key is on and engine not running, there is 12 volts + at the alt light power side coming from the fused side of fuse #9. The other side goes to a junction on the relay board with D+. With the key to off and a meter connected between D+ and ground at the relay board, the reading is 12 ohms. As soon as the key is turned to on, the reading jumps to 12.5 meg ohms and the light comes on. If the wire for D+ to the alt is removed, the reading stays the same and the light stays on. Removing the VR caused the reading to jump to infinity and the light goes out.
For the light to work, there has to be power to one side of the light and some resistance reading to ground for the other. Looking at the wiring diagram, one can follow the blue wire to the junction at the relay board at D+, then up thru the VR to a set of relay contacts, then down thru a ( resistor ?, not sure) and then down to the DF connection and on to the rotor where the current will produce a magnetic field. After the rotor, it goes to ground. When the alt spins enough RPM's, a voltage is produced and fed back to the VR, causing the relay to open and removes the ground path for the alt light.
I could be entirely wrong here, but this is what I see and my readings more or less confirm it. If you see an error in my thinking, please post and let me know.
Thanks,
Tom

Originally key on, engine not lit, the battery feeds current throgh light tobthe D+ which is simply a path through the windings to ground because theregulator has D+ linked directly to Df. This current magnetizes the Df windings and when the spinning starts D+ becomes 13 volts really soon. That balances the battery and the light goes off. If there is a failure in the diodes charging the battery, the battery will go low, D+ will stay high and now the light will come on with electrons flowing in the opposite direction. If the original lamp wattage is too low, below 1.2 watts, it is possible that you wont bootstrap Df with enough current.
stugray
Every one else covered the basics very well above.

One statement in the OP's explanation jumped out at me though:
QUOTE
With the key to off and a meter connected between D+ and ground at the relay board, the reading is 12 ohms. As soon as the key is turned to on, the reading jumps to 12.5 meg ohms and the light comes on.


You cannot measure the resistance of a powered circuit.
So trying to explain the difference in resistance to ground before & after energizing the circuit is not measureable with a DMM in resistance mode.
Tom
stugray,
OMG, you are so right! I don't know what I was thinking yesterday. I do know that you can't take resistance readings with power applied. Must have forgot yesterday.
Dave_Darling,
The light must have a path to ground, even if there is a resistance between the light and ground. I measured 12 ohms initially.
I was talking about the two rectangular "boxes" in the voltage regulator. They don't look like diodes. One is all blacked in, the other is left uncolored or clear. I am thinking they are resistors.
toolguy,
The light doesn't get connected to a potential less than 12.5 volts thru the diodes, it's connected thru the voltage regulator and then thru the field to ground.
I still think the relay in the voltage regulator has the major part in keeping the light off when there is voltage being produced by the alternator. With the normally closed contacts open, there is no path for the light negative side to get to ground. I guess it is like the chicken or the egg. If no voltage is present, light lights, if there is voltage present, the relay operates opening the path to ground, but the light would not light anyway as the two voltages would be the same. Although, looking at the regulation side of the circuit, if the relay did not close and remove the ground, it would be almost like the initial "bootstrapping" was in place and the alternator would not vary it 's output to keep up with demands, so the relay does have an important part in this circuit.
I guess I am just being too technical, but when I see something I don't fully understand, I reach out to the guys who may have the answer for me. Often times I have found out information that has helped me in other projects.
Thanks for the reply,
Tom
type47
QUOTE(Dave_Darling @ May 3 2014, 02:24 PM) *

... and there are other failure modes that will make the light shine in different ways.


Could you expand on this? My alt light just came on (and I changed the alt for a tested good one about 6 weeks ago); fan belt still tight; no obvious observed problems so I removed the alt and took it to the free FLAPS for testing and it tested good. Great dry.gif good alt but the alt light is lit. Need things to check. Now that the alt is out, I'll check the alt harness and the 14 pin harness on the relay board. Want to drive to a local event this Sat so I'd like this resolved. TIA.
ThePaintedMan
Check the voltage regulator.
stugray
There is a test where you unplug the VR and connect two pins on the harness side and start the car and measure the ALT output voltage.
I dont remember which pins, but I have it written down at home (a serach on here might turn it up).

Anyway, I had a problem where I was barely getting above 13 Volts with the car running.
I did the test, and the ALT was putting out 16 Volts with the VR bypassed.
I put in a different (still used) VR and then I was getting 14.5 Volts running.

So that check can tell you if the problem is with the Alt or the VR.
Dave_Darling
QUOTE(type47 @ Aug 26 2014, 05:41 AM) *

Could you expand on this?


If some of your alternator's diodes are failing the light will flicker. If there is resistance in the circuit, the light can come on dimly. There is some other failure mode that makes the light dim at idle, and get brighter as the RPMs increase. (Failed VR? I forget!) And there may be others as well.

I used to be able to find a chart with different light behaviors and possible causes, but I can't find it now...

--DD
type47
The alt I removed this morning and tested good has been reinstalled. Just have to connect the starter connection and reinstall the heating ducts and air guide. Funny, I have a VR sitting out on the tool table so I might as well try that too. Break for lunch ... BLT's!

Rats! All put back together and Alt light still on; changed VR, still on ... no power to oil temp gauge and step on brakes, alt light gets brighter, tach indicates less rpm than it sounds like. Going to check brake light switch wiring circuit ...

So, after looking at the schematic, I decided to check out fuse #9 with it's circuit to the tach, brake light switch, fuel gauge, etc. Fuse was blown. Replace fuse, all is good (except to figure out why the fuse blew, but I'm beat and no more today).

Moral of the story: If your alt warning light goes on, check #9 fuse before you R & R the alternator. ar15.gif
type47
So, there is no joy in Mudville, the alt light is still on. I installed a new solid state VR and the light is still on. I think i need to test/measure voltages at the alt warning light; the blue wire and the red/white wires as it seems the explanations have the +12 V from those 2 wires controlling the light operation.
Spoke
Alternator testing good may not completely test all the functions of the alternator. Not sure the test would find a damaged diode on the charging or VR sides.

Here's a little description of how the diodes work in the alternator. The alternator is a 3-phase alternator with 3 separate windings spaced 120 degrees from each other.

With full diode bridge rectification, the correct alternator output across the VR would look something like this. The black line is actual voltage since the VR has some capacitance to filter the ripple voltage from the alternator.

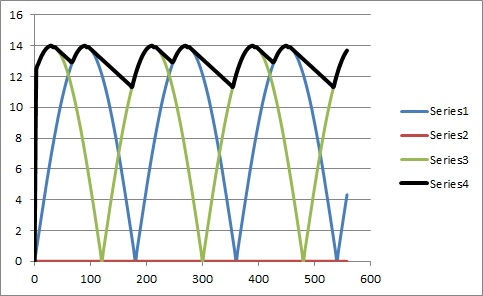

Click to view attachment

If you lose one phase of the alternator because of a open circuited diode, the voltage would droop between the operating phases and the GEN light would light a bit.

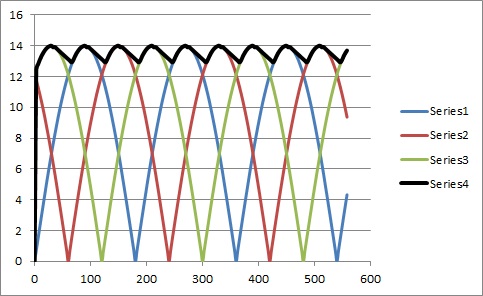

Click to view attachment

If 2 phases are lost, the droop in the voltage is more pronounced and the GEN light is brighter.

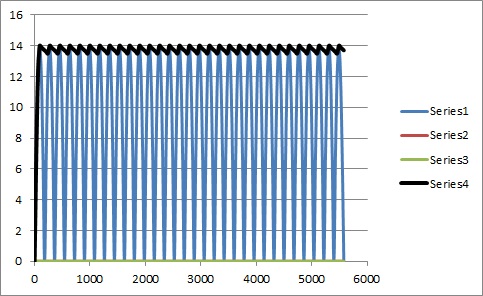

Click to view attachment

So with burnt diodes, the GEN light is on at idle, rev the engine and the GEN light dims. This is because there is less time between active phases of the black trace, the voltage across the VR and one side of the GEN light is almost 14V like across the battery on the other side of the GEN light.

Click to view attachment
type47
QUOTE(Spoke @ Sep 5 2014, 08:27 AM) *

Alternator testing good may not completely test all the functions of the alternator. Not sure the test would find a damaged diode on the charging or VR sides.


Tested at Advance Auto parts. I really don't want to R & R the alt again. When I started and revved the engine, the light did not dim. I need to get out and measure voltages on either side of the alt light. I think I can get the DMM probe in the plugs. First try did not get 12 V but about 3 V. Had to stop for other things ... So on either side of the alt light there should be 12 V? That's what I read from the above info.

So the alt terminal D+ found in track 76 in the schematic should be 12 V. The terminals T 3a, T 3b are the plug for the alt harness on the relay board and T 14/2 connects there too; I should be able to measure at the plug...
Spoke
Remove the gauge bucket with the GEN light. Start the car. Measure the voltage on both sides of the GEN light to ground.

One side should be the battery voltage about 13-14V. The other side should be the same but will likely be lower. If the one side is lower, likely there is an issue with the alternator (or wiring). I threw in the (or wiring) because a wire issue could cause just about any odd behavior.

When did the GEN light start lighting up? Did you do any work to the car before?

BTW, what is the battery voltage when the car is idling?
TheCabinetmaker
Last time I saw a bad vr I replaced it with the solid state unit. It would not work. Replaced it with a new oem hella and all was well.
type47
QUOTE(The Cabinetmaker @ Sep 5 2014, 02:10 PM) *

Last time I saw a bad vr I replaced it with the solid state unit. It would not work. Replaced it with a new oem hella and all was well.


I have a bunch of VR's laying around so I could try them.

Spoke, the Alt light lit up ~2 weeks ago. Blew #9 fuse and when I replaced the fuse, it seemed all was OK (see posts above that are about this). I have been working on the car but not on the electrical. I've been trying to get a CIS system to work. Only related things are a 009 dizzy with Pertronix. I've looked for shorts, I have the gauge cluster out and will measure on both sides of the alt light. I even took the brake light bulbs out and Dremel wire wheeled the surfaces wondering if oxidation was the culprit. Thanks for the ideas and I'd appreciate any explanations and thoughts. Probably won't get to do any work 'til Sunday. Going for PA peaches at Brown's in Loganville, PA tomorrow (SO quality time).
type47
QUOTE(Spoke @ Sep 5 2014, 02:02 PM) *

...what is the battery voltage when the car is idling? 11.6V

Remove the gauge bucket with the GEN light. Start the car. Measure the voltage on both sides of the GEN light to ground.

On the double red/wht terminal, 11.6 V (assume battery voltage); on the blue wire side, 7.6V. At the 3 terminal plug, at the relay board connection for the red wire terminal (so this would be coming from the alternator) also 7.6 V
Dave_Darling
If that's the voltage across the battery posts (with a decent voltmeter--not the stock one in the center console!!) then your battery is not charging, and is about 3/4 dead. Re-charge it and keep troubleshooting the charging system, because it ain't workin!

--DD
GregAmy
So instead of starting a new thread, I'm going to necro this one and camp onto it because it's so useful.

Racecar: no need for a GEN light, I have a full LCD dash with voltage display and warnings. I removed the dash, relay plate (carbs) and mounted the voltage regulator directly to the sheet metal (easier in/out of drivetrain). Of course, the alternator won't start charging until I connect a test light between the battery and touch it to the red VR wire terminal.

Anyone have a rough idea what the resistance is on the dash bulbs to I can wire a resistor to the red terminal (don't have one handy)? Or, is any resistance at all required; can I just go with a fused jumper wire on it?

Thanks!

Spoke
I would take a guess at about 200 ohm should do. Being 14V maximum across this resistor, the resistor wattage should be greater than 14V*14V/200 = 1W. A 2 watt resistor should do.
mikesmith
QUOTE(Tom @ May 3 2014, 12:30 PM) *

After reading many accounts of how this circuit works, I felt compelled to investigate further as I did not understand how two positives would cause a light to operate. They won't. One must be somewhat negative to complete the circuit. Internet searches turned up the same basic explanation, still was not buying it. I think it was being oversimplified.


The functioning of the regulator is a bit sneaky and not necessarily obvious (though honestly you can say this of a lot of pieces of heavily cost-optimised technology).

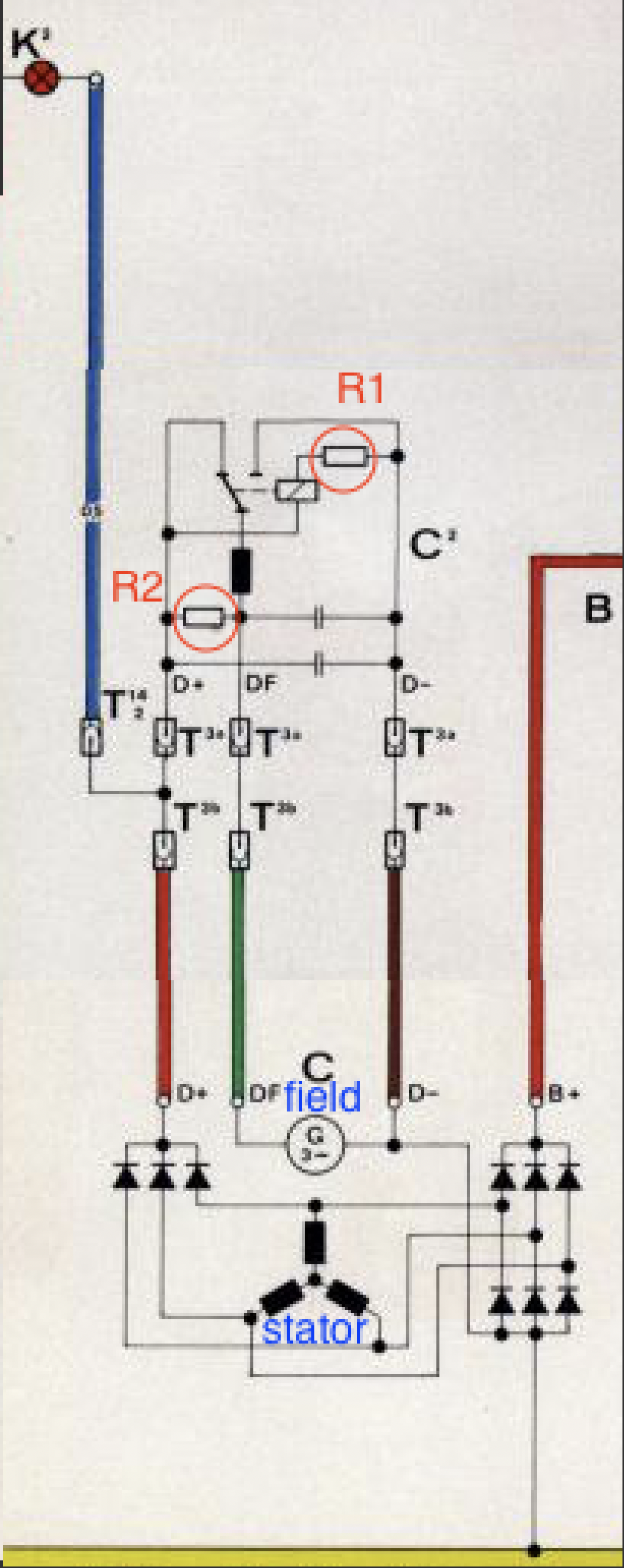

Click to view attachment

Things to know:

- The alternator will only produce an output when current is already flowing through the field coil (marked G). This is the coil that spins when the alternator input shaft is turned by the engine.
- There are a couple of capacitors (close vertical lines) in the regulator drawing; I've covered some of their functions here but almost certainly not all of them.
- I only marked two of the resistors in the drawing, there's another that's blacked in - being blacked in almost certainly means something, but it's not clear what.
- Current takes time to start up / slow down, especially when it's flowing through coils like the field or stator coils in the alternator.
- It takes more current flowing through the coil to turn a relay on than it does to keep it on (so the 'turn off' current is lower than the 'turn on' current).
- Like most folks I'll use positive-to-negative when describing current flow; don't be upset that electrons actually move the the other way. 8)

When the engine is off, and immediately after it's started, current flows from the battery, through fuse #9, through the alternator warning lamp (K2), through the D+ terminal on the regulator, through the relay in the regulator and out the DF terminal, to the DF terminal on the alternator, then out the alternator ground back to the battery (current always flows in circles). This provides the necessary field coil current to bootstrap the alternator.

Once the engine has started the voltage across the stator coils begins to rise. Current will start to flow out the D+ terminal once the voltage rises above a certain point (tough to calculate due to the way the field coil behaves, but probably a few volts), and then out the B+ terminal once it rises above the current battery voltage.

While current is flowing out both terminals the voltage on each terminal will be nearly the same (since in both cases the current's coming from the stator coils). B+ will never fall below battery voltage; D+ will never go (much) higher than battery voltage / B+, but may be quite a bit lower at times.

As B+ is connected to the battery, and thus to the other side of the warning lamp (K2) this means there will be no current flow through the lamp and it will go out once D+ reaches battery voltage (no voltage difference -> no current flow).

The voltage on B+ and D+ will continue to rise (assuming the alternator is spinning fast enough) as the battery charges.

As the voltage on the D+ terminal continues to rise, the current flowing through the regulator relay coil and resistor R1 (circled in red) also rises.
Eventually this current is sufficient to energize the relay and it switches, disconnecting the field coil (and in fact shorting it to D- to ensure that no leakage current continues to energize it). The upper of the two capacitors in the diagram helps prevent damage to the relay contacts during this switching operation.

Removal of the field coil current causes the stator coil to stop generating (this isn't instantaneous; the field coil current falls, the magnetic field starts to collapse, the stator induced current falls...).

As the stator voltage falls the current out the B+ terminal falls, reducing charge current to the battery / rest of the vehicle.

At the same time the voltage on the D+ terminal and thus the current through the relay coil / R1 also falls; some current flows via K2 but this is insufficient to keep the relay energized. This causes the relay to switch back, returning the alternator / regulator to a state similar to the bootstrap state. At this point, there are several sources of current for the field coil; the bootstrap path through K2, the residual charge in the lower of the two capacitors, and the the stator via D+ and R2; one or more of these (probably all three contribute) cause the field coil current to rise and the cycle repeats.

The on/off process repeats very quickly; it can be several hundred times a second. During the off phase some current may flow through K2, but the average current will be low enough that the lamp won't light. The duty cycle (ratio of on time to off time) will vary based on the load on the system; more load will cause the B+ / D+ voltage to rise more slowly, delaying the time until the relay switches. With less load, it will rise more quickly. The time the charge circuit spends off will (tend to) be more constant, as it's related to the value of the lower capacitor and the characteristics of the relay coil, which don't vary with load.

HTH, and apologies for any errors or confusion this might cause.
GregAmy
That's some beautiful stuff right there (along with the prior posts).

So lemme ask two unrelated alternator questions.

- After posting, I took the racer out for a spin to check the drivetrain install (it's a caged racer but actually has plates and insurance). I was just cruising 5-10 minutes locally so didn't "excite" the alternator (not worried about battery level) but 5 minutes into the drive I glanced down and the dash was showing 13.5V.

How did this happen, and is it possible that this is a non-problem for a higher-revving race car?

- In the street car, I had a glowing GEN light that would be dim at idle and get brighter with RPM. I did some voltage checks and found that the B+ battery voltage was ~13.5V so it was charging fine, but the D+ voltage was full alternator output, from ~14.5V at idle to ~17+V at 3000 RPM. I drove it like that for a few months until I got motivated to replaced the alternator (the only thing the D+ was going to was the GEN light); a new voltage regulator did not resolve it, but a replacement alternator did.

Why is that? What failed in the alternator for that to happen?
mikesmith
QUOTE(GregAmy @ Jul 29 2019, 01:51 PM) *

- After posting, I took the racer out for a spin to check the drivetrain install (it's a caged racer but actually has plates and insurance). I was just cruising 5-10 minutes locally so didn't "excite" the alternator (not worried about battery level) but 5 minutes into the drive I glanced down and the dash was showing 13.5V.

How did this happen, and is it possible that this is a non-problem for a higher-revving race car?


Your description just begs more questions, sadly. Did the alternator self-excite? (residual magnetic field, current leakage into the field winding?). Is your battery just a monster (or are you running a 16V setup?), do you trust the dash's voltage reading?

QUOTE
- In the street car, I had a glowing GEN light that would be dim at idle and get brighter with RPM. I did some voltage checks and found that the B+ battery voltage was ~13.5V so it was charging fine, but the D+ voltage was full alternator output, from ~14.5V at idle to ~17+V at 3000 RPM. I drove it like that for a few months until I got motivated to replaced the alternator (the only thing the D+ was going to was the GEN light); a new voltage regulator did not resolve it, but a replacement alternator did.

Why is that? What failed in the alternator for that to happen?


If D+ is significantly higher than B+, then the high side of the main rectifier or something else between the stator winding and the battery (B+ terminal hardware, battery strap not tightly connected, etc.) is probably hosed.

Not sure about what you're doing with D+ only going to the GEN light... that's not how it's supposed to work. 8)
GregAmy
QUOTE(mikesmith @ Jul 29 2019, 05:42 PM) *
Your description just begs more questions, sadly. Did the alternator self-excite? (residual magnetic field, current leakage into the field winding?). Is your battery just a monster (or are you running a 16V setup?), do you trust the dash's voltage reading?

"Self-excite" is the only thing I can think of. But here's the rub: prior to my removing the replay plate and re-wiring everything, the VR was sitting on the relay plate, as normal. However, the stock dash was already removed and a Stack 8130 was stuffed in there, with no wires going to it for GEN/ALT light. I removed the Stack last year to install a Race Technologies DASH.

And yet...the alternator was charging. I *presumed* (but never verified) that the previous owner had stuff a resistor or bulb someplace in there, but was never curious enough to find it. However, today we know for a fact that since I removed the relay plate it's not connected.

And yet...?

And here's another rub. Some years ago I removed my VR from the replay plate on the street car; I described it in this thread here. At the time, I was not aware that the common knowledge was that the alternator would not "self-excite" without a GEN bulb..."and yet"...when I did that the voltmeter was showing charging. I only added that jumper wire in order to get a GEN light indication in case of failure.

So...I do wonder if it's actually needed.

Battery in the street car is a Miata AGM, and battery in the race car is a very small Deka ETX14 battery.

QUOTE
Not sure about what you're doing with D+ only going to the GEN light... that's not how it's supposed to work. 8)

Ok, you're correct. To clarify, the GEN light is the only D+ connection to the car. So I drove it like that, not worrying that it was going to fry any equipment in the car (the VR didn't seem to mind). I still have that alternator in a box in the garage, I'm likely to send it to an electrical repair shop to keep as a spare. But it wold be nice if it's a simple bench fix (while I'm handy with electtrical systems basics, I'm a mechanical guy, not an electrical guy).
Spoke
QUOTE(GregAmy @ Jul 29 2019, 04:51 PM) *

That's some beautiful stuff right there (along with the prior posts).

So lemme ask two unrelated alternator questions.

- After posting, I took the racer out for a spin to check the drivetrain install (it's a caged racer but actually has plates and insurance). I was just cruising 5-10 minutes locally so didn't "excite" the alternator (not worried about battery level) but 5 minutes into the drive I glanced down and the dash was showing 13.5V.

How did this happen, and is it possible that this is a non-problem for a higher-revving race car?


It is possible that the armature has some residual magnetism in it at rest such that without the current provided by the GEN light there is enough magnetism to get the alternator started. Once started, the GEN light is not in use thus the alternator is providing all the energy needed to drive the armature.

QUOTE

- In the street car, I had a glowing GEN light that would be dim at idle and get brighter with RPM. I did some voltage checks and found that the B+ battery voltage was ~13.5V so it was charging fine, but the D+ voltage was full alternator output, from ~14.5V at idle to ~17+V at 3000 RPM. I drove it like that for a few months until I got motivated to replaced the alternator (the only thing the D+ was going to was the GEN light); a new voltage regulator did not resolve it, but a replacement alternator did.

Why is that? What failed in the alternator for that to happen?


Sounds like a diode failed in the D+ circuit but it doesn't make sense to me. The D+ voltage drives the VR and armature and the VR keeps D+ in regulation around 14V. The VR has no idea what the battery voltage is doing. The VR only senses D+ to D- and keeps that voltage to 14V. In a fully functional alternator, the battery voltage will also be 14V.
930cabman
Another old, old thread

Generator light will not light engine off or engine on. When started alternator (with built in regulator) power at the battery reads about 12V. After running for a short time, 3 -4 minutes, power at the battery reads 13.8 or so. This is a /6 conversion so accessing the alternator is a PITA
Spoke
QUOTE(930cabman @ Jul 10 2024, 06:52 PM) *

Another old, old thread

Generator light will not light engine off or engine on. When started alternator (with built in regulator) power at the battery reads about 12V. After running for a short time, 3 -4 minutes, power at the battery reads 13.8 or so. This is a /6 conversion so accessing the alternator is a PITA


So when you start the engine GEN light is not lit and the battery reads 12V. Then after running for a short time, you have 13.8V. Sounds like the VR is not making a connection to the armature so the GEN light is off. But after driving with higher RPMs, there's enough residual magnetism in the armature that the alternator comes alive. The voltage at the battery switches immediately from 12V to 13.8V.

The 911 charging system is similar to the 914 shown here for reference. The VR powers the armature through the GEN light causing it to light up and bootstrapping the alternator.

The culprit is likely either wiring or the VR. Hopefully it is just wiring.

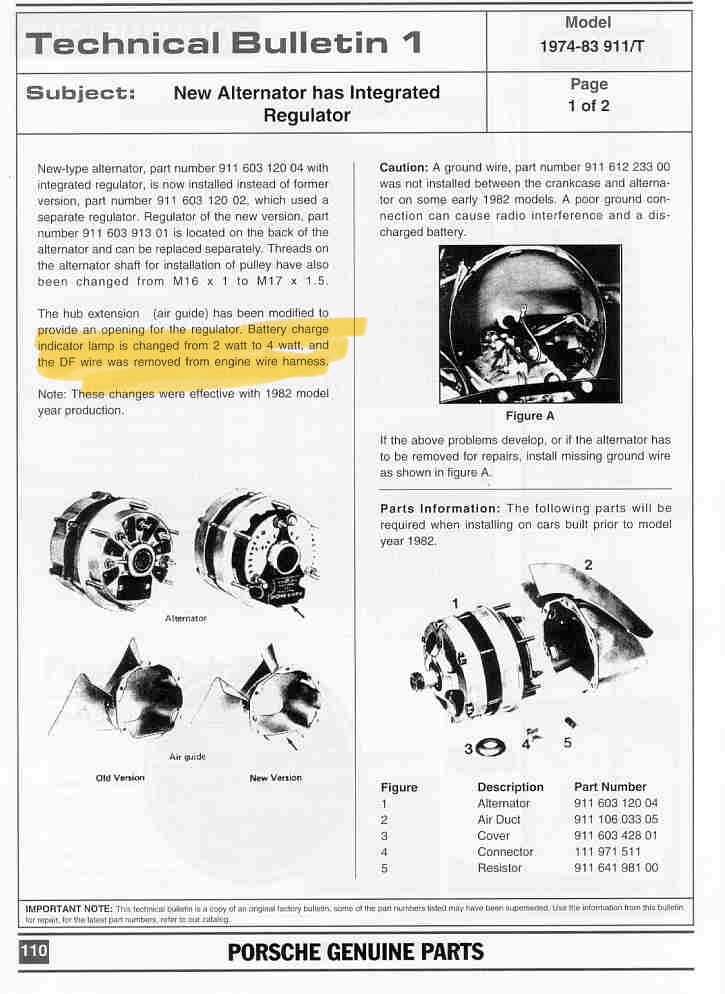

Click to view attachment
Lucky9146
Glad this thread got bumped, the diagrams and info helped me understand what was happening with my alternator on a recent post on my thread.
driving.gif white914.jpg
930cabman
QUOTE(Spoke @ Jul 11 2024, 11:15 PM) *

QUOTE(930cabman @ Jul 10 2024, 06:52 PM) *

Another old, old thread

Generator light will not light engine off or engine on. When started alternator (with built in regulator) power at the battery reads about 12V. After running for a short time, 3 -4 minutes, power at the battery reads 13.8 or so. This is a /6 conversion so accessing the alternator is a PITA


So when you start the engine GEN light is not lit and the battery reads 12V. Then after running for a short time, you have 13.8V. Sounds like the VR is not making a connection to the armature so the GEN light is off. But after driving with higher RPMs, there's enough residual magnetism in the armature that the alternator comes alive. The voltage at the battery switches immediately from 12V to 13.8V.

The 911 charging system is similar to the 914 shown here for reference. The VR powers the armature through the GEN light causing it to light up and bootstrapping the alternator.

The culprit is likely either wiring or the VR. Hopefully it is just wiring.

Click to view attachment


Thank you Spoke, this issue is with a recent /6 conversion. Alternator (bench tested by local rebuilder) has a built in regulator. I was unable to get anything from it so the carbs, shroud, ... came off to access the alternator. Took into Phil and it tested ok on the bench. Now it's all back together and acting weird. After running a short (2-3 minutes) with a few blips, I will get 13 or 14 volts and it seems to remain until I shut the engine off. A restart will return the voltage to 11.8 V
ClayPerrine
This sounds like an issue with bad grounds.


Was the ground wire that connects the back of the alternator to the case present and in good condition?
930cabman
QUOTE(ClayPerrine @ Jul 12 2024, 05:32 AM) *

This sounds like an issue with bad grounds.


Was the ground wire that connects the back of the alternator to the case present and in good condition?


Yes, clean and tight

The GEN light does not come on in any scenario. I will dig into this as I sense the issue lies with "bootstrapping" whatever that is
87m491
Not for nothing, but unless I missed it you have not said the gen light bulb was present/connected/not burned out?

QUOTE(930cabman @ Jul 12 2024, 03:38 AM) *

QUOTE(ClayPerrine @ Jul 12 2024, 05:32 AM) *

This sounds like an issue with bad grounds.


Was the ground wire that connects the back of the alternator to the case present and in good condition?


Yes, clean and tight

The GEN light does not come on in any scenario. I will dig into this as I sense the issue lies with "bootstrapping" whatever that is

Spoke
QUOTE(930cabman @ Jul 12 2024, 06:59 AM) *

Thank you Spoke, this issue is with a recent /6 conversion. Alternator (bench tested by local rebuilder) has a built in regulator. I was unable to get anything from it so the carbs, shroud, ... came off to access the alternator. Took into Phil and it tested ok on the bench. Now it's all back together and acting weird. After running a short (2-3 minutes) with a few blips, I will get 13 or 14 volts and it seems to remain until I shut the engine off. A restart will return the voltage to 11.8 V


Sounds like you can drive the car just make sure to blip the throttle to get the alternator to bootstrap.
The GEN light off is the issue. Either the VR is not connecting the bulb to the armature or the wires don't connect.

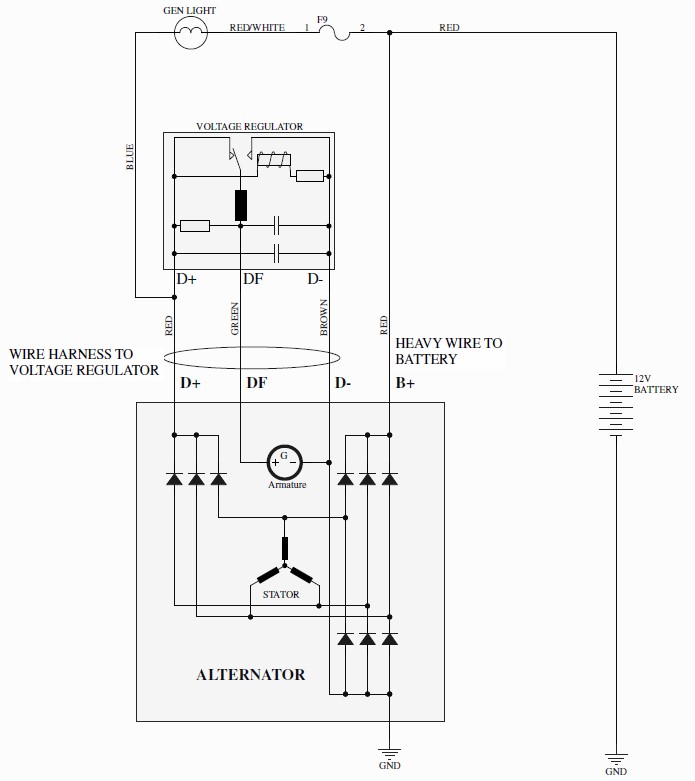

Try testing the system by measuring the voltage of the blue wire from the alternator and both voltages at the bulb. Just turn the key to RUN w/o engine running. The GEN light should light.
technicalninja
Spoke and Dave Darling have their shit together!

Both members are freaking perfect!

Now, 930Cabman's car either has wiring issues or a bad diode in his alternator IMO.

Fast way to test is add ground to the D+ ignition in run, engine off.

Does the gen light glow?

Bad diode (95%) or maybe regulator.

Regulator would be a stretch but it's so much easier to swap that it's worth trying first.

Light doesn't glow?

Look to wiring for the light.

Another dead giveaway for bad diodes is an alternator that shows amp draw (any at all) with ignition off.

I've replaced more alternators than anything else for "If I let the car sit 3 days the battery is dead".

And I'll second Clay's recommendations. Take a set of jumper cables and connect neg bat term to engine case with the cables.
Does anything change?
930cabman
Once again, the 914 World Team has killed it.

Now I need to get to work and do a bit of digging.

Thanks all for your assistance
930cabman
Excited

Still having an issue, but seems as though the alternator comes into charging earlier. I am still unable to get the GEN light to light under any condition (Lamp will light with 12v applied). Red/white wire has switched battery voltage. Blue wire I cannot get anything, no voltage, no continuity to ground, nothing.

But, it seems as the system comes online quicker. Alternator was bench tested and was working according to my local rebuilder. Hate to source a new alternator, but kinda looking that might be the answer.
Superhawk996
QUOTE(930cabman @ Jul 14 2024, 06:32 PM) *

Excited

Still having an issue, but seems as though the alternator comes into charging earlier. I am still unable to get the GEN light to light under any condition (Lamp will light with 12v applied). Red/white wire has switched battery voltage. Blue wire I cannot get anything, no voltage, no continuity to ground, nothing.

But, it seems as the system comes online quicker. Alternator was bench tested and was working according to my local rebuilder. Hate to source a new alternator, but kinda looking that might be the answer.

Do not put a new alternator into it until you’ve measured everything with a DMM with engine running.

When you say blue wire has nothing on it is that with engine running?

If that answer is yes, you need to trace continuity of the blue wire back to the alternator and where it is connected to on the alternator.

You also need to determine what wattage bulb you have for the generator light. When the change was made to internal regulators that bulb changes, too much resistance through that bulb limits alternator field excitation at start up.

I haven’t seen anything posted that would indicate you need a new alternator.

@930cabman
Spoke
QUOTE(930cabman @ Jul 14 2024, 06:32 PM) *

Excited

Still having an issue, but seems as though the alternator comes into charging earlier. I am still unable to get the GEN light to light under any condition (Lamp will light with 12v applied). Red/white wire has switched battery voltage. Blue wire I cannot get anything, no voltage, no continuity to ground, nothing.

But, it seems as the system comes online quicker. Alternator was bench tested and was working according to my local rebuilder. Hate to source a new alternator, but kinda looking that might be the answer.


Test the GEN light with ignition ON but engine not running. First pull out the instrument with the GEN light so both terminals are accessible.

With ignition ON engine not running, measure the voltage to chassis on both sides of the GEN light.

Then measure the blue wire coming out of the alternator. It too should be equal to one of the GEN light spades.

Is the alternator bootstrapping earlier or do you just have the magic decoder ring (ie, blip the throttle) to get the alternator going?
930cabman
QUOTE(Spoke @ Jul 15 2024, 08:23 AM) *

QUOTE(930cabman @ Jul 14 2024, 06:32 PM) *

Excited

Still having an issue, but seems as though the alternator comes into charging earlier. I am still unable to get the GEN light to light under any condition (Lamp will light with 12v applied). Red/white wire has switched battery voltage. Blue wire I cannot get anything, no voltage, no continuity to ground, nothing.

But, it seems as the system comes online quicker. Alternator was bench tested and was working according to my local rebuilder. Hate to source a new alternator, but kinda looking that might be the answer.


Test the GEN light with ignition ON but engine not running. First pull out the instrument with the GEN light so both terminals are accessible.

With ignition ON engine not running, measure the voltage to chassis on both sides of the GEN light. 12V with the red/white wire 0V with the light blue wire

Then measure the blue wire coming out of the alternator. It too should be equal to one of the GEN light spades. Blue wire reads 0V, engine off or engine running

Is the alternator bootstrapping earlier or do you just have the magic decoder ring (ie, blip the throttle) to get the alternator going? The decoder ring seems to be working fine, after a couple blips, she comes right online putting out about 14 or so volts. maybe I leave well enough alone

930cabman
QUOTE(Superhawk996 @ Jul 14 2024, 05:44 PM) *

QUOTE(930cabman @ Jul 14 2024, 06:32 PM) *

Excited

Still having an issue, but seems as though the alternator comes into charging earlier. I am still unable to get the GEN light to light under any condition (Lamp will light with 12v applied). Red/white wire has switched battery voltage. Blue wire I cannot get anything, no voltage, no continuity to ground, nothing.

But, it seems as the system comes online quicker. Alternator was bench tested and was working according to my local rebuilder. Hate to source a new alternator, but kinda looking that might be the answer.

Do not put a new alternator into it until you’ve measured everything with a DMM with engine running.

When you say blue wire has nothing on it is that with engine running? Yes, engine running

If that answer is yes, you need to trace continuity of the blue wire back to the alternator and where it is connected to on the alternator. A PITA with carbs, shroud, ...

You also need to determine what wattage bulb you have for the generator light. Stock wattage as far as I can tell. It will light with 12V applied. When the change was made to internal regulators that bulb changes, too much resistance through that bulb limits alternator field excitation at start up. So, an alternator will use a different bulb?

I haven’t seen anything posted that would indicate you need a new alternator.

Maybe I will continue to use the decoder ring aktion035.gif

@930cabman

Superhawk996
QUOTE(930cabman @ Jul 15 2024, 01:29 PM) *

QUOTE(Superhawk996 @ Jul 14 2024, 05:44 PM) *



When you say blue wire has nothing on it is that with engine running? Yes, engine running

If that answer is yes, you need to trace continuity of the blue wire back to the alternator and where it is connected to on the alternator. A PITA with carbs, shroud, ...

You also need to determine what wattage bulb you have for the generator light. Stock wattage as far as I can tell. It will light with 12V applied. When the change was made to internal regulators that bulb changes, too much resistance through that bulb limits alternator field excitation at start up. So, an alternator will use a different bulb?

I haven’t seen anything posted that would indicate you need a new alternator.

Maybe I will continue to use the decoder ring aktion035.gif

@930cabman



Can’t help you if you choose not to troubleshoot the blue D+ wire. That wire should have a ground on it at start up and then goes to 12v once the alternator has been excited.

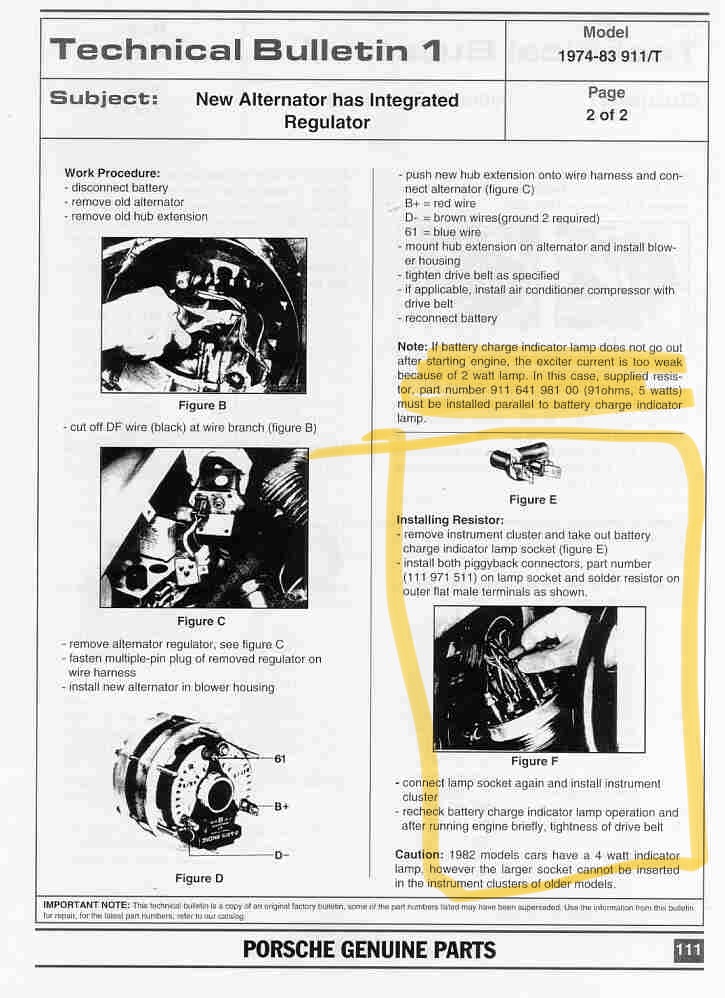

With respect to a bulb change. Seems crazy but if that charge lamp bulb doesn’t flow enough current - there is no excitation. See Porsche bulletin below
Click to view attachmentClick to view attachment
930cabman
QUOTE(Superhawk996 @ Jul 15 2024, 12:57 PM) *

QUOTE(930cabman @ Jul 15 2024, 01:29 PM) *

QUOTE(Superhawk996 @ Jul 14 2024, 05:44 PM) *



When you say blue wire has nothing on it is that with engine running? Yes, engine running

If that answer is yes, you need to trace continuity of the blue wire back to the alternator and where it is connected to on the alternator. A PITA with carbs, shroud, ...

You also need to determine what wattage bulb you have for the generator light. Stock wattage as far as I can tell. It will light with 12V applied. When the change was made to internal regulators that bulb changes, too much resistance through that bulb limits alternator field excitation at start up. So, an alternator will use a different bulb?

I haven’t seen anything posted that would indicate you need a new alternator.

Maybe I will continue to use the decoder ring aktion035.gif

@930cabman



Can’t help you if you don’t chase the blue D+ wire. That wire should have a ground on it at start up and then goes to 12v once the alternator has been excited.

With respect to a bulb change. Seems crazy but if that charge lamp bulb doesn’t flow enough current - there is no excitation. See Porsche bulletin below
Click to view attachmentClick to view attachment


How do you find this stuff?? I look and look and you guys find it. Thanks

maybe the bulb wattage is not allowing the alternator to get excited? sounds crazy, but leave it to those Germans idea.gif
Superhawk996
QUOTE(930cabman @ Jul 15 2024, 03:00 PM) *



maybe the bulb wattage is not allowing the alternator to get excited? sounds crazy, but leave it to those Germans idea.gif

I highly doubt that. You could certainly try a higher wattage bulb (4W); won’t hurt anything.

As it stands right now you have 12v at key on on the red/white wire side of the bulb.

You state the current charge lamp bulb lights when tested separately so the bulb is OK

What is missing is a ground path on the blue wire when the engine is not running. You’ve said you checked blue wire and it has no path to ground, nor does it have 12v on the blue wire when running. Therefore, something isn’t right in the blue wire D+ (61) circuit.

The problem isn’t the bulb wattage at this point.
930cabman
QUOTE(Superhawk996 @ Jul 15 2024, 01:14 PM) *

QUOTE(930cabman @ Jul 15 2024, 03:00 PM) *



maybe the bulb wattage is not allowing the alternator to get excited? sounds crazy, but leave it to those Germans idea.gif

I highly doubt that.

As it stands right now you have 12v at key on on the red/white wire side of the bulb.

You state the bulb lights when tested separately so the bulb is OK

What is missing is a ground path on the blue wire when the engine is not running. You’ve said you checked blue wire and it has no path to ground, nor does it have 12v on the blue wire when running. Therefore, something isn’t right in the blue wire D+ (61) circuit.

The problem isn’t the bulb wattage at this point.



Perhaps a weak diode, if there is such a thing?

After a few blips she starts charging and stays charging until shut off. After a restart, a few blips are required to get her charging once again
Superhawk996
QUOTE(930cabman @ Jul 15 2024, 03:20 PM) *



After a few blips she starts charging and stays charging until shut off. After a restart, a few blips are required to get her charging once again

That will work . . . until it doesn’t.

You are depending on residual magnetism in the armature to get the alternator excitation that isn’t being delivered to the field windings by the charge lamp circuit.

Proceed with caution.
930cabman
Got it, mostly. As you can imagine this has been driving me crazy and today I worked backwards from the lt blue wire on the GEN light. I was not finding continuity from the GEN light to the socket on the relay board, but I was getting about 100 ohms from the D+ wire to ground at the alternator. I had the D+ wire from the alternator plugged into the wrong socket on the relay board. I found the correct socket with continuity and now the GEN light comes on when the key is on, engine off. When the engine starts the GEN light stays on for a couple seconds, then goes out and a voltmeter indicates 14V +/-

Another bridge crossed with this /6 conversion.

BTW, she sounds great
This is a "lo-fi" version of our main content. To view the full version with more information, formatting and images, please click here.
Invision Power Board © 2001-2025 Invision Power Services, Inc.
