altitude411
Mar 30 2015, 12:16 PM
Question for you gurus... what year did the impact bars inside the doors start being implemented?
Cairo94507
Mar 30 2015, 12:17 PM
1973 I believe.
billh1963
Mar 30 2015, 12:21 PM
QUOTE(Cairo94507 @ Mar 30 2015, 02:17 PM)
1973 I believe.
Yep. From what I've read early '73 cars do not have them....they came during the model year run
TravisNeff
Mar 30 2015, 12:21 PM
There were some early 73 cars that did not have the door bars or updated window winders.
SirAndy
Mar 30 2015, 12:21 PM
QUOTE(billh1963 @ Mar 30 2015, 11:21 AM)
Yep. From what I've read early '73 cars do not have them....they came during the model year run
altitude411
Mar 30 2015, 12:29 PM
Thanks guys.
914Sixer
Mar 30 2015, 03:44 PM
1973 model cars made from Aug to Dec 72 for the USA did not have impact barrier. All cars after Jan 1 1973 had them. Euro cars were not required to have them or retractable seat belts.
damesandhotrods
Mar 30 2015, 05:45 PM
NHTSA Standard No. 214 – Side Impact Protection
Static Requirement, Vehicle doors must provide resistance to load applied via a rigid steel cylinder.
Passenger Cars effective 01/01/73 all shall meet requirements.
914_teener
Mar 30 2015, 06:20 PM
QUOTE(damesandhotrods @ Mar 30 2015, 04:45 PM)
NHTSA Standard No. 214 – Side Impact Protection
Static Requirement, Vehicle doors must provide resistance to load applied via a rigid steel cylinder.
Passenger Cars effective 01/01/73 all shall meet requirements.
Yep....my build date is 1/73 and it has them plus the late window mechanisms.
ThePaintedMan
Mar 30 2015, 08:54 PM
Weird. I think mine is 4/73 and it doesn't have them. But then again, I'm not positive they're the original doors, though the Olympic blue paint seems to suggest they are.
SirAndy
Mar 30 2015, 11:12 PM
QUOTE(ThePaintedMan @ Mar 30 2015, 07:54 PM)
Weird. I think mine is 4/73 and it doesn't have them. But then again, I'm not positive they're the original doors, though the Olympic blue paint seems to suggest they are.
Is that the actual built date from the Karman plate or from the door jamb sticker?
The sticker is *not* the actual real build date of the chassis. It's the date when the car was "federalized" for US import.
GaroldShaffer
Mar 31 2015, 05:40 AM
I have early 73 doors with no side beam with the late window mechs in them.
914Sixer
Mar 31 2015, 06:16 AM
It is looking like the old hit and miss. They used the parts on hand until they ran out, not always on the required date.
Olympic 914
Mar 31 2015, 06:18 AM
QUOTE(Garold Shaffer @ Mar 31 2015, 07:40 AM)
I have early 73 doors with no side beam with the late window mechs in them.
+1
My '73 is set up the same way, the compliance sticker shows 9/72.
I think it has an early roof though.
scotty b
Mar 31 2015, 06:42 AM
QUOTE(914Sixer @ Mar 31 2015, 04:16 AM)
It is looking like the old hit and miss. They used the parts on hand until they ran out, not always on the required date.
Not really. I have had several sets of the early 73 doors. I have also compared early vs late inner panels to see how easily an early door could be changed to the later regulators. The inner door stamping is quite different for the early vs late window regulators, so the early 73 doors were already made different to accept the later regulators. My guess is the laws for the crash bars was implemented after the doors were changed, so Porsche/VW then added the crash bars to the existing plan
altitude411
Mar 31 2015, 09:31 AM
This brings up another question for me... (briefly) what are the differences of the early/ late regulators?
damesandhotrods
Mar 31 2015, 09:44 AM
QUOTE(914Sixer @ Mar 31 2015, 05:16 AM)
It is looking like the old hit and miss. They used the parts on hand until they ran out, not always on the required date.
I don’t buy that for a second. Europe was terrified of Ralf Nader. Even though the ‘70s US auto market was made more challenging by economic malaise and a falling dollar it was still one of their most lucrative. The 914 was sold all over the world, Karmann had plenty of markets to use up any non-US spec parts.
SirAndy
Mar 31 2015, 09:59 AM
QUOTE(altitude411 @ Mar 31 2015, 08:31 AM)
This brings up another question for me... (briefly) what are the differences of the early/ late regulators?
Briefly? Everything ...
Completely different in every way.
altitude411
Mar 31 2015, 11:27 AM
Ha. Should be relatively easy to spot then...
Thanks Andy.
Tom_T
Mar 31 2015, 09:26 PM
QUOTE(Travis Neff @ Mar 30 2015, 10:21 AM)
There were some early 73 cars that did not have the door bars or updated window winders.
If they did, then they were using the old early doors & regulators (winders), because the later regulators won't fit in the early doors as someone noted above.
Another reason later 73-76 cars could have late doors without side beams, is that apparently most of the repair part doors had no side beams - apparently due some loophole in the side impact law then - according to a couple of first person sources I know from Porsche+Audi dealers back in the 70's.
Also PO's could've changed to the lighter no side-beam doors for AX, rally & race reasons.
So a few 914s after the 1/1/73 effective date could also have replacement doors without beams.
FYI - My early 73 with 8/31/72 Chassis No. build date has the "early" late doors without side beams, late regulators & originally had the window handles with the chrome arms (later changed to black by OO/PO & me as they broke with use).
Cheers!
Tom
///////
SirAndy
Mar 31 2015, 09:36 PM
QUOTE(Tom_T @ Mar 31 2015, 08:26 PM)
QUOTE(Travis Neff @ Mar 30 2015, 10:21 AM)
There were some early 73 cars that did not have the door bars or updated window winders.
If they did, then they were using the old early doors & regulators (winders), because the later regulators won't fit in the early doors as someone noted above.
Early '73 doors have the later style windows regulator mechanism but *no* door bar reinforcement beams.
They have the best of both, the light weight of the early doors and the better regulators from the later doors.
I happen to have a set of those early '73 doors in my shed that will one day go onto my real /6 ...
Dave_Darling
Mar 31 2015, 09:52 PM
QUOTE(altitude411 @ Mar 31 2015, 08:31 AM)
This brings up another question for me... (briefly) what are the differences of the early/ late regulators?

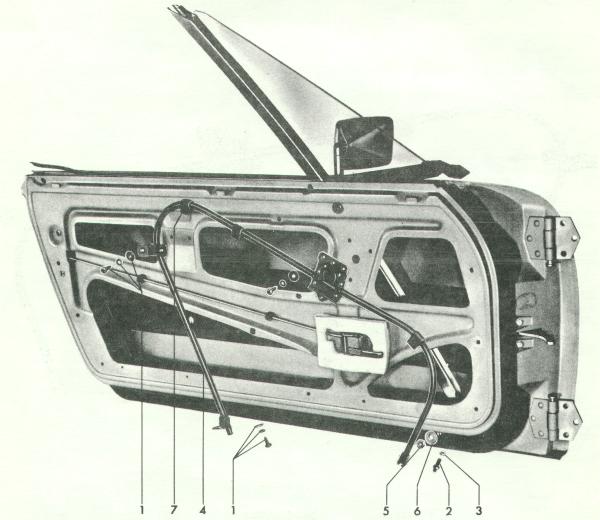

Early: A cable does the lifting.

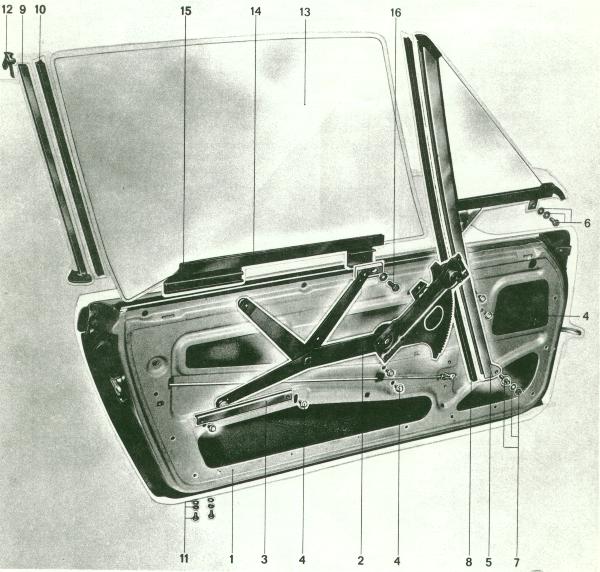

Late: A scissors-type mechanism does the lifting.
Early:
Late:
--DD
horizontally-opposed
Mar 31 2015, 10:20 PM
FWIW, 4732900193 has early doors, early windows, early top, etc. No beams, and the bad windows, in other words.
So were there three doors used in 1973 model cars: Early, hybrid, and late? Very curious what the VIN ranges were.
Paul (project 914 3.6 for Excellence) added late windows and window gear to early doors. It took some welding, I think?
pete
914_teener
Mar 31 2015, 10:36 PM
QUOTE(SirAndy @ Mar 31 2015, 08:36 PM)
QUOTE(Tom_T @ Mar 31 2015, 08:26 PM)
QUOTE(Travis Neff @ Mar 30 2015, 10:21 AM)
There were some early 73 cars that did not have the door bars or updated window winders.
If they did, then they were using the old early doors & regulators (winders), because the later regulators won't fit in the early doors as someone noted above.
Early '73 doors have the later style windows regulator mechanism but *no* door bar reinforcement beams.
They have the best of both, the light weight of the early doors and the better regulators from the later doors.
I happen to have a set of those early '73 doors in my shed that will one day go onto my real /6 ...
So I am confused by these posts.
If the body build tags assigned mean nothing about when the chassis was shipped from the factory, then you have to go by the vin number right?
If the car was shipped and then tagged with a date, then would that mean that of that date the car met US FED DOT regulations for automobiles?
I can understand the window regulators being different but if the DOT reg for a car sold in 73 must have side beam protection....then shouldn't the doors have had them?
SirAndy
Mar 31 2015, 10:53 PM
QUOTE(914_teener @ Mar 31 2015, 09:36 PM)
I can understand the window regulators being different but if the DOT reg for a car sold in 73 must have side beam protection....then shouldn't the doors have had them?
MY (Model Year) and selling date are not the same.
The production for MY '73 started in summer of '72, so my best guess is that the regulations regarding the door impact beams for the US didn't go into effect until after the MY '73 production had already begun.
SirAndy
Mar 31 2015, 10:57 PM
QUOTE(914_teener @ Mar 31 2015, 09:36 PM)
If the car was shipped and then tagged with a date, then would that mean that of that date the car met US FED DOT regulations for automobiles?
Yes. Sorta. The DOT stickers were applied in Germany before the cars were shipped off to the US.
Many of the early '73 cars have DOT stickers showing a '72 build date, meaning, they didn't have to conform to the '73 DOT regulations.
More confuzzled now?
914_teener
Apr 1 2015, 12:23 AM
QUOTE(SirAndy @ Mar 31 2015, 09:57 PM)
QUOTE(914_teener @ Mar 31 2015, 09:36 PM)
If the car was shipped and then tagged with a date, then would that mean that of that date the car met US FED DOT regulations for automobiles?
Yes. Sorta. The DOT stickers were applied in Germany before the cars were shipped off to the US.
Many of the early '73 cars have DOT stickers showing a '72 build date, meaning, they didn't have to conform to the '73 DOT regulations.
More confuzzled now?
Naw.....I think that actually makes sense. Thanks Andy.
Olympic 914
Apr 1 2015, 10:33 AM
OK to drag this out a little further....
if you have a 73 with the late window mechanisms and early roof what is the difference in the windows. do the windows go with the mechanism early/late.
my roof fits snug with no large gaps.
kind of wondering in case I have to buy some new seals.
I have early 73, (4732902387) no door bars, late window mechanism and early roof.
2nd owner so all parts are original. original owner just drove it, no wrecks, no modifications.
SirAndy
Apr 1 2015, 10:58 AM
QUOTE(Olympic 1.7 @ Apr 1 2015, 09:33 AM)
OK to drag this out a little further....
if you have a 73 with the late window mechanisms and early roof what is the difference in the windows. do the windows go with the mechanism early/late.
my roof fits snug with no large gaps.
kind of wondering in case I have to buy some new seals.
I have early 73, (4732902387) no door bars, late window mechanism and early roof.
2nd owner so all parts are original. original owner just drove it, no wrecks, no modifications.
I'm not sure about the glass used on those doors. I guess i could go out to the shed and compare them to the ones on my car and see if the glass is any different.
The later style top seal are a better design compared to the early ones. All the reproductions i have ever seen are of the later style anyways.
As long as you align everything correctly, they should fit your top and seal well enough.
altitude411
Apr 1 2015, 11:06 AM
These are the doors on my '70 six. I assume they are not original since they have crash bars yet they have original signal orange paint. These are the crash bars pictured. Yes? I also have early regulators ( thanks for the pictures Dave) I'm looking to replace drivers door so question is... do early regulators fit in late doors? I'm thinking yes unless these are hybrid or modified?
whatabout1
Apr 1 2015, 11:50 AM
My '73 has bars and late regulators.
The interesting thing is that the bar in the driver
door is wider and thicker then the bar in the passenger door.
The passenger door bar doesn't look like it would stop much.
But then I can't prove either door is original.
The drivers door also has a early/mid mirror. The flag is early (small)
but the elbow looks late. But the elbow is not the same as all the other
late elbows I have seen. (I have about 12 mirrors right now).
I will see if I can get some pics of the doors
SirAndy
Apr 1 2015, 03:32 PM
QUOTE(altitude411 @ Apr 1 2015, 10:06 AM)
do early regulators fit in late doors?
Nope, completely different mechanism and mounting.
And those doors don't look like Signal Orange to me ...
altitude411
Apr 1 2015, 03:45 PM
So these aren't late doors? Those are impact bars aren't they? I'm beyond confused.
But, I do know what signal orange is and there is signal orange hiding behind the re spray & grime...I know it's tough to see in the photo's.
SirAndy
Apr 1 2015, 03:54 PM
QUOTE(altitude411 @ Apr 1 2015, 02:45 PM)
So these aren't late doors?
They are LATE doors with LATE impact beams and mounting for a LATE window mechanism.
Look at Dave's images above to see what an early door looks like ...
altitude411
Apr 1 2015, 03:59 PM
Humm... I pulled the regulators and they are cable type just like the first picture that is labeled "early"
SirAndy
Apr 1 2015, 04:26 PM
QUOTE(altitude411 @ Apr 1 2015, 02:59 PM)
Humm... I pulled the regulators and they are cable type just like the first picture that is labeled "early"
The mid-size oval hole in your first picture looks like the mounting for a late regulator. The early doors only have a tiny opening for the crank handle in that location
altitude411
Apr 1 2015, 04:44 PM
I completely understand & agree w/everything your saying Andy and appreciate your knowledge and wiliness to teach. I seem to have late model doors w/early regulators...and I can't tell that they've been butchered so that's why I'm cornfused... I just thought they were interchangeable. I'll have another look at my regulators to see if they've been modified at all but the windows were working fine when they came apart. Now I'll wish I had taken a "before" picture...
Olympic 914
Apr 1 2015, 05:46 PM
Maybe someone put the early inner panels on later door skins, so you could keep the window regulators that were already there.
altitude411
Apr 2 2015, 01:00 AM
Oly 1.7; I would think it would be much easier to just source the other regulator.
Regardless, I know nobody gives a shit at this point, but this is the best pic I could find of my assembled door. If you zoom in you can see early (cable) regulator on a obviously late door.
* also note the highly sought after triple crack dash*
scotty b
Apr 2 2015, 08:53 AM
early door, early regulator. ( Cairo's - 6 )
scotty b
Apr 2 2015, 08:54 AM
late door ( late 73 on ) and Early door together.
I'll try to remember to get a pic of a late regulator next time I have one out
scotty b
Apr 2 2015, 08:56 AM
I also have some early 73 doors in storage if anyone needs pics of them to, but it may be a couple weeks
altitude411
Apr 2 2015, 09:14 AM
hair trigger...
altitude411
Apr 2 2015, 09:19 AM
Thanks for the pics Scotty. So an early regulator will fit in late door. It's just a matter of drilling a couple of holes... although the better regulator is the late one (obviously) so it's not a mod that makes any improvement but it can be done.
altitude411
Apr 2 2015, 09:23 AM
Ok, to round out my learning curve....
is the glass different between the early and late?
