I just install a 19mm brake master cylinder on the car I am restoring. I couldn't bench bleed the master cylinder like normal American cars. Is there any tricks to bleeding the system? I plan to bleed them tonight and will have a helper pumping the brakes. I just hope it's not an issue and we spend lots of time pushing air around.

Just wondering.

914 Brake Bleeding

After talking to many owners, it would seem that there are more methods for bleeding brakes on a 914 than there are cures for the common cold. Fortunately, I have polled many people and tried several different solutions, and I think that I have come up with the best compromise solution.

There are currently three methods of bleeding the brake system:
•Pressure Bleeding. This is where you have a reservoir of brake fluid, and place a positive air pressure force on the opposite side of the fluid, forcing it into the brake system.
•Vacuum Bleeding. This is where you fill the reservoir, and then apply a vacuum at the bleeder nipple to pull fluid through the system.
•Family Member Bleeding. This is where you recruit the one family member or friend who owes you a favor and have them stomp on the pedal repeatedly until the entire system is bled. Note that this has nothing to do with the time that little Jimmy fell on the concrete and had to be rushed to the hospital.

914 Proportioning Valve The method that I've come up with combines the first and the third methods described above. Basically, I advocate bleeding the system with the pressure bleeder, and then using a family member to stomp on the pedal to free up the proportioning valve. If the family member really owes you big time, you will be the one stomping on the pedal, and they can spill brake fluid all over themselves. It is this valve, shown in Figure 1, that gives the vacuum and pressure bleeders so much trouble. The valve requires a certain amount of pressure in order to get it's internal piston to activate. Without activating this piston, the proportioning valve can trap air and create a spongy pedal.

Bleed Nipple
The first step in bleeding the 914 brakes is to fill the system with brake fluid. Some people have suggested that colored brake fluid be used in order to determine when fresh fluid has been flushed through the entire system. I used a pressure bleeder like the Eezi-Bleed System shown in Figure 2. The system works by pressurizing a bottle filled with brake fluid from air in the spare tire. Inflate your tire to 20 psi, fill the bottle, attach it to the top of the reservoir (Figure 3), and then connect it to the spare tire. This will pressurize the system. Note: brake fluid is highly corrosive and will mar paint very easily. Bleeding your brakes is a messy job; keep yourself away from the paint and don't bleed the system in tight garage. The probability of spilling on yourself and then leaning against your car is too great.
Now start bleeding the system. Start with the right rear caliper, the one that's located furthest away from the master cylinder. You will have to remove the rear wheels of the car to easily get to the rear caliper. The front wheels can be turned for access to the calipers. Bleed the right rear caliper by attaching a hose to the bleed nipple, placing it in a jar, and then opening the valve with a 7mm wrench. A bleeder nipple is shown in Figure 4, and can be opened by turning it counter clockwise. Let the fluid out until there are no more bubbles. If you don't have a pressure bleeder system, you need to find someone to press on the pedal repeatedly to force fluid through the system. Another solution is to get a check valve and place it on the nipple while you stomp on the pedal. This will work for getting fluid into the system but you will still need a second person to make sure you have bleed the proportioning valve properly. If your rear caliper has two bleed nipples (some have one, others have two), bleed the lower one first.

When no more air bubbles come out, then move to the next caliper. Bleed them in this order:



•Right Rear Caliper
•Left Rear Caliper
•Right Front Caliper
•Left Front Caliper


Repeat until you can no longer see any air bubbles coming out of any of the calipers. Make sure that you don't run out of brake fluid in your reservoir, or you will have to start over again. It is wise to start with about a gallon of brake fluid. Depending upon your car, and the mistakes you may make, it's wise to have an ample supply.

Now, make sure that all the bleeder valves are closed tightly. Disconnect the pressure system from the reservoir. Now, get your family member to press down repeatedly on the brake pedal at least five times, and then hold it down. Then open the bleeder valve on the right rear caliper. The system should lose pressure, and the pedal should sink to the floor. When the fluid stops coming out of the bleeder valve, close the valve, and then tell your family member to let their foot off of the pedal. Do not let them take their foot off until you have completely closed the valve. Repeat this motion for each valve at least three times. Repeat this entire procedure for all the valves in the same order as described previously.

Then, let the car sit for about 10 minutes. Repeat the bleeding process at each corner. The pedal should now feel pretty stiff.

If the pedal still feels spongy, make sure that you have the proper clearances on your rear calipers. For more information on adjusting the rear calipers, please see the Pelican Technical Article, Replacing and Adjusting 914 Brake Pads. Also, you may need a new master cylinder, have a leaky caliper, or have old spongy flexible brake lines.

If the pedal still feels spongy, Jim Pasha has another method that I will describe here. He recommends having your family member step down on the pedal repeatedly and then hold it down, while you crack open the inlet line from the master cylinder. The inlet line is the one that comes out from the firewall of the car. Wait until fluid stops, tighten the connection, and then have your family member let their foot off of the pedal. Then, repeat the procedure for the outlet line on the proportioning valve. He suggests that this will alleviate air pockets in the internals of the valve. Be sure to wear eye protection and wrap the proportioning valve with a rag so that brake fluid doesn't squirt everywhere. Be sure to rinse off brake fluid that has spilled on painted surfaces with water. Wiping it will only smear the paint more (I talk from experience here).

Well that's about all it takes. If you would like to see more technical articles like this one, please continue to support Pelican Parts with all your parts needs. Your continued support directly affects the expansion and existence of this site and technical articles like this one. As always, if you have any questions or comments about this helpful article, please drop us a line.

"normal American"

I've never owned an American car so I wouldn't know to what you're referring!

I put a 19mm MC on my old 914 and didn't bench bleed it. Start bleeding at the caliper that's furthest from the MC, and then work your way to the closest one. Your helper will start to feel the pedal firm up.

I normally go through a couple times, and then go for a test drive. If it doesn't feel soft and I can lock the brakes up, it's good enough for me.

I'm sure some others can chime in about the proportioning valve in the rear. I didn't have any problems, so I didn't mess with it.

Thanks - I'll just do it normally with a helper. Assume it will be fine. Was just checking

Did you happen to install a URO 19mm master cylinder? You may or may not get a good pedal. Some folks on 914World have discussed this.

If you attempt to bleed the system using an existing master cylinder, place a block of wood under the brake pedal to limit MC piston travel. This prevents over stroke which allows cylinder deposits to damage the hydraulic seals. This results in internal fluid leaks and an inability to properly pressurize the system to push fluid and air bubbles out of the system.

Disk brake systems don't use a MC check valve. When bleeding, this allows brake fluid to simply flow out of the bleeder screws under gravity. This procedure allows air to escape from the brake line. Repeat for each caliper. Doesn't waste expensive fluid either (talk to those who use a pressure bleeder tank).

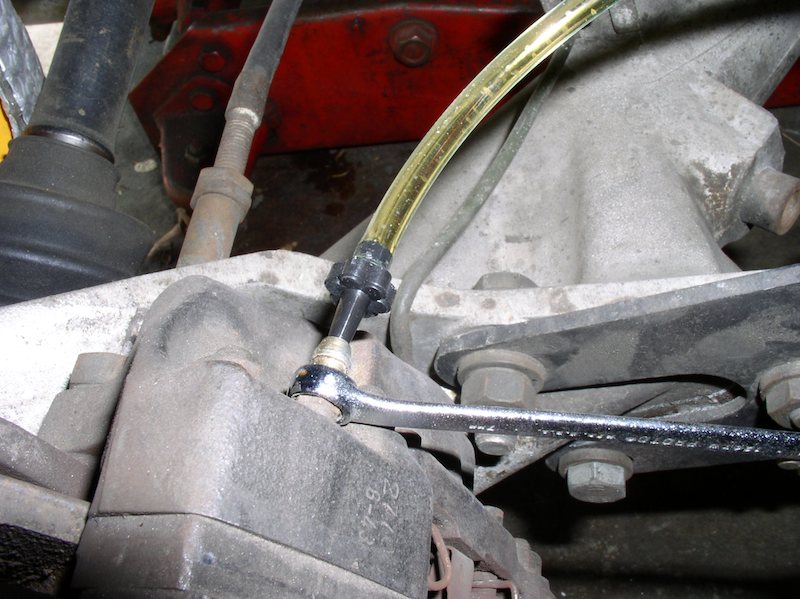

Click to view attachment

Click to view attachment

Sherwood

All good advice!

Excellent advice above, but I will add some more.

You will want to go around the car a number of times bleeding each nipple.
In between iterations, smack each caliper, and the prop valve, with a hammer a few times to knock bubbles to the top.

AND: some calipers have bleed nipples at the bottom and the top of the caliper.
Use the TOP bleeder.

I also bleed my brakes until the pedal is firm enough to be safe, then I drive around the neighborhood (train tracks work great), then do it again.
It helps knock all the bubbles loose.

I recently installed a new 19 mm master cylinder, new calipers, and new hoses in my car and bled the brakes with a check valve on the bleeder hose. Went around the car about three times until I saw no more air bubbles coming out, but still had a long throw on the pedal with little to no resistance until near the bottom of pedal travel. I then adjusted the push rod length behind the pedal and got rid of the long throw. Now I have a nice firm pedal.

I like to bleed the brakes as shown in your picture. having the tube run vertical is very helpful. It keeps air from coming back into the system and allows better viewing of bubbles
