Building a 2056 and almost complete with it except for carb rebuilding and a few other details. Going with dual Dell 40's.

My gasket kit came with what I will call "spacers" that are used between cylinder head and FI runners. Do I (should I) use these when mounting my carb manifolds? I did not use them on a bus engine I built years and years ago and it ran well - for a very long time so I am tempted to go without them, but thought I would ask.

If there is significant good reason to use them, where do I find the seemingly very (very) thin gaskets that go on each side of them (head side & manifold side)? I ordered intake manifolds from Pelican but them seem a bit thick (I can use them if I choose not to use the "spacers").

Also have a few questions about accelerator cable and carb base plates. Can I re-use the cable that is in the car (it was injected and ran well)? If yes, is there an "off the shelf" bracket to mount it on the engine such that it operates the cross bar linkage? And finally (for now) does the cross bar linkage go on the front or back of the carbs (depending on base plate orientation)?

Pics of your carb'ed set-up might really help me out here so if you got 'em, please feel free to use 'em.

They cut down the heat that gets to the carbs.

Hi,
So the phenolic spacers helps to prevent the heat from the heads getting up to the carbs and boiling the fuel....it happens.
I use them at both joints, head to manifold and manifold to carbs.

Gaskets, reddline Webber, or aircooled.net

Linkage, Chris Foley, Tangering racing, or again the two above.

Rich

I used spacers on a 356SC engine with Solex carbs for a while and saw no difference either way. May carbs always percolated when sitting after a good run, with or without the spacers.

Ansbacher

Use the spacers. I also have Dell 40's on my 2270, and I put paper gaskets from CB Performance (probably the same as yours from Pelican) on both sides of each phenolic spacer. So 4 paper gaskets and 2 spacers total. I had enough length on my intake manifold bolts for it, but it was close!

While my heads are fully warmed at 325* F on #3, my intake manifolds while warm are still cool enough to touch without burning my hands. Haven't had any issues with fuel percolation.

Interesting discussion. Brings up a question. Does anyone have a source for longer intake studs? I need to replace mine to get a set of ICT intakes to fit with the thick spacers. Manifold bases are pretty thick. I'm not sure of the thread size and pitch.

Thanks for the replies.

I'm going to use the spacers, along with the thick(er) gaskets from Pelican. If intake studs are not long enough I can fix that be removing material from manifolds, or sourcing longer studs (that's what she said).

Still curious about accel. cable placement and base plate orientation for the linkage.

My linkage is towards the front of the engine--nothing fancy, but it's been working pretty well this way since the early 1980s

Click to view attachment

That said, I'm seriously considering going to Chris' cable linkage from Tangerine Racing. The CB Performance hex-bar is getting a little loose . . .

Hope this helps!

If you haven't installed new ball ends onto the carbs for the hex bar to operate on, they will be junk. I had that linkage on my bus and it was fine so long as you replaced those ball ends every couple of years. They become significantly out of round.

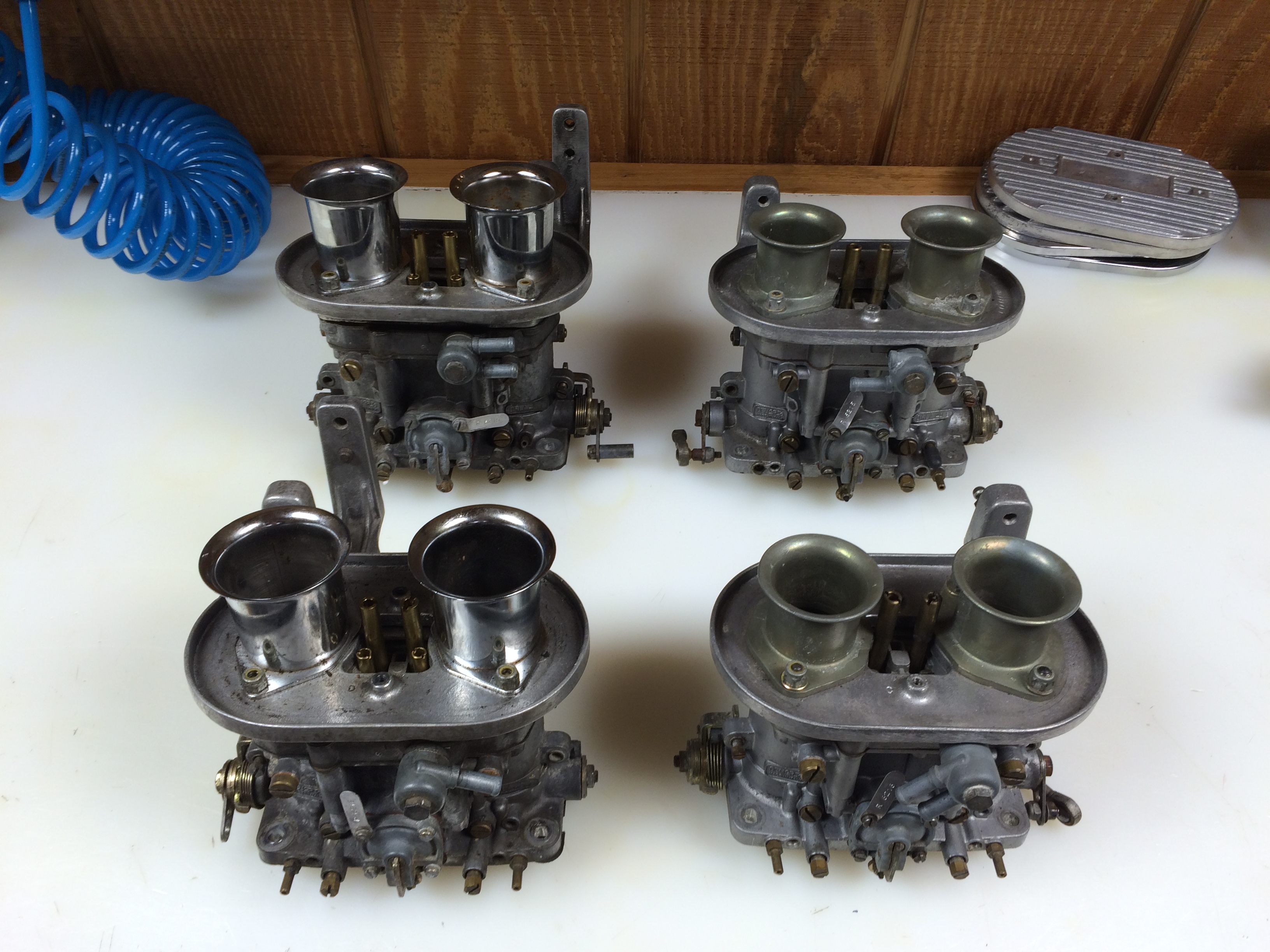

Getting ready to rebuild carbs for my 2056. Carbs on the right operate better than the ones on the left. So I have the CB upgrade kit(s) ready to install.

Click to view attachment

Carbs on left already have the upgrade kits installed, but the throttle shaft is quite sticky. They also have some strange base plates that I have not seen before. I think these base plates allow the hex bar linkage to be installed such that is straight across the engine as opposed to slightly askew? Do we have thoughts or feelings on these base plates?

I will run the hexbar linkage for now. I am familiar with it and it works well so long as it is cared for.

Still wondering about a throttle cable "locator"? Do I need to make one of these or does someone have one off the shelf?

I have had the hex bar linkage on my car for 13 years. When it got kind of loose, I changed it by modifying the air cleaner base plates so heim joint ends could be bolted on. I did this about 7 years ago and have been really happy with it. There is absolutely no play in the linkage and the throttle butterflies open fully and at the same rate. This thread helped. http://www.914world.com/bbs2/index.php?sho...=91831&st=0

The baseplates are different for left and right sides -- they correct for the offset of the cylinders and allow the hex bar to run straight across the engine, just as you thought. I don't know what linkage system those ones are meant for though.

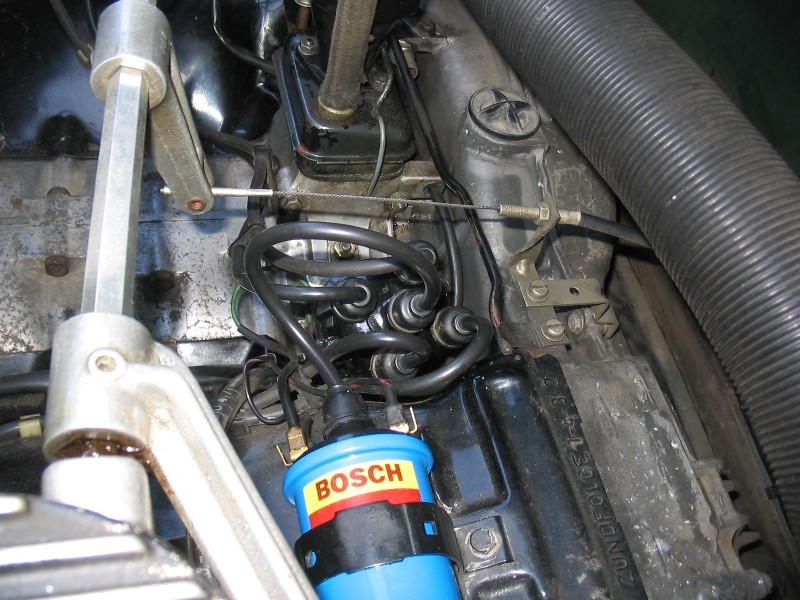

Here is my setup (excuse the dirt):

Click to view attachment

I received the car with this setup, so I don't know whether the throttle cable bracket is DIY, or if it was purchased. I just wanted to note that it does use the stock throttle cable. Also, don't copy this setup, because it makes the throttle cable bend too sharply as it goes around the engine, and it almost binds and is certain to wear out very fast.

The setup in the post above looks much nicer!

A couple of thoughts--I installed the CB upgrade kits a few years ago (I think the kit was referred to as "Dell Doctor"). I found that the performance of the "doctored" carbs wasn't as good as before (though your experience may vary). I discussed this with Art Thraen a few years later when I was getting ready to have Air Cooled Engineering rebuild the carbs; he recommended NOT using the Dell Doctor kits. He explained why, but I can't remember the specifics just now (sorry). As I said, your experience may vary.

I've been running the hex bar linkage since first installing the Dells back in the early 1980s. It has worked pretty well as long as the ball ends were in good shape (not sure how many pairs I've been through).

Elliot, thanks for the picture of your Heim joint-modified linkage. Definitely food for thought. Your throttle cable guide/fixture also looks nice. Can you provide an additional picture or two when you get a chance? THANKS!

Interesting about the Dell Doctor kits - thanks for your thoughts. I was inspecting the kit last night and the new venturis are not marked for size and so I wonder if different sizes are even available. I haven't measured what comes with the kit yet, will do so soon.

I am after a specific venturi size (I can't recall exactly which, but I have it noted in my build plans) so I am actually hesitant to install the kits. The Dells I ran on my bus engine were never updated and they did quite nicely.

I agree that Elliot's throttle cable locator seems nice. Would like more pics of that.

Mobymutt your engine looks like a fire extinguisher let go on it, thanks for the pic.

Thanks for all of the posts, viewpoints and pics, it does help out.

Unfortunately, I live on a dirt road...

Calling all Dell/Carb gurus. The rebuild guide and the schematic in the Dellorto Superperformance book call for a washer, an O-Ring and a spring for the mixture needle(s). On all 4 carbs that I currently have, there is no washer in front of the mixture needle. There is an O-Ring, then the spring, then the needle.

Anyone know how bad it is that I don't have the washer? My rebuild kits have the O-Ring, but not a washer.

Also, I have it on good word that I should run 34 Venturis for this build. The vents in the Dell Doctor kit measure 38. So I am not gonna install the kit. I do kind of like the idea of the re-located air inlet for the idle jets with the kit, so am curious about using that part of the kit, just not the rest? Do we have thoughts or feelings on that?

As always, any/all input appreciated.

As requested.

I had a hex bar setup and phenolic spacers on my 2056 with IDF 40s. The PO had a fabricated bracket much like the one Elliot posted. The hex bar seemed to require adjustment every 100 miles, so I bought the Tangerine cable linkage. The plate for the linkage was too thick to keep the spacers (and not use longer carb studs), so I ditched em for now. The Tangerine linkage has a throttle cable mount built-in, so I also didn't need the fabricated holder. I just needed to route the cable a bit differently.

Results?

Throttle feel is night and day better. Carbs stay in sync way longer without adjustment, haven't experienced any fuel boiling, and engine bay is tidier. Highly recommended.

PM me if you have any questions. Good luck!

OK, I've got a .pdf copy of the 6-7 pages of instructions that came with my CB Dell kit, along with my notes from my early- to mid-1980s installation. I also have both of the 6+ page articles from "Dunebuggies and Hot VWs" (May and June 1983), and another from "VW Trends." All provide pretty good rules of thumb on set-up, jet sizing, etc. Is there a way to post these here? Even if not, I'm willing to email them to anyone that wants them--PM me if that's the case.

FWIW, my DRLA40s are set up with 30mm main venturis, 55 idle jets, 135 main jets, 180 air correction jets, and 9164.2 emulsion tubes. I know these are a little smaller than the factory settings, but they seem to work well with the current engine rebuild (balanced "GA" 2.0L, Elgin 7008-4 cam [280* duration, .332 lobe lift], Mahle Euro PC set [8.0:1]). Not sure of the HP numbers, etc., but this set-up let me max out the 120 mph speedometer at the end of the long straight at Seattle International Raceway.

Hope this helps.

Elliot and CuddyK, thanks pictures of the cable holder and the input on the Tangerine cable set-up!

Yes Elliot, thanks for the pics. I am going to have a look at the Tangerine linkage. If nothing else it is worth it to me for a throttle cable locator, I am after an OE type mount/locator (yes I know there were never carbs offered as OE) to go with my super sano build.

While I am clear on the jet, venture and emulsion tube sizes I am after, and I have 2 copies of the Dellorto Superperformance book that is an excellent reference guide, I'd like to see those articles, will PM you for details.

Anyone have any ideas on the washers for the mixture needles? It would seem a good idea otherwise all needle adjustments are being made against a soft(ish) O-Ring and that seems, well, temporary at best.

You need the little dished washers/caps.

Yep, makes sense. I will search for them...

I have reached out to Blackline Racing to see if the washers for the mixture needles are available from them. Another question, in the pic below:

Click to view attachment

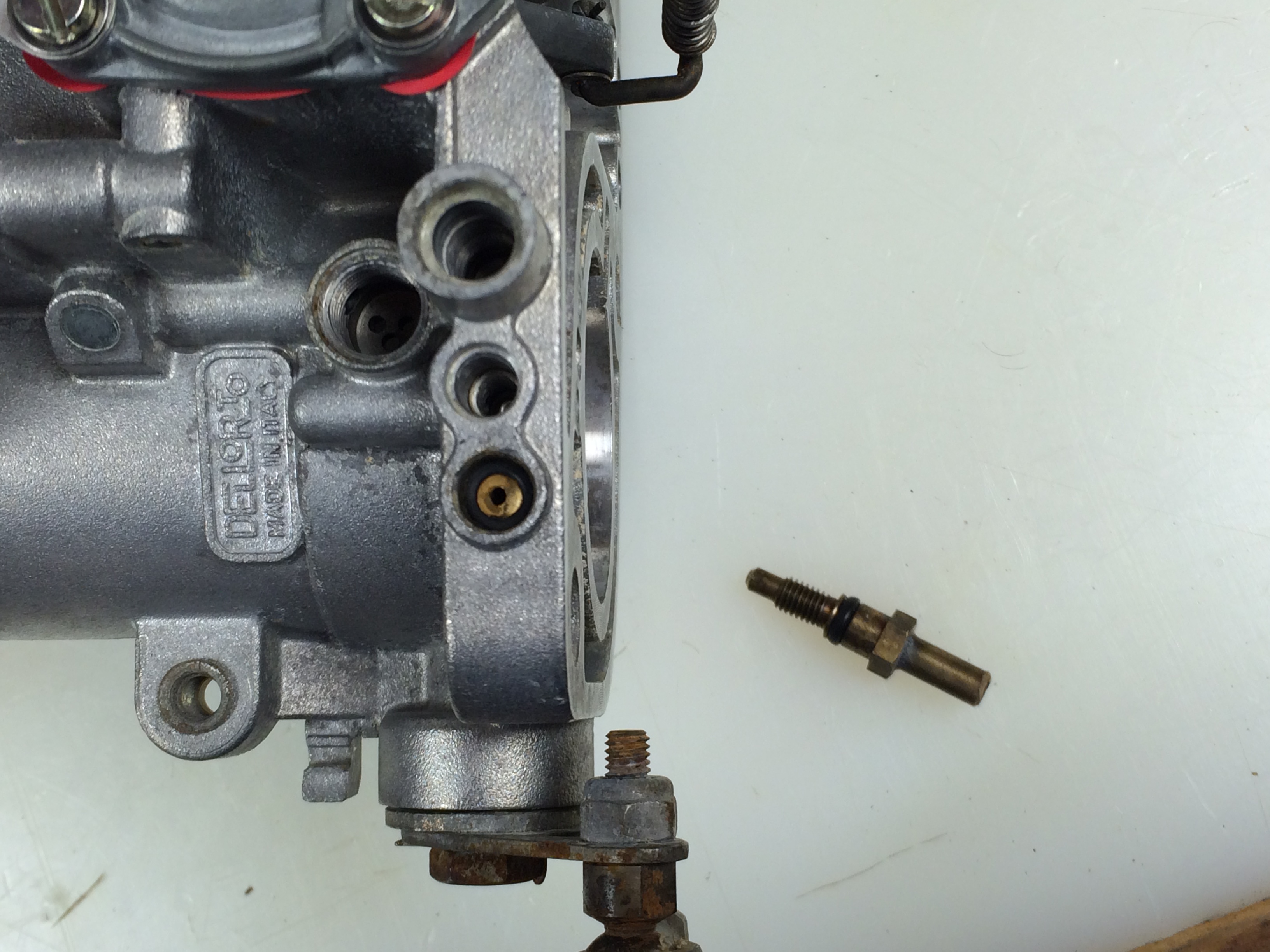

What appears to be a vacuum port is broken off in the body of the carb (non-broken piece on bench below). I'm showing my ignorance with these carbs, but how necessary is that fitting? It appears to simply stub out in the body of the carb, I won't be taking any vacuum signals from these carbs so I would plug it anyway? This is part #49 on the DRLA exploded diagram in the Dellorto Superperformance book, described as the pressure fitting (or something similarly mis-translated from Italian).

I'd like to remove the broken bit and make it right, but I know it'll be tricky getting it out. Will need thread/screw reverser, patience and luck...

If you can, plug it in a reversible fashion. Examine the IAMS. If they are grooved or bent get new ones. The little o-rings are cheap. Get 4, or 8, when you order the caps.

Thanks rhodyguy, I understand "plug it in a reversible fashion", the rest I am sorry to say I no comprendo...

Sorry. Idle Air Mixture Screw. They only require a light touch when seating them at the initial baseline setting and later when you are trying to achieve best lean idle. As for extra o-rings, they're cheap and it's easier than ordering out more if you have a problem or loose one.

Ah, si comprendo now. Light touch is all that is required all of the mixture screws are in good condition. I use a little grease on the threads to keep them moving easily.

Another question - I swore that the Dellorto Superperformace book had a specification for throttle plate baseline setting (throttle plate to throat clearance) at idle position? This can be measured with a feeler gauge, set on both carbs with idle adjust screws to get the thing running, then idle fine tuned through standard process (unisync, etc).

I have read the entire book for the third/fourth time but can't find that spec any longer?

3 thousands. P.3 if you have the dellorto superformance book by Tomlinson.

Yes, using the Tomlinson book. Page 3 it is, thanks as always..

His cable link is the BOMB.
Its fantastic. I hated selling mine when i went to Micorsquirt. Its better in EVERY way to a hex bar.

Zach

Hope these help!

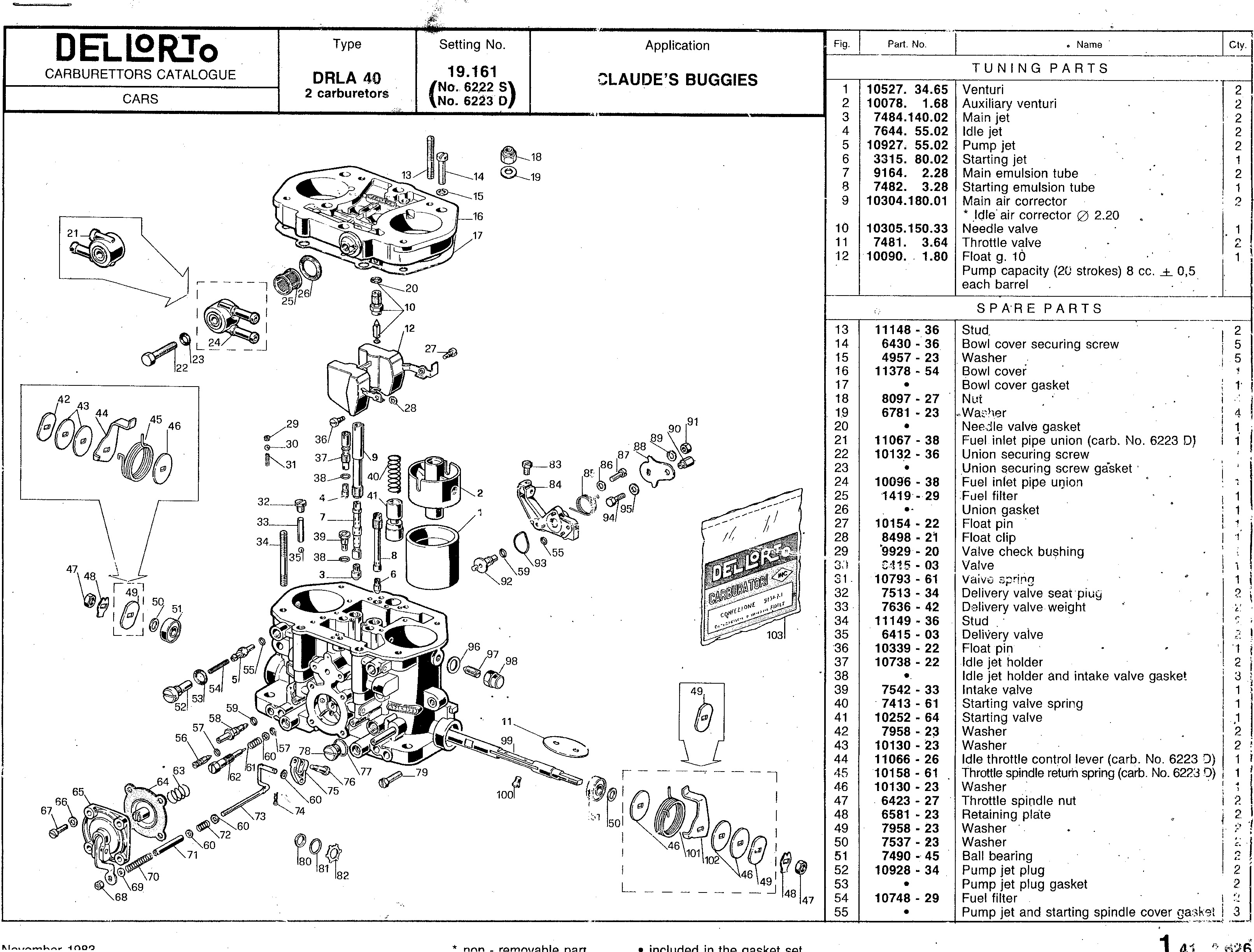

Page 1:

Click to view attachment

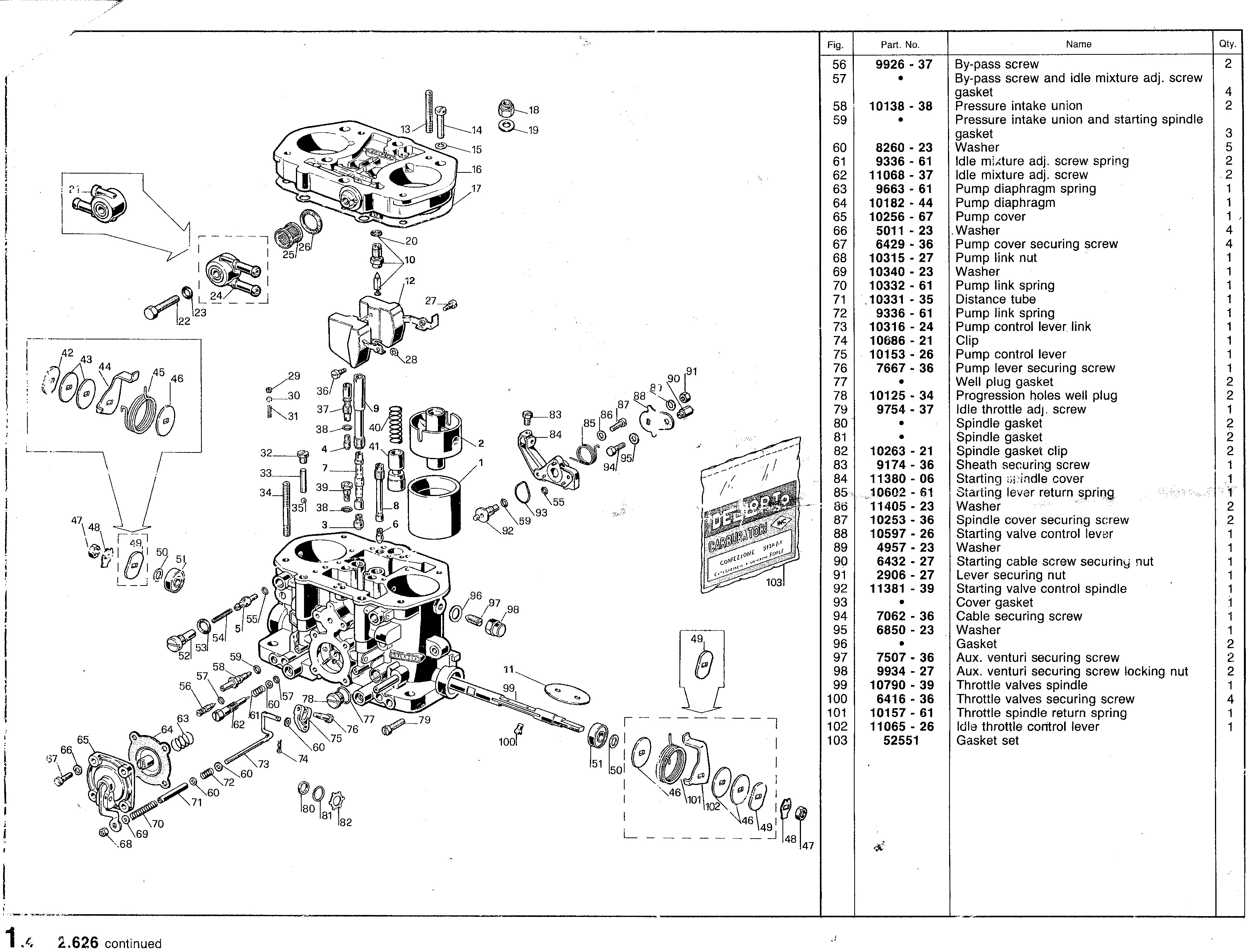

Page 2:

Click to view attachment

Very helpful, thanks for uploading. Much easier on these old eyes than the exploded parts diagram in the Tomlinson book as it is in some micro-font (so lawyers can read it).

I need part #60 four times. Aircooled.net does not have, Blackline Racing doesn't return calls or emails (which is strange for them), so I guess I will have to make 4 of these itty bitty washers.

Very strange that neither of the 2 sets of 40s that I purchased had these washers...

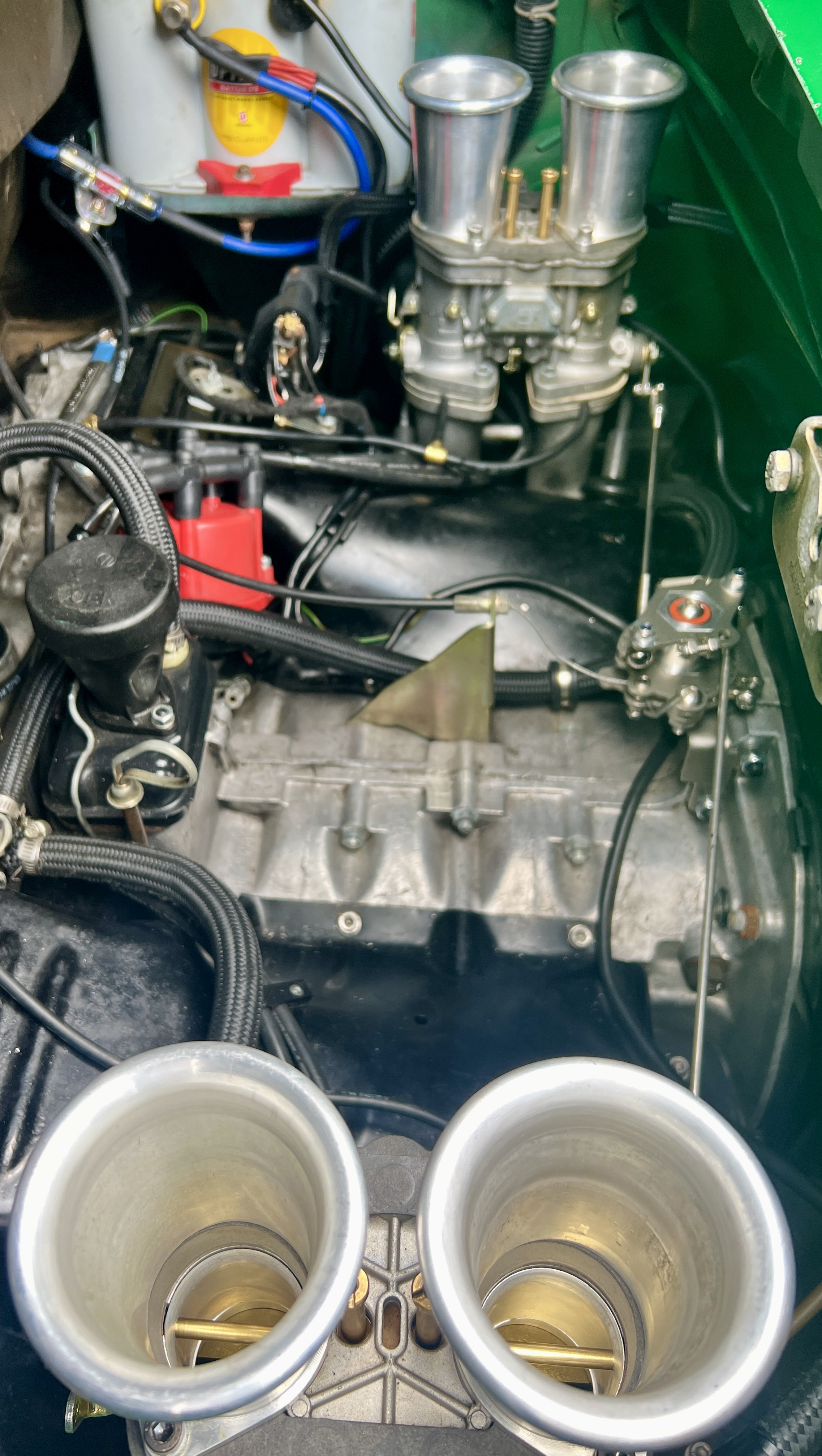

Here's my set-up so far. I may move the linkage to the rear to get more room for a throttle cable bracket.

Click to view attachment

Give these guys a try--they were a big help when doing a "light rebuild" (gaskets, etc.) on my DRLA40s a few years back:

http://www.carburetion.com/Dellorto/DellortoDRLAParts.asp

CARBS UNLIMITED INC.
727 22nd st NE
Auburn Wa 98002

Questions and Information (253)833-4105
Order Line 1-800-994-CARB (2272)

Have you looked at CB Performance? I know their shipping is EXPENSIVE, but sometimes they're the only game in town for certain Dell parts.

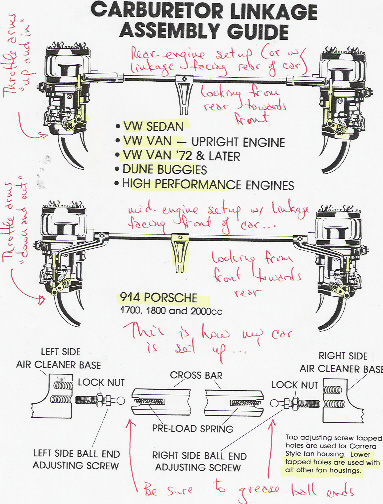

Another drawing/install guide from CB Performance (with my notes from about 30 years ago )

Click to view attachment

On mine, the throttle arms point down and out-board, pull arm is below the cross-bar per the drawing. I think I found that easier for adjusting the linkages when balancing carbs, etc.
