dt4
I am presuming that when the pad twists and locks into place it should be pretty secure?
I have tried it numerous times and have repositioned the plate on the back of the pad in all its possible orientations but the fit is really loose
Is there a knack or some way of adjusting the fit?
Minerva's 914
QUOTE(dt4 @ Aug 21 2019, 07:43 AM) *

I am presuming that when the pad twists and locks into place it should be pretty secure?
I have tried it numerous times and have repositioned the plate on the back of the pad in all its possible orientations but the fit is really loose
Is there a knack or some way of adjusting the fit?

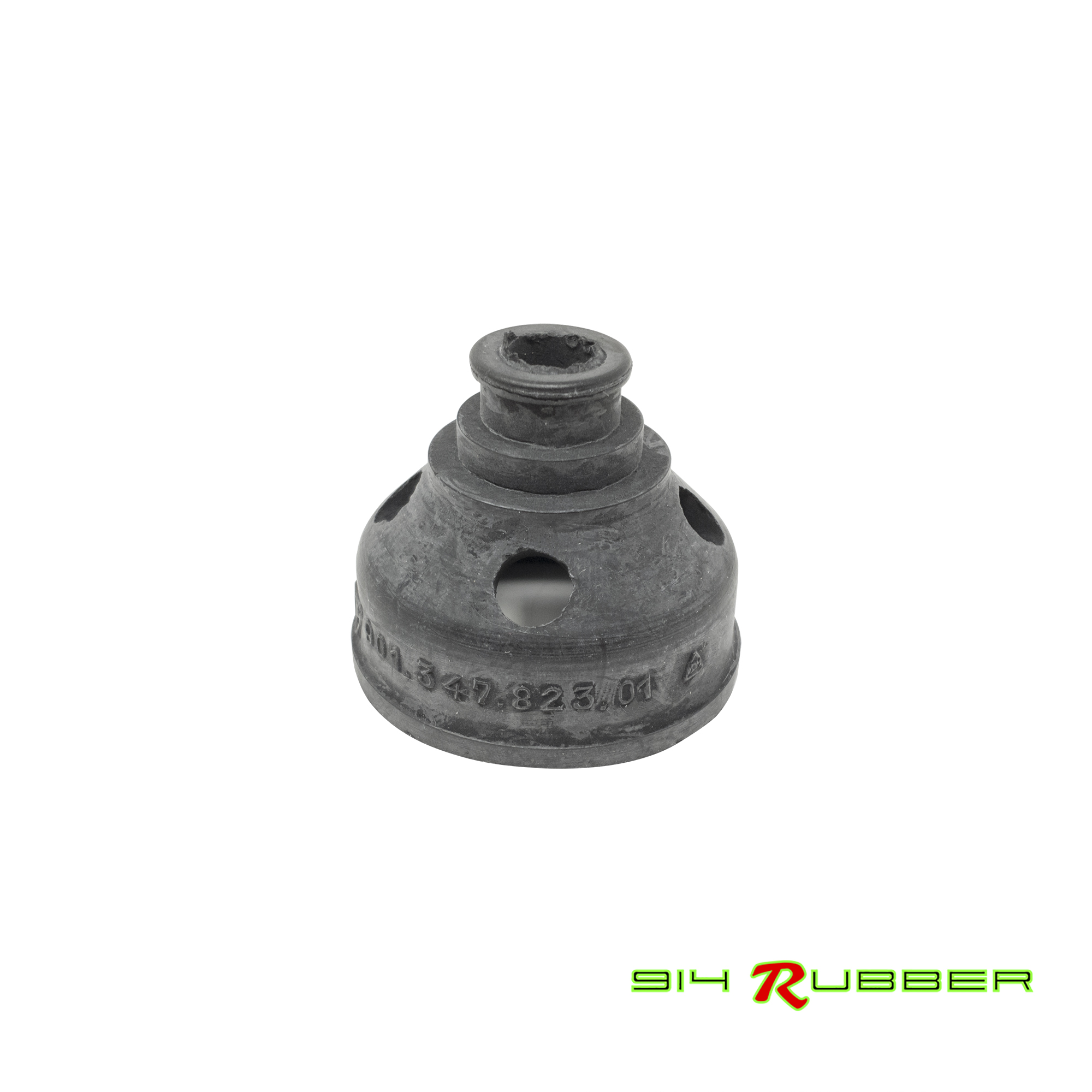

Check the horn rubber, may be worn or missing. 914Rubber makes a replacement

https://900designs-container.zoeysite.com/s...orn-rubber-cuff
Mike Fitton
Tension spring is probably broken, it is the piece with the 3 loops.
dt4
QUOTE(Mike Fitton @ Aug 21 2019, 01:47 PM) *

Tension spring is probably broken, it is the piece with the 3 loops.


No, its still there

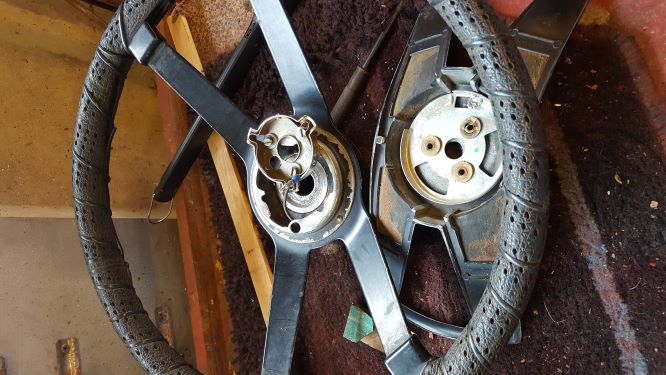

I have a photo of the parts, Ill try to add it to the thread
dt4
Click to view attachment
dr914@autoatlanta.com
tighten the three screws and make sure a horn boot is installed, also look at the three prongs on the horn spring and make sure that the strap spring ends are not broken


QUOTE(dt4 @ Aug 21 2019, 04:43 AM) *

I am presuming that when the pad twists and locks into place it should be pretty secure?
I have tried it numerous times and have repositioned the plate on the back of the pad in all its possible orientations but the fit is really loose
Is there a knack or some way of adjusting the fit?

dr914@autoatlanta.com

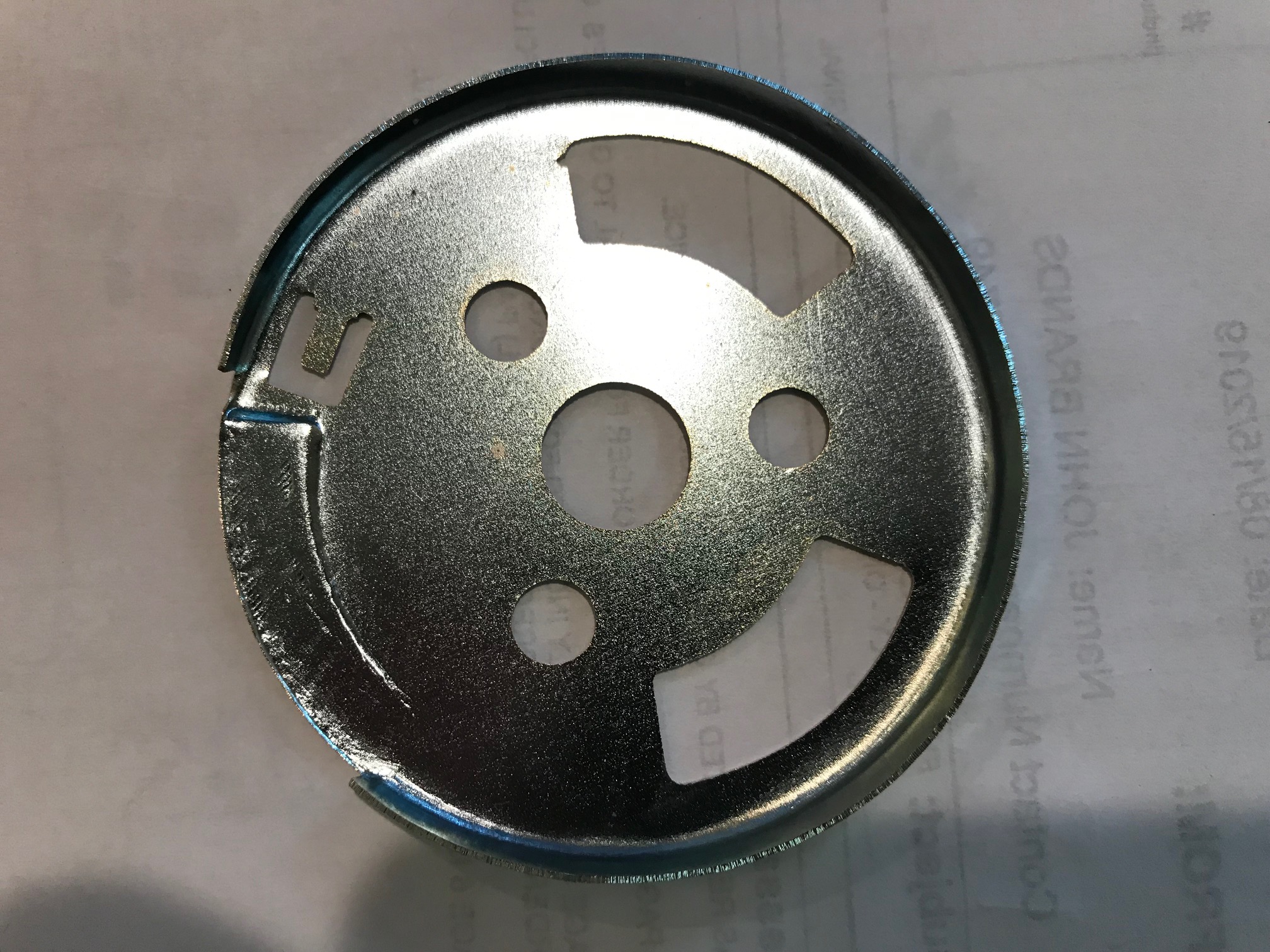

also we had these horn base plates made because of the clip breaking off

Click to view attachment
dt4
QUOTE(dr914@autoatlanta.com @ Aug 21 2019, 02:48 PM) *

tighten the three screws and make sure a horn boot is installed, also look at the three prongs on the horn spring and make sure that the strap spring ends are not broken


QUOTE(dt4 @ Aug 21 2019, 04:43 AM) *

I am presuming that when the pad twists and locks into place it should be pretty secure?
I have tried it numerous times and have repositioned the plate on the back of the pad in all its possible orientations but the fit is really loose
Is there a knack or some way of adjusting the fit?


which part is a horn boot?
can you spot it on the photo?
dr914@autoatlanta.com
the horn boot is missing looks like a squashed black megaphone

QUOTE(dt4 @ Aug 21 2019, 01:12 PM) *

QUOTE(dr914@autoatlanta.com @ Aug 21 2019, 02:48 PM) *

tighten the three screws and make sure a horn boot is installed, also look at the three prongs on the horn spring and make sure that the strap spring ends are not broken


QUOTE(dt4 @ Aug 21 2019, 04:43 AM) *

I am presuming that when the pad twists and locks into place it should be pretty secure?
I have tried it numerous times and have repositioned the plate on the back of the pad in all its possible orientations but the fit is really loose
Is there a knack or some way of adjusting the fit?


which part is a horn boot?
can you spot it on the photo?

FlacaProductions
Click to view attachment
dt4
QUOTE(FlacaProductions @ Aug 21 2019, 09:55 PM) *


I will look through the boxes of parts and see if it is there, if not I am sure I will be putting in an order for things that need replacing / are missing so I'll put a list together as the exchange rate plus shipping is going to be a killer so I dont want to be placing frequent small orders
sithot
Where does one find the "bakelite" (?) insulators that stand-off the tension spring from the horn plate?
I used some fiber washers on two of mine that were "too close to call" for creating a problem.

Thanks!

Tom
raynekat
QUOTE(sithot @ Aug 24 2019, 07:17 PM) *

Where does one find the "bakelite" (?) insulators that stand-off the tension spring from the horn plate?
I used some fiber washers on two of mine that were "too close to call" for creating a problem.

Thanks!

Tom



Reproduction kit is here:

https://sierramadrecollection.com/Horn-Butt...-76-p21568.html
sithot
QUOTE(raynekat @ Aug 25 2019, 04:13 AM) *

QUOTE(sithot @ Aug 24 2019, 07:17 PM) *

Where does one find the "bakelite" (?) insulators that stand-off the tension spring from the horn plate?
I used some fiber washers on two of mine that were "too close to call" for creating a problem.

Thanks!

Tom



Reproduction kit is here:

https://sierramadrecollection.com/Horn-Butt...-76-p21568.html


Thank you. beerchug.gif
mmichalik
I had the exact same problem, sloppy horn button on the '74
Put that $14.00 rubber boot in there and it feels brand new.
Hope that works for you and thanks to everyone who put out the suggestions.
dt4
QUOTE(mmichalik @ Aug 25 2019, 06:31 PM) *

I had the exact same problem, sloppy horn button on the '74
Put that $14.00 rubber boot in there and it feels brand new.
Hope that works for you and thanks to everyone who put out the suggestions.


Thanks, thats reasssuring
