05/30/2024 - SEE UPDATE in post #29

06/25/2024 - Update. Looks like the supplier I got them from has a bunch in stock. You can order them directly. They are in Latvia, but I had no problems with my orders other than it taking a few weeks to get here. The price varies based on the current exchange rate. As of today just over $50 plus ~$10 for shipping. A much better deal than any other supplier I could find. These are also very likely the same relays that are showing up here in the USA with the part number sanded off the relay and a new sticker put on the Bosch box. I, and other members, have tested these Bosch relays on our cars and they work without issue. If you have a LJet car probably a good idea to have at least one spare.

https://cars245.com/en/item/bosch-F026T0006...fuel-injection/

This was initially posted in the FS/WTB forum as a WTB ad but I think it now more properly belongs in the Garage forum. Those of us with an LJet car with the original FI know that this NLA Bosch relay #0332514120 is a weak point in the system. If it fails, you are dead in the water, and eventually it will fail. At the moment the only sources I have found are AA and one eBay seller. The pre-tax/shipping price from AA is $325 and on Ebay it is $459.99 (unbelievably it appears they have sold a few at that price). It took a fair amount of time exploring the back alleys of the internet but I finally found a source for this Bosch relay using a cross referenced part number. It is a foreign supplier with back stock. Once that is gone they won't have any more. I ordered one just to make sure it was identical, and it is. I'll test it in my car sometime in the next few days, but I see no reason why it won't work (update: tested and working perfectly). I can order enough to pass on if people are interested. If I get a bunch rather than putting them up on eBay for $459.98 I should be able to pass them on to fellow members for under $100 shipped in the CONUS. I can get up to 10 (update: managed to get 15), depending upon what is still left. If there is enough interest I'll buy them all, but I don't want to get them if I'm the only person interested. PM or post if you are interested.
This doesn't obligate you. Might be our last chance to get these Bosch relays new. AA does rebuild them for $200, so that is a possibility moving forward.

Sure; sign me up for one.

we are repairing these now as they are no longer available, and we use the three new ones we have in stock as comparisons

@dr914

Yup, I took pains to point this out as I do believe this is a valuable service. Thank you for doing that!

@fiacra

I will take two. Let me know if you need money up front.

Bruce

Just curious, I had looked into making these, but thought they were still availoable. Am I missing something?
https://www.pelicanparts.com/More_Info/0332...332-514-120-INT

@mikey914 Out of stock at Pelican and have been for a while. Try adding it to your cart and you will get the out of stock message. They fooled me at first as well. I'd love it if you decided to make these! There certainly is a market as they are used not only for the 914 but also for the 912E, the 240Z, and many other cars. What price point can you come in at?

extinct like t-rex.

@fiacra i'd take one from you. and pay the extra shipping cost to get it here.
its been on my mind that i do not have one of these as a spare.

i imagine the ones you have located are similar to the black plastic ones that replaced the earlier metal ones along the way. i already replaced my original dual relay back in 1989 and its all now set up with the black plastic one.

Add me to the list for one please.

Put me down for one! Thanks

I'm interested in one.

Depending on quantity produced somewhere between $38 and $48. Possibly less, but I'll start to flush this out more to get hard numbers.
Mark

Pelican has a lot of items in there catalig that are not available.

In for one as well.

I'm in for one as well.
Thanks
Randy

Sign me up for one.
Thanks, Marty

There were a lot more people interested than I thought would be. I also have a few other people with FI VW's who want one, so a total of 14 relays so far. I was able to order 15 today, but that is probably all I can get. If there is anyone else that wants one please put your name in the hat now. You never know if someone might drop out. So far from 914World I have:

@StarBear
@bdstone914 (two relays)
@wonkipop
@technicalninja
@Geezer914
@75914-L20C
@sportlicherFahrer
@RRietman
@MartyYeoman
@Artfrombama

I recognize that some people may not follow through, but I don't see any way of avoiding that risk other than asking for payment in advance. When it comes down to it I'd rather lose my money than yours. There is no easier way to make enemies. Worst case scenario I'm out some money and I have plenty of relays so I'll have to buy more cars so that I can put them to use . The other risk of course is that 914rubber starts to make them and it seems that Mark believes his price point is going to be under $50. At this point is is up to you folks to see if you want to wait for that, or whether a "bird in the hand" is better than waiting to see if and when Mark follows through.

Today I had some time to pull the working relay off my 1975 914 1.8 and put on the new Bosch relay to make sure it works (it did). I didn't expect any problems, but it also didn't hurt to make sure. Be aware that when you disconnect the wiring some of these 50 year old connectors may not like the small amount of twisting force they get exposed to. Two of mine broke instantly. I suppose it is better that they failed now than when I was on the road. These Bosch black plastic relays superseded the original VW metal ones a long time ago and you will have to modify the relay casing so that the plugs will fit back on. I'll post pictures at some point, but you can use your current relay as a guide as it is very likely you already have a plastic one. If not, you can use my pictures as a guide. It took me about three minutes with a dremel to trim the case.

The order will take a few weeks to get here. I'll let everyone know when they arrive.

Yay! Yes, I have the black plastic one in there now.

"Bird in hand" here.

PM sent with my info.

I have no problem with pre-payment.

Thanks for finding these fiacra!


And for those of you who are "on the fence".

I'm POSITIVE I can wire two relays to "skin this cat".

I DON"T have to have this. I can overcome.

Having it in a single form with the word Bosch on it is worth $100 to me.

I'm sure that if I didn't buy one now, I'll regret is down the road.

I probably should buy two...

I have aquired a suitable sample and starting the process now. More to follow in a few days.
Mark

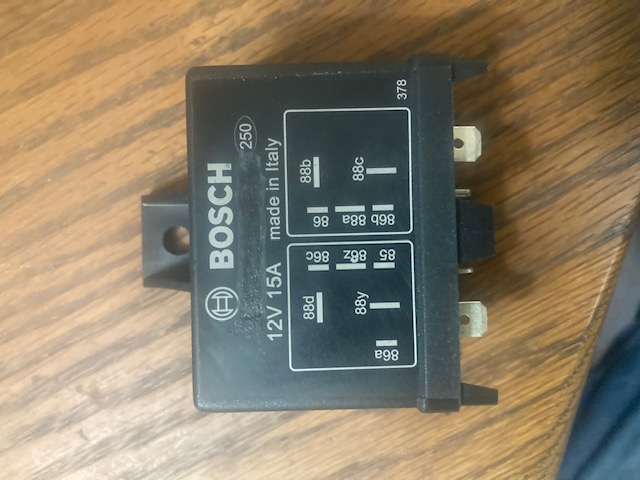

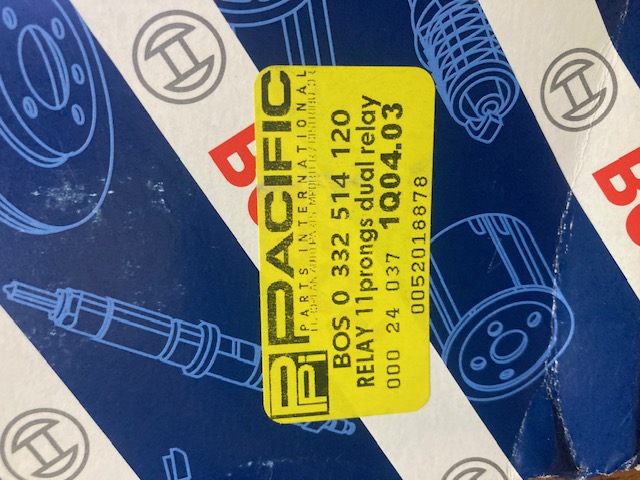

I found the relay locally through a VW parts store.
I found it odd that the part number had been ground off, apparently for another L-jet application but plugged in and the car operated as it should.
Click to view attachment Click to view attachment

You have an actual brick and mortar VW parts store near you in Alabama? That's awesome. The last local store in the Bay Area shut down a few years back and I have to get everything for my Beetle and my Ghia from on-line suppliers.

I believe the part number got removed because it had an alternate part number printed on it and they simply re-boxed it or put a new sticker on the box. Nothing nefarious about it, I think it is just done to avoid confusion .

i'll pay you just for taking the risk.
you have gotten further than me simply locating something that might be the right thing.
cheers mate.

sounds like you might have located a stock of what was already the procedure back in the day which means my car readily accepts. it was already modded slightly back then to accept the black relay "upgrade".

Here

That's an old Bap/Geon!

When I started working on foreign cars, they were the only folks I'd buy from other than dealers.

Normal FLAPS couldn't cut it...

They all seemed to look the same...

"Hole in the wall" in a cheap strip shop set up.

We had "Steve's Foreign Car parts" in Ft. Worth...

Same deal.

Almost NO parking lot...

You could get WEIRD stuff through Steve

I miss him...

Update on my end.
Looks like these may be less expensive that I initially thought. But, if they are available will not make. Unless that are stupid expensive.
Mark

Would you mind posting a photo or possibly the alternate part number?

I put some photos up in the thread in the classifieds.

http://www.914world.com/bbs2/index.php?showtopic=369867

The relays are here! I had offered these at $100 each, cheaper than any other source I could find, but selling them at my final cost without any mark up will let me pass these on to everyone who responded earlier for $64 shipped in the CONUS via USPS priority mail flat rate box. I hope that's a nice surprise. Doing this to help out fellow LJet owners, not make a profit. If you requested more than one, I can fit two of them in a small flat rate box which means they get even cheaper. They get even cheaper if you pick them up in person.

PM me if you responded earlier. If you changed your mind please let me know so I can open this up to anyone else who wants one. If you didn't claim one earlier please PM me if you want to be a back-up buyer. Payment can be made via paypal. Add fees in if you don't pay F&F. I'll respond to PMs with information on where to send payment and final cost. I'm hoping to mail all of these at once and not make multiple trips to the post office. I'll keep everyone updated as to a shipping date.

Here's who I have from 914World:

@StarBear
@bdstone914 (two relays)
@wonkipop
@technicalninja
@Geezer914
@75914-L20C
@sportlicherFahrer
@RRietman
@MartyYeoman

Just a reminder that years ago these Bosch relays in black plastic cases superseded the metal box relays that were original on our cars. They do require some modification to the plastic case in order for the connector housings to fit on the relay. Pictures and instructions on how to do this are in the following thread. See post #10. I recommend you make the modification now and then put your new relay in your road kit/glove box. When these fail you are dead in the water.

http://www.914world.com/bbs2/index.php?sho...p;hl=dual+relay

Two more people. Apparently there is a limit on how many people you can tag in a post:

@L-Jet914 (two relays, will pick up in person)
@Johnswint3

@fiacra

@bwingate has a 1.8 he recently purchased. very original car. can't tell in photos whether he has an original metal dual relay or not. but he might want to think about getting hold of one of these plastic update ones as a backup spare if he still has an original one.
could leave him high and dry.

if wants or needs one he can take the one i put my name to. i have a black plastic one in the car that installed back in 89 and i believe the black plastic ones are very reliable compared to the originals. so im probably in a safer spot than anyone with an original.

i also have diagrams from ratwell to make one out of two standard relays if i ever get into trouble.

so if anyone wants the one i put my name to nows the time to speak up if you are still running the old metal one.

Good to hear. I'll pickup in person.
Thanks, Marty

PM sent!

PM sent.

Thanks @wonkipop .

I'm going to take advantage of this.

@fiacra - let me know who/what/how to pay for the relay.

Bruce.

no worries b.
i think i will be ok with my plastic one (Touch wood).
you def need a back up if you are still running around with a metal original.
@fiacra will do the deal with you.
just contact him to arrange.

cheers men.
and..... @fiacra good on you for getting hold of those.

Yay!!! PM in a moment.
Also, if any 1.8 owner needs a repro engine tin tuneup sticker, PM me with your address. I’ll send two as they are not laser on heat resistant vinyl - just ink jet on measured Avery labels with a protective spray coating. They last in good condition maybe 2-3 driving seasons.

@Bwingate

PM me with your mailing address and I'll PM you with details.

Arrived! Thanks so much.

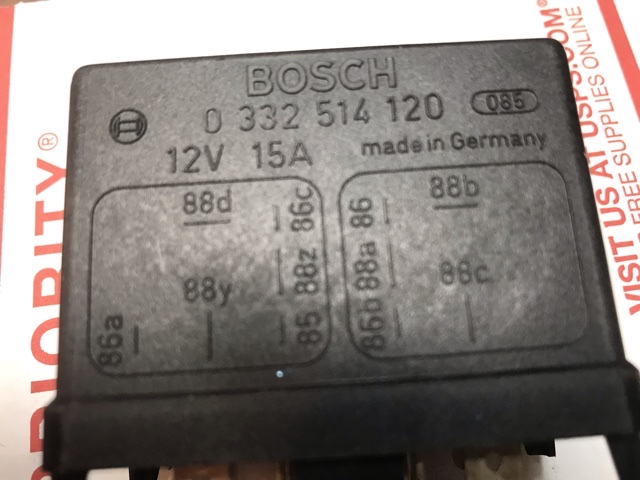

I compared the connector designations on the 0332514120 unit with this new F 026 T00 064 unit. Identical! Pics below.
Click to view attachment
Click to view attachment

Yup, absolutely identical. I also hooked it up to my 1975 1.8 to make sure and it fired up and ran no problem. Not sure where this part number comes from, but it is branded as a Bosch relay. I'll expand more in another thread, but the relays that are starting to show up in the US with the part number sanded off the plastic case and a new label put on box to show part number 0332514120 are probably this relay. This is almost certainly also the same relay that someone is trying to sell for $450 on eBay. Again, my plan when I get a moment is to put all this information into a new thread so that those of us that are running LJet can find these relays at a reasonable cost. I'll also include pictures and instructions on how to modify the case to fit in our cars.

How many of these are left? I know the 912e guys have been looking.

yep i have noted down the new part number.
i would guess this relay is fairly universal to a number of early L jet cars.
even outside the VW stable. ie fiat bmw etc.
but i will have to google further.

great bit of snooping on your part @fiacra to dig these up.

And the 240Z owners, etc... A lot of people would love to know where to get these. Send them here:

https://cars245.com/en/item/bosch-F026T0006...fuel-injection/

These are now available on eBay from this same seller. Because they have no picture in their listing I think it has flown under the radar. Cheaper to get them directly on their website. The price fluctuates, probably based on the exchange rate. Now that you know the "secret" part number you should be able to find them. It took a lot of time digging around to find that part number. Initially the above seller had a limited supply, but now they show "10+" available.

@nditiz1

I'll give you a pass fiacra cause you're NOT a Z guy...

Datsun went L-Jet on the 1975 Datsun 280Z.
It was the first year of the 280 and the relay should be applicable directly from 75-78.
It might also work on the NA 280ZX from 79-83.
They had a pretty significant change up in 81 so the 81-83 cars might not be the same.
81 and up went optical on the distributor...
I AM a Z car guy!

im interested in onel if available , LMK how i can pay you . Thanks Doug

I’ve noticed Jbugs now has these relays back in stock

I got that notice too as I had an "alert" in case they came back in stock. $119 plus shipping..... I posted my source earlier in this thread. You can get them for under $60 shipped from them, at least at the moment. I still have one left (someone flaked) so if anyone needs it please let me know. My cost, at $64, is a bit higher but you will get it several weeks quicker if that means anything.

PM Sent.

Pending to Clay.

If anyone else wants one you can order directly from the supplier I got them from. They are in Latvia and the price on their website varies according to the exchange rate, but today they were just over $50. Expect to pay about $10 shipping to the USA. The cheapest price around. Probably the same relay that other sites are now starting to sell for over $100 with the part number removed from the relay and a new sticker put on the Bosch box. It took ~3 weeks for mine to arrive, but I've placed two orders with them and had no problems. Link below.

https://cars245.com/en/item/bosch-F026T0006...fuel-injection/

Glad to see a reasonable source. I have a 912e and L jet is used in a few other cars, so ifvit was getting stupid, Id help out. Id havecto do at keast 100 to pencil out and we were looking at about $45 each, so at $51 ni need to go down that road.
