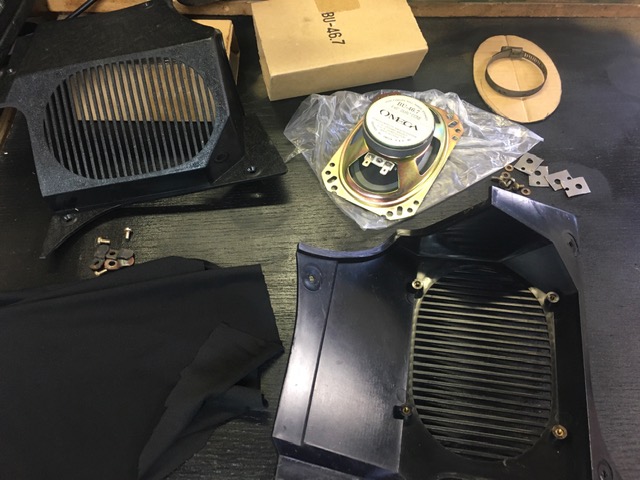

I wanted to set of speakers in the factory pods, without hacking anything up, hoping for a little better sound than the 50-year-old paper, torn speakers.

Click to view attachment

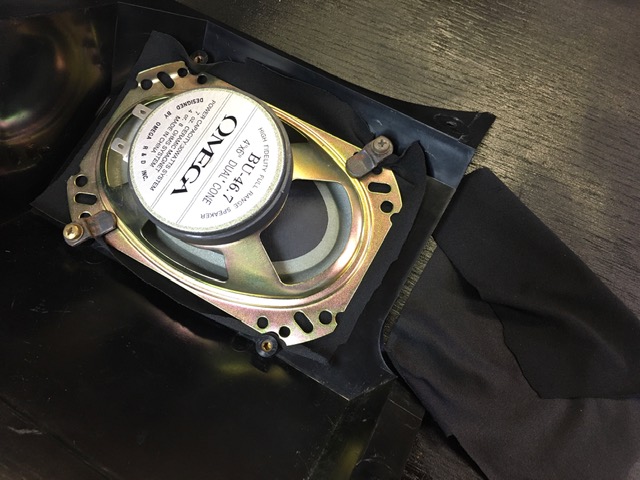

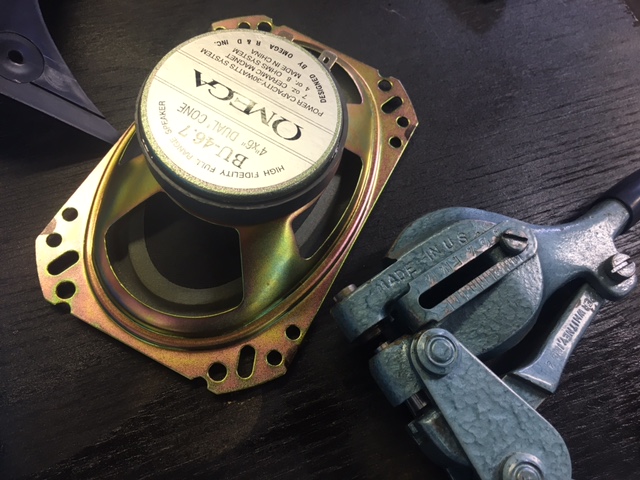

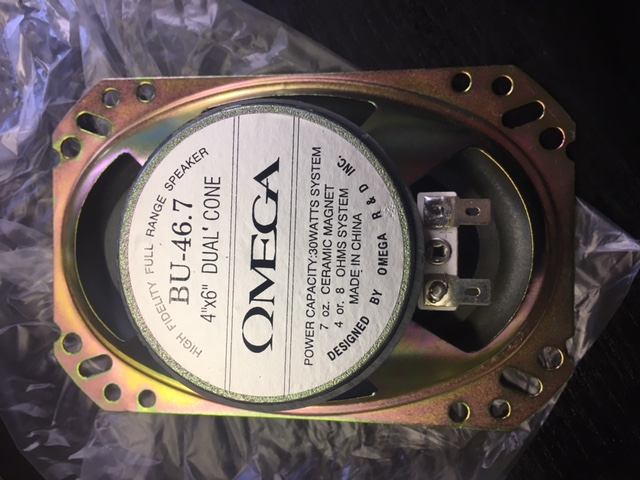

Omega 4 x 6 dual cone BU-46.7 my local speaker store says you can still order them, if they’re out of stock.

Click to view attachment

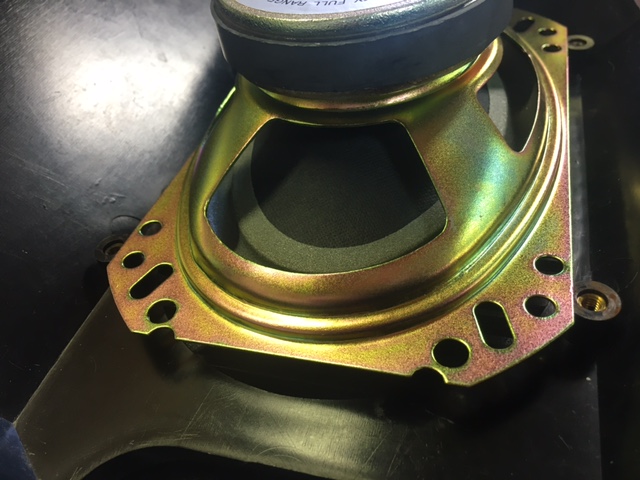

They look good except for the bright gold medal that will be seen through the grill

Click to view attachment

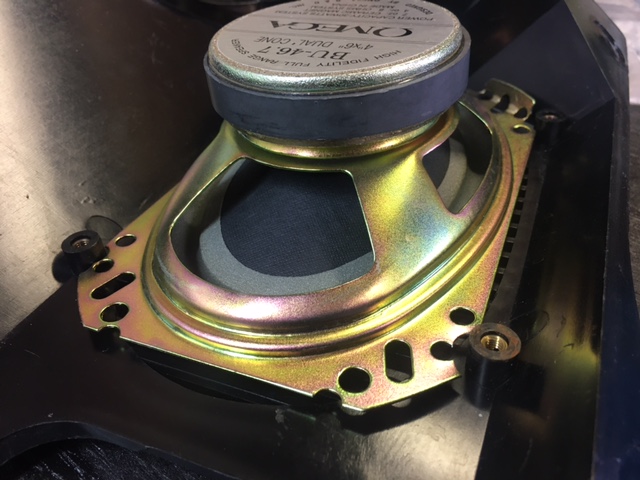

Also, they ride too high in the housing due to not clearing the factory mounts

Click to view attachment

I marked, the speaker where they need to be trimmed, and with some help from the clippers, done.

Click to view attachment

Now they clear the posts, and Mount flush.

Click to view attachment

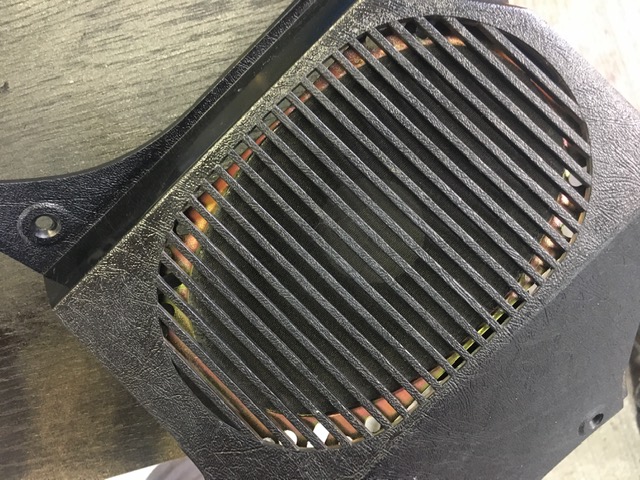

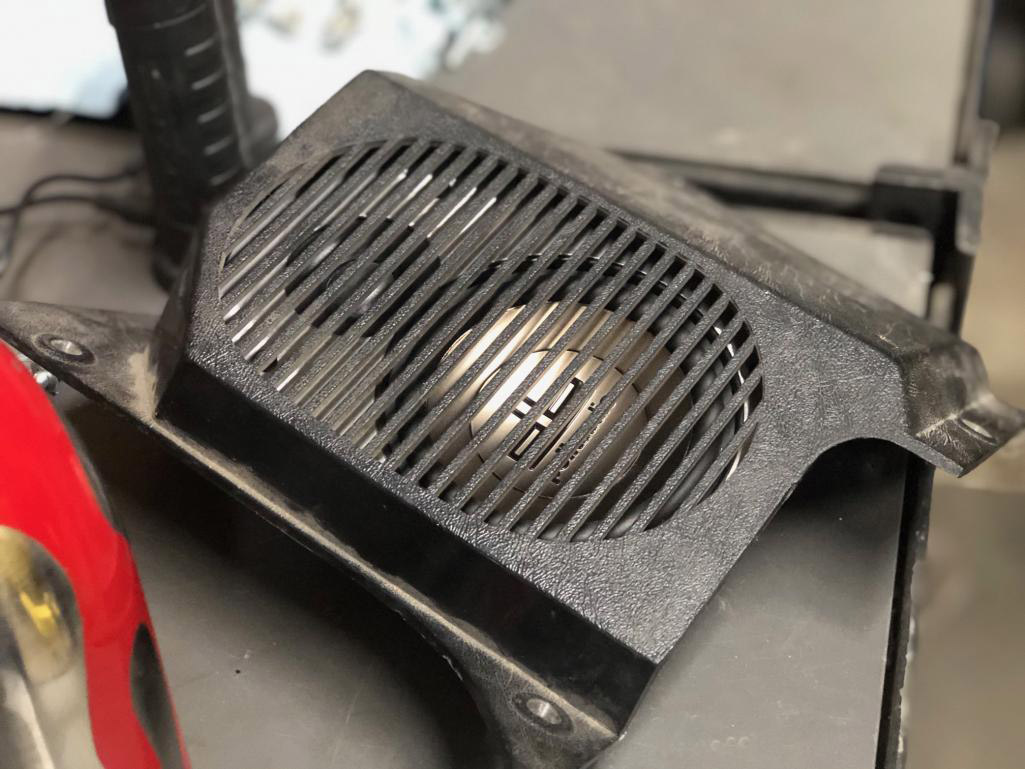

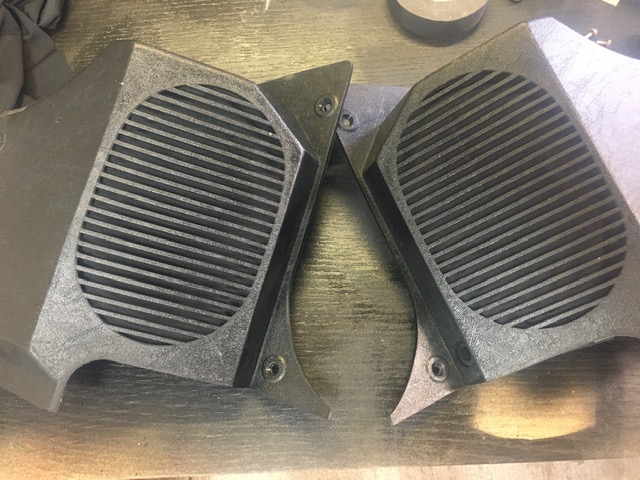

Here’s the view from the front side, that doesn’t look that great

Click to view attachment

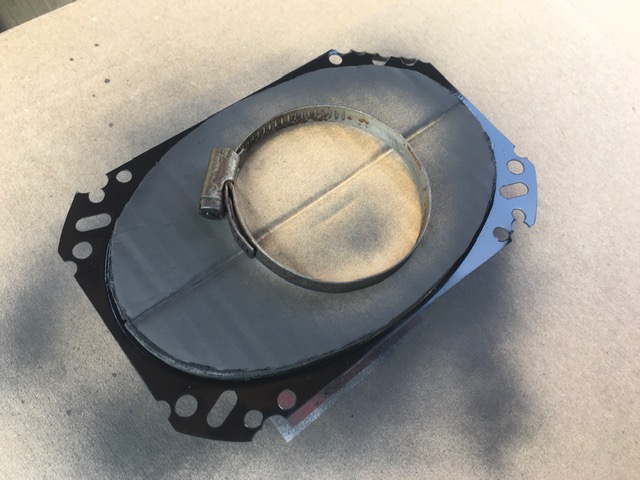

So after cleaning the metal well, so paint will adhere.

Click to view attachment

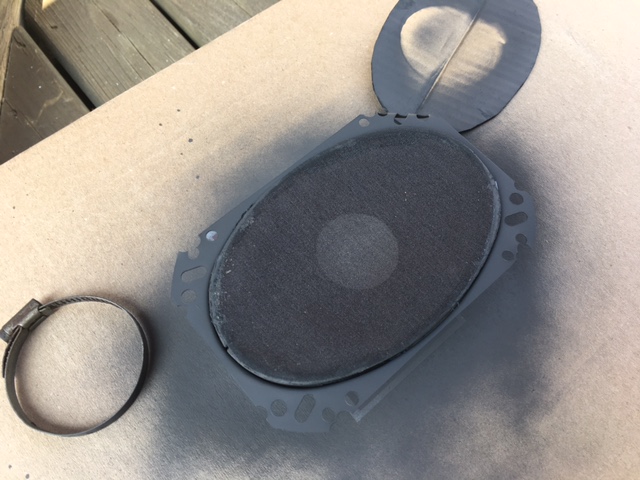

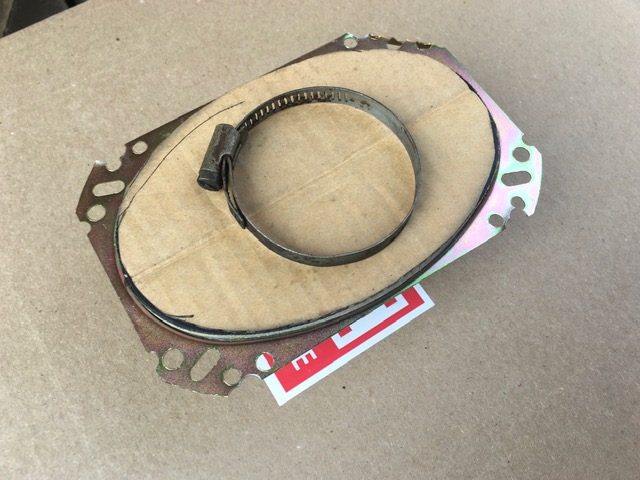

Time to do a little masking, with a piece of cardboard and a hose clamp to hold it in place

Click to view attachment

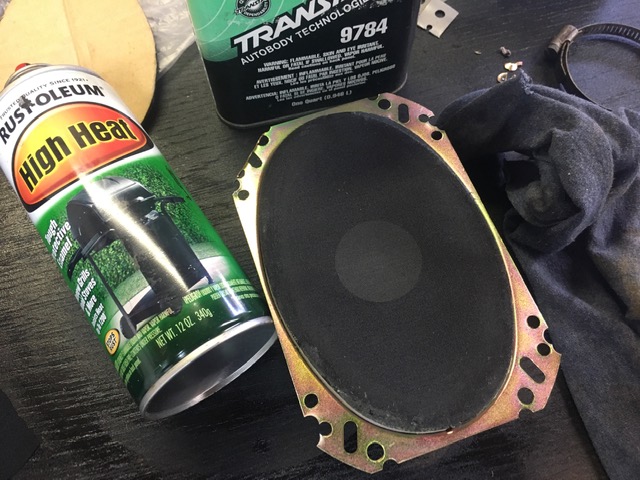

First coat of paint on, then second coat

Click to view attachment

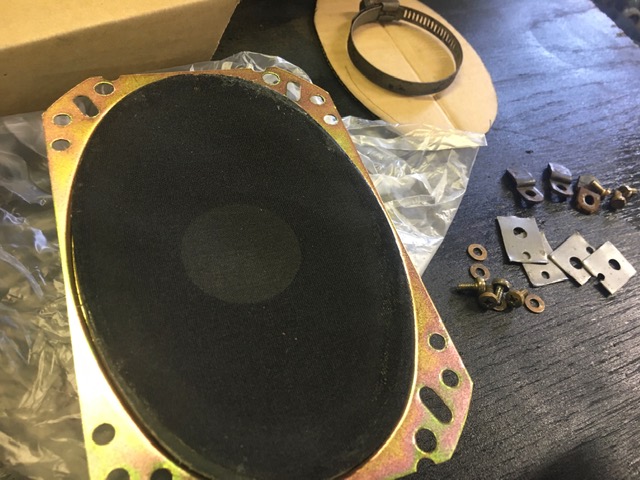

Once dry very flat in finish.

Click to view attachment

Then using some very thin, almost stretchy material.

Click to view attachment

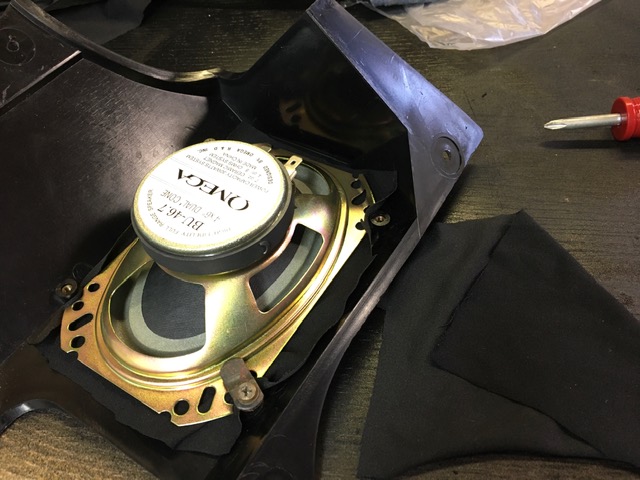

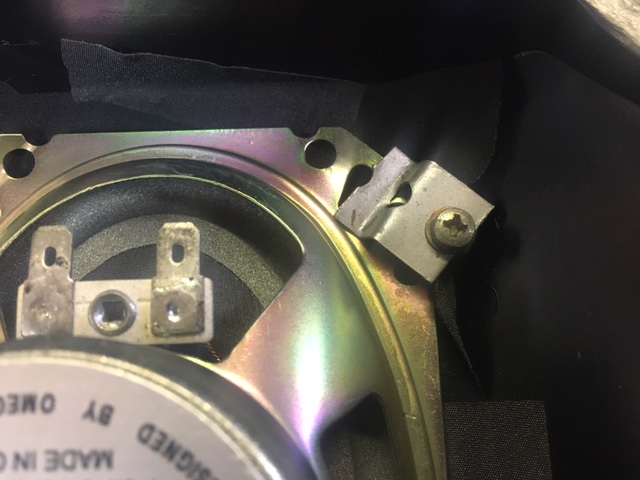

I set it in the housing using the more reflective side of the material. I used the original clips to hold the speakers in place. If the ones you have don’t work, you can bend some strap steel, and add a hole to it for the screw.

Click to view attachment

Click to view attachment

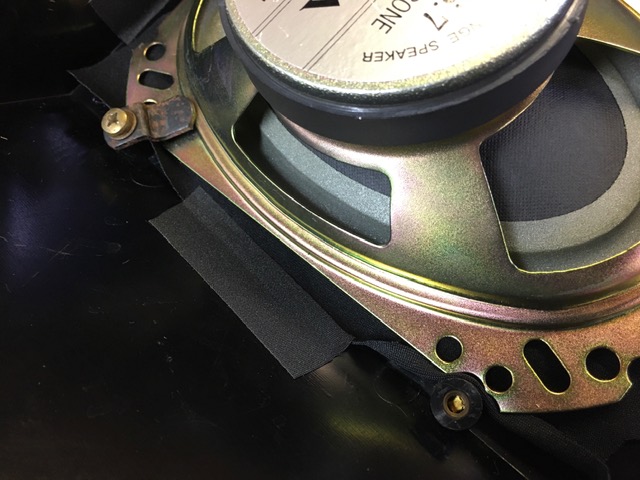

A little black cloth tape to hold it in place

Click to view attachment

And they look, and believe it or not, even sound very good. I’m using a vintage blaupunkt head unit, pushing a big 7 watts.

Click to view attachment

Nice work. I like the cloth trick. Were those speakers a recommendation or just something you decided to pick up and try? Also, can you provide their measured depth? (I know you've already installed them - maybe it's on the box?)

I used a slightly different approach to mounting some speakers in the original housings.

First off, I had ordered 914Rubber’s speaker pods, thinking I would use a pair of Rockford-Fosgate 5 1/2's that I already had from another project that didn’t work out.

Unfortunately, I was very disappointed when the speaker pods arrived to see how poor quality they were… Sorry 914Rubber guys, but the shiny, highly textured outer surface (Samsonite suitcase material) just does not do it for me; the indentations for the indicated hole placements are “somewhat approximate”. The pictures I saw before ordering don’t show that. Perhaps at some point I will try to clean them up, sand off the texture and repaint them with a matte, lightly textured finish, but that remains a project “for later”.

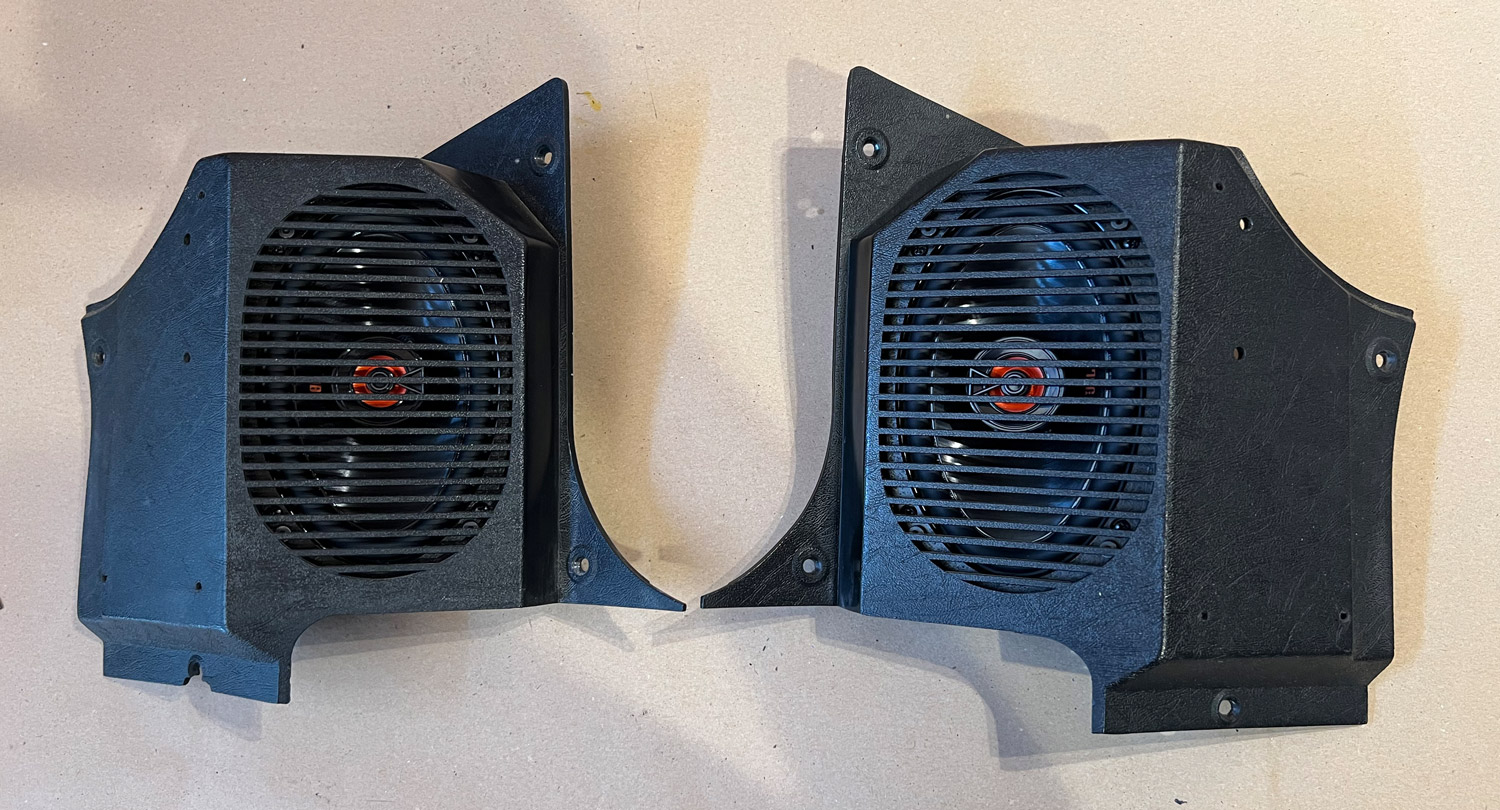

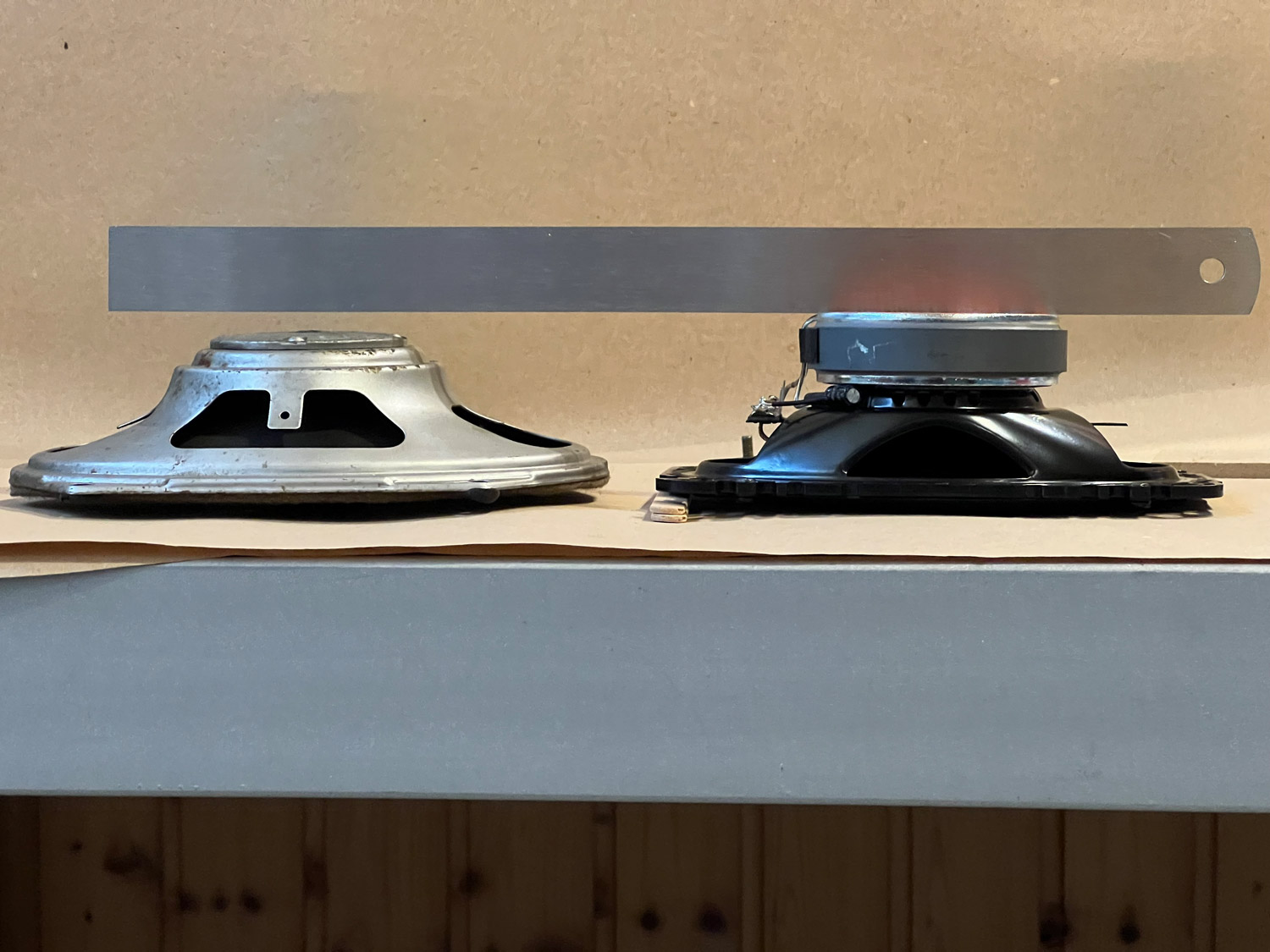

So, as my original housings are still in good shape and I just wanted to get some reasonable sound going in the car now, I decided to adapt a pair of 4x6’s. I settled on JBL Club 4622’s which were inexpensive (around $60) and available here quickly – the Infinity Kappas aren’t - but also because they had good CAD data available online so I could see how they would fit. Once mounted, they’re only about 1/4" deeper than the factory originals.

Click to view attachment

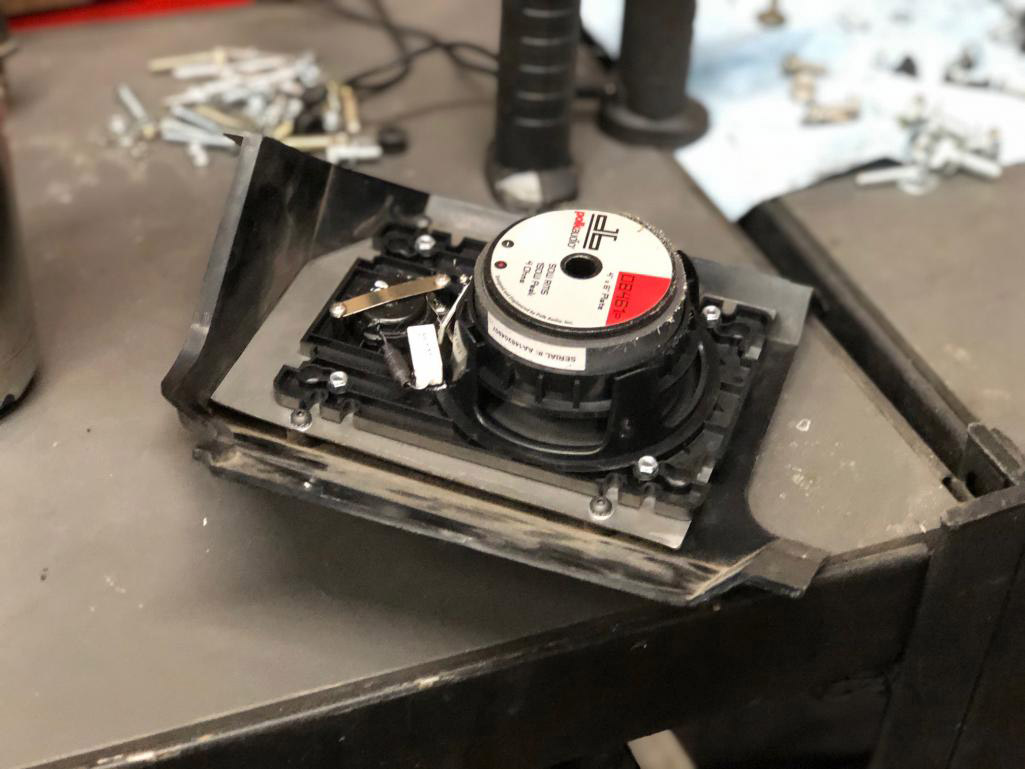

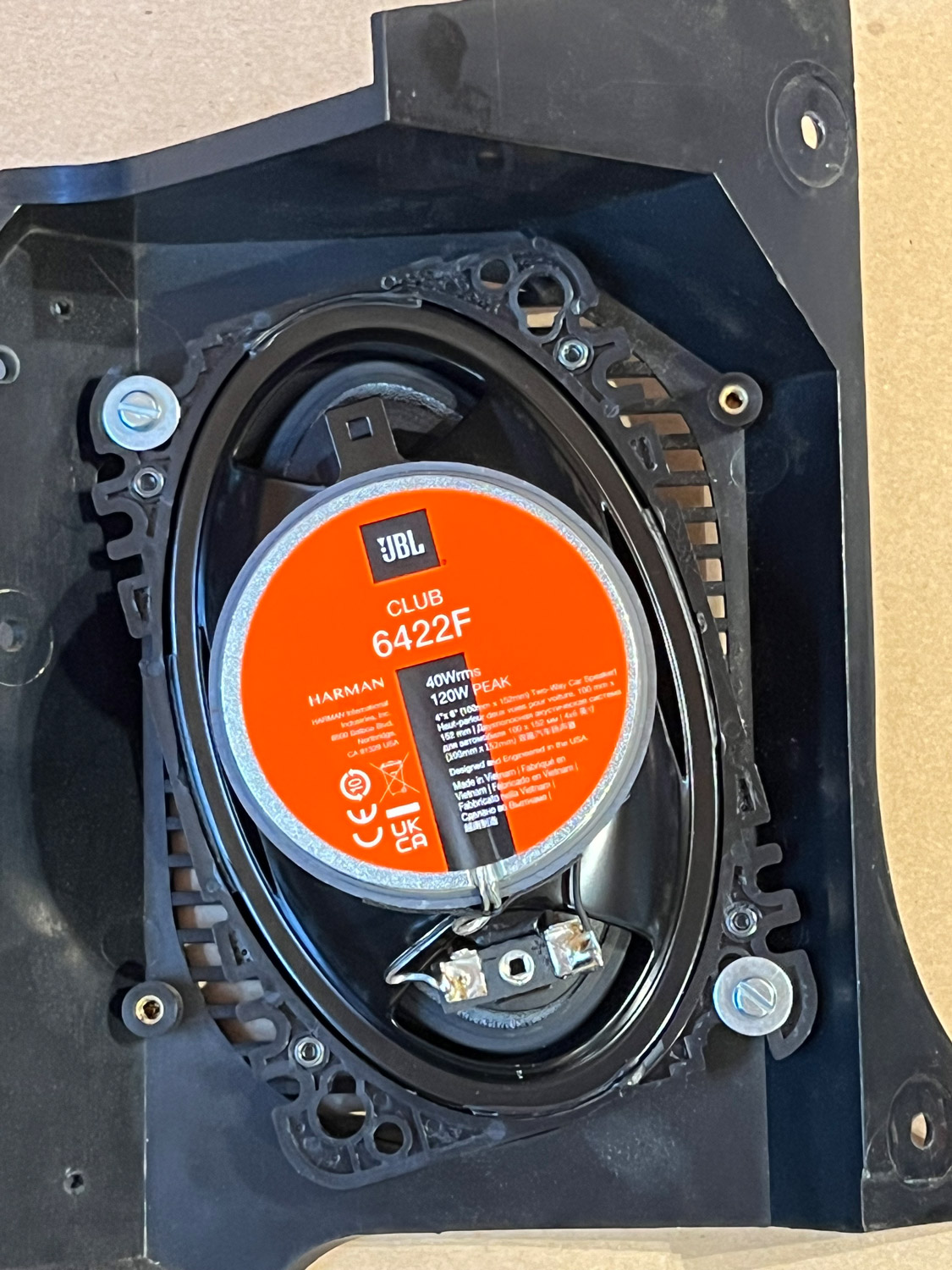

While it was possible to bolt them in directly diagonally, I didn’t like that solution having them just hanging in the air...

Click to view attachment

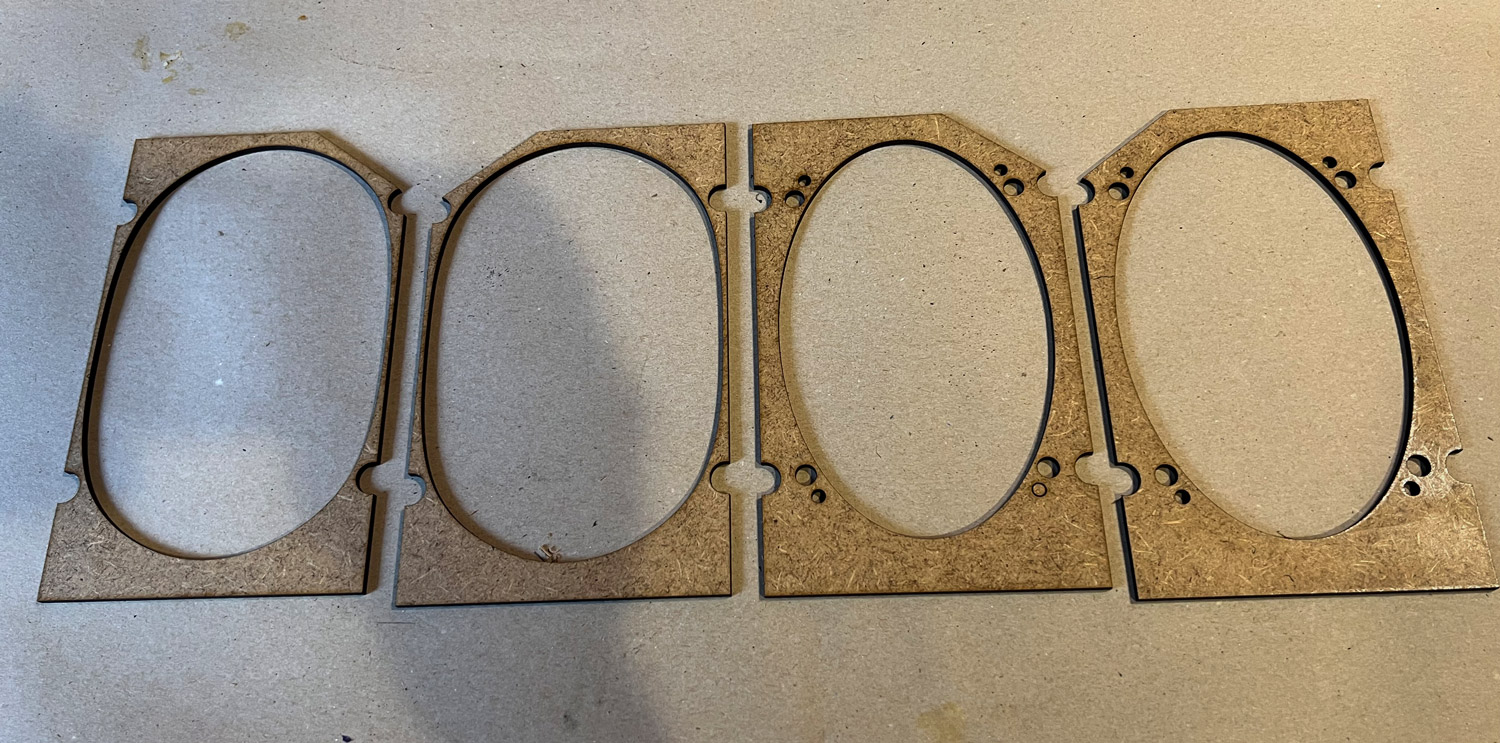

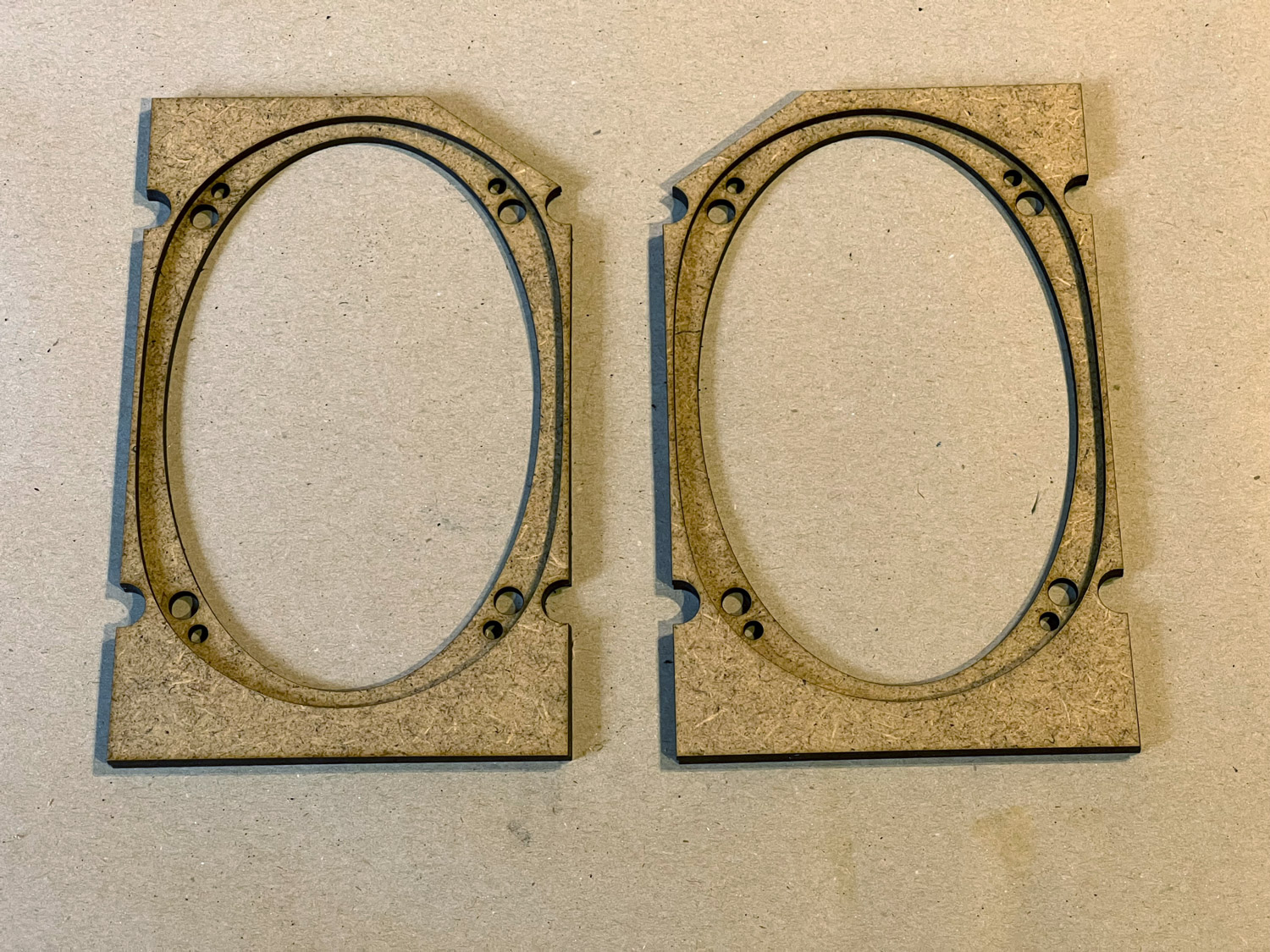

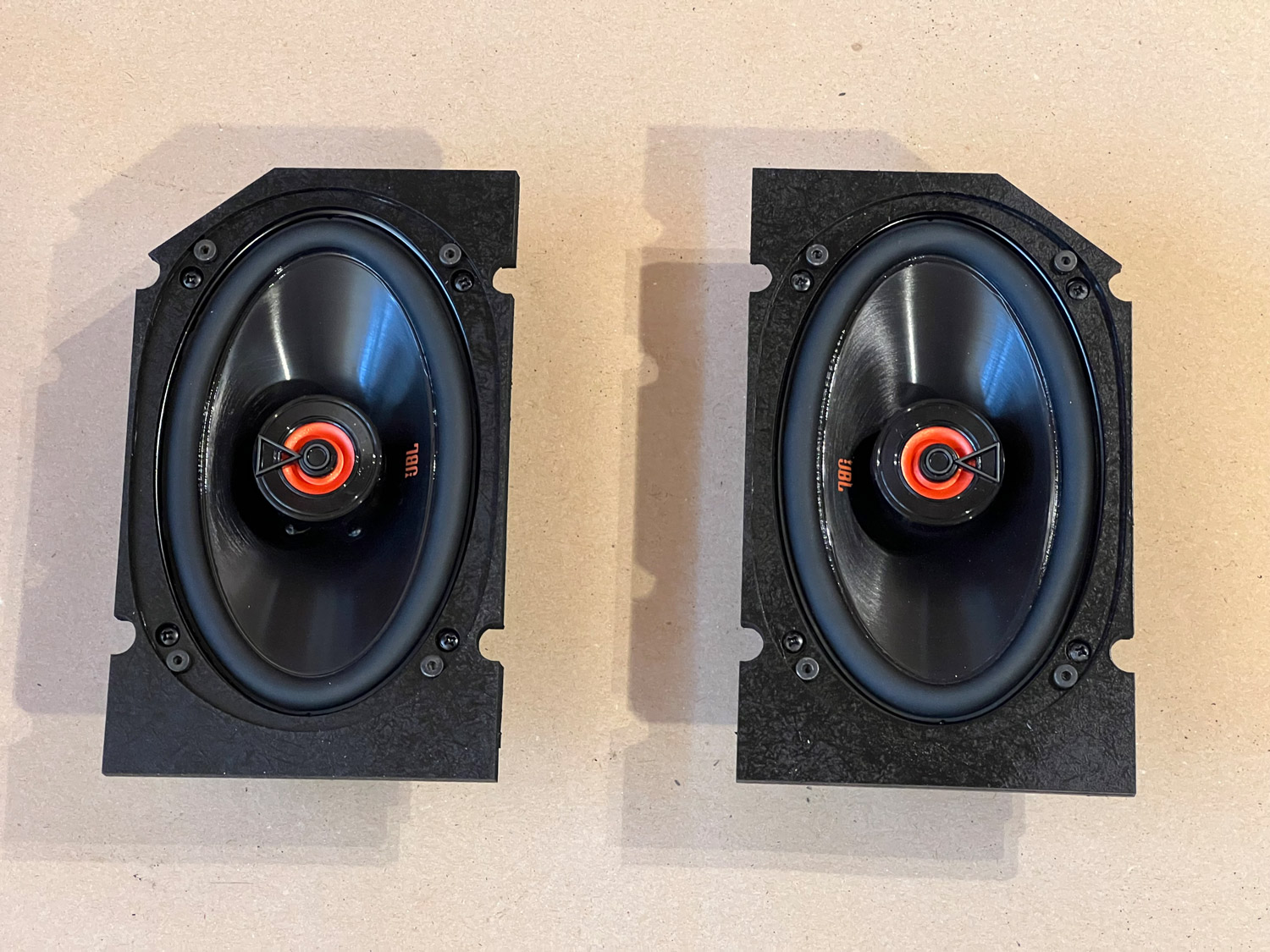

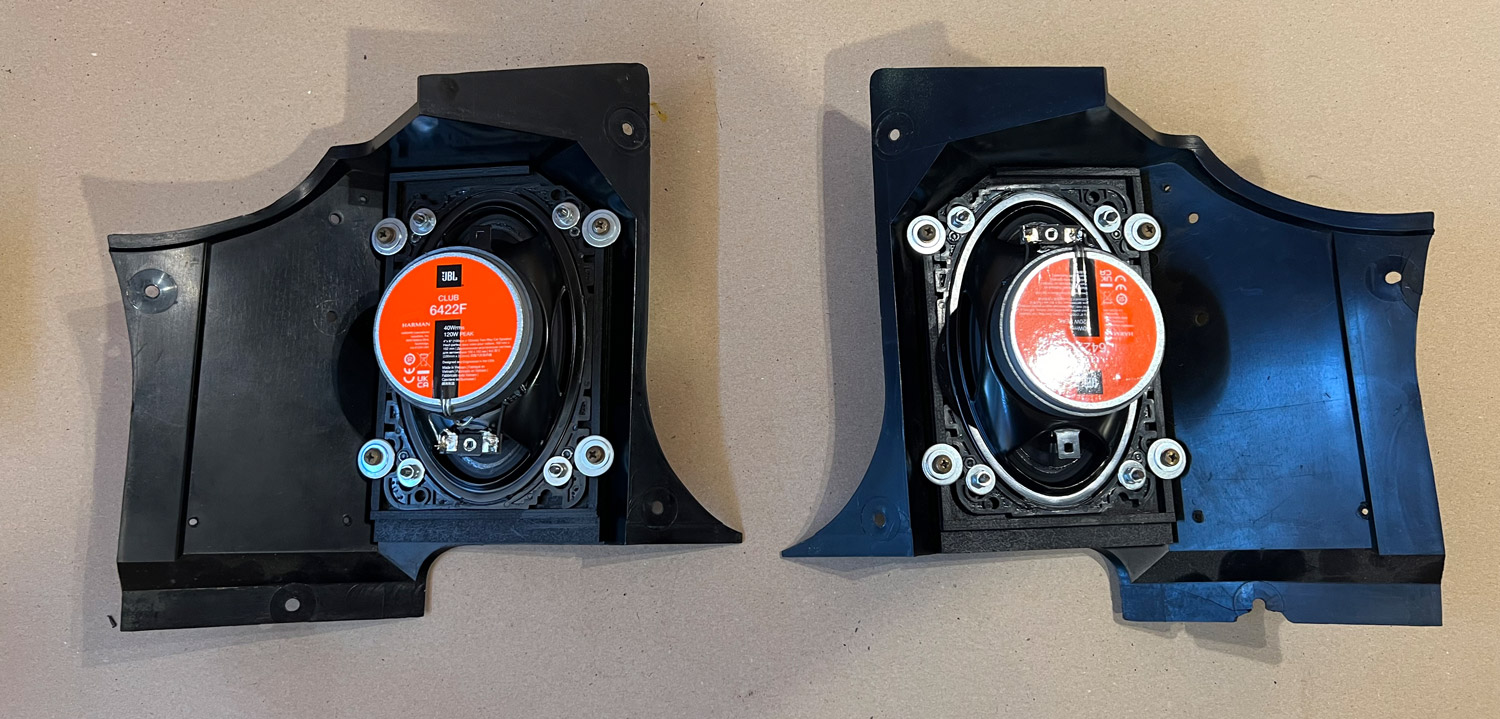

So I made my own custom adapter plates – laser cut MDF/painted black – and mounted them vertically solidly to the housings. Briefly, I took a quick iPhone photo of the inside plus some basic measurements, brought that into my CAD software and adjusted stuff so I had a perfect scale outline of the inside of the front surface. I then printed some paper templates and stuck them on some MDF and made a quick "proof-of-concept" mockup using band saw/drill press/sanding. I could have just made a second hand-built one for the other side, but being a nut for precision and having access to a laser cutter, I cut out new parts in 3mm MDF and glued them up, painted them black.

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

Click to view attachment

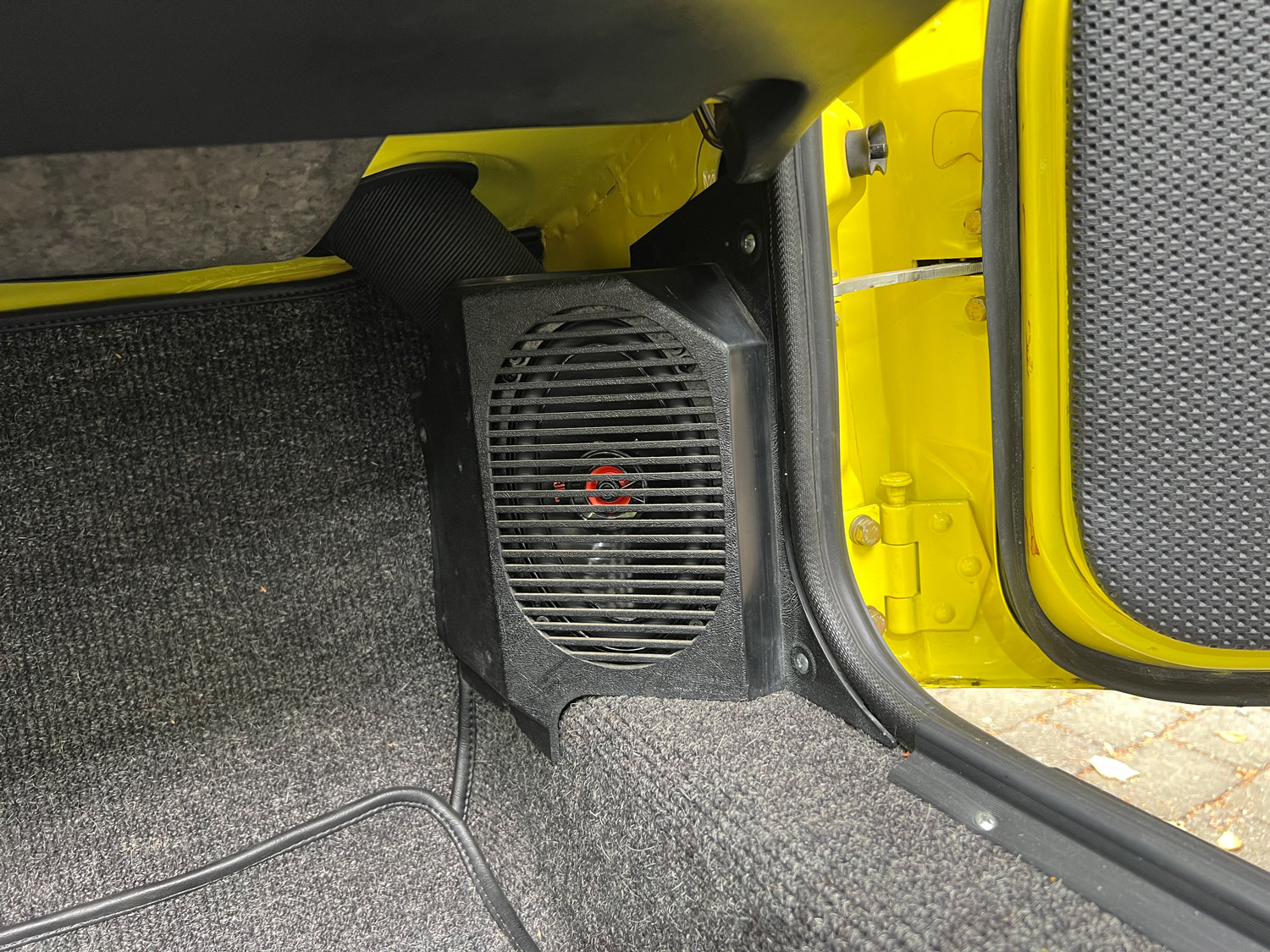

I’m quite happy with the result. The sound from the JBL's is clean and clear. Sure, there is no real bass from a pair of 4x6’s, but it’s not bad at all for a simple, clean sounding install for under $200 (including the Blaupunkt Nürnberg DAB+/Bluetooth radio, speakers, connectors, etc.) and a day or so of time invested. Have already ordered a Pioneer TS-WX010A compact subwoofer, which should actually fit inside the center console. The Blaupunkt works OK, install was a bit complicated (more on that later) my main complaint is that the Bluetooth doesn't automatically connect every time (like the Retrosound unit in my T-Bird does). I may look at other radio solutions at a later date.

@chmillman

I have done a few of these speaker mods in factory enclosers over the years and your solution it very good. The 6x9 sound with built in tweeter is the answer for the stock encloser and with a sub it should so rock hard. Some one should sell the custom adapter plates – laser cut MDF/

On my 6 I had PMB make up the adapters to fit my 6 but the sound is good but I believe your 6x9 will but out decent bass as compared to my Polk Audio with 4 inch bass and tweeter. I have a subwoofer, and the sounds kicks but I think the sound of your set up is what most people will want.

Picture of my Polk Audi: Don’t mind the dust, there were installed as clean as a whistle

Best Bob B
Click to view attachmentClick to view attachment

They're actually coax 4x6 inchers, not 6x9's. Maybe a little more low-mid cone surface area than your pure 4" PA's, I don't know... Probably not that much difference. Will report back on the sound once I get the subwoofer installed.

I was actually thinking of creating the 3D CAD file to make the adapters via 3D printing and just posting that... It was a tossup whether to laser cut or 3D print the parts (I have access to both), the laser cutting was just faster.

Nicely done!

I haven't seen a cleaner install yet.

Having the 3D cad file would be a wonderful thing. My son is big with 3d printing (current job is at the largest titanium 3D printer on the planet).

Now for speakers I would rather have MDF as the substrate.
The way you did it looks best to me...

The 3d print stuff is just SO easy and we are talking about 4X6 speakers here.
I'm not sure how much better MDF is over plastic on such a small speaker.
Probably cannot hear the difference...

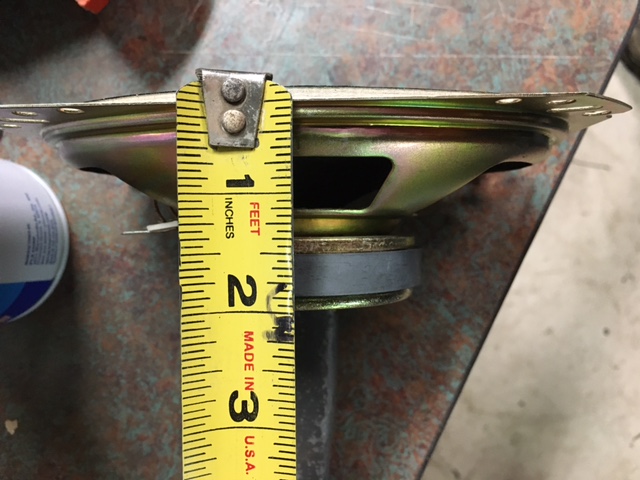

Excellent question, I took that into consideration and should’ve posted the number. Yes the magnet clears the ductwork, and the depth from the speaker face to the back of the magnet is 2 inches. I use the heater system in my cars And did not want to damage those tubes. I decided to try them after shopping for a speaker that would fit the housing, and clear the ductwork.

If you need the source I got them from PM me.

Click to view attachment

Here are 2D CAD (DXF) files for the laser cutting. Of course, they are custom for the JBL's. The main parts are in 3mm (1/8") MDF, the reinforcements which I glued on the back are in 4mm, they provide the bearing surface for the washers using the the original screw holes. You could also do them in 3mm - just might need an extra washer when installing.

Click to view attachment

3D print (STL, STEP) files to follow when I get a moment.

OK, here are the 3D files. Two versions, a one piece, which due to the part configuration, your printer will need to have support material and there may be some cleanup; and a two piece which can be printed flat on the printer bed (no support required) and then glued together (superglue, solvent, etc.). In the .zip are ready-to-print .stl's as well as STEP files if you have a 3D CAD system and want to modify them. I only put in one side, the other side should be mirror-imaged, which all CAD/Printer softwares can do.

Click to view attachment

Added a Pioneer TS-WX010A subwoofer inside the stock console...
