Verruckt
Nov 11 2005, 02:35 PM
I looked through the classics, and tried some keyword searches, but just get threads with references to floorpans. I KNOW I've seen one here before...
Does anybody know who the author was? That would help me out. Thanks in advance.
grasshopper
Nov 11 2005, 06:48 PM
this is a good one
Floors
Verruckt
Nov 11 2005, 10:08 PM
Damnit, thats it. Thanks.
I havent seen him post for a while, so his name escaped me for some reason.
Trekkor
Nov 11 2005, 10:17 PM
I know McMark has been working on a car that needed floor pans replaced.
maybe took some pics
KT
McMark
Nov 12 2005, 12:57 PM

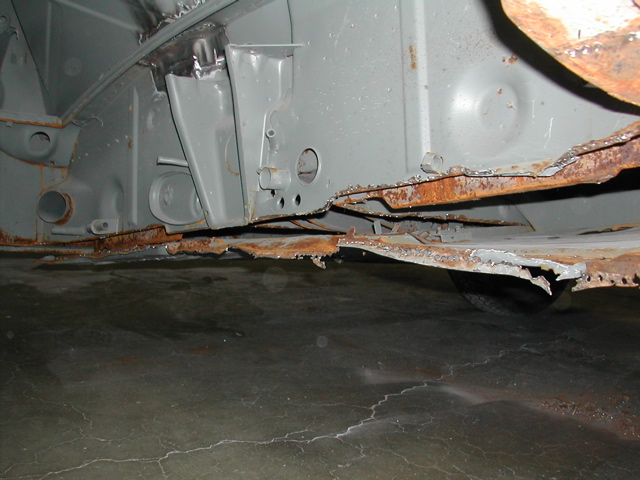

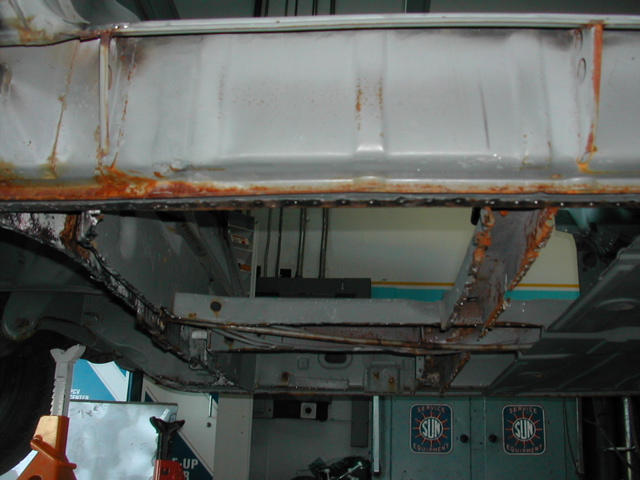

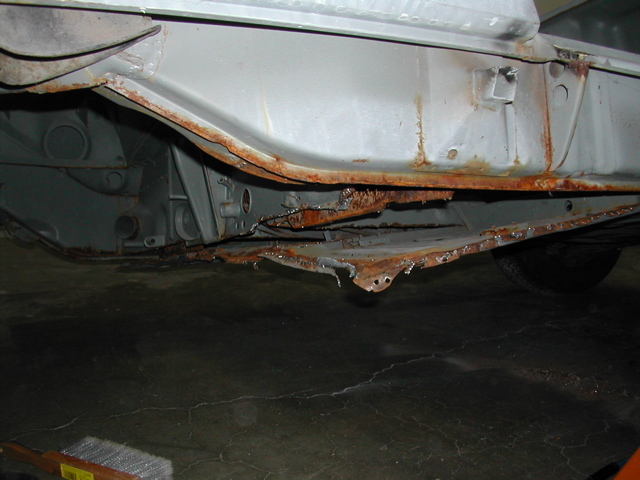

Verruckt
Nov 12 2005, 01:28 PM
McMark
Thanks for the pics. The area I was really looking at was the front. The thing is, I havent got my floorpans from rust o design yet, and am really curious where they should be cust at...
But thanks for that, that does answer some stuff for me.
McMark
Nov 12 2005, 02:16 PM

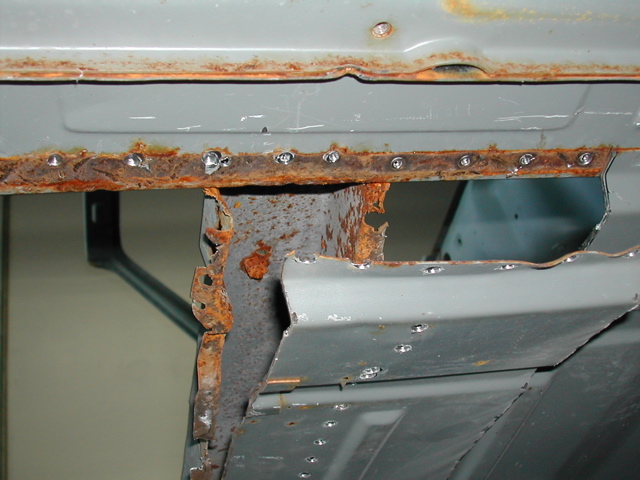

Here's some more pics. The floor pan metal actually goes quite far into the front trunk section of the car. From the passenger cabin, the floor pan metal forms the floor of the gas tank cavity. This image shows it in orange. This section in the gas tank cavity is not included on the replacement pieces.
McMark
Nov 12 2005, 02:18 PM

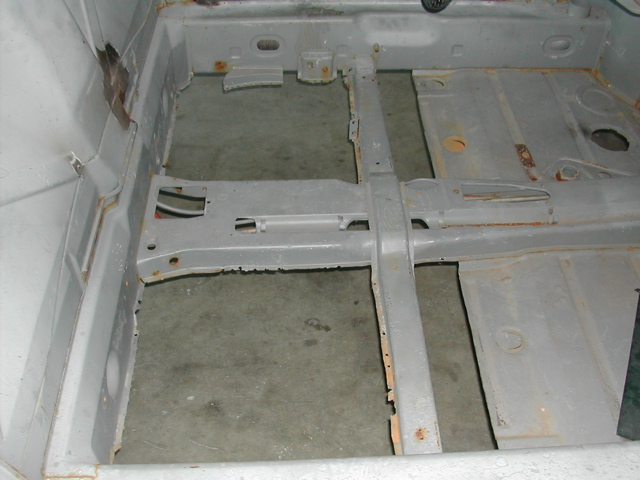

On the passengers side of the floor pan there is a more obvious place to cut the metal. I would cut just in front of the spot welds and then butt weld there. This avoids having to drill out that section of spot welds as well as results in a stronger join, IMHO. The section in orange is what's included on the replacement pieces.
McMark
Nov 12 2005, 02:19 PM

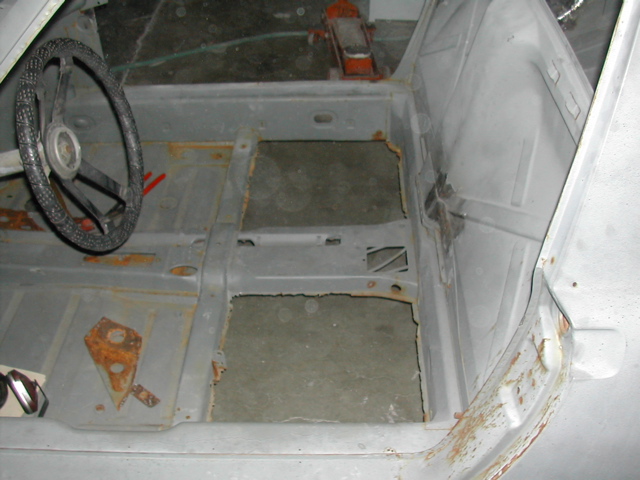

Here's the drivers side. This one is a little more complicated. The floor pan metal slopes up to form the attachment point for the brake master cylinder. This sloped section is not included in the replacement pieces and the orange section in this picture roughly shows what is included, and therefore where you need to cut.
Verruckt
Nov 12 2005, 02:28 PM
Ok, that's what I was looking for. From the pictures on the resto design site, it looks as though the pans dont go all the way to the front bulkhead/firewall/whatever... so I was wanting to know where to cut. Those are a big help. Thanks!
McMark
Nov 12 2005, 02:33 PM

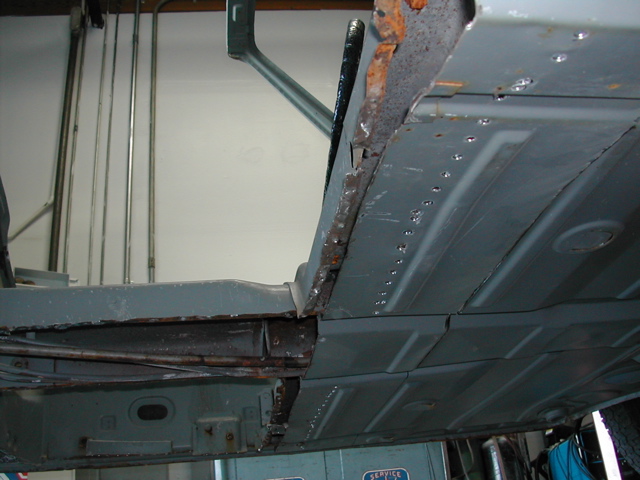

From underneath things are a little more clear. Again, the orange section is the replacement pieces. The floorpans are "lap" spot welded to the longs along their whole length. When the longs reach the inner fenders the floor pans are pinch spot welded along that curve. Finally, you must cut a freehand line from one side of the car to the other. Don't be afraid not to use the whole replacement piece if it works out better. Cut where it makes the most sense and trim the replacement pieces to match.
