Has anyone measured and made up a drawing of the center console? I'm a pretty decent woodworker and one for my '76 which was never equipped. I'd like also to toss that crappy plastic chunk of foam.. the quasi-armrest, so thought I'd integrate it with the OEM style center console.

Thanks

I have a link to a french 914 site, but it no longer works. The main site seems to be fine.

http://914france.ifrance.com/914france/console.htm

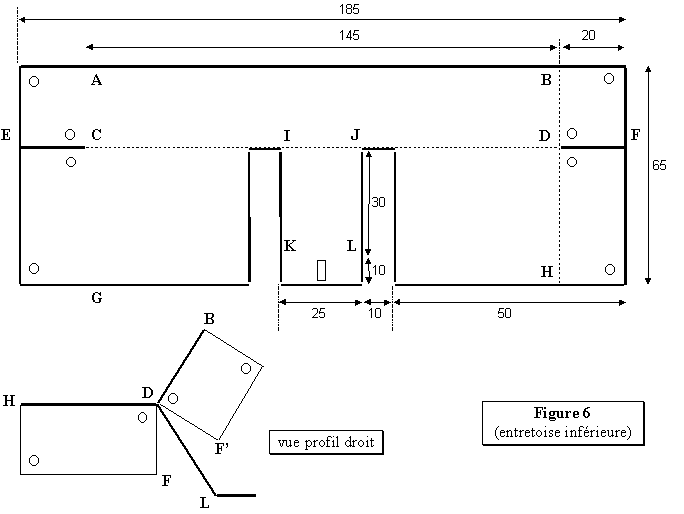

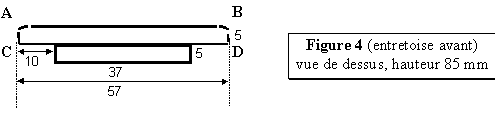

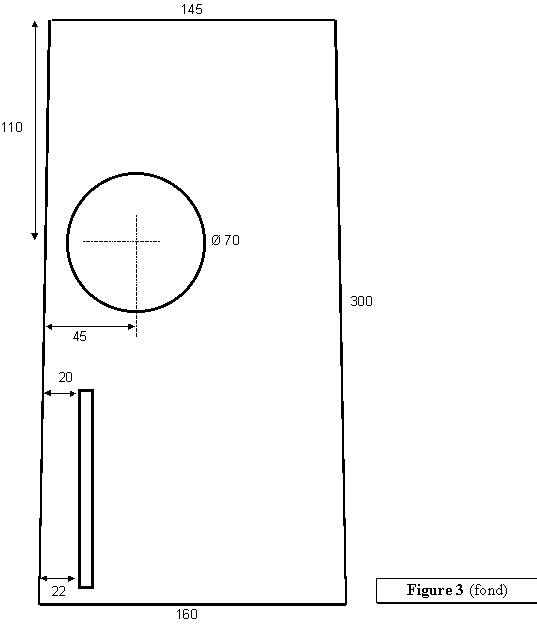

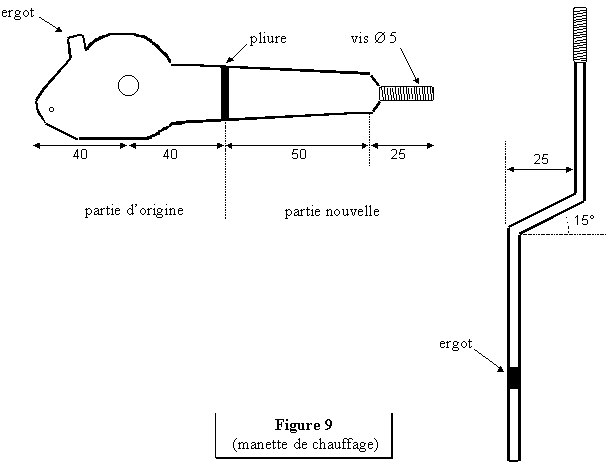

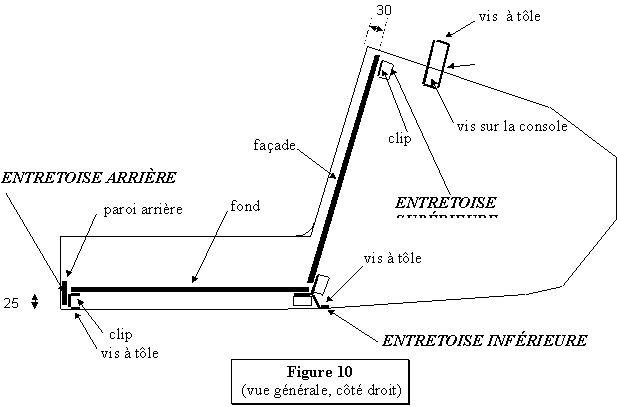

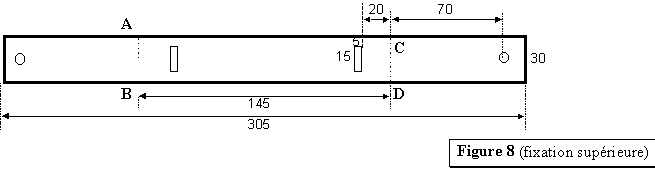

There were 10 gif files with dimensions in mm. I hope I have attached them.

Click to view attachmentClick to view attachmentClick to view attachment
Click to view attachmentClick to view attachmentClick to view attachment
Click to view attachmentClick to view attachmentClick to view attachment
Click to view attachment

I wish that I had the authors name, to give credit where due. It may be that the link above is only temporarily out of order. Good luck

Bill, thanks for saving those measurements!!

--DD

Tremendous!!!

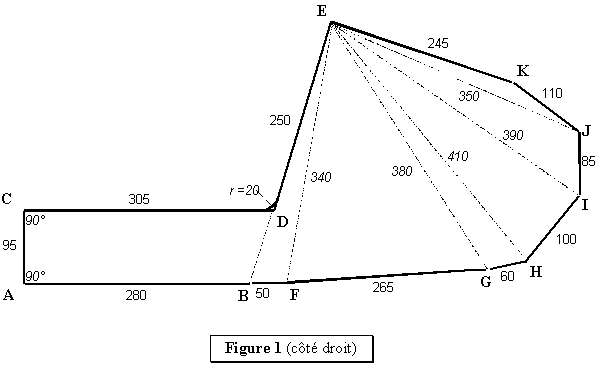

Does anyone know what the angle is for the side panels, as described by lines ED to DC? (on drawings "Figure #1 and Figure #2) I can figure out the rest by measuring the actual space inside the car, but with now real console to use as a pattern, I'd just be guessing otherwise.

Thanks

It is about 105 degrees.

I have a cad drawing made from the website if you want it and can open AutoCAD .dwg files.

That would be a great time saver. thanks Matt

Great info. What wood are you, Brian, going to use. I was thinking of mocking one up in cardboard today.

Dan

Brian: I have some old console sides ,that arn't any good to me. laying around
pay just shipping and you can have the orginials to work from. The place ment of the kick back on the drivers side is important ,or your foot gets in the way of everthing. Let me know. Dave

PM sent
Thanks,
Tom

I just had my console out last week to install a pair of 5-1/4" mid-bass woofers. I was concerned about foot room as well. Ends up that the console cluster is shallow enough that I placed the woofers right up front, far away from my foot access. Oh, and they are soooo sweet!

One of the measurements on the French drawing is WRONG...

but I don't remember which one.

One thing I CAN contribute to this forum is a good set of drawings. I have a good original console now. I'll measure it and then compare it to the French drawing.

Between the two, I will make up a new set that are accurate and post them here for all to use.

Hi Dan,

The "5mm Exterior Hardwood" ply found at Home Depot is tempting, but I wouldn't recommend it. I did the "boil test" on it to see if it was worthwhile for marine applications (good marine or exterior grade ply will withstand being boiled indefinitely). The sample fell apart in one hour.

No the 914 isn't a marine application... BUT, the temperature swings inside a car a very brutal. Add a little humidity swing, and your console will probably start warping after the first summer.

"First Class" is some marine ply made from "Okuome" or "Meranti". You can find it in 3mm, 4mm, 5mm, 6mm, etc thicknesses. Pricey starting at $30/40 sheet for thin stuff.. but it is very stable and won't move on you. Perhaps, while you are in there, you can build some really nice new door panels too?

"Second Best" is MDO (Medium Density OVERLAY) plywood. Used for signmaking (NOT MDF Medium Density Fiberboard). I belive 1/4" is a thin as you can buy it, but it is also dimensionally stable, water and weather proof, and more readily available all over the country.

If you "must" go "cheap" using the Home Depot stuff.. make sure you seal it really well with some polyurethane after you've completed the last cut. Don't let the moisture migrate in or out (epoxy is best.. but the cost of using that negates the "savings" of using cheap plywood).

We had made some big slabs of metal years ago that we use to precisely cut the consoles to the original dimensions. They work great! We also make the metals to bolt it all together.

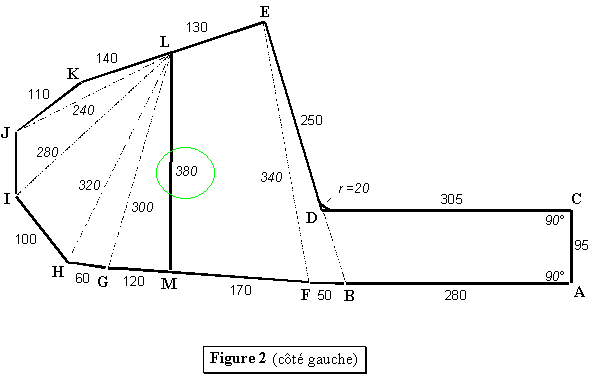

I was reading thru this thread after seeing Beamer13's console he built. I noticed that McMark said one of the measurements is incorrect on the french drawing. I believe it is the one circled in the pic below. I think it is 280mm not 380 mm as listed but I will have to duplicate the drawing in CAD to verify or do a little math i guess.

Hope this helps, if I find out for sure what that measurement is, I will let everyone know.

Jim

Click to view attachment

Theese drawings came from the old french club' website.

I am in charge of the new site and have saved and moved the drawings on our new forum.

you can find them here

http://porsche914.fr-bb.com/articles-techn...entrale-t15.htm

I don't suppose by some chance, you might have a copy of this translated into English?? I know, I know... I'm bein lazy :-) What do I need to read it for anyway? Right??? :-)

Try this thread...

Dr Evil has a cool (non-OEM) console.

The plywood used in a factory console is a 5 ply 10 mm (3/8") material with a 5 mm (+- 3/16") layer of foam bonded to it. The plywood looks like Baltic Birch, which is a very stable and somewhat expensive plywood we use in our shop when we need a plywood that can really be relied upon. It's usually available in good lumber yards- the ones that have survived the Home Depot onslaught. I believe it's imported from Europe.

Chris

Well, I took some time tonite and looked over the drawing and accompanying chart and noticed the chart has the correct measurement for LM. It should be 290 mm not 380 mm.

I just needed to look at all the info supplied. Glad I noticed that before wasting time in CAD duplicating the drawing.

Jim

Click to view attachment

Thank you for checking. I updated the drawing on the french website.
http://porsche914.fr-bb.com/articles-techn...entrale-t15.htm
For those who asked ... I don't have any translation for instance

The french guy ...

I have CAD drawings for this console.

On my drawing the "wrong" dimension came out to 286.15mm.

Anyway, you can't post DWG files so PM me if you want my CAD files.

So is K-L-E a straight line?

If not how do you know the position of L and M?

Trying to correct my drawing.

I can't remember what I did the first time I drew it.

Matt, I take KLE and GMF to be straight lines.

I've also added DWG files to the list of acceptable attachments. So you can post your CAD files here.

Matt,

I agree with McMark. I believe KLM and GMF to be straight lines. The passenger side of the console does not have the kickback and the drawing indicates a straight line. LM is designated to show where the kickback begins for the driver's side.

Oh, and McMark thanks for adding another acceptable file type for attachments. Let the CAD files fly!

Jim

That is what I thought, but in my original I had a slight dip on top. In theory it should be OK but I'll probablly redraw everything to the left of the kickback just to be sure. I'll fix my drawing tomorrow and post it.

Thanks guys. I'll try to post a full size pdf also.

That'd be awesome!!! Thanks!!

I seem to be good at digging up old threads...

Did anyone end up posting the CAD files anywhere? I'm mocking up my new console in Sketchup, and this would be a way easier starting point.

Is this looking correct?

Those CAD files would be nice. I would like to make this out of aluminum and just weld it all together. With the cad files I would have it water jet cut for me.

Matt was active a few days ago. Has anyone sent him a PM about these cad files?

Edit: I sent him a PM

David

I've about got my CNC router table set back up to where I can cut mine out of wood. :-)

Should I keep plugging away at new CAD drawings, or should I wait for Matt?
