Now that the fuel system and wiring are done in the rear I got going on the tank in the front. I installed the flexible hose that connects between the stainless tunnel lines and the tank. 1/2" feed and 3/8" return all the way to the engine, should be able to handle any engine I drop into this car in the future.
Click to view attachment

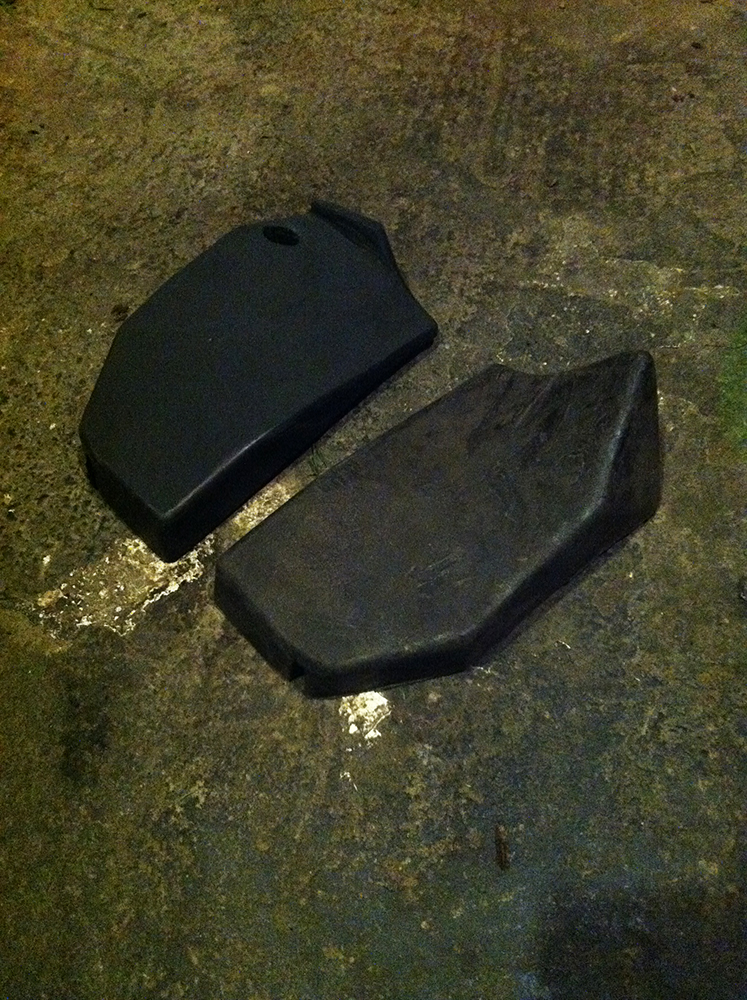

I needed to modify the rubber tank mounts to clear the cage.
Click to view attachment

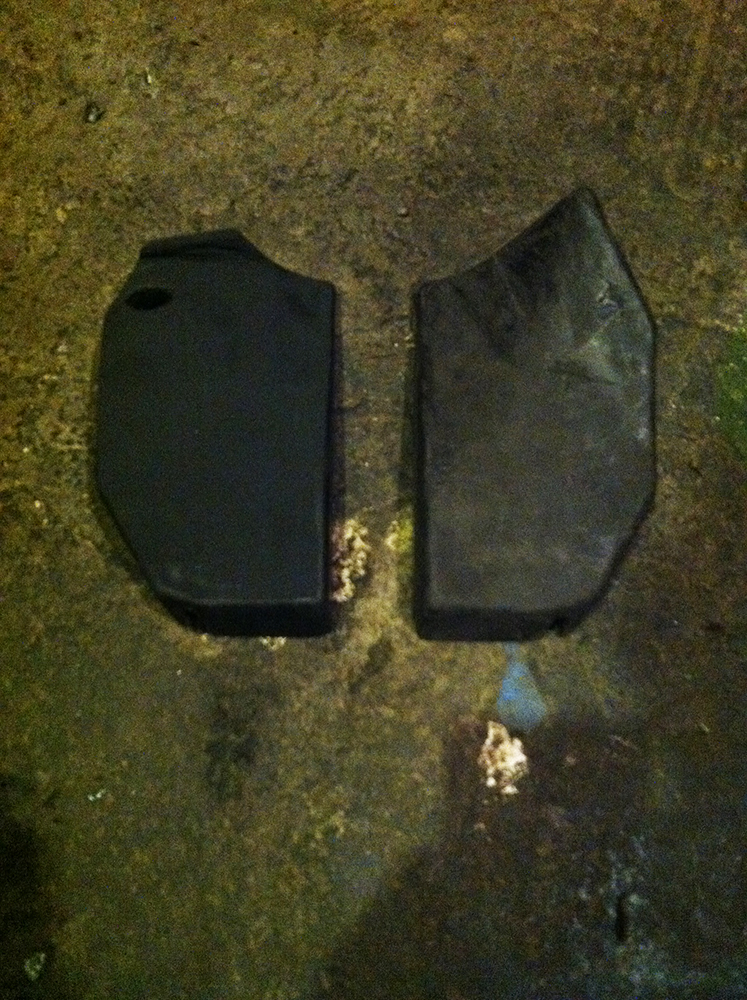

Here is the before and after.
Click to view attachment

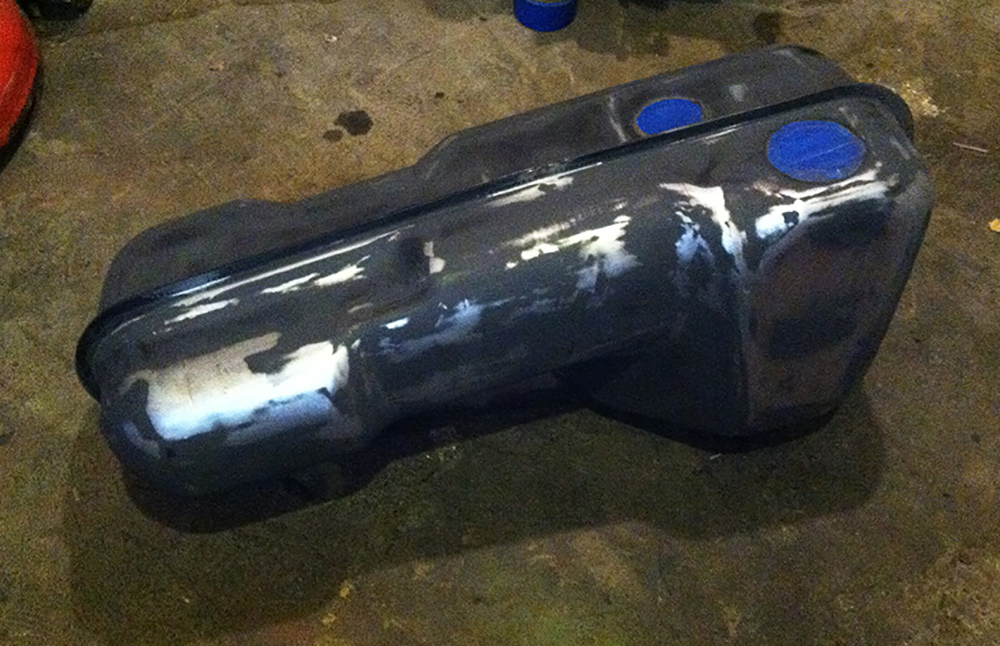

Then I cut off all of the brackets and finished the metalwork on the tank, primer is next!
Click to view attachment

When do we get to hear that exhaust?

Happy New Year Dane!

No front Sway bar?

I have one on my six. Apparently 2003 was the only year they were employed by the six. FP varies from 32psi @ idle to 45psi when I goose it.

I am running a Carrera front suspension with an under body sway bar. More on that soon!

Hopefully within a month or two!!! Going to try to drive it this year!

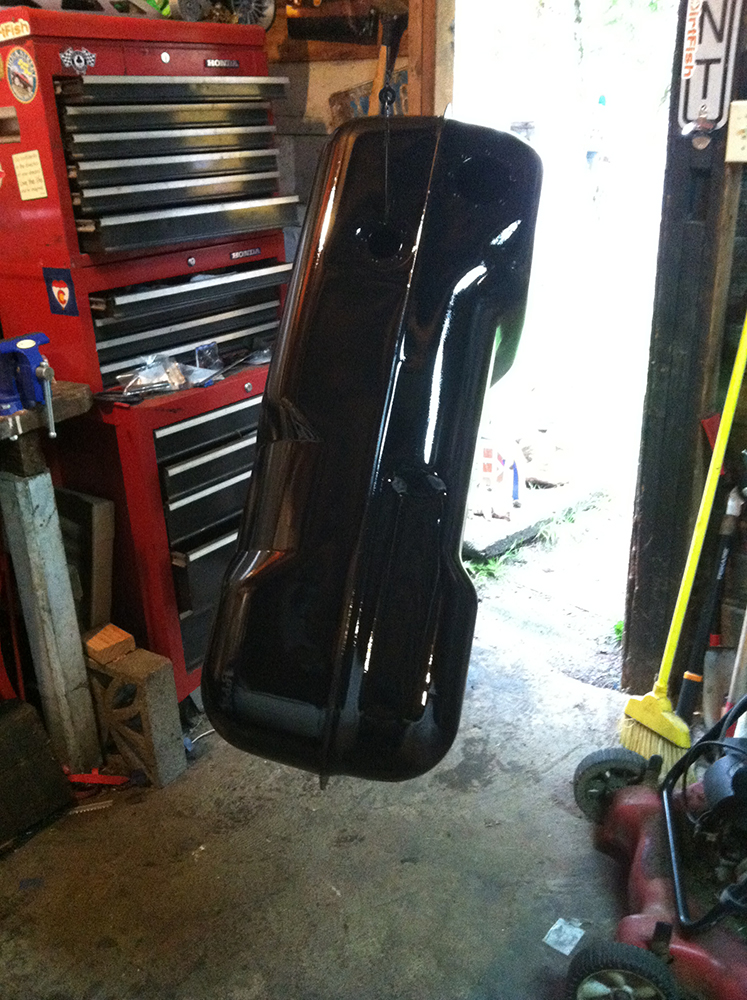

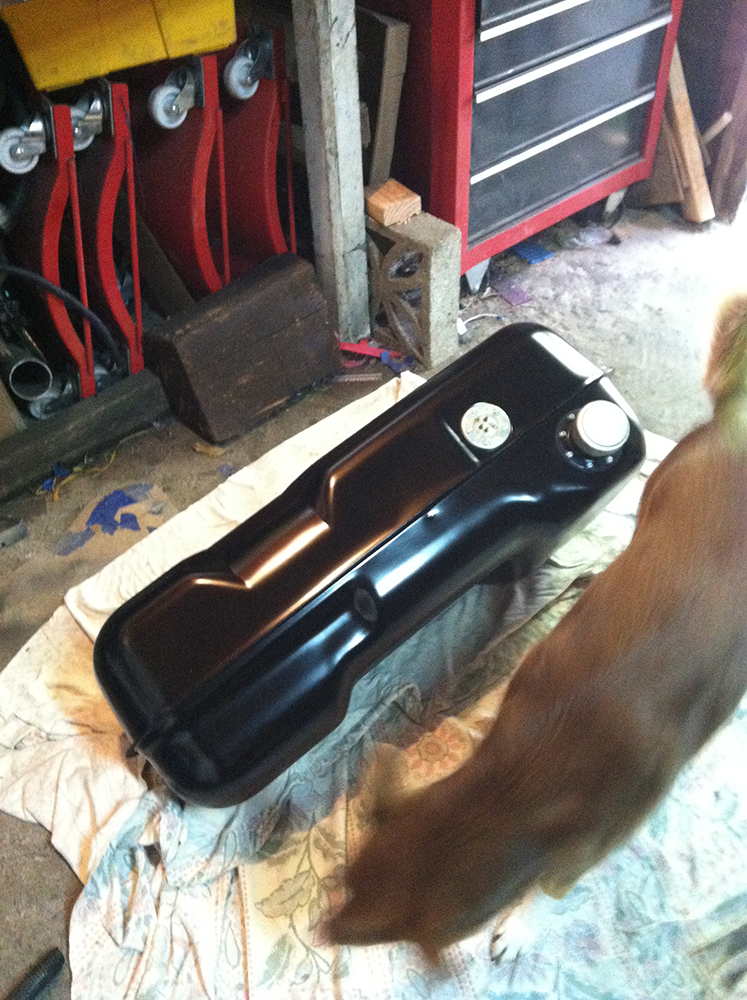

I primered and painted the tank.
Click to view attachment

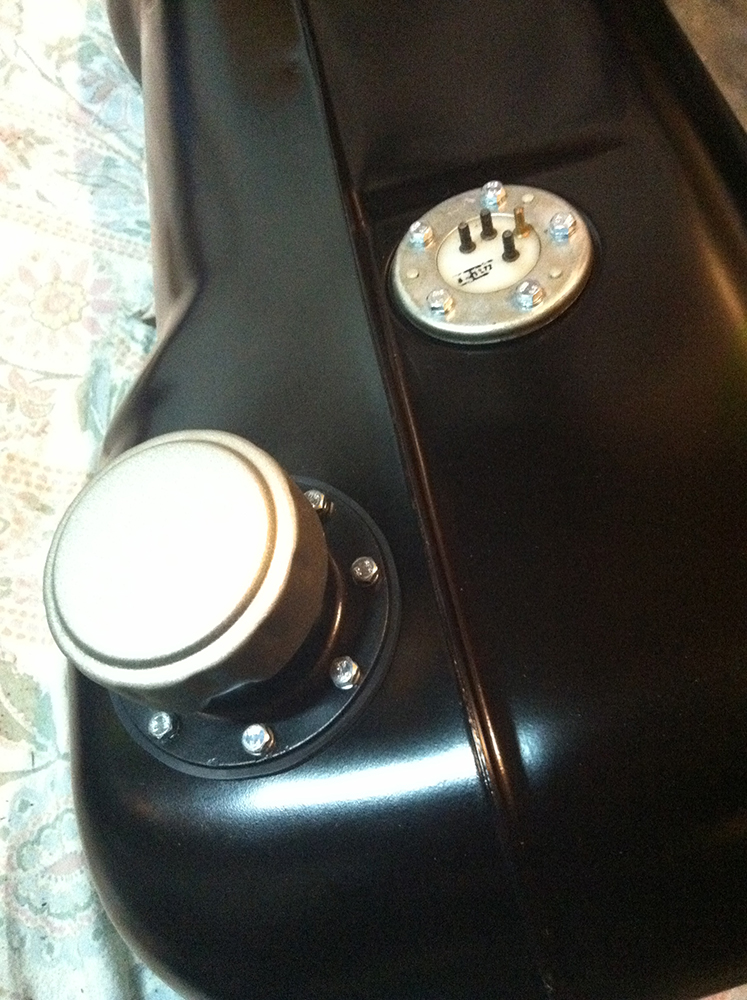

Then I installed the filler neck and repainted cap, along with the level sender.
Click to view attachment

All with fresh gaskets.
Click to view attachment

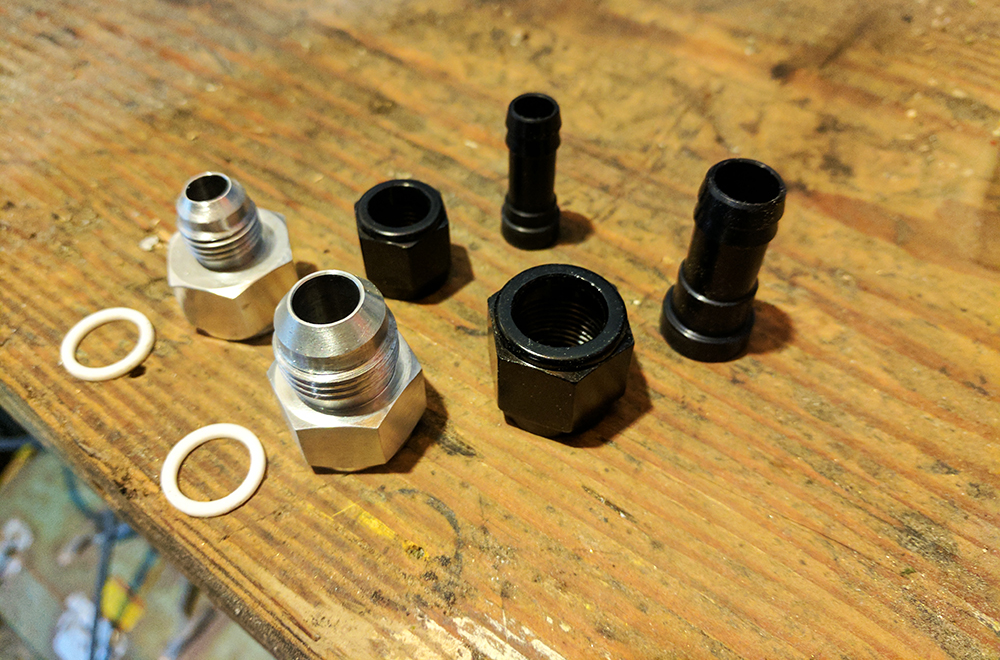

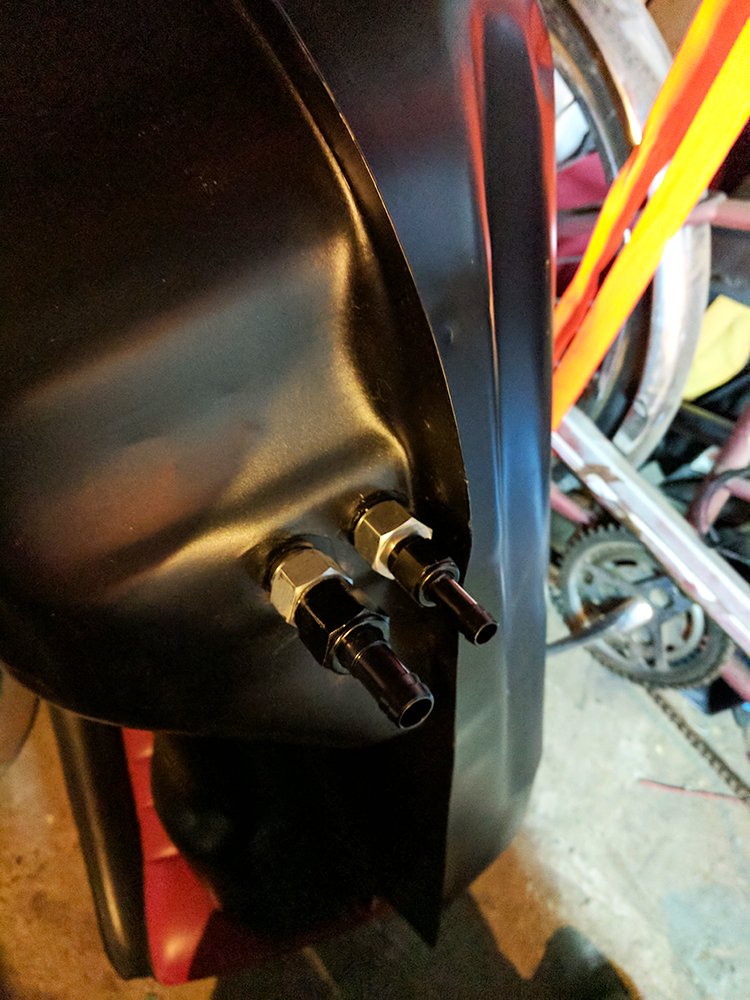

Since I am running such large fuel line I upgraded the tank fittings.
Click to view attachment

It is a vw tank thread to AN adapter to hose barb compilation.
Click to view attachment

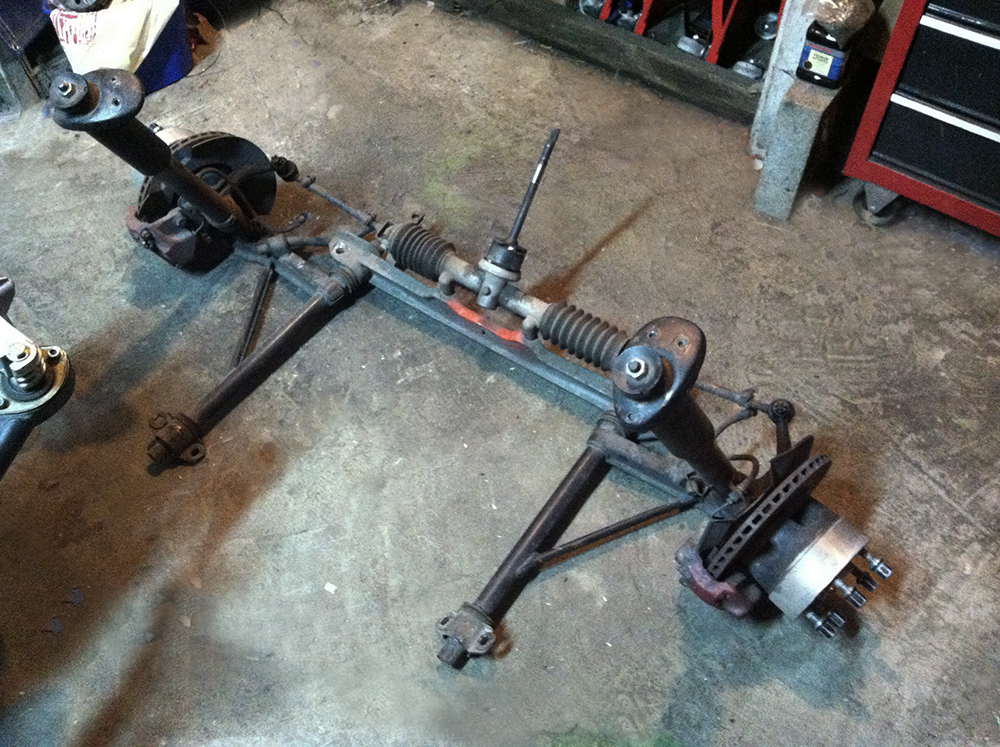

Now that I have shifted my focus to the front I decided to pull the front suspension.
Click to view attachment

I am running an '89 Carrera suspension, I plan on disassembling, rebuilding and repainting everything, then reinstalling.
Click to view attachment

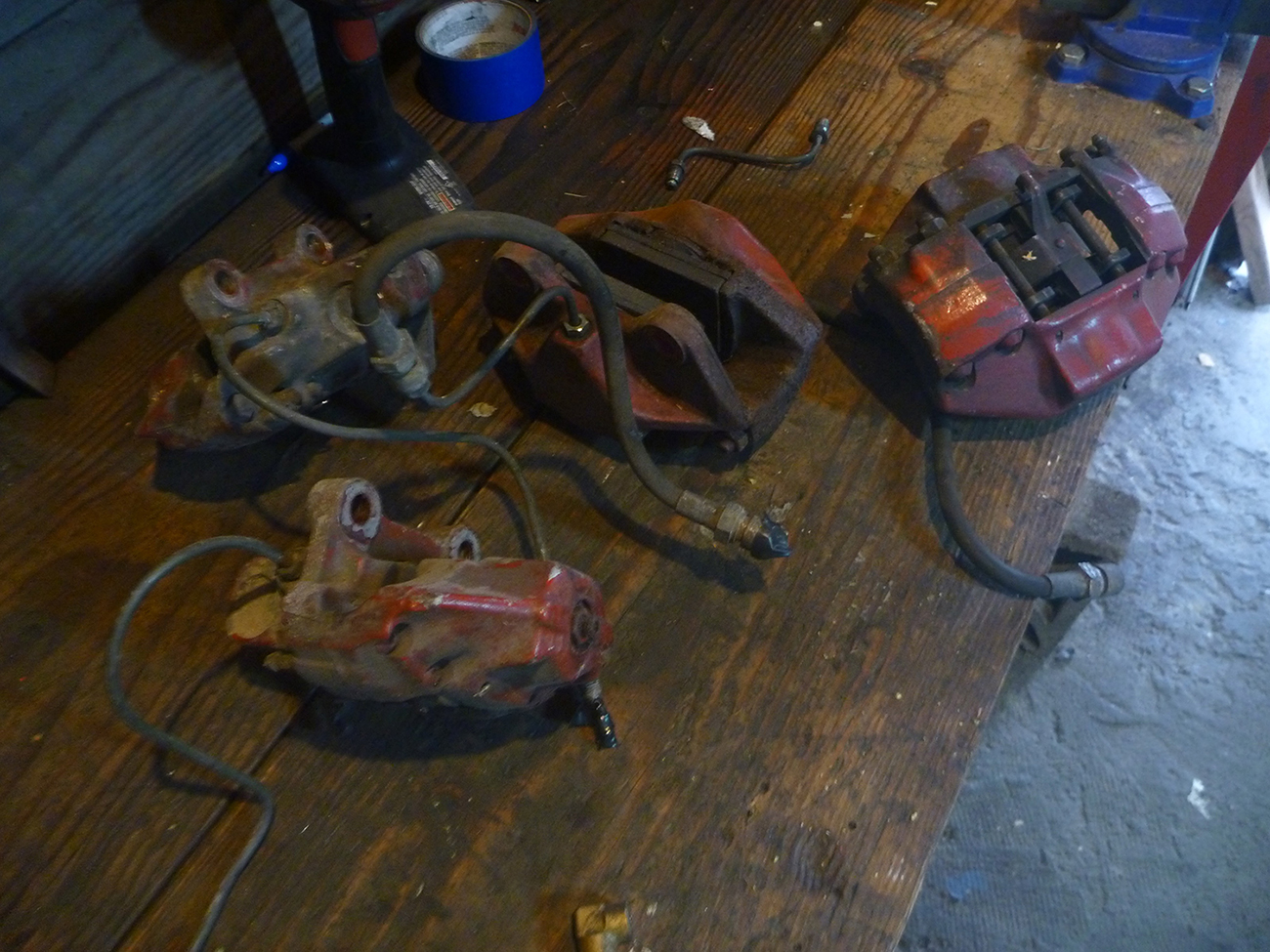

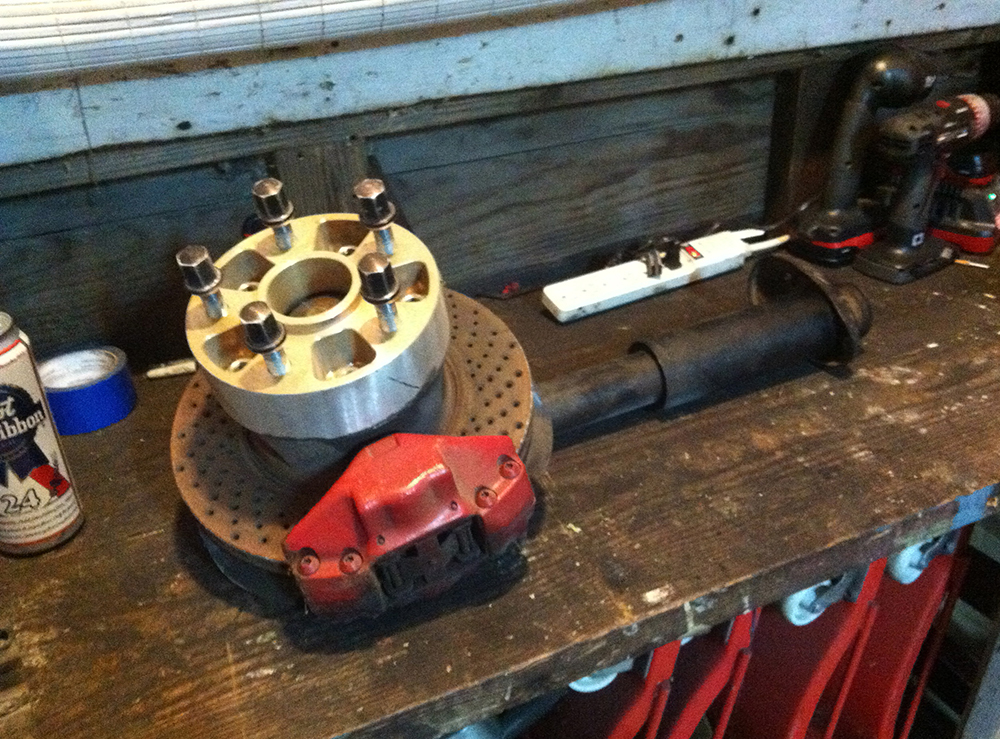

First I pulled the struts off, going to rebuild the calipers and get new disks and pads.
Click to view attachment

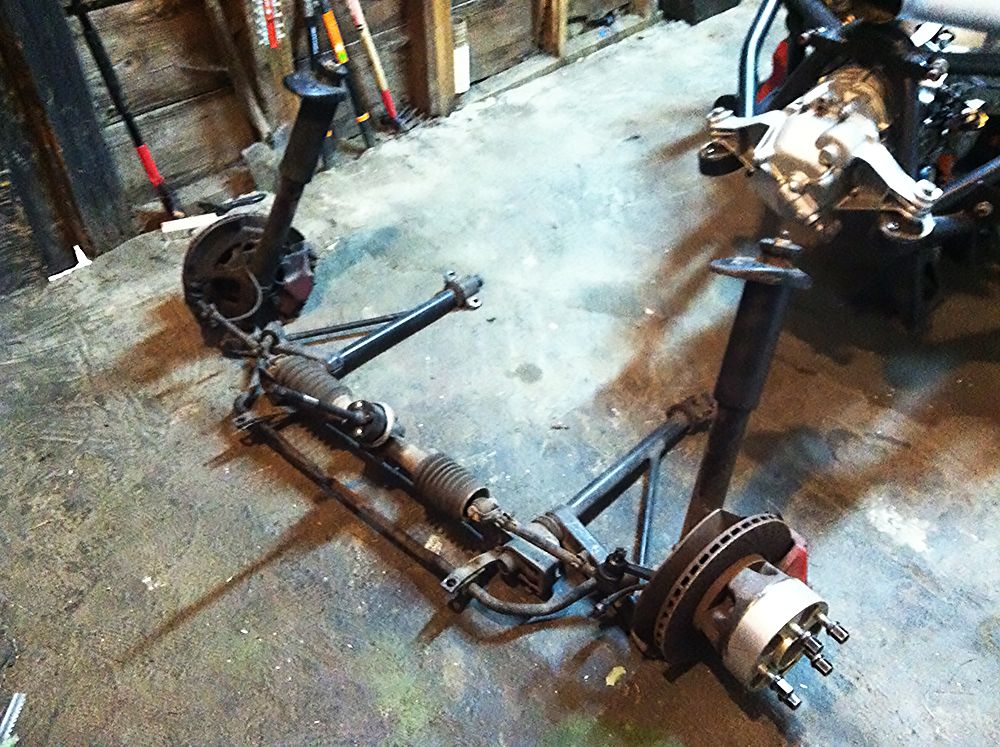

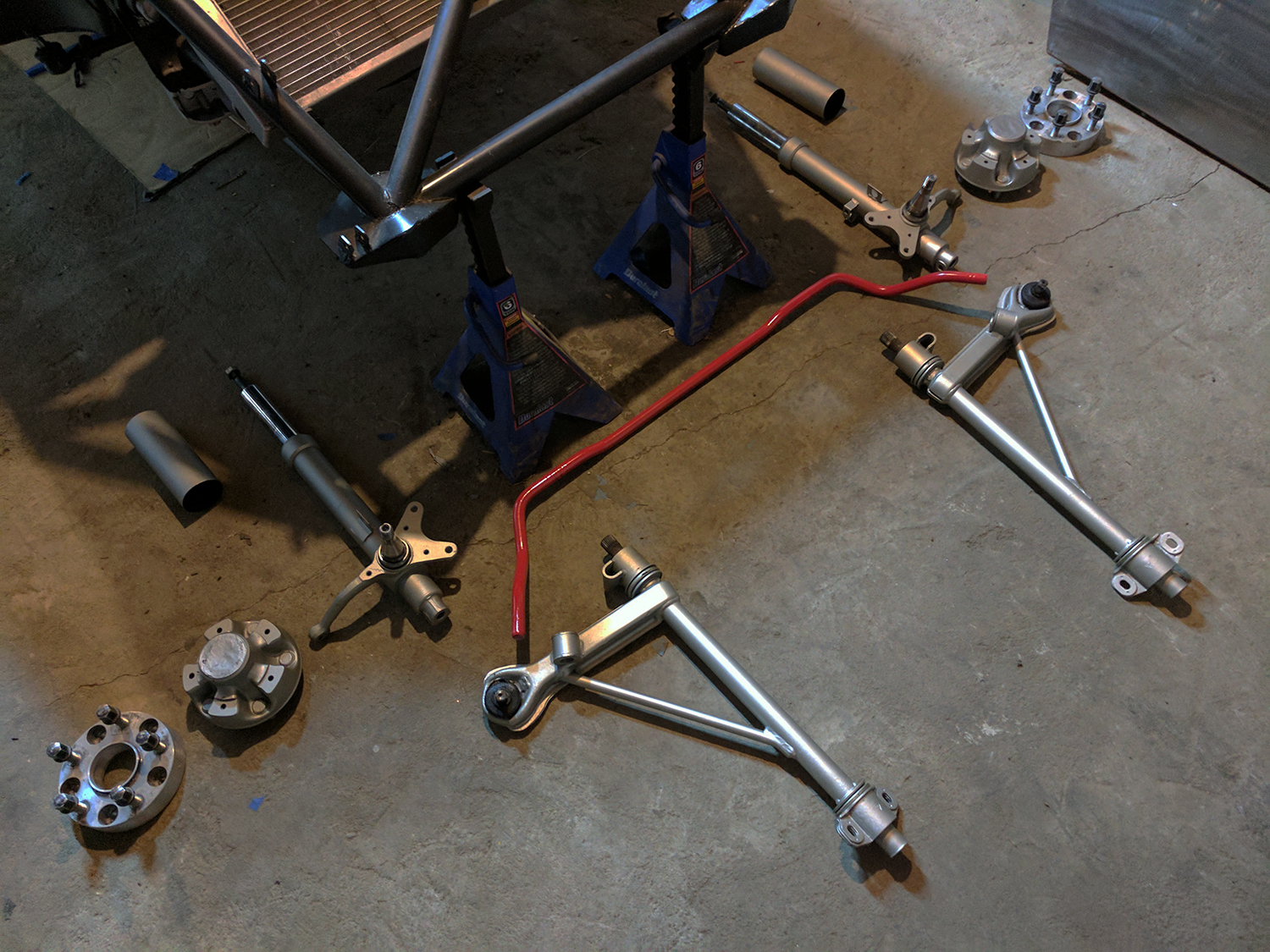

I continued breaking down the suspension.
Click to view attachment

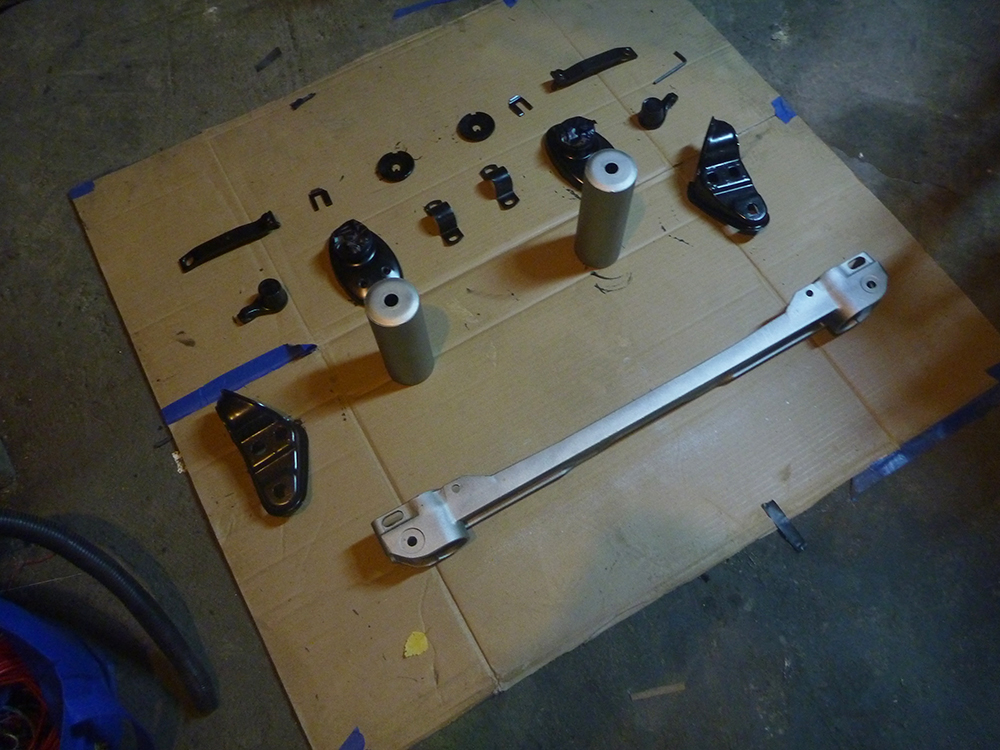

I got this batch painted, sticking with the silver and black like the rest of the car.
Click to view attachment

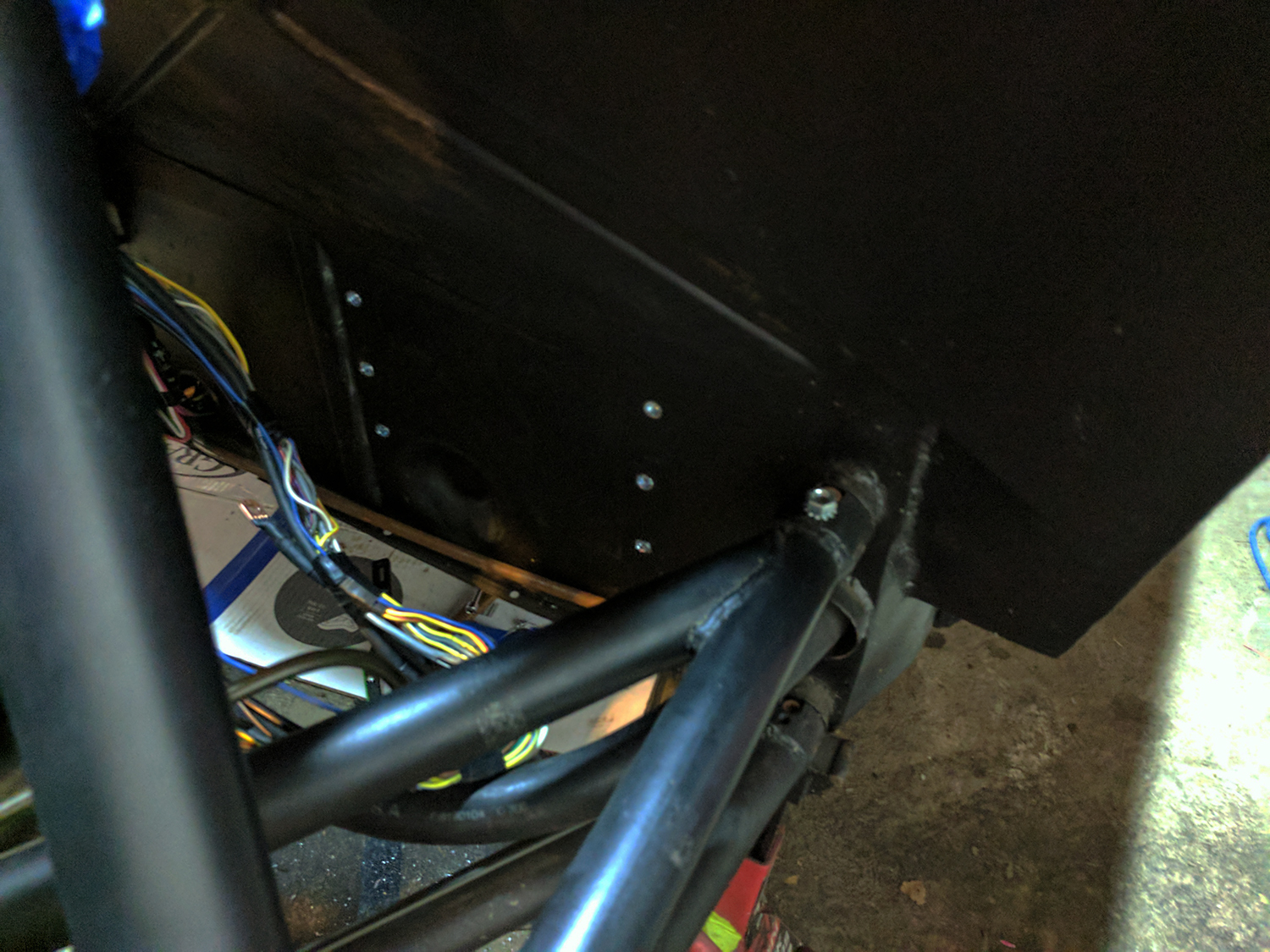

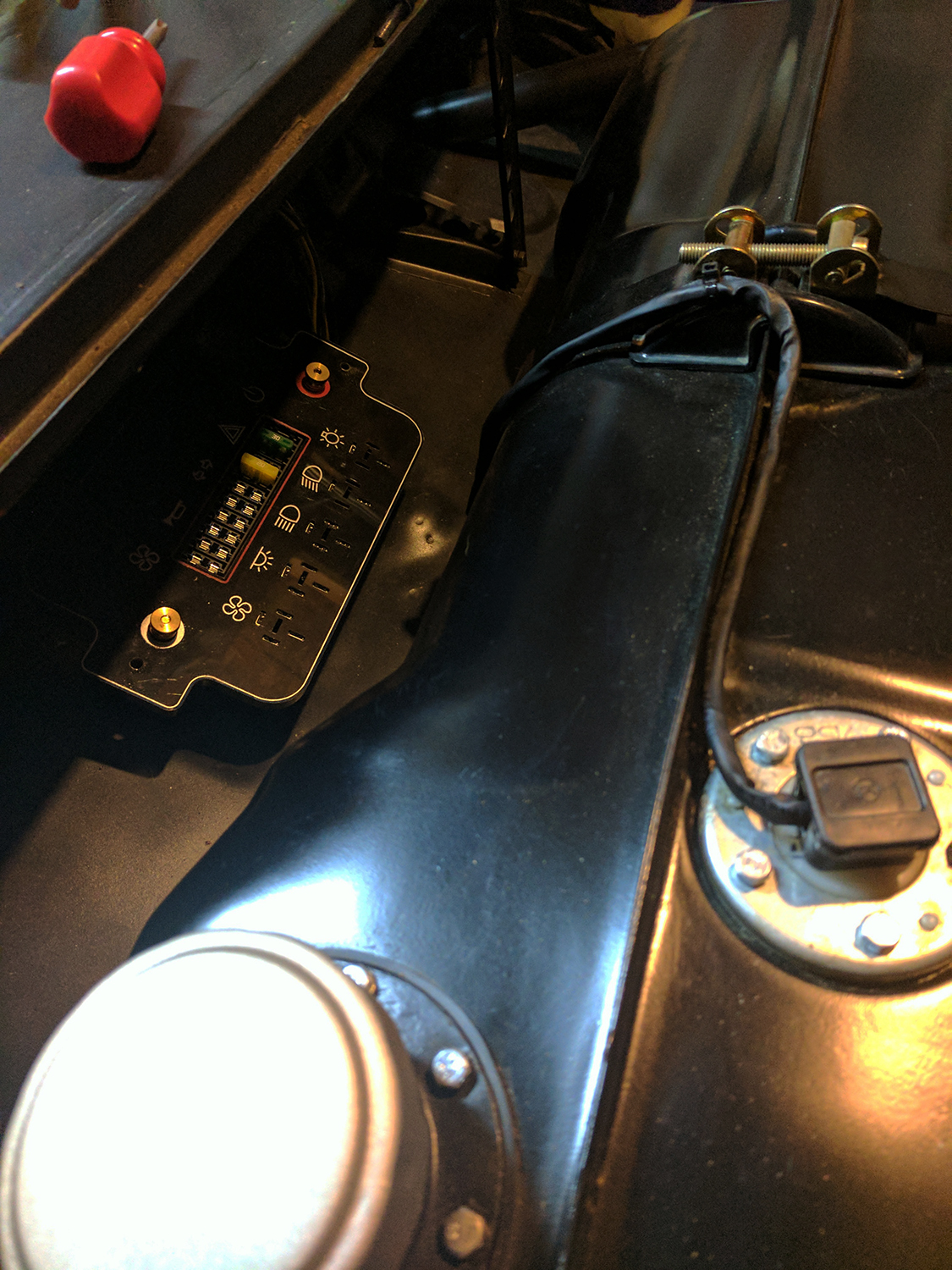

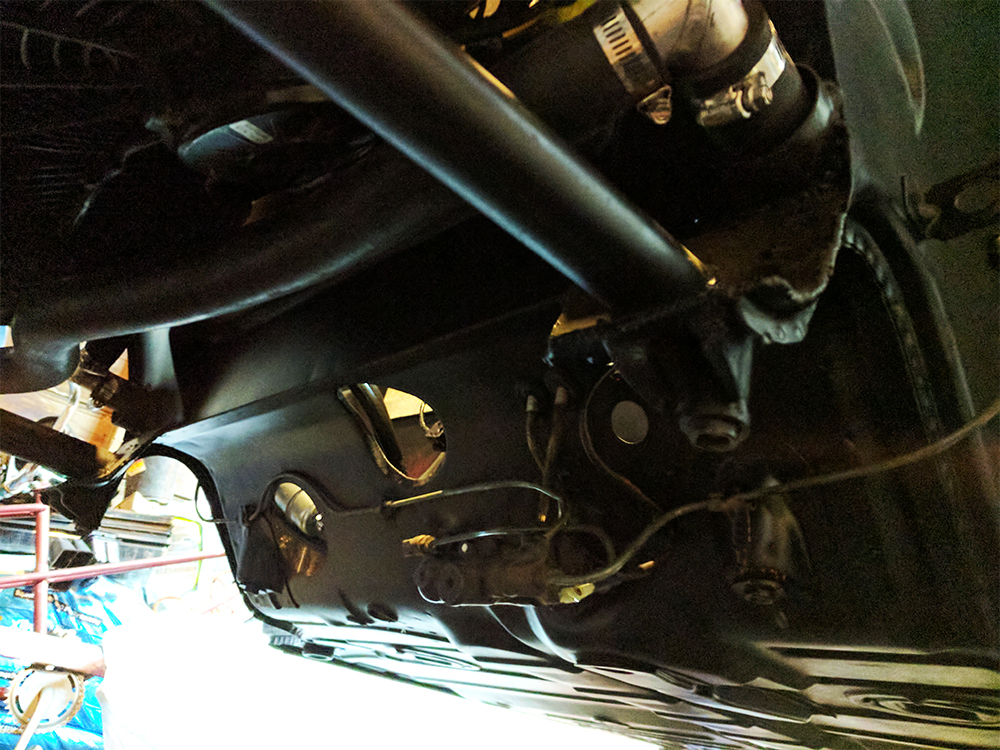

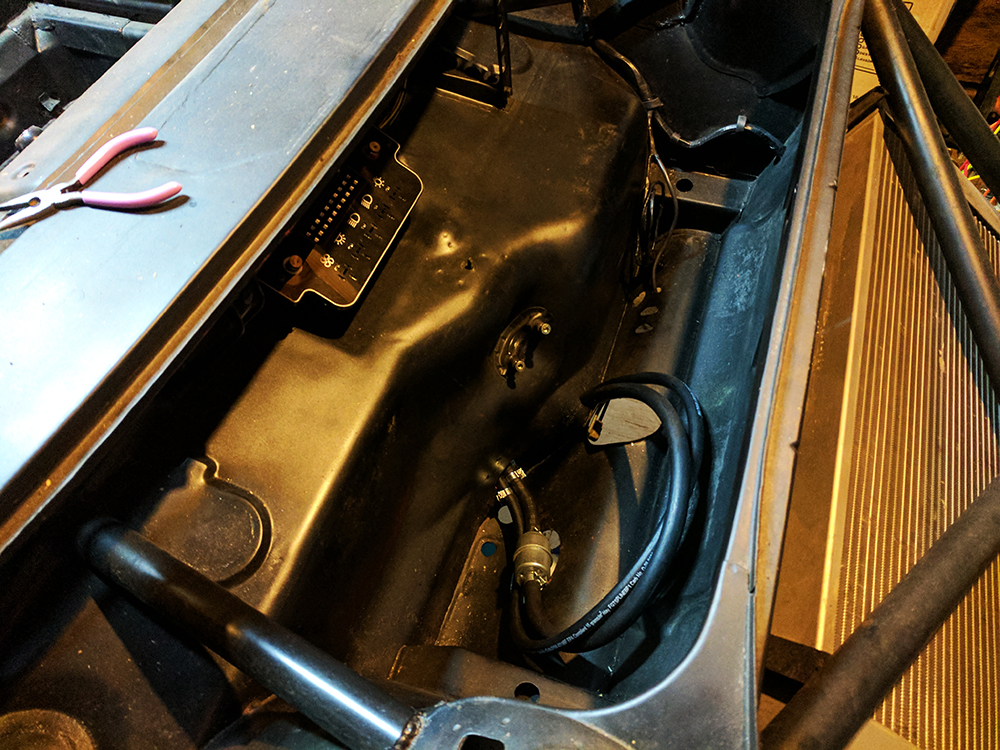

I added shrink wrap tubing to the metal tabs that hold the wiring harness under the tank, the wrapped the harness and installed it.
Click to view attachment

I also installed the master cylinder and the front brake lines.
Click to view attachment

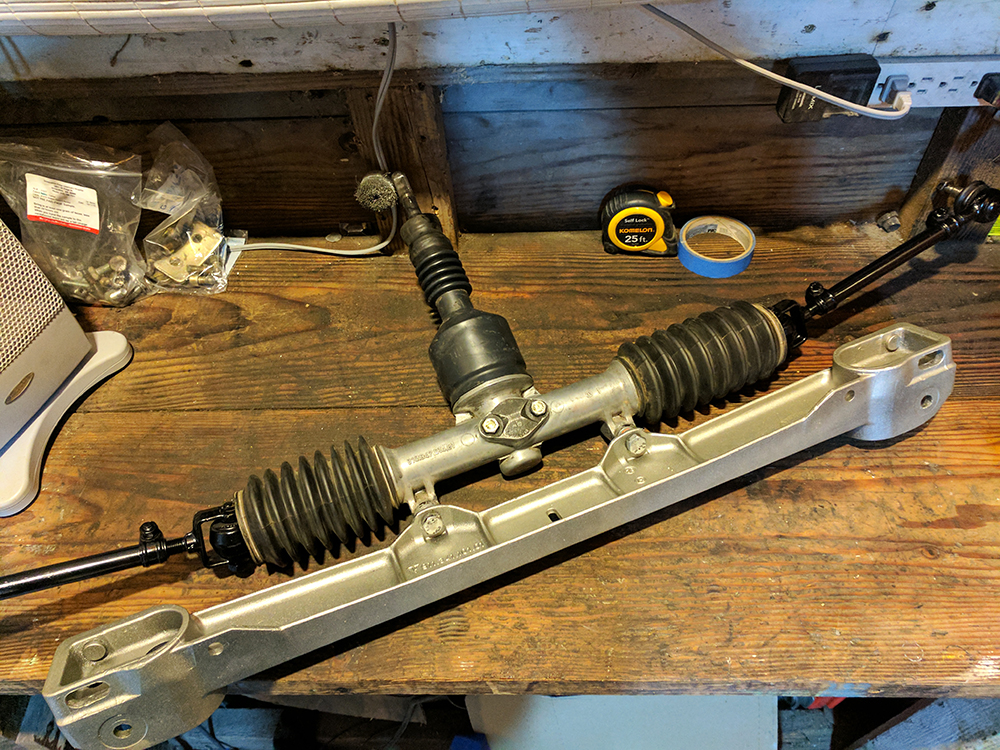

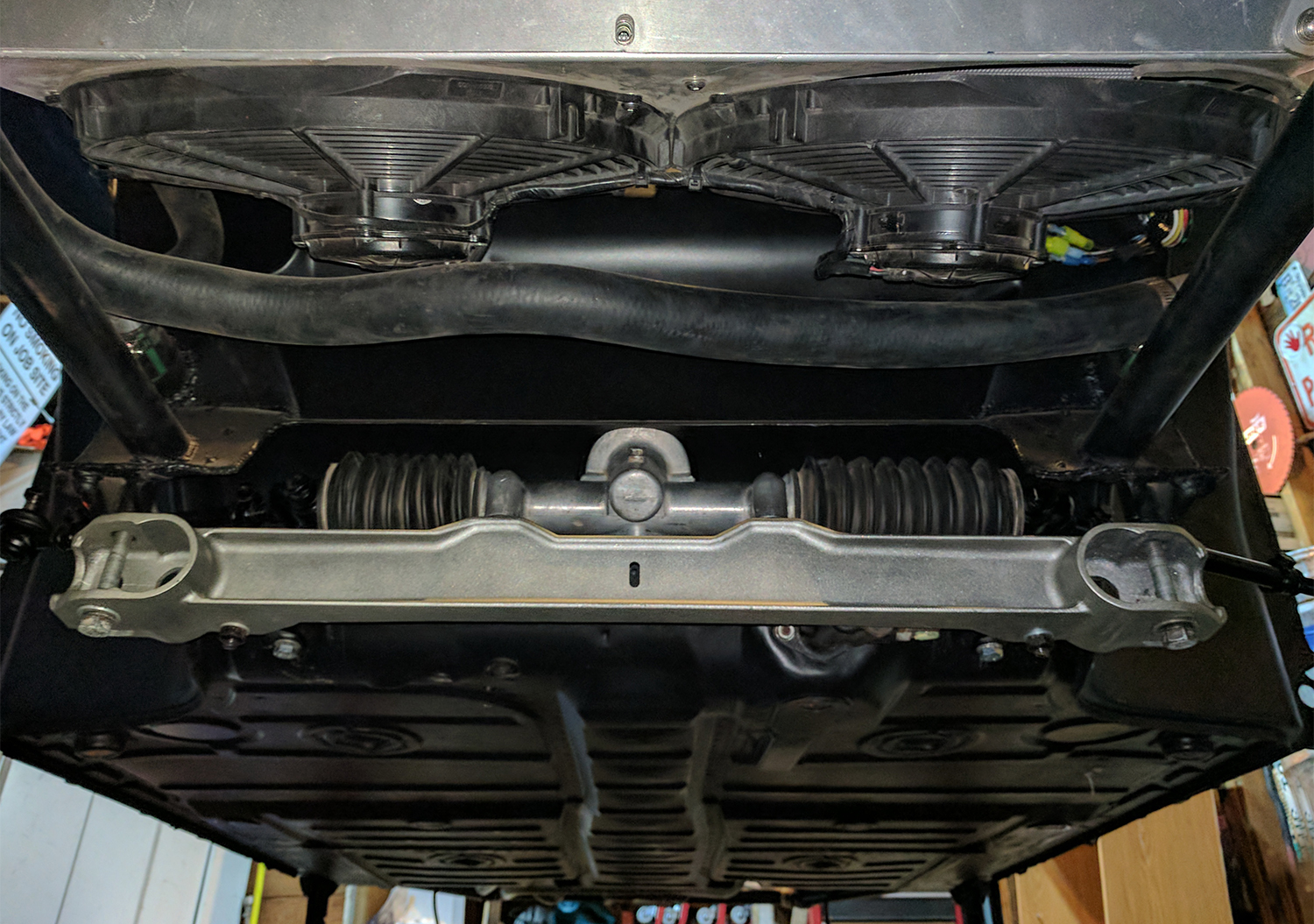

Then I freshened up the steering rack and bolted it to the re-painted cross member.
Click to view attachment

Finally I installed the steering rack and cross member, the brake fluid reservoir, and the tank brackets. Just about ready to drop in the tank!
Click to view attachment

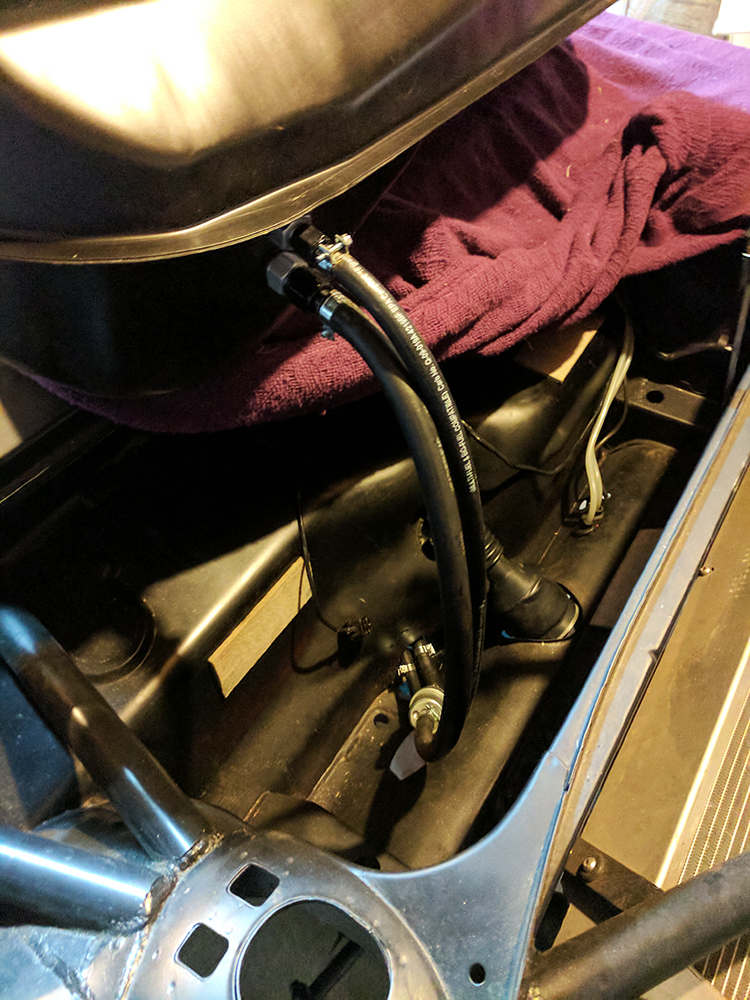

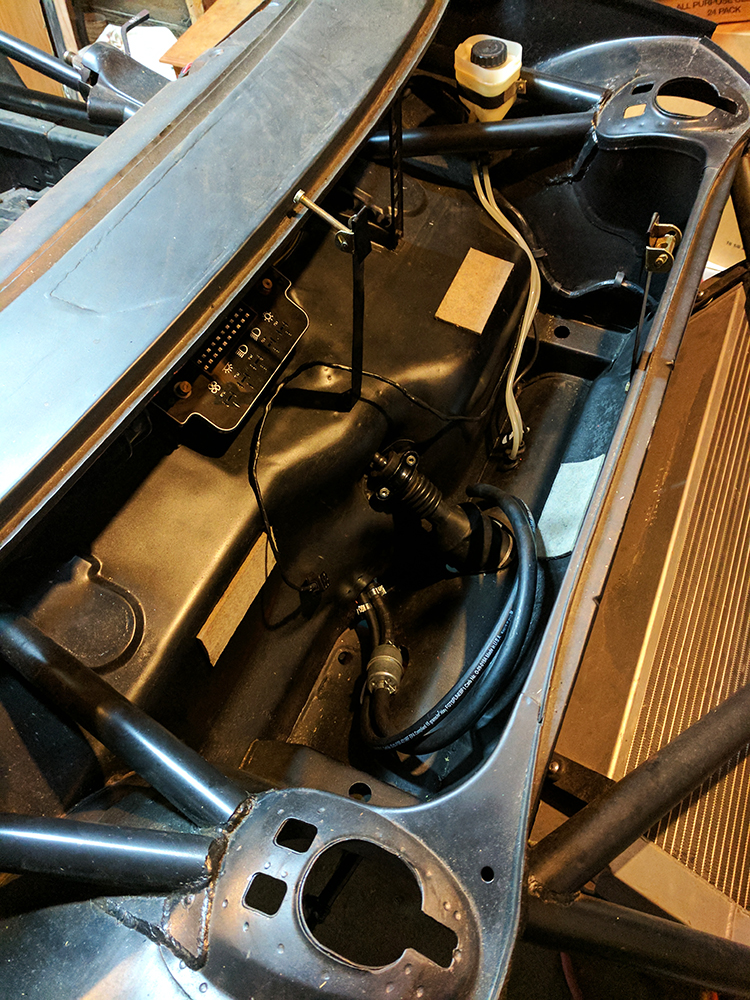

Fuel System is complete! I hooked up the feed and return lines:
Click to view attachment

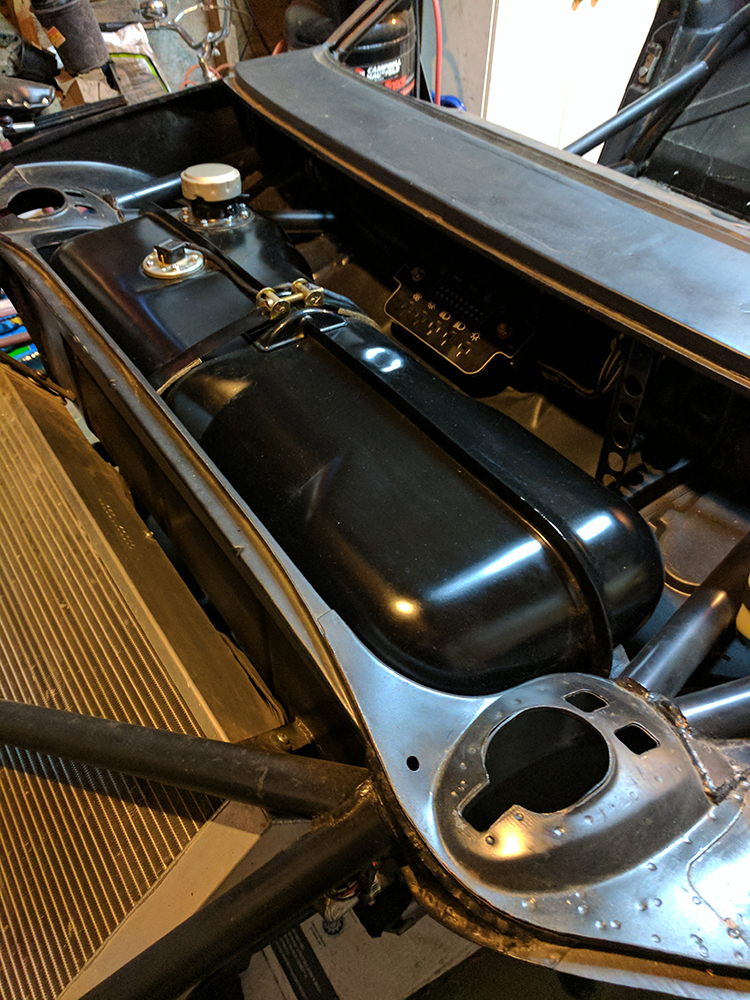

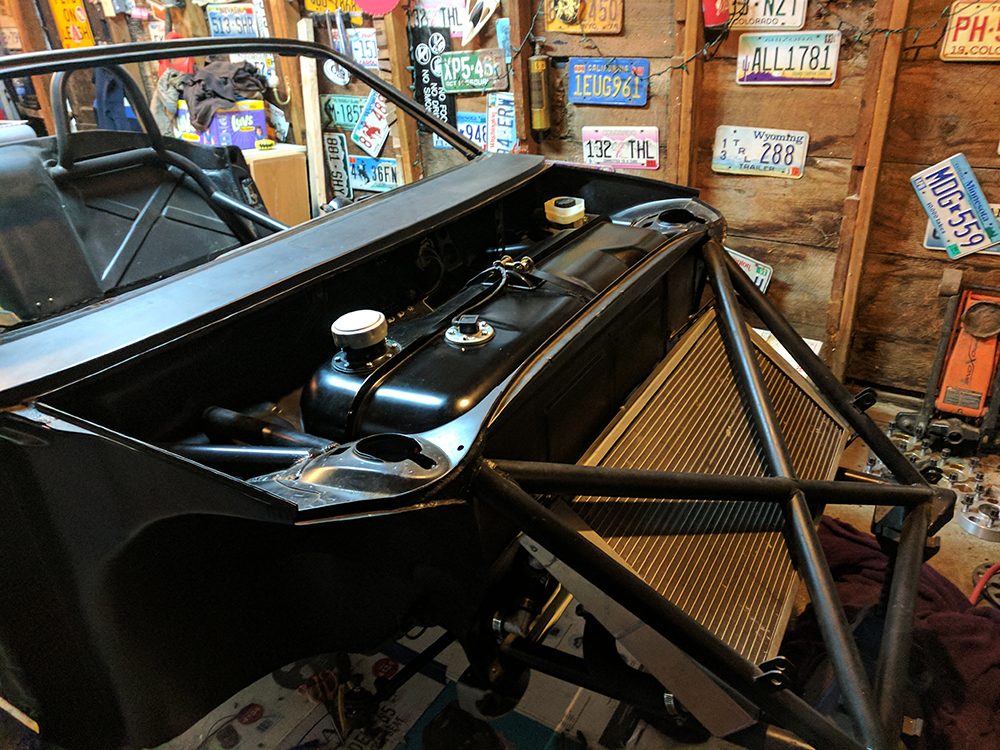

And strapped the tank down. The stripped down stock tank looks pretty good!
Click to view attachment

Dangerously close to starting this thing!
Click to view attachment

Love this build.....

Start up party!!

I have been making progress over the last couple months I promise!
I have been picking away at the suspension, installing the repainted crossmember, brake master, steering rack etc...
Click to view attachment

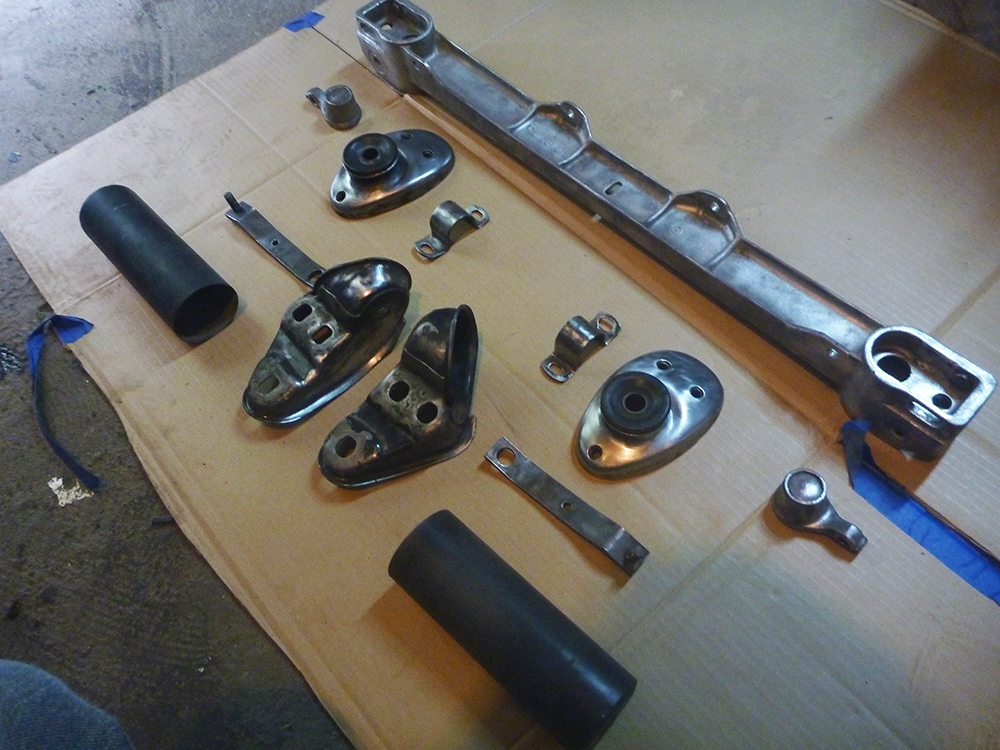

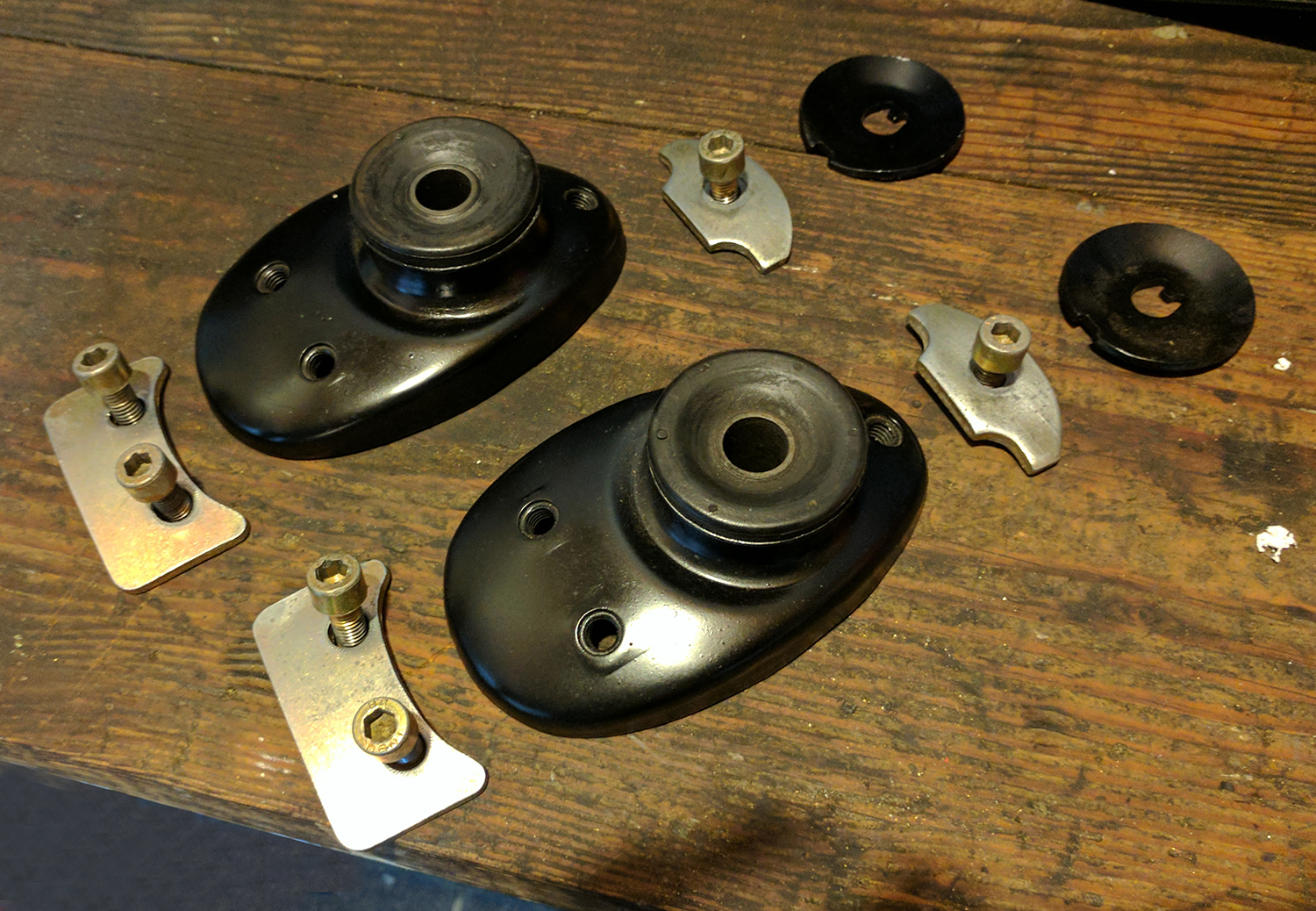

Painting and Polishing varius bits.
Click to view attachment

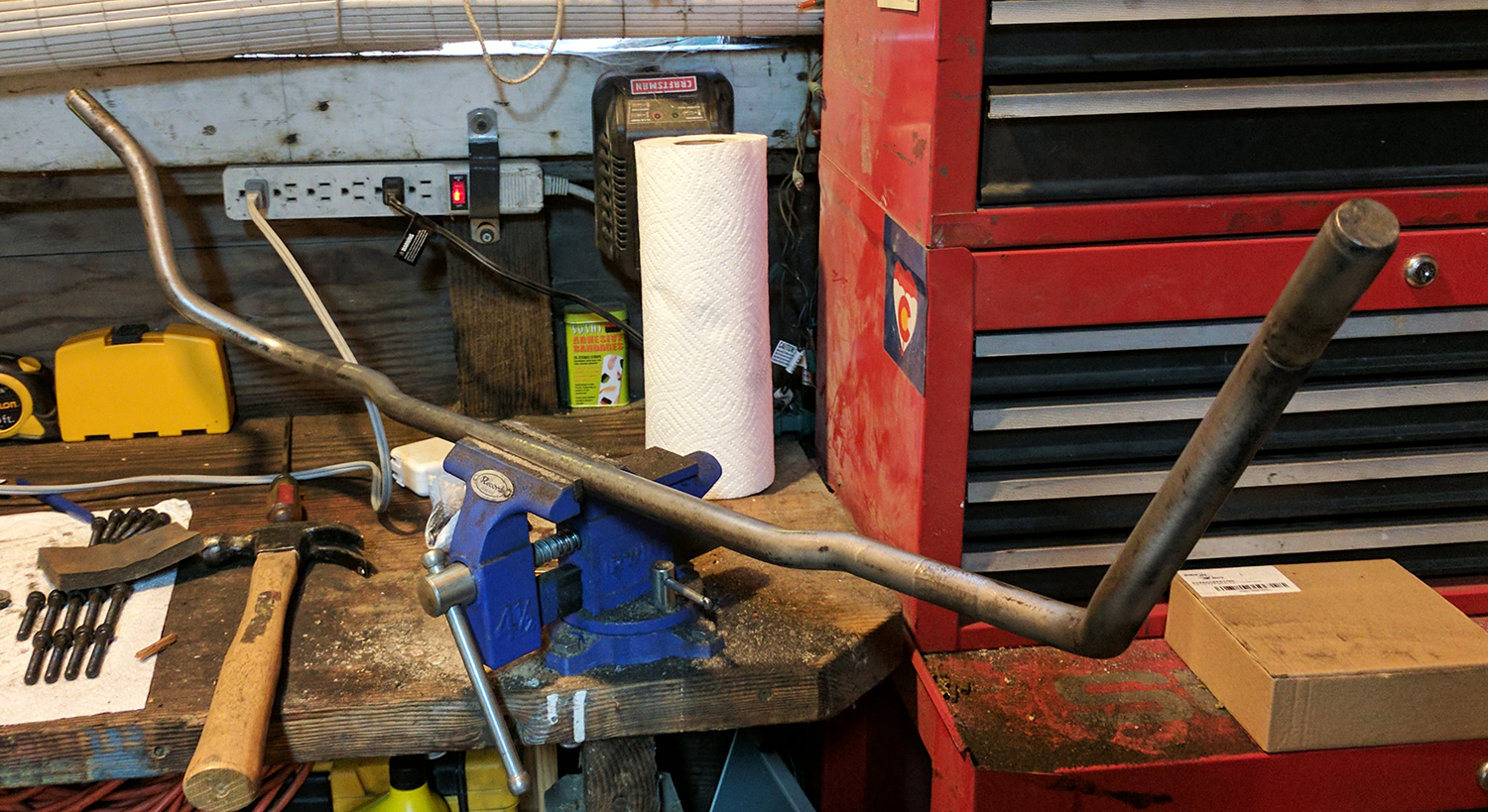

22mm carrera sway bar, stripped and ready for paint.
Click to view attachment

We have set the all time record for rainfall this year, 45" since October first, painting has become a well choreographed dance timed to the weather channel, my yard is a muddy mess!

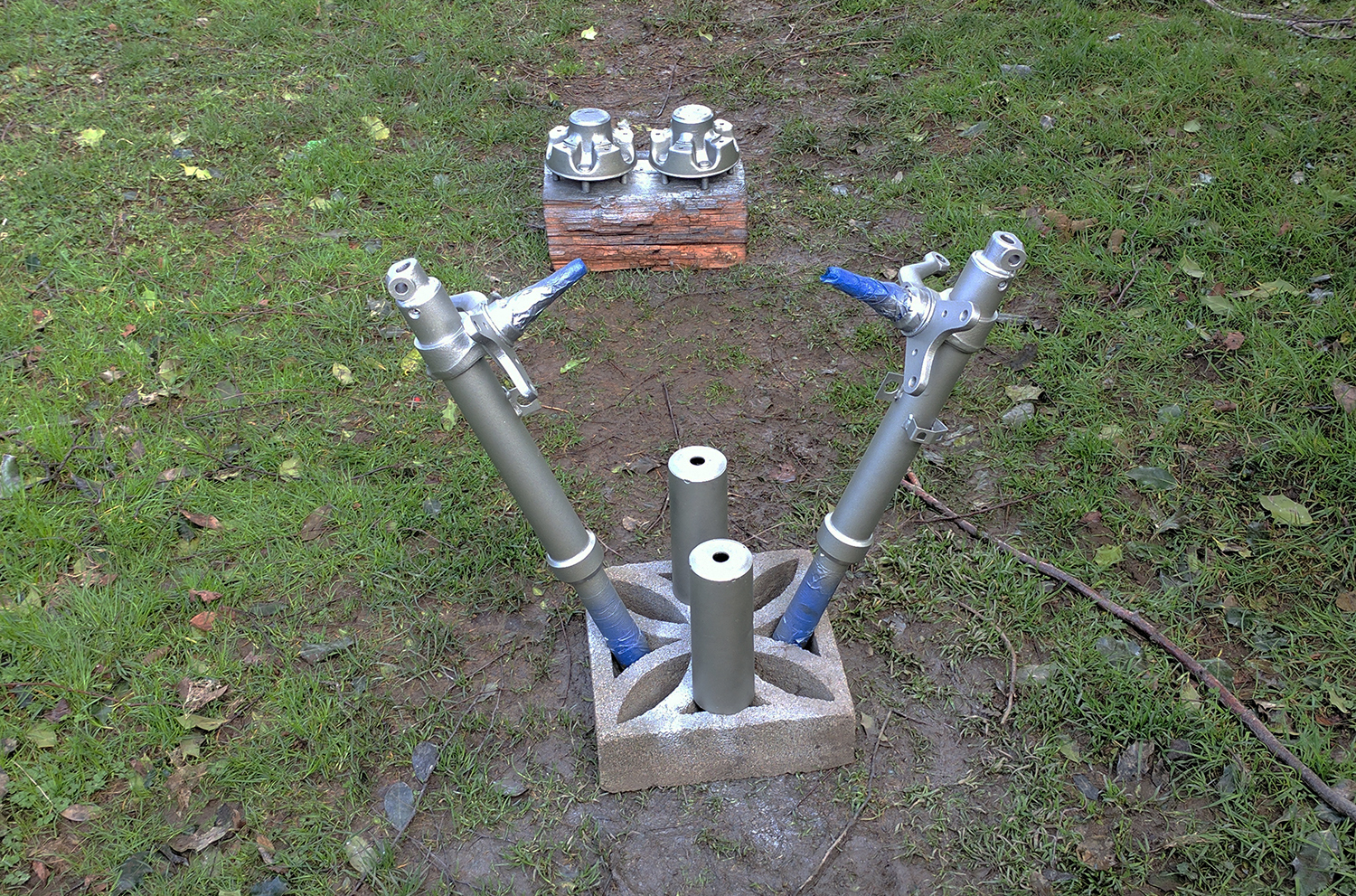

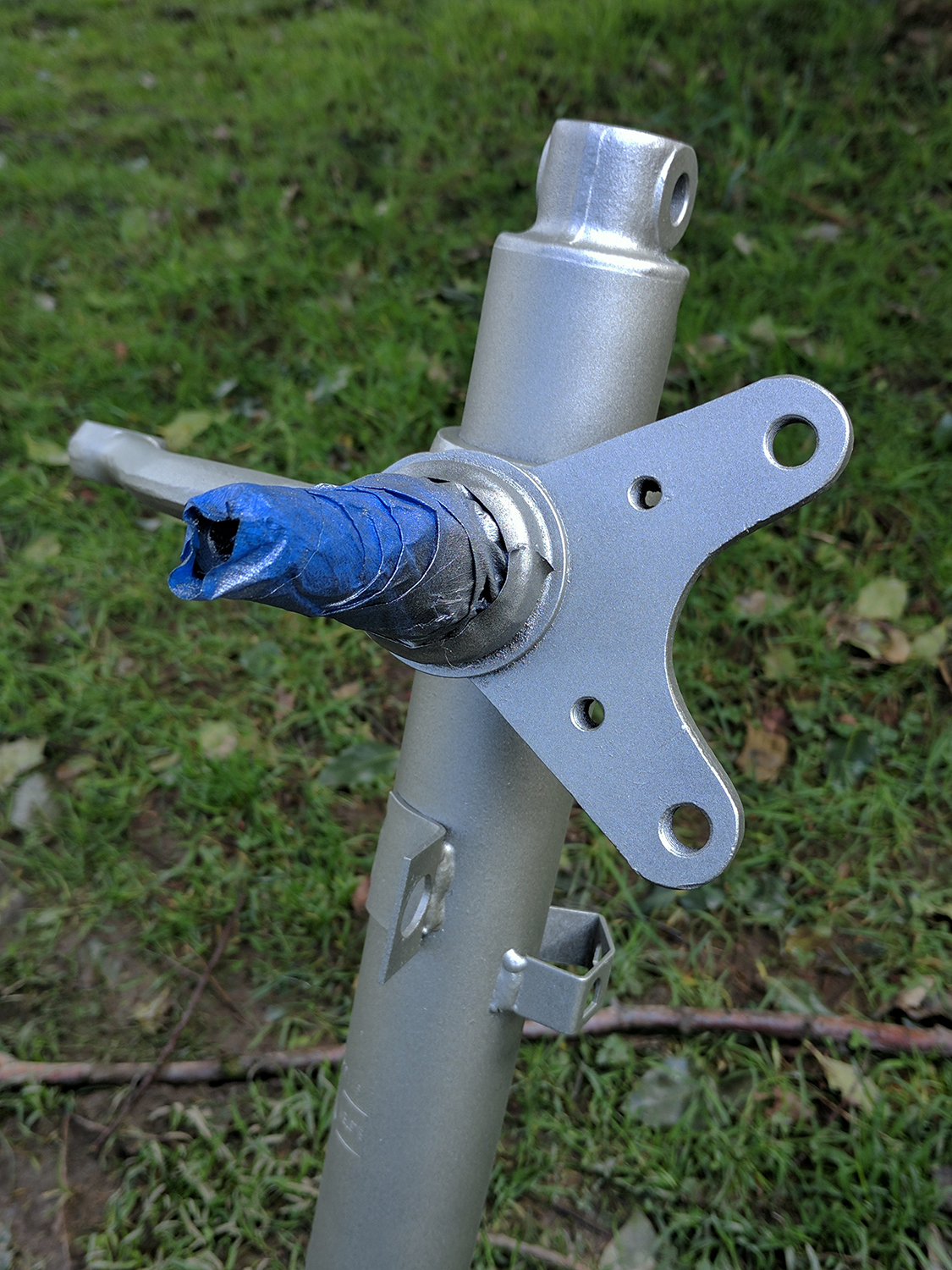

Despite mother nature's best efforts I got the struts painted.
Click to view attachment

I know this will get dirty instantly but this paint is so nice!
Click to view attachment

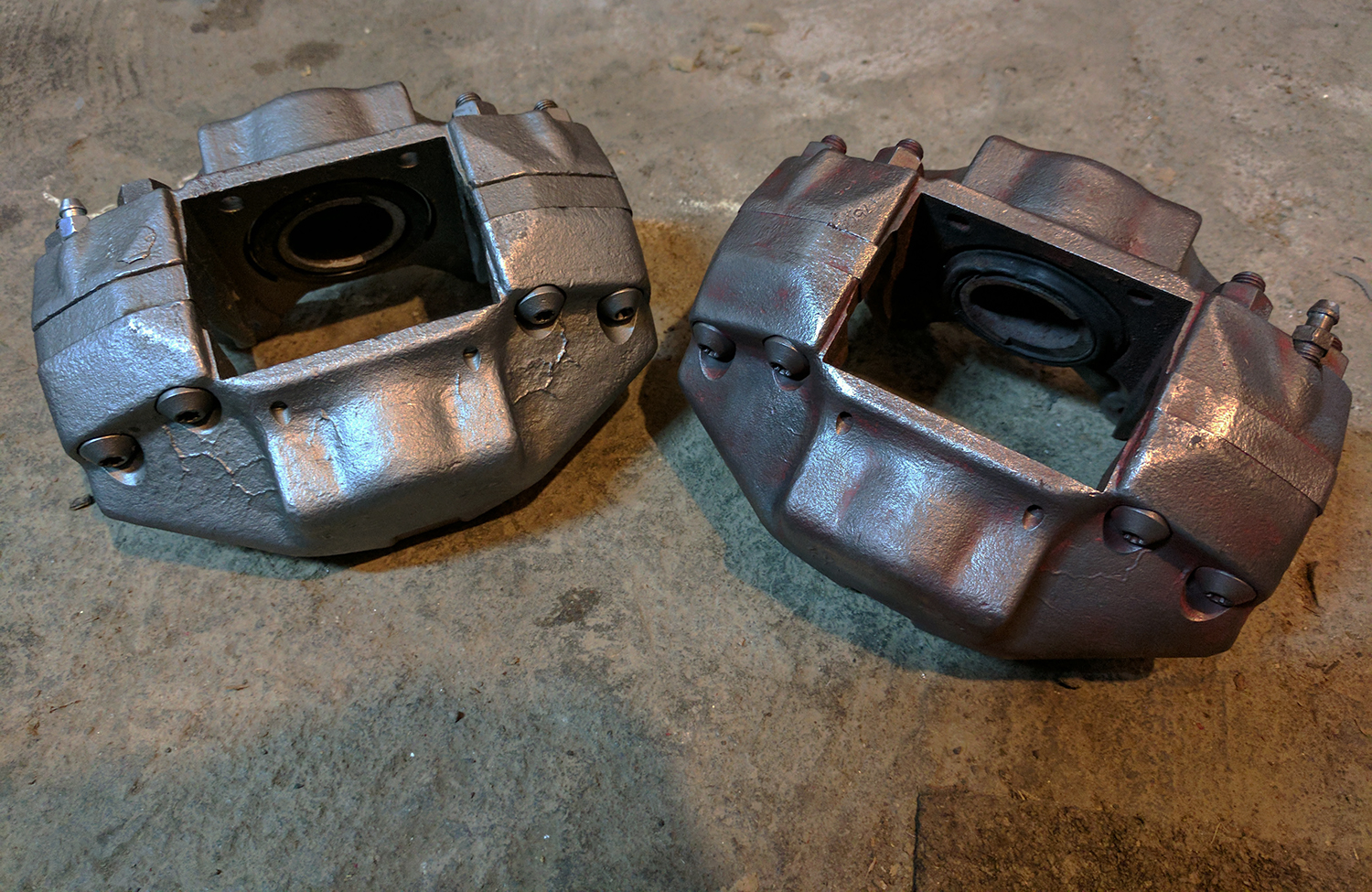

I am tackling the calipers next.
Click to view attachment

Other than the brakes everything is ready for install!
Click to view attachment

Nice as always.

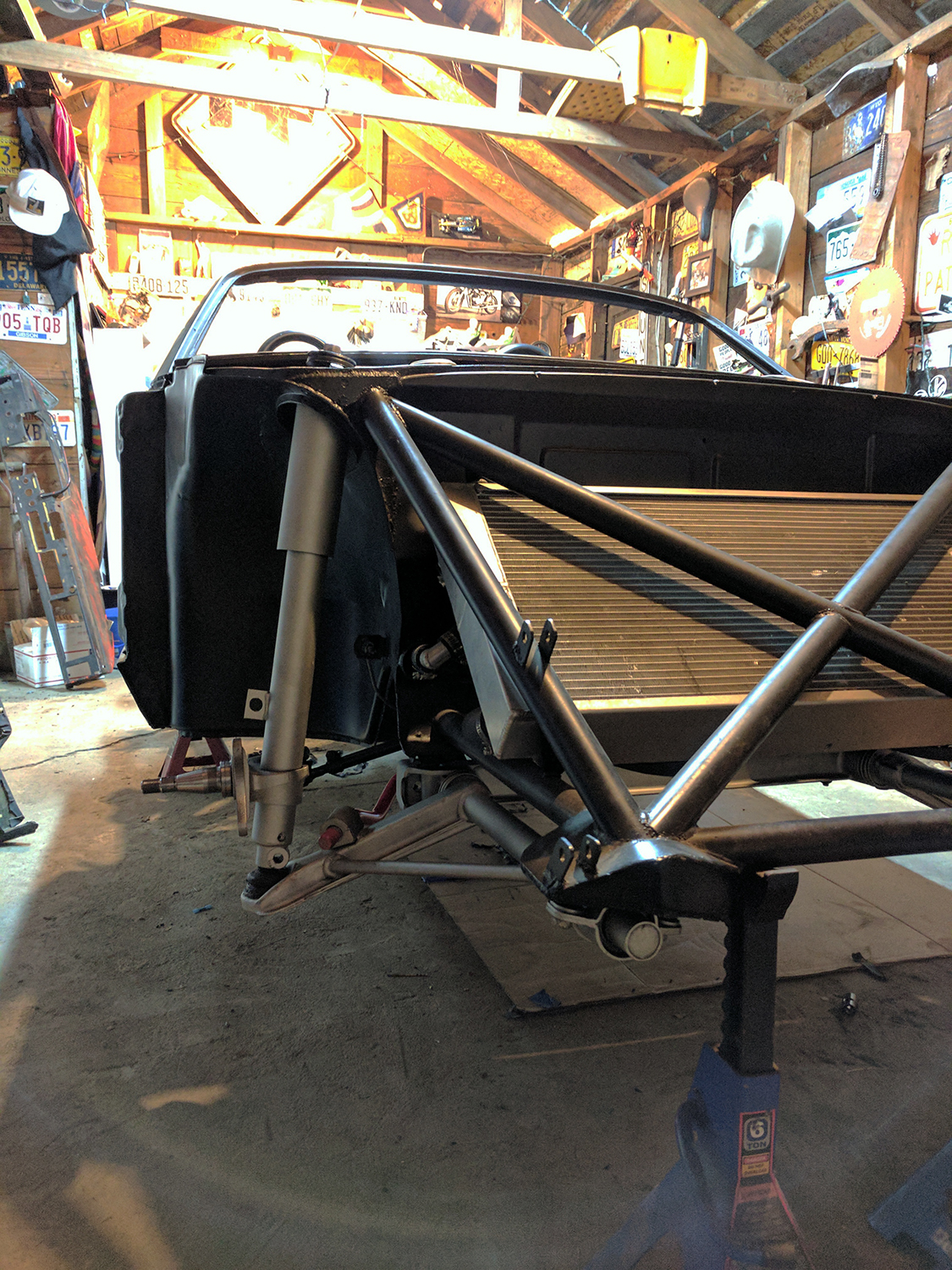

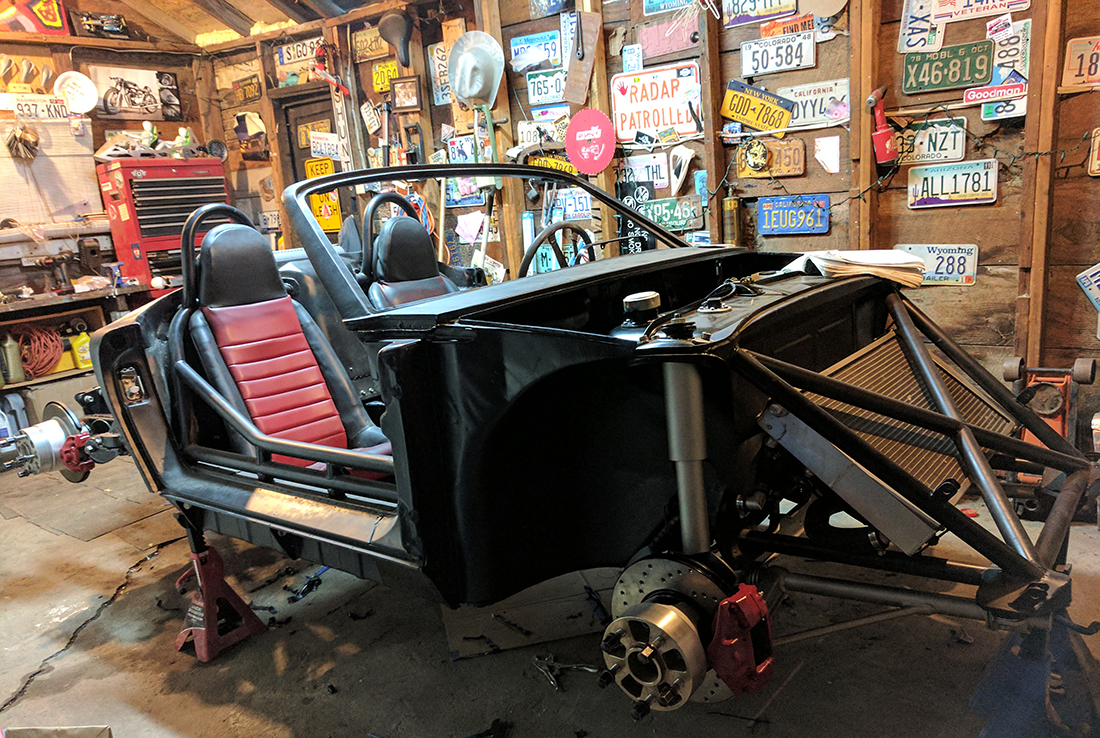

I got the front suspension installed, still need to sort out the brakes but the rest of the suspension is ready to go.
Click to view attachment

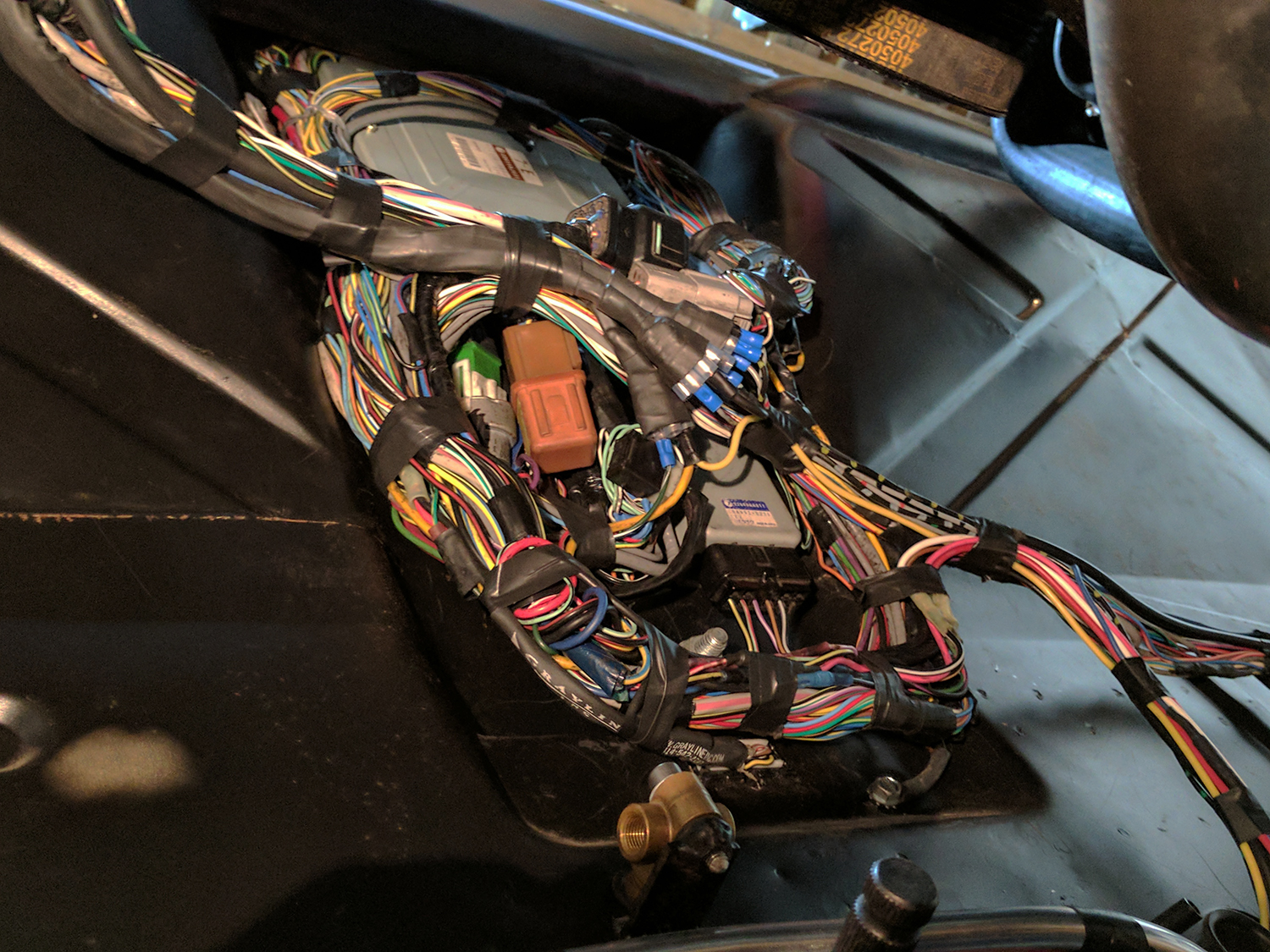

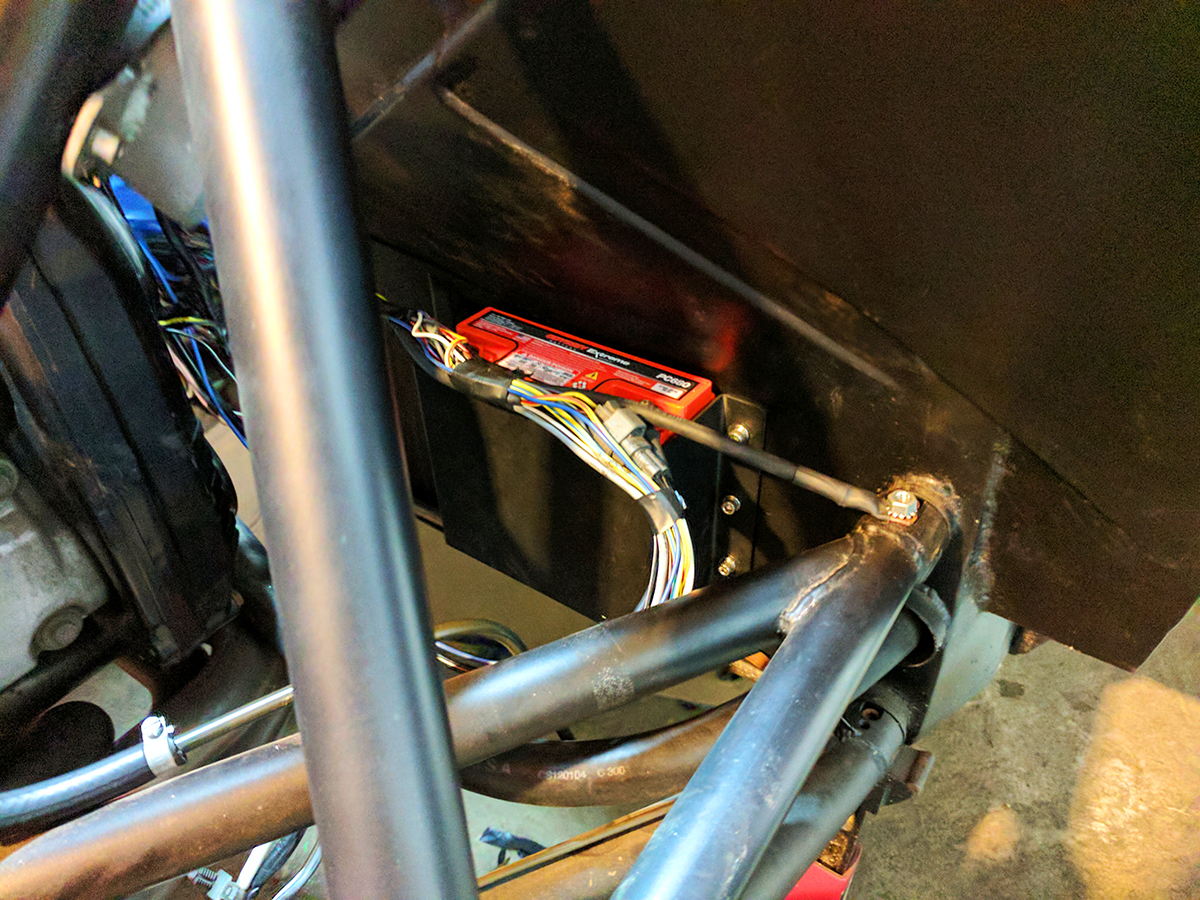

This probably looks the same to you as the last one I posted but I have reverse engineered a lot of the wiring and spliced in the fuel pump relay, tested the wiring and am pretty confident the engine wiring is ready to go.
Click to view attachment

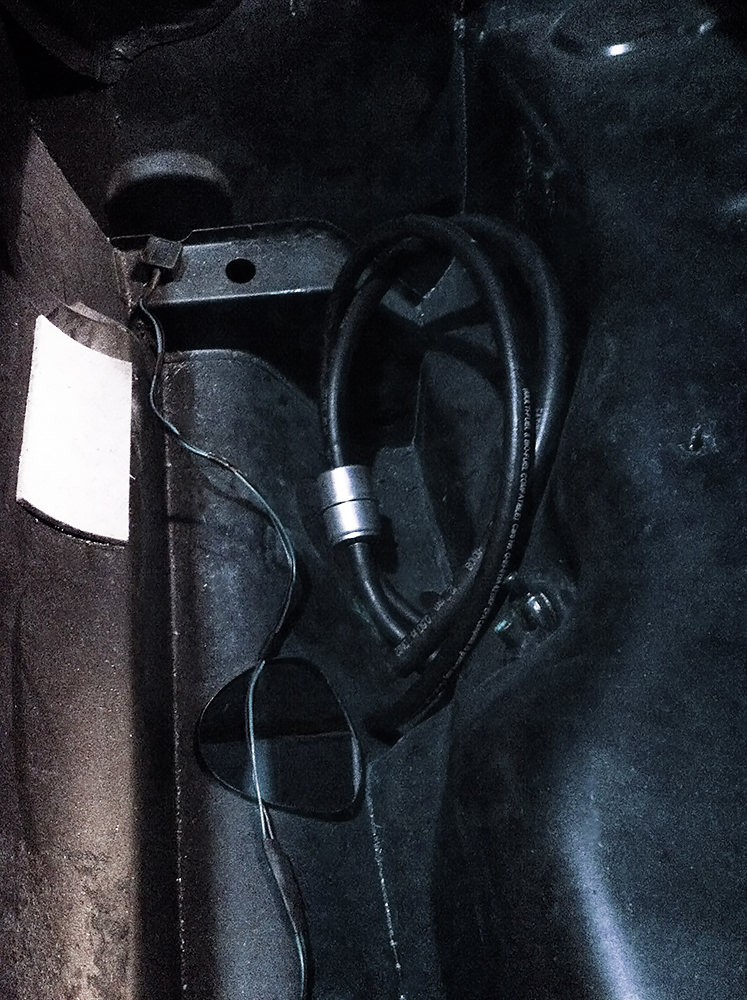

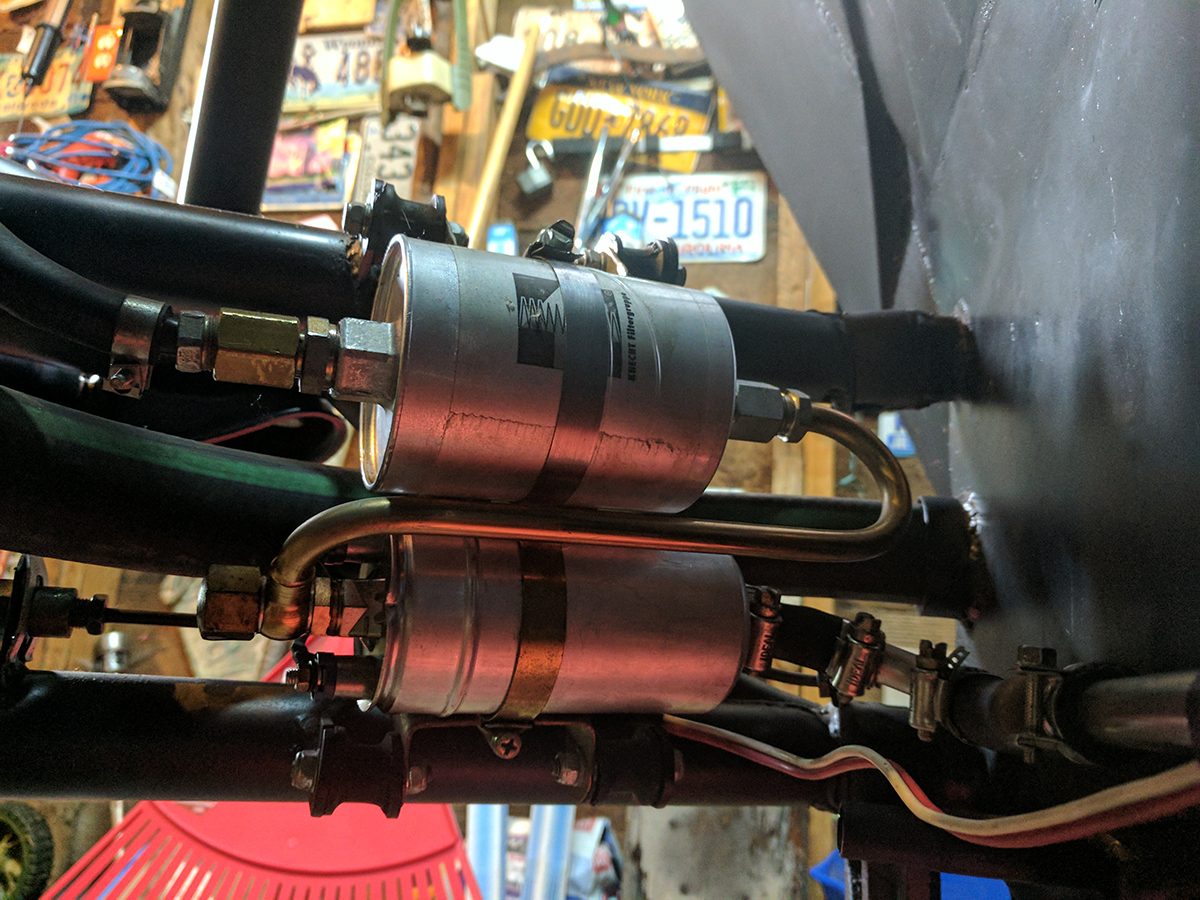

I don't think I have shown the fuel pump setup, I am running some kind 911 or 928 pump and filter mount I dug out of the junk pile at Renegade a decade ago, A 911 filter, and a 928 fuel pump, the date on it says 1988 so I might be swapping this out, we'll see how it works first. You can see the loose wires to the pump, I am not wrapping or tying down any of the wiring until i have a running engine.
Click to view attachment

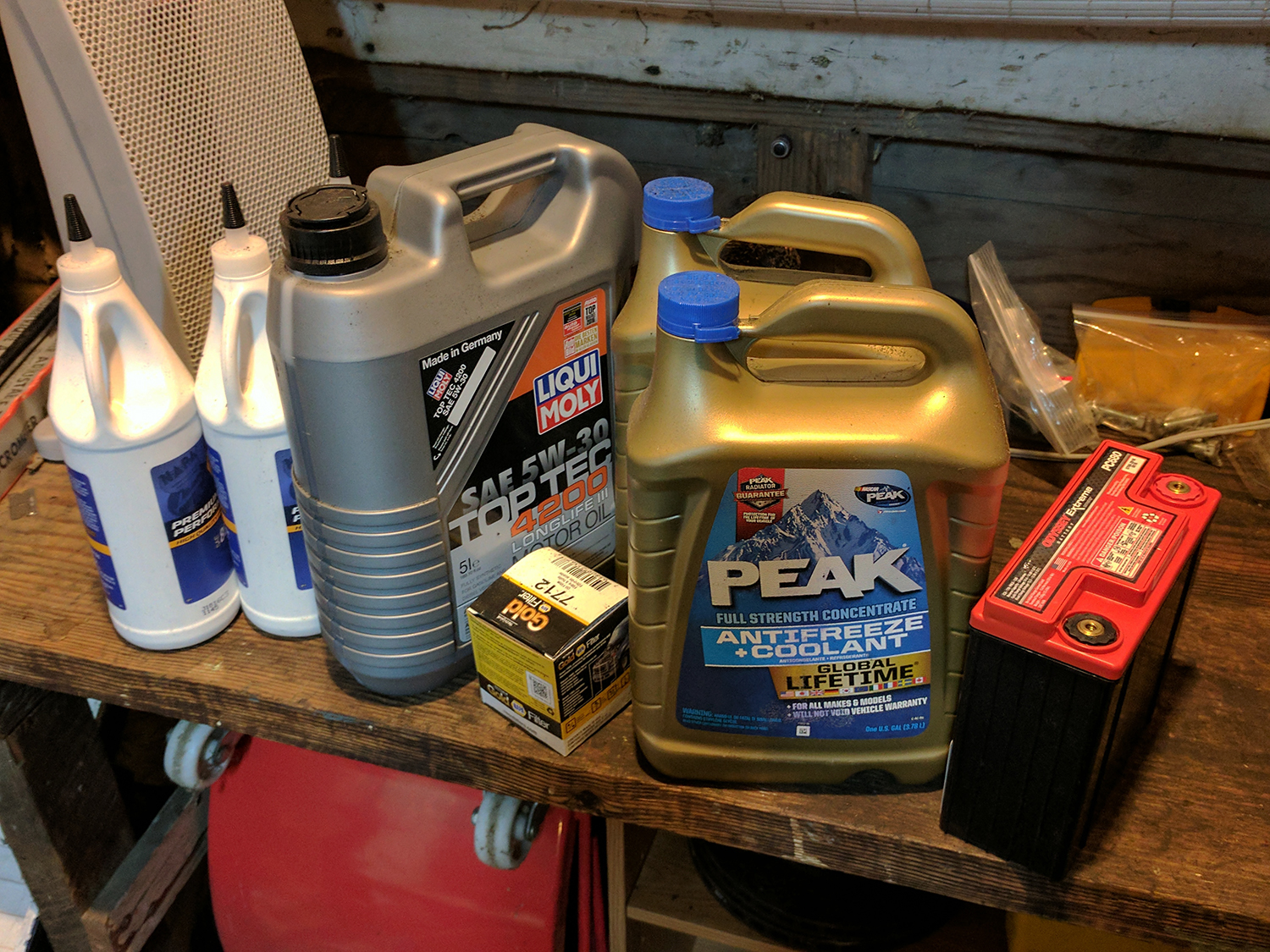

I also made a pretty exciting parts store run!
Click to view attachment

I don't think I will ever live to see another build like this. Amazing.

I had mocked up the 3D printed battery mount with sheet metal screws so I riveted in some steel threaded inserts as a more permanent solution.
Click to view attachment

Real Battery is in.
Click to view attachment

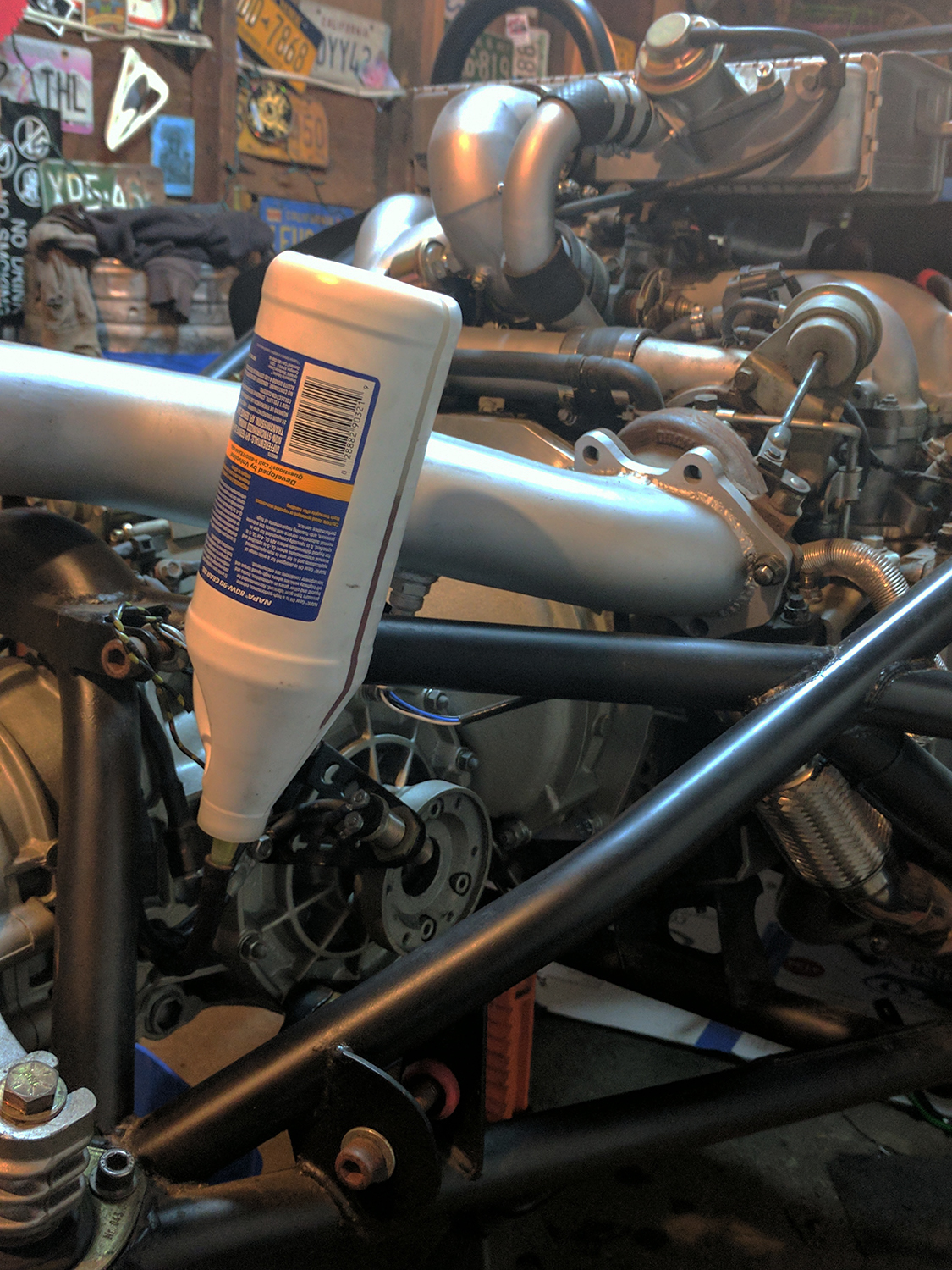

Engine oil and tranny has been changed.
Click to view attachment

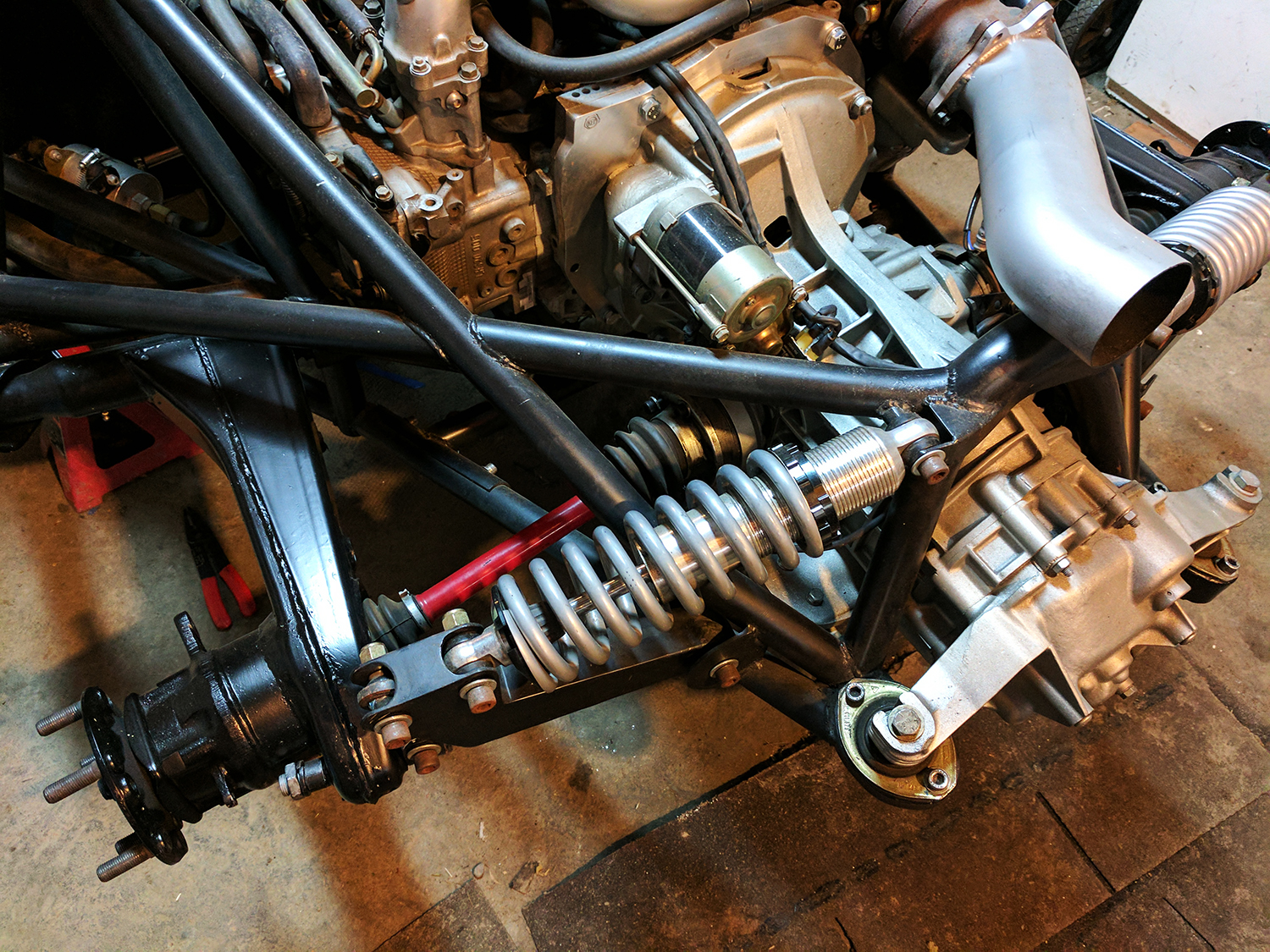

I repainted the trailing arms and installed them, Renegade axles in as well.
Click to view attachment

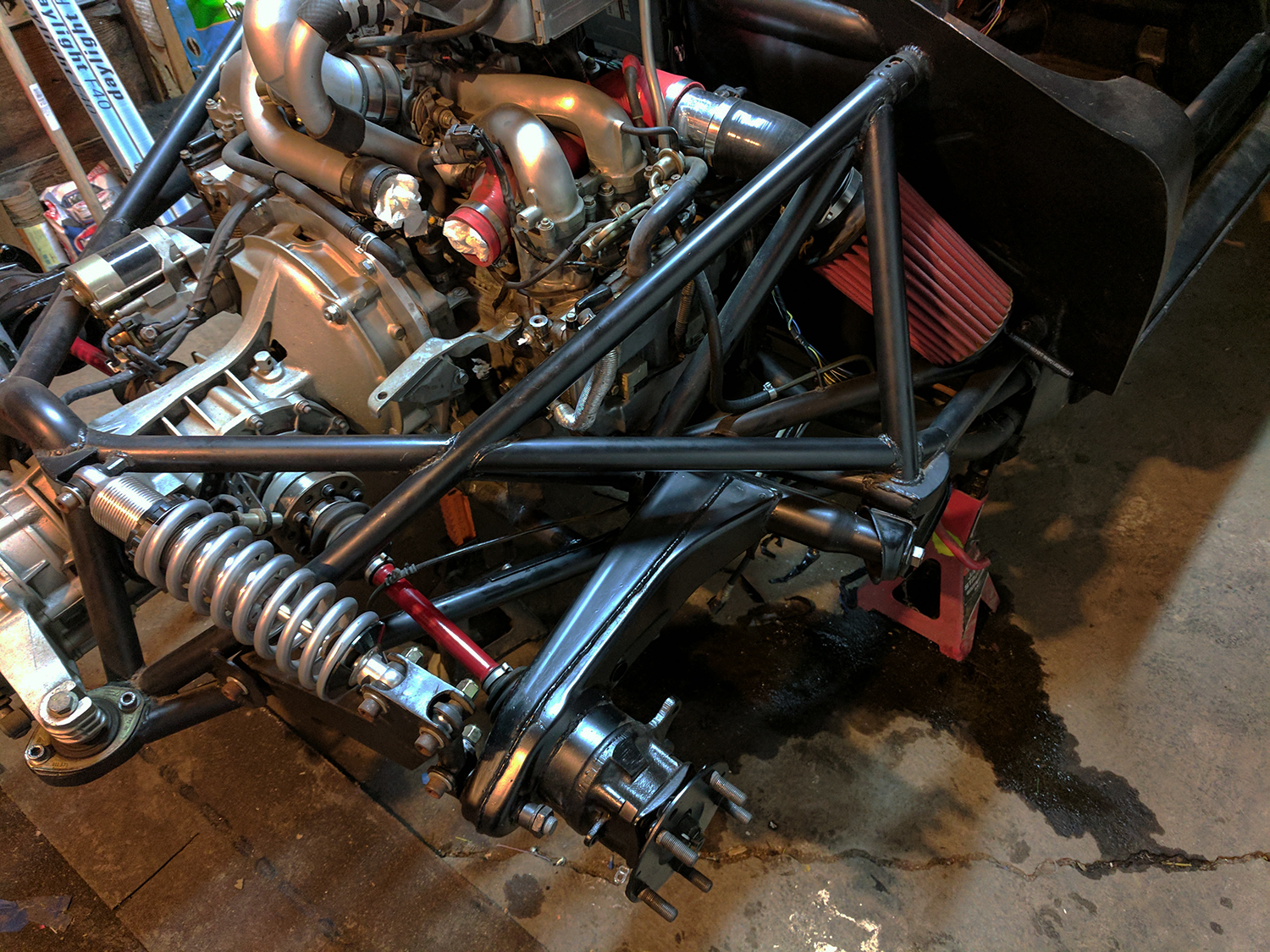

Suspension is mocked up, still some work to do here, bushings, hardware etc...
Click to view attachment

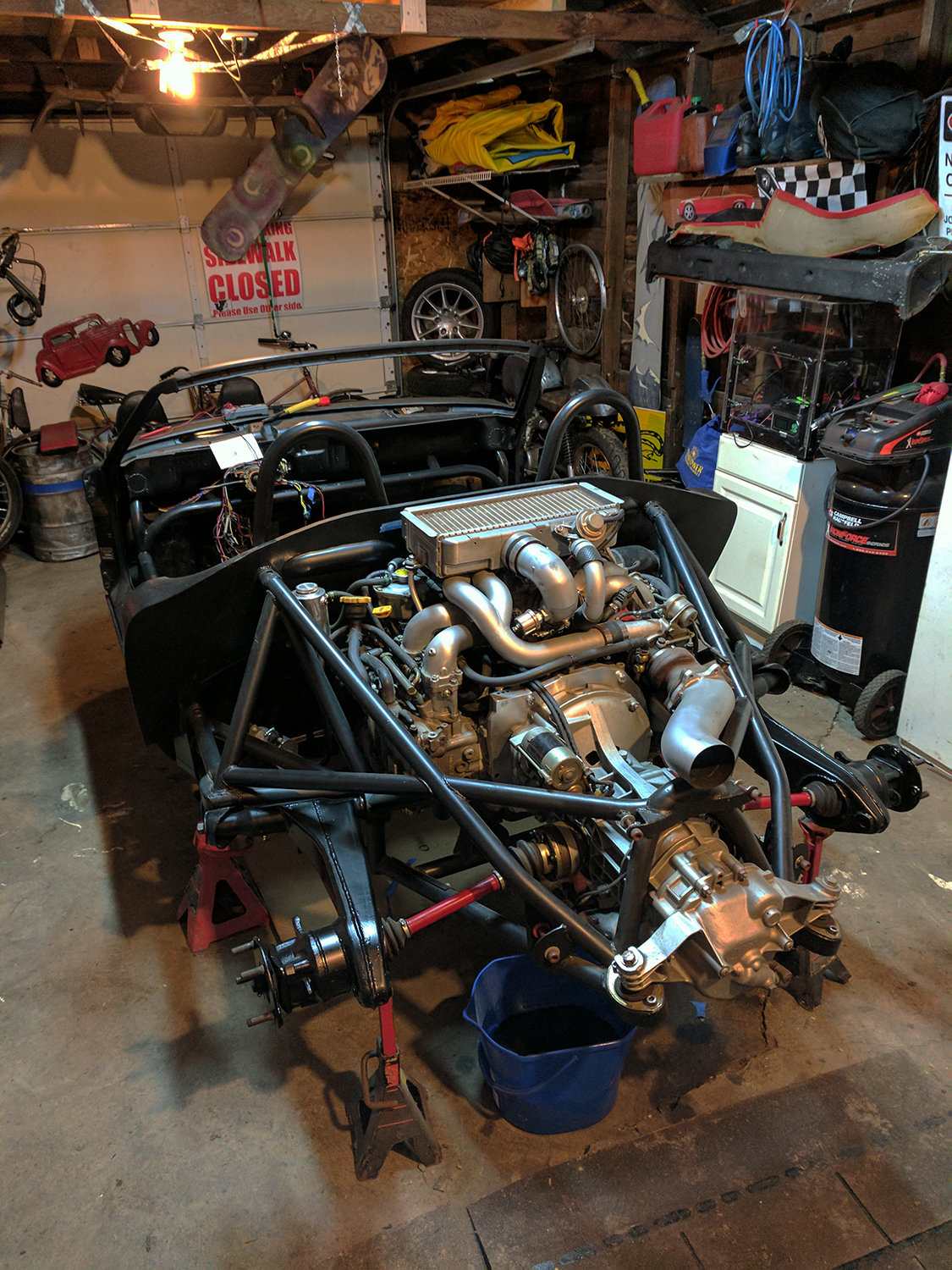

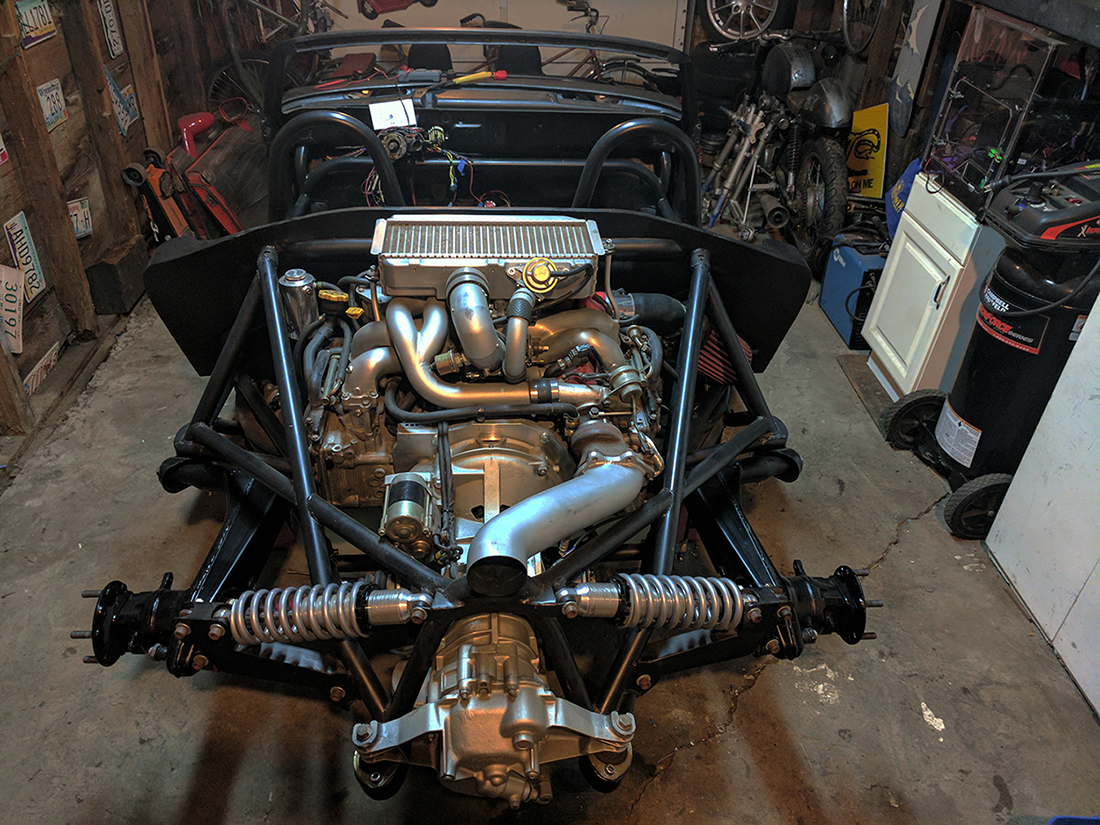

Okay, now we are getting somewhere!
Click to view attachment

I am glad you kept on this one! Great project and some innovative ideas! Keep it up, you are getting close.

That's really cool. I don't think it will be loud enough.

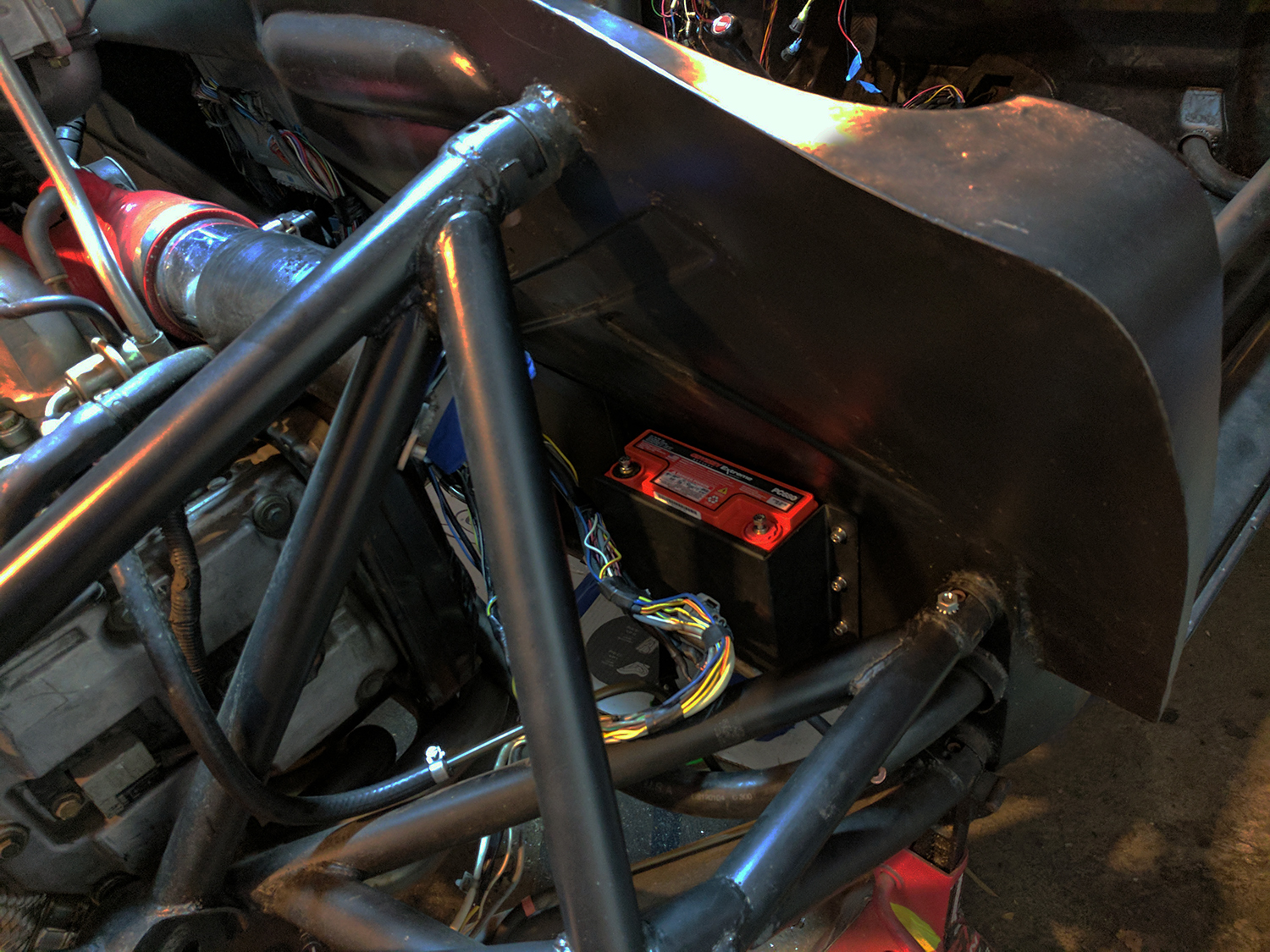

I got the battery wired up.
Click to view attachment

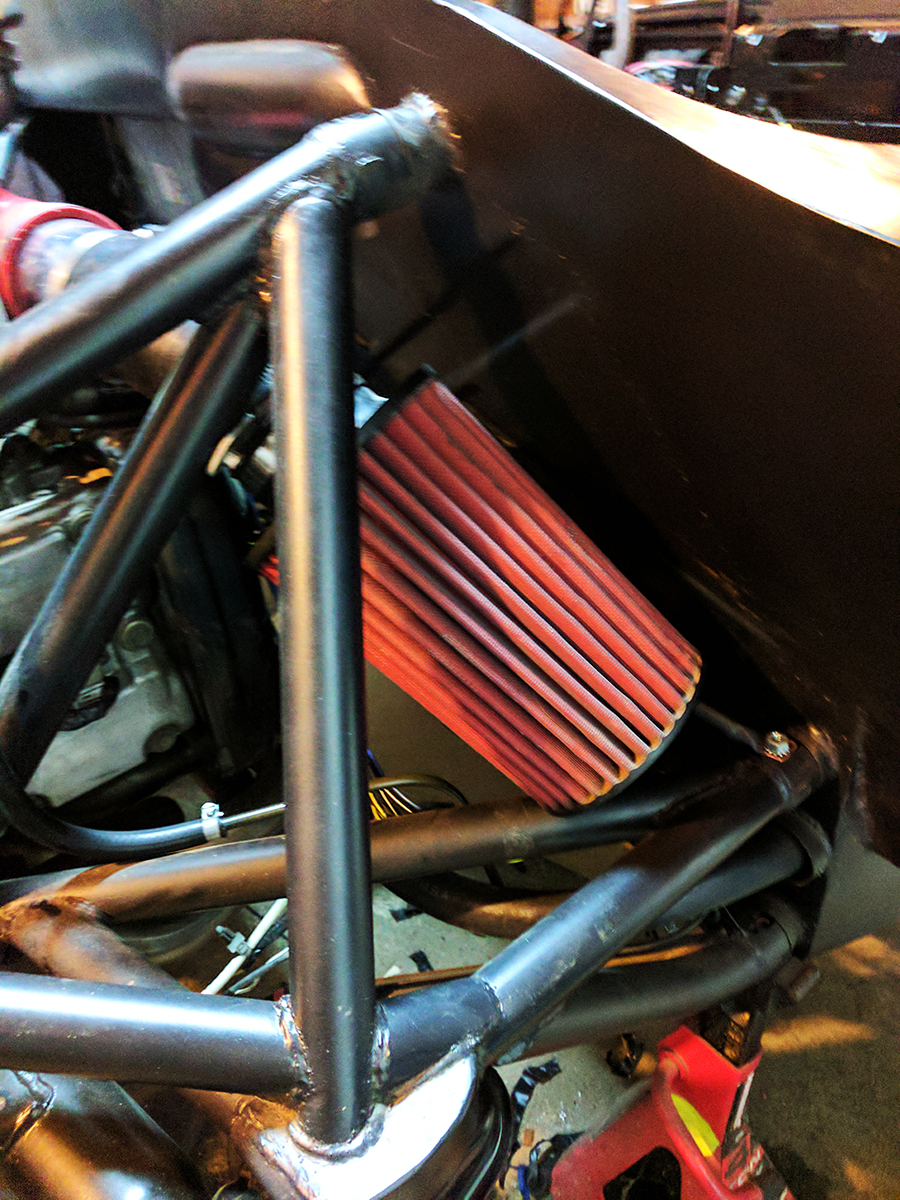

Then re-installed the air filter, hiding everything.
Click to view attachment

Hi Plymouth37,...Your Build is pretty incredible,..I would like your opinion on the Renegade cradle,..is it a good fit ,or did U need to re-work it..a little,..Thanks, !! Frank

Hi Frank,

We designed the renegade cradle to be a direct bolt in, no cutting required if I remember correctly. Haven't been in touch with them for years but I was pretty happy with the fitment on the half dozen or so cars I installed them on. The jig was based off of this car, before I cut it in half...

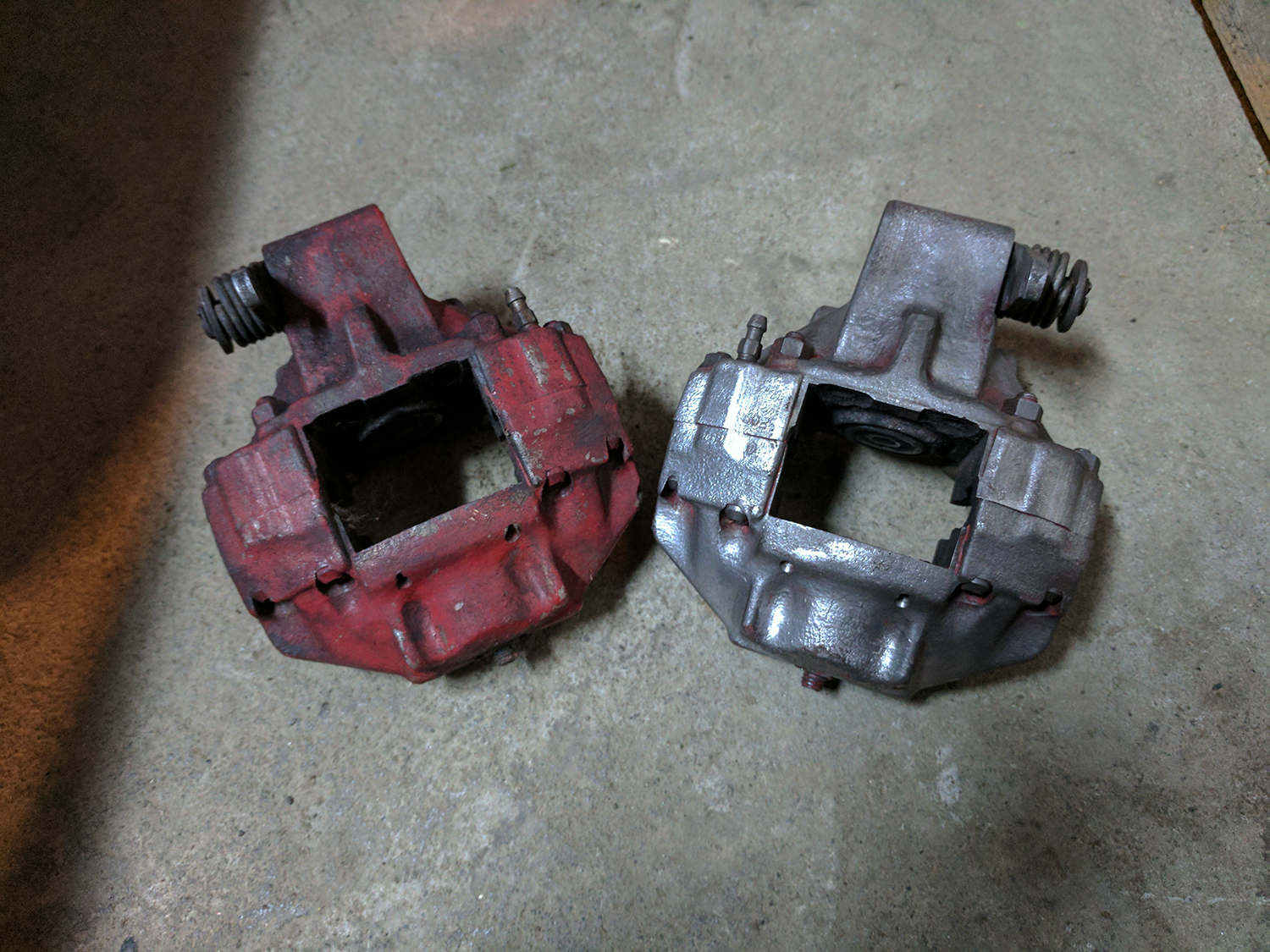

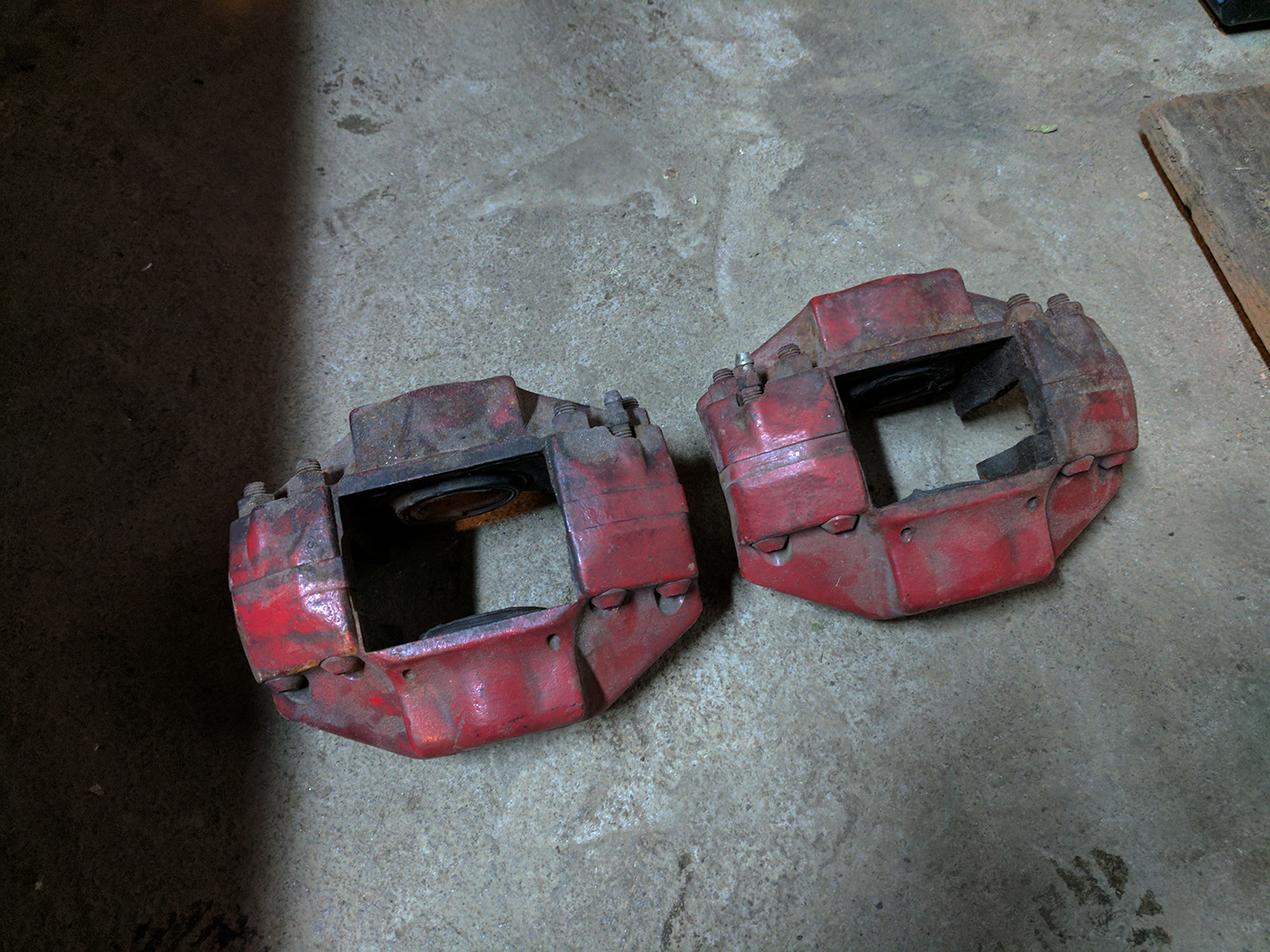

Can anybody spot the problem with this picture? Somehow the Carrera suspension I bought and ran years ago had one "A" caliper and one "Wide A" caliper I must have known about this and forgotten... The difference is a 7mm vs an 11mm spacer between the two halves. I decided to keep the one Wide A and order another one for the other side.
Click to view attachment

It turns out the right side Wide A calipers are near impossible to source while the left side is cheap and plentiful, of course.
Click to view attachment

This caliper, from a very tired mold with incorrect hardware arrived after a 5 month backorder, but not being in a hurry was a plus, it was only $65! I stripped the other Wide A I already had to match the new one.
Click to view attachment

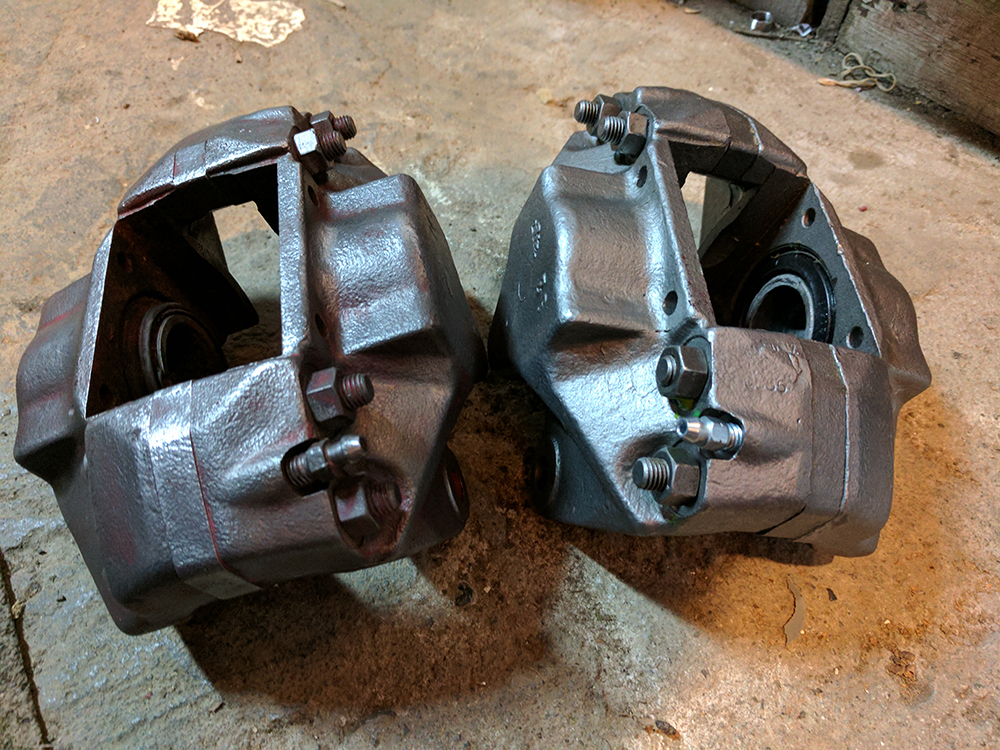

I stripped the rear calipers as well, still running the 914 brakes back here, mostly because of the parking brake.
Click to view attachment

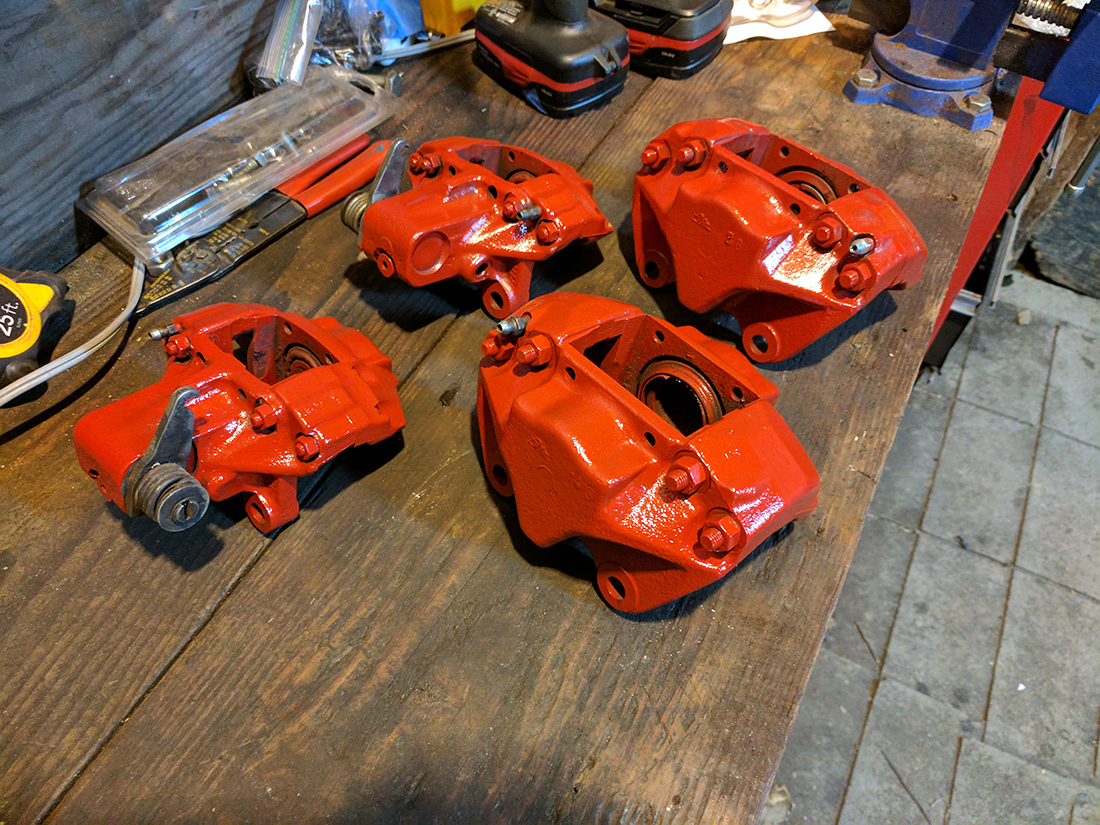

Then I finished them off with 1000 degree enamel.
Click to view attachment

Dane I love your build. You stepped out of the box then turned around and lit the box on fire!!! Love your work man. It has been an inspiration for my build. You're almost there. But do we really get there? It's a limit problem.

Those rear springs look like a very highly loaded set-up with such low angle attachment, do you have a straight on rear view or a kinematic analysis of the loads ??

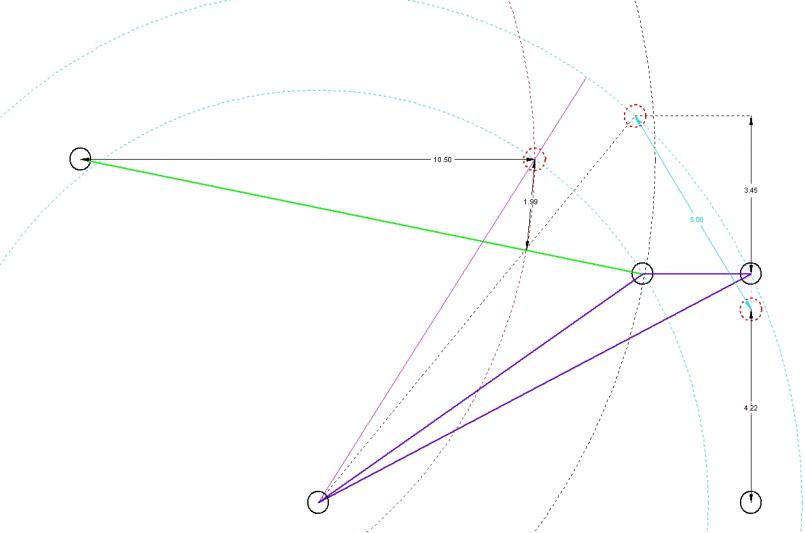

There is more discussion on this starting around page 32 of this thread, but this gives the gist of it, there is more of a mechanical advantage on the spring than the original, I doubled the springs to 400 lbs, this is totally unproven, just like the rest of the car, just need to thrash it around and see what happens!
Click to view attachment

I wanted to do a test crank on the engine, still no gas in the tank, but a step towards running! I plugged in the master fuse and the ignition fuse.
Click to view attachment

And as you can see things did not go as hoped... on the bright side, I now know it takes less than 15 minutes to pull the turbo! Check out the stream of oil running out from under the car!
Click to view attachment

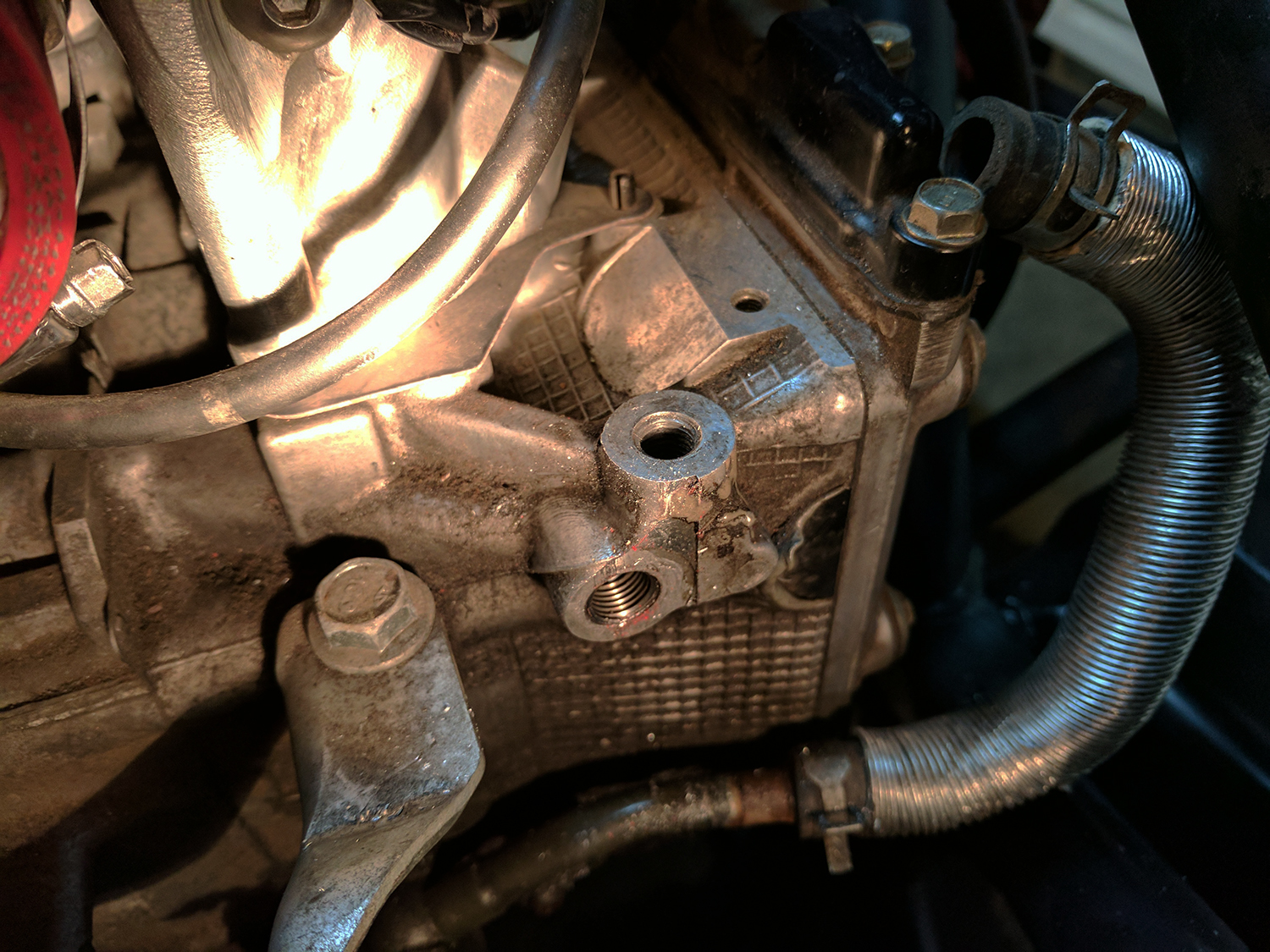

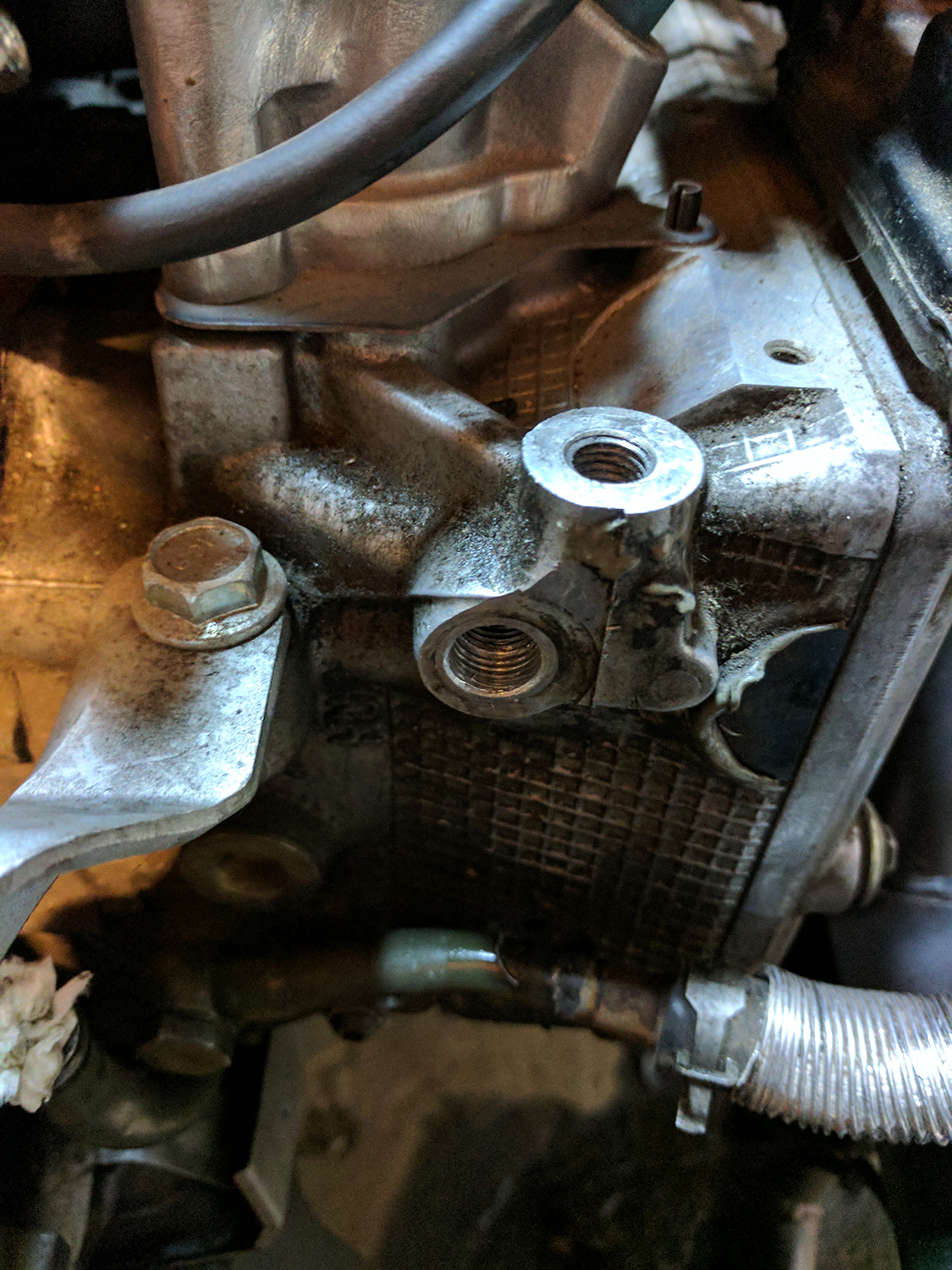

Here is the culprit, stripped turbo oil feed line threads in the head, from what I found this is a pretty common issue, I am pretty sure I can get a helicoil in there, bummer!
Click to view attachment

Tell me that you will plan a party around the first start!

On the bright side, at least you didn't leak any smoke out.

Plymouth37 Thanks for the cradle info, Being that I can't weld,..I will have to order one,..I just happen to see it installed on your car,..how close to finishing are you ..??

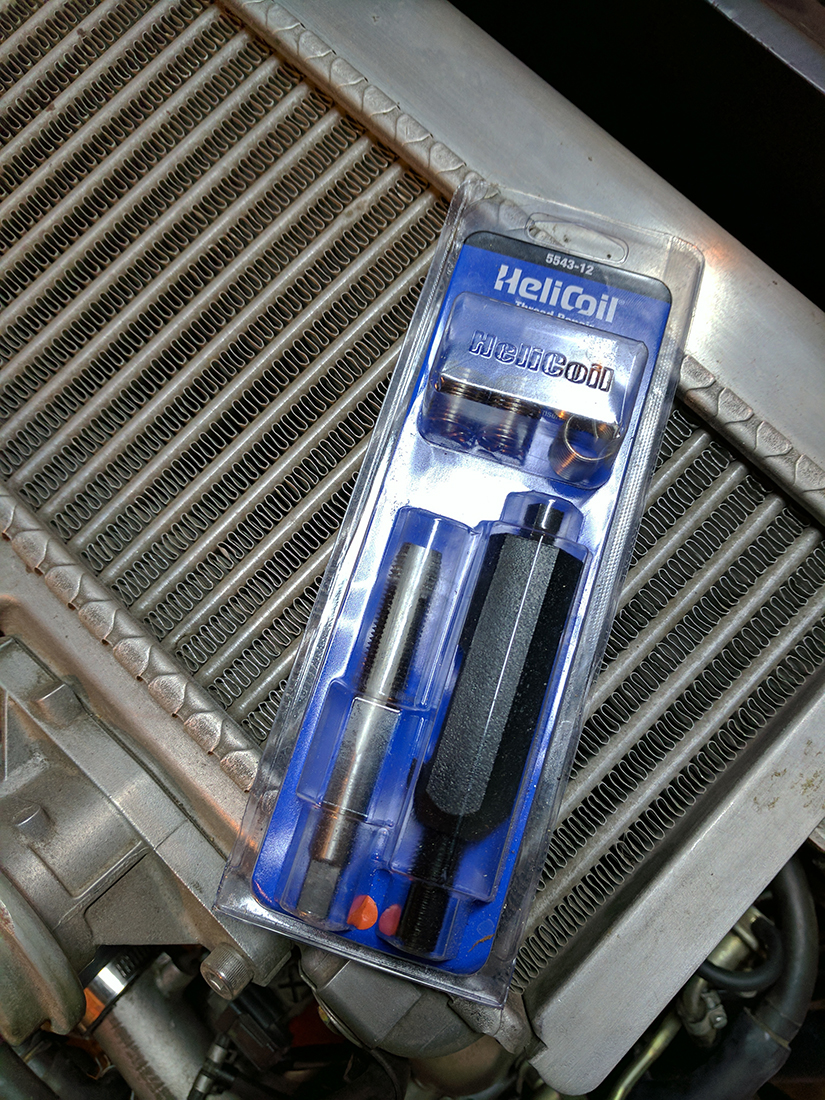

I bought a Helicoil kit, the Banjo bolt is a 10mm X 1.25, so I am putting in a 12mm Helicoil, the inner thread diameter is 10mm.
Click to view attachment

I think I got it installed correctly, no shavings in the head, good clean threads.
Click to view attachment

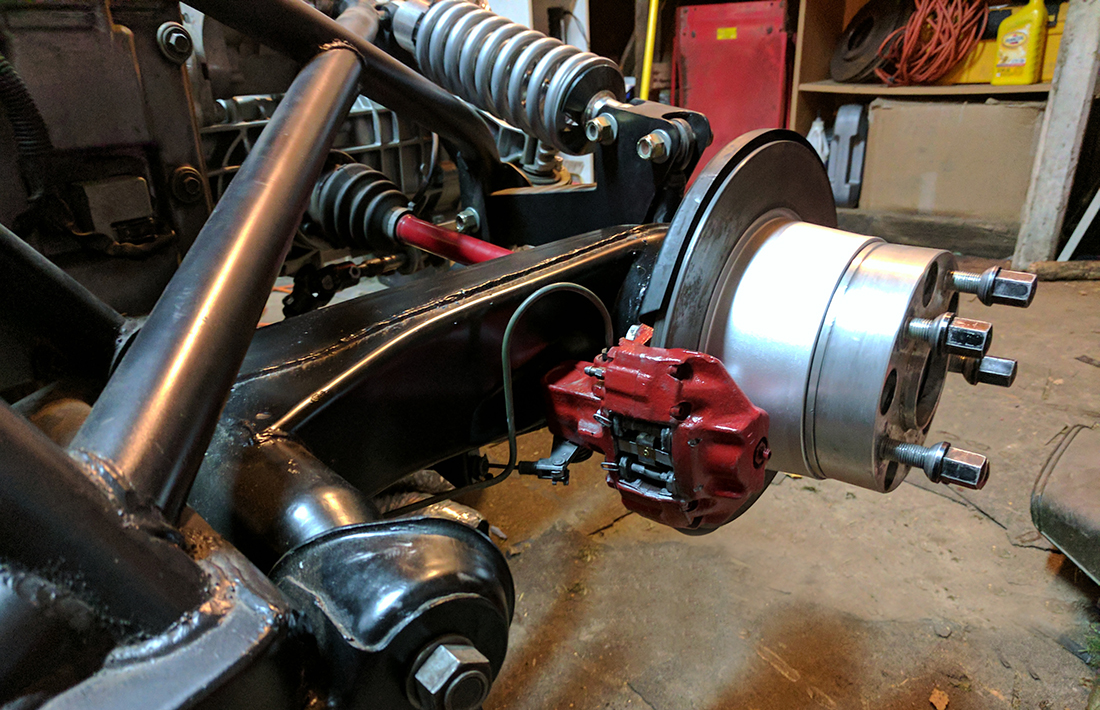

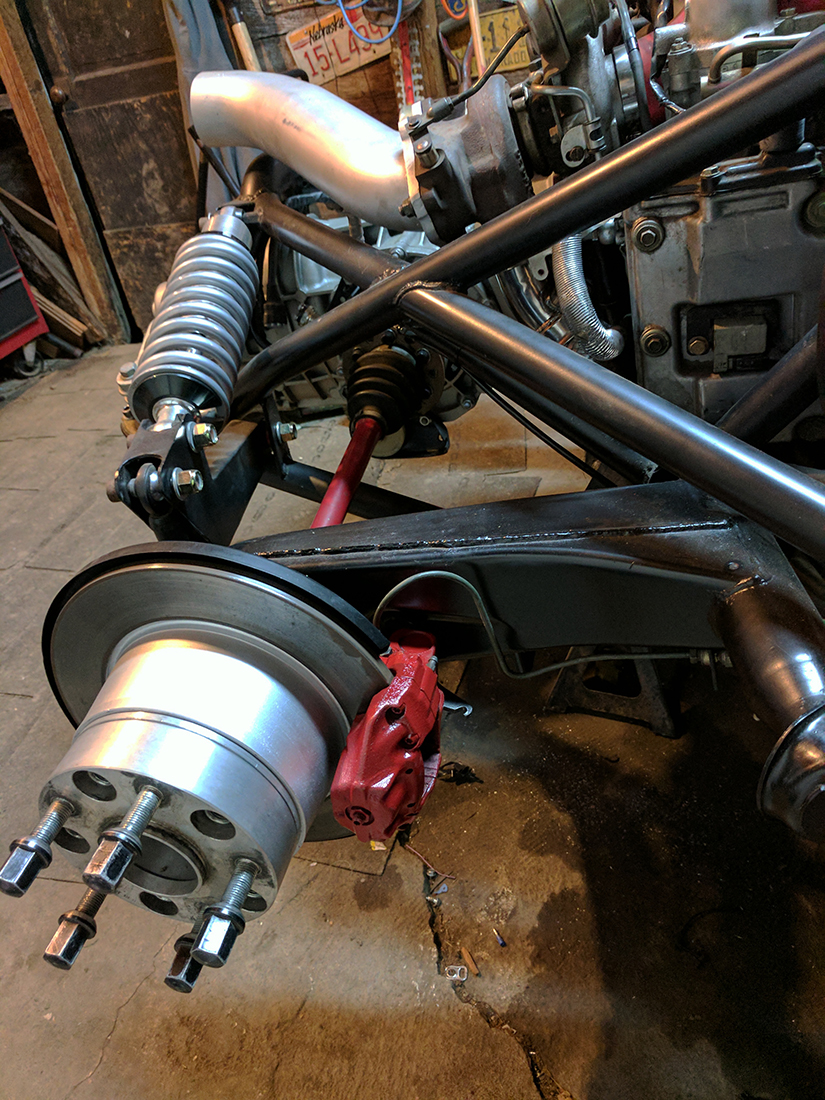

I reinstalled the turbo, cranked it over without leaks, and celebrated by installing rear brakes. The calipers are 914, the rotors are early 911 5 lug, hubs were re-drilled to 5 lug. I stripped the rust off of the rotors and repainted the drum with high temp paint.
Click to view attachment

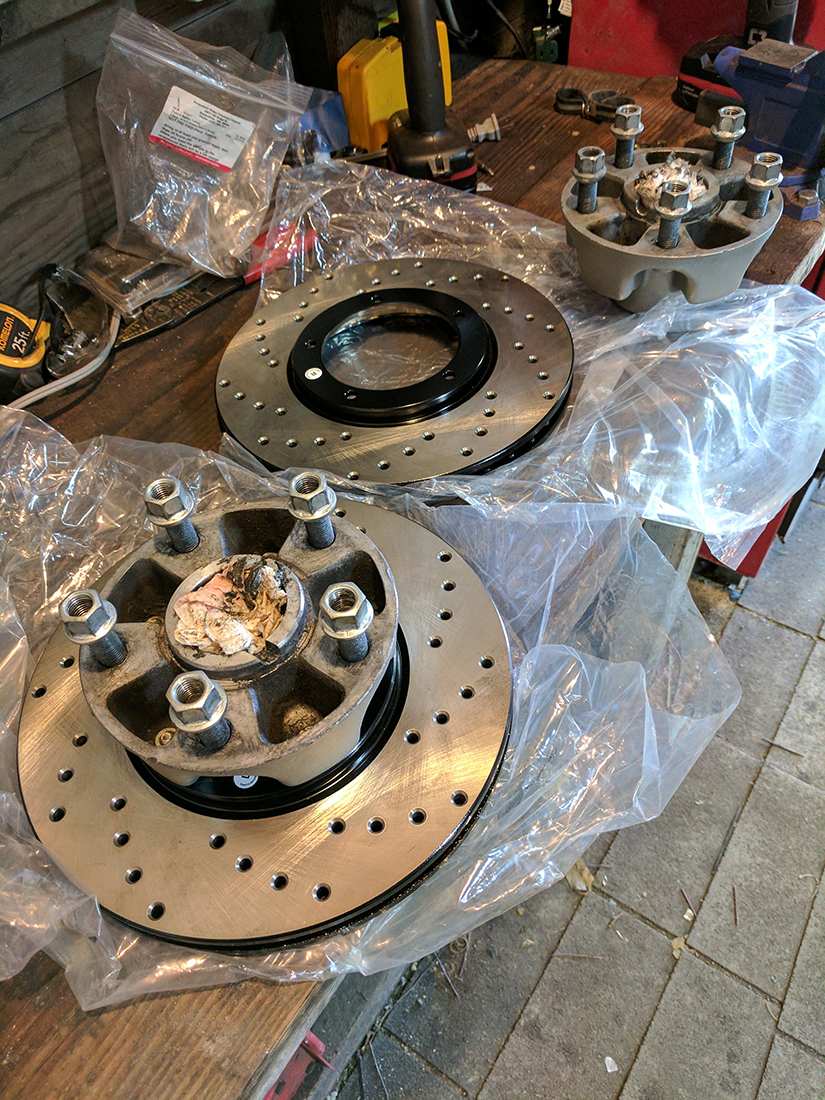

The rear rotors were salvageable but the fronts were trashed, I bought some new rotors and installed them on the freshly painted hubs.
Click to view attachment

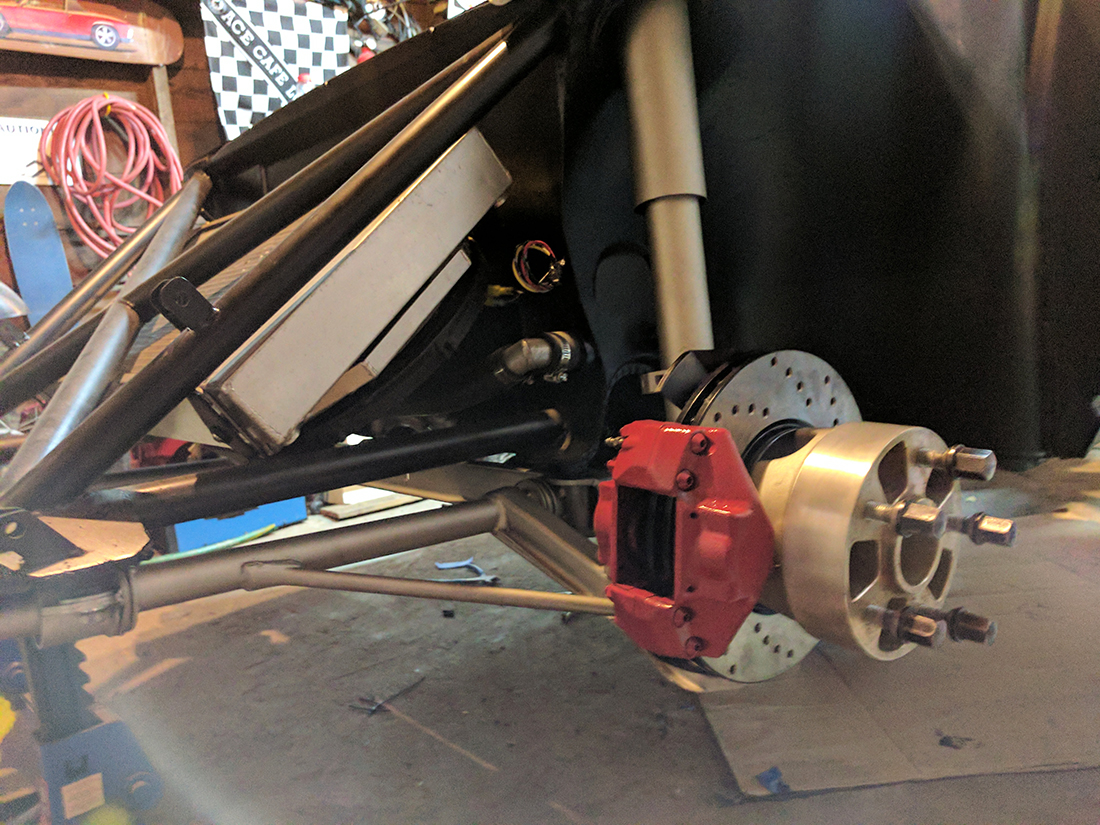

Then I installed the front brakes.
Click to view attachment

Just need to finish some missing chunks of the brake lines and then the brake system will be complete!
Click to view attachment

I am so looking forward to seeing a video of this car moving on its own power. Can't wait. Terrific build and incredible talent.

Hmmm....are those seat inserts a hint of the color decision?

Those are from the interior I had in it before this whole adventure started. Still not a clue on color, the accent bits of the chassis are red but that doesn't dictate much. I'll mull it over as I finish the body work, a nice dark blue or silver with a red interior might be nice but I really don't have a clue yet! The interior will need to be redone anyway so I have options.

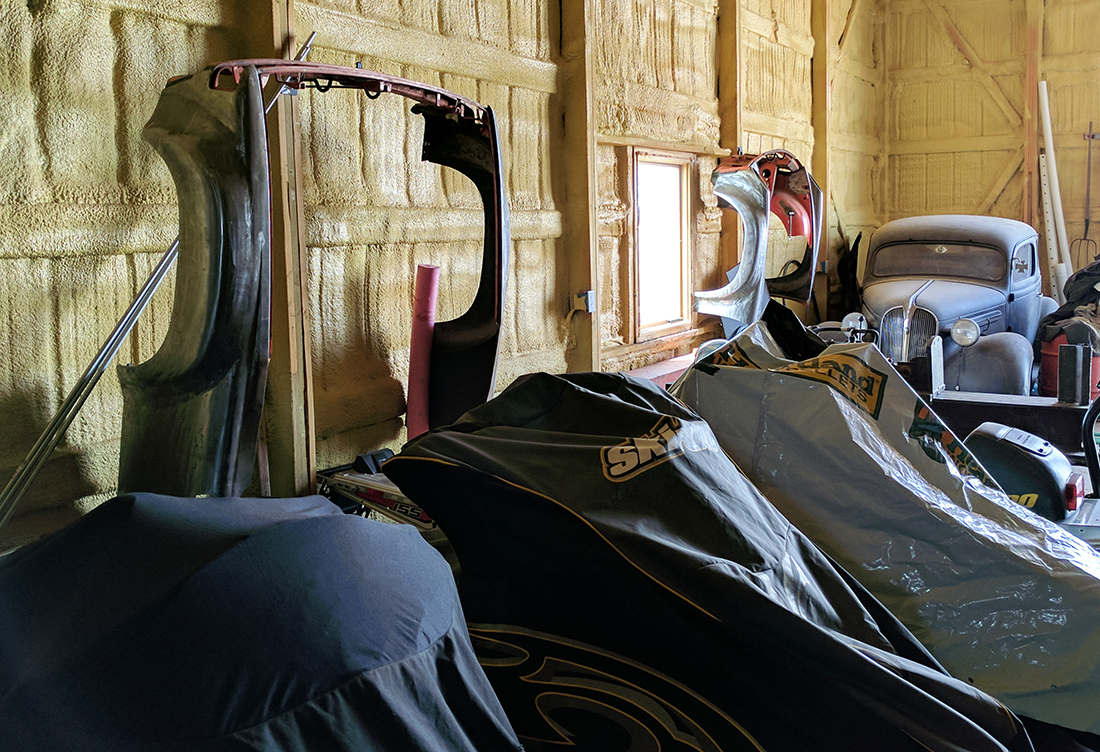

First step to paint is retreiving the body from Wyoming, didn't have room on the truck to bring it with the rest of the car! I was actually just in Wyoming, here is the body, waiting its turn, just like my '37 Plymouth in the background... Nice having relatives with pole barns...

Click to view attachment

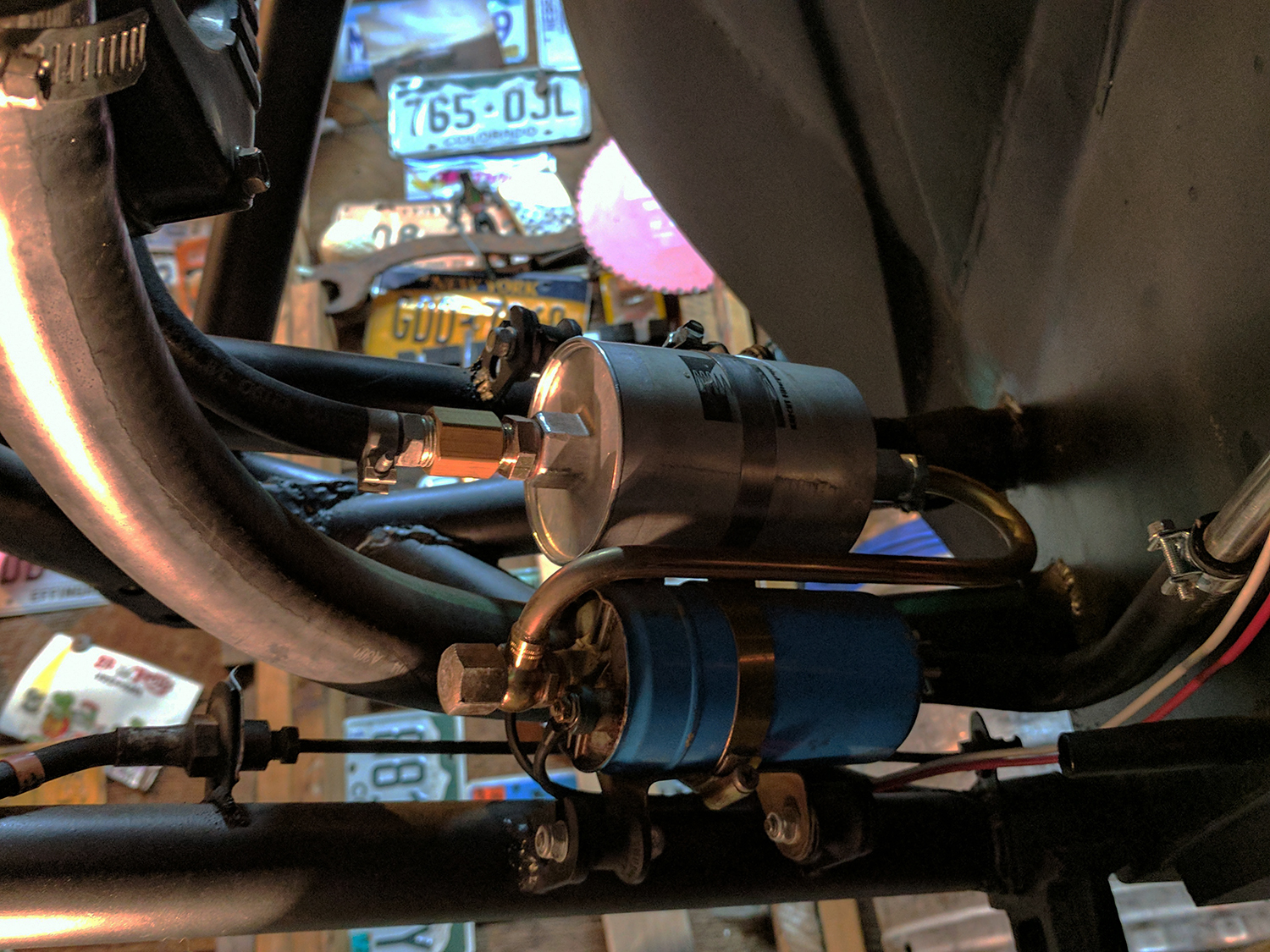

As I suspected my vintage 928 fuel pump wasn't up to the task, I swapped in a TRE performance pump, I hear good things, quieter, cheaper etc... Had to add in a hard elbow as well, the soft line was kinking into the pump.
Click to view attachment

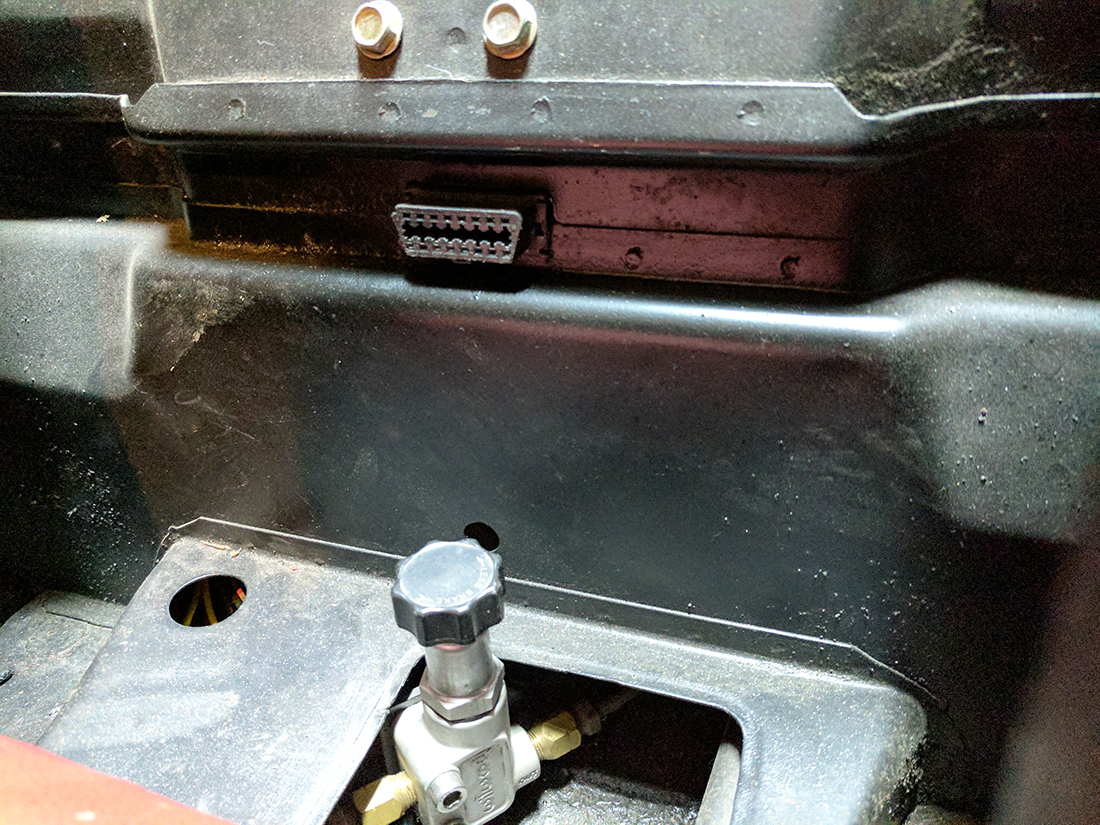

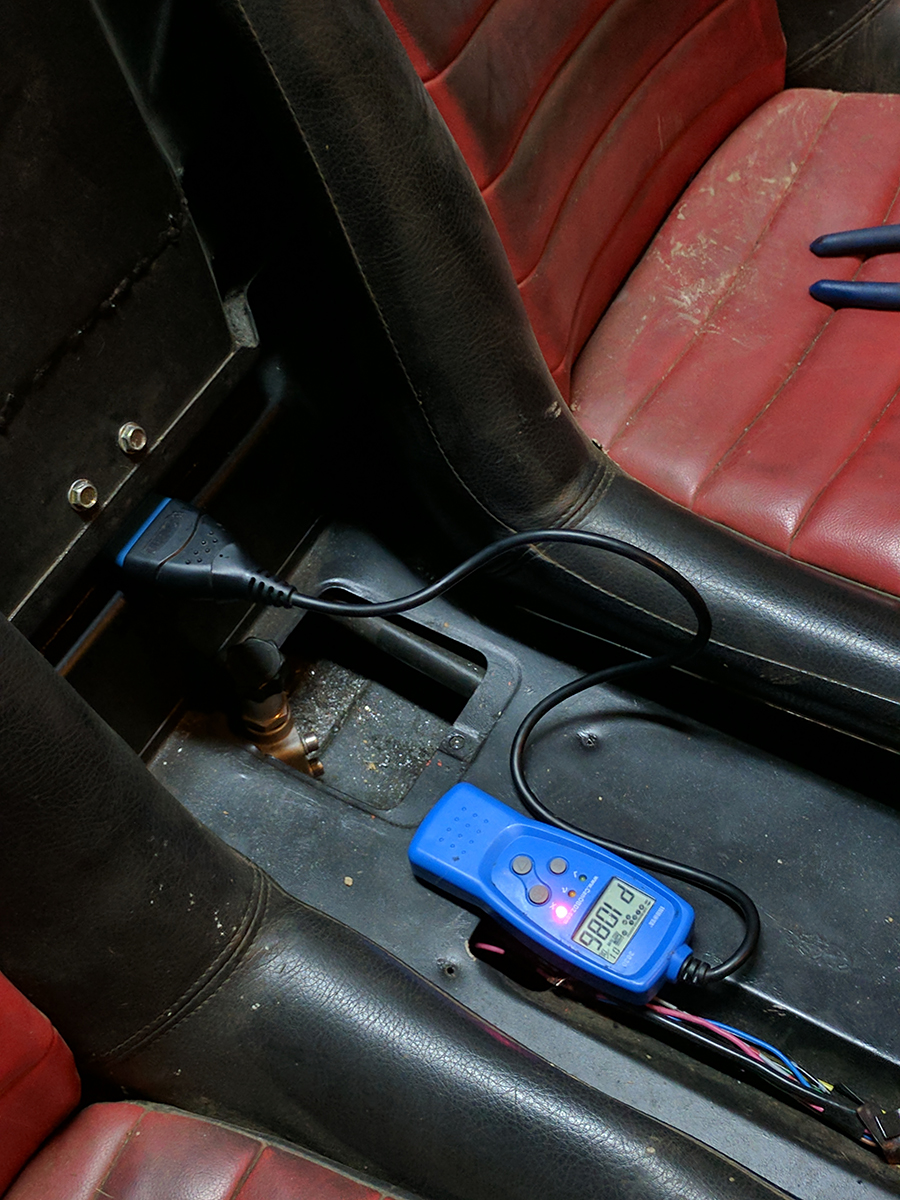

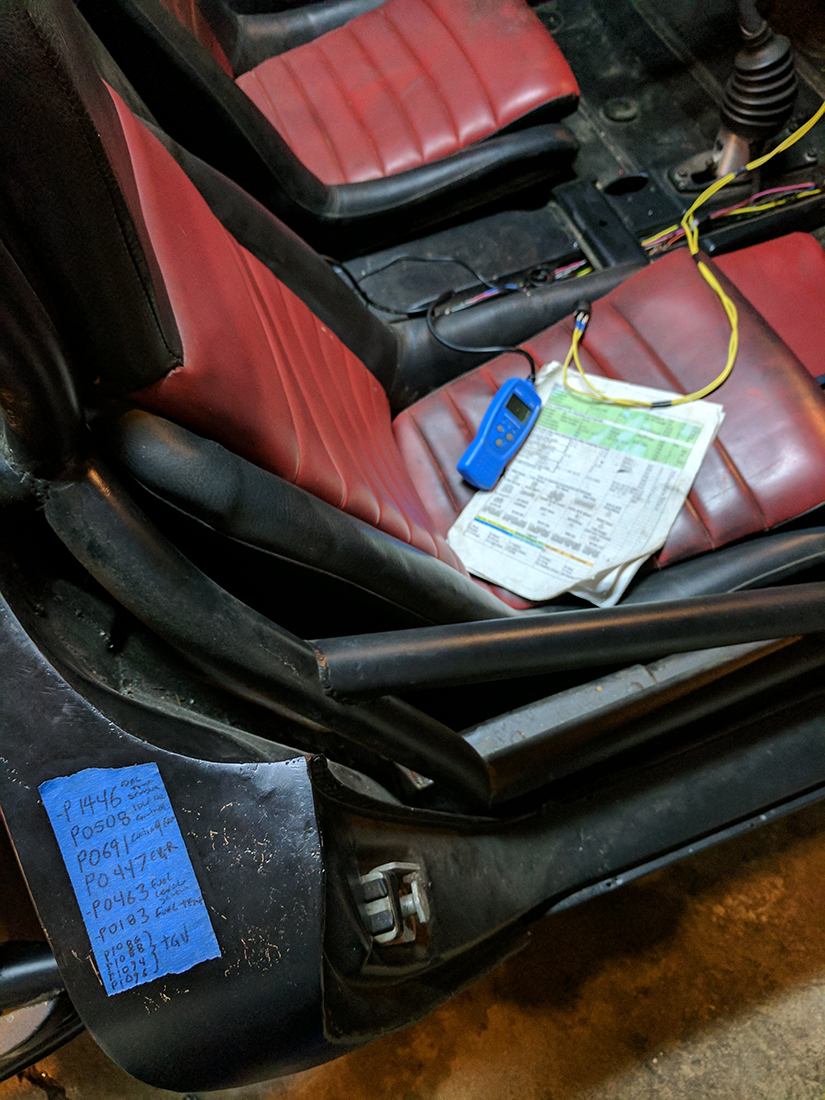

I am getting good fuel pressure but didn't get the startup I was hoping for. Looks like i am diving into diagnostic land. On that note I figured out a handy way to mount the OBDII port. The computer is right on the other side of the firewall, so I punched a hole into the cabin and tucked it in here.
Click to view attachment

Now I can run codes from the comfort of the drivers seat.
Click to view attachment

I am just sorting out the computers state of mind, nothing really unexpected. There are 3 codes that relate to the missing wrx gas tank sensors, A handful about missing emissions equipment, and 4 on the TGV I pulled. None of these should keep it from running, at least poorly, I will start probing things like coils and injectors and see who isn't doing their job...
Click to view attachment

Dane wher did you get the hardline from pump to filter? Or did you make it?

Most of my setup is stock 928, here is how it looks in its native environment, I believe 911s and 944s of the same era had something similar.

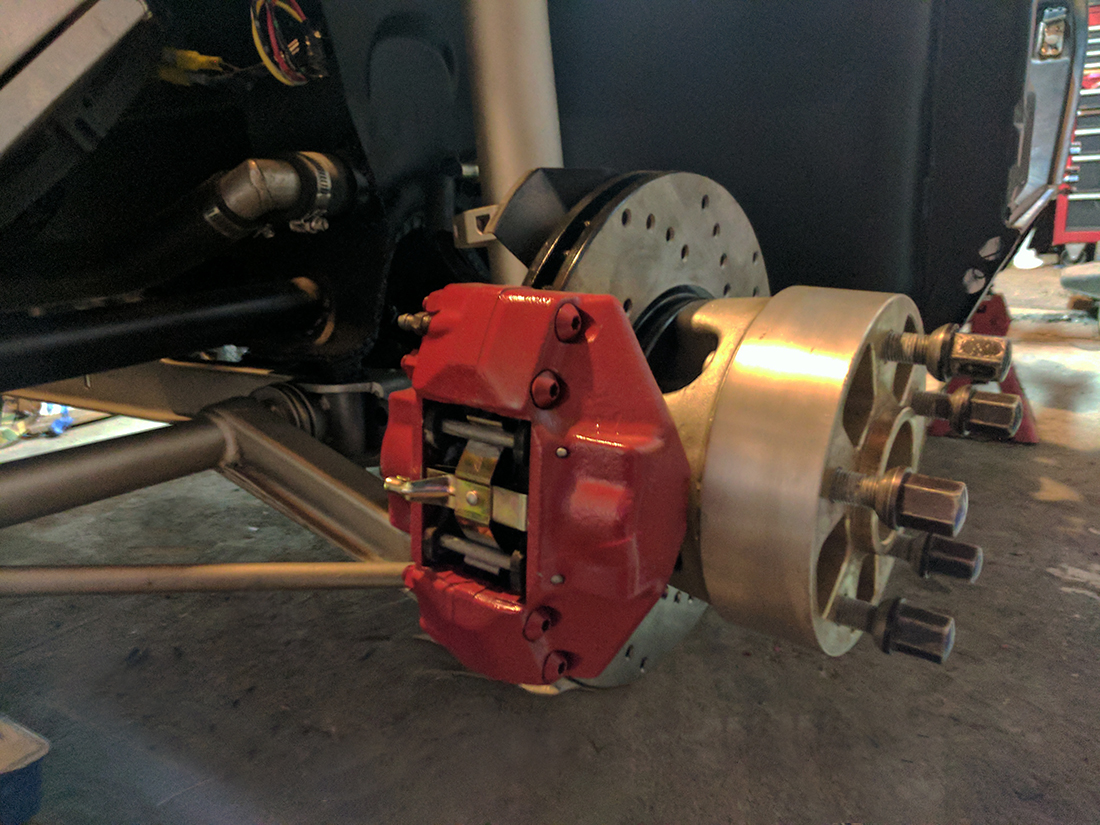

I installed the front brake pads, and splurged on new pins and retaining clips.
Click to view attachment

Same thing on the rear, and adjusted the calipers, parking brake and cables are installed as well. Just need to make 2 lines on the firewall and the brake system will be complete!
Click to view attachment

Great project, so happy that you are back at it, the details are excellent.
I would like to steal your idea to use the AN adapters on the bottom of the tank for Grey Matter.

Are these the fitting that you use?

Adapter

Cheers,
Scott

This is a neat build, but with all that engine and wheel/tire, it looks to be under braked... sorry if this has been covered previously. Looks to be begging for a boxster setup.

I'm sure these will stop the car, but I'd be concerned with fade after a bit of spirited driving.

Yup, I got mine from Dan's Performance House, they also have an 8an size that I am running to my 1/2" feed line.

I tracked this with these brakes when it was 600 pounds heavier and they did pretty well. Always room for upgrades in the future though, Boxster conversion is really tempting!
