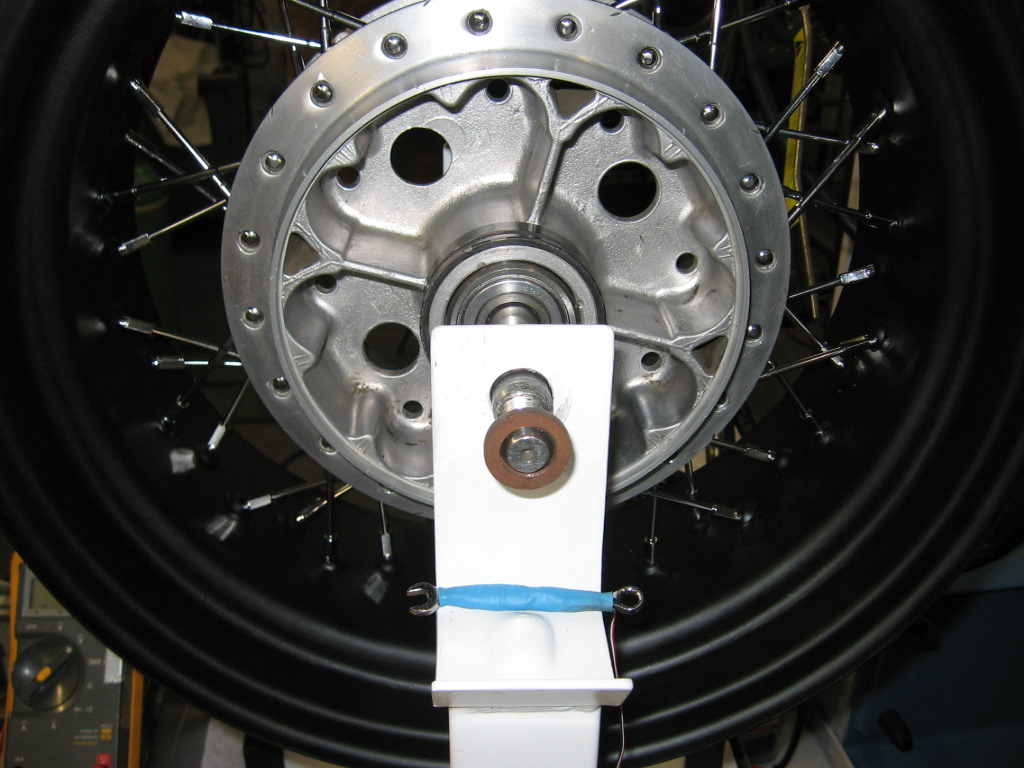

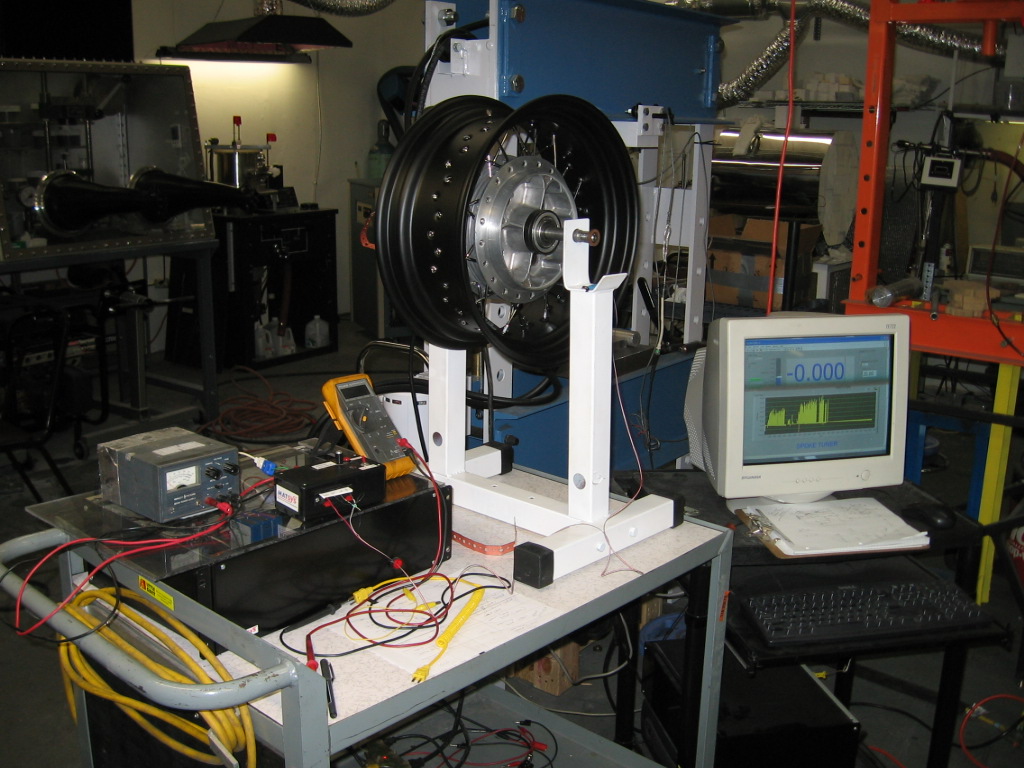

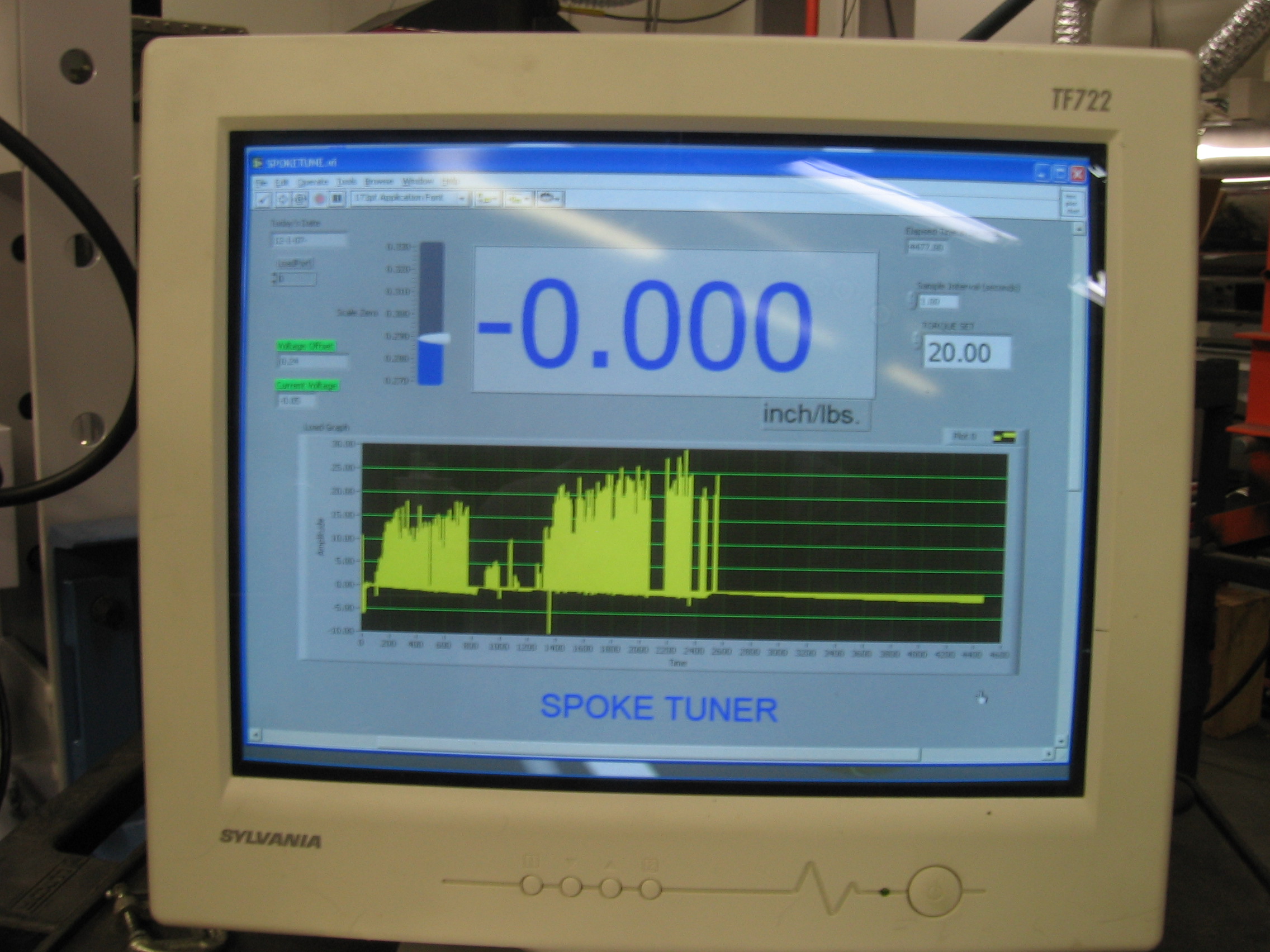

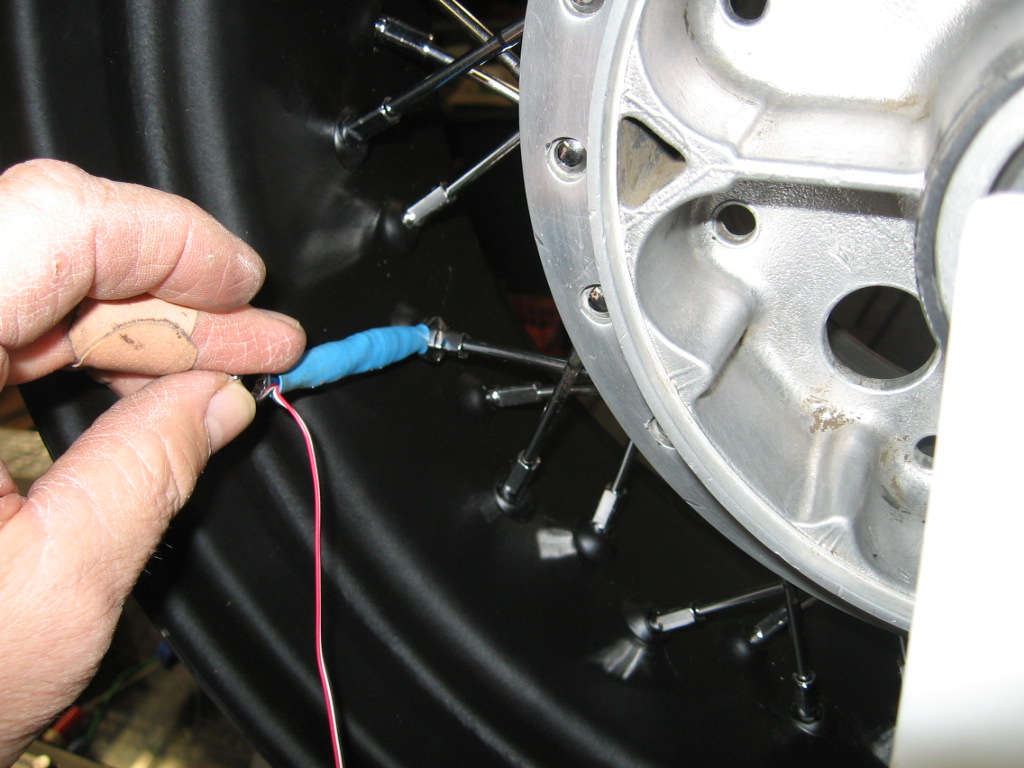

Two Wheeled Type IV project pics. The project begins starting from the rear wheel and working forward! I'm building up a WIDE 240/50VR-16 tire /wheel combo, steel wheel powder coated black spoked to a Honda CB750 rear hub. It's custom but cheapo way to make a kickass rear wheel. I trued the wheeel with this computerized torque wrench I made with strain gages.

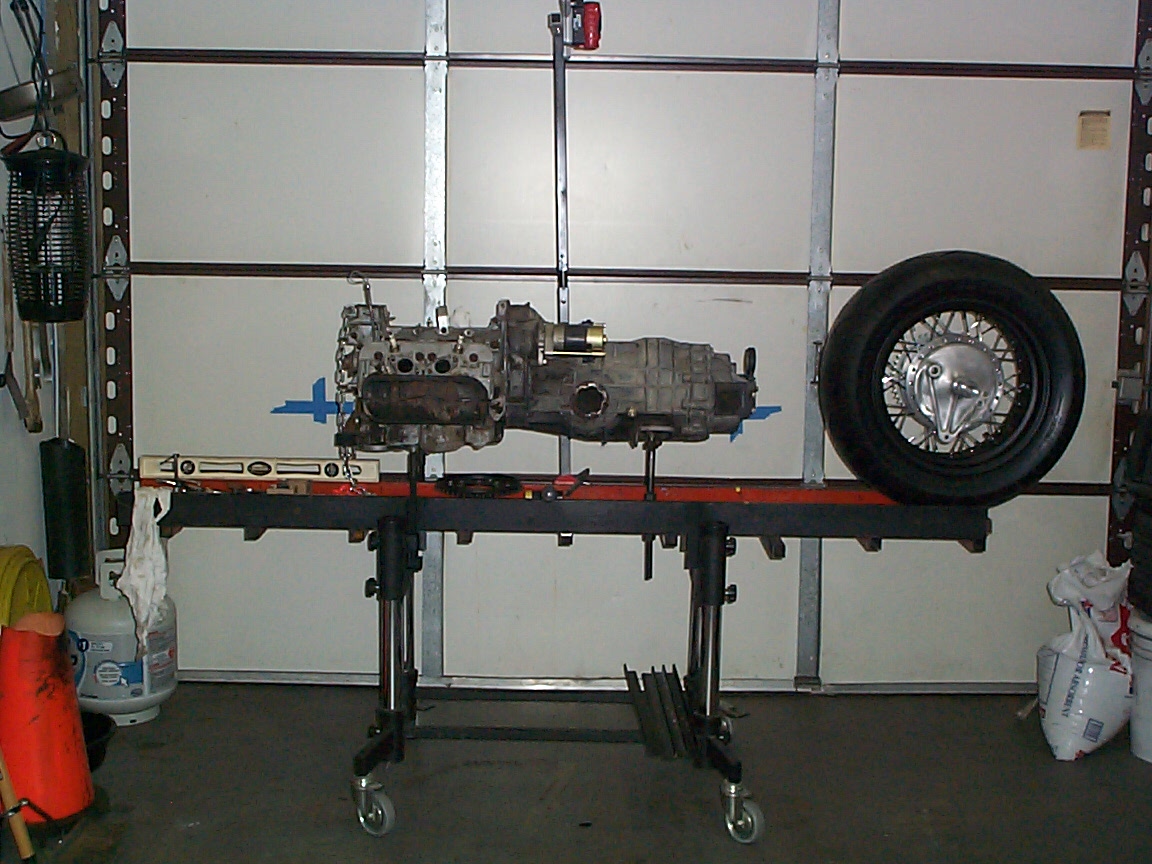

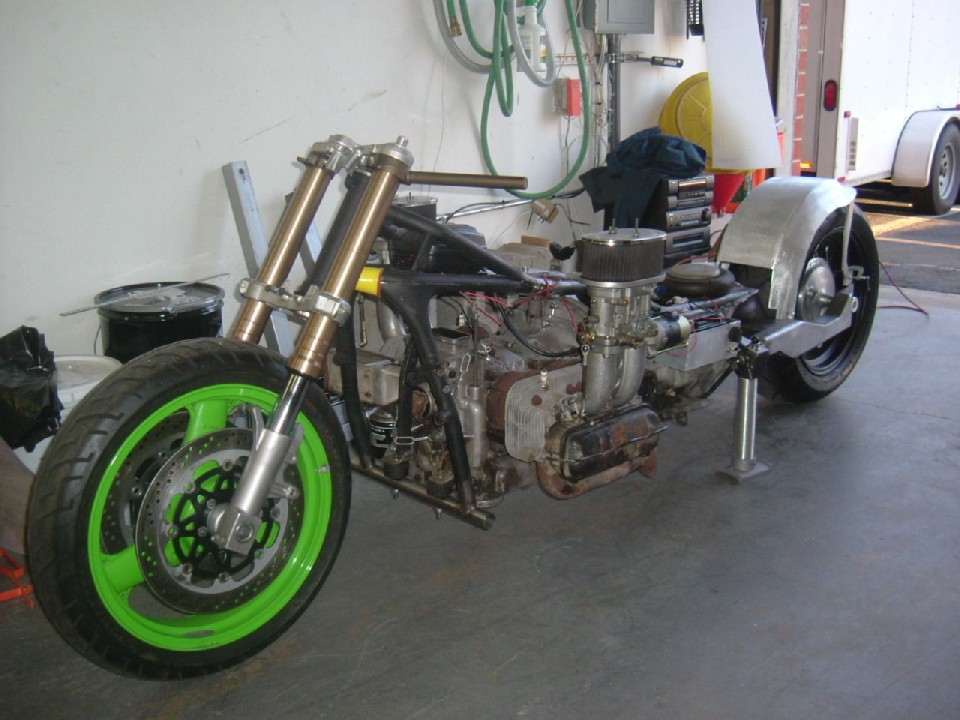

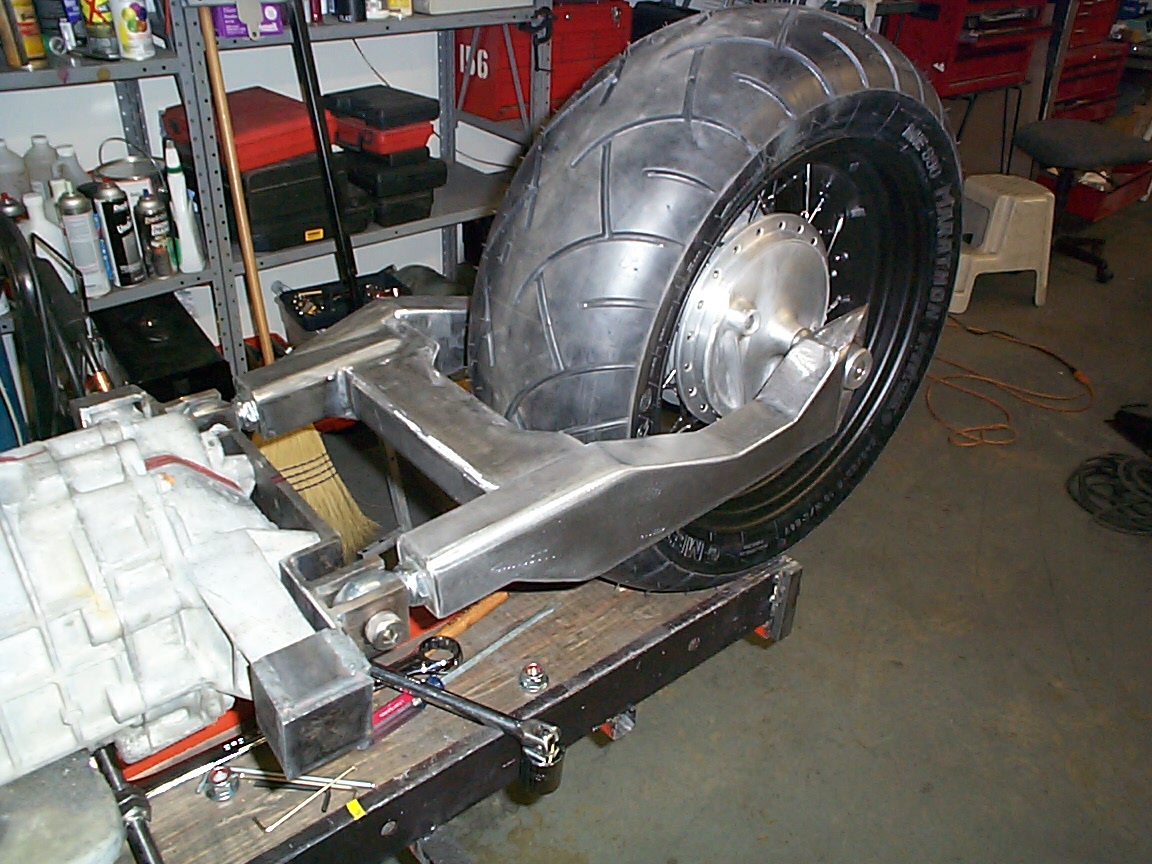

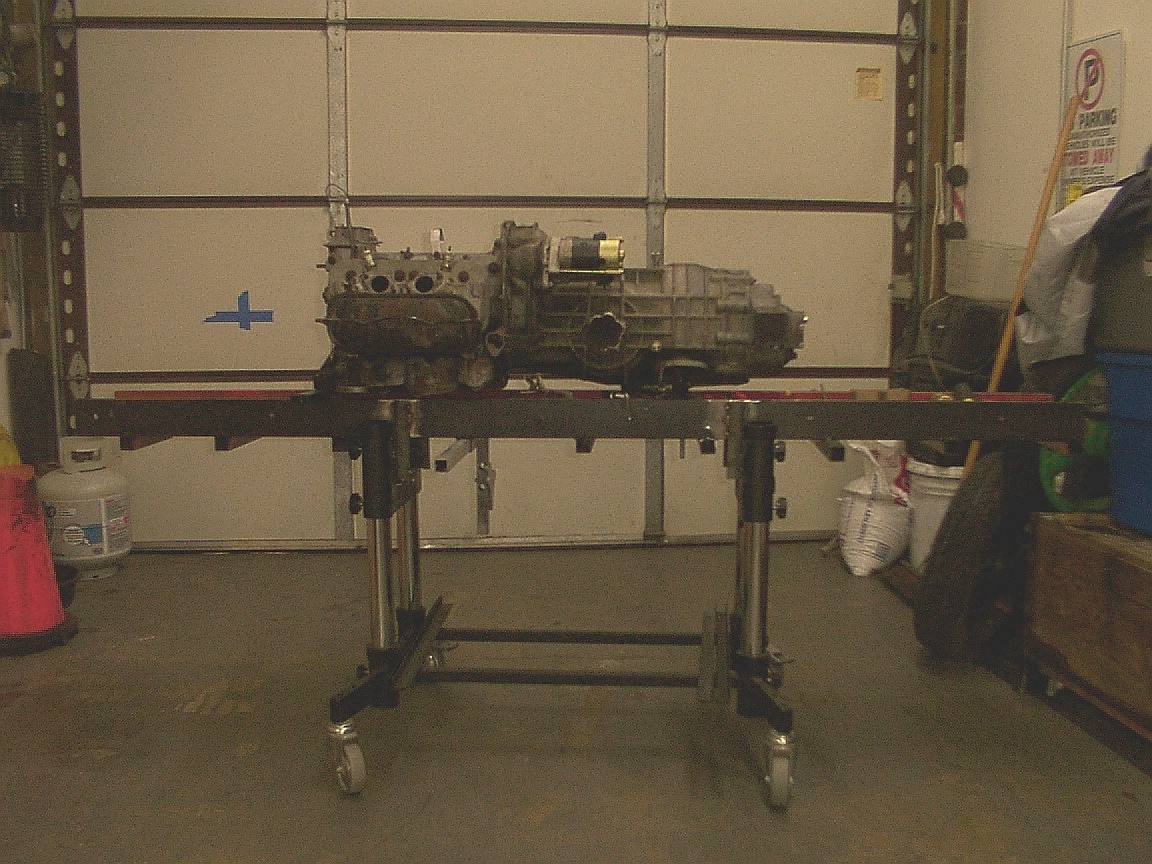

Soon the engine/tranny will have a swingarm attached to it with custom wheel and tire!

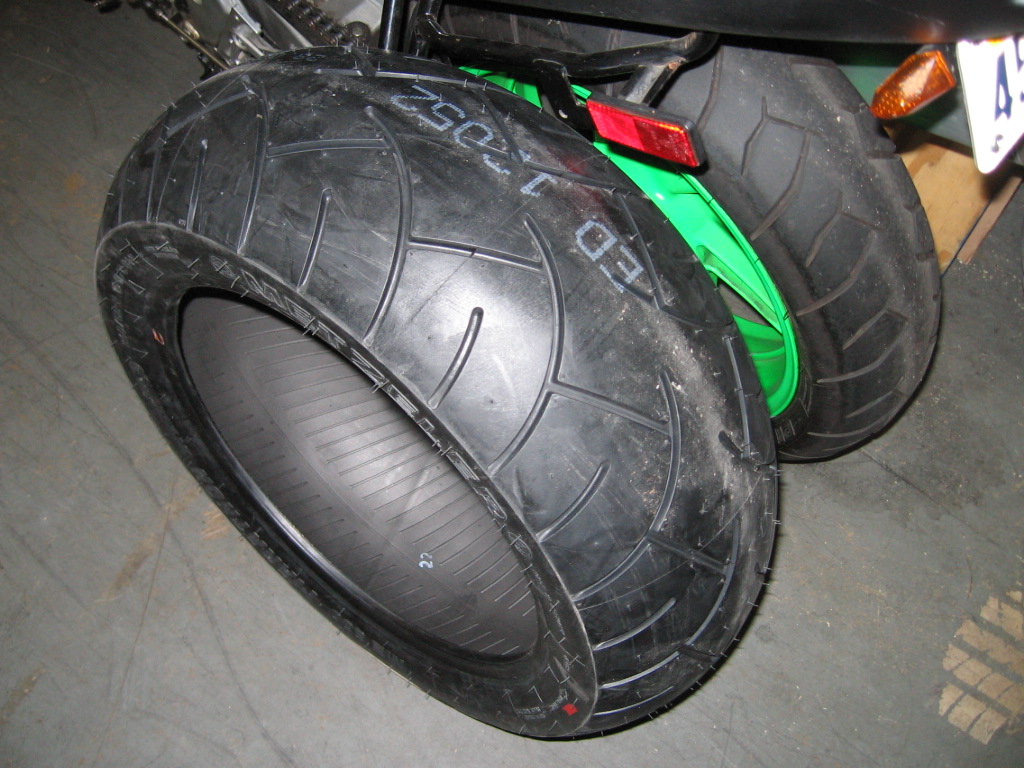

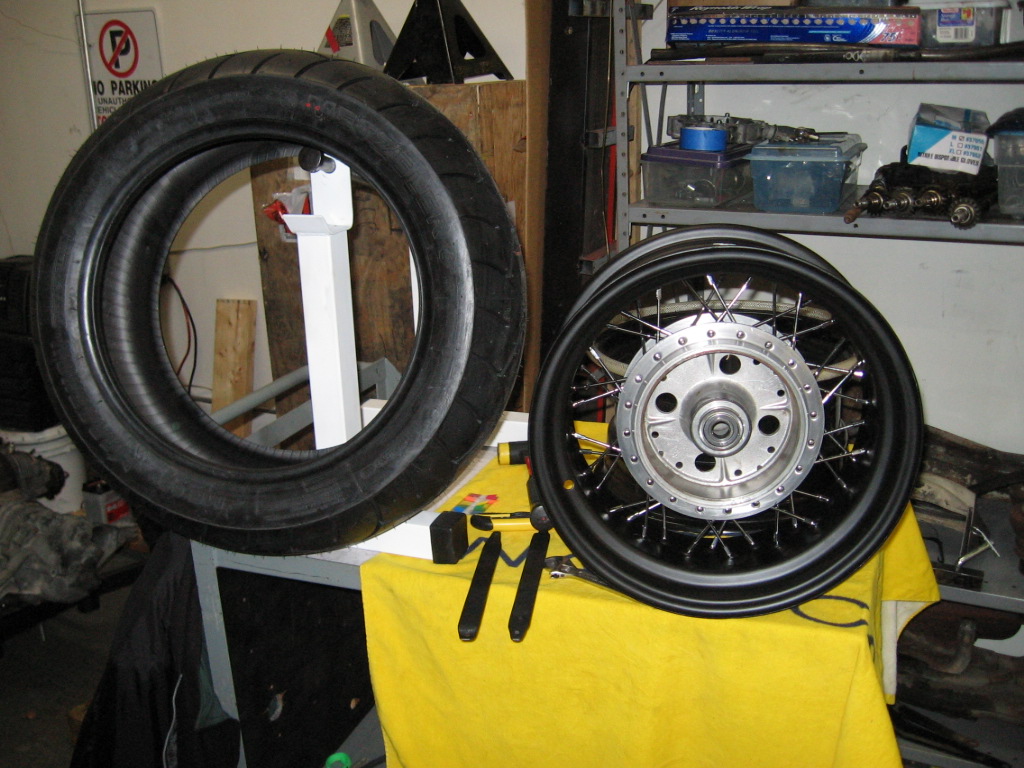

MAX WIDE Road Rubber - Metzler 240/50VR-16 arrived today (12-05-07)!

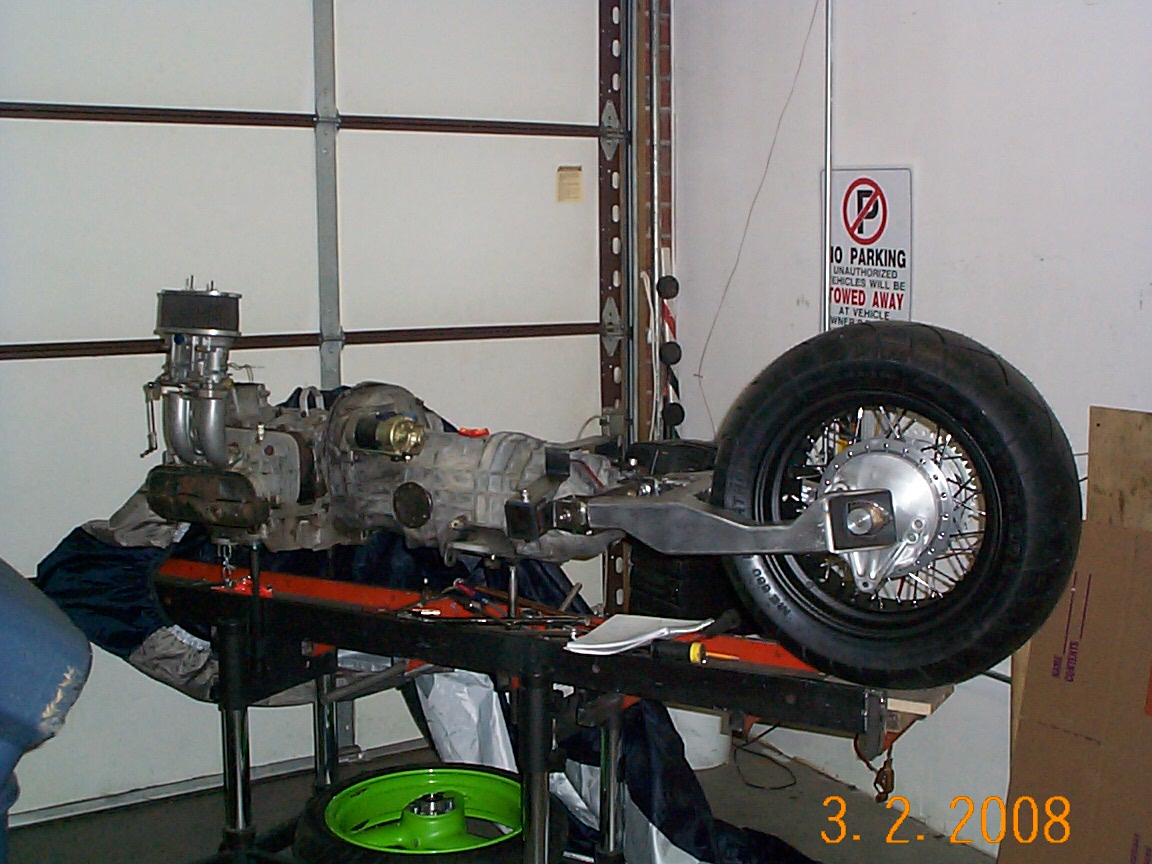

Need to press in new rear wheel bearings then "muscle on the Metzler!

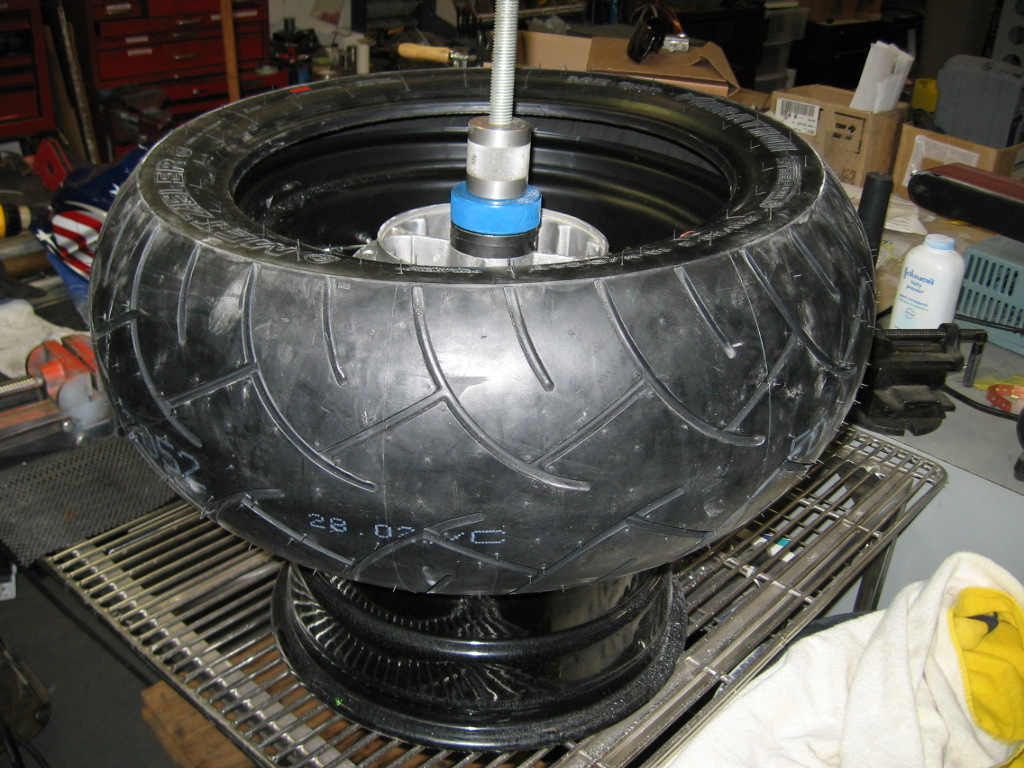

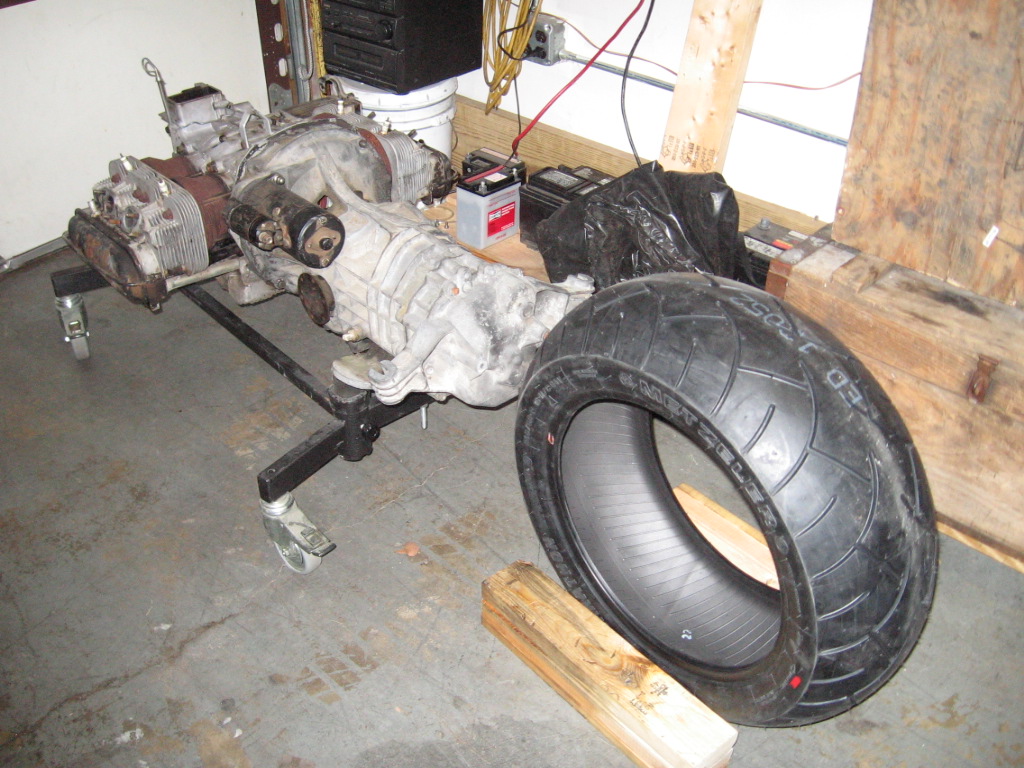

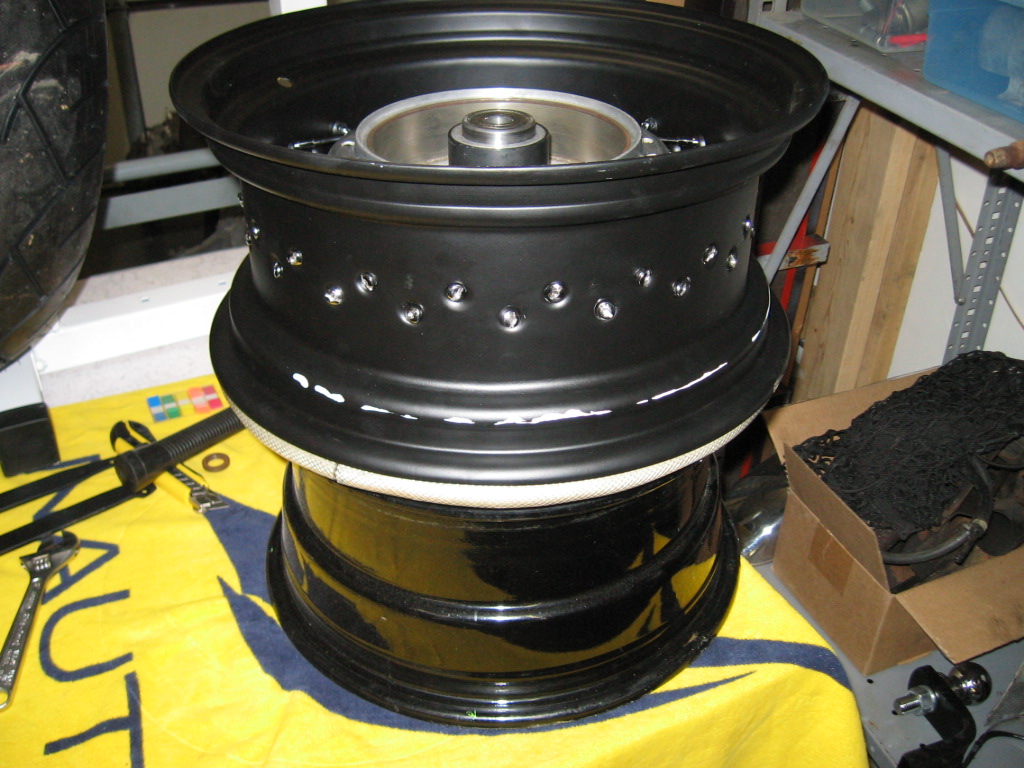

I used my extra 914 Diamond Wheel Rim to hold the bike wheel during tire mounting, Note the plastic tubing I lined the rim with to protect the powder coat on the bike wheel.Made 2 custom tire irons to aid in tire mounting process.... need to make one more with a little longer lever..... a tire this size will take 2 guys and 3 irons!

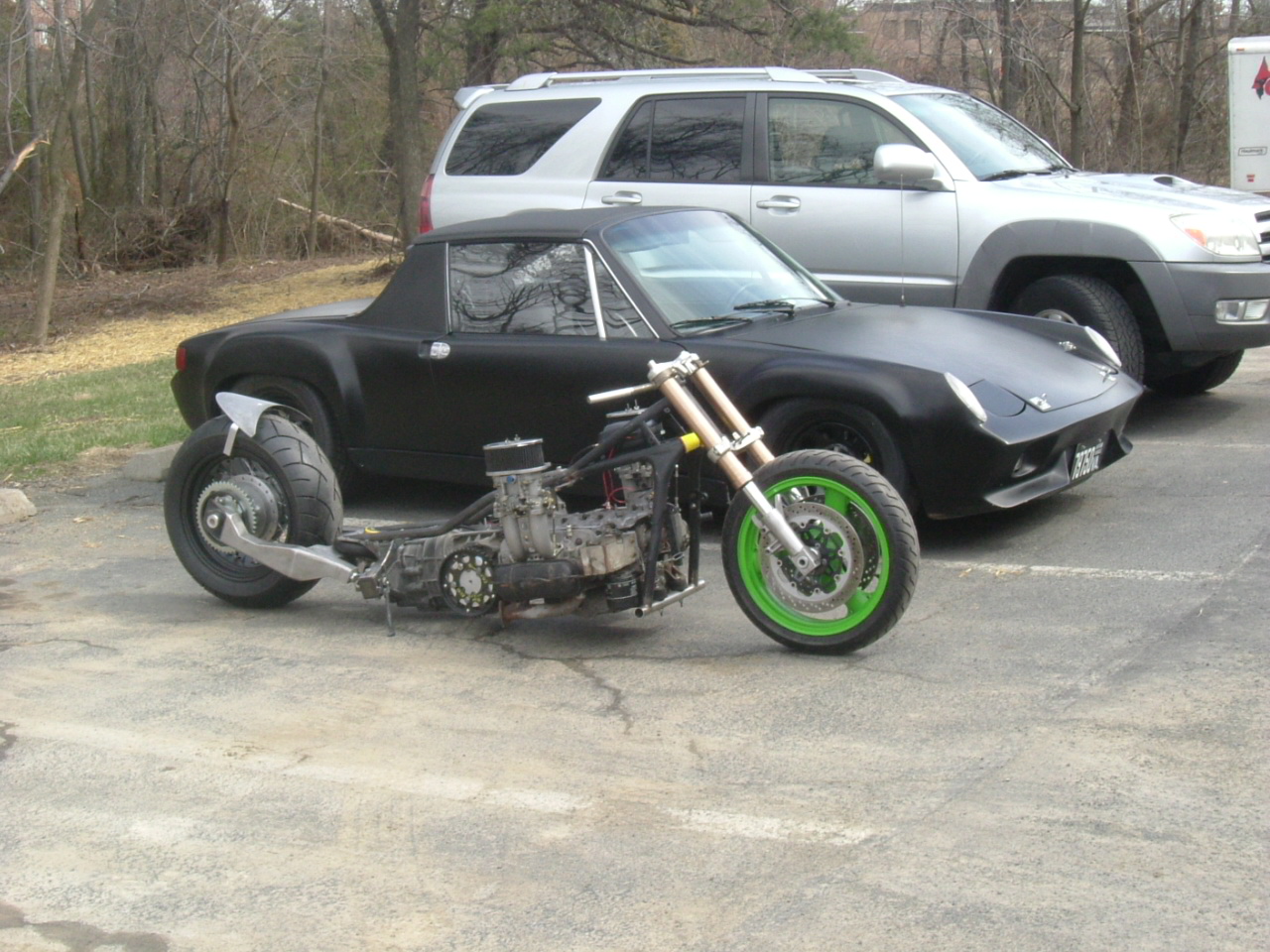

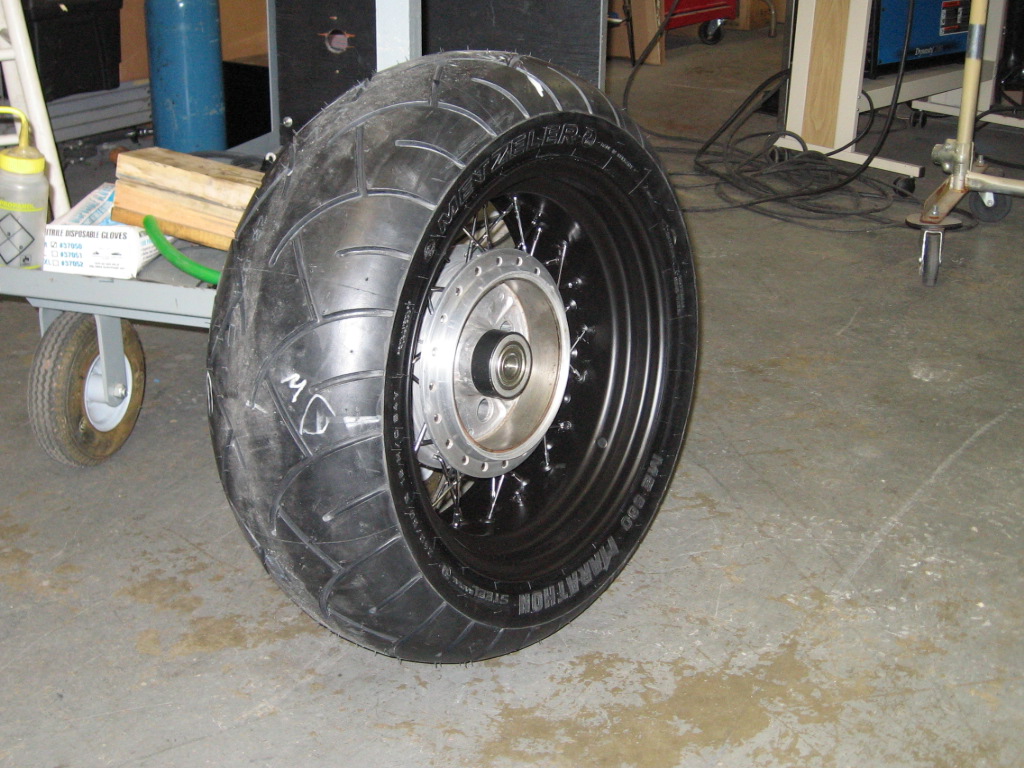

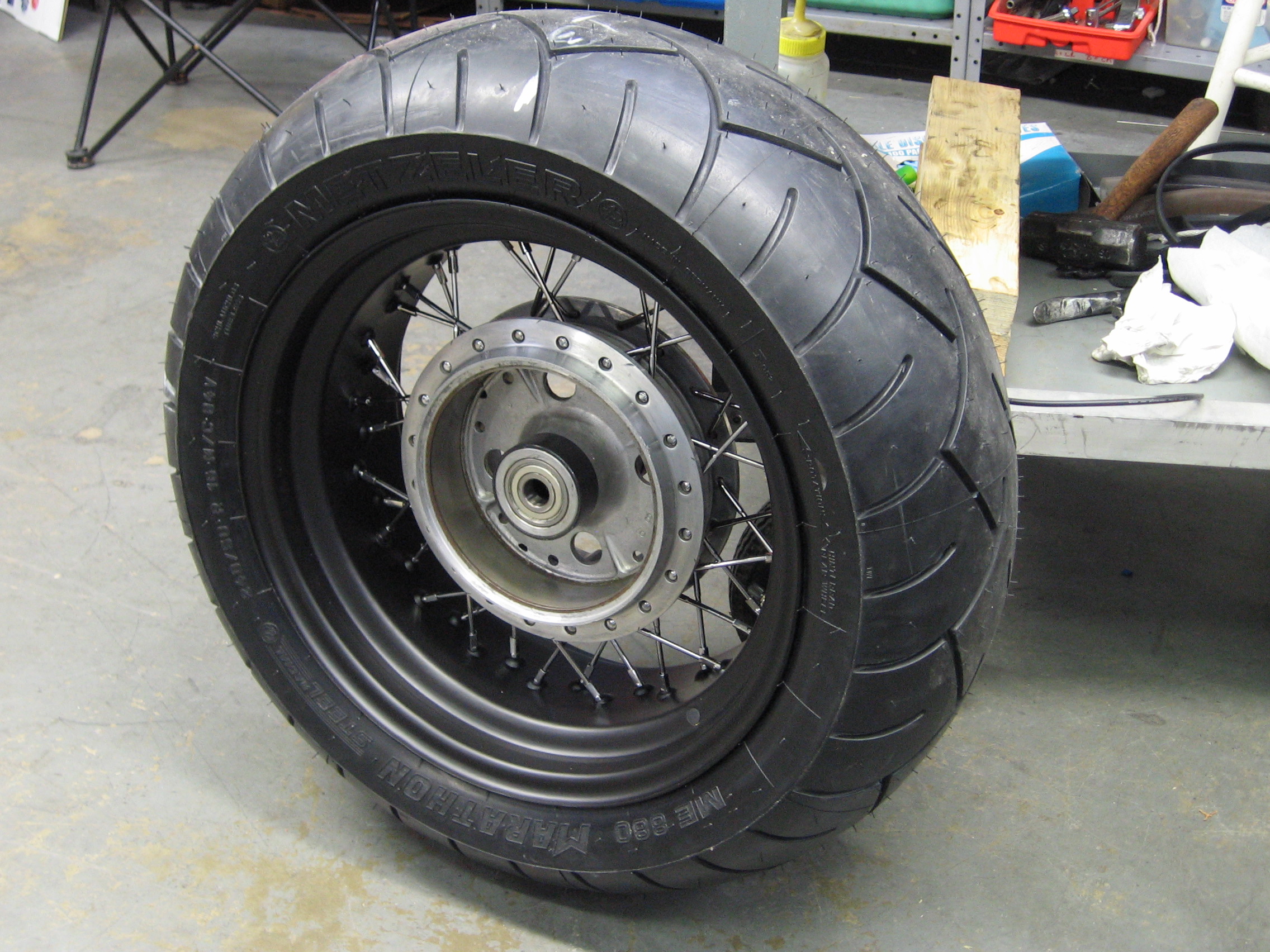

Mounted! What a great feeling!

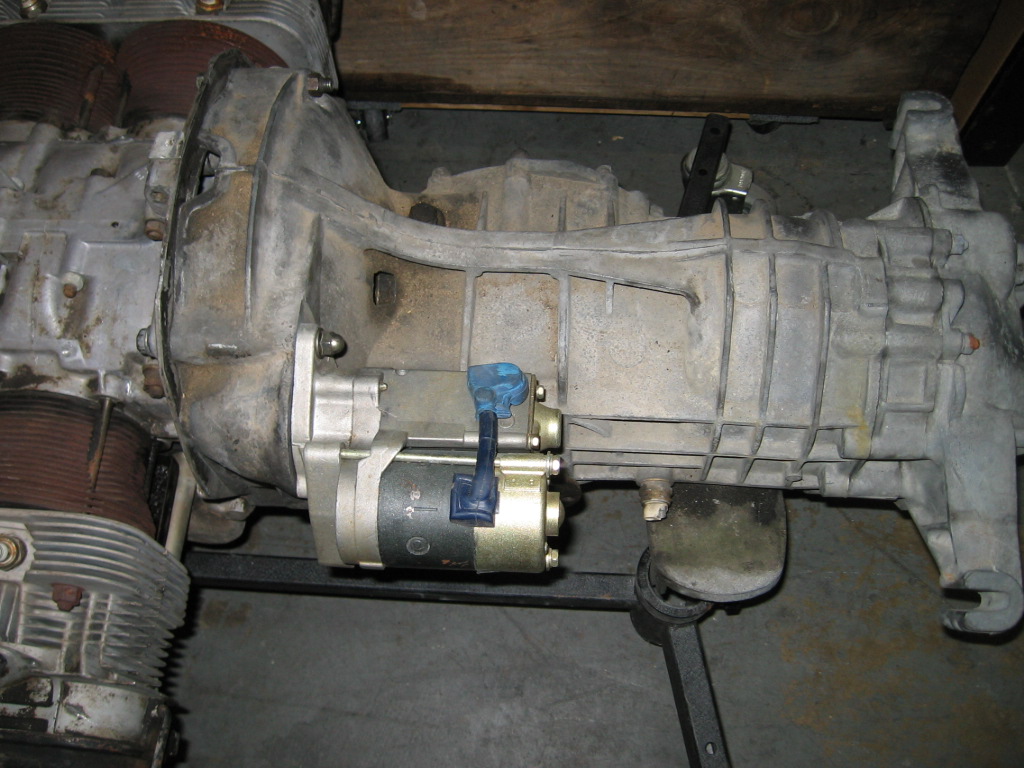

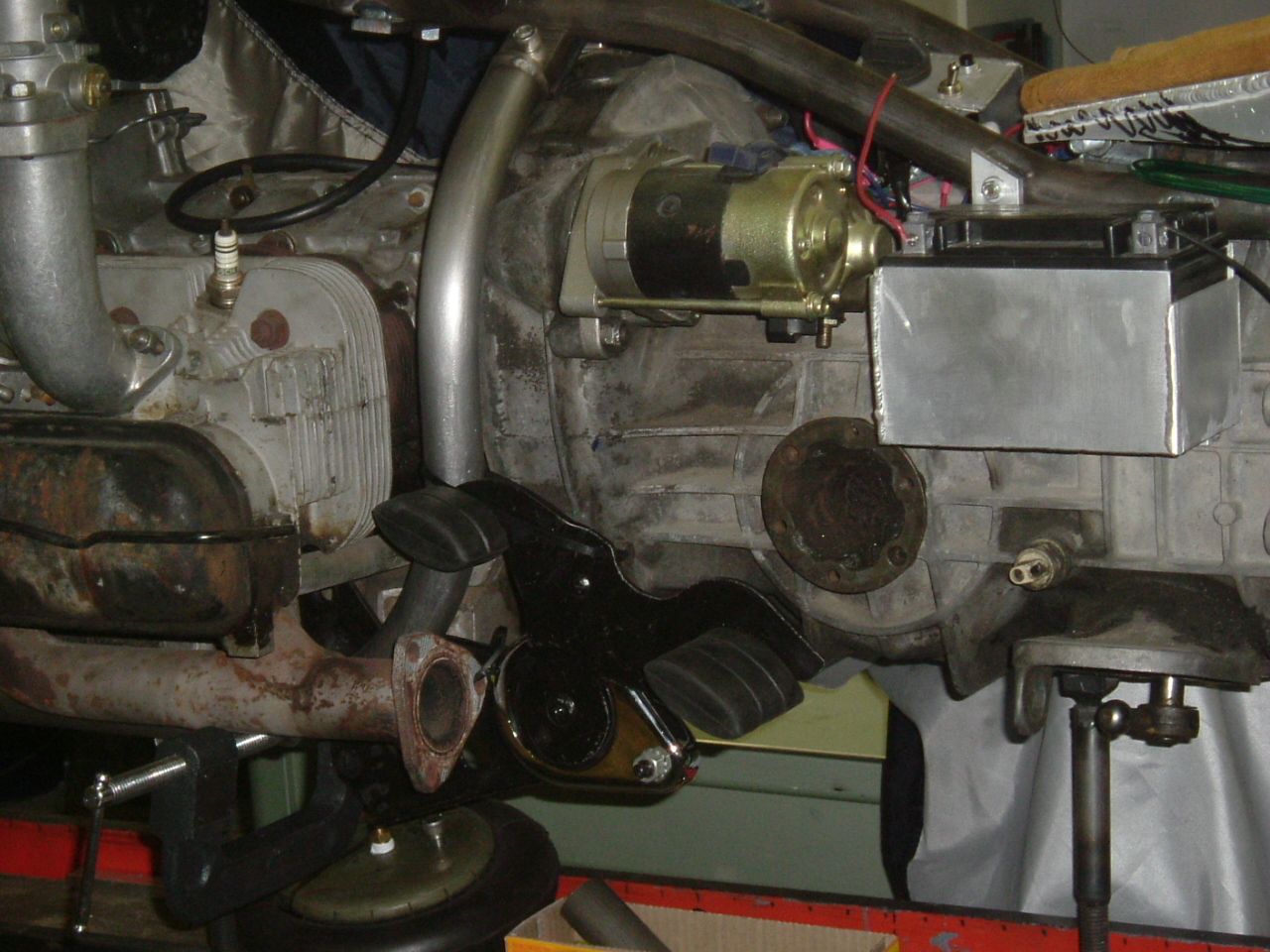

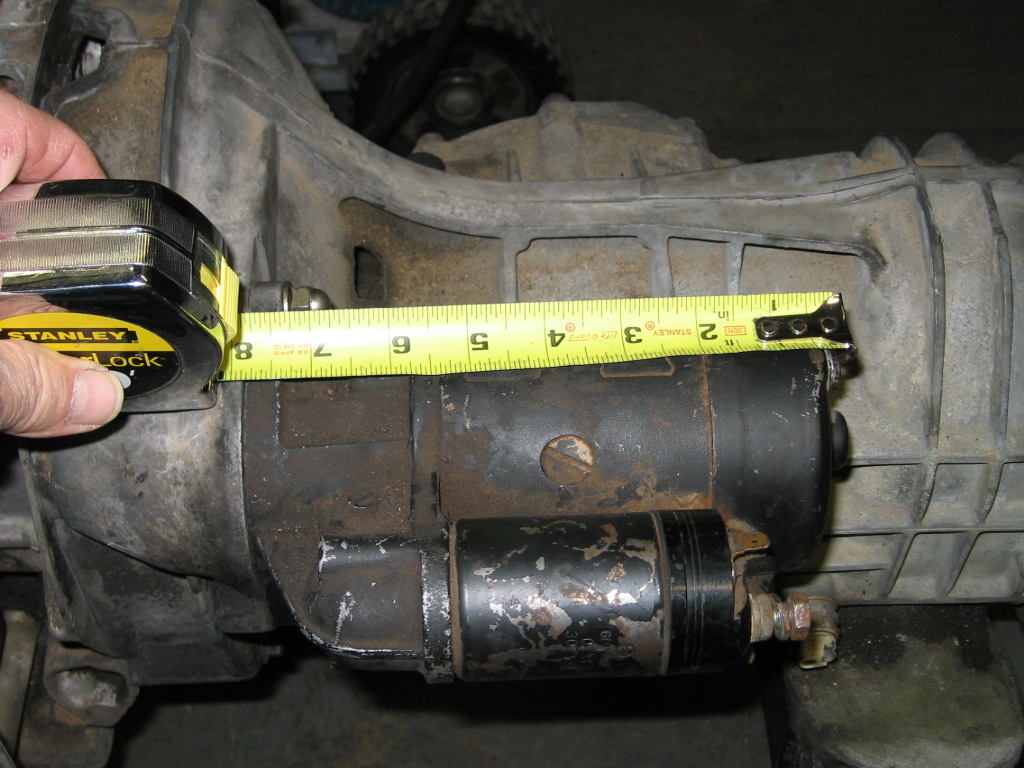

Stock starter needs to be replaced with something a bit smaller! Thanks to "okieflyr" Like this! --->

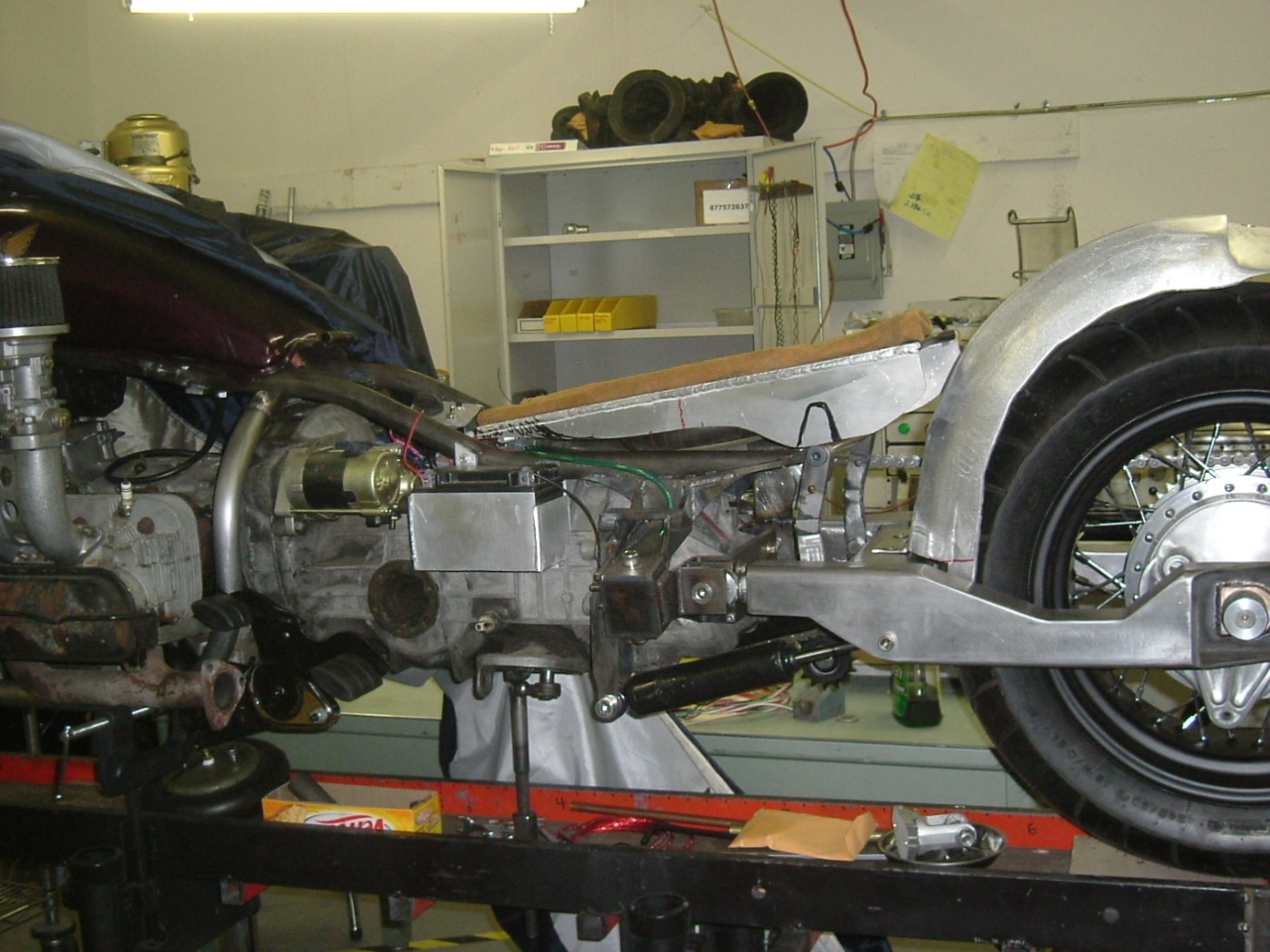

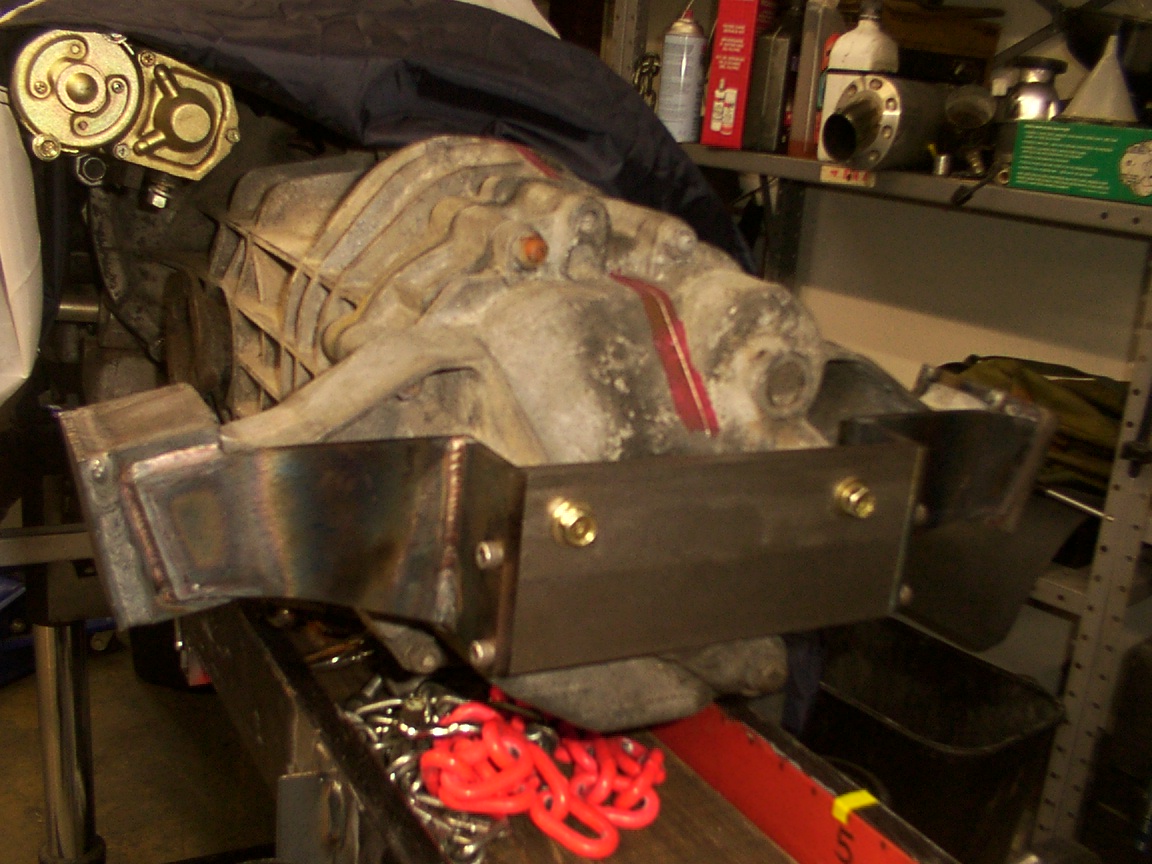

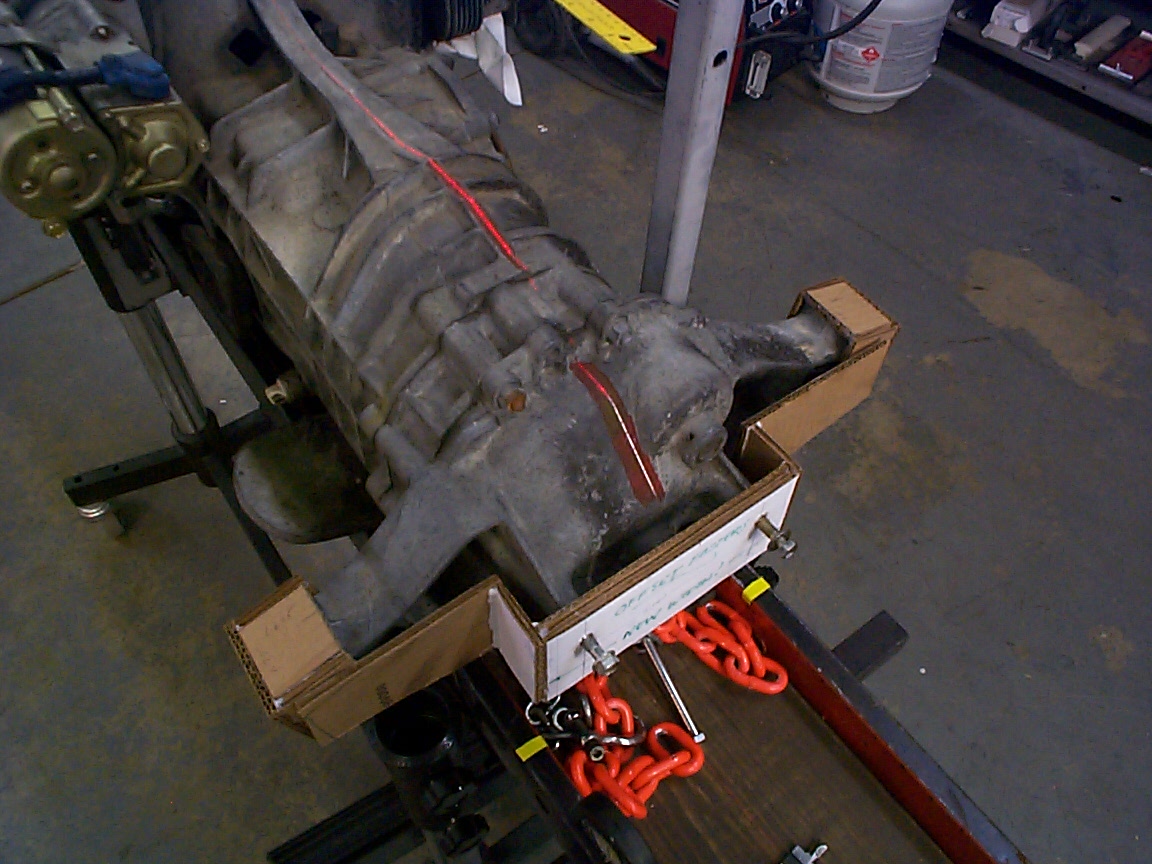

Cardboard mockup of the swingarm pivot structure

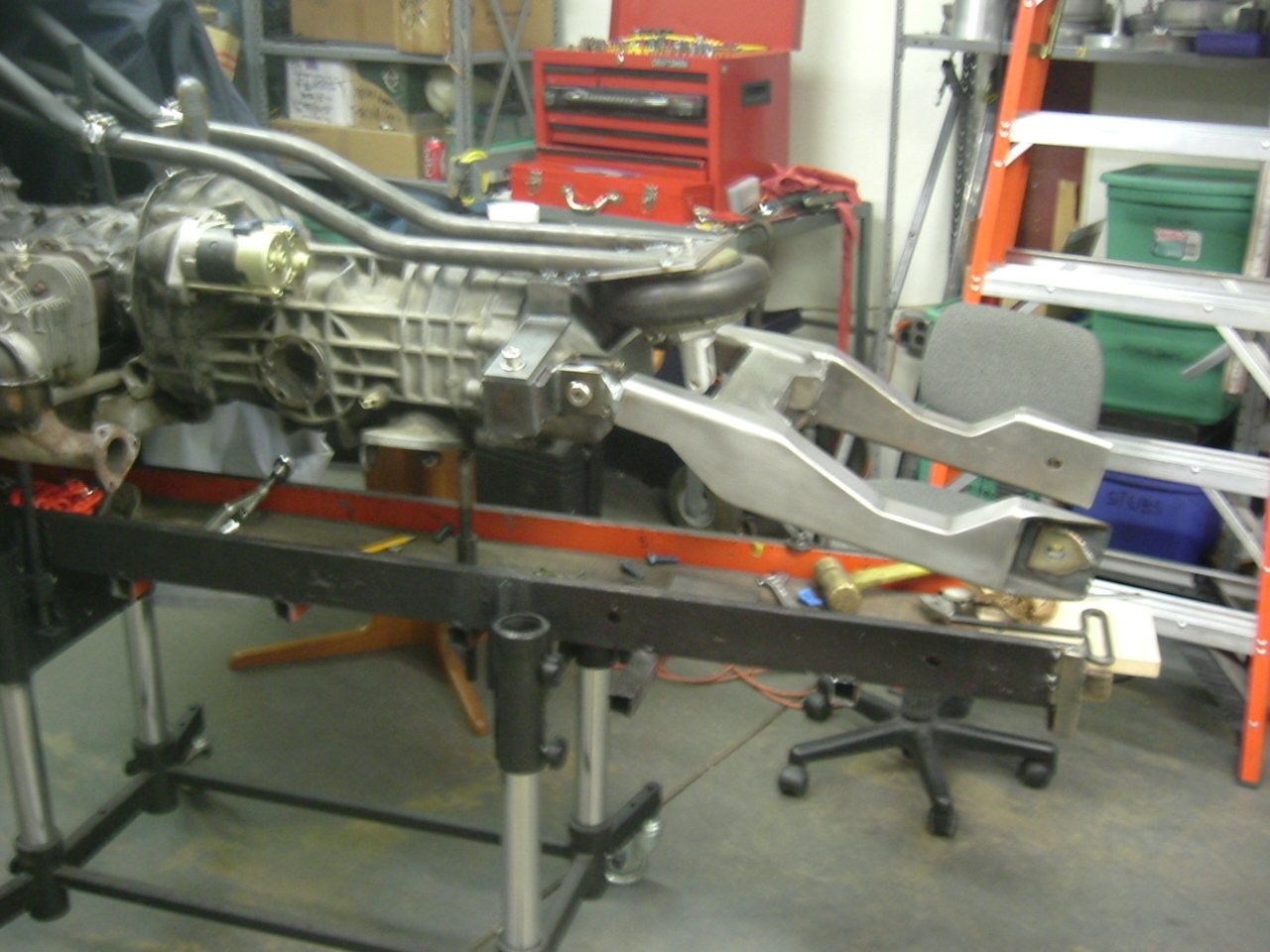

Mild Carbon Steel swingarm pivot structure welded
Here's the new protoyping stand for the mockup w/laser for alignment

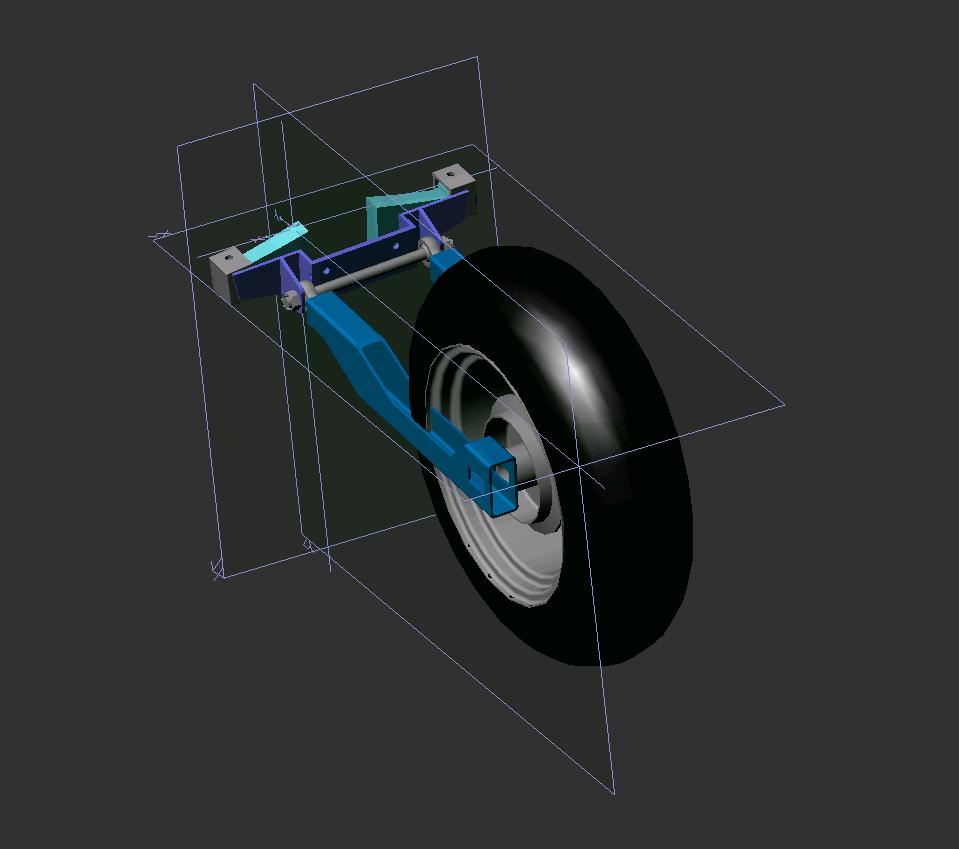

First CAD iteration of swingarm design
Finished boxing in the swignarm!
These pieces > turned into this ->
Setup with Delorto's on one side->

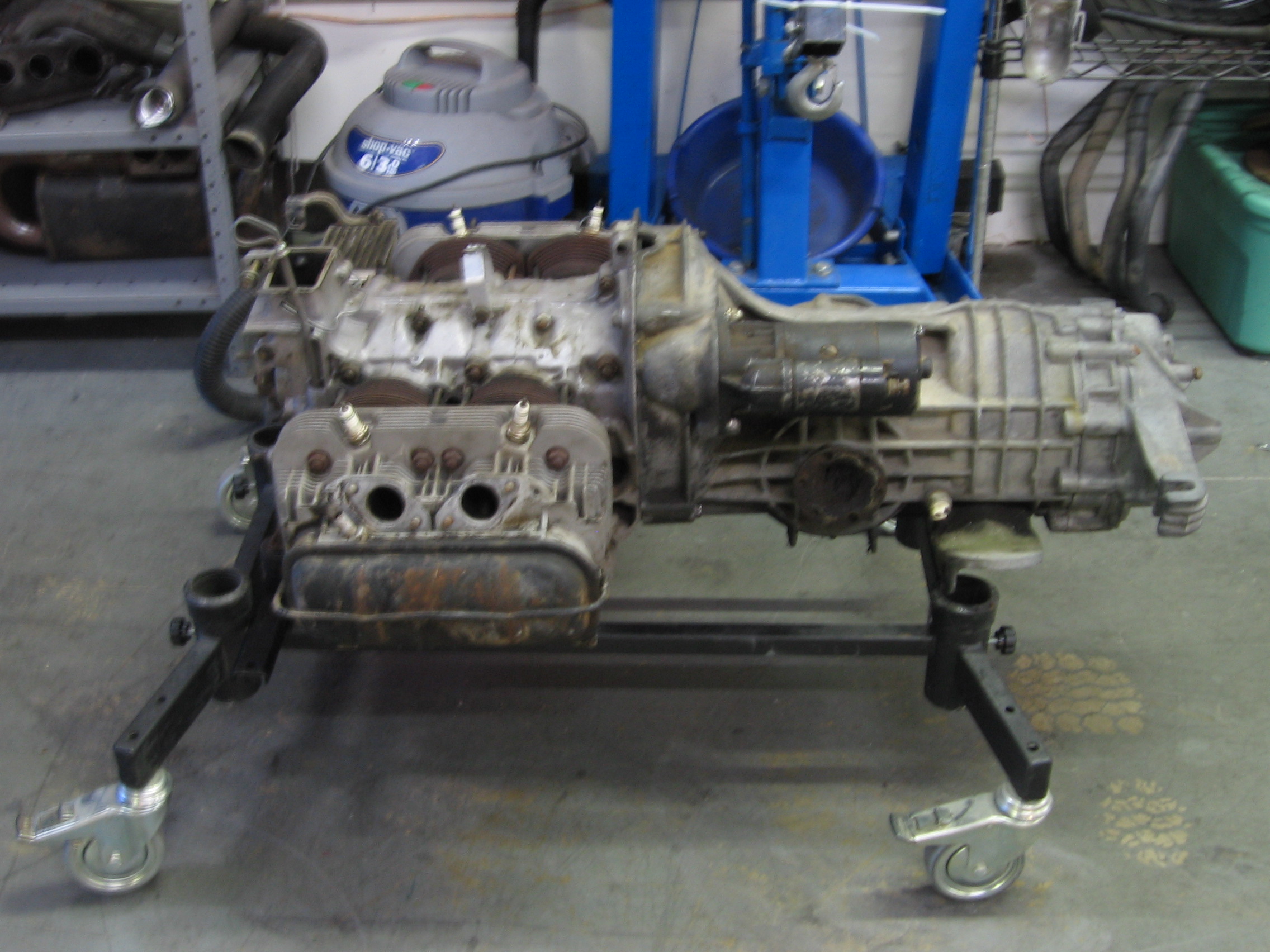

First mockup using parts from an '83 Honda V45.....

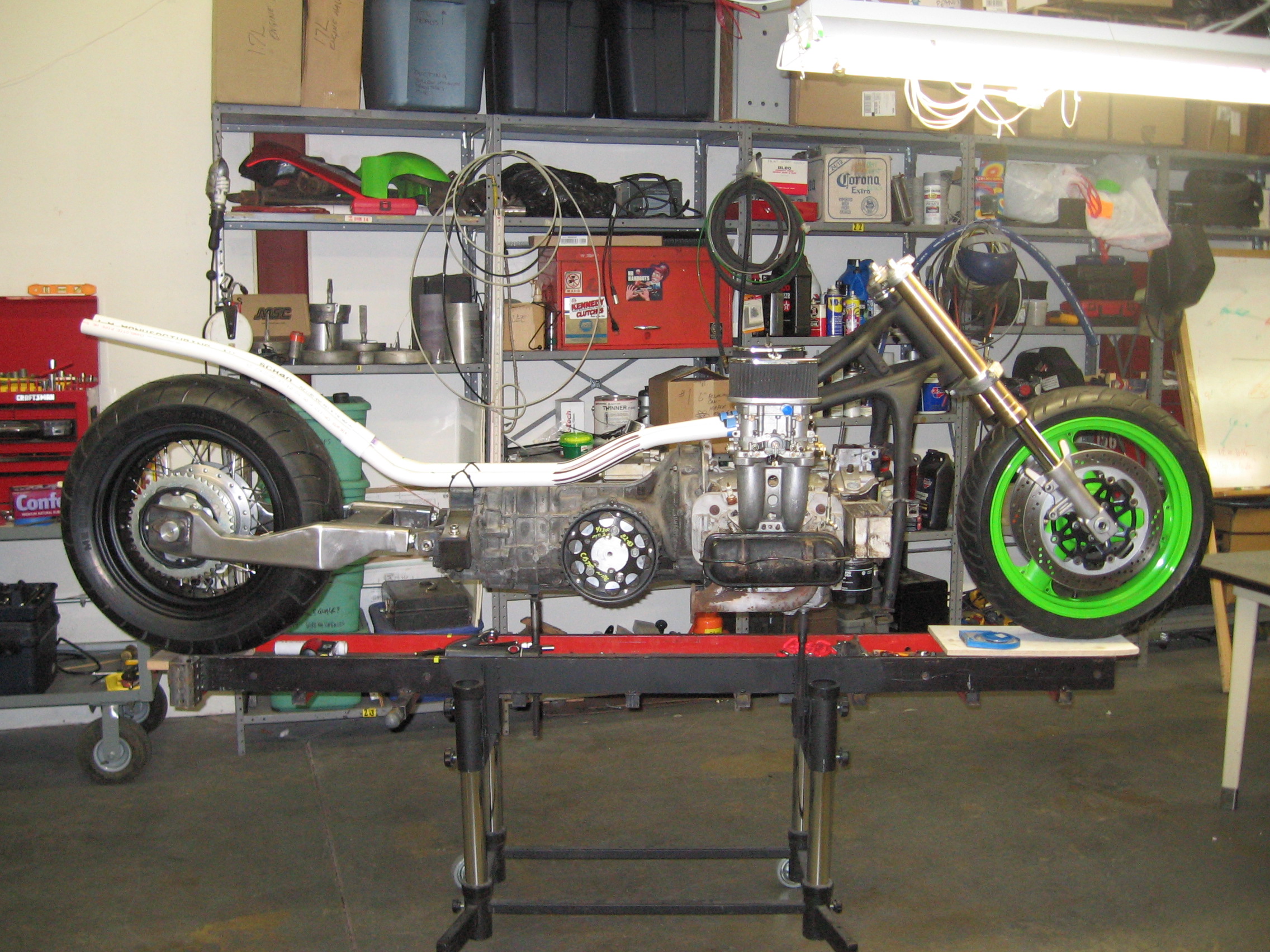

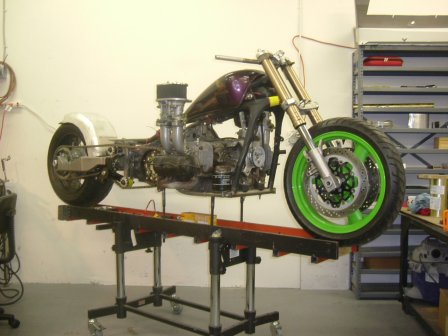

Latest Frame prototyping, Ninja ZX7 forks, 46 tooth rear sprocket, and 43 tooth front sproket mounted.....
Initial airbag suspension fabrication....

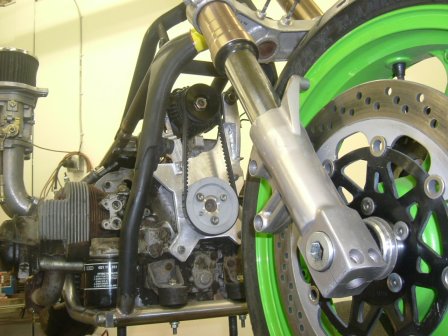

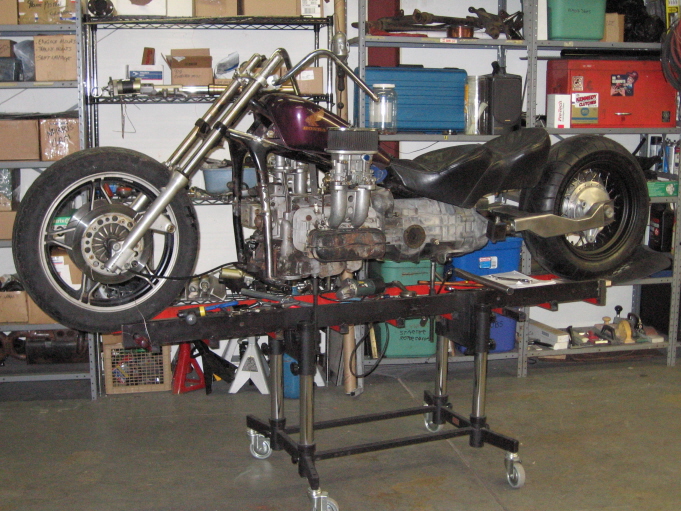

Alternator and Chain Drive completed...
foot clutch
