I initially was doing this to show to my clinic participants, but I figure that everyone can benefit from this information. I was doing this on Kansas914's gear box and just happened to find that his input shaft bearing was no more (see pics).

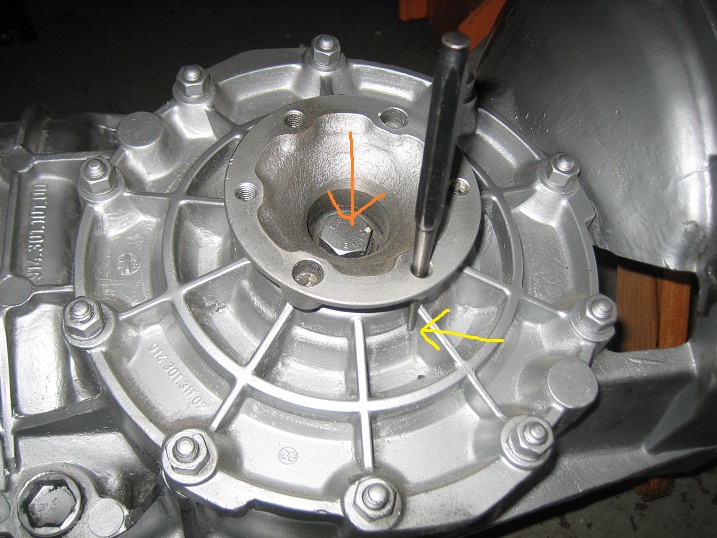

Step one can be done in two ways. I choose to use a tapered punch and place it in a bolt hole with the tip pressing against a rib. The 19mm bolt in the flange should not be torqued very much so this is not an issue. If the drift starts to bend significantly, switch to method #2.

Method #2 is to put two bolts in the flange and use a bar of some sort, down low on the flange surface, against the bolts.
Attached Image

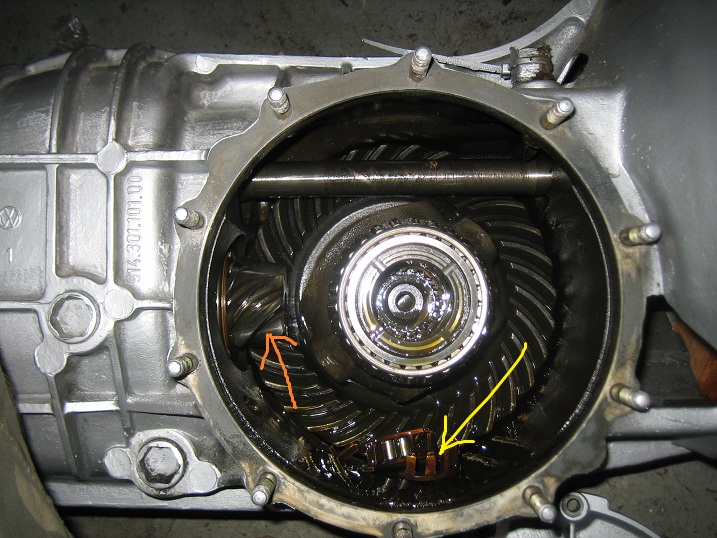

Once the 19mm bolt is removed you just pull the flange out. Remove all the cover bolts and tap the cover at the arrowed locations to remove it.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Apr 24 2011, 07:55 PM
Post #2


Send me your transmission!
***************

Group: Members
Posts: 23,002
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region

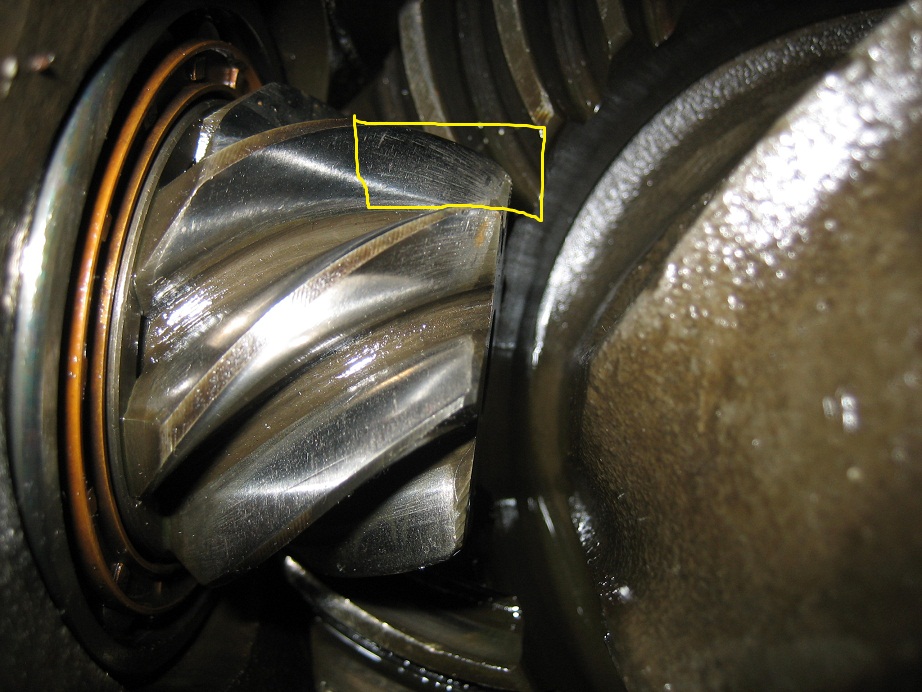

Once the cover is removed you can now inspect the pinion (money shot). If the pinion shows wear that is not too big of a deal. It is a problem if your pinion is galled (gouged).

The camera made this one look worse than it is. If you can feel the streaks, it is gonna howl and wear out even more and faster.

The remnants of the input shaft bearing is pointed out. This is better to find now before more damage is done.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Apr 24 2011, 07:56 PM
Post #3


Send me your transmission!
***************

Group: Members
Posts: 23,002
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region

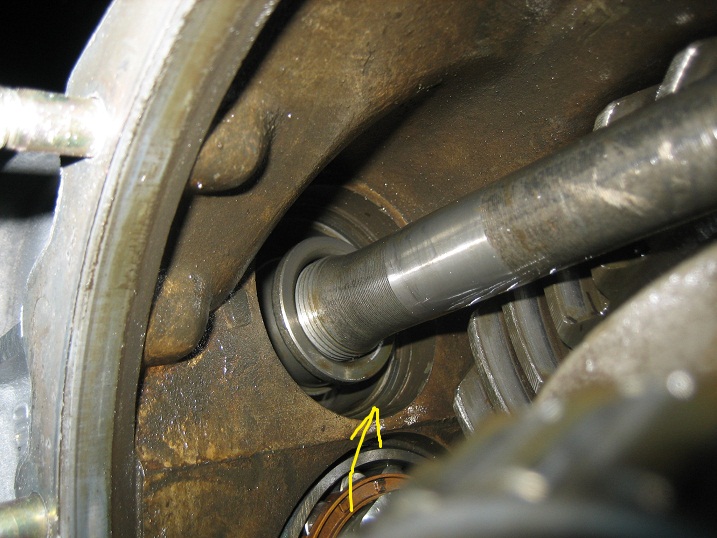

Here is where the bearing parts should be.
