> Early/Late Dash Differences
racerbvd
post May 12 2011, 10:36 AM
Post #1


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
How about some pix to compare the differences..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom_T
post May 12 2011, 12:47 PM
Post #2


TMI....
*****

Group: Members
Posts: 8,318
Joined: 19-March 09
From: Orange, CA
Member No.: 10,181
Region Association: Southern California
Byron - the big difference was adding fresh air vents at each end, with corresponding shortening of the glovebox/door & shifting inboard of the switches on the far left. So the top & knee pads differ accordingly.

Here's my buddy's 71 914/4 (that's a dealer supplied rosewood dash face option since sold new) without the side vents -

Attached Image

... continued next post ....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom_T
post May 12 2011, 12:47 PM
Post #3


TMI....
*****

Group: Members
Posts: 8,318
Joined: 19-March 09
From: Orange, CA
Member No.: 10,181
Region Association: Southern California
.... and .....

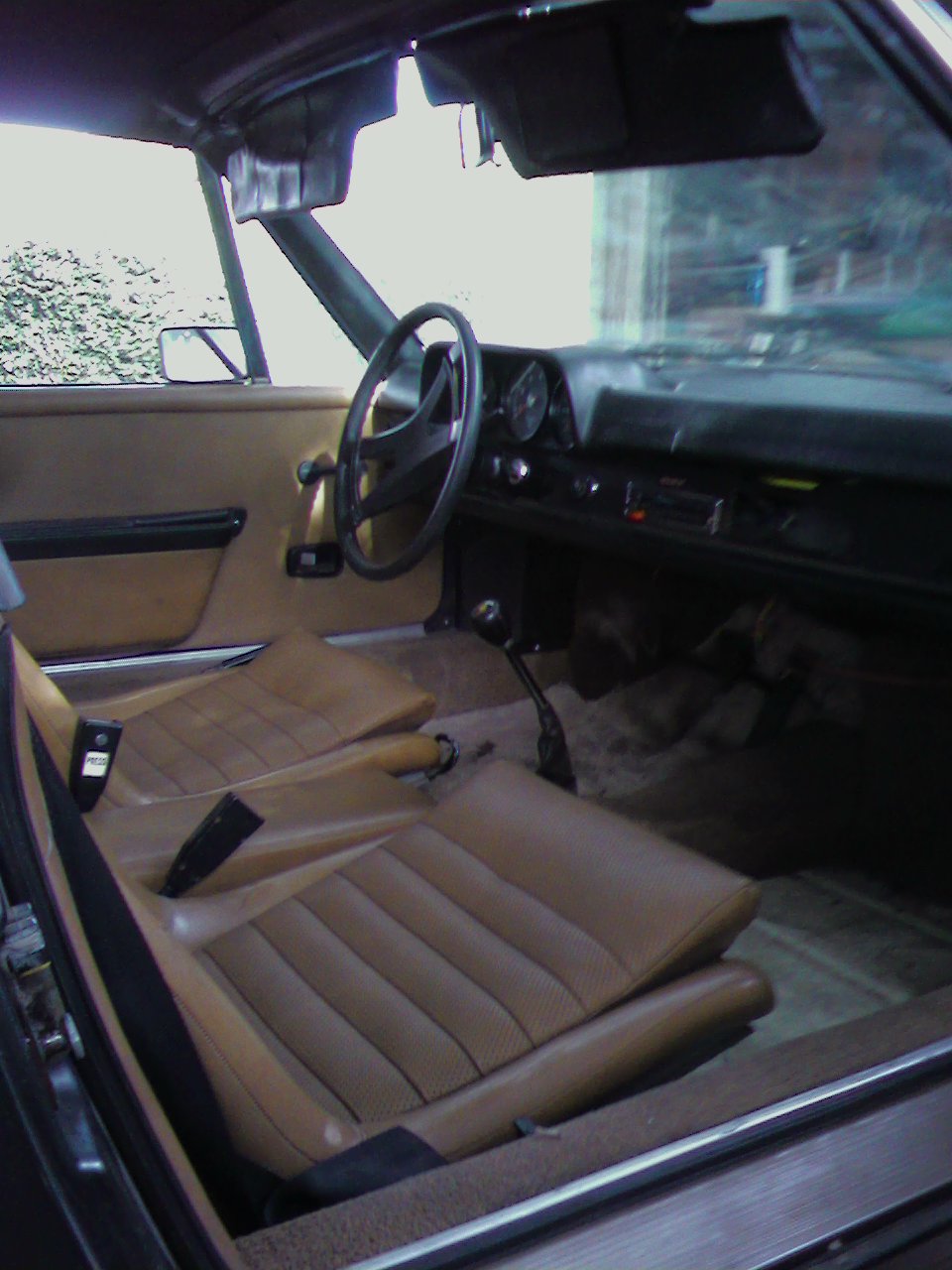

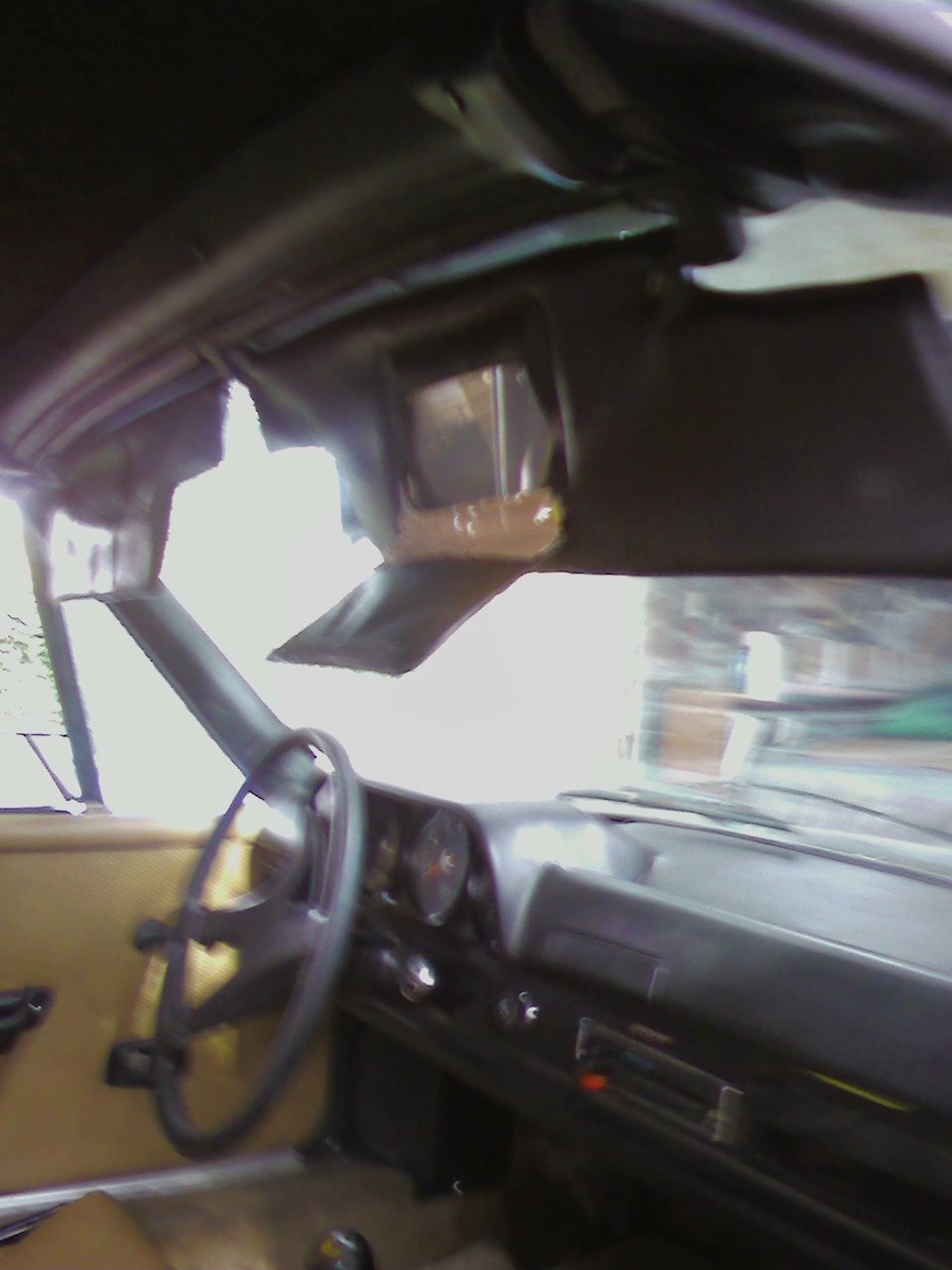

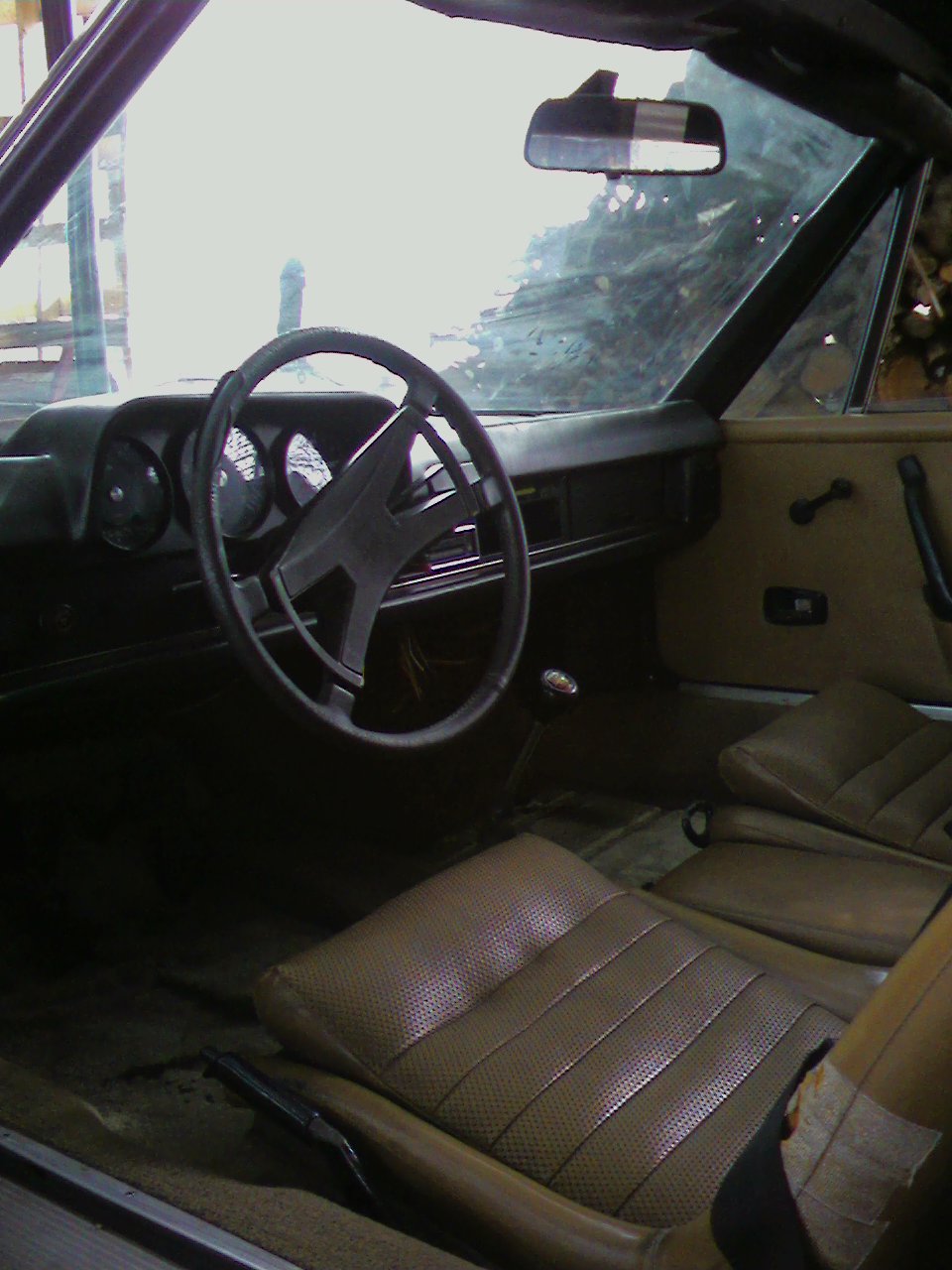

Here's the dash on my 73 2.0 with the late style side vents (radio is out, so that's the hole to left of glovebox) -

Attached Image Attached Image Attached Image
... (sorry for the dark & fuzzy cellphone pix)

Hope this answers whatever you're looking for! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom_T
post May 12 2011, 12:57 PM
Post #4


TMI....
*****

Group: Members
Posts: 8,318
Joined: 19-March 09
From: Orange, CA
Member No.: 10,181
Region Association: Southern California
Here's a better pic of the left/driver's side of the dash from another 73 2.0 -

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post May 12 2011, 01:22 PM
Post #5


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
Ashtray is in a slightly different location on early cars also.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nathansnathan
post May 12 2011, 01:33 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,052
Joined: 31-May 10
From: Laguna Beach, CA
Member No.: 11,782
Region Association: None
QUOTE(Tom_T @ May 12 2011, 11:47 AM) *

So the top & knee pads differ accordingly.

What changes on the top pad? -I've got the late dash with the vents in my 72. I'm a bit worried now as I found an uncracked top pad relatively cheap and I'm not sure what year it was out of. I'll have to take it out of the box and compare later.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post May 12 2011, 02:39 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
Thanks guys, I have 2 extra dashes and need to know which one to use on my 76, and back date one for my GT clone (I have a 914-6 dash for it, not sure what tops I have & want to have one recovered for it) and may trade one off for a Getty 911 dash for the 76(no you guys know how I ended up with so much stuff) (IMG:style_emoticons/default/WTF.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
avidfanjpl
post May 12 2011, 11:22 PM
Post #8


914 Hemophiliac
***

Group: Members
Posts: 720
Joined: 6-April 10
From: Bear, Delaware
Member No.: 11,566
Region Association: MidAtlantic Region
Tommy T!

Shame on you, that is a BEFORE picture of my car.

The door panels are new, the 914rubber door jamb rubbers are installed, there are new Resto Design steel valances, and new mats, and a new ashtray you can't see, and new seatbelts and new press stickers, and a new fuse cover and a new set of window cranks and scrapers, a new mirror, a new heater handle, and hell, the beat goes on!

You back from Georgia yet?

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GaroldShaffer
post May 13 2011, 05:28 AM
Post #9


You bought another 914?
*****

Group: Benefactors
Posts: 7,623
Joined: 27-June 03
From: Portage, IN
Member No.: 865
Region Association: None
Best way to tell is mesaure the width of the indent where the glove box is. Longer indent is early (bigger glove box) sjorter is later. You can use the later one on a early car, but glove box lid wont open all the way up.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post May 13 2011, 08:53 AM
Post #10


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
QUOTE(Garold Shaffer @ May 13 2011, 03:28 AM) *

Best way to tell is mesaure the width of the indent where the glove box is. Longer indent is early (bigger glove box) sjorter is later. You can use the later one on a early car, but glove box lid wont open all the way up.



Thanks Garaold, the 2 dashes I have handy (I have a few core ones in storage) measure 13" at the widest (back of the glove box opening) point so I'm guessing this is late..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post May 13 2011, 08:54 AM
Post #11


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
(IMG:style_emoticons/default/WTF.gif) (IMG:style_emoticons/default/WTF.gif) (IMG:style_emoticons/default/WTF.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post May 18 2011, 11:01 AM
Post #12


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
So how wide should it be, the opening for the early dash???

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post May 30 2011, 08:03 PM
Post #13


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
QUOTE(racerbvd @ May 18 2011, 09:01 AM) *

So how wide should it be, the opening for the early dash???

Attached Image

(IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GaroldShaffer
post May 30 2011, 08:23 PM
Post #14


You bought another 914?
*****

Group: Benefactors
Posts: 7,623
Joined: 27-June 03
From: Portage, IN
Member No.: 865
Region Association: None
I won't be back home until Wednesday late afternoon otherwise I would go out and measure and take a picture of my 70. If you don't have an answer by then I will get the pics for you when I get back home.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post May 30 2011, 09:48 PM
Post #15


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
QUOTE(Garold Shaffer @ May 30 2011, 06:23 PM) *

I won't be back home until Wednesday late afternoon otherwise I would go out and measure and take a picture of my 70. If you don't have an answer by then I will get the pics for you when I get back home.

Great, thanks!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nathansnathan
post May 31 2011, 06:28 AM
Post #16


Senior Member
***

Group: Members
Posts: 1,052
Joined: 31-May 10
From: Laguna Beach, CA
Member No.: 11,782
Region Association: None
I measured mine. I'm lucky they're both late. (IMG:style_emoticons/default/smile.gif) The clearance for the glove box opening measures 12.5 inches at the back (front) were it would touch the dash. The part above the vent measures 4 inches.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post Jun 2 2011, 06:57 PM
Post #17


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
Thanks, so 13.5 across in the glove box area makes it correct for a 70 & 71?/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GaroldShaffer
post Jun 2 2011, 07:54 PM
Post #18


You bought another 914?
*****

Group: Benefactors
Posts: 7,623
Joined: 27-June 03
From: Portage, IN
Member No.: 865
Region Association: None
I would say yes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post Jun 2 2011, 09:09 PM
Post #19


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
So this is correct then...

Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post Jun 3 2011, 02:34 PM
Post #20


Advanced Member
****

Group: Members
Posts: 2,368
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
