> LED Headlights: Turning on the fogs turns on the high beams, too!, New behavior, fogs worked normally until LED headlights installed.
Chi-town
post Mar 30 2019, 10:56 PM
Post #46


Senior Member
***

Group: Members
Posts: 851
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California
Could you separate the ground for the fog relay from the high beam circuit?
Give it an actual ground and turn them off manually when using high beams?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 31 2019, 06:37 AM
Post #47


Jerry
*****

Group: Members
Posts: 7,373
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(Chi-town @ Mar 31 2019, 12:56 AM) *

Could you separate the ground for the fog relay from the high beam circuit?
Give it an actual ground and turn them off manually when using high beams?


Separating the ground for the fog relay would negate the need for the fog light relay to have a ballast resistor. It would make the fog light independent of the high/low beam.

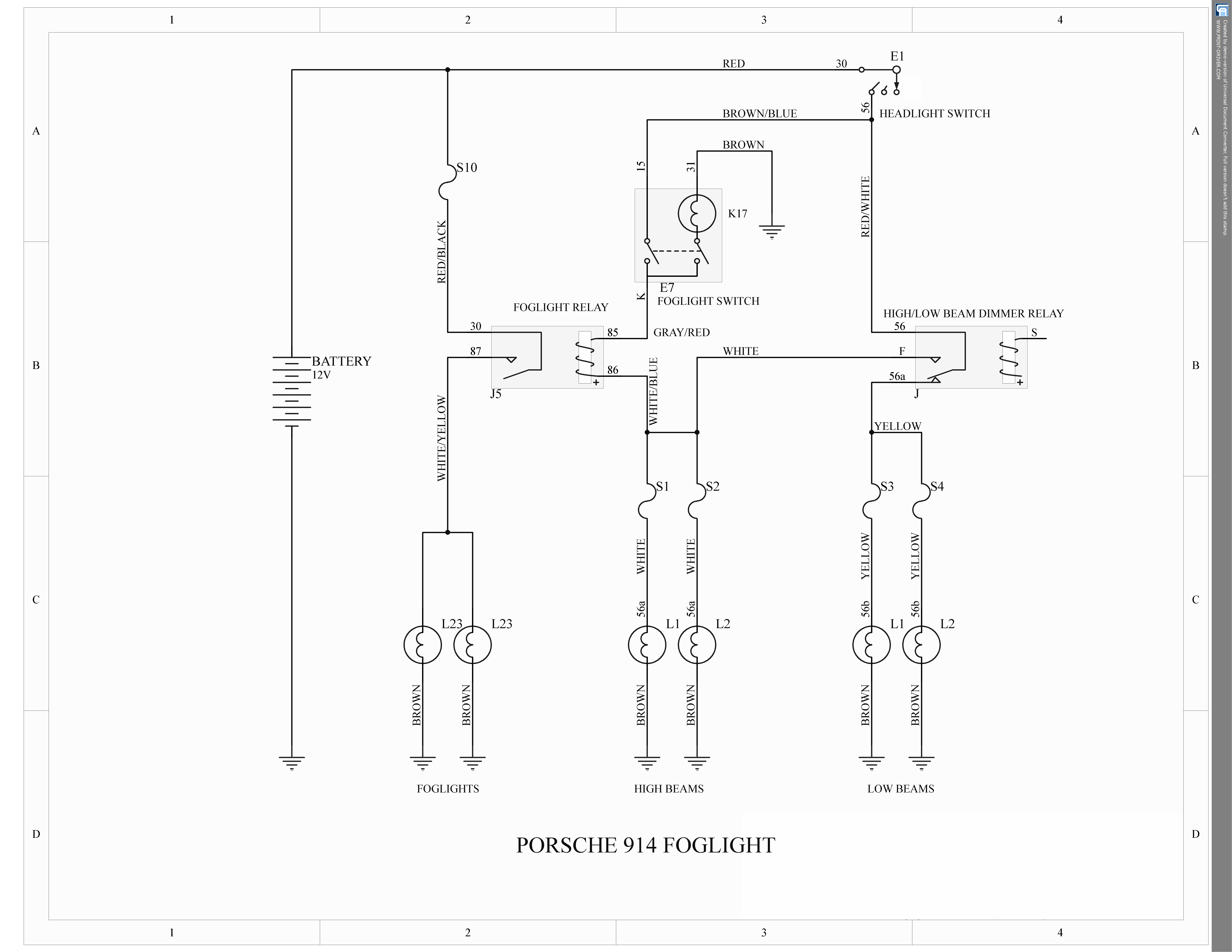

Here's how the '74 914 foglights are connected. Notice the white/blue wire from the fog light relay to the top of fuses 1 and 2. Likely this wire is connected at the fuse panel and able to be easily disconnected. Then make a short pigtail with a male spade on one side and a ring terminal on the other side. Connect the male spade to the white/blue wire and the the ring terminal to a nearby chassis bolt.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Mar 31 2019, 12:52 PM
Post #48


The rubber man
**********

Group: Members
Posts: 12,780
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
The load resistor needs to be on the low beam, to trigger the relay.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chi-town
post Apr 1 2019, 02:11 PM
Post #49


Senior Member
***

Group: Members
Posts: 851
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California
Easiest way
(IMG:http://www.914world.com/bbs2/uploads_offsite/beta-static.photobucket.com-22446-1554149486.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Apr 1 2019, 04:00 PM
Post #50


Jerry
*****

Group: Members
Posts: 7,373
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(Chi-town @ Apr 1 2019, 04:11 PM) *

Easiest way


It could be so that this wire is found on the lugs on the fuse panel for fuse 1 or 2. Easily removed and with a pigtail with male spade on one side and ring terminal on the other side, the modification "should" be an easy update. The fogs would be on then with low or high beam.

Talking to Bruce today, I realized my 930 with LED headlights has the same connections as the 914. I haven't tried the foglights with the LED headlights to see if they still work. Will have to try it this weekend.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Apr 2 2019, 08:43 AM
Post #51


bdstone914
*****

Group: Members
Posts: 5,295
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(Spoke @ Apr 1 2019, 03:00 PM) *

QUOTE(Chi-town @ Apr 1 2019, 04:11 PM) *

Easiest way


It could be so that this wire is found on the lugs on the fuse panel for fuse 1 or 2. Easily removed and with a pigtail with male spade on one side and ring terminal on the other side, the modification "should" be an easy update. The fogs would be on then with low or high beam.

Talking to Bruce today, I realized my 930 with LED headlights has the same connections as the 914. I haven't tried the foglights with the LED headlights to see if they still work. Will have to try it this weekend.


@Chi-town
@spoke
@mikey914
@matty900

Dylan, ( Chi-town)
Anxious to see if it works.
Will be glad to help and document exactly how it it done.
Bruce
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Apr 2 2019, 11:20 AM
Post #52


Jerry
*****

Group: Members
Posts: 7,373
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
I may drop the fuse panel this weekend in my 914 to look for the white/blue foglight wire.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Apr 2 2019, 06:06 PM
Post #53


bdstone914
*****

Group: Members
Posts: 5,295
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(Spoke @ Apr 2 2019, 10:20 AM) *

I may drop the fuse panel this weekend in my 914 to look for the white/blue foglight wire.



@spoke
@chi-town
Dylan is going to try the same on a 914.

I like the option of separating the operation of the dogs from the headlights.

Still looking at best mounting for the load resitor.
Here is where I think it should go. Thick metal and air flow when the lights are up.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Apr 6 2019, 10:34 AM
Post #54


Jerry
*****

Group: Members
Posts: 7,373
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(Spoke @ Apr 1 2019, 06:00 PM) *

Talking to Bruce today, I realized my 930 with LED headlights has the same connections as the 914. I haven't tried the foglights with the LED headlights to see if they still work. Will have to try it this weekend.


Confirmed today that the foglights on the 930 do work with low beams and turn off with high beams. It could be so that the LED headlights on the 930 have a different impedance than the ones on the 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
orthobiz
post Apr 6 2019, 11:00 AM
Post #55


Senior Member
***

Group: Members
Posts: 1,762
Joined: 8-January 07
From: Cadillac, Michigan
Member No.: 7,438
Region Association: Upper MidWest
I never posted my final solution. I had the fogs wired separately so no more hi beam/lo beam woes.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Apr 6 2019, 01:13 PM
Post #56


Advanced Member
****

Group: Members
Posts: 2,186
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California
separately? you mean direct and bypassing the interconnection/relay with the hi/lo switch?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
orthobiz
post Apr 6 2019, 02:35 PM
Post #57


Senior Member
***

Group: Members
Posts: 1,762
Joined: 8-January 07
From: Cadillac, Michigan
Member No.: 7,438
Region Association: Upper MidWest
QUOTE(FlacaProductions @ Apr 6 2019, 03:13 PM) *

separately? you mean direct and bypassing the interconnection/relay with the hi/lo switch?


Yes, direct separate wiring. Actually Brad/Michael at 914ltd did it for me.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
drem914
post Apr 7 2019, 10:32 AM
Post #58


Senior Member
***

Group: Members
Posts: 1,068
Joined: 16-May 08
From: Trabuco Canyon, CA
Member No.: 9,062
Region Association: Southern California
QUOTE(Mikey914 @ Mar 31 2019, 11:52 AM) *

The load resistor needs to be on the low beam, to trigger the relay.


Mark, I purchased the resistor from you, but am still waiting on a final wiring diagram so I know where and how to connect up. Scott said you might have that out soon?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Apr 7 2019, 09:48 PM
Post #59


Jerry
*****

Group: Members
Posts: 7,373
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
I modified the headlight/foglight schematic to show where the foglight relay attaches to the high beam lights. Turns out the 914 is wired such that the white/blue wire from the foglight relay is connected directly to the spade connected to the high/low beam relay.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Apr 7 2019, 09:52 PM
Post #60


Jerry
*****

Group: Members
Posts: 7,373
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
I decided to rewire the foglight to be independent of the high beams. Disconnected the battery negative cable and dropped the fuse panel.

The high/low beam relay is shown on the right side of the panel. The foglight wire is the white/blue wire. This wire will be cut and tied to ground.



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Apr 7 2019, 09:55 PM
Post #61


Jerry
*****

Group: Members
Posts: 7,373
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
The white/blue wire to the foglight relay is cut and crimped to about 1 foot of wire. The other end of the wire has a ring terminal crimped on.



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Apr 7 2019, 09:57 PM
Post #62


Jerry
*****

Group: Members
Posts: 7,373
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
The other end of the new wire is grounded on this lug. Now the foglights are independent of the high beams. With this modification , a ballast resistor will not be necessary when the headlights are LEDs.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Apr 7 2019, 10:18 PM
Post #63


The rubber man
**********

Group: Members
Posts: 12,780
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
This would actually be the preferred method of install as the resistors will generate heat.

Thanks Spoke
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Apr 7 2019, 10:19 PM
Post #64


The rubber man
**********

Group: Members
Posts: 12,780
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
QUOTE(drem914 @ Apr 7 2019, 08:32 AM) *

QUOTE(Mikey914 @ Mar 31 2019, 11:52 AM) *

The load resistor needs to be on the low beam, to trigger the relay.


Mark, I purchased the resistor from you, but am still waiting on a final wiring diagram so I know where and how to connect up. Scott said you might have that out soon?

More than happy to take it back, Spoke’s solution is preferable.
Mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
drem914
post Apr 8 2019, 09:05 AM
Post #65


Senior Member
***

Group: Members
Posts: 1,068
Joined: 16-May 08
From: Trabuco Canyon, CA
Member No.: 9,062
Region Association: Southern California
QUOTE(Mikey914 @ Apr 7 2019, 09:19 PM) *

QUOTE(drem914 @ Apr 7 2019, 08:32 AM) *

QUOTE(Mikey914 @ Mar 31 2019, 11:52 AM) *

The load resistor needs to be on the low beam, to trigger the relay.


Mark, I purchased the resistor from you, but am still waiting on a final wiring diagram so I know where and how to connect up. Scott said you might have that out soon?

More than happy to take it back, Spoke’s solution is preferable.
Mark



Thank you, I'll bundle it up and send it back. It's stlll in the orignal bag you sent it in.
