 Questions on Rocker Assembly, Simple Questions |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| BeatNavy |
 Dec 17 2018, 05:07 PM
Post
#1
|
|
Certified Professional Scapegoat  Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region
 |
These are pretty straightforward questions, but I've seen conflicting info, and conflicting pictures, on the interweb, so I'd like to know the answer once and for all, as my searching this forum (and in general) hasn't given me the level of confidence I would like.

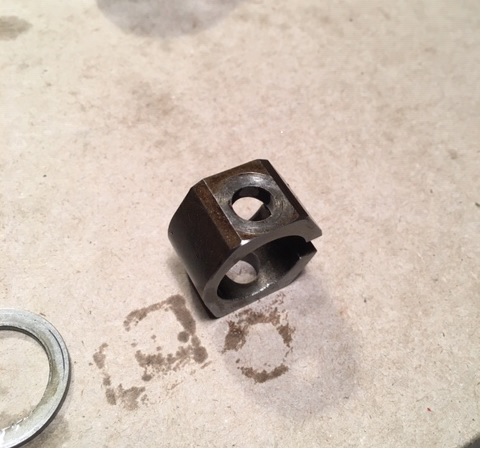

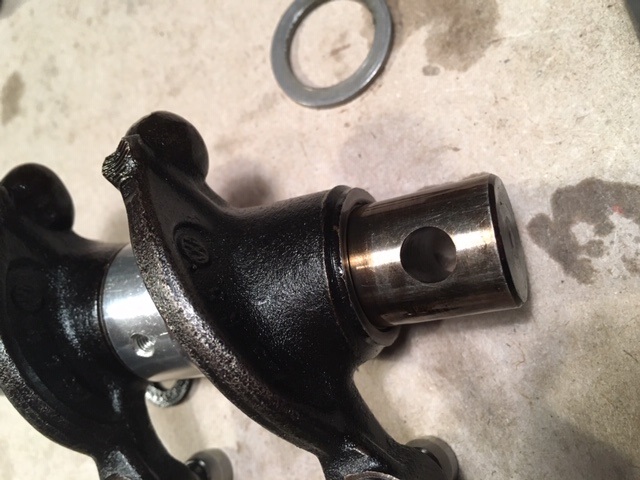

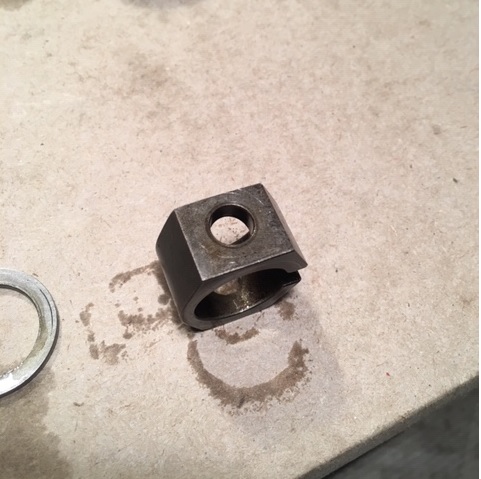

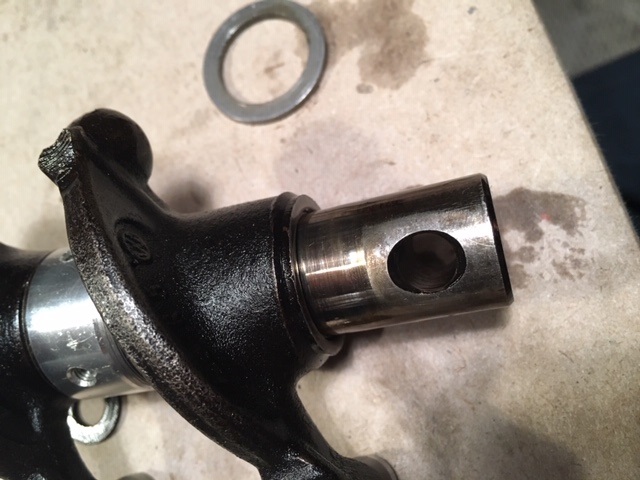

1. Which way does the rocker pedestal go? Chamfered side down (against head) or out (away from engine)? I've read down against the head, but seen contradictory info, including, I believe, in Wilson's book. Which one goes down against head, pic A or pic B? Pic A  Pic B  Next stupid question: 2. In the pics below, which way should the rocker shaft be oriented? Somewhat ovaled/beveled opening down against the head or the other direction? I believe pic A goes DOWN against the head, but please confirm: Pic A  Pic B  Thank you for contributing to my peace of mind. Rock on (IMG:style_emoticons/default/aktion035.gif) |
   |

|
  |
Replies(1 - 7)
| Tbrown4x4 |
Dec 17 2018, 05:56 PM
Post
#2
|
|
Senior Member Group: Members Posts: 704 Joined: 13-May 14 From: Port Orchard, WA Member No.: 17,338 Region Association: None
|
Per my Clymer's manual: " The chamfered edge of the support points outward and the slot points downward."
No mention of shaft orientation. However, I am inclined to believe the shaft hole chamfer points outward to help with inserting the bolt. But no real proof. |
|
|
|
| BeatNavy |
Dec 18 2018, 07:12 AM
Post
#3
|
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region
|
Ok, thanks for the input. Any other thoughts out there?

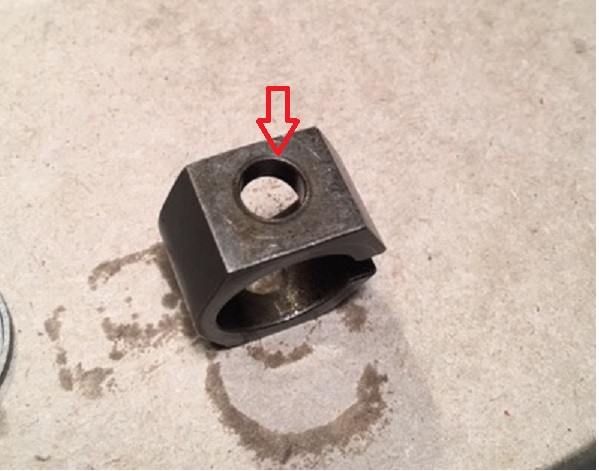

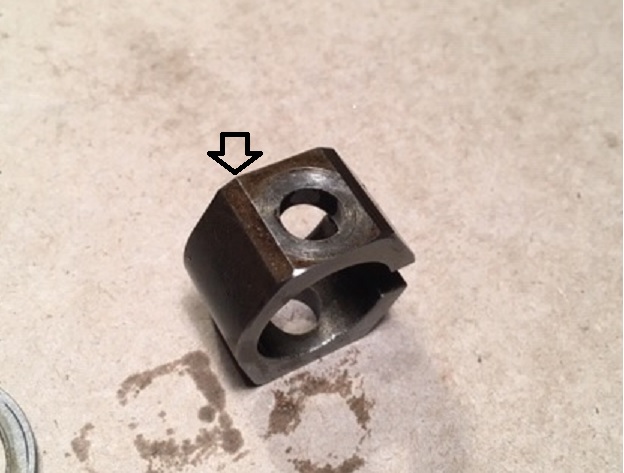

One input from not too long ago was DD's note here: http://www.914world.com/bbs2/index.php?s=&...t&p=2623912 where he says "make sure that the hole in the rocker shaft holders (crap, forgot the term!) that is chamfered is toward the head". Operative word here (in reference to what is chamfered) being hole, not edge. Upon closer inspection, it DOES look like there might be a chamfer to the hole on one side and not the other as well as a chamfer to the actual pedestal edge. Hence some confusion (at least for me). See pics below: chamfered edge:  chamfered hole?:  I get that pointing the chamfered edge of the hole in toward head is the same as pointing the chamfered edge of the actual pedestal out, but I am just trying to confirm. In terms of the rocker shaft, the instructions that came with the solid spacer from Type4 store mention ensuing that the beveled hole of rocker shaft point down against head or damage to pushrods and rockers can occur (I'm paraphrasing here). Don't want damage. Damage bad. |
|
|
|
| Mark Henry |
Dec 18 2018, 07:24 AM
Post
#4
|
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
Chamfered up, the slot becomes obvious when you put the PR tube spring on.
|
|
|
|
| BeatNavy |
Dec 18 2018, 07:38 AM
Post
#5
|
|
Certified Professional Scapegoat Group: Members Posts: 2,924 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region
|
QUOTE(Mark Henry @ Dec 18 2018, 08:24 AM)  Chamfered up, the slot becomes obvious when you put the PR tube spring on. Thanks, Mark. Yeah, I'm clear on the slot for the pushrod tube retaining wire. To be clear, you're saying chamfered EDGE (not hole) up, correct? Also, any thoughts on rocker shaft orientation? |
|
|
|
| pilothyer |
Jul 1 2020, 07:31 PM
Post
#6
|
|
Member Group: Members Posts: 838 Joined: 21-May 08 From: N. Alabama Member No.: 9,080 Region Association: South East States |
Old post I know, But what was the answer regarding the orientation of the Rocker shaft itself????? Oval hole down or up?????
|
|
|
|
| pilothyer |
Jul 2 2020, 09:13 PM
Post
#7
|
|
Member Group: Members Posts: 838 Joined: 21-May 08 From: N. Alabama Member No.: 9,080 Region Association: South East States |
Found out, Oval Hole Down Toward Head. Thanks Mark Henry
|
|
|
|
| Mark Henry |
Jul 3 2020, 05:37 AM
Post
#8
|
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
The correct way the block and shaft face up as in these two pics. The slot in the block faces down towards the PR tubes.
(IMG:http://www.914world.com/bbs2/uploads/post-17042-1545138406.jpg) (IMG:http://www.914world.com/bbs2/uploads/post-17042-1545087655.jpg) |
|
|
|
|
