Congratulations! (IMG:style_emoticons/default/piratenanner.gif) Let's see some close ups of your riveting. AN 426's?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 19 2015, 04:07 PM
Post #102


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains
QUOTE(76-914 @ Sep 19 2015, 09:23 AM) *

Congratulations! (IMG:style_emoticons/default/piratenanner.gif) Let's see some close ups of your riveting. AN 426's?


You are correct. AN 426's.

Attached Image

Your build thread has been an inspiration. I have read it several times! I am getting ready to start my hydraulic clutch build. I am using the info that you and Chris posted in your thread. Do you have any tips that might help it go smoothly?

Ray
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Sep 19 2015, 05:28 PM
Post #103


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,700
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Ignore my bolt hole dimensions. If you can grab an old brake MC, use it as a drill guide for your bolt holes and of course you will have the clutch MC to use as a guide for the other 2 bolt holes. When the plate is drilled out, place it in a vice and center the holes horizontally. Then mount the clutch MC and twist the plate 3 degrees down. I use a large pipe wrench and grab the plate around the mounted MC. Having the MC bolted down keeps the plate from twisting the flat surface the MC mounts to. Use the center of the large hole on the clutch master as a guide to locate center of the hole you will drill in the floorboard. Your going to love that conversion your building and you won't be afraid to drive cross country in it, either. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 19 2015, 05:34 PM
Post #104


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains
QUOTE(76-914 @ Sep 19 2015, 05:28 PM) *

Ignore my bolt hole dimensions. If you can grab an old brake MC, use it as a drill guide for your bolt holes and of course you will have the clutch MC to use as a guide for the other 2 bolt holes. When the plate is drilled out, place it in a vice and center the holes horizontally. Then mount the clutch MC and twist the plate 3 degrees down. I use a large pipe wrench and grab the plate around the mounted MC. Having the MC bolted down keeps the plate from twisting the flat surface the MC mounts to. Use the center of the large hole on the clutch master as a guide to locate center of the hole you will drill in the floorboard. Your going to love that conversion your building and you won't be afraid to drive cross country in it, either. (IMG:style_emoticons/default/beerchug.gif)



Thank you very much for the help! I am really looking forward to driving it. I hope to drive to the RRC next year.

Ray
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Sep 19 2015, 06:55 PM
Post #105


Senior Member
****

Group: Members
Posts: 4,056
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
It's pretty rewarding when it fires up isn't it? Nice. Just got back from a lap in mine. Clutch still works great. That plate Kent made is the key.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JRust
post Sep 19 2015, 07:09 PM
Post #106


914 Guru
*****

Group: Members
Posts: 6,316
Joined: 10-January 03
From: Albany Oregon
Member No.: 129
Region Association: Pacific Northwest
Congrats bud! Only which you & Ross could have made it out for Red Rocks. Been a fun weekend & almost over. I head back tomorrow but my car worked great. Next time but can't wait to see some video of you driving yours. Way to go (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 19 2015, 09:31 PM
Post #107


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains
Chris, I have been working on the car non-stop for the last couple of months. It was very nice to hear the engine fire up for the first time. It helps keep the momentum up. I would like to drive the car before the snow starts to fall.

It is good to hear that the clutch mod is still working out well. It looked like a solid install and smart design. I really appreciate that you and Kent took the time to figure it out and share it with everyone here. You guys Rock! (IMG:style_emoticons/default/pray.gif)

Jamie, The EMS Stinger and Outfront wiring harness sure made the electrical install easy. Thanks for helping me decide to go that way when you were here in Denver.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 20 2015, 12:06 PM
Post #108


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains

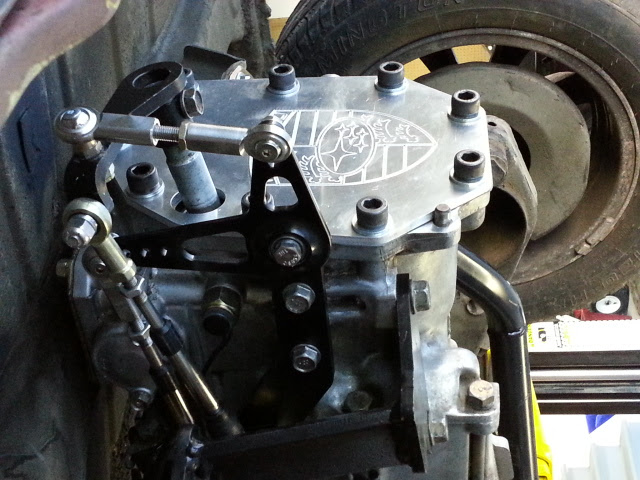

I just wrapped up the cable shift install. Next on the list is the hydraulic clutch.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Sep 20 2015, 12:11 PM
Post #109


914-6 GT in waiting
***************

Group: Members
Posts: 19,876
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(A&P Mech @ Sep 20 2015, 02:06 PM) *

I just wrapped up the cable shift install. Next on the list is the hydraulic clutch.

Attached Image

Is that the cold water kit? Looks great!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 20 2015, 12:14 PM
Post #110


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains
It is. Ian did a great job on the kit.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 22 2015, 06:05 AM
Post #111


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains

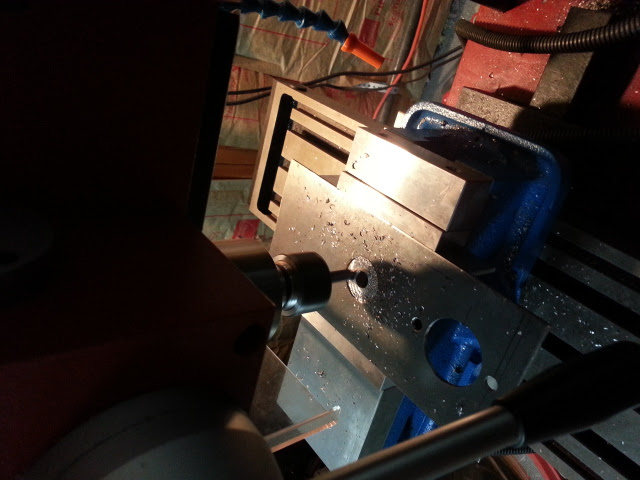

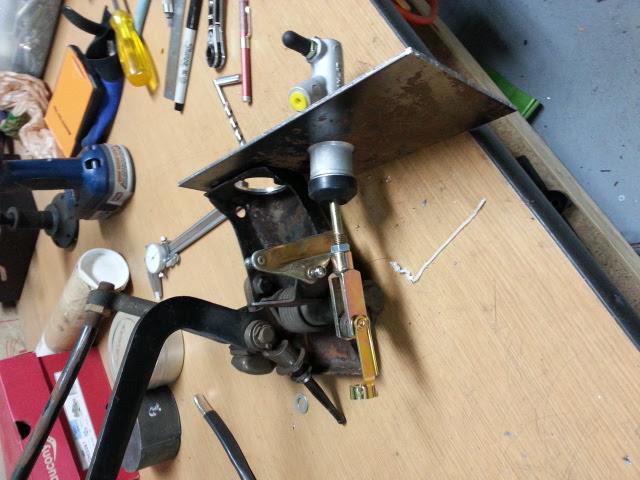

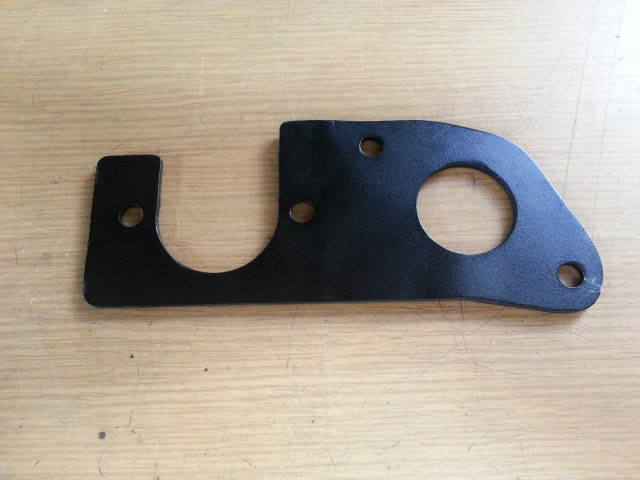

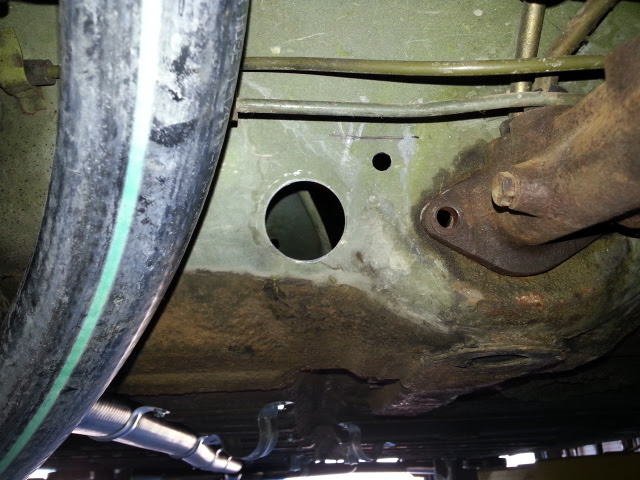

I started fabrication of the clutch master cylinder mount last night. I was able to get the holes for both master cylinders cut and the two holes drilled that are use to mount the plate to the pedal cluster. I should get the plate trimmed down and installed tonight. As I was removing the pedals I realized that I may have a problem. My coolant hoses appear to occupy the same space as the new clutch master cylinder. I am not sure what it is going to take to make it all fit but as soon as I get the new plate mounted I will start working on a solution.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Sep 22 2015, 06:50 AM
Post #112


Senior Member
****

Group: Members
Posts: 4,056
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
Once you trim the plate down you just have to move the hoses around a bit. May need to slacken them a little. It's a lot of stuff to put in that small space but it'll fit.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
76-914
post Sep 23 2015, 12:42 PM
Post #113


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,700
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Looking good. Chris is correct. It is like trying to shove 2 gals of shit into a 1 gal bucket.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 26 2015, 08:11 AM
Post #114


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains

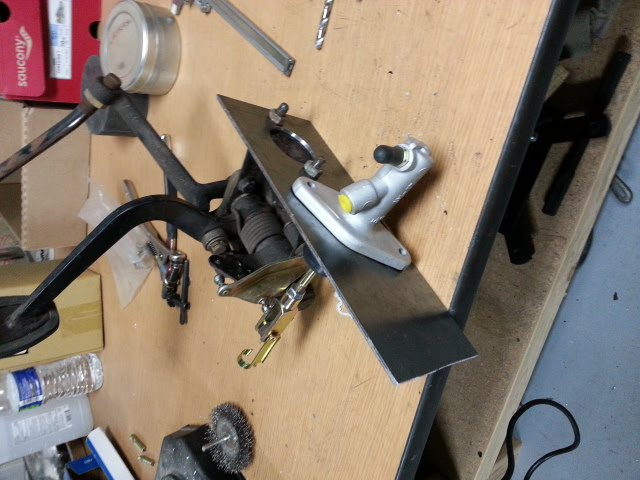

I was able to get the clutch master cylinder mounted yesterday. I will be working on building the hydraulic line and mounting the reservoir. I expect to have the clutch bled and operational today.
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 26 2015, 08:16 AM
Post #115


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains
Attached Image

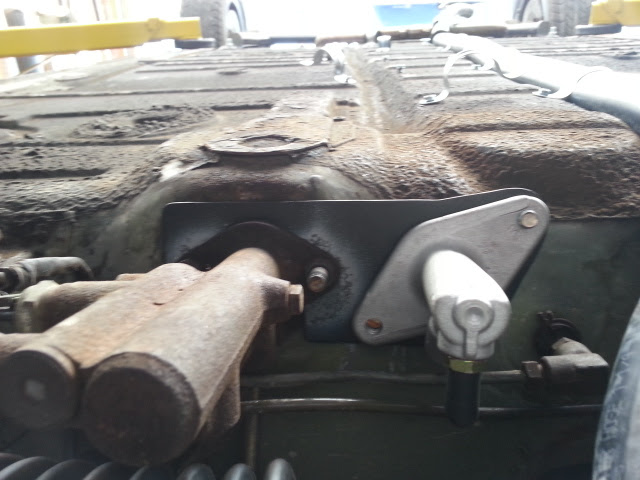

Clutch master cylinder installed. I am not sure why my photos post up-side down? They appear correct before they post.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 26 2015, 08:24 AM
Post #116


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains

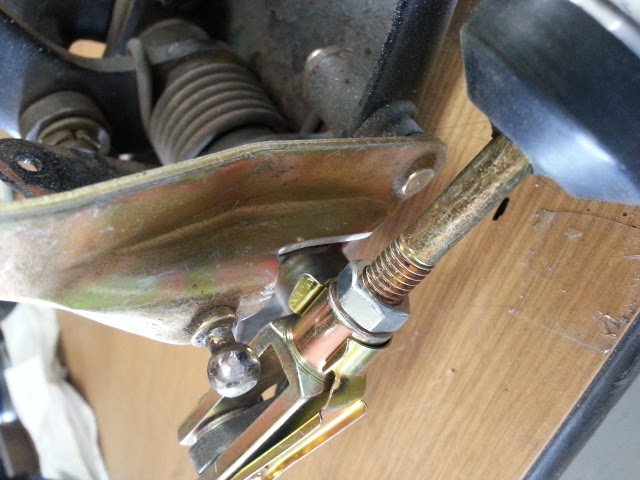

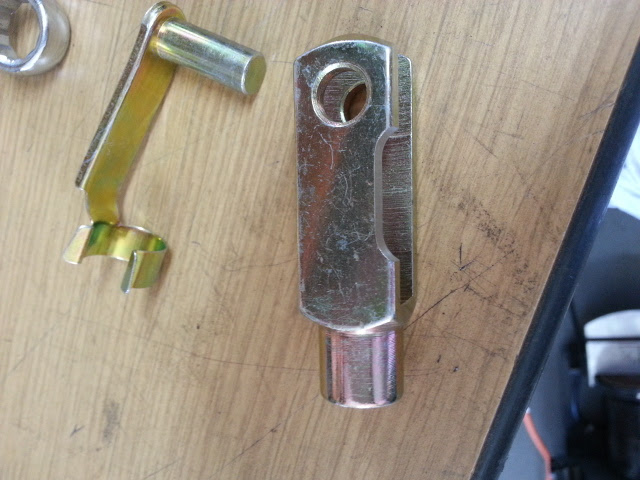

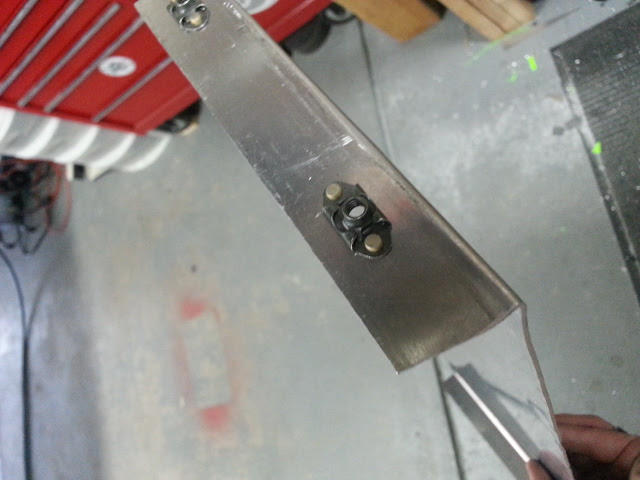

To get everything to fit a few of the parts needed a little mill time. The clevis was contacting the clutch arm and the accelerator cable arm. After a few minutes on the mill everything worked great.

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Sep 26 2015, 08:30 AM
Post #117


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,700
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(A&P Mech @ Sep 26 2015, 07:16 AM) *

Attached Image

Clutch master cylinder installed. I am not sure why my photos post up-side down? They appear correct before they post.

(IMG:style_emoticons/default/thumb3d.gif) Looking good.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&P Mech
post Sep 26 2015, 08:31 AM
Post #118


Member
**

Group: Members
Posts: 401
Joined: 10-September 13
From: United States
Member No.: 16,371
Region Association: Rocky Mountains

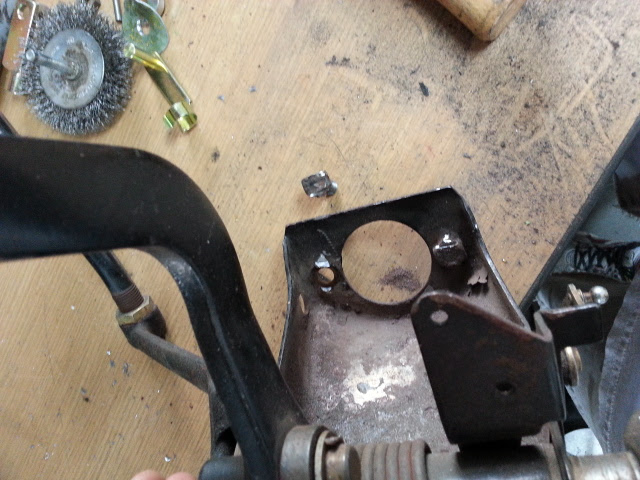

The bolts that hold the brake mater cylinder on are not long enough to add the new mounting plate and still engage the nut. They need to be replaced. The factory welded them in to the pedal cluster. I had to cut the old bolts out with a dremel tool and weld a new set in.
Attached Image

Thanks Kent for the information!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Sep 26 2015, 09:32 AM
Post #119


Senior Member
****

Group: Members
Posts: 4,056
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
You're almost there! Thread the -3an line going to the slave clylinder through the clutch tube. It fits perfectly. And if you lie on your back with a flashlight you should see a hole above where the MC is that's about the right size for the reservoir feed line. It's a tight fit bit it works.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mepstein
post Sep 26 2015, 09:38 AM
Post #120


914-6 GT in waiting
***************

Group: Members
Posts: 19,876
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Anybody want to make me one of these clutch things. I'll pay. Please?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
