> Front trunk Floor pan, Progress thread
peteyd
post Sep 27 2011, 01:31 PM
Post #1


Senior Member
***

Group: Members
Posts: 729
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada



Alright, I spoke a while back that I was going to start producing the Front trunk pan. I already have all the steel and all the CAD work done, so all I need to do is prep the steel and start cutting!

I wanted to start a thread here for all to follow the progress and also to get a better idea of what goes on at Restoration Design. I am the one in charge of designing and making all the dies here for the 914, 911, 912, and 356's. I have only made two small dies( pedal cluster support, seat mount bracket) for the 914 so far so I wanted to make something else that was in need.

I started with an NOS full floor pan. The one that runs from the firewall all the way to the front trunk pan. Brought that away to get a digital scan and then from there I designed the male and female halves of the die.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Sep 27 2011, 01:38 PM
Post #2


Senior Member
***

Group: Members
Posts: 729
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada

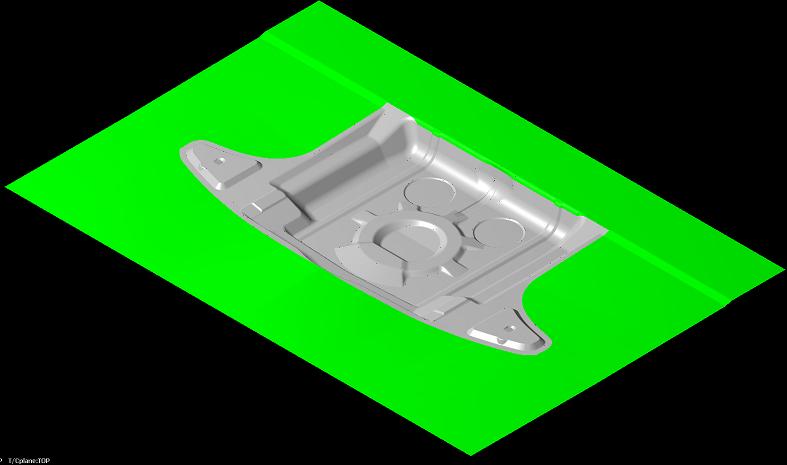

First the drawings of the Female die

Attached Image

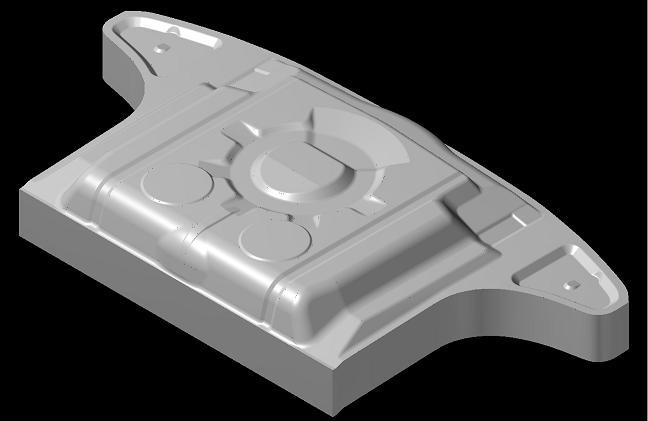

and the Male die

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 27 2011, 01:41 PM
Post #3


Resident German
*************************

Group: Admin
Posts: 41,854
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



Why is this in the sandbox??? (IMG:style_emoticons/default/confused24.gif)
Moved to the Garage.


And please, don't use BMP images. They don't show on webpages. Use JPG or PNG instead ...

(IMG:style_emoticons/default/bye1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lrm914
post Sep 27 2011, 01:43 PM
Post #4


Member
**

Group: Members
Posts: 50
Joined: 3-September 11
From: ga
Member No.: 13,514
Region Association: South East States



Awesome!

I always wondered what the large holes in the bottom of the car floors and trunks are for. When I was doing some repainting in the front trunk of my car a circular cover that fit over 1 of the 2 holes in the bottom of the front trunk came off. It appeared to be siliconed over the hole. Any idea what they are for? I was just going to silicon the metal circle back in the place it came from. The holes are circular but have what look like some sort small tabs cutout on them as well.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 27 2011, 01:47 PM
Post #5


Resident German
*************************

Group: Admin
Posts: 41,854
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



QUOTE(lrm914 @ Sep 27 2011, 12:43 PM) *
Any idea what they are for?

Best guess would be for the spot-welding robot arms to go through to get into the corners.

(IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Sep 27 2011, 01:52 PM
Post #6


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956



Cool! (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Sep 27 2011, 01:54 PM
Post #7


Senior Member
***

Group: Members
Posts: 729
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada

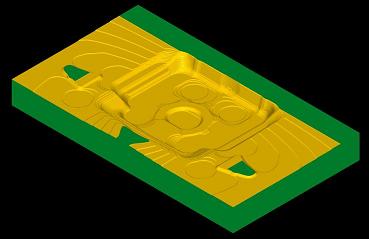

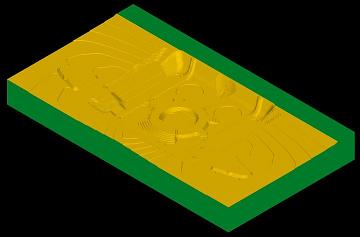

Just so you guys can picture what will be happening...

the female first

Cut with 4.5 inch face mill then cut with 1.5 inch bullnose

Attached Image Attached Image

next 1.25inch ballnose and then finish off with .5 inch ballnose

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Sep 27 2011, 01:56 PM
Post #8


Senior Member
***

Group: Members
Posts: 729
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada

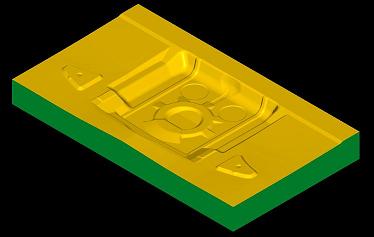

Male half...

Pretty much the same tools as the female.

Attached Image Attached Image

Attached Image Attached Image

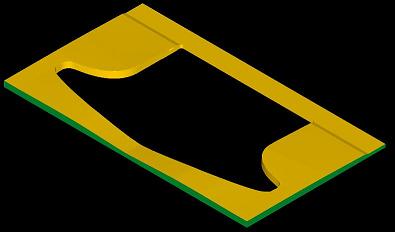

And also the drawpad...

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Loser_Cruiser
post Sep 27 2011, 02:19 PM
Post #9


Member
**

Group: Members
Posts: 407
Joined: 4-April 05
From: Bellingham, WA
Member No.: 3,873
Region Association: Pacific Northwest



This is pretty awesome. Any chance you'll ever create the whole piece as one( front trunk pan, front rear pans)?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Valy
post Sep 27 2011, 02:40 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,677
Joined: 6-April 10
From: Sunnyvale, CA
Member No.: 11,573
Region Association: Northern California



(IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/aktion035.gif)

The only thing I need now is rust! (IMG:style_emoticons/default/laugh.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Sep 27 2011, 02:41 PM
Post #11


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,730
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region



Very nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zymurgist
post Sep 27 2011, 02:45 PM
Post #12


"Ace" Mechanic
*****

Group: Members
Posts: 7,411
Joined: 9-June 05
From: Hagerstown, MD
Member No.: 4,238
Region Association: None



(IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/cheer.gif) (IMG:style_emoticons/default/cheer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
peteyd
post Sep 27 2011, 03:05 PM
Post #13


Senior Member
***

Group: Members
Posts: 729
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada



I dont have a press that can handle a die that large, and that die would cost way too much money to be justified.


QUOTE(Loser_Cruiser @ Sep 27 2011, 12:19 PM) *

This is pretty awesome. Any chance you'll ever create the whole piece as one( front trunk pan, front rear pans)?

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrHyde
post Sep 27 2011, 03:23 PM
Post #14


Senior Member
***

Group: Members
Posts: 525
Joined: 13-October 10
From: Ontario, Canada
Member No.: 12,268
Region Association: None



I'm going to have to swing by and check this out sometime ... I know of a certain orange 72' body shell that could use some steel where the A/C condenser hole is.. (IMG:style_emoticons/default/biggrin.gif)

(IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&PGirl
post Sep 27 2011, 03:32 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,019
Joined: 4-January 06
From: Oklahoma
Member No.: 5,367
Region Association: None



Very nice. (IMG:style_emoticons/default/smilie_pokal.gif)





User is offlineProfile CardPM
Go to the top of the page
+Quote Post
boogie_man
post Sep 27 2011, 04:54 PM
Post #16


Member
**

Group: Members
Posts: 308
Joined: 22-April 11
From: So Cal
Member No.: 12,969
Region Association: Southern California



Awesome work !!! How about a lower windshield cowl, any chance ??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veltror
post Sep 27 2011, 05:02 PM
Post #17


Senior Member
***

Group: Members
Posts: 928
Joined: 27-April 08
From: Potters Bar Herts UK
Member No.: 8,978
Region Association: None



QUOTE(Valy @ Sep 27 2011, 09:40 PM) *



Rust, have some of mine...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rallysport70
post Sep 27 2011, 06:24 PM
Post #18


Member
**

Group: Members
Posts: 64
Joined: 1-May 09
From: Albany, NY
Member No.: 10,321
Region Association: North East States



This really is awesome. Thanks for helping us keep some neat, old cars on the road. Keep up the good work! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Sep 28 2011, 06:36 AM
Post #19


Michael
**********

Group: Members
Posts: 10,057
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California



WOW is all I can say. I just love to see that these parts are made and available to save our cars. BRAVO!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Sep 28 2011, 07:23 AM
Post #20


From Wreck to Rockin
****

Group: Members
Posts: 2,056
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States




That is fantastic...I am sure you will sell many of these because they do rust a
lot here. Having new front suspension attachment points will be really nice on
rusty and front hit cars.

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
