| yeakel1 |
 Oct 12 2011, 06:22 PM
Post
#1
|
|
Newbie  Group: Members Posts: 5 Joined: 15-July 10 From: Anaheim, CA Member No.: 11,943 Region Association: Southern California  |

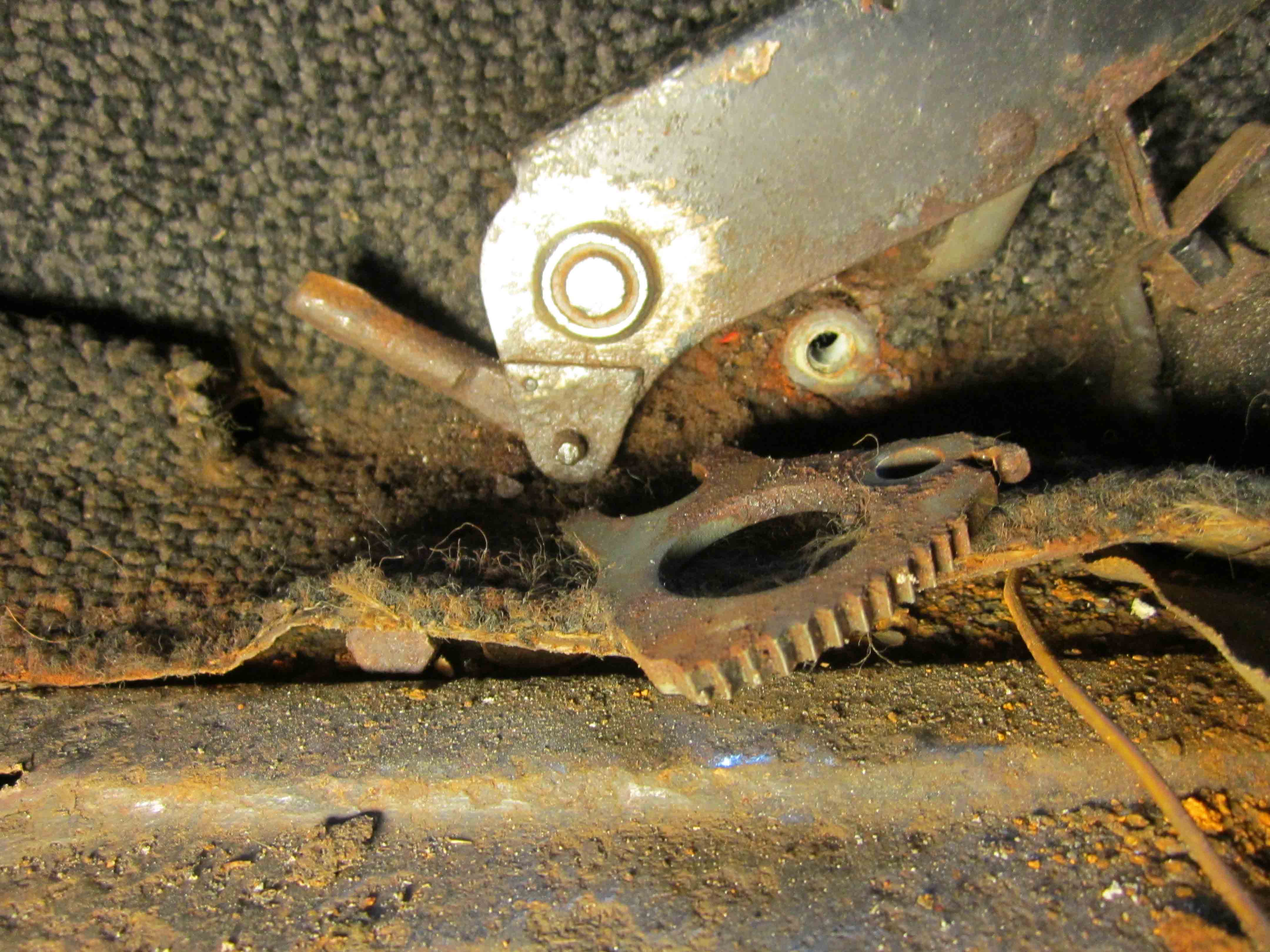

I am trying to remove the carpet by the drivers seat. The brake handle needs to come off to remove the carpet so I can remove rust on the floor pan. Should there be a bolt head or nut on the brake pivot? I do not have anything to turn. see picture.
(IMG:style_emoticons/default/confused24.gif)  |
   |

|
| nathansnathan |
Oct 12 2011, 07:55 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,052 Joined: 31-May 10 From: Laguna Beach, CA Member No.: 11,782 Region Association: None |
It's just rust on the pivot that is keeping it on. If you take a blunt prying instrument put behind and pry gently as you rock the handle it should start to move out. Move the instrument with the handle, put paper towels all around it to keep from scratching the back. It helps to start by moving the handle up and down vigorously first. The rust will act as an abrasive against the plastic bushing and you'll see plastic shavings and rust powder come out. By then it will be loose and you'll need a new bushing. (IMG:style_emoticons/default/smile.gif)
|
|
|
|
| yeakel1 |
Oct 13 2011, 04:45 PM
Post
#3
|
|
Newbie Group: Members Posts: 5 Joined: 15-July 10 From: Anaheim, CA Member No.: 11,943 Region Association: Southern California |
Thanks, your solution worked great. When reassembling what holds the brake handle from sliding off the stud? Is it the toothed gear that sets the handle up? (IMG:style_emoticons/default/smash.gif)
|
|
|
|
| SLITS |
Oct 13 2011, 05:14 PM
Post
#4
|
|
"This Utah shit is HARSH!" Group: Benefactors Posts: 13,602 Joined: 22-February 04 From: SoCal Mountains ... Member No.: 1,696 Region Association: None  |
QUOTE(yeakel1 @ Oct 13 2011, 03:45 PM)  Thanks, your solution worked great. When reassembling what holds the brake handle from sliding off the stud? Is it the toothed gear that sets the handle up? (IMG:style_emoticons/default/smash.gif) Yes |
|
|
|
|
