> Tracking down oil leak, Wet tranny
swooshdave
post Jun 22 2014, 12:05 AM
Post #1


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest



I crawled under the car to check some things out. The major concern was the oil piddles on the ground.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403417122.1.jpg)
The engine was mostly dry and the transmission was wet. But that could just mean it was coming back from the engine so after taking the picture I went to cleaning.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403417122.2.jpg)
The right bank of engine had some oil on it.

Are transmission leaks common? Maybe the pushrod tubes are leaking?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jun 22 2014, 07:18 AM
Post #2


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,513
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California



Clean it well then let it run whilst parked. Driving down the road will blow the oil back. After it has run a while check again. Common areas are the push tube seals which are cheap and easily replaced; valve cover gaskets, ditto; oil cooler seals; oil pressure sender; oil pressure sender. Both the oil pressure sender and oil cooler are on the right side.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 22 2014, 01:25 PM
Post #3


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None



My guess is the front main seal. Unless you drive backwards all the time. Then I would guess the rear stack gasket.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swooshdave
post Jun 22 2014, 02:11 PM
Post #4


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest



QUOTE(Mike Bellis @ Jun 22 2014, 12:25 PM) *

My guess is the front main seal. Unless you drive backwards all the time. Then I would guess the rear stack gasket.


(IMG:http://www.914world.com/bbs2/uploads_offsite/i237.photobucket.com-17475-1403467891.1.jpg)
I think you might be right. Found this weeping at the back of the engine this morning after wiping it clean last night.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 22 2014, 02:49 PM
Post #5


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None



Pretty easy fix but you have to pull the tranny.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Jun 22 2014, 04:39 PM
Post #6


I drive my car everyday
*****

Group: Members
Posts: 8,304
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666



Is it oil or gear lube? Looks kinda green, unless you're running brad penn oil.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swooshdave
post Jun 22 2014, 04:48 PM
Post #7


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest



I think it's the poor lighting. No idea what oil is in it.

Cary came over and took at look at it. The consensus is the main seal.

Going to drop the motor at some point and do the seal and the pushrods.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dangrouche
post Jun 22 2014, 05:00 PM
Post #8


dangrouche
***

Group: Members
Posts: 550
Joined: 1-May 04
From: San Francisco Bay Area
Member No.: 2,012
Region Association: None

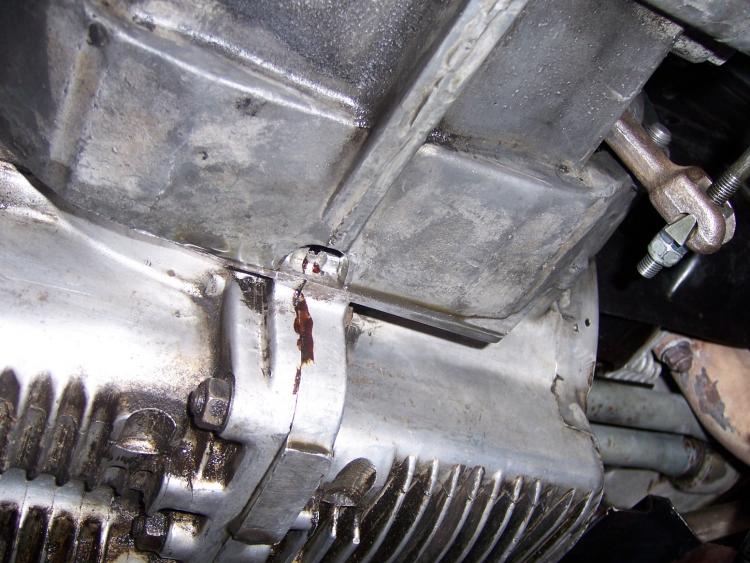

i had the same issue years ago; here is a pic of my leak. It was the rear main seal. touch and smell it; tranny oil has a higher pungent smell than motor oil


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Jun 22 2014, 10:26 PM
Post #9


Send me your transmission!
***************

Group: Members
Posts: 23,002
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region



Not (just) the tranny. That engine definitely has leaks. In your first pic it looks like an oil drop about to fall from the boss at the rear of the case on the bottom.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swooshdave
post Jun 22 2014, 11:33 PM
Post #10


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest



QUOTE(Dr Evil @ Jun 22 2014, 09:26 PM) *

Not (just) the tranny. That engine definitely has leaks. In your first pic it looks like an oil drop about to fall from the boss at the rear of the case on the bottom.


Yes, I suspect push rod tube seals and rear main seal at the least.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Jun 23 2014, 09:47 AM
Post #11


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,098
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



Start the PBblaster routine on your exhaust stud nuts. If the rest are like the one pictured it's going to be a long process. The one we can see is as rusted up as they come. (IMG:style_emoticons/default/icon8.gif) (IMG:style_emoticons/default/barf.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swooshdave
post Jun 23 2014, 08:42 PM
Post #12


Member
**

Group: Members
Posts: 184
Joined: 11-June 14
From: Portland
Member No.: 17,475
Region Association: Pacific Northwest



I'll hit them up but I do you need to pull the exhaust off to do either of the seals mentioned?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jacksun
post Jun 24 2014, 07:33 AM
Post #13


Member
**

Group: Members
Posts: 236
Joined: 8-August 13
From: mi
Member No.: 16,224
Region Association: Upper MidWest



people have posted that they have changed the tube seals without removing the

engine or exhausts. it is tight for a couple of the tubes.

I have chosen to remove the engine to do all the cleaning and seal replacements.

also do the hell hole.

the advice given within the instructions found at pelican parts regarding removing

the engine that I found very helpful, was to have two floor jacks.

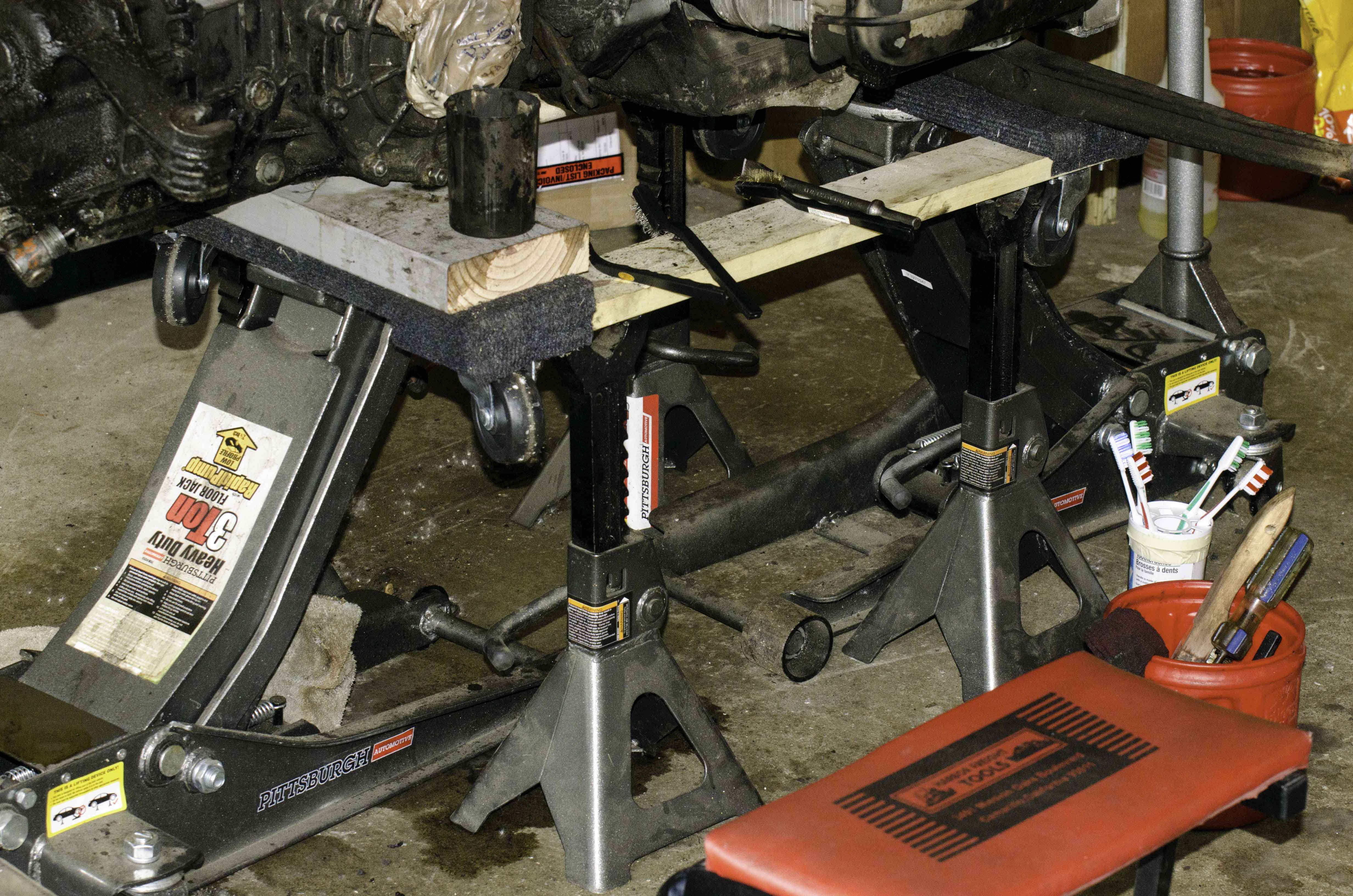

as you can see I used the floor jacks to lift my engine and place four stands

for extra safety.. of course each to their own/resources.

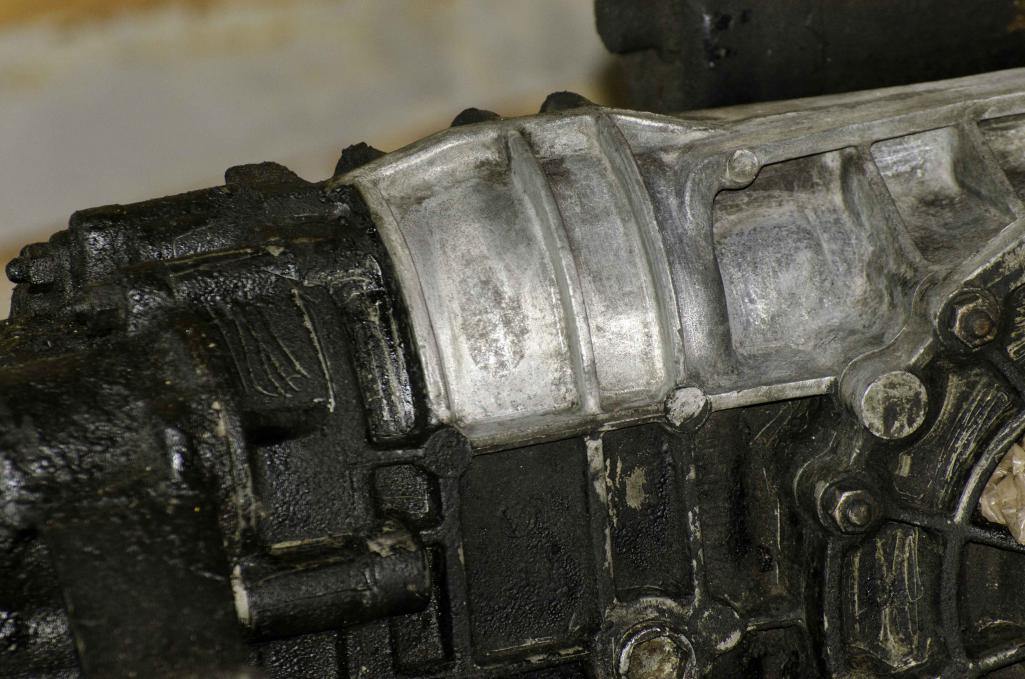

I am in the process of cleaning my engine/trans..

it would seem that the tube seals and valve cover gaskets had not been replaced

in many miles.

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PlantMan
post Jun 24 2014, 02:02 PM
Post #14


Member
**

Group: Members
Posts: 438
Joined: 14-May 14
From: Mission Viejo
Member No.: 17,352
Region Association: Southern California



QUOTE(swooshdave @ Jun 23 2014, 07:42 PM) *

I'll hit them up but I do you need to pull the exhaust off to do either of the seals mentioned?


I just changed out my pushrod seals without removing the exhaust but did remove the heater boxes and misc steel under the car from the exchangers forward. Engine was in the car BTW. I can see by your other post that you do not have the heater boxes so you will save yourself some time.
Give yourself a day (8 hours) if you are going to change the pushrod seals, especially if it is your first time. You will want to get in there and clean-up in and around the seals good. It is not difficult to do but you will spend a lot of time cleaning while pulling tubes, changing seals, etc.
Do a search within this site for the process. I learned a lot about removing the rocker arms, retaining wire, piston positions, and making sure everything goes back together properly.
However, if you plan on dropping the engine at some point...you probably could live with a few drops of oil and little smoke!
(IMG:style_emoticons/default/biggrin.gif)
