 two dash wires. where they go? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| jimkelly |
 Nov 10 2015, 05:28 PM
Post
#1
|
|
Delaware USA  Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region  |
my car is a 1975.
these wires have skinny connectors. thanks. Attached thumbnail(s)
|
   |

|
| Dave_Darling |
Nov 10 2015, 07:30 PM
Post
#2
|
|
914 Idiot Group: Members Posts: 15,161 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California
|
From the 74 diagram, because it's on-line at Pelican--
Red/white is easy; it should carry switched power. Most of the gauges are powered by a red/white wire. The one you label "blue green" looks to be green/yellow, but I don't see any wires of that color in the wiring diagram. It could have been added, but it sure looks pretty factory. Dunno what to say there. Black/yellow should be in the brake light circuit; it would come from the fuse box, go to the switch on the pedal cluster, then run to the lights. It shouldn't have anything to do with the gauge cluster from what I can see. I hope that helps some. --DD |
|
|
|
| JeffBowlsby |
Nov 10 2015, 07:40 PM
Post
#3
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 8,907 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
|
 |
|
| ejm |
Nov 10 2015, 08:09 PM
Post
#4
|
|
I can see the light at the end of the tunnel Group: Members Posts: 2,707 Joined: 3-February 03 From: Massachusetts Member No.: 224 Region Association: None |
Fairly certain those wires with the 1/8" wide terminals are for the egr/cat warning lights that cars in some markets had beginning in '75. Even thought the car didn't have the emissions stuff the harnesses had the wiring.
|
|
|
|
| JeffBowlsby |
Nov 10 2015, 10:00 PM
Post
#5
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 8,907 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
For 75-76 there were two versions of the chassis harness - CA-market that had the EGR/CAT wiring and 49-state which did not.
|
|
|
|
| ejm |
Nov 10 2015, 10:12 PM
Post
#6
|
|
I can see the light at the end of the tunnel Group: Members Posts: 2,707 Joined: 3-February 03 From: Massachusetts Member No.: 224 Region Association: None |
QUOTE(Jeff Bowlsby @ Nov 10 2015, 11:00 PM)  For 75-76 there were two versions of the chassis harness - CA-market that had the EGR/CAT wiring and 49-state which did not. I've seen lots of cars with the emissions wiring that never had the counter box or other components. There are several threads here where people ask about the wiring in the passenger footwell or by the left tail light. |
|
|
|
| Dave_Darling |
Nov 10 2015, 10:26 PM
Post
#7
|
|
914 Idiot Group: Members Posts: 15,161 Joined: 9-January 03 From: Silicon Valley / Kailua-Kona Member No.: 121 Region Association: Northern California
|
OK, back at home. The diagram labeled "Additional current flow diagram California, Type 914, Model 75" shows a blue/yellow wire. It goes from the catalyst relay, to the catalyst mileage counter, to the CAT light in the dash.
It also shows a black/yellow wire that goes to the EGR light from the EGR counter. And it shows a red/white wire that goes to both of those lights, providing power to them. (The other wires apparently provide the ground for the light to turn it on.) So there you go, your wires are indeed for the EGR and CAT lights. Just as Ed and Jeff were saying. --DD |
|
|
|
| jimkelly |
Nov 11 2015, 08:01 AM
Post
#8
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
awesomwe guys (IMG:style_emoticons/default/aktion035.gif)
thank you (IMG:style_emoticons/default/beerchug.gif) |
|
|
|
| rhodyguy |
Nov 11 2015, 09:44 AM
Post
#9
|
|
Chimp Sanctuary NW. Check it out. Group: Members Posts: 22,240 Joined: 2-March 03 From: Orion's Bell. The BELL! Member No.: 378 Region Association: Galt's Gulch |
Brainiacs...
|
|
|
|
| Elliot Cannon |
Nov 11 2015, 01:34 PM
Post
#10
|
|
914 Guru Group: Retired Members Posts: 8,487 Joined: 29-December 06 From: Paso Robles Ca. (Central coast) Member No.: 7,407 Region Association: None
|

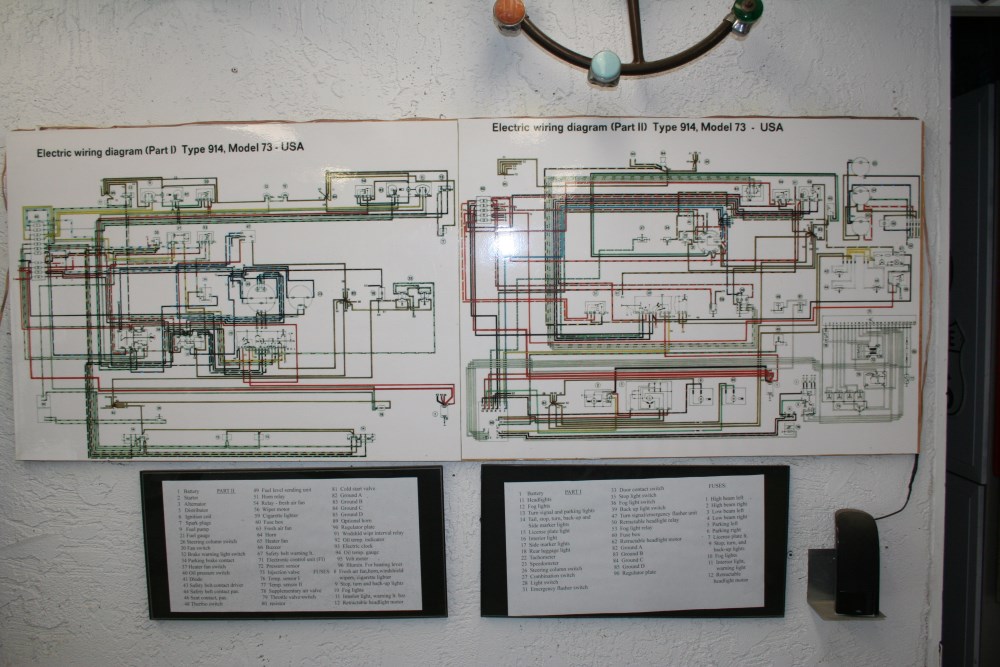

This has helped my to track down and identify wiring. I downloaded and printed a color diagram. (For my '73). I printed it, took it to a blue print shop and had it enlarged 20X30, laminated, then mounted on the garage wall. I have gone to this diagram many times, found it very helpful and the large size makes it easy to read with my soon to be 70 year old eyes. (IMG:style_emoticons/default/biggrin.gif) It was a bit of work and the lamination was more expensive than I thought but electricity still remains VooDoo and magic to me so it was worth it. (IMG:style_emoticons/default/laugh.gif)
Cheers, Elliot Attached image(s)
|
|
|
|
|
