> Engine failure on track day, need some help, T4 GB 2.0 head failure
CheeRS
post May 10 2019, 01:08 PM
Post #1


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France
Hi, here is my presentation post :

http://www.914world.com/bbs2/index.php?showtopic=337989

two weeks ago I was in Monthlery near Paris France, for a wagenfest with my 914.

Get some troubles with the engine, a hammer noise and the engine stopped smoothly like out of gas.

here is what I found :
https://drive.google.com/open?id=1gzsWwNBOh...86Kbof2P4BCHHrm

some pics
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CheeRS
post May 10 2019, 01:20 PM
Post #2


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France

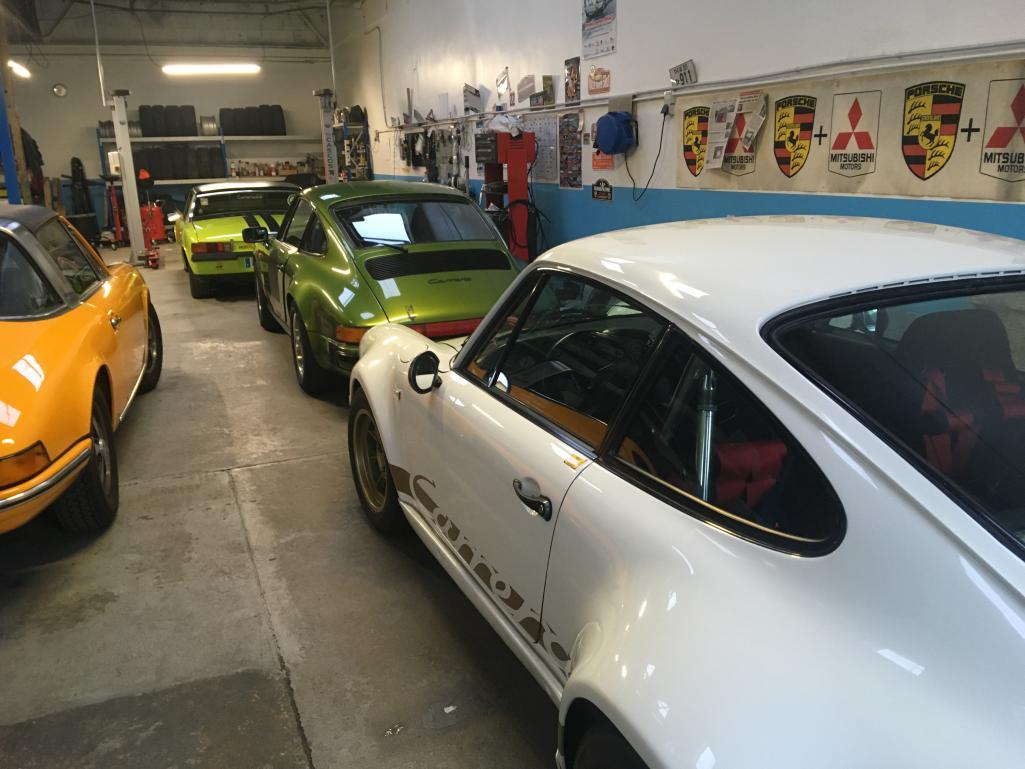

my own workshop, this is a Aircooled specialized self garage


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CheeRS
post May 10 2019, 01:21 PM
Post #3


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France

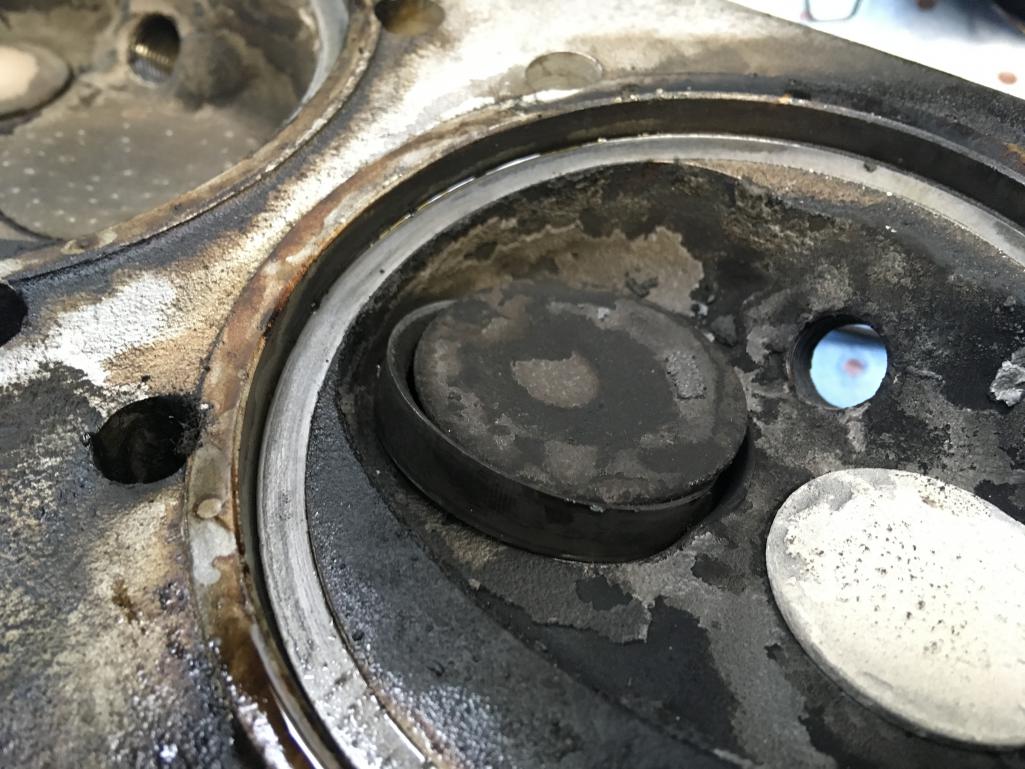

cylinder 3 admission valve stand in open position


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CheeRS
post May 10 2019, 01:29 PM
Post #4


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France

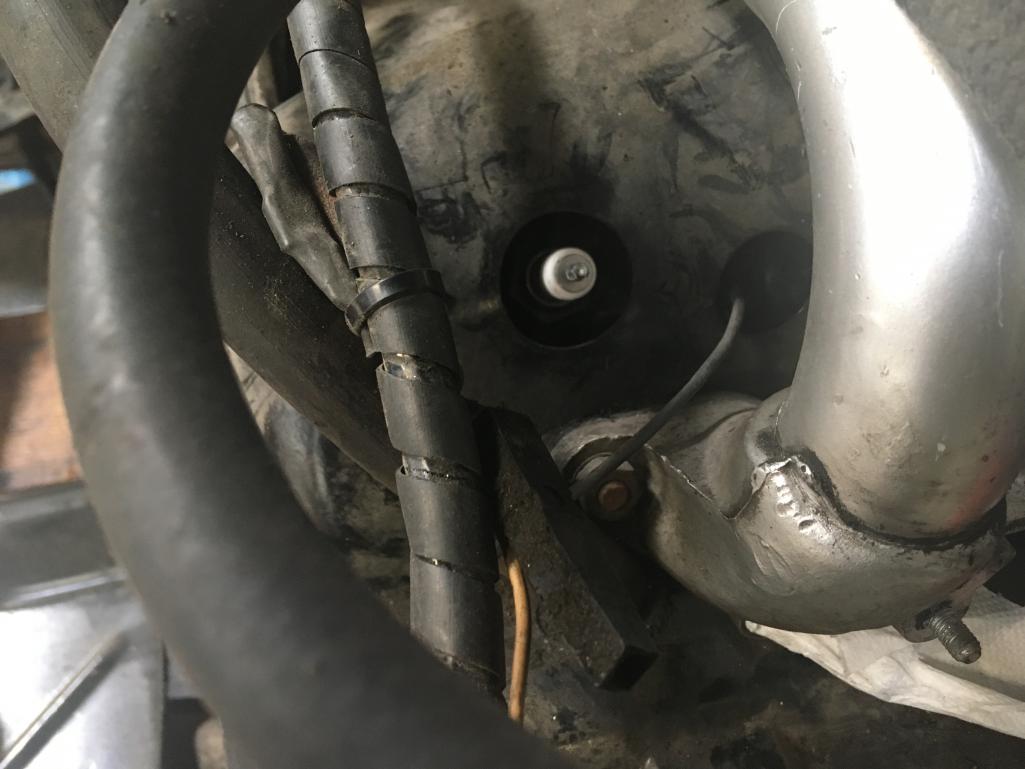

Opening the engine and disassembling the djetronic I found somme stranges things I will like to show you

question #1 :
the head temperature sender was not plugged, perhaps I unplugged it myself by mistake.
where does it plug ?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post May 10 2019, 01:30 PM
Post #5


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
classic dropped valve seat.

Pull the heads and redo them.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post May 10 2019, 01:33 PM
Post #6


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
QUOTE(CheeRS @ May 10 2019, 12:29 PM) *

Opening the engine and disassembling the djetronic I found somme stranges things I will like to show you

question #1 :
the head temperature sender was not plugged, perhaps I unplugged it myself by mistake.
where does it plug ?



Plugs into the ecu wiring harness.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CheeRS
post May 10 2019, 02:07 PM
Post #7


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France
QUOTE(914_teener @ May 10 2019, 01:33 PM) *

QUOTE(CheeRS @ May 10 2019, 12:29 PM) *

Opening the engine and disassembling the djetronic I found somme stranges things I will like to show you

question #1 :
the head temperature sender was not plugged, perhaps I unplugged it myself by mistake.
where does it plug ?



Plugs into the ecu wiring harness.

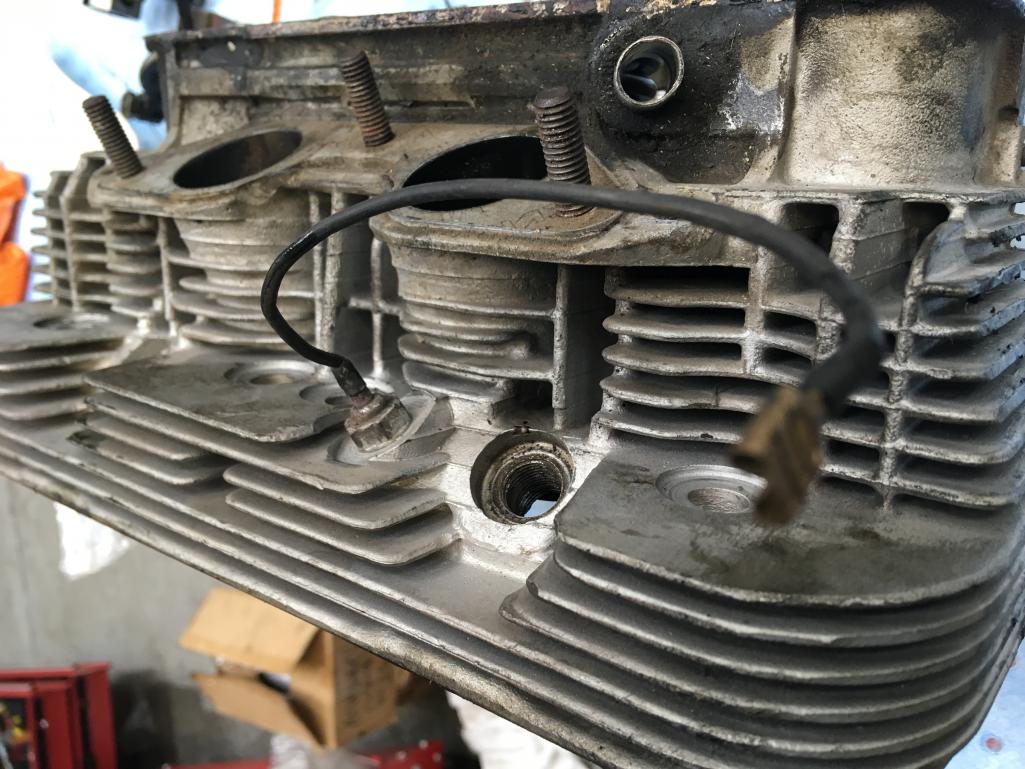

I agree but where ?
here ?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post May 10 2019, 02:30 PM
Post #8


914 Guru
*****

Group: Members
Posts: 5,266
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
Follow the ecu harness back from the ECU...you should see a wire with a plastic connector shield on the end of the lead. Usually the wire is white like the one I see in the picture.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CheeRS
post May 10 2019, 02:55 PM
Post #9


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France
Thanks, to be sure I will track the wire and the number in the ECU connector.

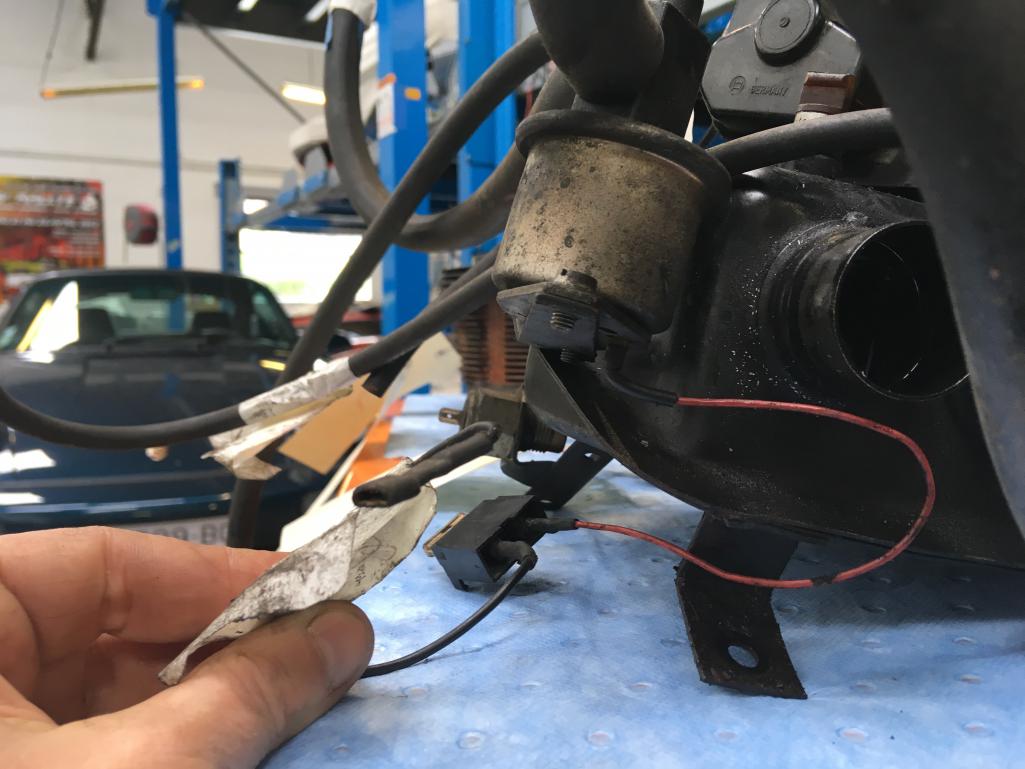

Another part was not plugged, the additionnal air valve.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post May 10 2019, 06:00 PM
Post #10


Advanced Member
****

Group: Members
Posts: 2,516
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
I'd be more worried about the dropped valve seat before where the wires plug in...but that's just me...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bandjoey
post May 10 2019, 06:11 PM
Post #11


bandjoey
****

Group: Members
Posts: 4,934
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region
For a guy with that shop, I don't think he worries about wires or seats. (IMG:style_emoticons/default/first.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chi-town
post May 10 2019, 07:02 PM
Post #12


Senior Member
***

Group: Members
Posts: 851
Joined: 31-August 18
From: Disneyland
Member No.: 22,446
Region Association: Southern California
Have the head checked for cracks before you waste time / money in machine work putting a seat back in it.

Look in the exhaust seat to the plug
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post May 10 2019, 08:46 PM
Post #13


914 Idiot
***************

Group: Members
Posts: 15,204
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
After you look at the heads, consider the LN series heads from the Type 4 store, or if you have a good machinist locally consider getting new head castings from AMC in Spain and using them as cores.

It might make more sense to repair yours, but new castings are available.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CheeRS
post May 11 2019, 12:42 AM
Post #14


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France
QUOTE(GregAmy @ May 10 2019, 06:00 PM) *

I'd be more worried about the dropped valve seat before where the wires plug in...but that's just me...


Thanks friends, you are right.
I checked the head, saw no scratch, I will check again after cleaning.
Next week, I will give the head to a specialised shop
http://www.rectif2000.com/

This is why I already thinking about the engine reassembly.
Djetronic works fine but is complicated.

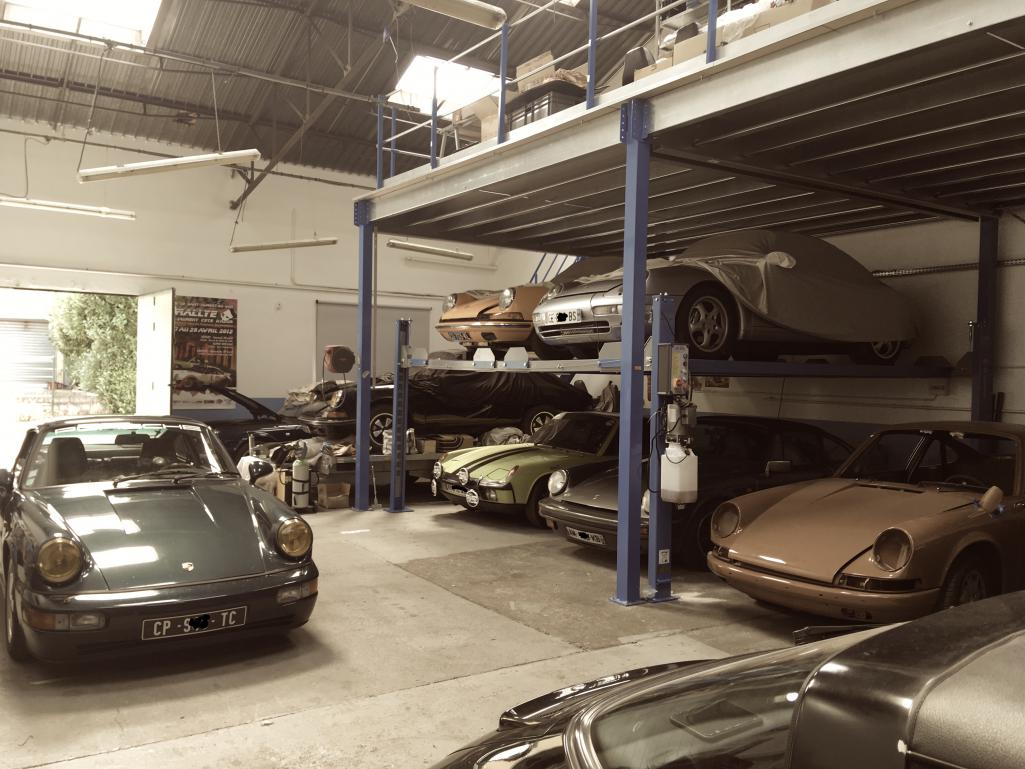

A pic of my selfgarage
near Paris named Atelier M8



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CheeRS
post May 11 2019, 12:43 AM
Post #15


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France
more


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post May 11 2019, 08:43 AM
Post #16


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
If I were you I'd order a set of new castings set up by Len at HAM for replacing those. I just did mine with a set from him including having bigger valves installed (44x38). Well worth every penny!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post May 11 2019, 08:56 AM
Post #17


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,249
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
Do you intend just to do the one head?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post May 11 2019, 09:57 AM
Post #18


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
Buy a set of these with the coating to keep the heat out of the head.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CheeRS
post May 11 2019, 06:36 PM
Post #19


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France
QUOTE(Bleyseng @ May 11 2019, 08:43 AM) *

If I were you I'd order a set of new castings set up by Len at HAM for replacing those. I just did mine with a set from him including having bigger valves installed (44x38). Well worth every penny!


To keep the race passport available, I need to keep the engine stock specs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CheeRS
post May 11 2019, 06:38 PM
Post #20


Member
**

Group: Members
Posts: 93
Joined: 5-May 19
From: Paris France
Member No.: 23,093
Region Association: France
QUOTE(rhodyguy @ May 11 2019, 08:56 AM) *

Do you intend just to do the one head?


I will ask to the machining shop to check each valves, then will see.
