> Cylinder Head Temp Gauge, Step By Step Instructions
Allan
post Jun 28 2005, 05:12 PM
Post #1


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
Did a search but didn't find much. I'm looking for good, clear, step by step instructions on installing one. Car has no center console if that matters...........
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jun 28 2005, 05:19 PM
Post #2


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
you could be the 1st to document it (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

oh yea, adding a question mark to the "subject" would be nice... (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif) I was expecting instructions, not a question (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fuch toy
post Jun 28 2005, 05:23 PM
Post #3


Unregistered
Should be three wires, red power, black ground and one that has a braided end that goes on the spark plug.
Go to the top of the page
+Quote Post
Allan
post Jun 28 2005, 05:29 PM
Post #4


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
Oops...

?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lapuwali
post Jun 28 2005, 06:00 PM
Post #5


Not another one!
****

Group: Benefactors
Posts: 4,526
Joined: 1-March 04
From: San Mateo, CA
Member No.: 1,743
If you're talking the VDO CHT gauge, then there are two wires, red and black. They have spade connectors on one end for the gauge, and a white two-wire plug for the other. The sender itself is a ring with braid covering the two thermocouple wires, with another white plug at the other end.

The ring goes under the spark plug, in place of the plugs washer. You need to bend the tab on the ring to clear the plug, but not too far from the plug or it won't clear the head. This ring and the wire make getting the plug back into the engine rather difficult, but it's not too bad if you fool with it for a bit and get the bend right.

Put the sender on the No. 3 cylinder, as it runs the hottest. This is passenger side rear.

The plug can only go together one way, but the spade connectors have to be placed on the right way around at the gauge. If they're wrong, nothing will blow up, but the gauge won't read. There is no +12 connection to the gauge except for the dash lights connection. The gauge is "powered" by the sender.

Running the wires from the engine to the dash either requires you to try to snake the wires down through the OEM rubber wiring thingie that goes through the firewall, or just drill a new hole in the firewall near the rubber thing (use a grommet on the hole).

The gauge should read about 250dF just a few seconds after starting a dead cold engine. It should read 300-ish within 20-30 seconds. Cruising at low speeds should show 275-325dF readings. Cruising at high speeds about 350dF. Pulling up a steep hill about 400dF. All with a stock or near stock engine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
StratPlayer
post Jun 28 2005, 06:25 PM
Post #6


StratPlayer
****

Group: Members
Posts: 3,325
Joined: 27-December 02
From: SLC, Utah
Member No.: 27
Region Association: Rocky Mountains
When you buy the gauge it comes with complete instructions on how to install the gauge, easy install..


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Jun 28 2005, 06:38 PM
Post #7


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
comes with the A-pillar mounting kit?? I assume not...and the wires reach or do they have to be altered?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
d7n7master
post Jun 28 2005, 06:42 PM
Post #8


Gary#
***

Group: Members
Posts: 663
Joined: 13-March 03
From: The O.C, Ca.
Member No.: 421
QUOTE (StratPlayer @ Jun 28 2005, 04:25 PM)
When you buy the gauge it comes with complete instructions on how to install the gauge, easy install..

Strat: thanx. I have the guage - still in the box. But I'm flat out of console "guage room". What a great place to put the most important guage I need to monitor:trophy: Right in my face. So... where do I buy the guage surround???
Ohhh, and what year is your strat?
Strangely enough - I have a strat too - schweet neck - plays like butter.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Jun 28 2005, 06:47 PM
Post #9


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
i play the air guitar....need to tune it though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
d7n7master
post Jun 28 2005, 06:55 PM
Post #10


Gary#
***

Group: Members
Posts: 663
Joined: 13-March 03
From: The O.C, Ca.
Member No.: 421
QUOTE (bd1308 @ Jun 28 2005, 04:47 PM)
i play the air guitar....need to tune it though.

Must be your ear. Air guitars are alwayz in tune. (IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Jun 28 2005, 06:59 PM
Post #11


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
i think it's just not in the same key with my air piano...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Jun 28 2005, 07:07 PM
Post #12


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
For my Electromotive set-up, I was just going to use a stock CHT sender and wiring it directly into the computer. What are the thoughts between using a stock sender that screws into the cylinder head above the #3 cylinder or using one of the spark plug senders?

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jun 28 2005, 07:34 PM
Post #13


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE (Britain Smith @ Jun 28 2005, 06:07 PM)
For my Electromotive set-up, I was just going to use a stock CHT sender and wiring it directly into the computer. What are the thoughts between using a stock sender that screws into the cylinder head above the #3 cylinder or using one of the spark plug senders?

-Britain

the normal CHT is fine for warm up fuel enrichment, not as accurate or sensitive as the under the plug...by the time the regular CHT reads too hot it might be too late (IMG:http://www.914world.com/bbs2/html/emoticons/unsure.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Jun 28 2005, 07:36 PM
Post #14


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
What is too hot?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
StratPlayer
post Jun 28 2005, 07:38 PM
Post #15


StratPlayer
****

Group: Members
Posts: 3,325
Joined: 27-December 02
From: SLC, Utah
Member No.: 27
Region Association: Rocky Mountains

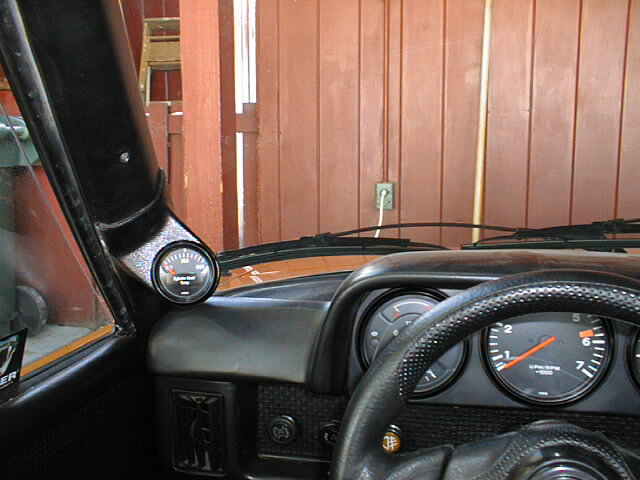

I got the gauge pod on ebay, I think it was for a integra. The fit was great. Don't have to modify the wiring you'll have plenty of wire for the gauge. I play a 91 Strat Ultra, bought it new.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Jun 28 2005, 07:47 PM
Post #16


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
QUOTE (lapuwali @ Jun 28 2005, 05:00 PM)
Running the wires from the engine to the dash either requires you to try to snake the wires down through the OEM rubber wiring thingie that goes through the firewall, or just drill a new hole in the firewall near the rubber thing (use a grommet on the hole).

So I guess there are no spare wires in the main harness to tie into? I do have a few unused connectors on top of the center tunnel.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Jun 28 2005, 07:49 PM
Post #17


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
QUOTE (Headrage @ Jun 28 2005, 07:47 PM)
QUOTE (lapuwali @ Jun 28 2005, 05:00 PM)
Running the wires from the engine to the dash either requires you to try to snake the wires down through the OEM rubber wiring thingie that goes through the firewall, or just drill a new hole in the firewall near the rubber thing (use a grommet on the hole).

So I guess there are no spare wires in the main harness to tie into? I do have a few unused connectors on top of the center tunnel.

thats for the center console.....you must run the wiring....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Jun 28 2005, 07:52 PM
Post #18


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
QUOTE (bd1308 @ Jun 28 2005, 06:49 PM)
thats for the center console.....you must run the wiring....

So can't I use them if I put in a center console?? Where do the end at the rear???
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Jun 28 2005, 07:55 PM
Post #19


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
you cant use the center console wiring to wire your CHT guage.... run the wire through the main harness grommet and through the center tunnel and fish it out by the shifter and under the carpet....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Jun 28 2005, 07:59 PM
Post #20


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California
QUOTE (bd1308 @ Jun 28 2005, 06:55 PM)
you cant use the center console wiring to wire your CHT guage....

Why?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
