> Roll bars/half cage installs, Show me what you have.
Luke M
post Apr 8 2021, 07:28 AM
Post #1


Senior Member
***

Group: Members
Posts: 1,377
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
My brother wants to add a half cage to his 914. Any info from anyone running one would be greatly appreciated. Pro's and con's that you may have experienced?
Weld in or bolt in.. Either way works for us but leaning towards welding it in.
TIA..

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Apr 8 2021, 07:49 AM
Post #2


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
Racer Chris isn't too faŕ from you.
IIRC McMark was doing GT kits, nice one that contoured the firewall. But that was a long time ago.

If it's a part time racer street car you want to be able to use the stock seat belts, the 5 points are a PITA for every day use.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Apr 8 2021, 07:57 AM
Post #3


Senior Member
***

Group: Members
Posts: 1,377
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
QUOTE(Mark Henry @ Apr 8 2021, 06:49 AM) *

Racer Chris isn't too faŕ from you.
IIRC McMark was doing GT kits, nice one that contoured the firewall. But that was a long time ago.

If it's a part time racer street car you want to be able to use the stock seat belts, the 5 points are a PITA for every day use.



Mostly a street car but some auto-x time as well. I pm'd Mark about his cage.
Think he was planning on a 5 point harness anyways.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 8 2021, 08:40 AM
Post #4


914 Guru
*****

Group: Members
Posts: 5,314
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
I vote weld in. I helped a buddy with his bolt-in GT bar and didn't like the way it forced the bar to be set forward - you give up some room.
Given that, you can't go wrong with @ChrisFoley products, assuming you don't want to fab your own.
I went a bit non-traditional with my design as I didn't want a full main hoop and did things like relocating my seatbelt retractors so I'm not sure these pics help but maybe will give some ideas. I call it "the roadster cage".


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VegasRacer
post Apr 8 2021, 08:58 AM
Post #5


ELVIRA
*****

Group: Benefactors
Posts: 8,524
Joined: 27-March 03
From: Between Scylla and Charybdis
Member No.: 481
Region Association: None

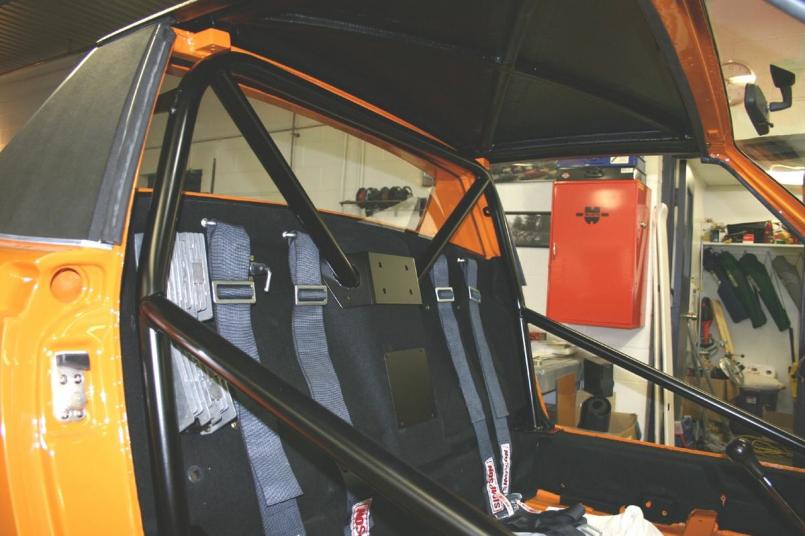

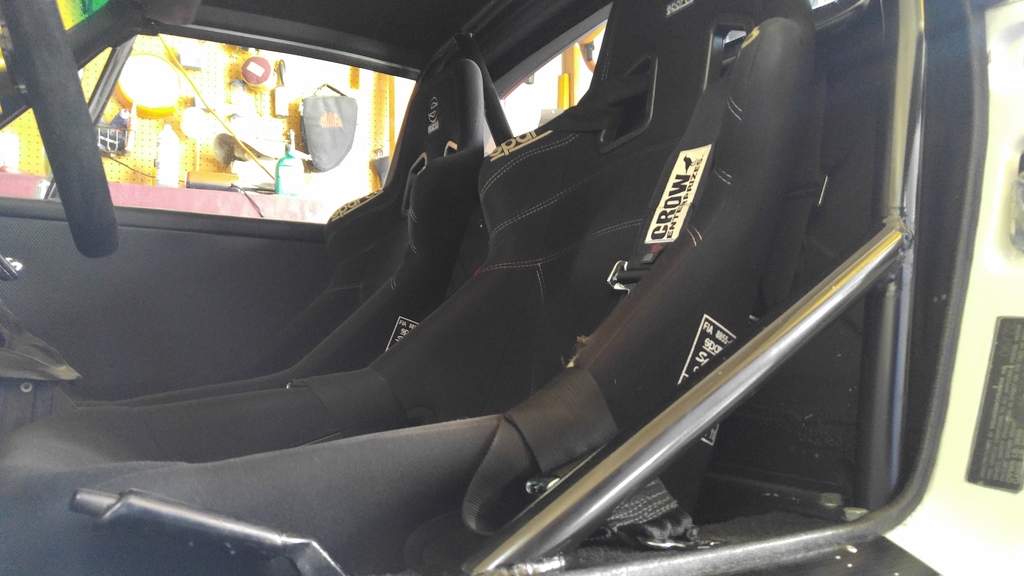

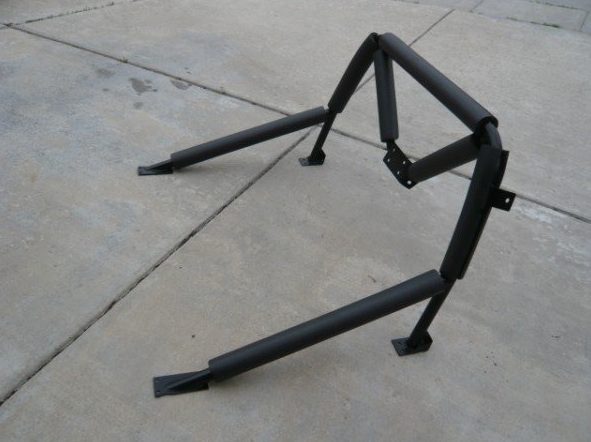

Maybe these pictures will help. Photos are not my car. I have a full cage.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Racer
post Apr 8 2021, 09:13 AM
Post #6


Senior Member
***

Group: Members
Posts: 787
Joined: 25-August 03
From: Northern Virginia
Member No.: 1,073
Region Association: MidAtlantic Region
One of my 914s had a Safety Devices cage. It was welded in, but they are bolt in/weld in friendly.

Street car.. Used for DE/Autocross.

Biggest gripe? Made taking the roof on and off a bit more PITA.. and more often than not, I just left the top in place

Ran both harnesses and factory belts.

No door beam supports like some of the above have. Not sure how much that actually helps in an impact.. or if they would bend in and cause more harm than good. Remind me of the "pro Street" type 1/4 miile cars with albeit rule complying but curious designs.

A half cage/ merely a rollbar hoop I also wonder how much rigidity is added to the chassis vs the additional weight.

I had some pictures on an old photobucket site.. not sure if I they are still accessible..

http://www.safetydevices.com/motorsport/pr...+Spec/451/1276/

The other issue you will notice is that room to swing your feet in and out is cut down with a 4/6pt cage.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Apr 8 2021, 09:21 AM
Post #7


914 Guru
*****

Group: Members
Posts: 5,614
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
My Autopower roll bar.
http://www.914world.com/bbs2/index.php?aut...;showentry=1018
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Apr 8 2021, 09:25 AM
Post #8


Senior Member
****

Group: Members
Posts: 2,431
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
I think one of these half cages would be perfect. With the foam is it streetable? Or is it a headbanger
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Apr 8 2021, 09:42 AM
Post #9


Senior Member
***

Group: Members
Posts: 1,377
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
QUOTE(VegasRacer @ Apr 8 2021, 07:58 AM) *

Maybe these pictures will help. Photos are not my car. I have a full cage.



Something like the last two pics. My brother is 6'01'' so he needs the leg room.
I'm waiting to hear back from McMark.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VegasRacer
post Apr 8 2021, 10:12 AM
Post #10


ELVIRA
*****

Group: Benefactors
Posts: 8,524
Joined: 27-March 03
From: Between Scylla and Charybdis
Member No.: 481
Region Association: None
QUOTE(Shivers @ Apr 8 2021, 08:25 AM) *

With the foam is it streetable? Or is it a headbanger

Yes. it is streetable. Yes the foam really helps.
The only time I bang my head is when I am working on the car. Never during regular use.


QUOTE(Luke M @ Apr 8 2021, 08:42 AM) *

Something like the last two pics.

That car belongs to @1stworks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
infraredcalvin
post Apr 8 2021, 01:23 PM
Post #11


Distracted Member
***

Group: Members
Posts: 1,528
Joined: 25-August 08
From: Ladera Ranch, CA
Member No.: 9,463
Region Association: Southern California
I have a safety devices bolt in cage that was welded in by PO. The supports that go diagonal to the center hump (like the gt) limit race seat travel. Ok for me, but I’m short at 5’8”. I’d be concerned about leg room at 6’0”. I’ve seen versions that don’t have the center diagonal.

Also, the bar in front horizontal is set rearward from the top of windshield (assuming they did it so it wouldn’t interfere with lid latches). Being short, my seat is moved forward, which puts that horizontal bar near my head, my helmet grazes the pad. I lowered my seat by cutting out the floor cross support and it’s fine now, but not a mod I would want to make on a nice car...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tazz9924
post Apr 8 2021, 01:34 PM
Post #12


Senior Member
***

Group: Members
Posts: 703
Joined: 31-May 15
From: Mooresville NC
Member No.: 18,779
Region Association: None
Weld in cages are always preferable to bolt in from a safety stand point, and like chris said you get more room. If you cant find any prebent stuff it probably wouldn’t cost much to have a reputable shop make a half cage. especially if you strip the stuff out the way. If it hasn’t been mentioned your back pad will be sacrificed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mlindner
post Apr 8 2021, 01:44 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,529
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest

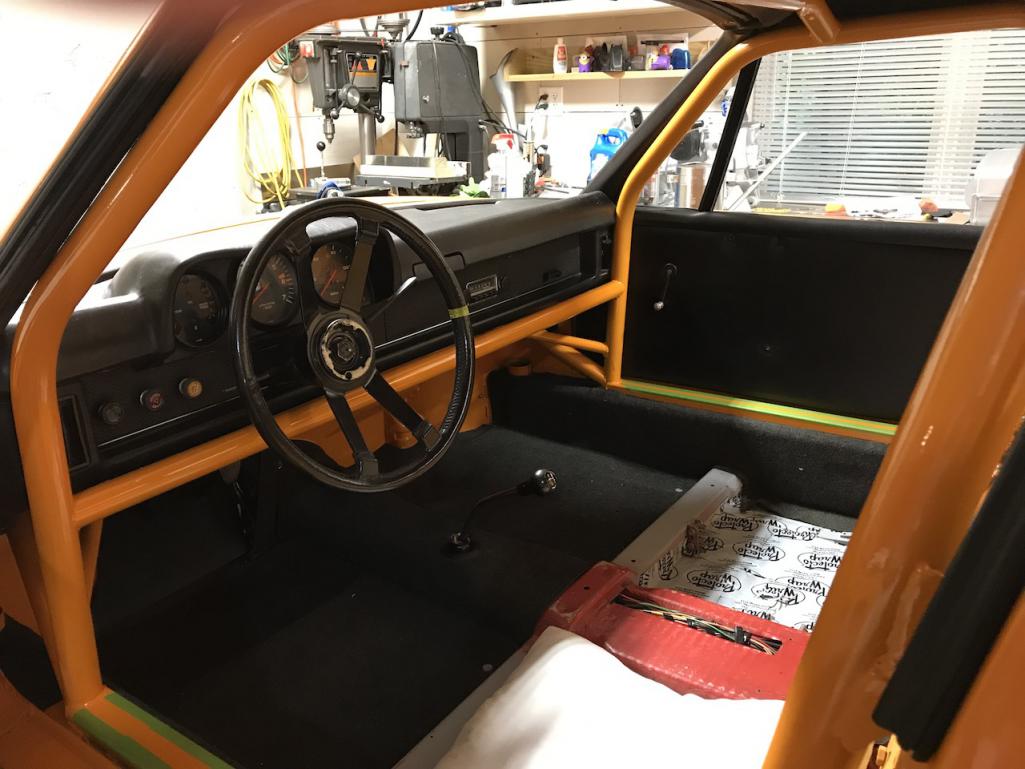

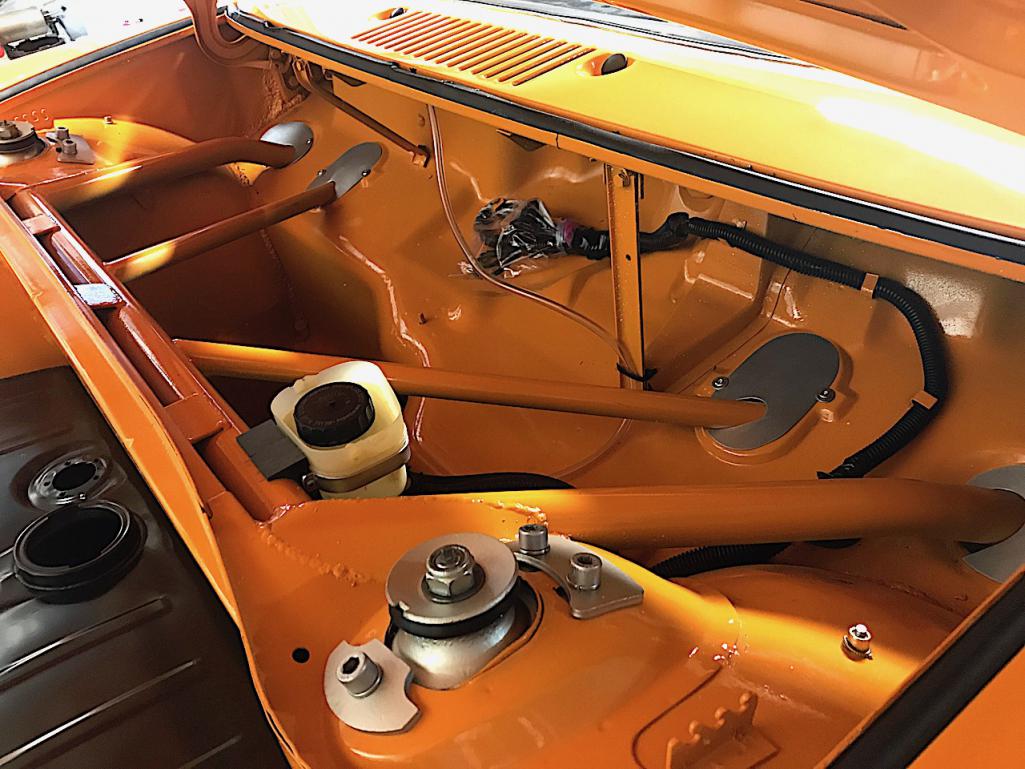

Mine is a user friendly cage extended to suspension points. MarkAttached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Luke M
post Apr 9 2021, 07:16 AM
Post #14


Senior Member
***

Group: Members
Posts: 1,377
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States

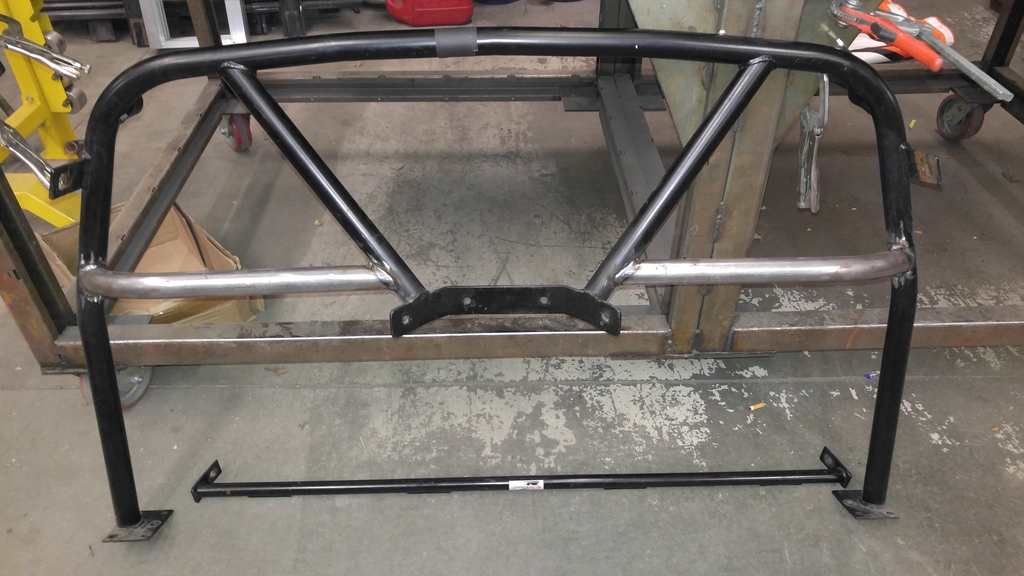

A full cage is out at this point. Leaning towards Mark's cage with maybe a tweek or two to it. Like this one but with some bent side supports to make it easier to get in/out. Seams like the seat would be able to go back a little farther.


@McMark


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Apr 9 2021, 08:22 PM
Post #15


914 Guru
*****

Group: Members
Posts: 7,804
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Whatever you get, buy some real roll bar padding for anything near your head. Not the cheap open cell split foam tubes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Apr 11 2021, 02:22 PM
Post #16


Advanced Member
****

Group: Members
Posts: 3,686
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None
Even "just" a weld in rear hoop makes a noticeable difference.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Justinp71
post Apr 12 2021, 01:42 PM
Post #17


Senior Member
***

Group: Members
Posts: 1,584
Joined: 11-October 04
From: Sacramento, CA
Member No.: 2,922
Region Association: None
Plan your harness mounting along with putting in your half cage. Many times they tie together or may need to not interfere with each other. Might as well plan for racing seats too, they all need to work together.

The half rollbar I have allows the driver seat to go all the way back which is important for me at 6'0". I need to upgrade my padding to the harder SFI stuff. The half rollbar itself its probably not really needed, but makes be feel better incase of a roll at track events.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
LefthandRev
post Dec 10 2023, 11:42 AM
Post #18


Member
**

Group: Members
Posts: 76
Joined: 9-August 21
From: Seattle, WA
Member No.: 25,787
Region Association: Pacific Northwest
QUOTE(Justinp71 @ Apr 12 2021, 11:42 AM) *

The half rollbar I have allows the driver seat to go all the way back which is important for me at 6'0".


And what brand is it?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mlindner
post Dec 11 2023, 10:13 AM
Post #19


Senior Member
***

Group: Members
Posts: 1,529
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest

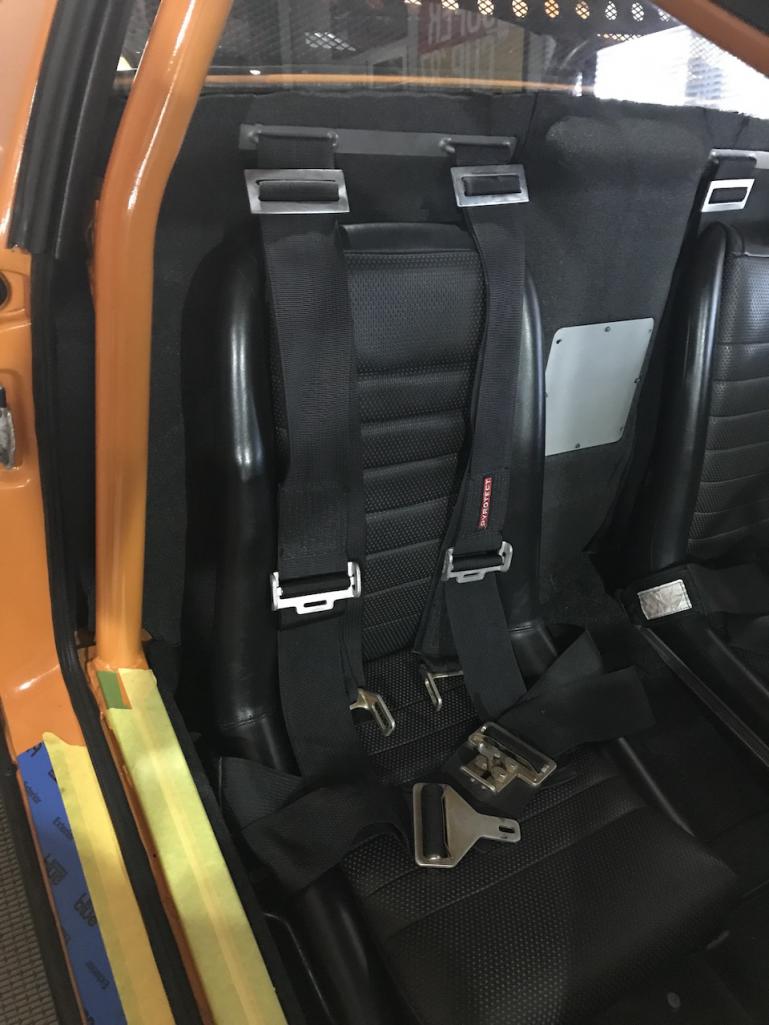

Also 6' and seat gos back all the way. I did just last winter moved the front bar six inch closer to the front wind shield. Best, Mark Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Dec 11 2023, 11:27 AM
Post #20


914 Guru
*****

Group: Members
Posts: 5,434
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
If he wants a full cage, let me know...my brother took his out.
DC area...

I sold my roll bar a couple years back.
User is offlineProfile CardPM
