> more CV questions
mightyohm
post Sep 23 2005, 12:38 AM
Post #1


Advanced Member
****

Group: Benefactors
Posts: 2,277
Joined: 16-January 03
From: Seattle, WA
Member No.: 162
Region Association: Pacific Northwest
Two questions;

1. which side should the "ridged" side of the ball cage face when installed? towards the axle or away? I think it is away from the axle but I didn't take a good enough 'before' picture to tell (oops).

2. One of the used joints I bought in Ventura is different than the others. It has larger balls and a lot more axial travel than the rest. It shows some wear but not extreme spalling like on the ones I am replacing. Is this a rebuilt joint? Is more axial play normal in rebuilt joints?

Thanks in advance for any help. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Sep 23 2005, 01:13 AM
Post #2


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
I believe they go away from the axle. I too have found a couple CV's with different cage and ball sizes, my guess they are rebuilt units - and yes lots of play.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mightyohm
post Sep 23 2005, 01:18 AM
Post #3


Advanced Member
****

Group: Benefactors
Posts: 2,277
Joined: 16-January 03
From: Seattle, WA
Member No.: 162
Region Association: Pacific Northwest
The joint is still fairly "tight", nowhere as loose as the ones I am replacing. I think I'll put it on and see what happens.
(IMG:http://www.914world.com/bbs2/html/emoticons/burnout.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Sep 23 2005, 01:23 AM
Post #4


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
These were better than the ones I replaced, but still not that great, so far so good!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 23 2005, 09:59 AM
Post #5


Resident German
*************************

Group: Admin
Posts: 42,206
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE (Travis Neff @ Sep 23 2005, 12:13 AM)
I believe they go away from the axle.

i dis-agree ...

the "ridge" side of the inner race is what slides on the axle shaft, the flat side faces towards the outside where the clip goes ...
(IMG:http://www.914world.com/bbs2/html/emoticons/smash.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Sep 23 2005, 10:17 AM
Post #6


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,248
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
(IMG:http://www.914world.com/bbs2/html/emoticons/thisthreadisworthlesswithoutpics.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mightyohm
post Sep 23 2005, 11:03 AM
Post #7


Advanced Member
****

Group: Benefactors
Posts: 2,277
Joined: 16-January 03
From: Seattle, WA
Member No.: 162
Region Association: Pacific Northwest
Andy are you talking about the inner race or the cage that retains the balls?

I am referring to the cage - the thing that goes in between the two races.

Wish I had taken a pic last night. Will take one tonight.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bondo
post Sep 23 2005, 11:06 AM
Post #8


Practicing my perpendicular parking
****

Group: Members
Posts: 4,277
Joined: 19-April 03
From: Los Osos, CA
Member No.: 587
Region Association: Central California
When working on multiples of things, never have all of them apart at once. (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

This is especially important when working on drum brakes, something we fortunately don't have to worry about on the 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dmenche914
post Sep 23 2005, 11:13 AM
Post #9


Senior Member
***

Group: Members
Posts: 1,212
Joined: 27-February 03
From: California
Member No.: 366
small balls may indicate a VW CV joint. What size balls do you have??? HA HA HA. Small balls in the correct CV should be no problem, although the load rating might be less. I had a mix of small balled and large balled CV's on one 914, niether one gave any problems driving a stockish 1.7 car.


good luck
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Grimstead
post Sep 23 2005, 02:18 PM
Post #10


Cheaky Monkey
***

Group: Members
Posts: 835
Joined: 20-March 05
From: Corona, Ca
Member No.: 3,789
Region Association: Southern California
Jeff,
My engine & tranny are out if you want me to take some pictures of my CV's.

Just let me know.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 23 2005, 04:06 PM
Post #11


Resident German
*************************

Group: Admin
Posts: 42,206
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE (jkeyzer @ Sep 23 2005, 10:03 AM)
I am referring to the cage - the thing that goes in between the two races.

uhm, my cage dosn't have ridges. it's symmetrical ...

(IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mightyohm
post Sep 23 2005, 07:55 PM
Post #12


Advanced Member
****

Group: Benefactors
Posts: 2,277
Joined: 16-January 03
From: Seattle, WA
Member No.: 162
Region Association: Pacific Northwest

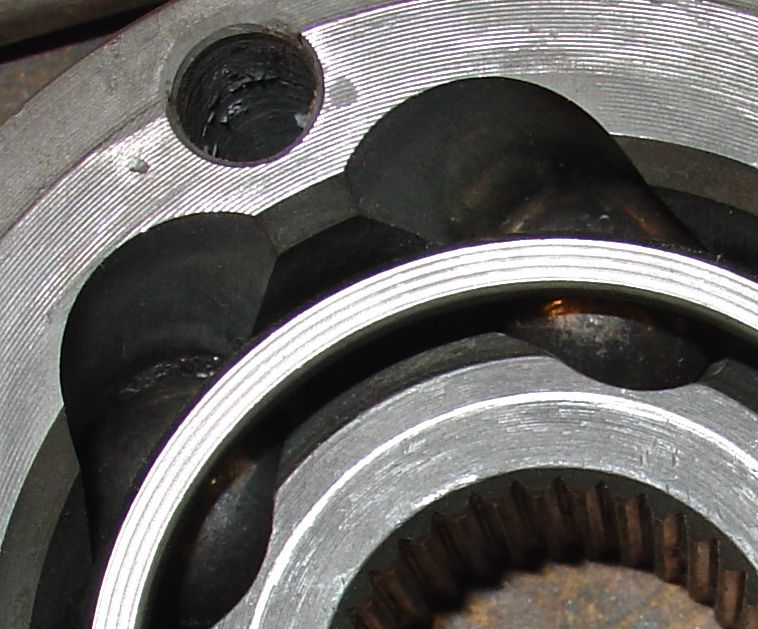

Here are the ridges. The other side is smooth.

Ignore the fact that the center race is installed upside down.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 23 2005, 09:12 PM
Post #13


Resident German
*************************

Group: Admin
Posts: 42,206
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE (jkeyzer @ Sep 23 2005, 06:55 PM)
Here are the ridges. The other side is smooth.
Ignore the fact that the center race is installed upside down.

ok, i'm looking at my 944 CVs as we speak and the cage has no ridges on either side. perfectly smooth ...

(IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Sep 23 2005, 09:59 PM
Post #14


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
QUOTE (SirAndy @ Sep 23 2005, 08:12 PM)
QUOTE (jkeyzer @ Sep 23 2005, 06:55 PM)
Here are the ridges.  The other side is smooth.
Ignore the fact that the center race is installed upside down.

ok, i'm looking at my 944 CVs as we speak and the cage has no ridges on either side. perfectly smooth ...

(IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif) Andy

i think jeffs are 914/4 (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914werke
post Sep 23 2005, 10:27 PM
Post #15


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,248
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
I just chked my /4 CV/s that I had dissasembled and shor' nuf, I see what jeff is describing but danm if I can see what differance it would make? (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mightyohm
post Sep 24 2005, 02:24 PM
Post #16


Advanced Member
****

Group: Benefactors
Posts: 2,277
Joined: 16-January 03
From: Seattle, WA
Member No.: 162
Region Association: Pacific Northwest
These are 914-4. I think the inner race only fits into the cage from the ridged side, because the opening is a little larger. So there is a difference...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Sep 24 2005, 03:05 PM
Post #17


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
QUOTE (jkeyzer @ Sep 22 2005, 10:38 PM)
Two questions;

1. which side should the "ridged" side of the ball cage face when installed? towards the axle or away? I think it is away from the axle but I didn't take a good enough 'before' picture to tell (oops).

2. One of the used joints I bought in Ventura is different than the others. It has larger balls and a lot more axial travel than the rest. It shows some wear but not extreme spalling like on the ones I am replacing. Is this a rebuilt joint? Is more axial play normal in rebuilt joints?

Thanks in advance for any help. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)

In the remaining pile of CVs here at the shop, there's a mix of large and small sizes. As I recall, the new ones I sold last spring were the same way. Could be from different production runs. Porsche calls Lobro and asks for thickness, spline count, and OD. As long as the degree of angular movement is sufficient, the actual design doesn't really matter. The Cap'n
