> Weltmeister vs. Ground Control rear coilover conversion kit?, anybody have experience with these?
monkei
post Jun 22 2006, 09:58 PM
Post #1


slave to rust....
**

Group: Members
Posts: 137
Joined: 10-August 04
From: Pleasanton, CA
Member No.: 2,504
Weltmeister
http://www.automotion.com/productpage.aspx...il+Over+Kit+914

Ground Control Coil-Over Conversion Kit (little down the page)
http://www.livermoreperformance.com/porsche_suspension.html

anybody compared the kits. raced with either? can anybody suggest spring rates? the weltmeister kit starts at 150lb and goes on up to 300. before coilovers i was thinking about the 150-180lb range. dont know what the rates are for the ground control kit.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jun 22 2006, 09:59 PM
Post #2


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
colemanracing.com

35 bucks a side plus springs i belive....


look at my blog. lots of pics.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
monkei
post Jun 22 2006, 10:04 PM
Post #3


slave to rust....
**

Group: Members
Posts: 137
Joined: 10-August 04
From: Pleasanton, CA
Member No.: 2,504
QUOTE(Aaron Cox @ Jun 22 2006, 08:59 PM) *

colemanracing.com

35 bucks a side plus springs i belive....


look at my blog. lots of pics.


did you diy out of universal components or was this stuff part of a 914 specific kit? i couldn't find it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 22 2006, 10:06 PM
Post #4


Resident German
*************************

Group: Admin
Posts: 42,206
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California

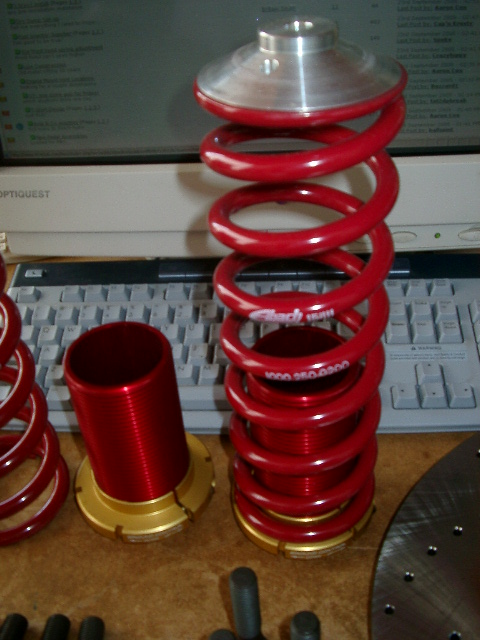

i got my setup from rich at HPH. forgot what i paid for it, call him and ask ...

(IMG:style_emoticons/default/smile.gif) Andy



Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
monkei
post Jun 22 2006, 10:15 PM
Post #5


slave to rust....
**

Group: Members
Posts: 137
Joined: 10-August 04
From: Pleasanton, CA
Member No.: 2,504
QUOTE(SirAndy @ Jun 22 2006, 09:06 PM) *

i got my setup from rich at HPH. forgot what i paid for it, call him and ask ...

(IMG:style_emoticons/default/smile.gif) Andy


remember manufacturer(s) name? i see eibach springs, who makes the rest?

who makes ein superior produkt?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jun 22 2006, 10:17 PM
Post #6


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
generic for bilstein and koni struts....

basic bilstein
(IMG:http://www.914world.com/bbs2/uploads/thumb_blog-1140922986.jpg)

coleman adpater rings makes OD slightly larger to avoid dropping a perch (happen to grantsfo iiirc)
(IMG:http://www.914world.com/bbs2/uploads/thumb_blog-1140922998.jpg)

5" collar 2.04 ID iirc....
(IMG:http://www.914world.com/bbs2/uploads/thumb_blog-1140922938.jpg)

spring and top hat
(IMG:http://www.914world.com/bbs2/uploads/thumb_blog-1140923023.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Trekkor
post Jun 22 2006, 10:20 PM
Post #7


I do things...
*****

Group: Members
Posts: 7,809
Joined: 2-December 03
From: Napa, Ca
Member No.: 1,413
Region Association: Northern California

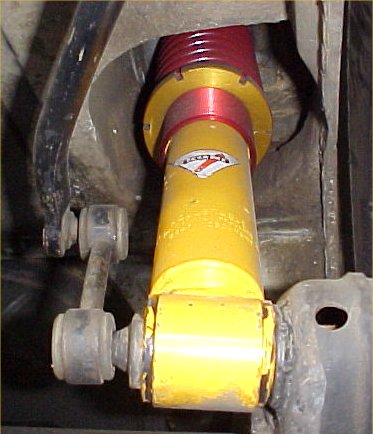

Andy's are ground control like mine.
I have a set of "like new" 150# Eibach rear springs I'll sell.

KT
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Air_Cooled_Nut
post Jun 22 2006, 10:26 PM
Post #8


914 Ronin - 914 owner who lost his 914club.com
***

Group: Members
Posts: 1,748
Joined: 19-April 03
From: Beaverton, Oregon
Member No.: 584
Region Association: None
QUOTE(Mueller @ Jun 22 2006, 09:24 PM) *

nothing special about either kit unless you like to throw money away for a fancy name......

the threaded tube and perch are just chunks of aluminum, one is no better than the other...some people think that the Eibach springs are better than the cheaper coil over springs sold by the circle-track guys....I doubt anyone here would know the differance unless you are a paid professional...if it makes you feel good to spend the extra money and throw around names like "ground-control or weltmeister or even Eibach" knock yourself out (IMG:style_emoticons/default/smile.gif)

So you recommend keeping everything stock, right? If not, what did YOU do?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Trekkor
post Jun 22 2006, 10:32 PM
Post #9


I do things...
*****

Group: Members
Posts: 7,809
Joined: 2-December 03
From: Napa, Ca
Member No.: 1,413
Region Association: Northern California
I think the adj perches were around $25 ea. And the the Eibach's were $125 for the pair.

Is that "expensive"?


KT
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
monkei
post Jun 22 2006, 10:36 PM
Post #10


slave to rust....
**

Group: Members
Posts: 137
Joined: 10-August 04
From: Pleasanton, CA
Member No.: 2,504
i think he's simply recommend i dont base my decision on name or price... id have to agree, i was planning on basing my decision on fellow 914 enthusiasts experience. so far ive discovered there may be a cheaper bolt on alternative to the kits i suggested (ala aaron cox), not sure of p/ns and manufacturers yet.

trekkor, how much for springs? the perches for coilovers are all thats needed beyond struts/springs? 25$ for ground control each?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Trekkor
post Jun 22 2006, 10:49 PM
Post #11


I do things...
*****

Group: Members
Posts: 7,809
Joined: 2-December 03
From: Napa, Ca
Member No.: 1,413
Region Association: Northern California
How about $90 inc shipping?

Check prices with Rich on the perches.


KT



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nebreitling
post Jun 23 2006, 12:38 PM
Post #12


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
I've got eibach 200#'s and QA1 225#'s, and i must say that the QA1's, which were significantly cheaper, were also significantly heavier.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jun 23 2006, 12:43 PM
Post #13


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
i have AFCO - afcoil springs... 225 rate....

30 a pair NEW - got a smoking deal...


the dirt track guys have lots of cheap take off springs
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
turboman808
post Jun 23 2006, 12:44 PM
Post #14


Advanced Member
****

Group: Members
Posts: 2,718
Joined: 31-January 06
From: North Jersey
Member No.: 5,505
Region Association: North East States
I think what I like most about ground control is that ordering various rate springs is pretty cheap. $60 a spring last time I ordered.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Jun 23 2006, 12:46 PM
Post #15


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Awsome, I was just looking for ALL of this info as my car is stink bugging pretty bad.

Thanks guys!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jun 23 2006, 12:49 PM
Post #16


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
QUOTE(turboman808 @ Jun 23 2006, 11:44 AM) *

I think what I like most about ground control is that ordering various rate springs is pretty cheap. $60 a spring last time I ordered.


uh... hypercoils, eibachs and others are cheaper or the same price (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mikelsr
post Jun 23 2006, 02:09 PM
Post #17


Senior Member
***

Group: Members
Posts: 657
Joined: 2-January 05
From: Mahomet, IL
Member No.: 3,390
Region Association: Southwest Region
QUOTE(Aaron Cox @ Jun 22 2006, 10:59 PM) *

colemanracing.com

35 bucks a side plus springs i belive...


To show my ignorance, when you put adjustable spring perches on do you have to weld them on or do they sit over the top of the shock held on by the spring?

Now they are $37.65 minimum...

Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Jun 23 2006, 02:20 PM
Post #18


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
Hypercoils run about 60 per pair. they go in 5lb increments. See paragon-products.com.

The coleman option looks like a great bang for the buck
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jun 23 2006, 02:56 PM
Post #19


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
QUOTE(mikelsr @ Jun 23 2006, 01:09 PM) *

QUOTE(Aaron Cox @ Jun 22 2006, 10:59 PM) *

colemanracing.com

35 bucks a side plus springs i belive...


To show my ignorance, when you put adjustable spring perches on do you have to weld them on or do they sit over the top of the shock held on by the spring?

Now they are $37.65 minimum...

Mike


look at the pics i posted, and in my blog.
they sit on a circlip (on koni's and bilsteins)

37 each side + 2 "adapter rings" (search it at coleman, 5 bucks each) + springs. DONE
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jun 23 2006, 02:56 PM
Post #20


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
QUOTE(Travis Neff @ Jun 23 2006, 01:20 PM) *

Hypercoils run about 60 per pair. they go in 5lb increments. See paragon-products.com.

The coleman option looks like a great bang for the buck


no way they are 60 a pair... they are 60 each....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
