6-alternator fan duct question, concerning upgrade fromc external to internal regulator |
echocanyons |
Mar 10 2007, 03:32 PM
Post
#1
|
Advanced Member Group: Benefactors Posts: 2,094 Joined: 24-December 02 From: Bay Area, CA Member No.: 7 Region Association: Central California |
I need to modify my alternator fan ducting that sits behind the alternator to gain clearance for the new internally regulated VR. The PAG bulletin concerning this says to replace the duct with a different one but I am cheap and don't want to wait.
I assume that modifying it won't horribly redirect flow in such a manner as to make the car overheat or cook one or two cylinders, but I wanted to get the opinion of those who have done this. Any special way to cut it? Thanks! |
sixnotfour |
Mar 10 2007, 11:22 PM
Post
#2
|
914 Wizard Group: Members Posts: 10,437 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains |
Here is a comparison,
Attached image(s) |
Gary |
Mar 10 2007, 11:53 PM
Post
#3
|
Senior Member Group: Members Posts: 744 Joined: 12-January 03 From: Mount Airy, MD Member No.: 134 Region Association: MidAtlantic Region |
Great comparison picture - never seen the "real" one before. When I did mine, I called Parts Heaven, Einmalig, etc. looking for the correct one. When I struck out there, I took my dremel and a cutting bit and trimmed it in about 10 minutes (and I'm slow). If I'd had that picture, I'd have saved the phone calls.
Then as I recall, it's blue wire to the generator light on the dash. B+ to the battery, and ground to ground. No more relay board (IMG:style_emoticons/default/smile.gif). |
echocanyons |
Mar 11 2007, 01:53 AM
Post
#4
|
Advanced Member Group: Benefactors Posts: 2,094 Joined: 24-December 02 From: Bay Area, CA Member No.: 7 Region Association: Central California |
Cool picture, thanks! I too trimmed mine with a dremel. worked perfect!
Thanks |
Gint |
Mar 11 2007, 09:21 AM
Post
#5
|
Mike Ginter Group: Admin Posts: 16,083 Joined: 26-December 02 From: Denver CO. Member No.: 20 Region Association: Rocky Mountains |
Thanks. I'm sure I'll need this at some point.
|
echocanyons |
Mar 11 2007, 10:48 AM
Post
#6
|
Advanced Member Group: Benefactors Posts: 2,094 Joined: 24-December 02 From: Bay Area, CA Member No.: 7 Region Association: Central California |
It is interesting that the internal VR duct doesn't have the fitting for the 6'oclock bolt, that one is the hardest one to get to wen you are re installing it, not having it sure wold make things easier.
|
echocanyons |
Mar 11 2007, 10:50 AM
Post
#7
|
Advanced Member Group: Benefactors Posts: 2,094 Joined: 24-December 02 From: Bay Area, CA Member No.: 7 Region Association: Central California |

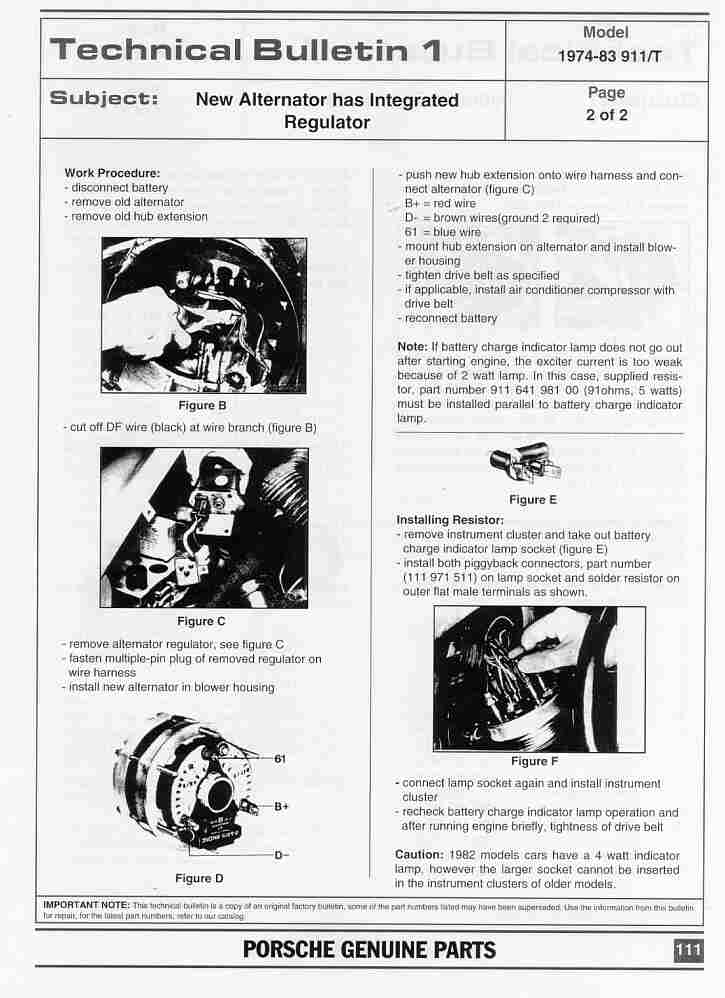

oh BTW here are the PAG bulletins concerning the swap from external voltage regulator to internal VR.
Attached thumbnail(s) |
