> Battery tray, How to connect the ECU to the battery tray?
draganc
post Aug 10 2011, 12:36 PM
Post #1


Senior Member
***

Group: Members
Posts: 725
Joined: 2-November 09
From: central new jersey
Member No.: 11,000
Region Association: North East States
I’m installing a new battery tray and was wondering how the ECU mounting-bracket was originally connected to the battery tray? I have seen a few attached with screws and some are welded on?

Can anyone tell me what was original?

Thanks,
Dragan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 14)
championgt1
post Aug 10 2011, 12:42 PM
Post #2


Don't embarrass me Filmore!
****

Group: Members
Posts: 2,681
Joined: 3-January 07
From: Tacoma, Washington
Member No.: 7,420
Region Association: Pacific Northwest
Attached with screws.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 10 2011, 12:45 PM
Post #3


Resident German
*************************

Group: Admin
Posts: 42,206
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(championgt1 @ Aug 10 2011, 11:42 AM) *
Attached with screws.

(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
draganc
post Aug 10 2011, 01:30 PM
Post #4


Senior Member
***

Group: Members
Posts: 725
Joined: 2-November 09
From: central new jersey
Member No.: 11,000
Region Association: North East States
Thank you and Danke!

Any pictures?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47
post Aug 10 2011, 02:03 PM
Post #5


Viermeister
****

Group: Members
Posts: 4,254
Joined: 7-August 03
From: Vienna, VA
Member No.: 994
Region Association: MidAtlantic Region
6mm hex head bolts are used. There are holes in the "front" edge of the battery tray (the edge toward the .... well, front of the car) and the bolts screw into the ECU bracket. I think the front bracket piece "bends" or curves over the end of the ECU and 2 6mm cheesehead screws connect the curved piece to the bracket that is attached to the tray. That way, you can remove the ECU, leaving the bracket in place when you drop the engine. There must be another fastener at the other end of the bracket or the ECU would flop/vibrate on the 2 screwed end.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
draganc
post Aug 10 2011, 02:56 PM
Post #6


Senior Member
***

Group: Members
Posts: 725
Joined: 2-November 09
From: central new jersey
Member No.: 11,000
Region Association: North East States
OK, let's make this idiot proof for me.

I can follow the comment about the two screw at the front of the tray but you lost me at "... I think the front bracket piece "bends" or curves over the end of the ECU and 2 6mm cheesehead screws connect the curved piece to the bracket that is attached to the tray...".

Here a picture of what I have.

Thanks,
Dragan

PS: The PO had the ECU bracket welded to the front and left side of the old tray.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Aug 10 2011, 02:59 PM
Post #7


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
That is correct
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jsayre914
post Aug 10 2011, 03:25 PM
Post #8


Speed Up !!!
****

Group: Members
Posts: 3,210
Joined: 10-February 08
From: Timonium MD 21093
Member No.: 8,696
Region Association: MidAtlantic Region

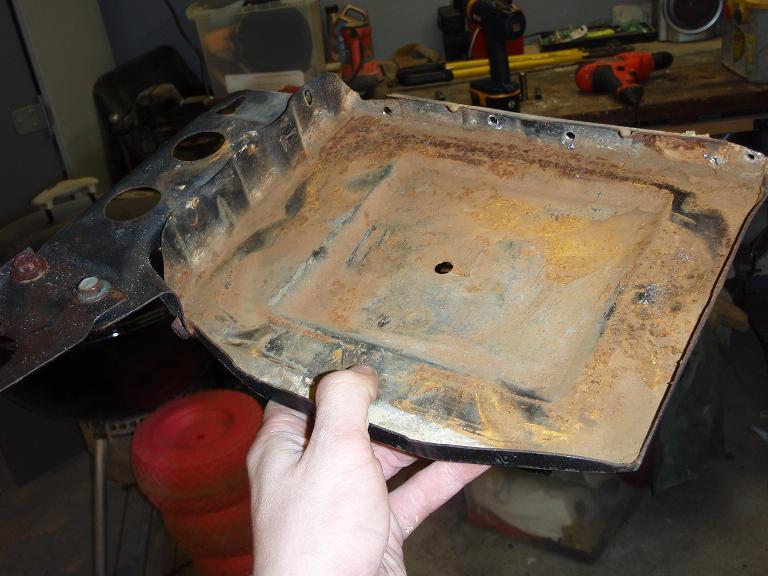

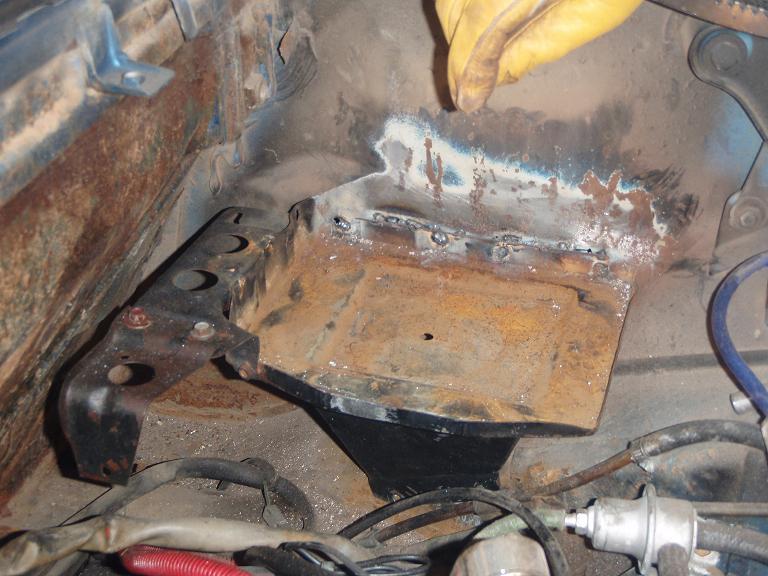

pics from a 73 2.0

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 10 2011, 04:05 PM
Post #9


Resident German
*************************

Group: Admin
Posts: 42,206
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(draganc @ Aug 10 2011, 01:56 PM) *
Here a picture of what I have.

You are missing the front part of the bracket that curves downward. You'll need that to secure the front of the ECU.

(IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
draganc
post Aug 10 2011, 06:45 PM
Post #10


Senior Member
***

Group: Members
Posts: 725
Joined: 2-November 09
From: central new jersey
Member No.: 11,000
Region Association: North East States
QUOTE(SirAndy @ Aug 10 2011, 02:05 PM) *

QUOTE(draganc @ Aug 10 2011, 01:56 PM) *
Here a picture of what I have.

You are missing the front part of the bracket that curves downward. You'll need that to secure the front of the ECU.

(IMG:style_emoticons/default/shades.gif)


Understood Andy! However, the pic that jsayre914 posted (thanks) shows that the bracket is fixed with one screw and two spot welds - on the long edge. Is that original?

Thanks,
d
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
draganc
post Aug 10 2011, 06:52 PM
Post #11


Senior Member
***

Group: Members
Posts: 725
Joined: 2-November 09
From: central new jersey
Member No.: 11,000
Region Association: North East States
PS: Can it be that there is a differance between late and early cars? I have seen now a few pics that have two spot welds and a screw and the side corner. Why spot weld and screw? I have a '75 2.0.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47
post Aug 11 2011, 06:21 AM
Post #12


Viermeister
****

Group: Members
Posts: 4,254
Joined: 7-August 03
From: Vienna, VA
Member No.: 994
Region Association: MidAtlantic Region
QUOTE(draganc @ Aug 10 2011, 04:45 PM) *

QUOTE(SirAndy @ Aug 10 2011, 02:05 PM) *

QUOTE(draganc @ Aug 10 2011, 01:56 PM) *
Here a picture of what I have.

You are missing the front part of the bracket that curves downward. You'll need that to secure the front of the ECU.

(IMG:style_emoticons/default/shades.gif)


Understood Andy! However, the pic that jsayre914 posted (thanks) shows that the bracket is fixed with one screw and two spot welds - on the long edge. Is that original?

Thanks,
d


Not original, just Joe's way of doing things (IMG:style_emoticons/default/happy11.gif) In Joe's pic, you can see the "curved piece" held to the bracket with the 2 (should be cheesehead) screws.

Parts can be viewed here:

http://www.914world.com/bbs2/index.php?showtopic=104293
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Aug 11 2011, 07:39 AM
Post #13


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
all of mine are held on with screws to the battery tray, and bolts to the ECU.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
draganc
post Aug 11 2011, 07:54 PM
Post #14


Senior Member
***

Group: Members
Posts: 725
Joined: 2-November 09
From: central new jersey
Member No.: 11,000
Region Association: North East States
QUOTE

Not original, just Joe's way of doing things (IMG:style_emoticons/default/happy11.gif) In Joe's pic, you can see the "curved piece" held to the bracket with the 2 (should be cheesehead) screws.

Parts can be viewed here:

http://www.914world.com/bbs2/index.php?showtopic=104293



OK, now we have the proof in the puding! The braket I have is not original, it doesn't have the two 'press-in' nuts at the back. it's just a flat piece.

Thanks to all inputs!
