> fixing door handles, tips, tricks, suggestions?
ripper911
post Dec 10 2011, 09:55 AM
Post #1


corde pulsum tangite
****

Group: Members
Posts: 2,920
Joined: 25-April 10
From: Powder Springs, GA
Member No.: 11,654
Region Association: South East States
I am about to get working on my outer door handles. They both broke on the same day right before leaving to petit le mans, but in different ways.

On the drivers side I think it's the little plastic piece on the inside.
On the passengers side the handle is loose due to the plate breaking.
I have a new little plastic thingey and a new metal base for the other handle.

Anyone with experience that is willing to offer any tips or suggestions will be rewarded in their next life.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
 Reply to this topicStart new topic
Replies(1 - 19)
Mark Henry
post Dec 10 2011, 10:03 AM
Post #2


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
The plastic thing you can buy. The plate I made a small 3/16ths metal piece tapped and with a groove, that looks stock, but clamps the plate down with the stock bolt.

I think it's URY914 that repairs these for low cost.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pete-stevers
post Dec 10 2011, 10:19 AM
Post #3


saved from fire!
****

Group: Members
Posts: 2,643
Joined: 10-October 04
From: Abbotsford,BC, Canada
Member No.: 2,914
Region Association: Pacific Northwest
Paul will fix em.. ( ury914)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Dec 10 2011, 11:32 AM
Post #4


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 121,116
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
You rang? (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ruby914
post Dec 10 2011, 11:45 AM
Post #5


Senior Member
***

Group: Members
Posts: 720
Joined: 26-April 09
From: Hawthorne, Ca
Member No.: 10,305
Region Association: None

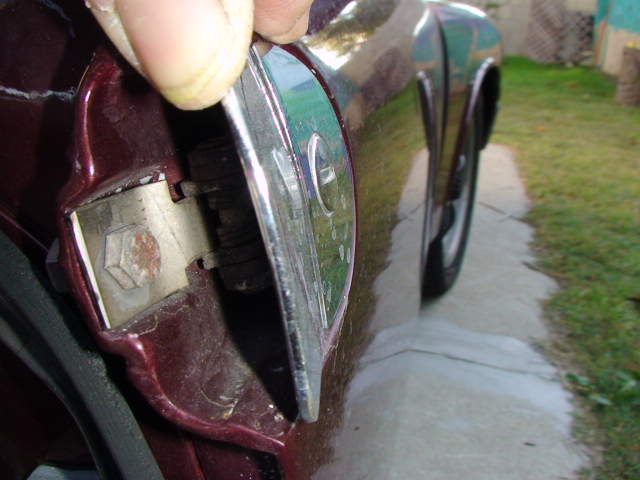

You may have broken yours the same place that I did mine.
I made a little steel clamp and used a nut and bolt.
It took a drill, hack saw, little file work and bending a joggle.
Works great.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThePaintedMan
post Dec 10 2011, 12:01 PM
Post #6


Advanced Member
****

Group: Members
Posts: 3,886
Joined: 6-September 11
From: St. Petersburg, FL
Member No.: 13,527
Region Association: South East States
Niiiiccee! (IMG:style_emoticons/default/beerchug.gif)

QUOTE(ruby914 @ Dec 10 2011, 12:45 PM) *

You may have broke yours the same place that I did mine.
I made a little steal clamp and used a nut and bolt.
It took a drill, hack saw, little file work and bending a joggle.
Works great.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dangrouche
post Dec 10 2011, 12:03 PM
Post #7


dangrouche
***

Group: Members
Posts: 550
Joined: 1-May 04
From: San Francisco Bay Area
Member No.: 2,012
Region Association: None
the driver side one should not involve drilling of any metal; I got one from Rich at High Performance House, Redwood city, CA and Rich told me that you cut off the old one with a pair of dykes. then you put some grease on the metal. while the handle is flexed and held open you take the new plastic piece and "load" it on. The plastic piece I had had sort of a diamond point whereas if you comparethe new one to the old one, you will see the pivot point is rounded. For the other door handle, if you have the replacement kit, which woudl conisist of the handle and a metric nut and bolt, you would drill out the old one. take a photo of the handle BEFORE taking it apart so you can see how the spring is loaded onto the assembly. Sorry no pics but when you take it apart you will see what I mean. good luck
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Dec 10 2011, 12:14 PM
Post #8


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 121,116
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None

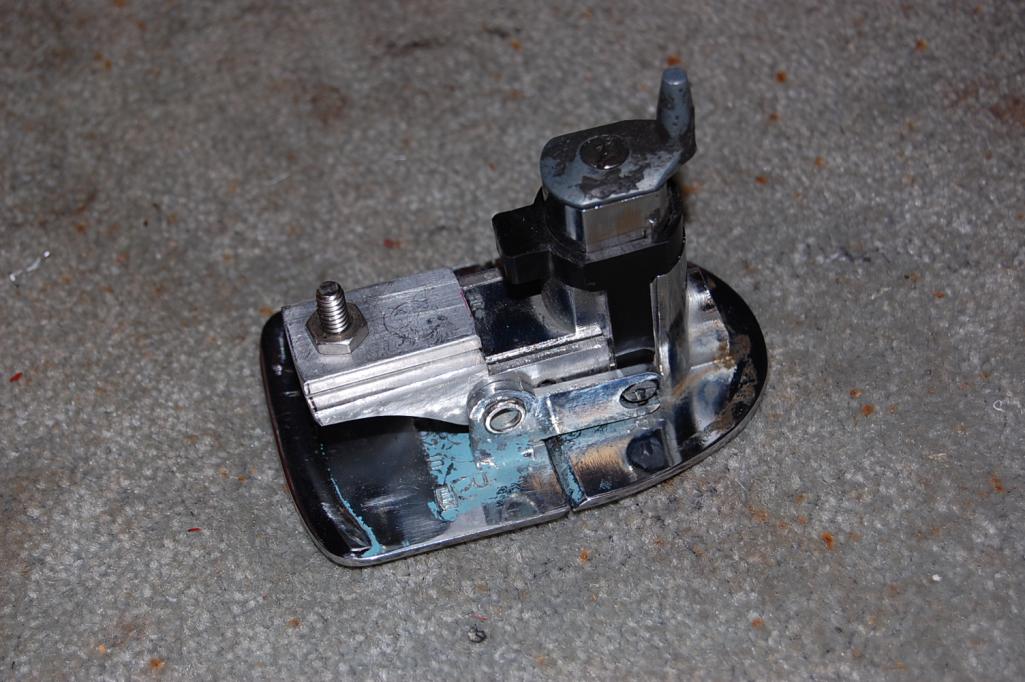

Using sheet metal is OK until it rusts and runs down your door. I've been doing this since I first fixed the one I broke in college. And that was a long time ago.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Dec 10 2011, 12:18 PM
Post #9


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 121,116
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
This is an old picture of the first one I fixed on my car. I use stainless steel nuts and bolts now,

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThePaintedMan
post Dec 10 2011, 12:26 PM
Post #10


Advanced Member
****

Group: Members
Posts: 3,886
Joined: 6-September 11
From: St. Petersburg, FL
Member No.: 13,527
Region Association: South East States
If you keep posting pictures I'm gonna get OCD and end up trying to do it myself Paul! Then I'll never end up coming to Tampa to see your car. Seriously, now I see how you've done it. Seems feasible. Just time consuming.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ripper911
post Dec 10 2011, 12:38 PM
Post #11


corde pulsum tangite
****

Group: Members
Posts: 2,920
Joined: 25-April 10
From: Powder Springs, GA
Member No.: 11,654
Region Association: South East States
I already have the parts, I'm pretty much just wondering if there is anything out of the ordinary that y'all have encountered that might pop up.

I think I'll re-key the passenger side while I'm doing this, as I understand it's fairly straight forward, swap out the little things that stick in the lock cylinder until the key works, right?

Maybe I'll send the next ones to Paul, but I am planning on fixing them this weekend so I can continue driving the car without much delay.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Dec 10 2011, 01:07 PM
Post #12


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 121,116
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
George, when you coming over? Call me on my cell, I sent you the number in the PM.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Dec 10 2011, 01:10 PM
Post #13


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 121,116
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Ripper, be careful not to break the flapper part of the handle when putting it back together. The spring makes it tough to get the bolt back in through the holes. I reuse the original pin on my repairs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ripper911
post Dec 11 2011, 04:49 AM
Post #14


corde pulsum tangite
****

Group: Members
Posts: 2,920
Joined: 25-April 10
From: Powder Springs, GA
Member No.: 11,654
Region Association: South East States
All went well, I got the handles fixed yesterday without any problem, and without any of my repair manuals.

Today is tune-up day.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfuerst911sc
post Dec 11 2011, 05:06 AM
Post #15


Advanced Member
****

Group: Members
Posts: 2,158
Joined: 4-May 06
From: Dahlonega , Georgia
Member No.: 5,980
Region Association: South East States
Paul did his repair on both of my door handles and they work great. If anyone is on the fence on this one it's a no brainer send them to Paul. You won't regret it and they'll probably outlast the car (IMG:style_emoticons/default/biggrin.gif) .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Dec 11 2011, 11:58 AM
Post #16


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 121,116
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
QUOTE(rfuerst911sc @ Dec 11 2011, 04:06 AM) *

Paul did his repair on both of my door handles and they work great. If anyone is on the fence on this one it's a no brainer send them to Paul. You won't regret it and they'll probably outlast the car (IMG:style_emoticons/default/biggrin.gif) .


Thank you kind Sir. I'm blushing. (IMG:style_emoticons/default/bye1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flash914
post Dec 11 2011, 11:21 PM
Post #17


Member
**

Group: Members
Posts: 124
Joined: 1-January 11
From: littlerock CA
Member No.: 12,554
Region Association: Southern California
While you are at it fix the root of the problem---the latch unit needs to be removed from the door and cleaned and lubed or the plastic part will bend again.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bryanf
post Dec 15 2011, 12:02 PM
Post #18


Member
**

Group: Members
Posts: 105
Joined: 18-January 06
From: Half Moon Bay, CA
Member No.: 5,435
I agree...as long as you have the door apart, pull the mechanism and clean it really well, lube it, inspect it for any bent of loose parts. Last one I fixed the rivet that holds the pivot for the release mechanism had loosened and the mechanism was binding...a couple taps with a hammer and a little lube and it works like new.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ripper911
post Dec 15 2011, 12:11 PM
Post #19


corde pulsum tangite
****

Group: Members
Posts: 2,920
Joined: 25-April 10
From: Powder Springs, GA
Member No.: 11,654
Region Association: South East States
The drivers side handle is smooth as a greased midget, but I may have to do a little more to the passenger door handle. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Dec 15 2011, 12:59 PM
Post #20


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 121,116
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Passenger side gets broken more often actually. Lack use and then you get some Bozo that rips the door open like it weighs as much as an American car door. Then they get in and slam it and weld it shut.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
