> Installing air box - but where?, never had one
r3dplanet
post Dec 31 2011, 03:41 PM
Post #1


Senior Member
***

Group: Members
Posts: 679
Joined: 3-September 05
From: Portland, Oregon
Member No.: 4,741
Region Association: None
My 1971 914 1.7L came to me with a very not-at-all-stock air cleaner assembly that looks like it was stolen from a Boxster.

I bought a paper-type round air cleaner from ebay that comes with a long bolt, but I think I'm missing a tube or mounting hardware or something. Can anyone post a photo or two showing how the thing is supposed to be connected?

Thanks!

-marcus
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 10)
Jeffs9146
post Dec 31 2011, 03:43 PM
Post #2


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
(IMG:style_emoticons/default/thisthreadisworthlesswithoutpics.gif)

We cant tell what you have from your discriptions!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r3dplanet
post Dec 31 2011, 04:52 PM
Post #3


Senior Member
***

Group: Members
Posts: 679
Joined: 3-September 05
From: Portland, Oregon
Member No.: 4,741
Region Association: None
I would think that anyone with a stock, round 1973 paper filter style air cleaner would know what it looks like and how it mounts. You see, the 1.7 liter engine has an air intake with large intake tube on its side. The earlier models used an oil bath, the 1973 model used a disposable paper filter. Both are circular and look somewhat similar. As far as I know, they have the same mounting hardware. Or maybe they don't. That's why I'm asking.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mrholland2
post Dec 31 2011, 04:55 PM
Post #4


Senior Member
***

Group: Members
Posts: 761
Joined: 7-September 11
From: Santa Maria,CA
Member No.: 13,531
Region Association: Central California
QUOTE(spankmeister7 @ Dec 31 2011, 02:52 PM) *

I would think that anyone with a stock, round 1973 paper filter style air cleaner would know what it looks like and how it mounts.


It really depends on how much stuff has been changed by previous owners. I'm sure that when mine moves to other hands, they will find many things completely insane and impossible to describe online without photos, especially after I get done with my new air cleaner setup. . it will torture Porsche purists forever (evil laugh). (IMG:style_emoticons/default/evilgrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47
post Dec 31 2011, 06:12 PM
Post #5


Viermeister
****

Group: Members
Posts: 4,254
Joined: 7-August 03
From: Vienna, VA
Member No.: 994
Region Association: MidAtlantic Region

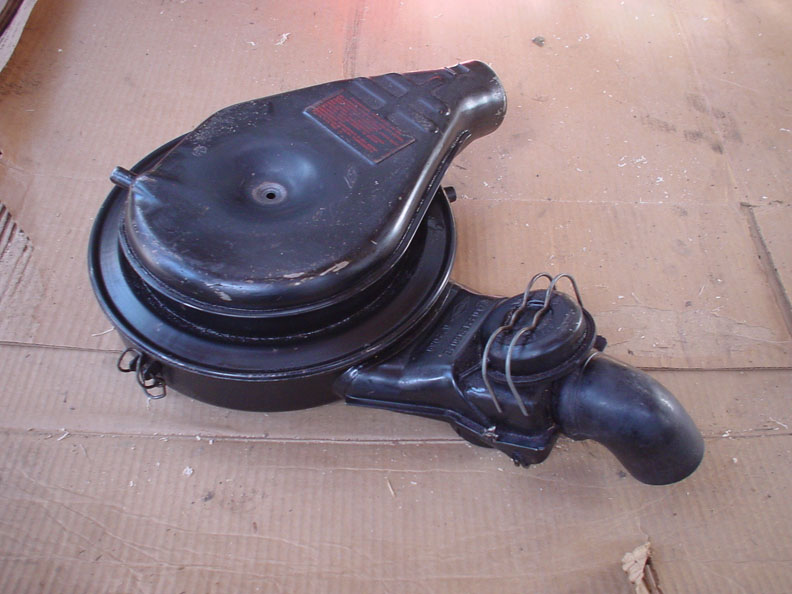

Here is a pic of an oil bath air cleaner, paper filter air cleaner is similar


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Dec 31 2011, 06:39 PM
Post #6


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
QUOTE
My 1971 914 1.7L came to me with a very not-at-all-stock air cleaner assembly that looks like it was stolen from a Boxster


Maybe I misunderstood!

I guess you bought a replacement complete 1.7 paper filter to swap out with the Boxster type that the PO had put on!

It sounded like you purchased a paper filter to fit in the "Boxster" type that you had!

Sorry (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wingnut86
post Dec 31 2011, 06:41 PM
Post #7


...boola la boo boola boo...
***

Group: Members
Posts: 1,053
Joined: 22-April 10
From: South Carolina
Member No.: 11,645
Region Association: South East States
Yep, those oil baths scream "Turbo Mount".

Or massive chrome and blue silicone air snorkel (IMG:style_emoticons/default/beer3.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r3dplanet
post Dec 31 2011, 07:19 PM
Post #8


Senior Member
***

Group: Members
Posts: 679
Joined: 3-September 05
From: Portland, Oregon
Member No.: 4,741
Region Association: None
Well, yes. I appreciate the responses. My initial post was just too vague.

Anyway, my new (old) air cleaner assembly looks very much like the one above except that its innards are different and its made of plastic instead of metal. But they would mount the same way.

I think I'm missing what the mount looks like, and what (if any) ducting I need. I think this because I have no mounts or ducts.

-marcus
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Dec 31 2011, 07:36 PM
Post #9


Advanced Member
****

Group: Members
Posts: 2,092
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California
There is a 3 legged mounting bracket that goes over the intake plenum. It bolts to the case at the rear by the bell housing to one of the bolts where the case halves meet. Then the 2 front legs go to a couple screw holes down by the sheet metal (if memory serves me). The air cleaner sits on the bracket and a long bolt goes thru it into a nut in the bracket.
I don't have any picture availible.
Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mrholland2
post Dec 31 2011, 10:51 PM
Post #10


Senior Member
***

Group: Members
Posts: 761
Joined: 7-September 11
From: Santa Maria,CA
Member No.: 13,531
Region Association: Central California
QUOTE(jcd914 @ Dec 31 2011, 05:36 PM) *

There is a 3 legged mounting bracket that goes over the intake plenum. It bolts to the case at the rear by the bell housing to one of the bolts where the case halves meet. Then the 2 front legs go to a couple screw holes down by the sheet metal (if memory serves me). The air cleaner sits on the bracket and a long bolt goes thru it into a nut in the bracket.
I don't have any picture availible.
Jim



Could there be diagrams on the Pelican Parts site?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesM
post Jan 1 2012, 12:17 AM
Post #11


Advanced Member
****

Group: Members
Posts: 2,082
Joined: 6-April 06
From: Kearns, UT
Member No.: 5,834
Region Association: Intermountain Region
You need the air cleaner bracket and the U shaped intake boot to connect the air cleaner to the throttle body.

couldnt find a pic on pelican so i had to go last resort on this...


http://www.autoatlanta.com/Porsche-Air-Cle...039129541A.html

intake boot
http://www.ebay.com/itm/Porsche-914-1-7-th...=item35ae0953a3


good luck finding a paper element that is a proper fit, the original is NLA and every one i have seen sold to replace it leaves gaps at the sealing surfaces.
