> Oil Catch Can Options
kupcar
post Dec 16 2015, 10:28 AM
Post #1


Member
**

Group: Members
Posts: 95
Joined: 14-February 13
From: Chicago
Member No.: 15,528
Region Association: None
My 914-6 conversion probably needs some sort of catch can. The previous owner has the crankcase vented to the oil tank. The vent from the tank simply has a sponge zip tied to the opening. It seems to work ok and I've never had a issue with anything but there has to be a better alternative. Something simple. Do most use a catch can, or can a small mesh filter be used? I cleaned a bit of oil residue off the motor when I was detailing the car. My guess is it came from venting into the engine compartment. Now that it looks pretty, I'd like to keep it that way. Any suggestions? Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
 Reply to this topicStart new topic
Replies(1 - 19)
SirAndy
post Dec 16 2015, 12:26 PM
Post #2


Resident German
*************************

Group: Admin
Posts: 42,469
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
I used an old Gatorade bottle with a few holes drill on top to relieve pressure. Works great for collecting the oil vapors and moisture.

I turned the holes in the bottle to face the air filter so any vapors escaping get burnt. (IMG:style_emoticons/default/biggrin.gif)

(IMG:http://www.914world.com/bbs2/uploads/post-179-1255294222.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Dec 16 2015, 01:13 PM
Post #3


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
At the track I am often amazed how many can put the most redneck oil catch can on an otherwise beautiful car.

Yours above is actually nice compared to some :-)

I think it's kind of like a redneck badge of honor having a Budweiser can ziptied to your vintage racecar.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Dec 16 2015, 01:17 PM
Post #4


Spooling.... Please wait
**********

Group: Members
Posts: 13,380
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
This is the one I am going to use.

Gonna fill it with stainless steel wool.

http://www.ebay.com/itm/201249093731?_trks...K%3AMEBIDX%3AIT
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
boxsterfan
post Dec 16 2015, 01:20 PM
Post #5


914's are kewl
***

Group: Members
Posts: 1,776
Joined: 6-June 03
From: San Ramon, CA
Member No.: 791
Region Association: Northern California
What's the part# on that gatorade bottle? (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 16 2015, 01:40 PM
Post #6


Resident German
*************************

Group: Admin
Posts: 42,469
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(boxsterfan @ Dec 16 2015, 11:20 AM) *
What's the part# on that gatorade bottle? (IMG:style_emoticons/default/biggrin.gif)

Kinda hard to read in the pic but i think it starts with GAT ...
(IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Dec 16 2015, 04:58 PM
Post #7


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
Mine

(IMG:style_emoticons/default/blink.gif) (IMG:style_emoticons/default/beerchug.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kupcar
post Dec 16 2015, 05:18 PM
Post #8


Member
**

Group: Members
Posts: 95
Joined: 14-February 13
From: Chicago
Member No.: 15,528
Region Association: None
A+ for creativity across the board. Has anyone ever puked up enough oil to catch anything? I'm tempted to stick a k&n crankcase breather on the vent opening.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 16 2015, 05:22 PM
Post #9


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
(IMG:style_emoticons/default/smile.gif) Andy is a redneck......hahahaha
Not something I would say....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 16 2015, 05:44 PM
Post #10


Resident German
*************************

Group: Admin
Posts: 42,469
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(kupcar @ Dec 16 2015, 03:18 PM) *
Has anyone ever puked up enough oil to catch anything?

Absolutely!

I have to clean out the catch-can every other week and it's usually pretty full after an autocross.
(IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 16 2015, 05:45 PM
Post #11


Resident German
*************************

Group: Admin
Posts: 42,469
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(r_towle @ Dec 16 2015, 03:22 PM) *
(IMG:style_emoticons/default/smile.gif) Andy is a redneck......hahahaha
Not something I would say....

I've heard worse ...
(IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
patssle
post Dec 16 2015, 06:08 PM
Post #12


Senior Member
***

Group: Members
Posts: 981
Joined: 28-August 09
From: Houston, TX
Member No.: 10,741
Region Association: None
Running Gatorade here too. Andy was my inspiration.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Dec 16 2015, 06:15 PM
Post #13


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
QUOTE(kupcar @ Dec 16 2015, 03:18 PM) *

A+ for creativity across the board. Has anyone ever puked up enough oil to catch anything? I'm tempted to stick a k&n crankcase breather on the vent opening.


You can see the mess around my catch bottle when it blew off before I drilled a vent hole. It can be 1/4" to 1/2" a week depending on how hard you are driving it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Dec 16 2015, 06:26 PM
Post #14


914 Guru
*****

Group: Members
Posts: 7,729
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
I made one for my last 6 .it was a piece of 2" aluminium tubing with a bottom welded on with a fitting on top for a small k&n filter with a hose fitting on the side.. I attached it to the fan housing opposite of the coil.. It worked great..

I should make a bunch of them
User is online!Profile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Dec 16 2015, 06:45 PM
Post #15


I drive my car everyday
*****

Group: Members
Posts: 8,373
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666
I had a carbed 4 for a while that used a small air compressor water separator. Clear cylinder with a petcock on the bottom for draining. Worked great and no oily residue in engine bay.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
11tenths
post Dec 16 2015, 08:01 PM
Post #16


Ve get too soon old, und too late schmart
**

Group: Members
Posts: 142
Joined: 11-October 12
From: Islip, Long Island, NY
Member No.: 15,026
Region Association: North East States
If only the factory had put one under the battery tray...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Dec 16 2015, 08:31 PM
Post #17


914 Guru
*****

Group: Members
Posts: 5,065
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
QUOTE(kupcar @ Dec 17 2015, 12:18 PM) *

A+ for creativity across the board. Has anyone ever puked up enough oil to catch anything? I'm tempted to stick a k&n crankcase breather on the vent opening.


I posted a the same thread on here recently ,some said the K&N will oil mist your engine bay,I researched and found that you need to buy a can that has the largest fitting possible to work,I bought a D1 boy racer 600ml unit with 15mm fittings,appears there not many much bigger.
I then acquired a silicone reducer to go from my PMS filler neck (24mm) to 15mm on catch can.
I haven't decided if I go to a breather in the top of the can or run a hose back to the block,the fitting is already tapped so that's an option .
I presume the case is in some point of vacuum so this should pull the separated fumes from the can ??,the tank breather works this way so all should be good.
I don't have the option to run into the intake and don't want to besides.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
porschetub
post Dec 16 2015, 10:01 PM
Post #18


914 Guru
*****

Group: Members
Posts: 5,065
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
QUOTE(The Cabinetmaker @ Dec 17 2015, 01:45 PM) *

I had a carbed 4 for a while that used a small air compressor water separator. Clear cylinder with a petcock on the bottom for draining. Worked great and no oily residue in engine bay.


yea that would work well as its designed for that,these are very effective,same principle different application....right.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Downunderman
post Dec 17 2015, 12:42 AM
Post #19


Senior Member
***

Group: Members
Posts: 852
Joined: 31-May 03
From: Sydney, Australia
Member No.: 766
Region Association: Australia and New Zealand
I vented the catch tank on my 6 back into the bottom of the air cleaner so it avoided the filter and got sucked back into the motor.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Dec 17 2015, 12:44 AM
Post #20


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None

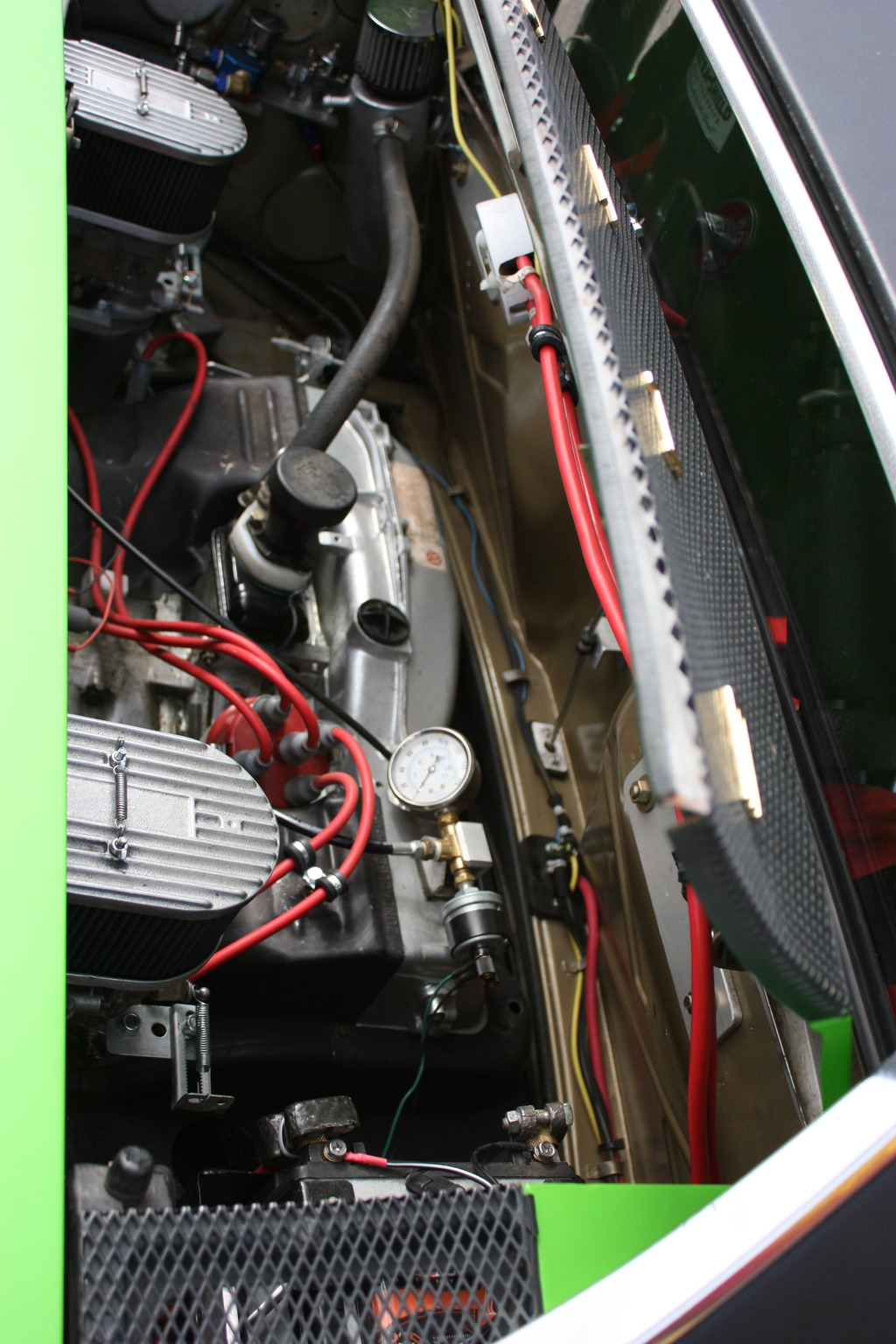

here's mine for a 4:

(IMG:http://www.914world.com/bbs2/uploads_offsite/i366.photobucket.com-10819-1450334677.1.jpg)

The added white piece on the stock filler-neck/breather-box was to allow me to attach a very large dia hose and to point towards the drivers side.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
