> Yippee...problem solved...I've got big brakes :), up front at least for now :)
Mueller
post Mar 20 2005, 01:59 AM
Post #1


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
The pad overhang was not as bad as I had originally thought.....taking the pads to the bench grinder (recommended by a high performance brake pad engineer), I just need to add a chamfer to the edge of the pad to get rid of the overhang......pretty darn easy once I gave it a shot....

the adapter itself will be pretty easy to make and shouldn't cost me much at all for supplies....

I know have to decide what color to paint the calipers (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
3 Pages V  1 2 3 >
 Reply to this topicStart new topic
Replies(1 - 19)
Mueller
post Mar 20 2005, 02:00 AM
Post #2


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

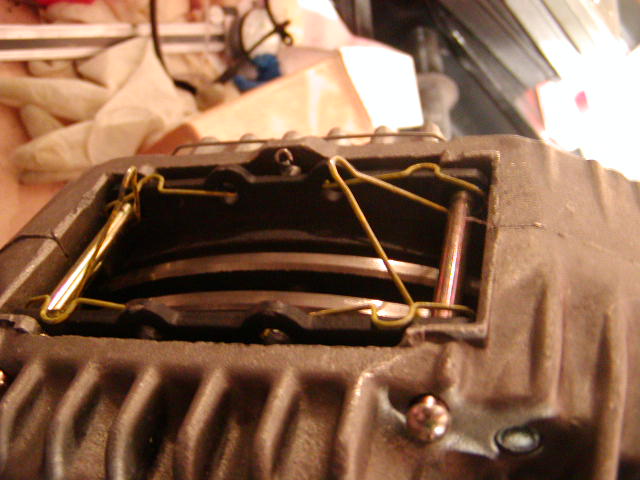

closeup of the pad overhang


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 20 2005, 02:01 AM
Post #3


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
this ought to look nice behind my Revolution rims once painted and detailed a little better


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Twystd1
post Mar 20 2005, 02:25 AM
Post #4


You don't want to know... really.....
****

Group: Members
Posts: 2,515
Joined: 12-September 04
From: Newport Beach, California
Member No.: 2,743
Mike... You are simply amazing........

Sometimes I wish I was you...... Just way better looking... (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)

Twystd1
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Mar 20 2005, 06:15 AM
Post #5


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 127,533
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Please take a grinder and get rid of the "MAZDA".

Smells of burning rice. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Qarl
post Mar 20 2005, 07:23 AM
Post #6


Shriveled member
*****

Group: Benefactors
Posts: 5,233
Joined: 8-February 03
From: Florida
Member No.: 271
Region Association: None
It looks pretty nice... except for the MAZDA crap...

(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Mar 20 2005, 07:58 AM
Post #7


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
Did I miss an earlier thread ? Have you given details on the source of those calipers ? If not, please provide !

Michel Richard
914/6 2.2E MFI
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Mar 20 2005, 09:28 AM
Post #8


914 Freak!
***************

Group: Retired Admin
Posts: 20,180
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Now that's taking stock to a new level. (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

Would that put you in Ai for autocrossing since you still have the stock suspension. (IMG:http://www.914world.com/bbs2/html/emoticons/lol2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 20 2005, 09:37 AM
Post #9


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
the "mazdaaaaa" will be milled off.....I'd like to remove the little "hump" below the mazda as well, but I need to remove the pistons to make sure it doesn't have any value to the calipers....


Michel,

calipers came from '86 to '90 or '91 turbo RX-7,
2 different calipers came on those cars, one being this one, the other one a cast iron 2 piston caliper, I bought these for $50 each fully rebuilt (minus the pads), another club member here has bought a bunch at the pick-n-pull autosalvage places for about $15 a pop.

the pads cover the disc very nicely (too much at the OD, but that is taken car of now)

the adapter is on a 3" spacing /4 strut, basic dimensions of the adapter are 7x1.5x3/4

the rotors are 12.19" in diameter and the same thickness as the /6 and early 911 rotors....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty914
post Mar 20 2005, 09:46 AM
Post #10


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924
i just wonder how long the adapter will hold, i mean if you over heat the brakes one time wont that wood catch on fire (IMG:http://www.914world.com/bbs2/html/emoticons/lol2.gif)

on a serious note, what was the total costs, we know 100 for the calibers, but how much are all of the other parts? last ? how did your weight compare with stock parts, did you gain or loose over all weight ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 20 2005, 09:53 AM
Post #11


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
you like the wooden mock up?? (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

I was wondering when someone noticed it, hahahaha


rotors= $30 each
aluminum hat= $125 each (way too much, but you only have to buy it once and I know it can be made cheaper)
bolt kit for rotor= $15

I have not done a weight comparison yet, I'm going to try and do that Monday, my scale at home is not accurate enough.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 20 2005, 09:56 AM
Post #12


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE (McMark @ Mar 20 2005, 08:28 AM)
Now that's taking stock to a new level. (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

Would that put you in Ai for autocrossing since you still have the stock suspension. (IMG:http://www.914world.com/bbs2/html/emoticons/lol2.gif)

when I was depressed last night after the trial mock up and thought it wouldn't work at all, I mentioned it to my wife, she asked "why are they not like the stock brakes and why are they bigger???"

well, um, you see...oh never mind.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty914
post Mar 20 2005, 09:58 AM
Post #13


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924
so 500 including pads... ouch
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Mar 20 2005, 10:00 AM
Post #14


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) I was going to get a set of 4 piston Porsche brakes AGAIN (put a set on the 944) but for the price difference I like what you have done! What are you putting on the rear? I picked up a set of Ford ?(don't remember the model of the car) front brakes for my CJ's rear, and may try them on a 914. They have the parking brake on the front of that particular model. Also have a set from a Lincon mark 4 for my Suburban rears. Thems is biguns, but are single piston floaters.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914efi
post Mar 20 2005, 10:09 AM
Post #15


Member
**

Group: Members
Posts: 140
Joined: 14-June 04
From: Westport,MA
Member No.: 2,204
Region Association: None
I milled the 'mazda' off mine. I wish I didn't, it adds an outlaw flair and might get the purists really pissed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
boxstr
post Mar 20 2005, 10:14 AM
Post #16


MEMBER:PACIFIC NORTHWEST REGION
*****

Group: Members
Posts: 7,522
Joined: 25-December 02
From: OREGON
Member No.: 12
Region Association: Pacific Northwest
ZOOM ZOOM.....
CCLINBASMATI
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Mar 20 2005, 12:08 PM
Post #17


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California
Wow mike. That's awesome. Good job! (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
neo914-6
post Mar 20 2005, 12:15 PM
Post #18


neo life
*****

Group: Members
Posts: 5,086
Joined: 16-January 03
From: Willow Glen (San Jose)
Member No.: 159
QUOTE
ZOOM ZOOM.....
CCLINBASMATI
(IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)

Nice work Mike, nothing wrong with newer & cheaper or just being different! After all the R&D and testing, will you market adapters?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Mar 20 2005, 12:19 PM
Post #19


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE (Neo914 @ Mar 20 2005, 11:15 AM)
QUOTE
ZOOM ZOOM.....
CCLINBASMATI
(IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)

Nice work Mike, nothing wrong with newer & cheaper or just being different! After all the R&D and testing, will you market adapters?

I don't see a market for this at all...too odd ball of a combo and kinda pricey.....I'm pretty sure it'll work on a 911 strut as well, but even then, not much of a market...no big deal, I built these for myself (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Mar 20 2005, 03:35 PM
Post #20


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
QUOTE (Mueller @ Mar 20 2005, 07:37 AM)

Michel,

calipers came from '86 to '90 or '91 turbo RX-7,
2 different calipers came on those cars, one being this one, the other one a cast iron 2 piston caliper, I bought these for $50 each fully rebuilt (minus the pads), another club member here has bought a bunch at the pick-n-pull autosalvage places for about $15 a pop.

the pads cover the disc very nicely (too much at the OD, but that is taken car of now)

the adapter is on a 3" spacing /4 strut, basic dimensions of the adapter are 7x1.5x3/4

the rotors are 12.19" in diameter and the same thickness as the /6 and early 911 rotors....



Thanks
