Considering I actually went to school for electronics engineering, I can't believe I am stumped by what has to be the crappiest wiring diagram in the history of the automobile. I have never seen a diagram where lines just go "off the page" into the ether without explanation.

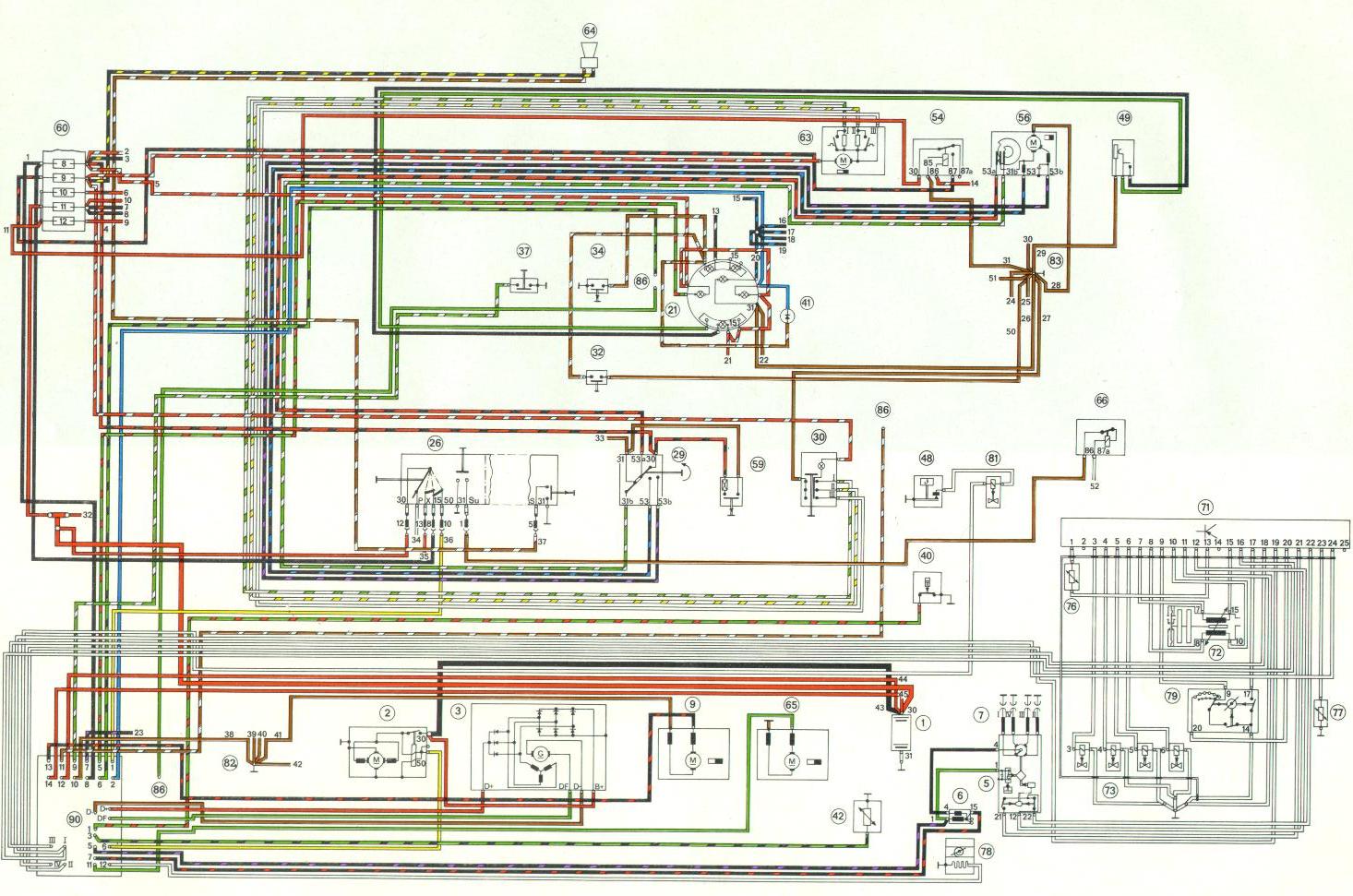

Can someone please tell me where the wires with the green arrows go to? I had my harness out of the car for a resto and am cleaning it up. The lower one is for the headlight motors but I can't determine from the diagram where it goes. Is there a reference for the numbers somewhere? THANKS! Attached thumbnail(s)
|
   |

|
  |
Replies(1 - 7)
| SA-914 |
Apr 12 2016, 10:06 AM
Post
#2
|
|
Member Group: Members Posts: 129 Joined: 30-June 14 From: San Antonio,tx Member No.: 17,566 Region Association: Southwest Region |
If you look at next page, it shows them connected...1 goes to the regulator plate...
|
|
|
|
| Catorse |
Apr 12 2016, 10:48 AM
Post
#3
|
|
Member Group: Members Posts: 194 Joined: 27-August 15 From: Los Angeles Member No.: 19,106 Region Association: Southwest Region |
QUOTE(SA-914 @ Apr 12 2016, 09:06 AM)  If you look at next page, it shows them connected...1 goes to the regulator plate... Wow. I didn't even know there was a second page. But now this leads to more questions than it answers....the other side of the headlight motor is connected to the....wait for it....fresh air blower? WTF???? Attached thumbnail(s)
|
|
|
|
| walterolin |
Apr 12 2016, 11:07 AM
Post
#4
|
|
Senior Member Group: Members Posts: 685 Joined: 30-November 11 From: Louisville, Ky Member No.: 13,838 Region Association: South East States |
Get the factory schematic for your car from the Haynes manual. It is hard to follow, but if you are patient and can read a schematic, it will work. The color coded one you are working with is easier to follow - to a degree - but it is incomplete. For example, it does not show the internals on the door light switches which the Haynes does, and there was something with the headlight circuit - can't remember - that was missing.
|
|
|
|
| Dtjaden |
Apr 12 2016, 09:51 PM
Post
#5
|
|
Member Group: Members Posts: 232 Joined: 25-May 13 From: Morgan Hill, CA Member No.: 15,915 Region Association: Northern California |
All of the wiring diagrams are available on the Pelican Parts web site here:
http://www.pelicanparts.com/914/914_electrical_diagrams.htm 1970-1973 are old style point to point diagrams like you attached. 1974-1976 are newer current flow style diagrams that are more universally used my manufacturers now. I have never found any significant errors in the diagrams referenced above. I also find the current flow diagrams somewhat easier to use. Darryl |
|
|
|
| walterolin |
Apr 12 2016, 10:27 PM
Post
#6
|
|
Senior Member Group: Members Posts: 685 Joined: 30-November 11 From: Louisville, Ky Member No.: 13,838 Region Association: South East States |
You are correct, Darryl, I got this color coded schematic mixed up with another.
|
|
|
|
| EdwardBlume |
Apr 13 2016, 07:52 AM
Post
#7
|
|
914 Wizard Group: Members Posts: 12,338 Joined: 2-January 03 From: SLO Member No.: 81 Region Association: Central California
|
I bought the color placemat off eBay and it helped more.... even though I'm color blind.
|
|
|
|
| ClayPerrine |
Apr 13 2016, 02:40 PM
Post
#8
|
|
Life's been good to me so far..... Group: Admin Posts: 16,444 Joined: 11-September 03 From: Hurst, TX. Member No.: 1,143 Region Association: NineFourteenerVille
|
If you think this is bad...
Try an 80s vintage Ferrari wiring diagram. All hand drawn in pencil, and labeled in Italian. Then they were photocopied for distribution. And they made changes to the harness, but never updated the diagrams. I used to tell customers with Ferrari electrical problems they had to supply a wiring diagram, and I would charge them 8 hours labor so I could translate it BEFORE I would even open the door of the car. You know, they would pay it. Not because they were wealthy, but because no one else in the area would touch Ferrari wiring. |
|
|
|
|
