> My New to me 914
rothaus
post Jun 4 2016, 12:53 PM
Post #1


Member
**

Group: Members
Posts: 119
Joined: 20-November 10
From: Virginia
Member No.: 12,404
Region Association: None
Hi, I own 911 Porsches for a while now, and finally now I picked up a 914. It's a 76 2.0, Sunlight Yellow. The car was converted to Carbs by the PO.

Here some pictures.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338266.1.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1465066426.2.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1465066427.3.jpg)

Cheers
Engelbert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
3 Pages V  1 2 3 >
 Reply to this topicStart new topic
Replies(1 - 19)
ndfrigi
post Jun 4 2016, 01:25 PM
Post #2


Advanced Member
****

Group: Members
Posts: 2,978
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California
Beautiful! Congratulation on this newly purchased!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cuda911
post Jun 4 2016, 01:36 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,489
Joined: 20-May 14
From: Oceanside (N. San Diego County), CA
Member No.: 17,376
Region Association: Southern California
Congrats, looks great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jun 4 2016, 01:42 PM
Post #4


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Very nice.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mark04usa
post Jun 4 2016, 01:45 PM
Post #5


'70 1.7 Tangerine
**

Group: Members
Posts: 361
Joined: 14-September 09
From: Austin TX
Member No.: 10,805
Region Association: Southwest Region
(IMG:style_emoticons/default/welcome.png) Great looking car with cool interrior!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThunderbirdDrive
post Jun 4 2016, 01:51 PM
Post #6


Newbie
*

Group: Members
Posts: 31
Joined: 3-March 16
From: Toronto Canada
Member No.: 19,724
Region Association: Canada
Very nice. Love the seats.
Just picked up a 76 2.0 last week myself
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RickyTicky
post Jun 4 2016, 02:12 PM
Post #7


Newbie
*

Group: Members
Posts: 18
Joined: 29-June 14
From: Buffalo, NY
Member No.: 17,564
Region Association: None
Congrats and welcome. Currently rebuilding a 74 2.0 and did the carbs myself... itching to see how it rides
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom_T
post Jun 4 2016, 02:23 PM
Post #8


TMI....
*****

Group: Members
Posts: 8,321
Joined: 19-March 09
From: Orange, CA
Member No.: 10,181
Region Association: Southern California
Congratz - nice find!

After you run it a bit, you may want to return it to D-jet EFI, unless it's a built motor requiring the carbs, as the EFI was great!

(IMG:style_emoticons/default/welcome.png)

Cheers! (IMG:style_emoticons/default/beerchug.gif)
Tom
///////
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Camaro Mike
post Jun 4 2016, 02:29 PM
Post #9


Member
**

Group: Members
Posts: 89
Joined: 19-December 14
From: SW Chicagoish
Member No.: 18,234
Region Association: Upper MidWest
It looks great, congrats!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jun 4 2016, 06:19 PM
Post #10


Hey nice rack! -Celette
***************

Group: Members
Posts: 21,239
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
(IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/welcome.png) (IMG:style_emoticons/default/assimilate.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BeatNavy
post Jun 4 2016, 06:28 PM
Post #11


Certified Professional Scapegoat
****

Group: Members
Posts: 2,962
Joined: 26-February 14
From: Easton, MD
Member No.: 17,042
Region Association: MidAtlantic Region
(IMG:style_emoticons/default/welcome.png)

Whereabouts in the commonwealth are you?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rothaus
post Jun 6 2016, 10:46 AM
Post #12


Member
**

Group: Members
Posts: 119
Joined: 20-November 10
From: Virginia
Member No.: 12,404
Region Association: None
Thanks for the welcome.

I'm located south-west of Richmond.

I will soon put up a page for the 914 in my Garage website Airboxer.com

Cheers
Engelbert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsnd
post Jun 6 2016, 10:49 AM
Post #13


You wanted a horse, but got a goat. Nobody wants a goat....
****

Group: Members
Posts: 2,861
Joined: 12-February 12
From: North Shore, MA
Member No.: 14,124
Region Association: North East States
Great.

I always liked the plaid inserts...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whitetwinturbo
post Jun 7 2016, 09:27 PM
Post #14


Honey, does this wing make my ass look fat?
***

Group: Members
Posts: 1,391
Joined: 22-October 11
From: Newport Beach/Kalefornya/USA
Member No.: 13,704
Region Association: Southern California
Those seats (IMG:style_emoticons/default/drooley.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
steuspeed
post Jun 7 2016, 09:59 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,011
Joined: 12-July 11
From: Portland, Oregon
Member No.: 13,308
Region Association: Pacific Northwest
Looks like the 914rubber.com seat covers.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Jun 7 2016, 11:27 PM
Post #16


The rubber man
**********

Group: Members
Posts: 12,772
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
Yes very nice plaid!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rothaus
post Jun 25 2016, 03:43 PM
Post #17


Member
**

Group: Members
Posts: 119
Joined: 20-November 10
From: Virginia
Member No.: 12,404
Region Association: None
The car had already major surgery to fix the hell hole, so I cannot take credit for that, as well for the engine rebuild.

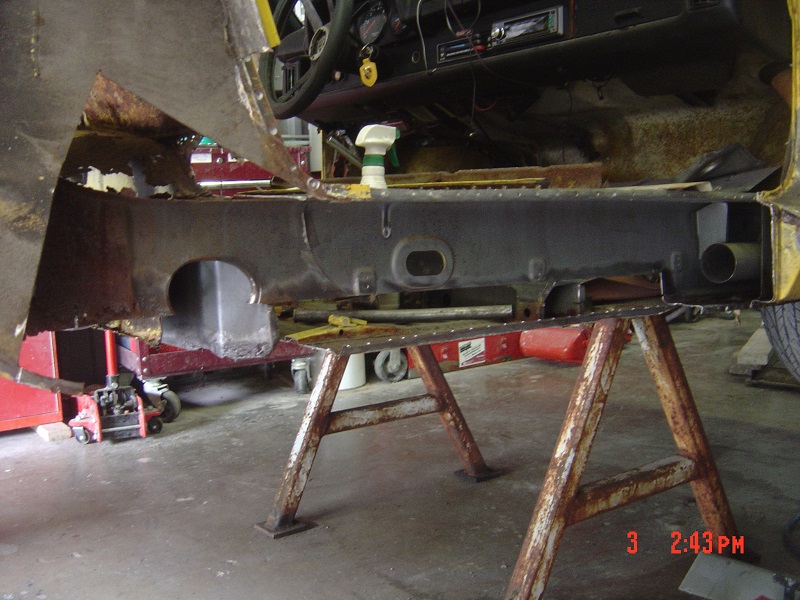

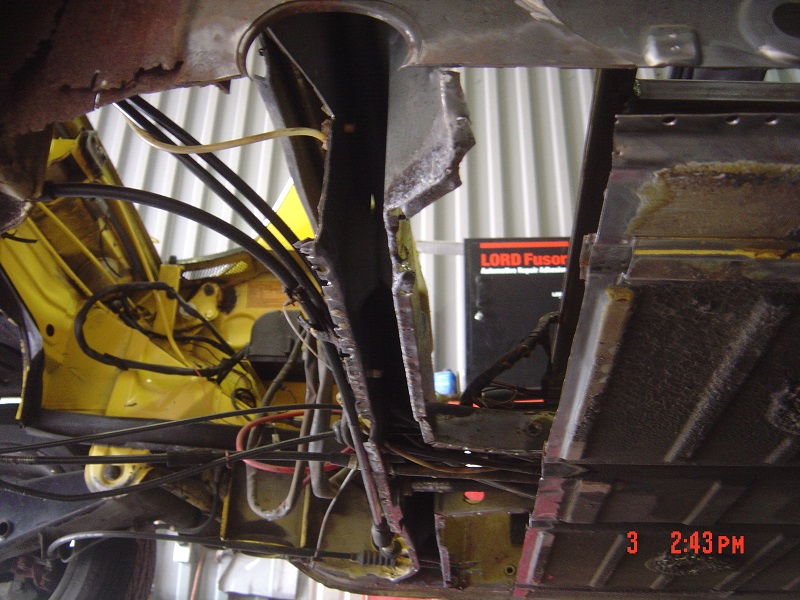

Here some pictures from the surgery
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466890998.1.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466890999.2.jpg)

So now it's to start work with some things these car have.

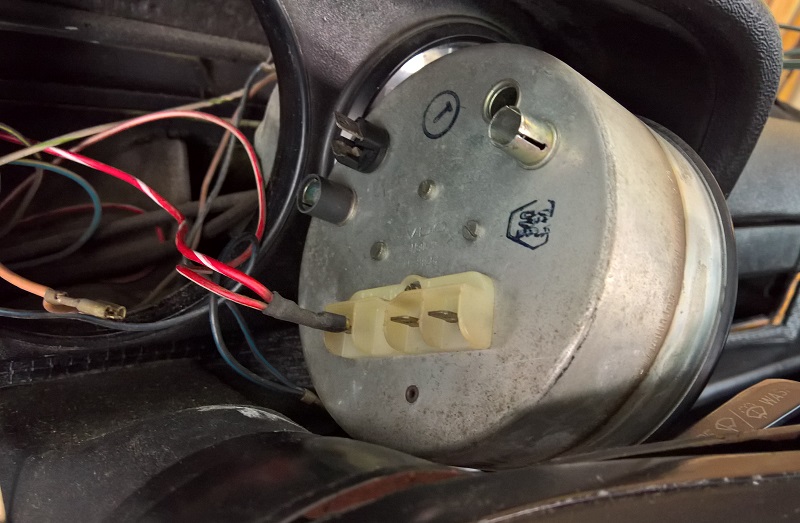

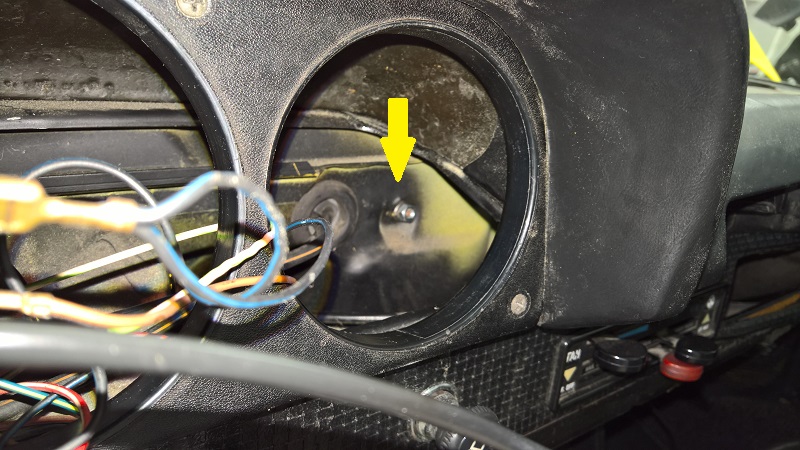

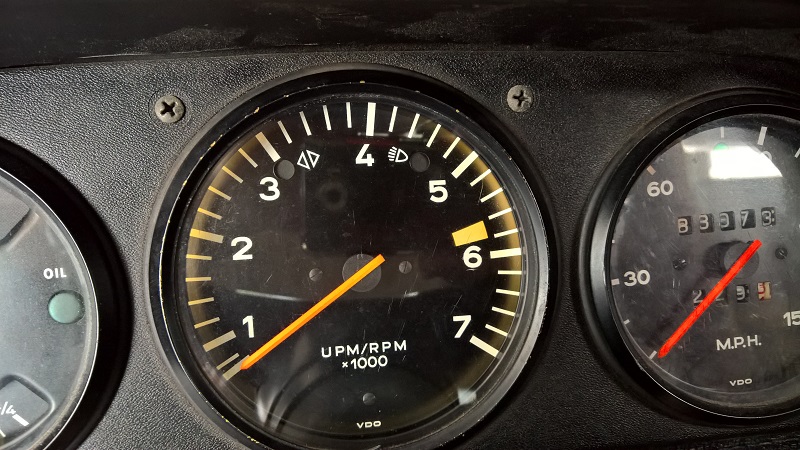

The Tach was not working and I found one for replacement. So, out with the old and in with the working one.

(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466890999.3.jpg)

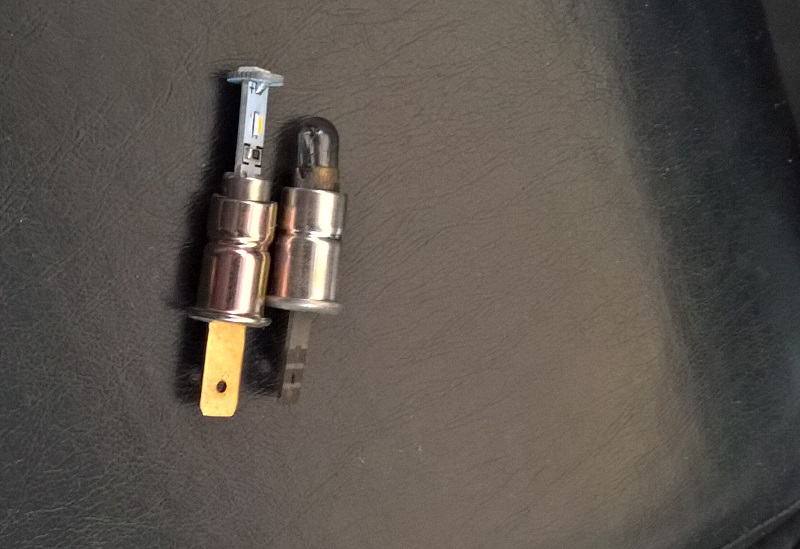

This was a good opportunity to replace the BA7s instrument lights with LED vintage white.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466890999.4.jpg)

Here before
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891000.5.jpg)

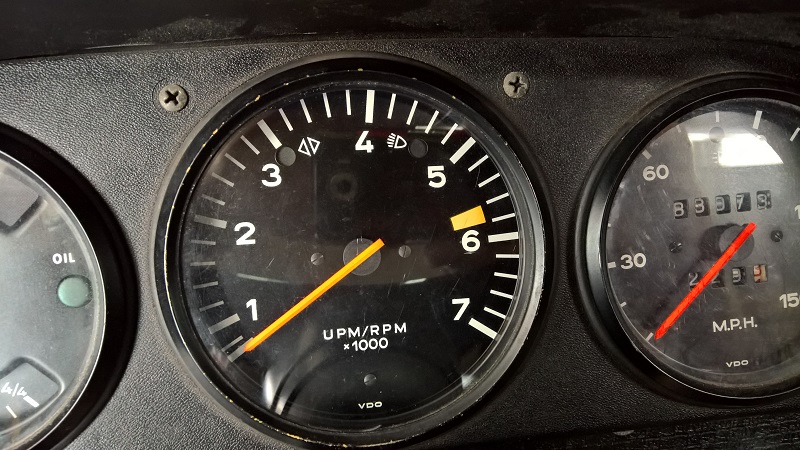

And here after
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891000.6.jpg)

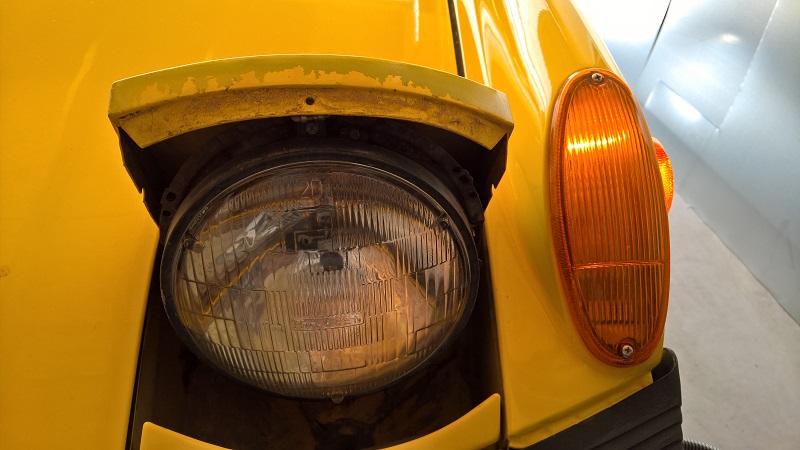

The next is the headlights, I cannot believe that people can still drive in the dark with those sealed beams.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891001.7.jpg)

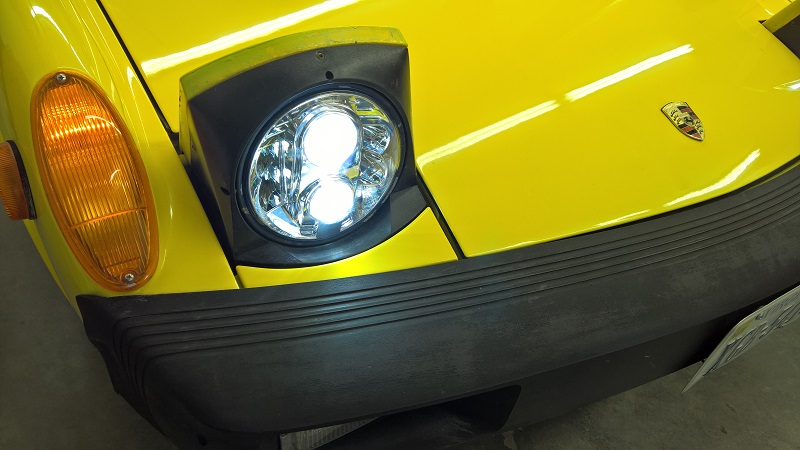

There you go.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891001.8.jpg)

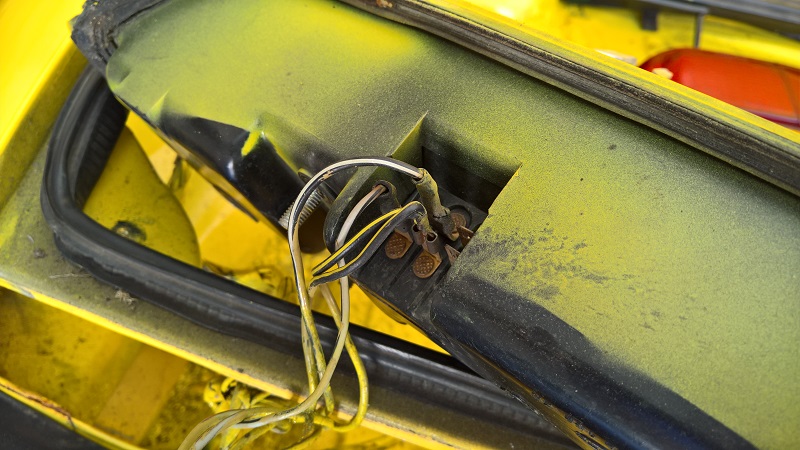

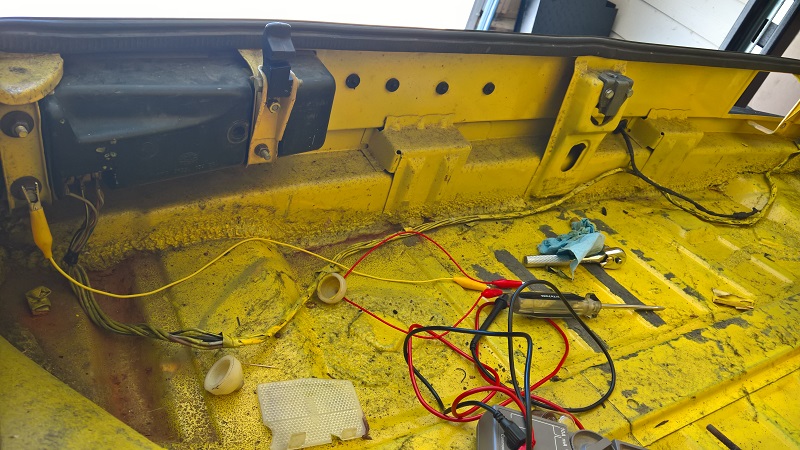

The backup light was not working, and I ended up to install a new wire from thr backup switch at the tranny to the housing. I didn't want to dig into the electr. panel at this time.

It it is not possible to hide that the car was painted with everything on it. (IMG:style_emoticons/default/hissyfit.gif)

(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891001.9.jpg)

Also the cable had not chance to hide or escape from the painter.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891002.10.jpg)

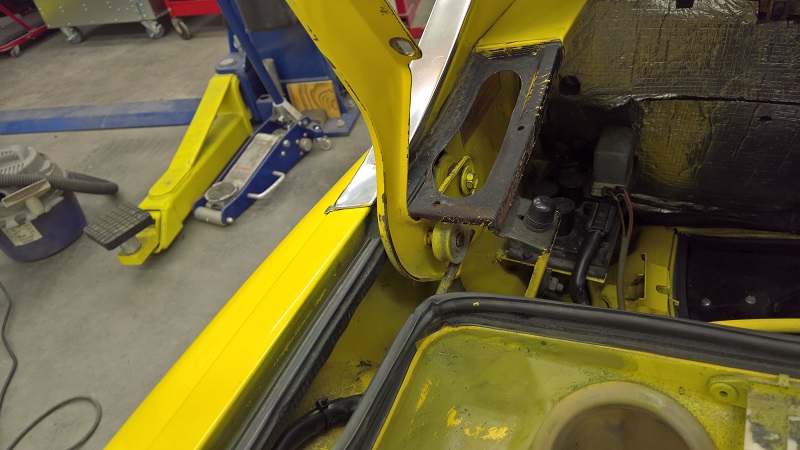

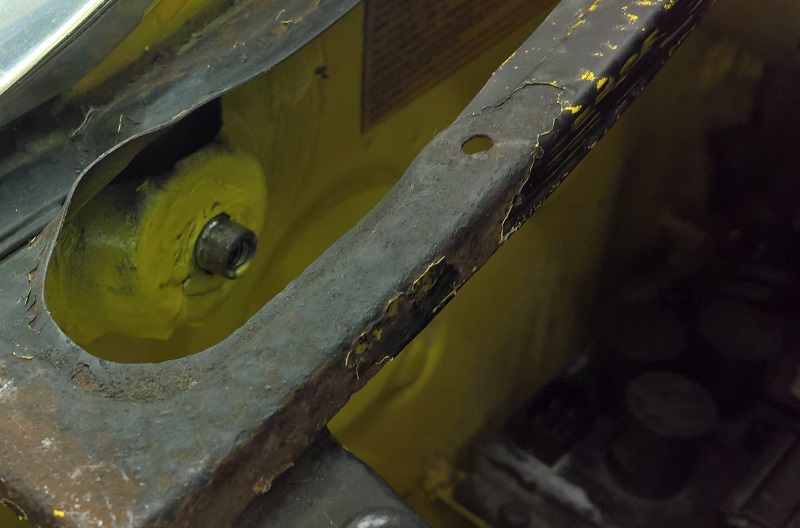

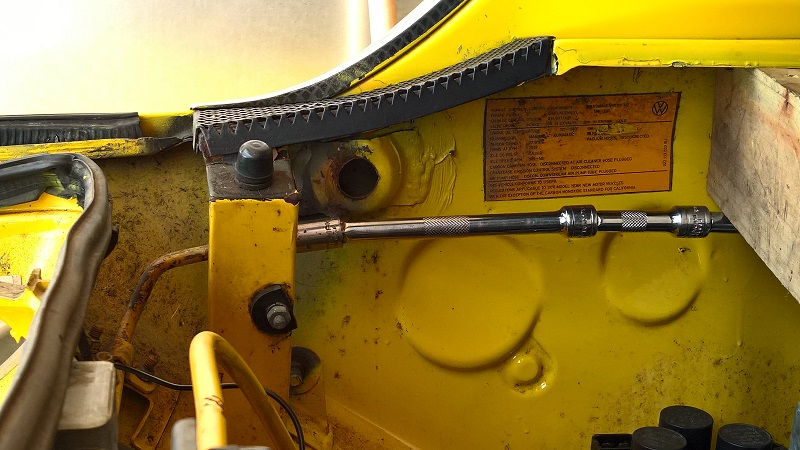

After opening the rear trunk a few times, it didn't looked right on the left hinge.

Here already removed for repair. The sleeve was broken out from the mounting point (IMG:style_emoticons/default/headbang.gif)
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891002.11.jpg)

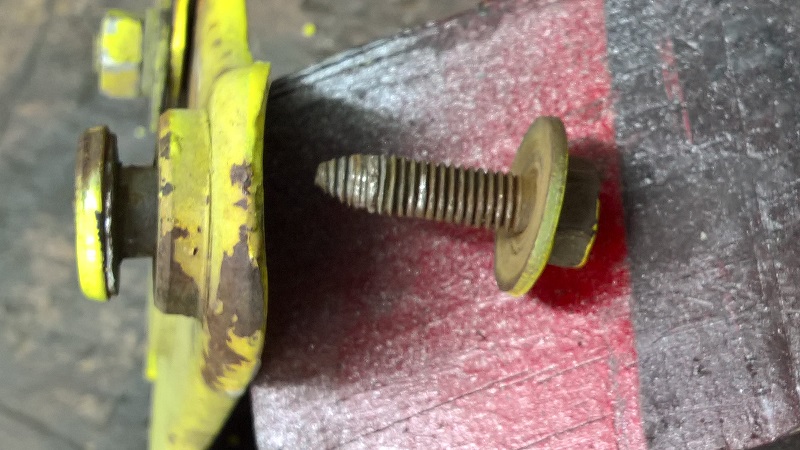

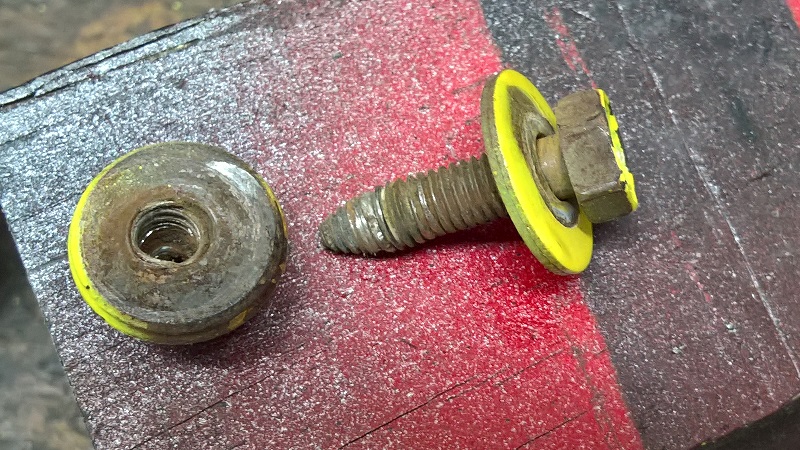

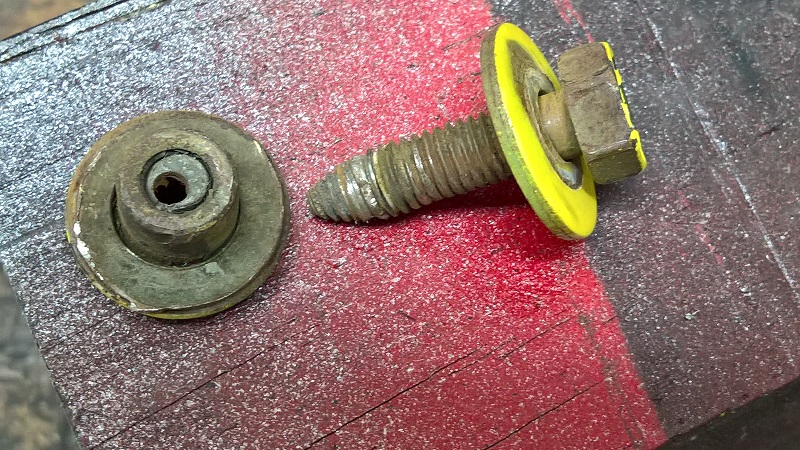

This is how it was installed.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891003.12.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891004.13.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891005.14.jpg)

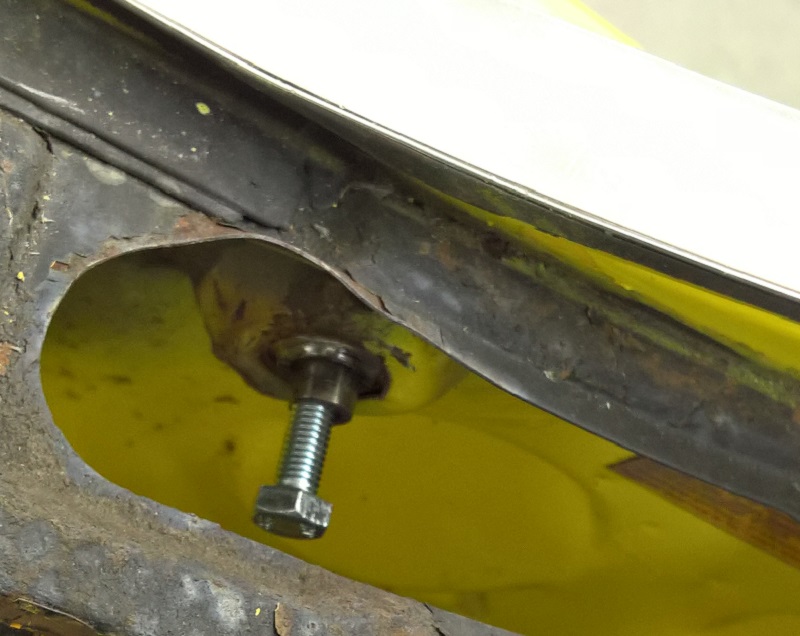

This is how it should be.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891006.15.jpg)

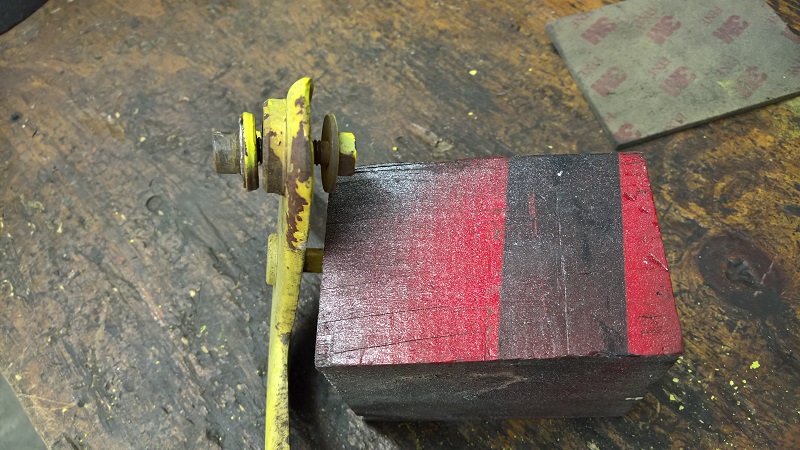

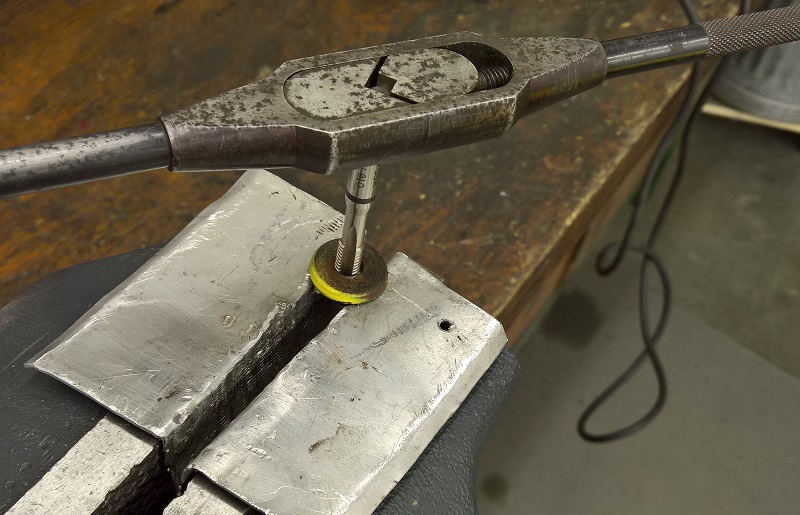

OK, lets fix it. Drilling all the way true, and cut the thread.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891006.16.jpg)

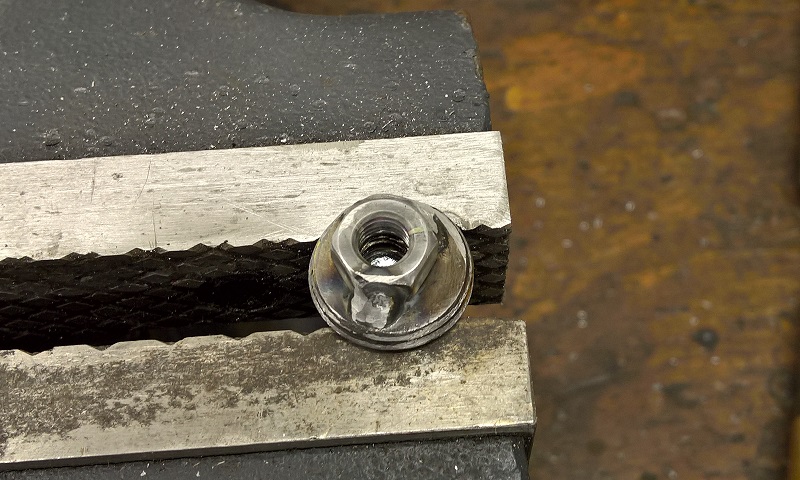

Weld on an additional nut from the backside.

(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891007.17.jpg)

Ready to weld back in.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891008.18.jpg)

Done
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891008.19.jpg)

Hinge back in, and ready to install the lid.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1466891009.20.jpg)

I will continue to fix all these little enoying things.

More to come.

Cheers
Engelbert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
green914
post Jun 25 2016, 03:48 PM
Post #18


Senior Member
***

Group: Members
Posts: 1,467
Joined: 29-March 11
From: Sacramento, California
Member No.: 12,874
Region Association: Northern California
(IMG:style_emoticons/default/welcome.png)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jrblackbox
post Jun 25 2016, 04:04 PM
Post #19


Member
**

Group: Members
Posts: 285
Joined: 8-September 15
From: Easton, CT
Member No.: 19,140
Region Association: None
Great looking teener enjoy!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rothaus
post Jun 30 2016, 08:04 PM
Post #20


Member
**

Group: Members
Posts: 119
Joined: 20-November 10
From: Virginia
Member No.: 12,404
Region Association: None
Here some more work I did.

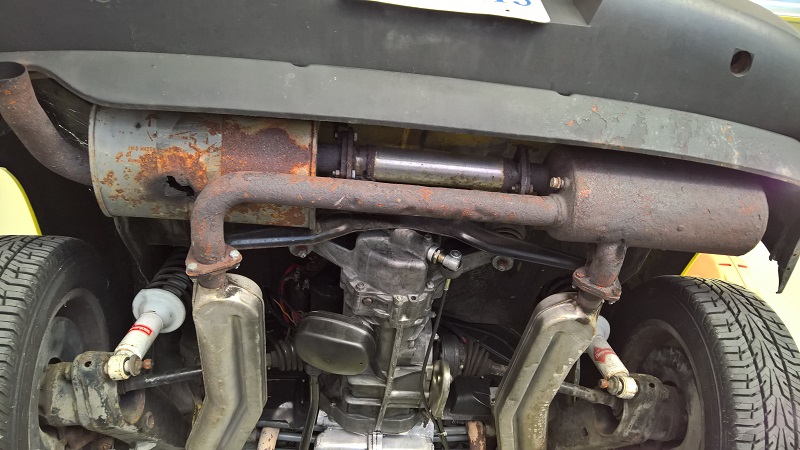

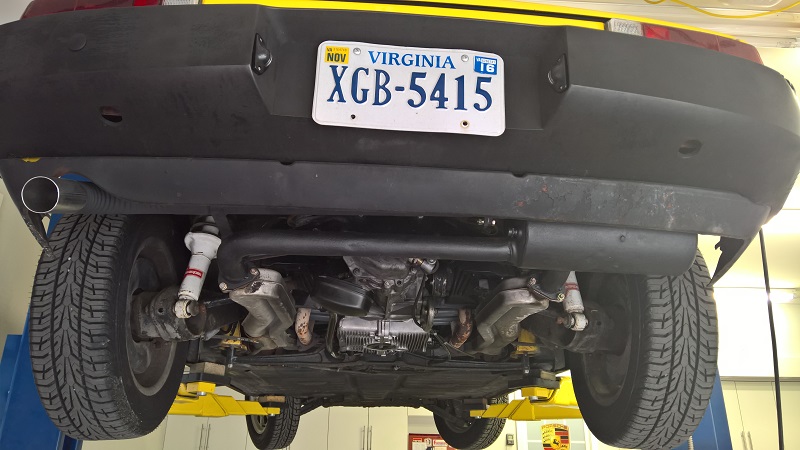

Exhaust
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338632.1.jpg)

Looks like that muffler doesn't do anything. So I took it out and found that the pre muffler is in good shape, just a lot of surface rust. So I cleaned it up and gave it a coat of hi heat black paint.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338633.2.jpg)

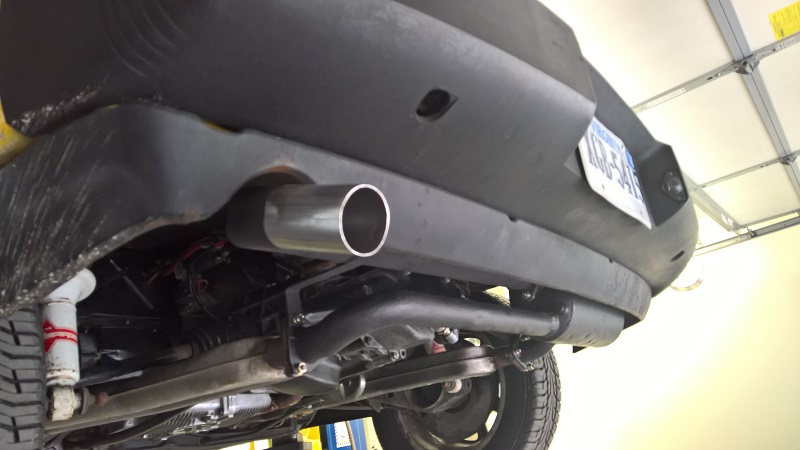

Instead of the additional muffler, I just installed a pipe, and it still is not that loud. LOL.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338633.3.jpg)

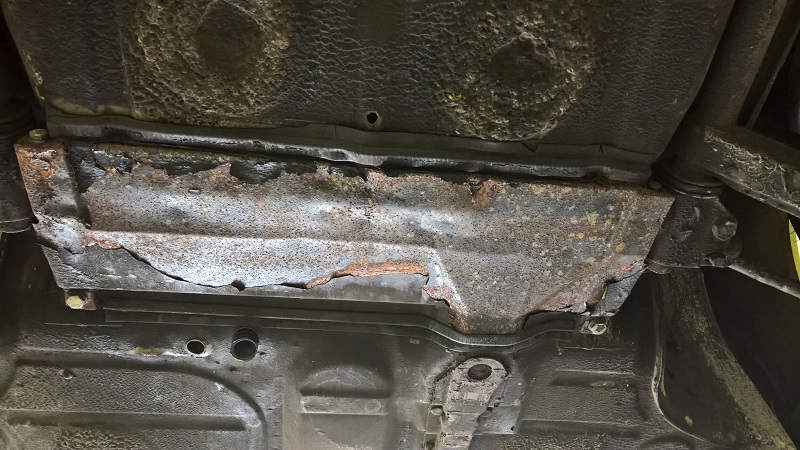

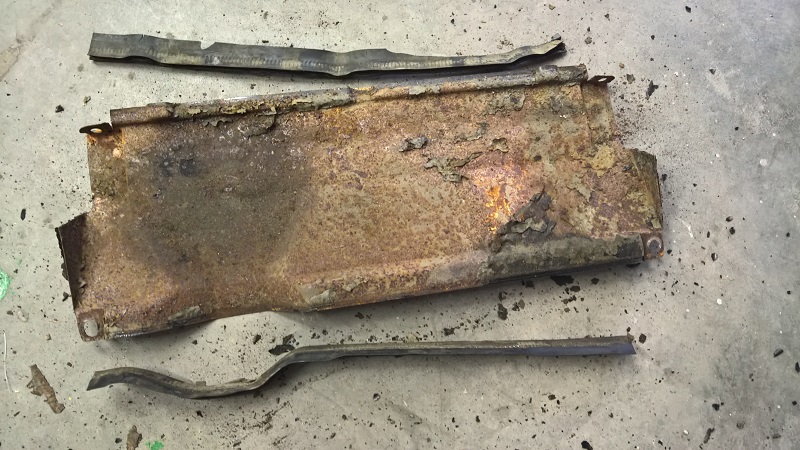

An other thing that needed some attention was the cover plate under the steering rack.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338633.4.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338634.5.jpg)

We will get to that later.....

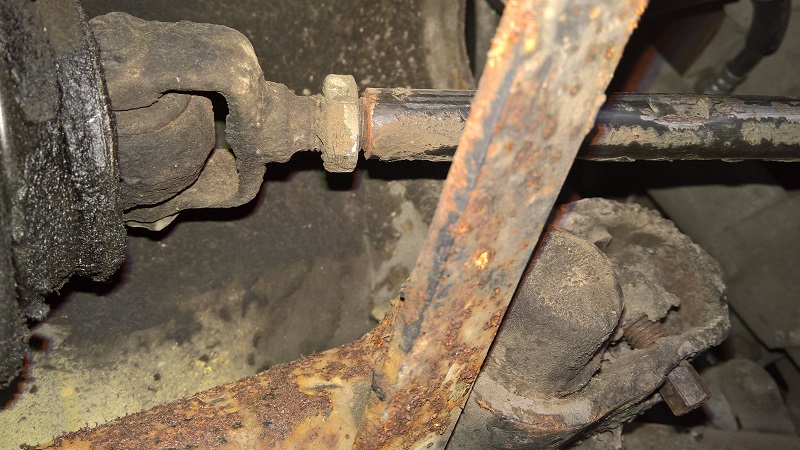

I also found that the inner nut of the tie rod was not tied, which would not go anywhere since the outer one was tied.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338634.6.jpg)

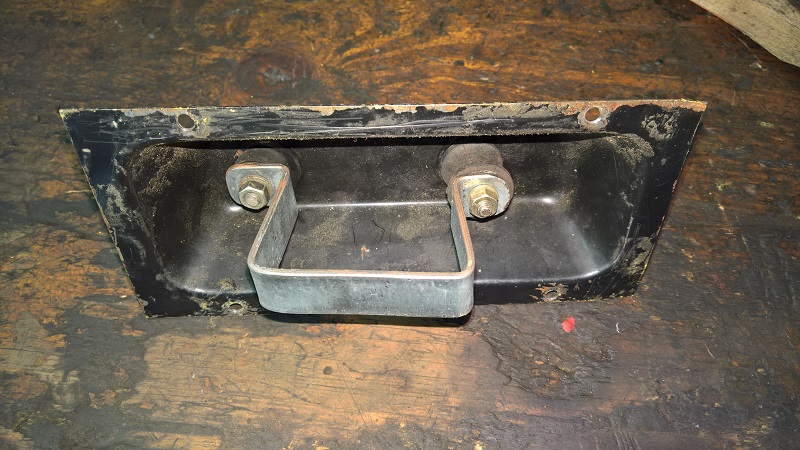

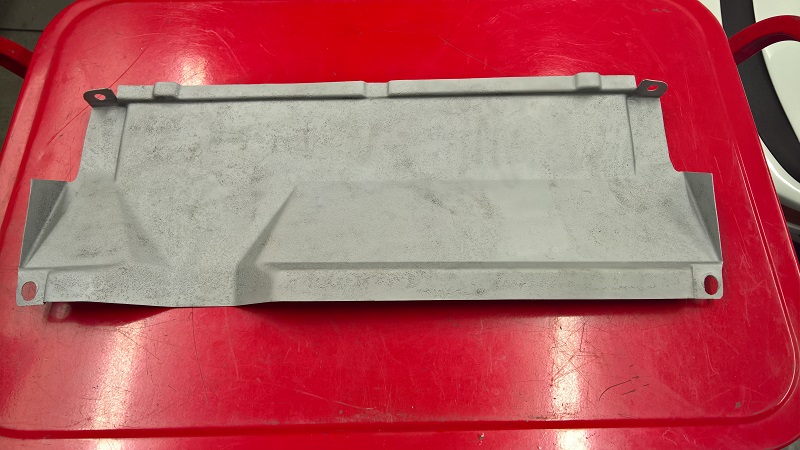

Here is the cover cleaned up.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338634.7.jpg)

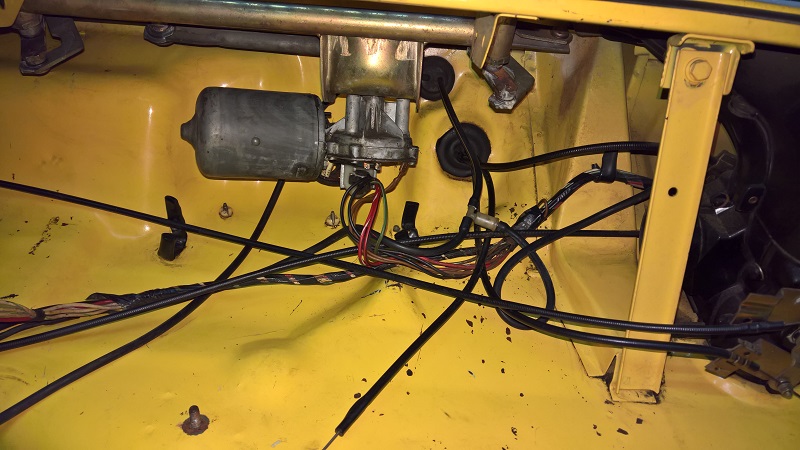

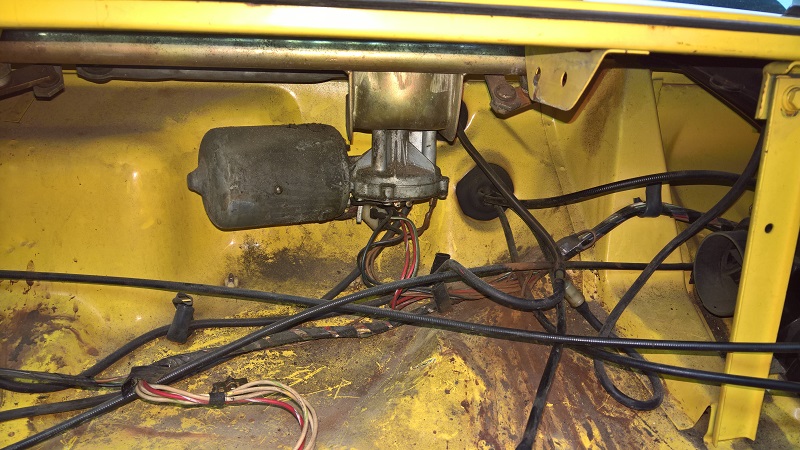

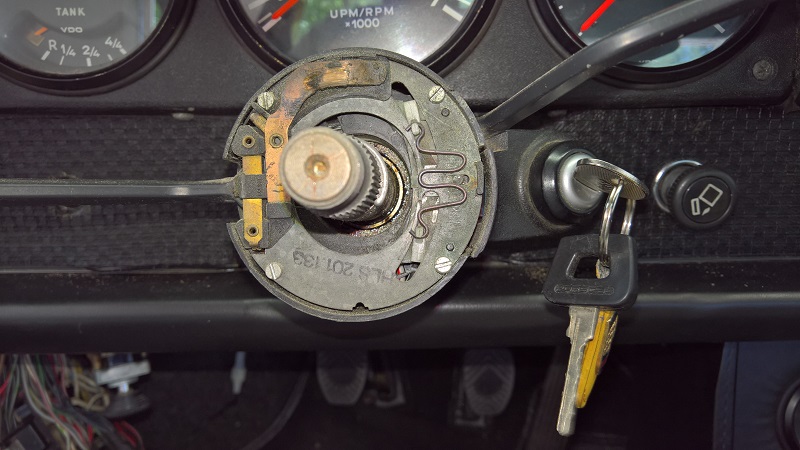

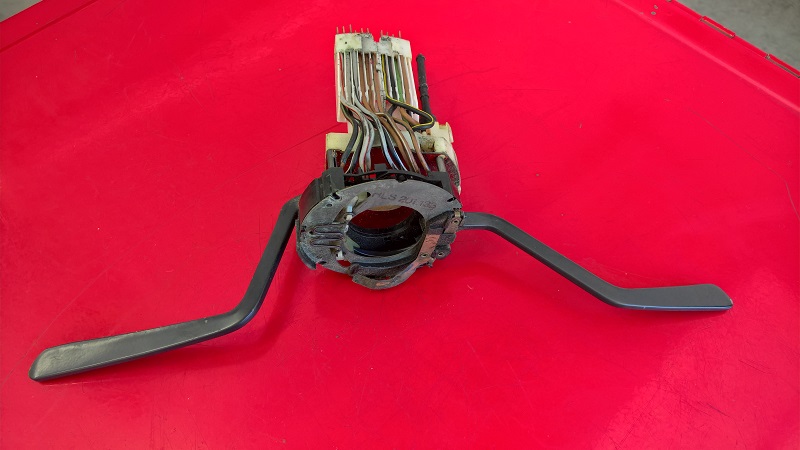

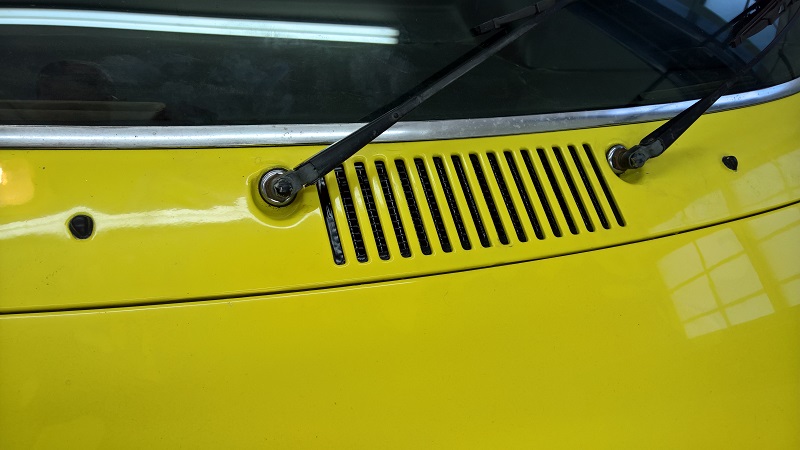

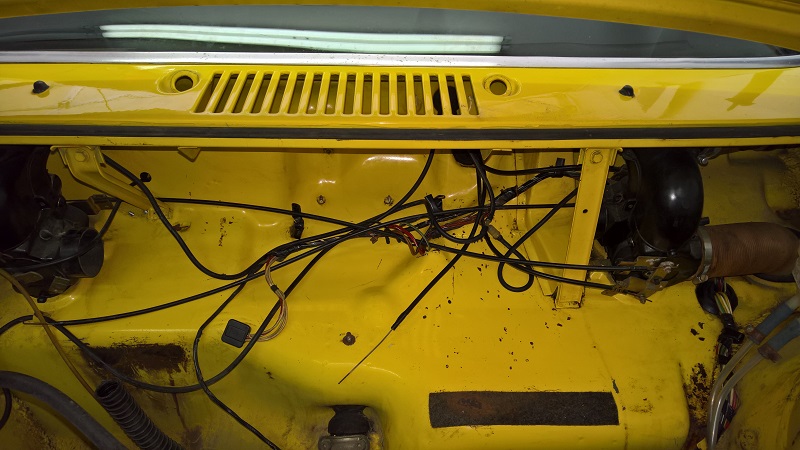

Now, there some issues that the windshield wiper would not stop, and if, it would stop anywhere, but not in parking position. So I started with the easy part, the switch.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338635.8.jpg)

I removed it, and gave it a good cleaning with electronic cleaner and air, and gave it a try.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338635.9.jpg)

Ha, now it was working, but the wiper stopped to park position in the middle of the windshield.

OK the motor seam to work and park, but in the wrong position. To get to the wimpywipermotor you have to remove the air blower housing. To remove the air blower housing you have to remove the gas tank.

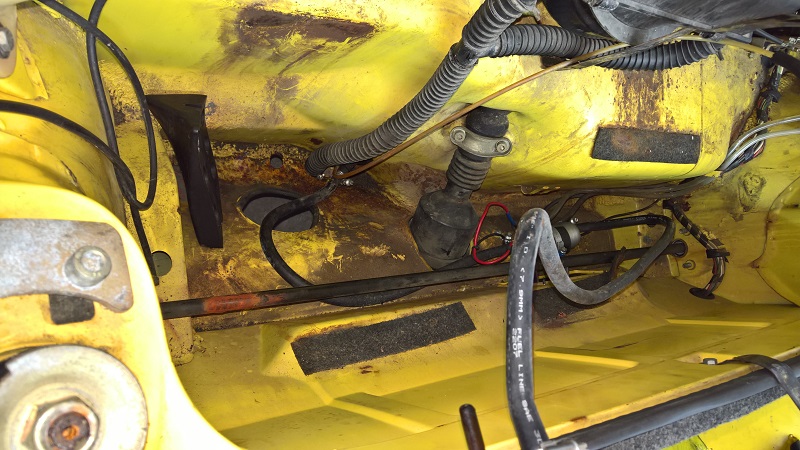

OK, tank out
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338636.10.jpg)

It's always interesting what can be found

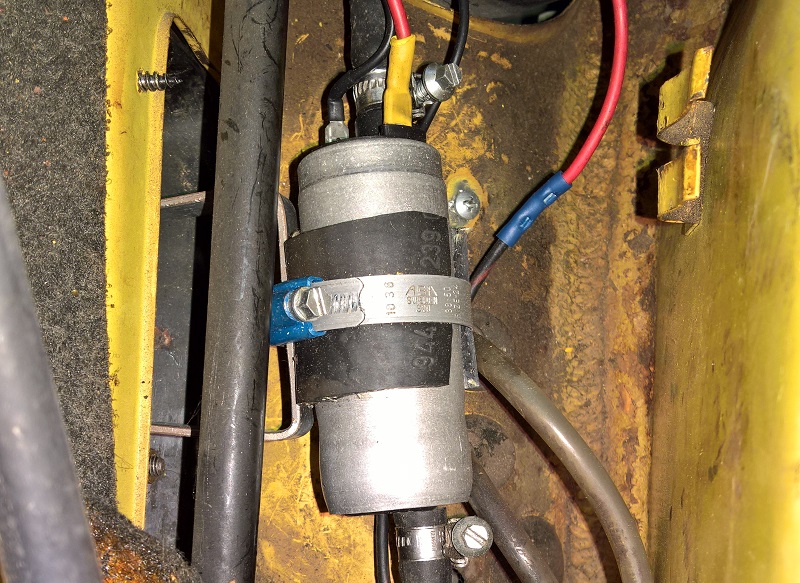

The fuel pump was a little to close to the brake fluid supply line for my, almost rubbing.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338636.11.jpg)

So I removed it and modified the holder
Here before
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338636.12.jpg)

Here after
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338637.13.jpg)

Much more betta
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338637.14.jpg)

OK, back to the wimpywiper.

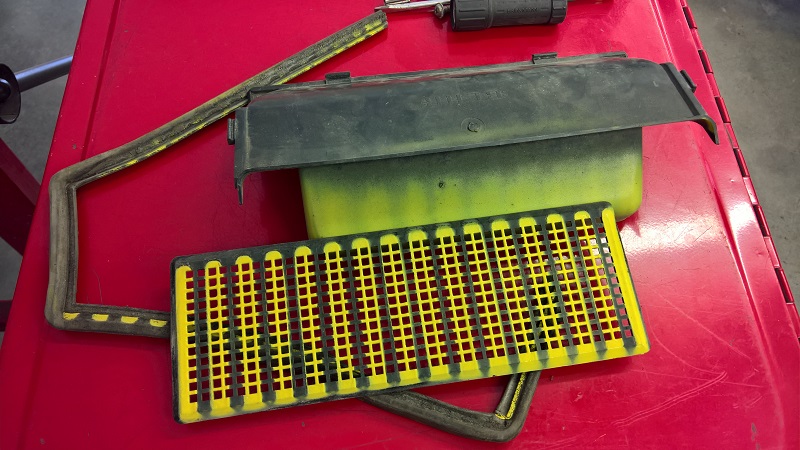

Blower out. There was really nothing left without yellow paint.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338637.15.jpg)

OK, finally access the wiper motor
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338638.16.jpg)

There is also a nut from the dash board. The best is tor remove the speedo to access it, unless you have 1 inch thin arms with 25 joints, LOL.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338638.17.jpg)

I took the opportunity to clean out 40 years of collected dirt.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338639.18.jpg)

After the adjustment of the linkage, so that the wiper stops at the bottom of the driver side, motor goes back in.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338639.19.jpg)

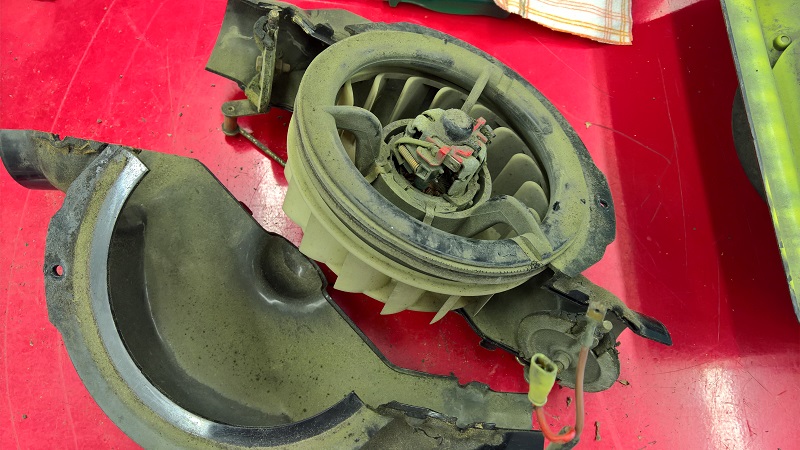

Next to clean out the blower
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338639.20.jpg)

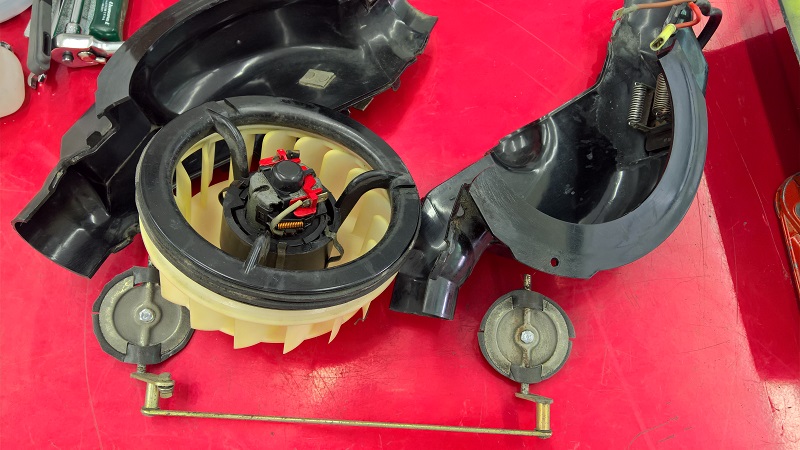

The motor looked good, the brushes were still good, and the motor bearings looked like sealed bearings and should be OK for another 40 year of dust.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338640.21.jpg)

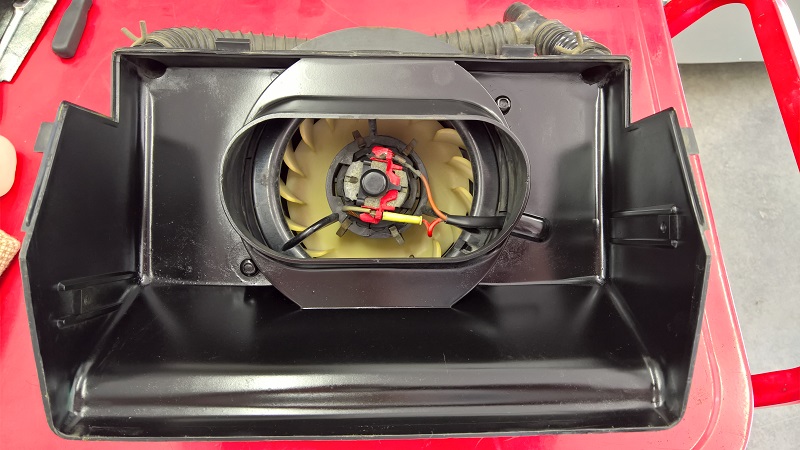

Ready to back in.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338640.22.jpg)

I could not get the yellow paint of the grill, but I had to paint it black. Back to Black.
(IMG:http://www.914world.com/bbs2/uploads_offsite/airboxer.com-12404-1467338640.23.jpg)

to be continued

Cheers
Engelbert
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


3 Pages V  1 2 3 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Switch to: Standard · Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 2nd April 2026 - 07:50 AM
Invision Power Board v9.1.4 © 2026  IPS, Inc.
...
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
