> Starting issue, Not getting power to the starter
GregAmy
post Sep 25 2019, 11:11 AM
Post #1


Advanced Member
****

Group: Members
Posts: 2,519
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
Looks like the primary issue is getting information into a thread...

(IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 10)
Willisbegood
post Sep 25 2019, 11:12 AM
Post #2


Newbie
*

Group: Members
Posts: 26
Joined: 25-September 19
From: San Antonio Texas
Member No.: 23,495
Region Association: South East States
QUOTE(GregAmy @ Sep 25 2019, 12:11 PM) *

Looks like the primary issue is getting information into a thread...

(IMG:style_emoticons/default/av-943.gif)

It’s not letting me post the thread
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Sep 25 2019, 11:13 AM
Post #3


Advanced Member
****

Group: Members
Posts: 2,519
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
You posted four threads...refresh your browser.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Sep 25 2019, 11:14 AM
Post #4


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,249
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
Be more patient when posting a thread. They're all there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Sep 25 2019, 11:19 AM
Post #5


Advanced Member
****

Group: Members
Posts: 2,519
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
Battery power goes directly to the starter.

The solenoid is energized by power from the ignition switch, routed through the relay plate.

It's possible someone relayed that circuit for you using non-stock parts (common mod).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Willisbegood
post Sep 25 2019, 11:20 AM
Post #6


Newbie
*

Group: Members
Posts: 26
Joined: 25-September 19
From: San Antonio Texas
Member No.: 23,495
Region Association: South East States
QUOTE(rhodyguy @ Sep 25 2019, 12:14 PM) *

Be more patient when posting a thread. They're all there.

I apologize. Just created this account. How do I delete the threads so I only have one running?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Willisbegood
post Sep 25 2019, 11:26 AM
Post #7


Newbie
*

Group: Members
Posts: 26
Joined: 25-September 19
From: San Antonio Texas
Member No.: 23,495
Region Association: South East States
QUOTE(GregAmy @ Sep 25 2019, 12:19 PM) *

Battery power goes directly to the starter.

The solenoid is energized by power from the ignition switch, routed through the relay plate.

It's possible someone relayed that circuit for you using non-stock parts (common mod).
would any pictures help ? I know there’s a power circuit board with relays behind the driver seat in the engine compartment. I was told that when it get wet it corrodes and would keep it from starting but it didn’t look corroded or dirty so I left it alone.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Sep 25 2019, 11:30 AM
Post #8


Advanced Member
****

Group: Members
Posts: 2,519
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States

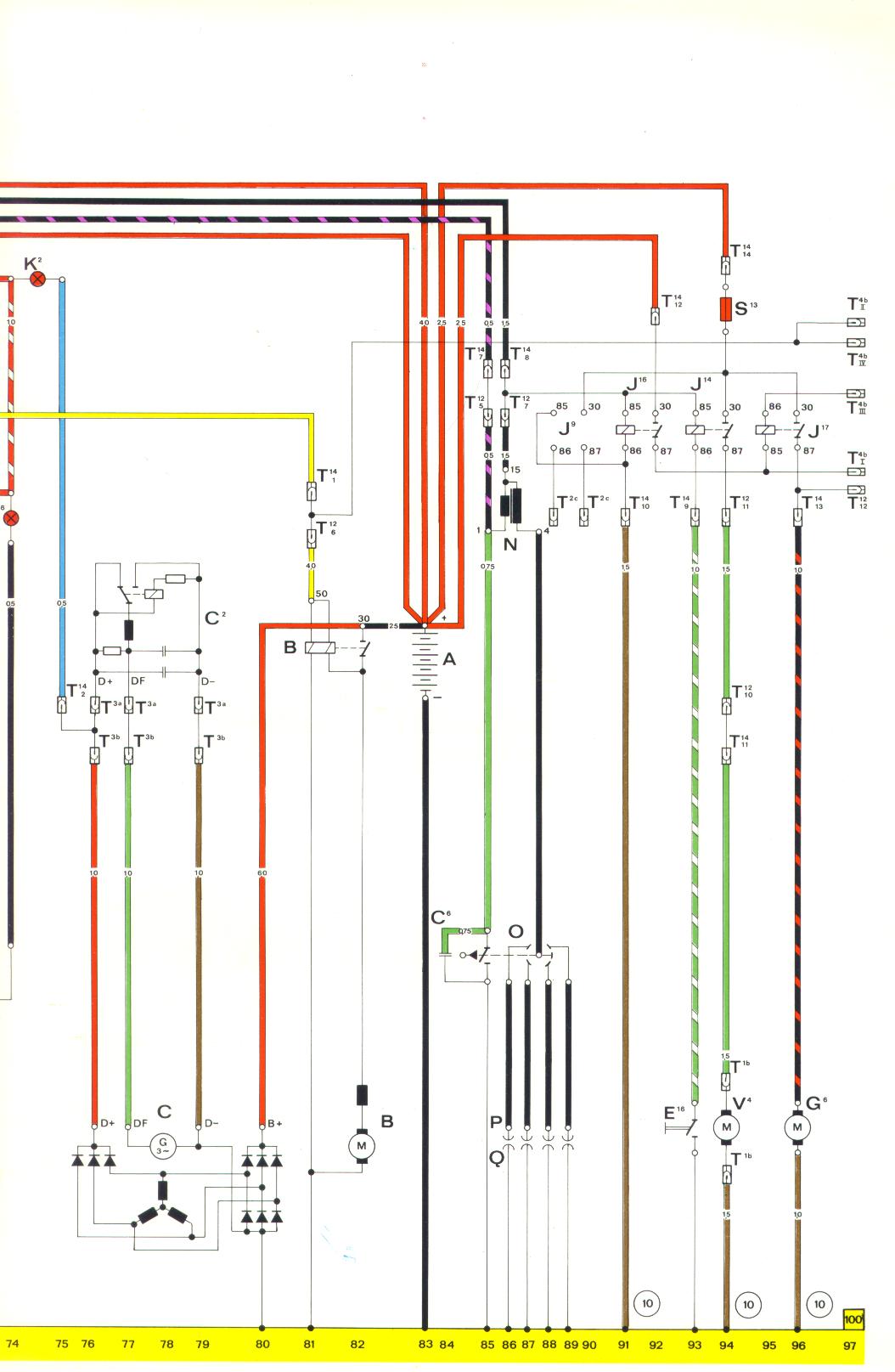

Here is your wiring diagrams.

B is the starter.
T connector is yellow wires on the engine compartment reply plate.
D is the ignition switch.

This is for the '74. Note some cars have a seatbelt interlock switch in that yellow circuit.

If someone has added a starter relay then it'll likely be in teh yellow wire in between the relay plate and the starter solenoid.

You can test your starter by getting underneath, driving wheels off the ground and out of gear, and using a screwdriver to short the battery terminal to the terminal that the yellow wire goes to.

Be safe. Don't kill yourself.


Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Willisbegood
post Sep 25 2019, 11:37 AM
Post #9


Newbie
*

Group: Members
Posts: 26
Joined: 25-September 19
From: San Antonio Texas
Member No.: 23,495
Region Association: South East States
QUOTE(GregAmy @ Sep 25 2019, 12:30 PM) *

Here is your wiring diagrams.

B is the starter.
T connector is yellow wires on the engine compartment reply plate.
D is the ignition switch.

This is for the '74. Note some cars have a seatbelt interlock switch in that yellow circuit.

If someone has added a starter relay then it'll likely be in teh yellow wire in between the relay plate and the starter solenoid.

You can test your starter by getting underneath, driving wheels off the ground and out of gear, and using a screwdriver to short the battery terminal to the terminal that the yellow wire goes to.

Be safe. Don't kill yourself.


Attached Image Attached Image
thank you for diagrams . I actually thought it was my starter but then I got a new and put in yesterday and it doing the same thing. Mine is a 72’ 1.7L doesn’t have the seatbelt relays under the passenger seat so I don’t think it has them.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Willisbegood
post Sep 25 2019, 11:41 AM
Post #10


Newbie
*

Group: Members
Posts: 26
Joined: 25-September 19
From: San Antonio Texas
Member No.: 23,495
Region Association: South East States
QUOTE(Willisbegood @ Sep 25 2019, 12:37 PM) *

QUOTE(GregAmy @ Sep 25 2019, 12:30 PM) *

Here is your wiring diagrams.

B is the starter.
T connector is yellow wires on the engine compartment reply plate.
D is the ignition switch.

This is for the '74. Note some cars have a seatbelt interlock switch in that yellow circuit.

If someone has added a starter relay then it'll likely be in teh yellow wire in between the relay plate and the starter solenoid.

You can test your starter by getting underneath, driving wheels off the ground and out of gear, and using a screwdriver to short the battery terminal to the terminal that the yellow wire goes to.

Be safe. Don't kill yourself.


Attached Image Attached Image
thank you for diagrams . I actually thought it was my starter but then I got a new and put in yesterday and it doing the same thing. Mine is a 72’ 1.7L doesn’t have the seatbelt relays under the passenger seat so I don’t think it has them.
would the relay in this picture with the yellow tape on it cause it to not start? It’s the only one in there that I looked at that seemed rusted and corroded


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Sep 25 2019, 11:43 AM
Post #11


Advanced Member
****

Group: Members
Posts: 2,519
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
The silver "relay" with the yellow tape is your voltage regulator. So, no.

Test light or VOM, see if you're getting voltage to the yellow wire at the starter when someone turns the key to the "start" position.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
