> 914-6 GT Oil System, 3D Model
thomasotten
post Jan 3 2022, 10:22 AM
Post #1


Senior Member
***

Group: Members
Posts: 1,546
Joined: 16-November 03
From: San Antonio, Texas
Member No.: 1,349
Hi everyone,

We recently were commissioned to create modern 3D renderings of the 914-6 GT oil cooling system, based upon the original hand sketch renderings. We did this by creating a 3D model, which we could then export renderings. Under the terms of my work, I maintained the right to share these renderings with the online Porsche community.


More renderings can be found on my website at http://www.uber-werks.com/porsche-914-6-gt...ication-system/

Perhaps these can be of use to some.

Many thanks,


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
 Reply to this topicStart new topic
Replies(1 - 19)
peteyd
post Jan 3 2022, 10:45 AM
Post #2


Senior Member
***

Group: Members
Posts: 707
Joined: 27-March 08
From: Elora, Ontario, Canada
Member No.: 8,858
Region Association: Canada
So awesome!

Thank you for sharing

Pete
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Jan 3 2022, 10:45 AM
Post #3


Senior Member
****

Group: Members
Posts: 2,410
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
Thank you!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Jan 3 2022, 10:46 AM
Post #4


RN
****

Group: Members
Posts: 2,766
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Nice, thanks for posting and for your link as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johnhora
post Jan 3 2022, 10:46 AM
Post #5


Senior Member
***

Group: Members
Posts: 866
Joined: 7-January 03
From: Derby City KY
Member No.: 107
Region Association: None
Very nice Thomas...thanks for sharing
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jan 3 2022, 11:16 AM
Post #6


Advanced Member
****

Group: Members
Posts: 4,686
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
That's just so Cool + thank you for sharing...make some poster-size (for framing); would look really good displayed near the GT (IMG:style_emoticons/default/smile.gif)
(IMG:style_emoticons/default/number40_914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PanelBilly
post Jan 3 2022, 11:22 AM
Post #7


914 Guru
*****

Group: Members
Posts: 5,811
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest
I wish I had this when I was building my car. It’s going to help so many people who have yet to address the plumbing. I nominate this for the classic section of the site.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Jan 3 2022, 02:04 PM
Post #8


914-6 GT in waiting
***************

Group: Members
Posts: 19,307
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Jan 3 2022, 02:28 PM
Post #9


914 Guru
*****

Group: Members
Posts: 6,871
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Love it. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jan 3 2022, 02:39 PM
Post #10


Michael
*****

Group: Members
Posts: 9,811
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Very cool. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pfreiburger
post Jan 3 2022, 08:53 PM
Post #11


Member
**

Group: Members
Posts: 110
Joined: 6-October 20
From: Fond du Lac, WI
Member No.: 24,738
Region Association: None
Yes, thank you! This is the nicest detail rendering that I have seen.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Toy
post Jan 4 2022, 10:03 AM
Post #12


Senior Member
***

Group: Members
Posts: 718
Joined: 12-November 17
From: Laguna beach
Member No.: 21,596
Region Association: Southern California
Not an expert, but it appears to me that the scavenger oil pipe is connected to the bottom of the oil tank with a T connection to the vent and top oil filler pipe, and is not connected first to the thermostat? I look forward to someone clarifying this.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Jan 4 2022, 11:43 AM
Post #13


Advanced Member
****

Group: Members
Posts: 4,563
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

Thomas your diagram provides a much clearer view of the many parts in the OEM
system.
It shows that the standard parts of the 6 system (no front cooler) are virtually intact.
The added features (around the tank) are almost entirely attached to the filter
console.
It's odd that front oil cooler plumbing on 914 6 GT is so complicated compared
to that on a 911
Thank you for posting......beautiful work !
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Jan 8 2022, 01:12 PM
Post #14


Advanced Member
****

Group: Members
Posts: 2,695
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
Very nice! there are 2 changes

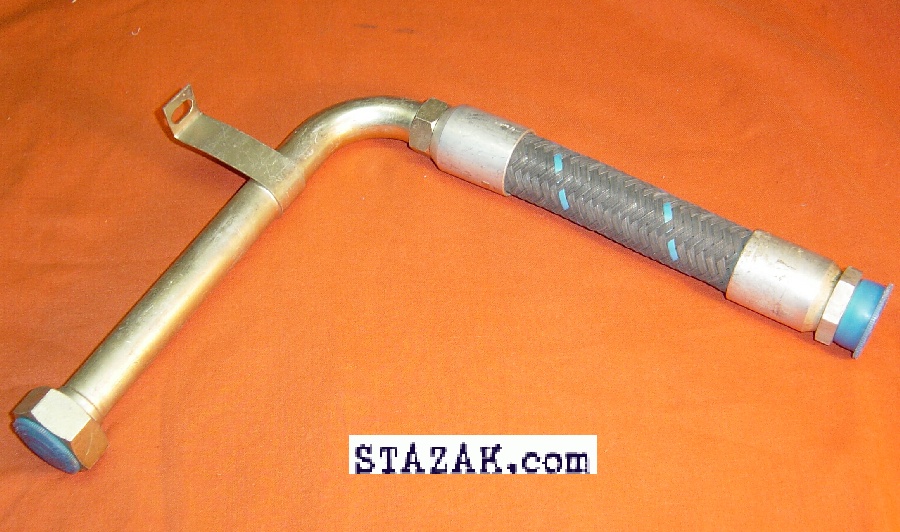

this is the oil pipe/hose that goes on the engine oil cooler, it is braided stainless with a blue tracer. This braided stainless with a blue tracer is used between the front oil cooler and the brass side oil pipes

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SixerJ
post Jan 10 2022, 09:59 AM
Post #15


Member
**

Group: Members
Posts: 448
Joined: 24-June 13
From: UK
Member No.: 16,042
Region Association: England
QUOTE(thomasotten @ Jan 3 2022, 04:22 PM) *

Hi everyone,

We recently were commissioned to create modern 3D renderings of the 914-6 GT oil cooling system, based upon the original hand sketch renderings. We did this by creating a 3D model, which we could then export renderings. Under the terms of my work, I maintained the right to share these renderings with the online Porsche community.


More renderings can be found on my website at http://www.uber-werks.com/porsche-914-6-gt...ication-system/

Perhaps these can be of use to some.

Many thanks,


Great renderings!

Cannot believe that no one as asked the obvious question (to me) are the people who commissioned planning on producing any of the parts

After collecting bits for years I'm still missing some key parts and connectors

Hopefully someone is seriously thinking of re-producing!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
siverson
post Jan 10 2022, 12:03 PM
Post #16


Advanced Member
****

Group: Benefactors
Posts: 2,448
Joined: 5-May 03
From: San Diego, CA
Member No.: 654
Region Association: Southern California
Very cool! Thanks for posting!

One small mistake I made when first building my car is I used AN-12 oil lines everywhere. As your drawing shows, the intake (M30) is larger than the output (M26).

So I'm correcting that now and changing the intake to AN-16. Probably should just use AN-16 everywhere or even AN-20 and AN-16.

-Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bullethead
post Jan 10 2022, 01:19 PM
Post #17


Oil Cooled heart
***

Group: Members
Posts: 897
Joined: 24-June 10
From: South Florida
Member No.: 11,875
Region Association: South East States
QUOTE(SixerJ @ Jan 10 2022, 10:59 AM) *

Cannot believe that no one as asked the obvious question (to me) are the people who commissioned planning on producing any of the parts

After collecting bits for years I'm still missing some key parts and connectors

Hopefully someone is seriously thinking of re-producing!


(IMG:style_emoticons/default/agree.gif)

The one impossible to find piece is the preschona valve being reproduced by AJS, perfect in every detail, almost prohibitively expensive. But what accurate alternatives are there? Also, thermostats?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Jan 11 2022, 09:21 AM
Post #18


Advanced Member
****

Group: Members
Posts: 2,695
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
QUOTE(Bullethead @ Jan 10 2022, 01:19 PM) *

QUOTE(SixerJ @ Jan 10 2022, 10:59 AM) *

Cannot believe that no one as asked the obvious question (to me) are the people who commissioned planning on producing any of the parts

After collecting bits for years I'm still missing some key parts and connectors

Hopefully someone is seriously thinking of re-producing!


(IMG:style_emoticons/default/agree.gif)

The one impossible to find piece is the preschona valve being reproduced by AJS, perfect in every detail, almost prohibitively expensive. But what accurate alternatives are there? Also, thermostats?

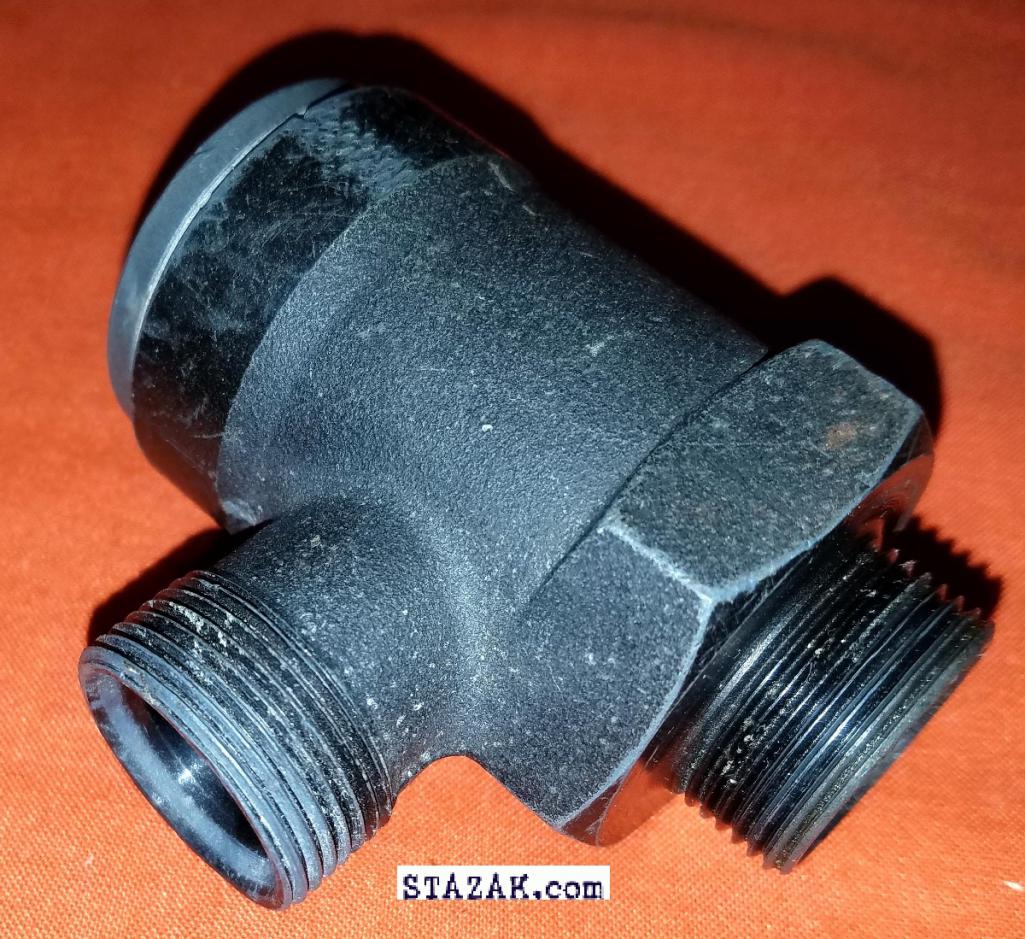

In 1971 Porsche switch to this less expensive valve, repro are available for less the preschona repro.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Jan 11 2022, 09:27 AM
Post #19


Advanced Member
****

Group: Members
Posts: 2,695
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
Pressure Relief Valve

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bullethead
post Jan 11 2022, 04:36 PM
Post #20


Oil Cooled heart
***

Group: Members
Posts: 897
Joined: 24-June 10
From: South Florida
Member No.: 11,875
Region Association: South East States
I was familiar with these but still expensive, and are they adjustable?

The reproduction cooler made by FSH can be had with the valve built in for additional $$. Nicely made, BTW.

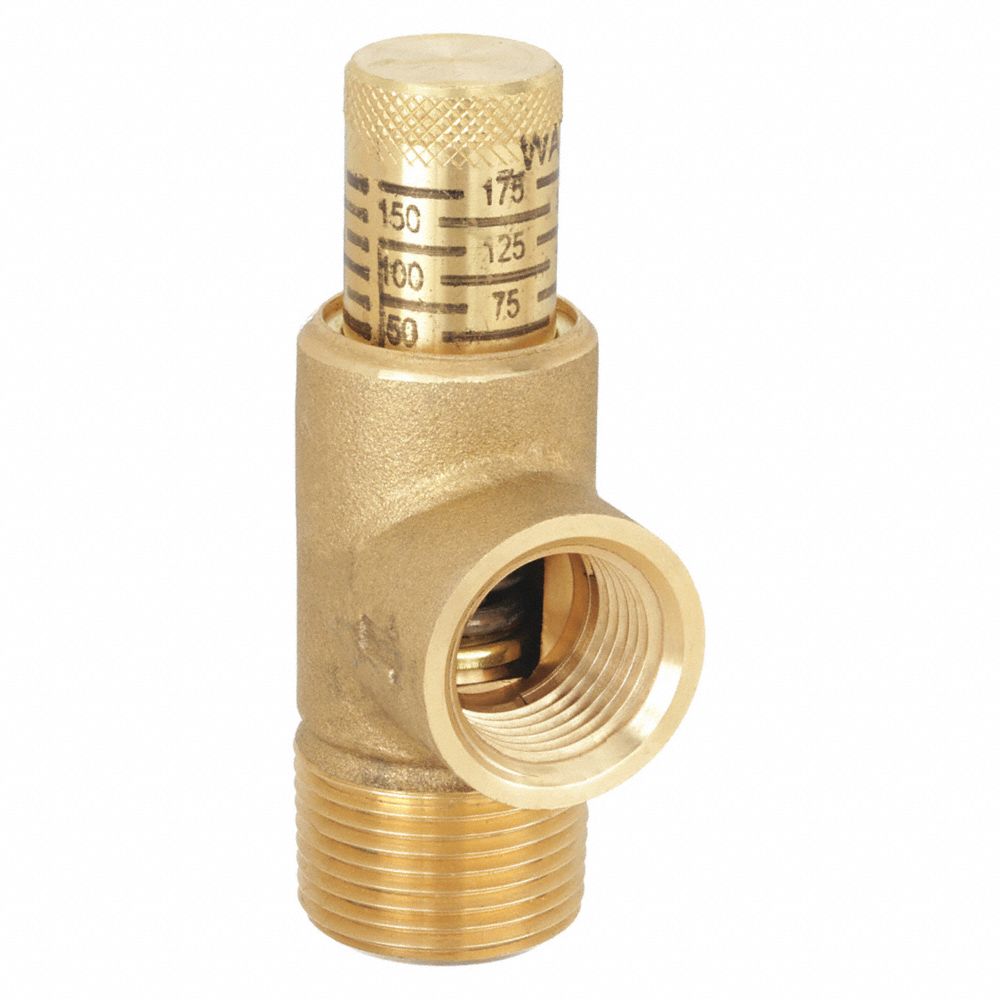

Readily available Watts adjustable valves are cheap... maybe modifying one and plating it gets the job done. You could even have a cap made to complete the disguise. Thoughts?


Attached Image
User is offlineProfile CardPM
