Has anyone here installed a twin plug into their car? I am having a 2.4 built and wanted to get some ideas on where to mount the msd's and coils. Any pictures of how you mounted and routed?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 16)
mlindner
post Feb 18 2022, 03:25 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,668
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest
BillJ, mine is not a twin plug but just wanted to keep the engine as clean as possible. Fabricated a panel (note battery delete) into the battery area to hold the MSD and Coil.
Did have to get the longer coil wire. Worked great. Best, MarkAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 18 2022, 08:10 PM
Post #3


Resident German
*************************

Group: Admin
Posts: 42,207
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California

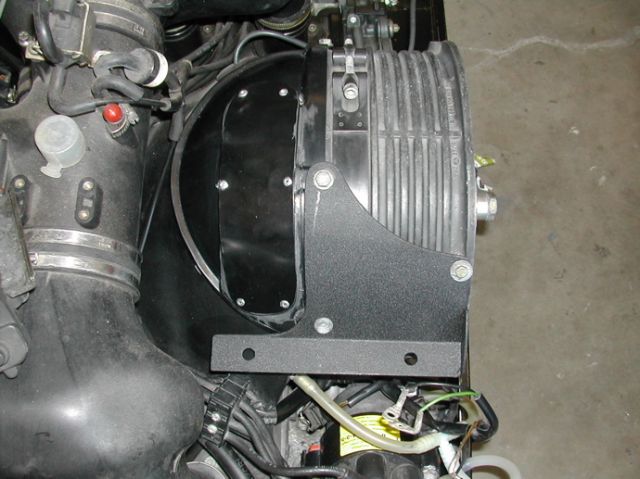

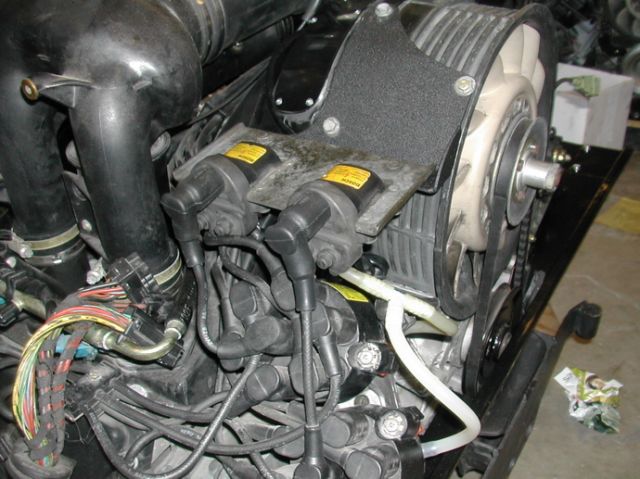

I got a bracket for the coils (PMS i think) to mount them right above the dizzy(s).

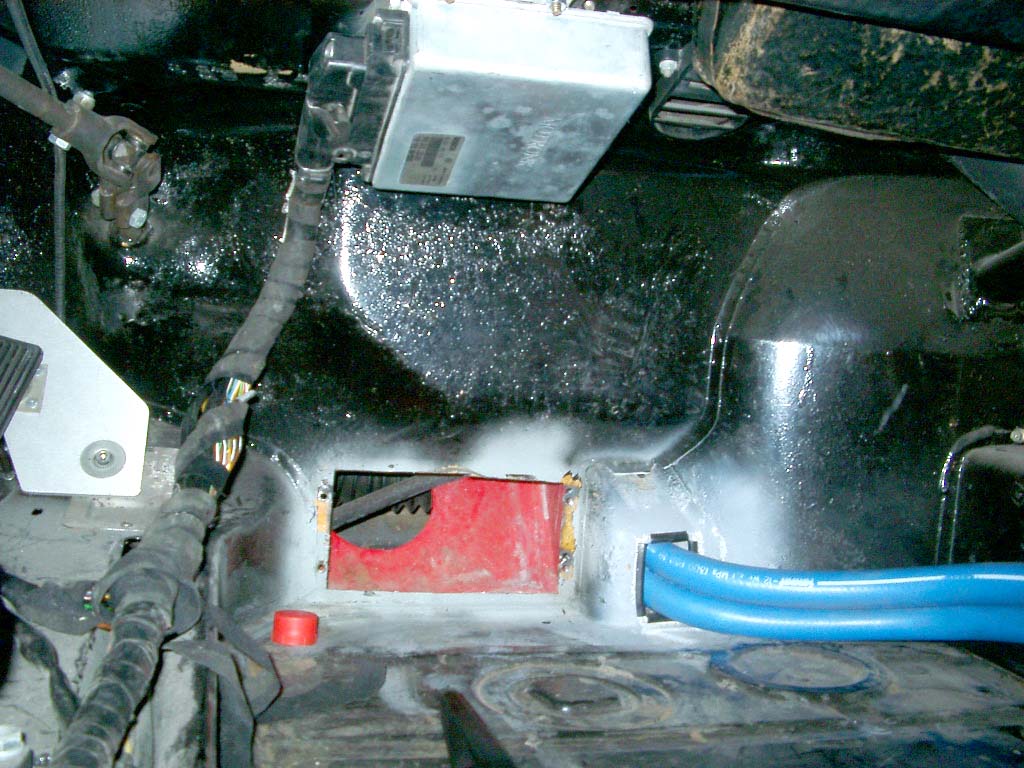

No MSD box for me, the FI brain went under the dash ...
(IMG:style_emoticons/default/bye1.gif)

Attached Image

Attached Image

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
BillJ
post Feb 18 2022, 09:51 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,275
Joined: 4-March 13
From: charlotte, NC
Member No.: 15,610
Region Association: None
Thanks for the suggestions so far. I have one coil already mounted on firewall passenger side and may mount second one next to it but i do like that clean bracket on the fan... I wonder if MSD makes a dual coil bracket? Also already installed is a single older msd unit in the trunk but it is analog and switching to digital for both. They have to be the same.
Ever any trouble with the msd overheating in the engine bay Mark? Will be only track so anticipate that there will be relatively high heat in there.... Battery is mounted in front for weight balance so i have space on the battery tray for sure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mlindner
post Feb 19 2022, 05:55 AM
Post #5


Senior Member
***

Group: Members
Posts: 1,668
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest
Bill, no heat issues but only on the road last summer. I do have the GT style engine lid so lots of air and the engine is only a 2.2. Mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillJ
post Feb 19 2022, 08:14 AM
Post #6


Senior Member
***

Group: Members
Posts: 1,275
Joined: 4-March 13
From: charlotte, NC
Member No.: 15,610
Region Association: None
I did get a gt lid as well just last month so hoping that will help temps in there. I do worry about getting too hot in there as the race motor will be run hard of course but never for more than an hour.

Andy - could not find a dual holder that goes on the housing for the msd. Does make the hop from coil to dizzy very tidy though!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Feb 19 2022, 09:18 AM
Post #7


914 Wizard
**********

Group: Members
Posts: 11,954
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
couldn't find any great photos of mine...


Here is a coil bracket we made from aluminum for weight... the tightening screw is also aluminum

we made 2 of these..
put the coils on the firewall
short coil wires to the dizzy


put the MSD units on the cockpit side of the fire wall...
passenger side, (behind the seat if we had one)

short run between the coils and MSD units.. (grommet in the firewall)
keeps the MSD out of as much water exposure...
also a race car with no windows.


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
infraredcalvin
post Feb 19 2022, 11:05 AM
Post #8


Distracted Member
***

Group: Members
Posts: 1,628
Joined: 25-August 08
From: Ladera Ranch, CA
Member No.: 9,463
Region Association: Southern California

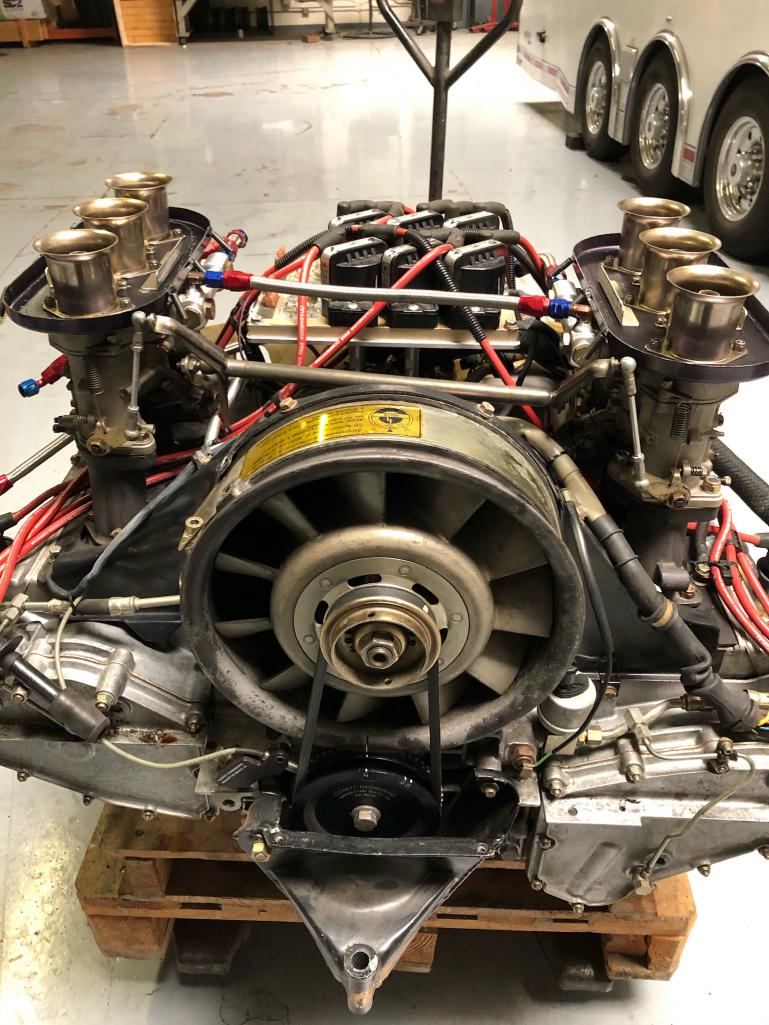

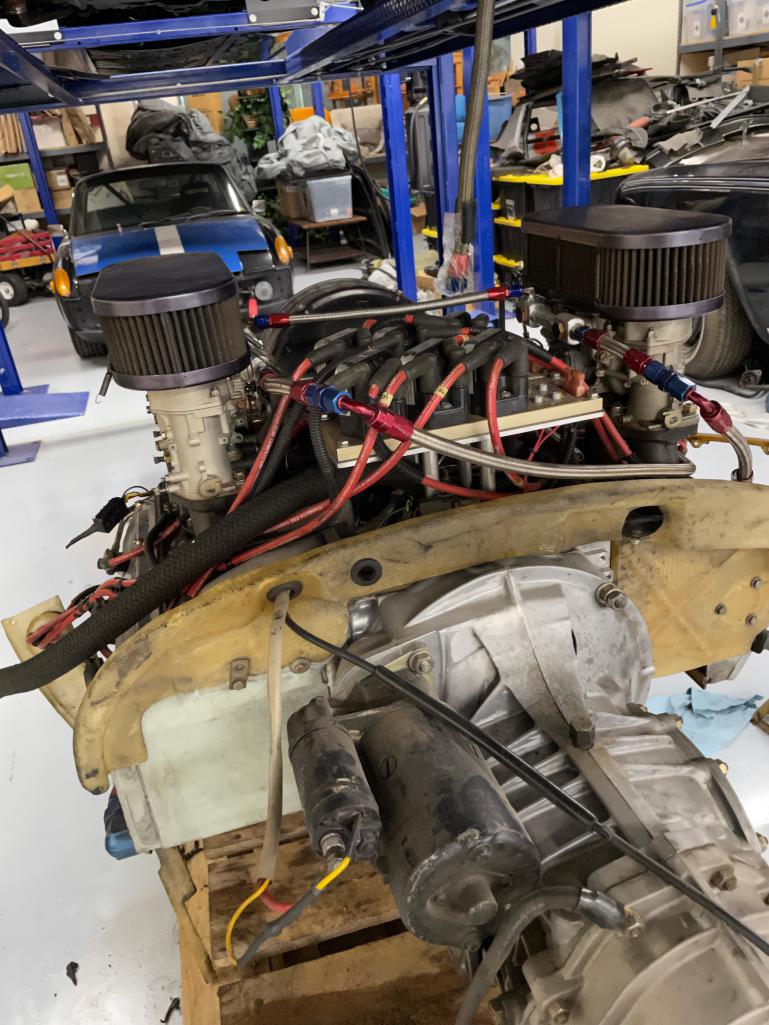

I thought this was a pretty clean setup in an already empty space ove the engine.

Attached Image
Attached Image


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
BillJ
post Feb 19 2022, 12:09 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,275
Joined: 4-March 13
From: charlotte, NC
Member No.: 15,610
Region Association: None
Like the idea of ignition boxes on the inside firewall. Have a second seat mount if i want to put the other one in so just need to make sure it clears the back.

Aluminum bracket is smart as well. I bought some msd brand mounts maybe return or at least drill out holes in it....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsrfr
post Feb 20 2022, 06:56 AM
Post #10


Senior Member
***

Group: Members
Posts: 1,449
Joined: 30-April 09
From: Rescue, Virginia
Member No.: 10,318
Region Association: MidAtlantic Region
QUOTE(infraredcalvin @ Feb 19 2022, 09:05 AM) *

I thought this was a pretty clean setup in an already empty space ove the engine.

Don't want to hijack but why the fuel crossover line??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillJ
post Feb 20 2022, 08:19 AM
Post #11


Senior Member
***

Group: Members
Posts: 1,275
Joined: 4-March 13
From: charlotte, NC
Member No.: 15,610
Region Association: None
Fuel crossover is on mine as well. I was told it helps make sure that you have high availability of fuel for the carbs. Particularly in race situations with high cornering forces.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
infraredcalvin
post Feb 20 2022, 11:01 AM
Post #12


Distracted Member
***

Group: Members
Posts: 1,628
Joined: 25-August 08
From: Ladera Ranch, CA
Member No.: 9,463
Region Association: Southern California
(IMG:style_emoticons/default/agree.gif) What he said? Came that way…. But I am still missing 100+ hp… (IMG:style_emoticons/default/blink.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Shivers
post Feb 21 2022, 01:47 PM
Post #13


Senior Member
****

Group: Members
Posts: 2,993
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
QUOTE(BillJ @ Feb 20 2022, 06:19 AM) *

Fuel crossover is on mine as well. I was told it helps make sure that you have high availability of fuel for the carbs. Particularly in race situations with high cornering forces.



Doh! More money to spend... (IMG:style_emoticons/default/idea.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
campbellcj
post Feb 24 2022, 08:25 AM
Post #14


I can't Re Member
****

Group: Members
Posts: 4,623
Joined: 26-December 02
From: Agoura, CA
Member No.: 21
Region Association: Southern California
I can't find decent pics at the moment but my MSD boxes are mounted inside the trunk on the firewall/bulkhead and the coils are in the engine compartment on the firewall near the dizzy itself. Has worked out fine but precludes an engine sound pad and (probably) storing the targa top in the trunk, not problems for my usage.

I have a carb fuel crossover as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillJ
post Feb 24 2022, 08:29 AM
Post #15


Senior Member
***

Group: Members
Posts: 1,275
Joined: 4-March 13
From: charlotte, NC
Member No.: 15,610
Region Association: None
Yes that is the single plug setup now for me. My roof is bolted to the cage so no worries for me either lol.

I think i am sold on the mounting the boxes on interior passenger side bulkhead and distributors engine side on firewall above the dizzy and short path between the coils and boxes. Seems clean and keeps the spark system clear of the heat.

Will add pics as i progress.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
campbellcj
post Feb 24 2022, 08:31 AM
Post #16


I can't Re Member
****

Group: Members
Posts: 4,623
Joined: 26-December 02
From: Agoura, CA
Member No.: 21
Region Association: Southern California

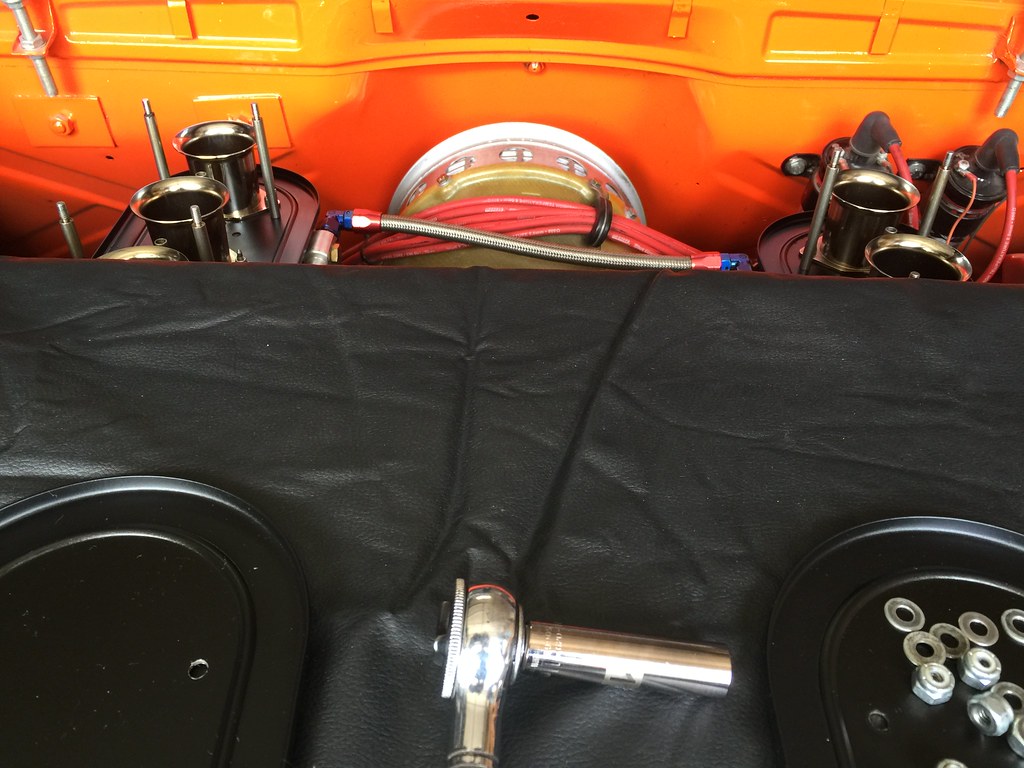

Found a couple. This gives you the idea re the coils -

(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-21-1645713107.1.jpg)

Ancient 2009 pic, cleaned-up wiring since then and eliminated tach adapter but mounting is still the same -

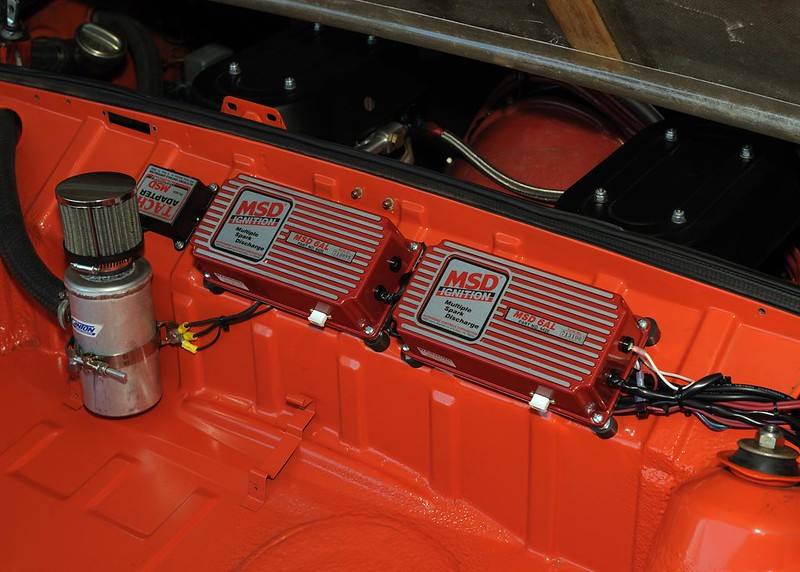

(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-21-1645713108.2.jpg)
