> trans-formation!, THIS is gonna be better...(maybe)
Duffster
post Aug 15 2005, 10:13 PM
Post #1


OFWG
**

Group: Benefactors
Posts: 258
Joined: 29-August 03
From: Riverside, CA
Member No.: 1,087

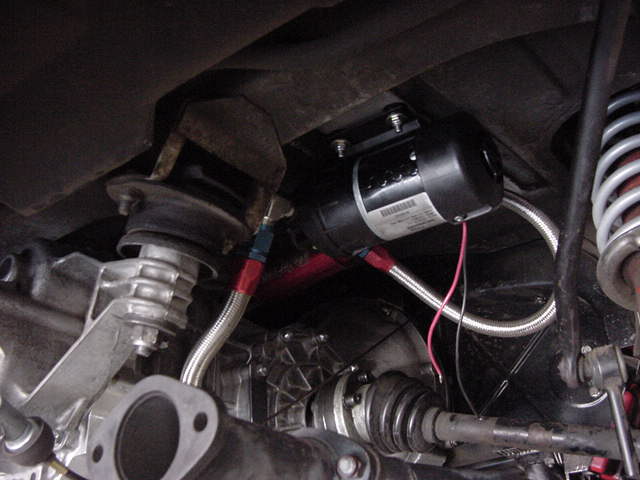

here are a couple of progress pictures... externals...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 19)
Duffster
post Aug 15 2005, 10:14 PM
Post #2


OFWG
**

Group: Benefactors
Posts: 258
Joined: 29-August 03
From: Riverside, CA
Member No.: 1,087

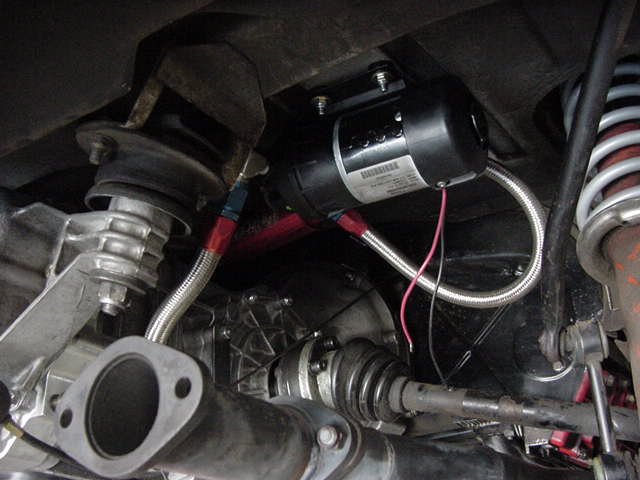

moooooore...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
redshift
post Aug 15 2005, 10:14 PM
Post #3


Bless the Hell out of you!
**********

Group: Members
Posts: 10,926
Joined: 29-June 03
Member No.: 869
(IMG:http://www.914world.com/bbs2/html/emoticons/huh.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Duffster
post Aug 15 2005, 10:15 PM
Post #4


OFWG
**

Group: Benefactors
Posts: 258
Joined: 29-August 03
From: Riverside, CA
Member No.: 1,087

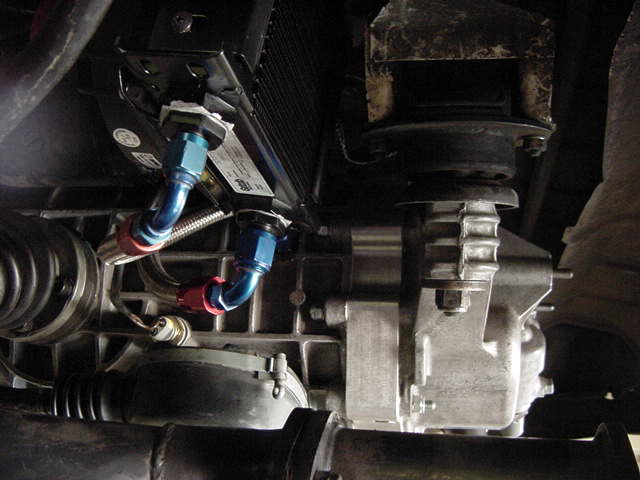

'gin...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Duffster
post Aug 15 2005, 10:16 PM
Post #5


OFWG
**

Group: Benefactors
Posts: 258
Joined: 29-August 03
From: Riverside, CA
Member No.: 1,087
last...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Duffster
post Aug 15 2005, 10:19 PM
Post #6


OFWG
**

Group: Benefactors
Posts: 258
Joined: 29-August 03
From: Riverside, CA
Member No.: 1,087
one a these days I gotta take this thing apart and strip the tub... god, that looks awful underneath! (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markb
post Aug 15 2005, 10:23 PM
Post #7


914less :(
*****

Group: Members
Posts: 5,450
Joined: 22-January 03
From: Nipomo, CA
Member No.: 180
Region Association: Central California
Geez, Duff, as if your car wasn't cool enough already. What all is being done?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John
post Aug 15 2005, 10:29 PM
Post #8


member? what's a member?
****

Group: Members
Posts: 3,393
Joined: 30-January 04
From: Evansville, IN (SIRPCA)
Member No.: 1,615
Region Association: None
How did you plumb the cooler? I wish you would have taken pics of where you attached the lines to the trans case.

Did you put squirters over each of the gears?

Is that a freshly done trans? Have you used the billet intermediate plate before or is that new? (I put one together with the billet int. plate but haven't tried it yet...)

Just my bunch of questions.

It looks good.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Aug 15 2005, 10:35 PM
Post #9


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,542
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
Pump Cooler Spraybars?

very cool.... what did the bill come out to? (cheaper than a wevo'd 915???)

Very cool man!

A-Ron
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Duffster
post Aug 15 2005, 10:41 PM
Post #10


OFWG
**

Group: Benefactors
Posts: 258
Joined: 29-August 03
From: Riverside, CA
Member No.: 1,087
I was sick of the tranny noises that were generated at the WCC track day. (It turned out to be the midplate bearing turning into dust)

So I completely lost my mind on a rebuild/replacement. 914-6 case, billet midplate, billet bearing retainers, 904 mainshaft, ultra trick-top-secret gears and syncros made of unobtainium and hardend with carboncarboncarbon, and polished with dilithium oxide.

This is all because Seemore wouldn't allow me to take extreme advantage of him and sell me his built up box.... (IMG:http://www.914world.com/bbs2/html/emoticons/smash.gif)
I'm joining the twelve step group for stoopid 914 modifications tomorrow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John
post Aug 15 2005, 10:47 PM
Post #11


member? what's a member?
****

Group: Members
Posts: 3,393
Joined: 30-January 04
From: Evansville, IN (SIRPCA)
Member No.: 1,615
Region Association: None
Is the suction line connected to the drain plug? (That's the only place I could think of)

Is that a tilton pump? (That's what I have sitting on a shelf)

How did you figure out how much gear lube to put in there with a cooler and pump?

Inquisitive minds want to know...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Aug 15 2005, 10:50 PM
Post #12


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,542
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
if the pump and its hosese....were full of oil.... wouldnt you just fill untill it would begin to come out the fill plug?

prime the lines/cooler/pump and then fill to top plug no?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John
post Aug 15 2005, 11:14 PM
Post #13


member? what's a member?
****

Group: Members
Posts: 3,393
Joined: 30-January 04
From: Evansville, IN (SIRPCA)
Member No.: 1,615
Region Association: None
QUOTE
prime the lines/cooler/pump and then fill to top plug no?


Perhaps. Is this how it's done? (I'm just asking)

What is used for the spraybar or squirters for the gears?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
redshift
post Aug 15 2005, 11:41 PM
Post #14


Bless the Hell out of you!
**********

Group: Members
Posts: 10,926
Joined: 29-June 03
Member No.: 869
Seems like whatever is above the hole... would come out? No?

(IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)

..and I am drunk.


M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ArtechnikA
post Aug 16 2005, 05:41 AM
Post #15


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None
with both the cooler inlet and the outlet at the bottom, and higher than the trans, the cooler will fill up with a big air bubble and will be essentially un-utilised. the oil will just flow in the bottom of the cooler since the fluid flow won't be abl;e to displace the bubble.

coolers should be plumbed in at the bottom, out at the top - or both at the top.

(would you rather know this now, or later...?)

you don't have to believe me, check out 'Prepare To Win' - and the cooler plumbing on successful cars...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Duffster
post Aug 16 2005, 09:25 PM
Post #16


OFWG
**

Group: Benefactors
Posts: 258
Joined: 29-August 03
From: Riverside, CA
Member No.: 1,087
Well...its like this... The scavenge line is plumbed to a newly drilled hole in the side of the case that lies below the oil level at max fill. It goes directly to the cooler which feeds from the bottom on the right. The outlet in the cooler comes off the lower left, although it actually draws from the upper left corner of the cooler core, and passes over the top of the case to the filter and then to the pump and into the old filler hole where the spray bar connects.

To fill it we uncoupled the scavenge line and put the end onto the LSD oil container and started the pump. When lube came out the scavenge hole and didn't have any bubbles, we recoupled the hose and put in some more through the old fill hole/spray bar connection until it was above the new fill line and closed her up. I can add and or check it from the hole in the filter housing... (IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif) I wasn't watching how much it took (my bad...). The fill hole on the filter is where the thermostat goes that starts the pump when the car abuse starts to take its toll.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Duffster
post Aug 16 2005, 09:31 PM
Post #17


OFWG
**

Group: Benefactors
Posts: 258
Joined: 29-August 03
From: Riverside, CA
Member No.: 1,087
oh yeah... AArun... think about the annual gross domestic product for Nicaragua... And to think I passed on a 65K mile 915 with factory LSD from a 82 Euro Carrera that already HAD a bloody oil cooler!!! (IMG:http://www.914world.com/bbs2/html/emoticons/headbang.gif) Darn you, Seemore!!!

How you doin' anyhow?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Aug 16 2005, 09:39 PM
Post #18


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,542
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
QUOTE (Duffster @ Aug 16 2005, 08:31 PM)
oh yeah...  AArun...   think about the annual gross domestic product for Nicaragua...  And to think I passed on a 65K mile 915 with factory LSD from a 82 Euro Carrera that already HAD a bloody oil cooler!!! (IMG:http://www.914world.com/bbs2/html/emoticons/headbang.gif) Darn you, Seemore!!!

How you doin' anyhow?

and an integral pump (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

cant wait to see it duffy....

when you going to come to the next socal shindig?

kravig doing all the work? (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)

im doing ok.... got more projects than i can handle.... work ends this week. so does cashflow (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

AA
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markb
post Aug 16 2005, 09:52 PM
Post #19


914less :(
*****

Group: Members
Posts: 5,450
Joined: 22-January 03
From: Nipomo, CA
Member No.: 180
Region Association: Central California
Wow! Nice. (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Duffster
post Aug 16 2005, 10:02 PM
Post #20


OFWG
**

Group: Benefactors
Posts: 258
Joined: 29-August 03
From: Riverside, CA
Member No.: 1,087
I be out when it slows down a little at work. Kravig is doing it cause I can't find enough time to anything it seems. I figured if I wasn't going to go the way of 914lvr, I was going to have to shed a few urgent projects to those that can do 'em without having to do 'em over three or four times. (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
