| ChrisFoley |
 Nov 1 2023, 02:15 PM
Post
#1
|
|
I am Tangerine Racing  Group: Members Posts: 7,986 Joined: 29-January 03 From: Bolton, CT Member No.: 209 Region Association: None
 |
The two Type 4 engines and two 914 gearboxes from my Tangerine Racing F Production car are for sale.
A-spec engine, asking $7500 B-spec engine, asking $6500 Gearbox with LSD, asking $3500 *Sold* Open diff gearbox, asking $2500 *Sold* A Spec (180 hp) – Engine Needs to be rebuilt, has low compression. · 94mm Nickies Cylinders with Custom JE Pistons · Align Bored Crankase with Custom oiling mods · Custom Lightened Rocker Arms with 911 Swivel Foot Adjusters · Chrome Moly Pushrods · Silicon Nitride Lifters · Elgin 312 degree duration Camshaft (7806-20) · 7mm Stemmed Stainless Steel Valves with Beehive Springs & Titanium Retainers · Cylinder Heads with fully Ported intake & exhaust, cc'd for 12:1 Compression · Balanced 66mm Crankshaft · Carillo Rods · Lightened Flywheel with 911-S Clutch disc & Aluminum Pressure Plate · Custom Dry Sump Oiling Modifications include 2 Stage Schadek Oil Pump, Belt Driven Moroso 2 Stage Oil Pump Scavenges the Valve Covers · Belt Driven Horizontal Fan Cooling System with Aluminum Shroud · Weber 40 IDF Carburetors with custom manifolds - Highly Modified · Mallory Unilite Distributor & CD Ignition Box with adj. rev limiter B Spec (150 hp) - Low operating hours · 94mm Nickies Cylinders with Custom JE Pistons · Align Bored Crankcase with oiling mods · Custom Lightened Rocker Arms with 911 Swivel Foot Adjusters · Chrome Moly Pushrods · Silicon Nitride Lifters · Elgin 304 Degree duration Camshaft (7606-20) · 8mm Stemmed Stainless Valves with HD Single Valve Springs & Titanium retainers · Cylinder Heads with fully Ported Intake & Exhaust, cc'd for 11:1 compression · Balanced 66mm Crankshaft · Carillo Rods · Lightened Flywheel with Stock PP & 6 spring clutch disc · Custom Dry Sump Oiling Modifications include 2 Stage Schadek Oil Pump · Belt Driven Horizontal Fan Cooling System with Aluminum Shroud · Weber 40 IDF Carburetors with custom manifolds – Modified · Mallory Unilite Distributor Short Box for A Spec Engine *Sold* · ZF Limited Slip Differential (80%) · Custom Input Shaft with welded second gear · 911 Output Flanges · Gear Ratios: A, I, M, Q, W · Swepco 201 Long Box for Pocono & B Spec Engine *Sold* · Open diff · 911 Output Flanges · Gear Ratios: A, F, Ka, Q, X · Swepco 201 |
   |

|
  |
Replies(1 - 6)
| BillJ |
Nov 1 2023, 08:17 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,274 Joined: 4-March 13 From: charlotte, NC Member No.: 15,610 Region Association: None
|
Chris. I want the short box provided the flanges work on my 6 and is side shift.
|
|
|
|
| GregAmy |
Nov 2 2023, 03:09 PM
Post
#3
|
|
Advanced Member Group: Members Posts: 2,486 Joined: 22-February 13 From: Middletown CT Member No.: 15,565 Region Association: North East States
|
I can offer good personal experiences regarding Chris' "B Spec" engine.
Short-ish version of the story: buddy and I are prepping the 914 for the 2019 Lime Rock Historics over the Labor Day weekend. We're 3-4 days away from trailering to the track and I take the car out to the local industrial park for some quick carb tuning (the car is actually reg'd and insured for the street...not suitable for the street, mind you, but legal). As I'm making a couple full-bore runs I suddenly start hearing a loud BANG BANG BANG! coming from the engine...it continued to run, I still had oil pressure, and I was a half-mile from home so I baby'd it there. After some basic troubleshooting we discovered that the front crank pulley was not moving fore and aft when we moved the flywheel fore and aft...I had broken the crankshaft. We were about to pack it in for the year when I commiserated with Chris on our problem...and he offered to me the use of his 1.8L "B Spec" engine for the upcoming weekend! My buddy and I drove over to look at it, and mulled over what was involved in installing it in just a few days. We would have to reroute/replace some fuel and oil lines (he uses a different dry sump than mine) and some wiring and sensor changes, but given the engine would bolt right up to my transaxle, we gave it a go and had the car running in a couple days. Engine ran GREAT! We had to clean out the carbs and reattach some valve cover vent lines, but it all ran great and we had a wonderful time with it. Chris even let me take it on one extra weekend at New Jersey Lightning, where I have an in-car video: https://www.youtube.com/watch?v=7TSpu_T14z8...channel=GregAmy I wanted to buy the engine at the time instead of rebuilding my 2L (I mean, the 1.8L was already in there!) but Chris had plans to get the race car going...that's changed now I guess but I've already spent the money on my 2L and now I'm unemployed, otherwise that engine would be in my garage right now. When we removed the 1.8L from my car, we drained the case, squirted some oil into the cylinders, and ensured the carbs were drained of fuel. I'd have zero resistance to bolting this into my car and expecting it to fire up after a few cranks. Or, if someone is instead interested in a warmed-over 2L then maybe we can make a horse trade so I can buy Chris' 1.8L (which, being smaller, would knock me down a race class with most orgs)...let's chat. Greg |
|
|
|
| ChrisFoley |
Dec 15 2023, 01:00 PM
Post
#4
|
|
I am Tangerine Racing Group: Members Posts: 7,986 Joined: 29-January 03 From: Bolton, CT Member No.: 209 Region Association: None
|
The open diff gearbox is sold.
|
|
|
|
| ChrisFoley |
Dec 21 2023, 04:39 PM
Post
#5
|
|
I am Tangerine Racing Group: Members Posts: 7,986 Joined: 29-January 03 From: Bolton, CT Member No.: 209 Region Association: None
|
The second gearbox is sold.
|
|
|
|
| Subtaf |
Dec 27 2023, 05:34 AM
Post
#6
|
|
I'm new here ... Group: Members Posts: 0 Joined: 21-May 22 From: Perth, Australia Member No.: 26,567 Region Association: Australia and New Zealand |
QUOTE(ChrisFoley @ Nov 2 2023, 04:15 AM)  The two Type 4 engines and two 914 gearboxes from my Tangerine Racing F Production car are for sale. A-spec engine, asking $7500 B-spec engine, asking $6500 Gearbox with LSD, asking $3500 *Sold* Open diff gearbox, asking $2500 *Sold* A Spec (180 hp) – Engine Needs to be rebuilt, has low compression. · 94mm Nickies Cylinders with Custom JE Pistons · Align Bored Crankase with Custom oiling mods · Custom Lightened Rocker Arms with 911 Swivel Foot Adjusters · Chrome Moly Pushrods · Silicon Nitride Lifters · Elgin 312 degree duration Camshaft (7806-20) · 7mm Stemmed Stainless Steel Valves with Beehive Springs & Titanium Retainers · Cylinder Heads with fully Ported intake & exhaust, cc'd for 12:1 Compression · Balanced 66mm Crankshaft · Carillo Rods · Lightened Flywheel with 911-S Clutch disc & Aluminum Pressure Plate · Custom Dry Sump Oiling Modifications include 2 Stage Schadek Oil Pump, Belt Driven Moroso 2 Stage Oil Pump Scavenges the Valve Covers · Belt Driven Horizontal Fan Cooling System with Aluminum Shroud · Weber 40 IDF Carburetors with custom manifolds - Highly Modified · Mallory Unilite Distributor & CD Ignition Box with adj. rev limiter B Spec (150 hp) - Low operating hours · 94mm Nickies Cylinders with Custom JE Pistons · Align Bored Crankcase with oiling mods · Custom Lightened Rocker Arms with 911 Swivel Foot Adjusters · Chrome Moly Pushrods · Silicon Nitride Lifters · Elgin 304 Degree duration Camshaft (7606-20) · 8mm Stemmed Stainless Valves with HD Single Valve Springs & Titanium retainers · Cylinder Heads with fully Ported Intake & Exhaust, cc'd for 11:1 compression · Balanced 66mm Crankshaft · Carillo Rods · Lightened Flywheel with Stock PP & 6 spring clutch disc · Custom Dry Sump Oiling Modifications include 2 Stage Schadek Oil Pump · Belt Driven Horizontal Fan Cooling System with Aluminum Shroud · Weber 40 IDF Carburetors with custom manifolds – Modified · Mallory Unilite Distributor Short Box for A Spec Engine *Sold* · ZF Limited Slip Differential (80%) · Custom Input Shaft with welded second gear · 911 Output Flanges · Gear Ratios: A, I, M, Q, W · Swepco 201 Long Box for Pocono & B Spec Engine *Sold* · Open diff · 911 Output Flanges · Gear Ratios: A, F, Ka, Q, X · Swepco 201 I'd like to know more about those beeshive valves springs in your A spec engine.. Also, is your belt driven horizontal fan produced local to you? I have a 11 blade fan and fibreglass horizontal shroud. But nothing else. |
|
|
|
| ChrisFoley |
Dec 27 2023, 08:44 AM
Post
#7
|
|
I am Tangerine Racing Group: Members Posts: 7,986 Joined: 29-January 03 From: Bolton, CT Member No.: 209 Region Association: None
|

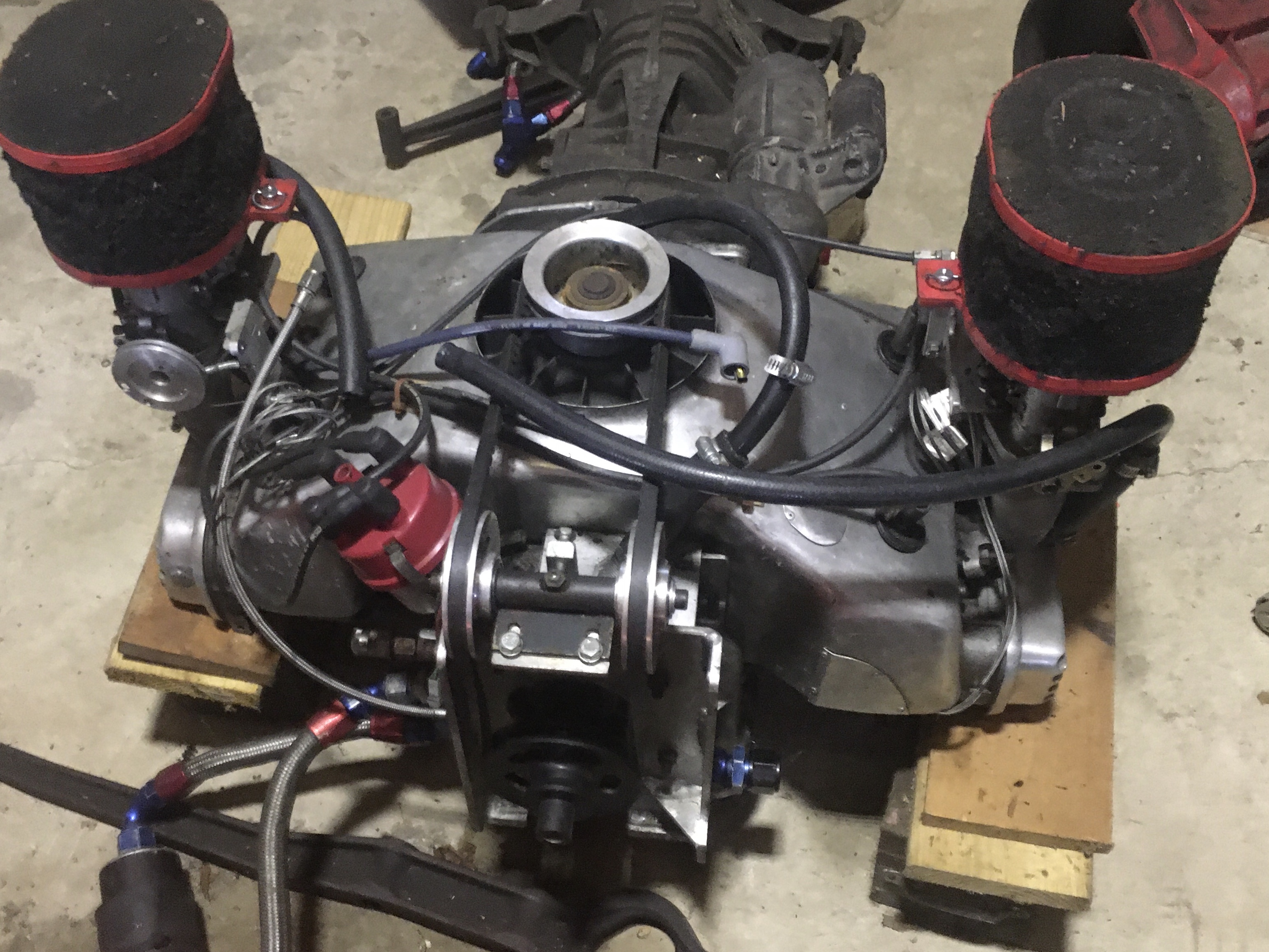

Here’s a recent picture of the engine.
The cooling system was a product of mine for many years, based on a Corvair fan. Not enough sales to support continued development.  |
|
|
|
|
