> Still looking 4 a layout diagram for heat4 a 914/6
Joe Bob
post Dec 14 2003, 05:48 PM
Post #1


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
Never had one with heat.....

Here's an underneath pic.


Where does the blower go....is there a splitter for the blower? C'mon throw me a bone here.....


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 17)
Aaron Cox
post Dec 14 2003, 05:50 PM
Post #2


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California
i dont think /6's had an electrical blower.... there defrost switch doesnt have the electrical contacts either (IMG:style_emoticons/default/huh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Dec 14 2003, 06:16 PM
Post #3


Mike Ginter
***************

Group: Admin
Posts: 16,096
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
No blower on a /6.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Dec 14 2003, 06:25 PM
Post #4


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
OK....so it comes off the fan shroud? Is there some million dollar adapter? Screw it....I will get a 12v marine bilge blower, a splitter and plumb the thing like a "murican would.....where's ma RTV?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Dec 14 2003, 06:28 PM
Post #5


Mike Ginter
***************

Group: Admin
Posts: 16,096
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
I never had the flapper boxes on mine, but I've heard that the /6 fan will move some serious air. Why not just do it stock and see how it works before you rig in an electric blower?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Dec 14 2003, 08:08 PM
Post #6


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
Yeah....well who has a diagram????
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Dec 14 2003, 08:13 PM
Post #7


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: Corona, CA
Member No.: 219
Region Association: Southern California

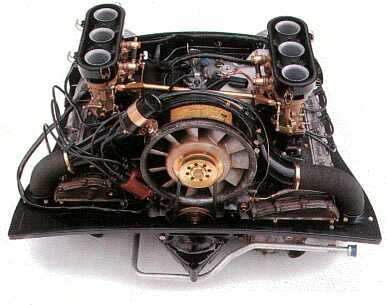

fan blows air toward heat exchangers


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Dec 14 2003, 08:15 PM
Post #8


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
Got a part number for the pieces that attach to the shroud?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bwilless
post Dec 14 2003, 10:03 PM
Post #9


Member
**

Group: Members
Posts: 156
Joined: 24-January 03
From: Tempe, AZ
Member No.: 192
I have the flapper boxes if your interested.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
campbellcj
post Dec 14 2003, 10:28 PM
Post #10


I can't Re Member
****

Group: Members
Posts: 4,623
Joined: 26-December 02
From: Agoura, CA
Member No.: 21
Region Association: Southern California
Hey Z...Logan likes your avatar.

He's more of a boob guy, but appreciates a good butt too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Dec 14 2003, 10:46 PM
Post #11


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
QUOTE(bwilless @ Dec 14 2003, 08:03 PM)
I have the flapper boxes if your interested.

Sure....they in good shape? How much? Send me an email at 356@cox.net
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Dec 14 2003, 10:52 PM
Post #12


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
Zois. You are a pain in the ass.

The two exchanger openings closest to the firewall get the flapper boxes.

The two openings farther back receive the air from the cooling fan.


B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Dec 14 2003, 11:17 PM
Post #13


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
Once I saw acox914's post I figured it out dickhead (IMG:style_emoticons/default/finger.gif) ....but thanks anyways....Merry Christmas.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Dec 14 2003, 11:55 PM
Post #14


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
Merry F-ing Christmas (hug the kids for me)...LOL


B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
si2t3m
post Dec 15 2003, 09:04 AM
Post #15


914 addict
**

Group: Members
Posts: 346
Joined: 9-January 03
From: Qc, Canada
Member No.: 119
Might have to get 'creative' with the flapper box cables or order some for a /6.

Marc-André
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Red-Beard
post Dec 15 2003, 09:09 AM
Post #16


"Ya canna change the laws of Physics"
***

Group: Benefactors
Posts: 1,124
Joined: 11-February 03
From: Houston, TX
Member No.: 288
Region Association: None
The heat from the 6 is Much nicer than the heat from a 4.

Remember, if you don't run the heat, block off the holes from the fan, or you lose most of your engine cooling air.

James
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fuch toy
post Dec 15 2003, 09:37 AM
Post #17


Unregistered
Yeah....the cowl did not have the heater outlets. I was able to source them locally. Need flappers and hoses....the cables appear to be new.
Go to the top of the page
+Quote Post
ArtechnikA
post Dec 15 2003, 10:34 AM
Post #18


rich herzog
*****

Group: Members
Posts: 7,390
Joined: 4-April 03
From: Salted Roads, PA
Member No.: 513
Region Association: None
QUOTE(Zois @ Dec 15 2003, 07:37 AM)
Need flappers and hoses...

the hot (sorry...) setup on hoses is the orange silicone 'aircraft' hose. it's pricey but you'll only have to buy it once every 20 yrs or so, and nothing else really takes the heat. Pegasus Racing carries it, others i'm sure. i'd expect a markup at any of the Porsche places for their knowledge of exactly how much to cut off the bulk roll they bought from Pegasus or Aircraft Spruce ...
