Hi,
Is there any significance to the pink/red dot on the cylinders? I have a set of NOS 2.0L Euro Pistons and cylinders that I'm installing and noticed the dot on the top fin. Thanks, Dan |
   |

|
  |
Replies(1 - 8)
| Mark Henry |
Mar 31 2008, 08:37 PM
Post
#2
|
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
Nope...the important part is the piston, it has an arrow and it must point towards the flywheel.
A bit of trivia....flip the piston over and you'll see a boss on the part that holds the pin. This boss also points towards the flywheel. |
|
|
|
| solex |
Mar 31 2008, 09:10 PM
Post
#3
|
|
Senior Member Group: Members Posts: 789 Joined: 12-January 05 From: Long Island, NY Member No.: 3,439 Region Association: North East States |

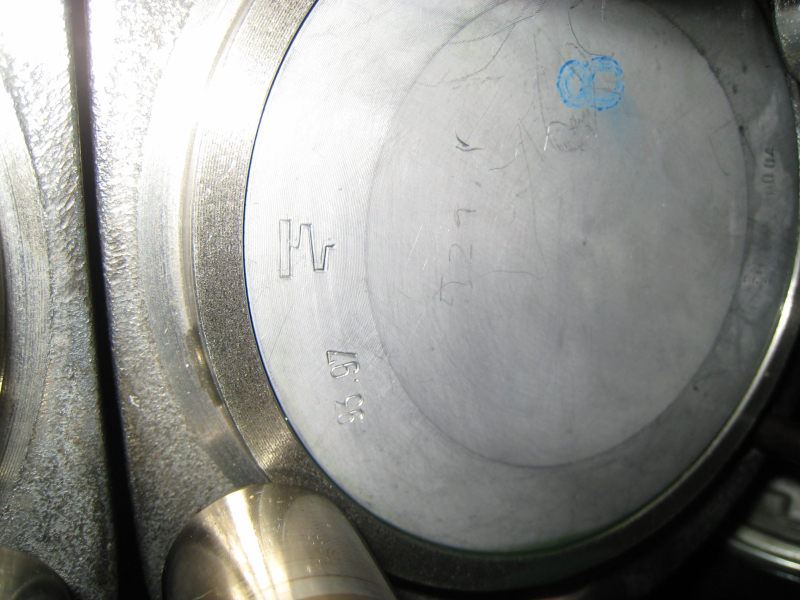

Interestingly there are no arrow on the pistons. There is a little schematic of the crankshaft and flywheel etched into the piston...

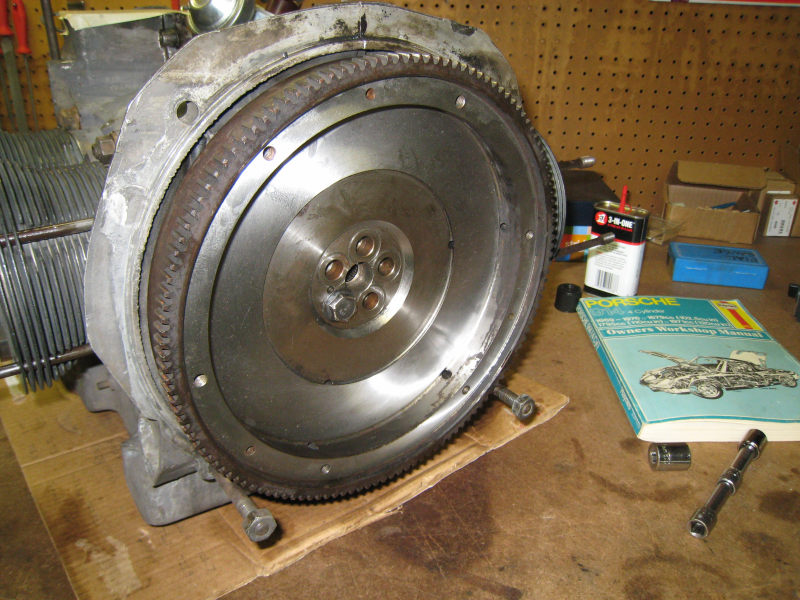

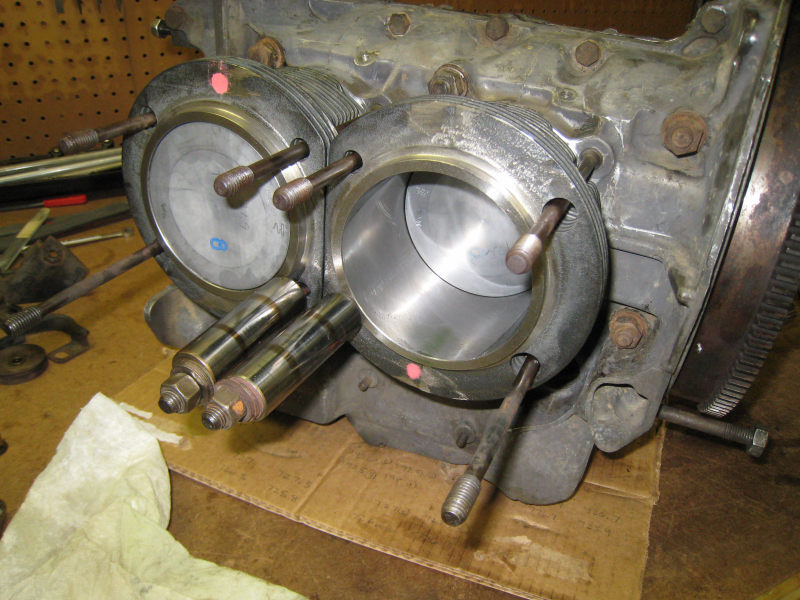

Some Pictures are attached. Thanks for the info Attached image(s)
|
|
|
|
| solex |
Mar 31 2008, 09:11 PM
Post
#4
|
|
Senior Member Group: Members Posts: 789 Joined: 12-January 05 From: Long Island, NY Member No.: 3,439 Region Association: North East States |

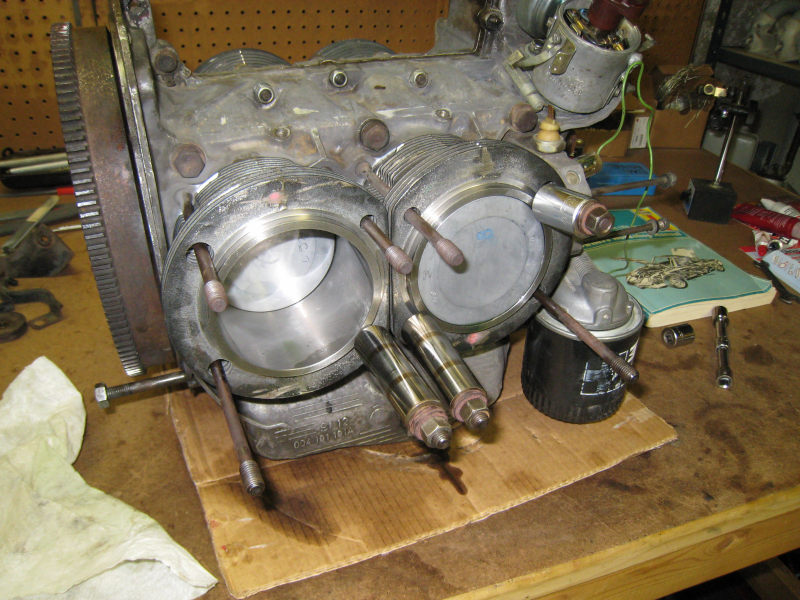

one other for good measure
Attached image(s)
|
|
|
|
| Mark Henry |
Mar 31 2008, 09:37 PM
Post
#5
|
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
Arrow is most common, but they did mark them with several different symbols over the years.
|
|
|
|
| VaccaRabite |
Apr 1 2008, 05:27 AM
Post
#6
|
|
En Garde! Group: Admin Posts: 13,755 Joined: 15-December 03 From: Dallastown, PA Member No.: 1,435 Region Association: MidAtlantic Region
|
QUOTE(solex @ Mar 31 2008, 11:11 PM)  one other for good measure Looks like your pilot bearing is pushed into the crank. Zach |
|
|
|
| degreeoff |
Apr 1 2008, 05:33 AM
Post
#7
|
|
I like big butts and I can not lie! Group: Members Posts: 1,622 Joined: 9-February 03 From: Booowieeee MD (near DC) Member No.: 275 Region Association: MidAtlantic Region |
Man look at how clean that haynes manual is! You need to spend more time in the shop!! lol
|
|
|
|
| solex |
Apr 1 2008, 06:42 AM
Post
#8
|
|
Senior Member Group: Members Posts: 789 Joined: 12-January 05 From: Long Island, NY Member No.: 3,439 Region Association: North East States |
QUOTE(Vacca Rabite @ Apr 1 2008, 07:27 AM) QUOTE(solex @ Mar 31 2008, 11:11 PM) one other for good measure Looks like your pilot bearing is pushed into the crank. Zach Zach, It has been removed so the machinist could resurface the flywheel and is sitting on the bench, thanks for noticing... |
|
|
|
| solex |
Apr 1 2008, 06:43 AM
Post
#9
|
|
Senior Member Group: Members Posts: 789 Joined: 12-January 05 From: Long Island, NY Member No.: 3,439 Region Association: North East States |
QUOTE(degreeoff @ Apr 1 2008, 07:33 AM) Man look at how clean that haynes manual is! You need to spend more time in the shop!! lol I cannot disagree with you on that point.... |
|
|
|
|
