| scotty b |
 Feb 2 2010, 05:48 PM
Post
#1
|
|
rust free you say ?  Group: Members Posts: 16,375 Joined: 7-January 05 From: richmond, Va. Member No.: 3,419 Region Association: None  |
I remember this being brought up before, possibly by myself, but I can't find any trace of it so I thought I would atart a new thead specifically dedicated to suspensions and in this case factory makings on them. These pics are from Jim McCloeds 73. All markings are on the rear trailing arms and I could find no evidence of anything onthe front suspension. Notice there is one brushed on and also one stamped mark on each side. (IMG:style_emoticons/default/idea.gif)
Attached image(s)
|
   |

|
  |
Replies
| type47fan |
Jun 17 2010, 08:41 PM
Post
#2
|
|
It Looks Better In Person. . . Group: Members Posts: 860 Joined: 17-September 03 From: Carlsbad, CA Member No.: 1,170 Region Association: Southern California
|

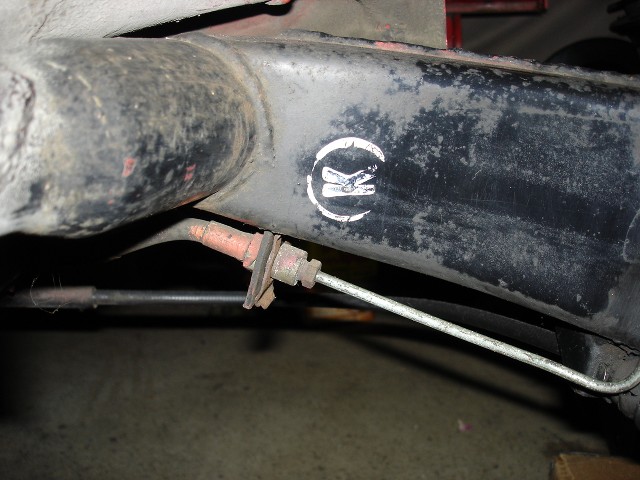

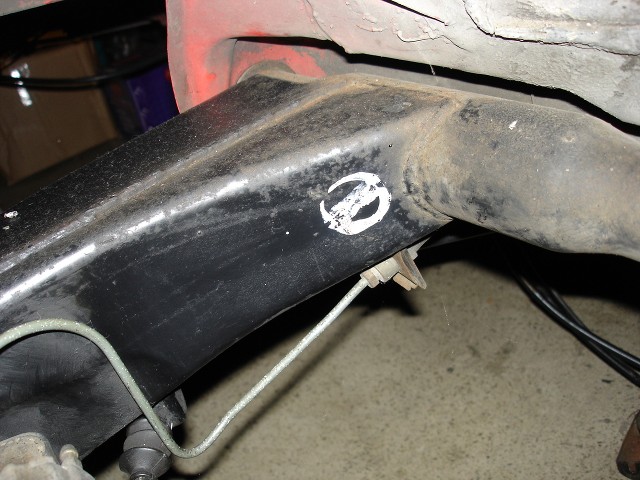

These are passenger and driver side trailing arm markings from my '76, number 3947.
Attached image(s)
|
|
|
|
