Front trunk Floor pan, Progress thread |
peteyd |
Sep 27 2011, 01:31 PM
Post
#1
|
Senior Member Group: Members Posts: 707 Joined: 27-March 08 From: Elora, Ontario, Canada Member No.: 8,858 Region Association: Canada |
Alright, I spoke a while back that I was going to start producing the Front trunk pan. I already have all the steel and all the CAD work done, so all I need to do is prep the steel and start cutting!
I wanted to start a thread here for all to follow the progress and also to get a better idea of what goes on at Restoration Design. I am the one in charge of designing and making all the dies here for the 914, 911, 912, and 356's. I have only made two small dies( pedal cluster support, seat mount bracket) for the 914 so far so I wanted to make something else that was in need. I started with an NOS full floor pan. The one that runs from the firewall all the way to the front trunk pan. Brought that away to get a digital scan and then from there I designed the male and female halves of the die. |
peteyd |
Nov 4 2011, 10:57 AM
Post
#2
|
Senior Member Group: Members Posts: 707 Joined: 27-March 08 From: Elora, Ontario, Canada Member No.: 8,858 Region Association: Canada |
Well its been a little while since I had an update.

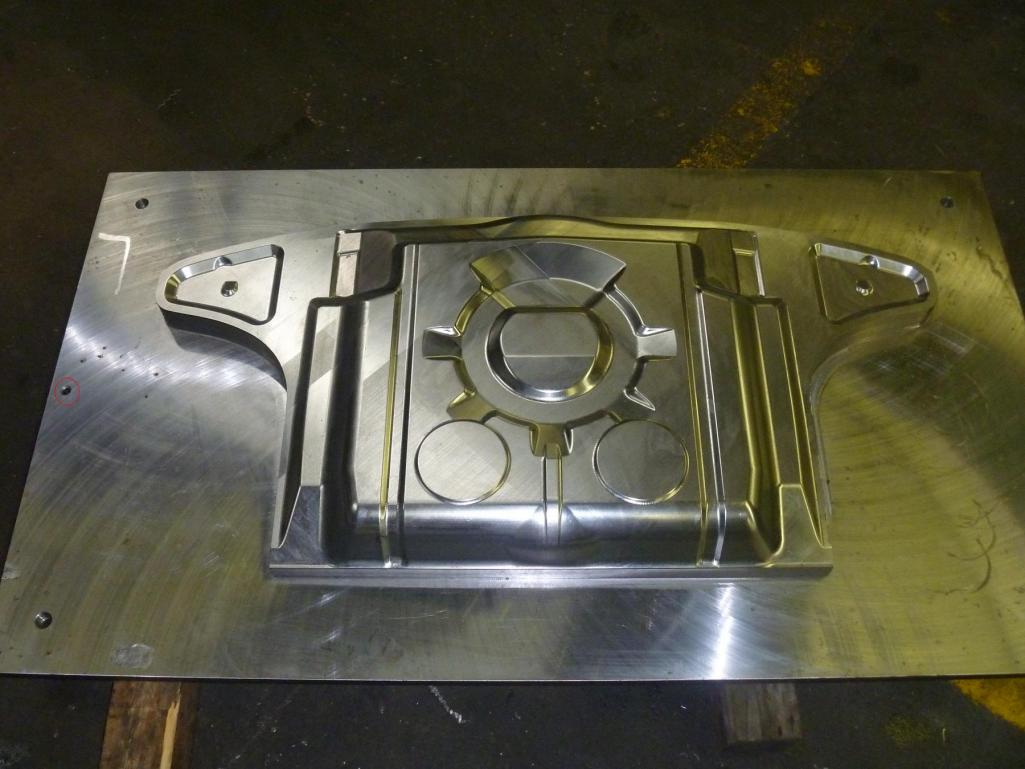

The male half is done now, and I am starting the prep work for the female side. In total the finishing bit ran for about 280 hours. I had to take two passes because about every 24hours I had to change the carbide insert. After putting in a new carbide, the height difference would be .003-.005 of an inch. After the final bit was finished, I drilled and reamed a hole through the mounting plate into the top of the table(circled in red). The reason I had to do this is because I machined all the way around the die and there were no flat edges to pick up off of if I ever wanted to put the die bad onto the mill for any reason. I then recorded the machine coordinates on the mounting plate to ensure the datum point is in the exact same location every time. Now I still have to polish this die, which will most likely take a full two weeks. |
