 JWest Engineering trunk hinge kit, Which way does it go ? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| pilothyer |
 Oct 30 2014, 05:17 PM
Post
#1
|
|
Member  Group: Members Posts: 838 Joined: 21-May 08 From: N. Alabama Member No.: 9,080 Region Association: South East States  |
I know there is a left and right side, but which way ? The instructions include a hand drawn picture that doesn't clearly show the orientation..........Does anyone have a picture of either side installed on your car........Thanks in advance.
|
   |

|
  |
Replies
| JWest |
Oct 31 2014, 06:45 AM
Post
#2
|
|
Senior Member Group: Members Posts: 1,665 Joined: 6-January 03 From: Fort Worth, TX Member No.: 97 Region Association: None
|

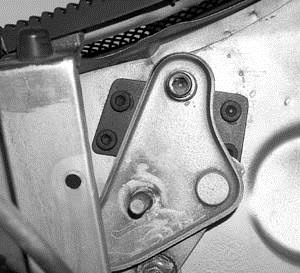

QUOTE(pilothyer @ Oct 30 2014, 06:17 PM)  I know there is a left and right side, but which way ? The instructions include a hand drawn picture that doesn't clearly show the orientation..........Does anyone have a picture of either side installed on your car........Thanks in advance. I'm confused about a drawing, I've never drawn it and my instructions include a picture of the left side, oriented to show the alignment. In the picture you can see the vertical support bracket, the hinge, and the stamping for the 914/6 oil filler. The angled side of the bracket is to the rear. The picture is taken with the trunk lid closed and shows 3 of the four holes can be accessed for drilling. Once these three are installed, the trunk can be raised, moving the hinge away so the last hole can be drilled. Since the pivot is installed with the deck lid closed and aligned, it really does not matter how it is oriented as long as you can access the holes for installation. The picture gives the general idea. Attached image(s)
|
|
|
|
| pilothyer |
Oct 31 2014, 09:45 AM
Post
#3
|
|
Member Group: Members Posts: 838 Joined: 21-May 08 From: N. Alabama Member No.: 9,080 Region Association: South East States |
QUOTE(JWest @ Oct 31 2014, 07:45 AM) I'm confused about a drawing, I've never drawn it and my instructions include a picture of the left side, oriented to show the alignment. James...........I bought my set from someone that didn't use them, but advertised them as directions included. The directions were kinda cartooney . After your reply I followed the link to your web site and noticed that you have the instructions there available for print....Thanks again for your reply and thanks to all for the help. |
|
|
|
Posts in this topic
pilothyer JWest Engineering trunk hinge kit Oct 30 2014, 05:17 PM
RobW I don't know.
Please take lots of Picts and s... Oct 30 2014, 05:26 PM wes driver side, cutout is up, adjustment bolt at bot... Oct 30 2014, 05:59 PM wes
I know there is a left and right side, but which ... Oct 30 2014, 06:05 PM pilothyer wes........I really appreciate the pics, but I am ... Oct 30 2014, 11:33 PM wes Well I'll look tomorrow! It seems to me th... Oct 31 2014, 12:21 AM ejm It's been a while since I've installed a s... Oct 31 2014, 04:08 AM
pilothyer Thanks for the information and the picture. Oct 31 2014, 08:28 AM
wes Looks like your good to go! Oct 31 2014, 11:56 AM |
