Bought This car in Nov 2013 and unfortunately it had to sit in my trailer until May of this year to get started on it. The picture is how the car looked the way I got it and how it came out of the trailer. Factory P/N steel flares, nice paint job, a not installed 3.0 close to ready to install, Oh, and an in process conversion. Just some cleaning and put it together and yes a lot of learning/ research. Because (a) I have never owned a 914. (b) never done an engine conversion (built a few). © never picked up where someone left off (you know how its easier to put something back together when you take it apart).

I got the "bug" from a friend who took me up the Ortega Hwy in his 6 conversion and I was hooked.

I decided to share my experiences with the "world" and hopefully along the way gain some insight. I have met some great 914 folks so far at swap meets and parts houses and everyone has been quite helpful. I will tell more of the story of what came with the car and what I have done so far as the days go by. Check in once in a while.

[Lucky9146]

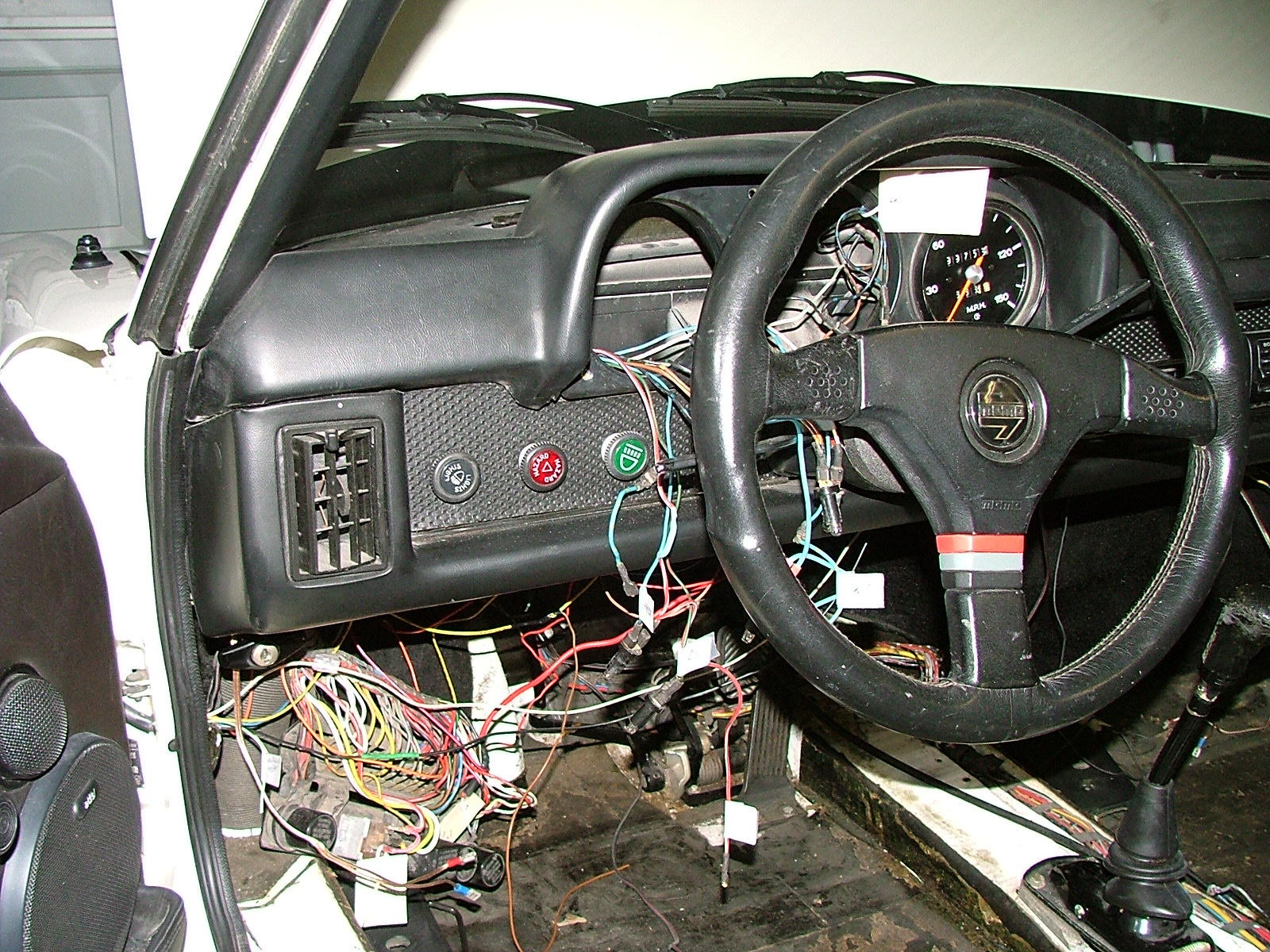

The real elephant in the room for me is the wiring for and under the dash. As I mentioned earlier in the thread, mechanically I am ok but electrical not so much. I have spent countless hours under the dash so far tracking and identifying wires from the fuse panel making some headway. Bought diagram's from Prosperos Garage and if you haven't seen them they are done very well and reasonably priced about $20. There is a lot of extraneous wires from a major bundle that were cut cut to the gone console, wires for a stereo, wires from some sort of long gone alarm system, wires to the electric and heated mirrors, and wires that used to go to the 4 cylinder engine for something(?). Add to that the PO found a 6 cyl tach (no year identified) and a really cool quad guage made both yet to be installed and challenges for both. PO bought and included small aux fuse box intended for the oil cooler fans, electric fuel pump, and whatever else. PO also included and intended to change the old main fuse panel to the modern fuses. Don;t get me wrong I think the harness is OK I think it worked but after reading a post the other day from a guy who fried his wires TWICE! I am just a bit skiddish. First the dash current state.

[porschetub]

The real elephant in the room for me is the wiring for and under the dash. As I mentioned earlier in the thread, mechanically I am ok but electrical not so much. I have spent countless hours under the dash so far tracking and identifying wires from the fuse panel making some headway. Bought diagram's from Prosperos Garage and if you haven't seen them they are done very well and reasonably priced about $20. There is a lot of extraneous wires from a major bundle that were cut cut to the gone console, wires for a stereo, wires from some sort of long gone alarm system, wires to the electric and heated mirrors, and wires that used to go to the 4 cylinder engine for something(?). Add to that the PO found a 6 cyl tach (no year identified) and a really cool quad guage made both yet to be installed and challenges for both. PO bought and included small aux fuse box intended for the oil cooler fans, electric fuel pump, and whatever else. PO also included and intended to change the old main fuse panel to the modern fuses. Don;t get me wrong I think the harness is OK I think it worked but after reading a post the other day from a guy who fried his wires TWICE! I am just a bit skiddish. First the dash current state.

I can't help but laugh @ your comments ,I'am doing the exact same job as you right now,PO had just popped the gauges in the dash on my car the only thing hooked up was the speedo cable (IMG:style_emoticons/default/sad.gif) .
My combo gauge is a 77 911 one and I have standalone fuel gauge already wired in the dash,its certainly a lot of wires to play with,I spent an hour and marked them all from the Bowlby diagram,like me you will have to run extra wires for earths and backlighting etc for the combo gauge.
I will watch and maybe learnt from your mistakes/success (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif) ,as it sounds like we both share the same electrical skills,cheers.

[Lucky9146]

I can't help but laugh @ your comments ,I'am doing the exact same job as you right now,PO had just popped the gauges in the dash on my car the only thing hooked up was the speedo cable (IMG:style_emoticons/default/sad.gif) .
My combo gauge is a 77 911 one and I have standalone fuel gauge already wired in the dash,its certainly a lot of wires to play with,I spent an hour and marked them all from the Bowlby diagram,like me you will have to run extra wires for earths and backlighting etc for the combo gauge.
I will watch and maybe learnt from your mistakes/success (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif) ,as it sounds like we both share the same electrical skills,cheers.
[/quote]

Response above shows misery loves company and I wish you luck too! BTW my speedo was the only guage hooked up too. Ha ha. But your comment promted me to go back and look at my stuff I found a note from boxster fan back in June, early when I was trying to sort things out and still am! He provided the following tip which some may find helpful on Bowlsby he referred to.

boxsterfan
914 relays, Jun 14 2015, 09:28 PM
914's are kewl
Group: Members
Posts: 1,282
Member No.: 791
Joined: 6-June 03

Here is info in the wiring for under the passenger seat.

http://bowlsby.net/914/Classic/zTN_Elect_R...ltInterlock.jpg

Other stuff on Bowlsby's site also:
http://bowlsby.net/914/Classic/TechNotebook.htm

boxsterfan
1974 2.0L
