> any subaru gurus out there - ej22 harness question
jimkelly
post Apr 12 2016, 10:42 PM
Post #1


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region

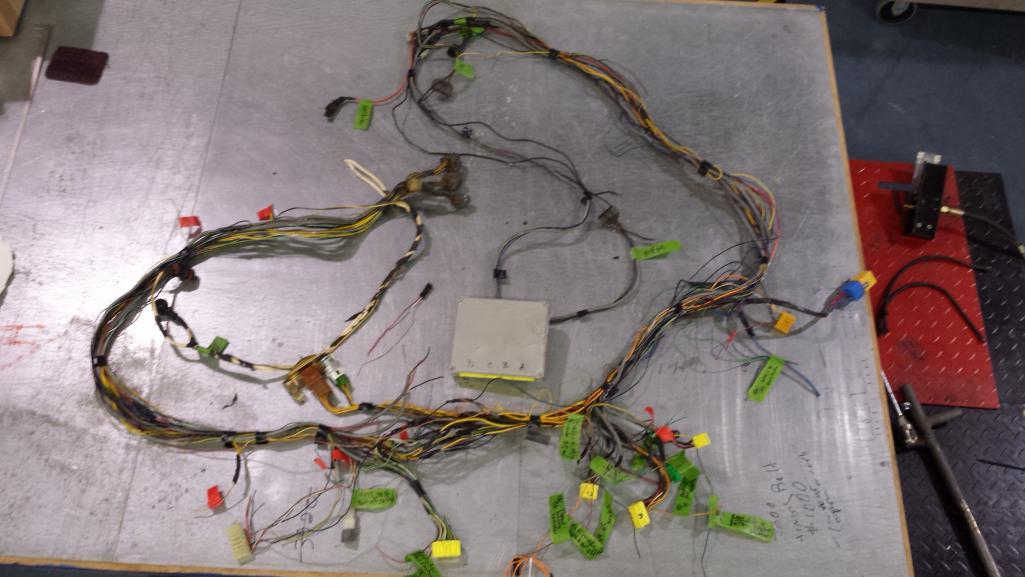

here is a pic of my harness with most sheathing removed.

there are a few good harness modification links on the internet but i am stumped at the moment as to what else i can cut off this harness.

my email: jimkellysells atttt gmail dotttt commm
for anyone that wants to email me directly.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Reply to this topicStart new topic
Replies
jimkelly
post Apr 13 2016, 08:21 PM
Post #2


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region



1990 legacy 5spd

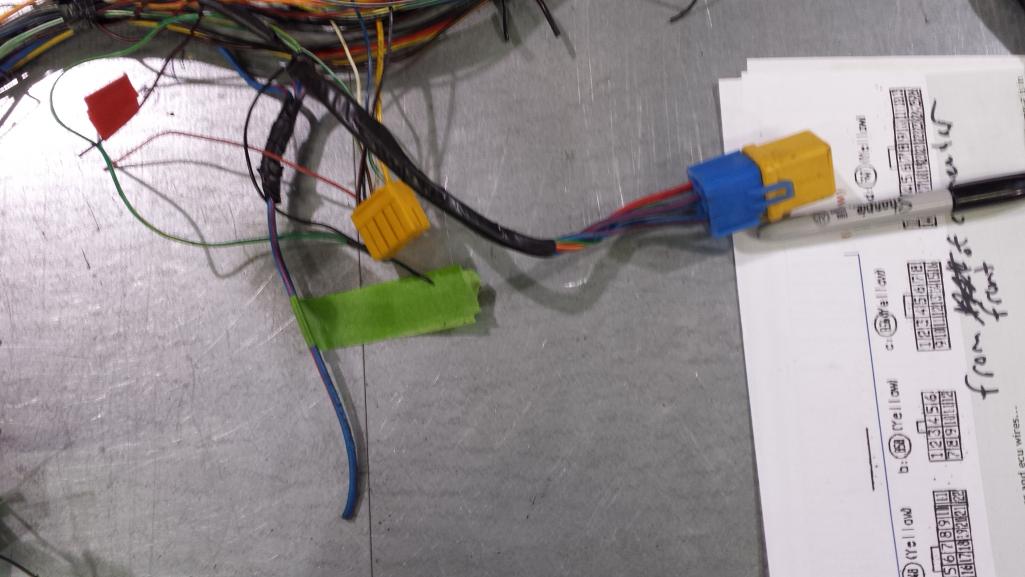

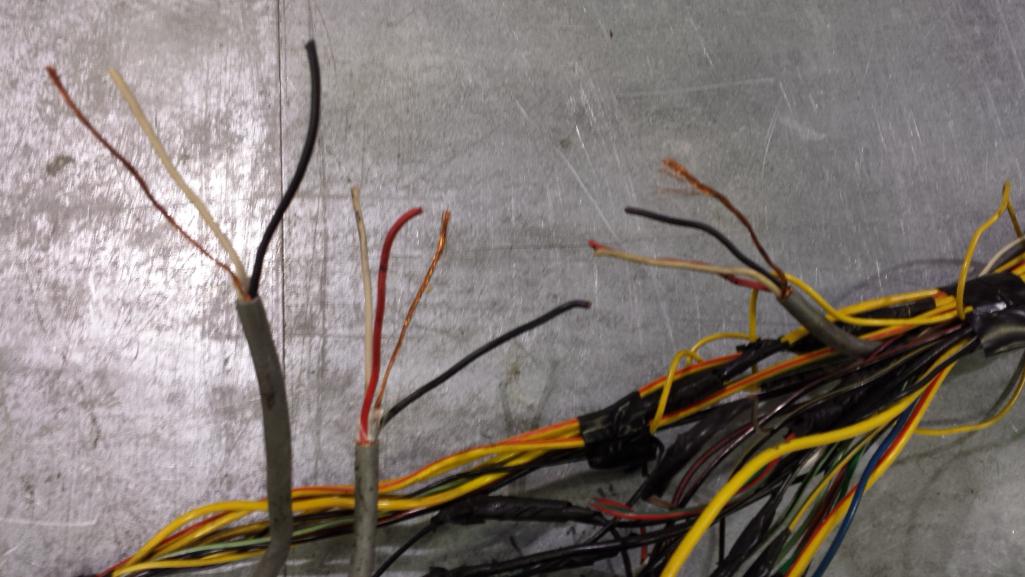

here is some progress, lots of wires removed, and some identified. i also botched up a few things, hope all are repairable.

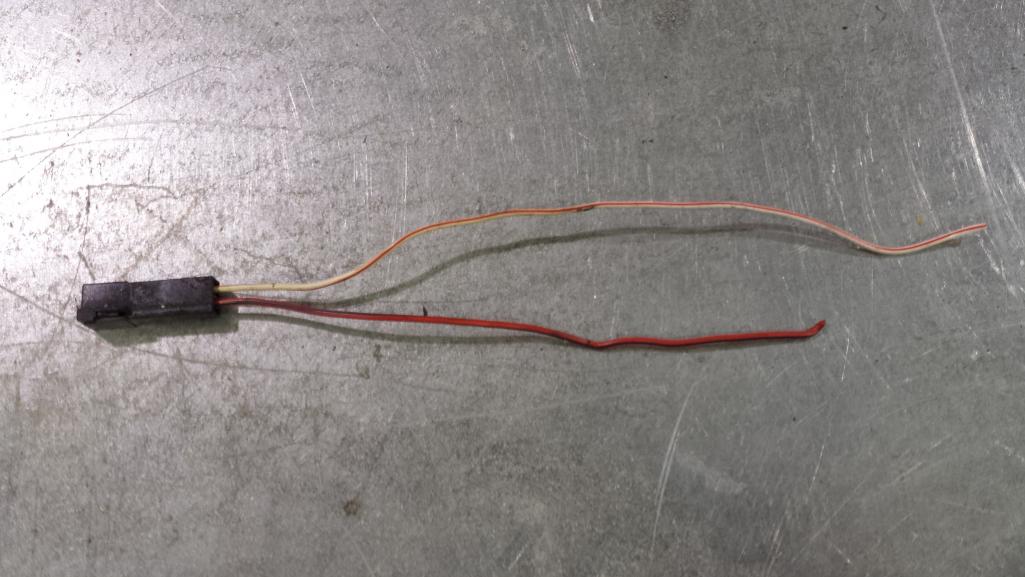

>>> my worst botch was cutting or disconnecting one of the engine plugs nearish to the ecu plug. these wires have one unsheathed wire (IMG:style_emoticons/default/blink.gif) and one seems to missing a red wire.

>>> such as where to wire in diode, i tried to keep it attached but then somehow it was gone and in my loose wires box. (IMG:style_emoticons/default/dry.gif)

i cut thru fat alt wires (IMG:style_emoticons/default/sad.gif) (* will just run a stand alone wire from alt to battery & wire up dummy light and guage later)

i also have a lot of soldering due to the bigger smj, and its wires i cut assuming most would be trash BUT most seem to be staying (IMG:style_emoticons/default/idea.gif) (* soldering done at this location for these many wires)

there is more but i think i made some good progress regardless.

jim


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Posts in this topic
jimkelly   any subaru gurus out there - ej22 harness question   Apr 12 2016, 10:42 PM
jimkelly   i cut plugs, 1,2 4. they are for abs, cruise contr...   Apr 13 2016, 06:11 AM
Chris H.   Jim, What you need to search the internet for is...   Apr 13 2016, 12:09 PM
jimkelly   the harness parsing video i saw of a later model l...   Apr 13 2016, 01:48 PM
Chris H.   If you look closely you'll see that most of th...   Apr 13 2016, 04:45 PM
a914622   Best thing for the early 22ej is the keneddy wire ...   Apr 13 2016, 07:00 PM
Chris H.   ^^^ This guy knows stuff. He's helped me a lo...   Apr 13 2016, 07:07 PM
a914622   Forgot what year? If it's the 95.5 I'm out...   Apr 13 2016, 07:23 PM
jimkelly   1990 legacy 5spd here is some progress, lots of w...   Apr 13 2016, 08:21 PM
Chris H.   Yep, you HAVE to find where that diode goes and pu...   Apr 13 2016, 09:48 PM
jimkelly   chris, thanks and i see your alt wire pic. are yo...   Apr 14 2016, 05:37 AM
jimkelly   so one fat wire from alt to battery. the other plu...   Apr 14 2016, 08:34 AM
jimkelly   if this is a pic of diode on precut harness, its w...   Apr 14 2016, 08:39 AM
jimkelly   a little video on how to solder 2 wires together. ...   Apr 14 2016, 09:07 AM
76-914   Resin core solder doesn't use any other flux. ...   Apr 14 2016, 09:17 AM
jimkelly   i will, thanks for tips.   Apr 14 2016, 09:20 AM
904svo   Jim, do yourself a favor and get the wiring diagra...   Apr 14 2016, 03:43 PM
jimkelly   just bought one on ebay.   Apr 14 2016, 03:51 PM
904svo   BEFORE YOU CUT ANY WIRES DOUBLE CHECK FIRST!   Apr 14 2016, 06:46 PM
jimkelly   most wires i cut at smj soldered back up. gonna s...   Apr 14 2016, 07:01 PM
